AJ Aircraft - 56" Laser 230z

3dmike

640cc Uber Pimp

Description:
Whether you're looking to go out and go 3d huckin' or lay down a smooth-as-butter precision flight, the 56" Laser 230z is for you! The wings have been thoroughly refined to allow precision flying, while not sacrificing any 3d characteristics. With a generous fuselage height, the model flies as well on its side as it does upright. Generously sized control surfaces give you excellent authority at all speeds. The Laser 230z features an awesomely light but strong airframe and a light wing loading that will handle anything you want it to.


Building the airplane is very straight forward. The rudder cables are pre-installed, hinges are pre-installed but not glued, and pre-installed blind nuts in the wing tips for the included SFG's make it easy to get this bird in the air in no time flat.


The 56" Laser 230z is the perfect "throw in your car for a few flights at the field" airplane. After flying this baby just once, we think it will be your go-to plane and put a smile on your face every time you fly it!

The 411:
Wing Span - 56"
Length - 54"
AOW - 4-4.5 lb
Power - Hacker A40-10S, 90amp ESC, 4s 3300mah lipo
Radio - 5 channel with 4 high torque mini servos


What's in the box:
Carbon reinforced landing gear mount
Pre-hinged and sealed control surfaces
Carbon main gear
G-10 control horns
Dual ball links for all connections
Carbon wing tube
Optional SFGs included
Genuine Oracover covering in 2 color scheme choices including the AJ Competition Scheme

AJ flies this airframe with the following equipment:
Hacker A40-10S
Xoar 15x6 or 14x7 prop
Castle Talon 90 ESC
Thunder Power 4s 3300mah G8 Pro-Lite+ 25C Lipo
4 Hitec 85MG, Hitec 5085, or Hitec 5087 servos

Also needed to complete:
2x 6" extensions for the ailerons
1x 12" extension for the ESC
1x 18" extensions to the elevator
2" or 50mm spinner


Link:
http://aj-aircraft.com/56-Laser-230z_p_8.html

Video:
[video=youtube;F1IJ1UIpoWw]https://www.youtube.com/watch?feature=player_embedded&v=F1IJ1UIpoWw[/video]

Pics:

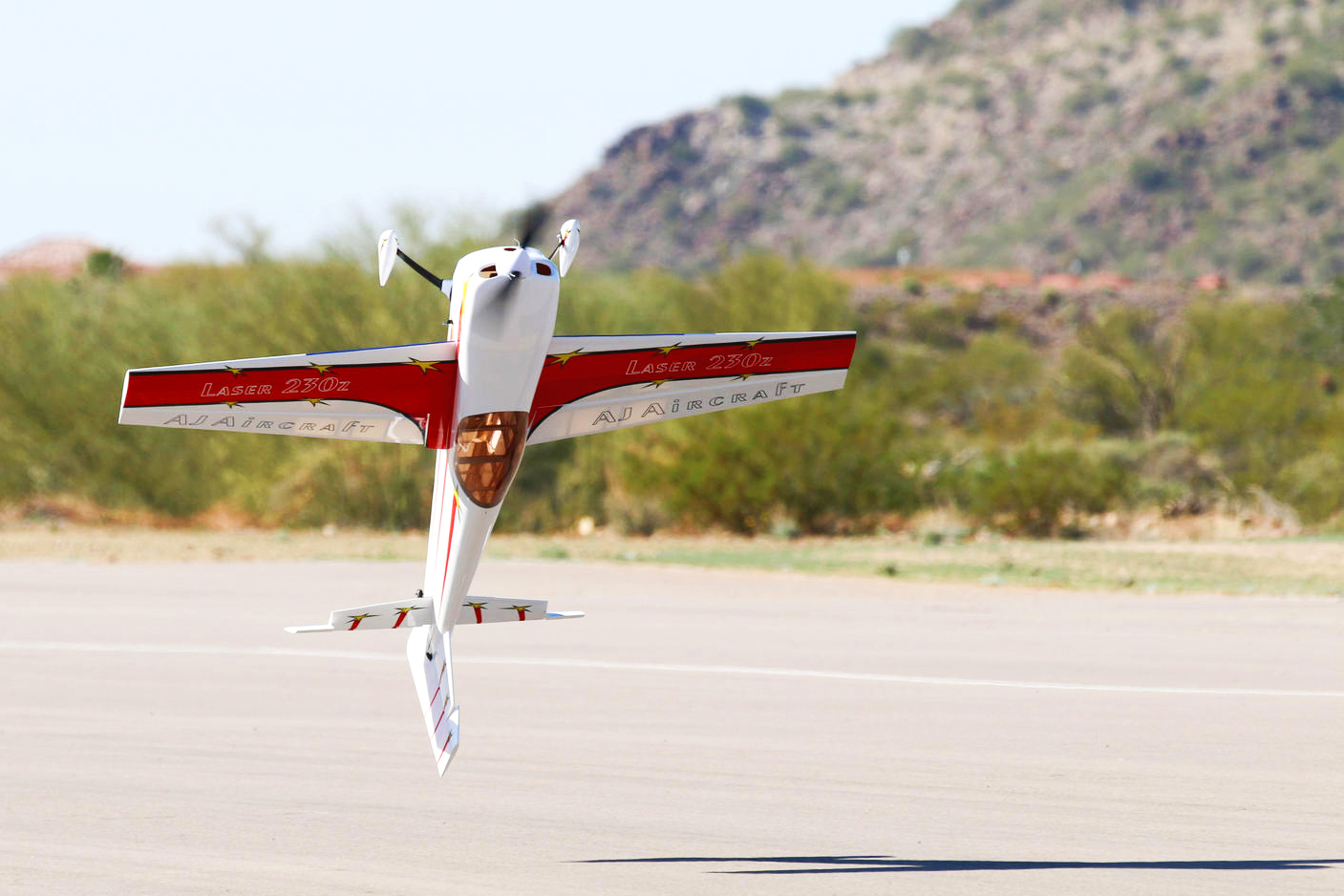

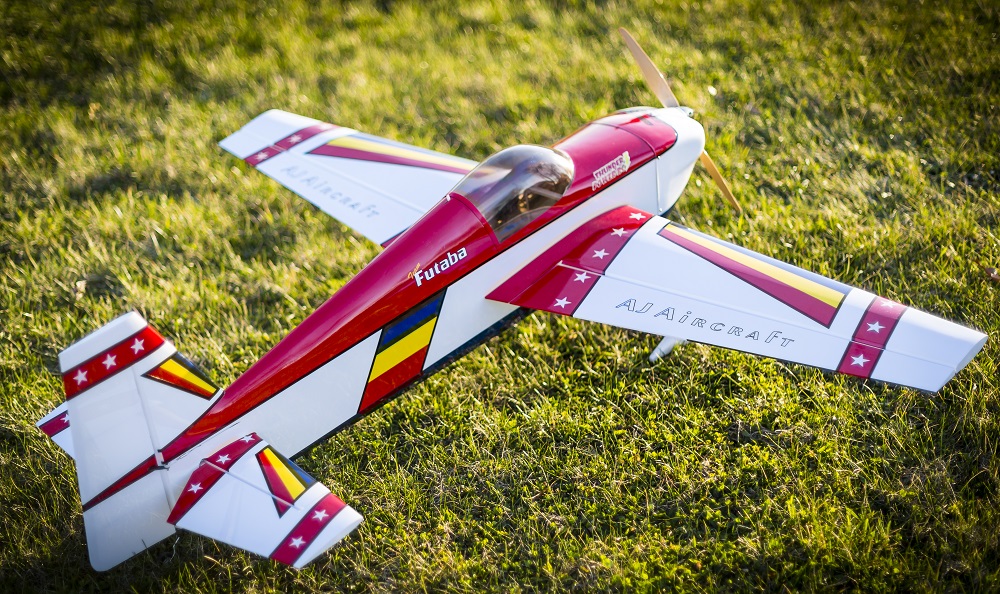

56-Laser-Flying.jpg 56-Laser-Static.jpg


HornetNZ

50cc
Loving my 56 so far! Behaves similarily to my 48" EF Extra, but looks and acts a lot bigger in the sky. Only about a dozen flights on it before winter came, but should get a lot of stick time this summer!
[video=youtube;vUQiv6O_bLE]https://www.youtube.com/watch?v=vUQiv6O_bLE&list=UUyaoLi5Zyg_qT47phsQ3JLA[/video]
[video=youtube;7hvQEkF4768]https://www.youtube.com/watch?v=7hvQEkF4768&list=UUyaoLi5Zyg_qT47phsQ3JLA[/video]


Attachments

  • 2014-10-02 21.07.32.jpg
    2014-10-02 21.07.32.jpg
    1.9 MB · Views: 504

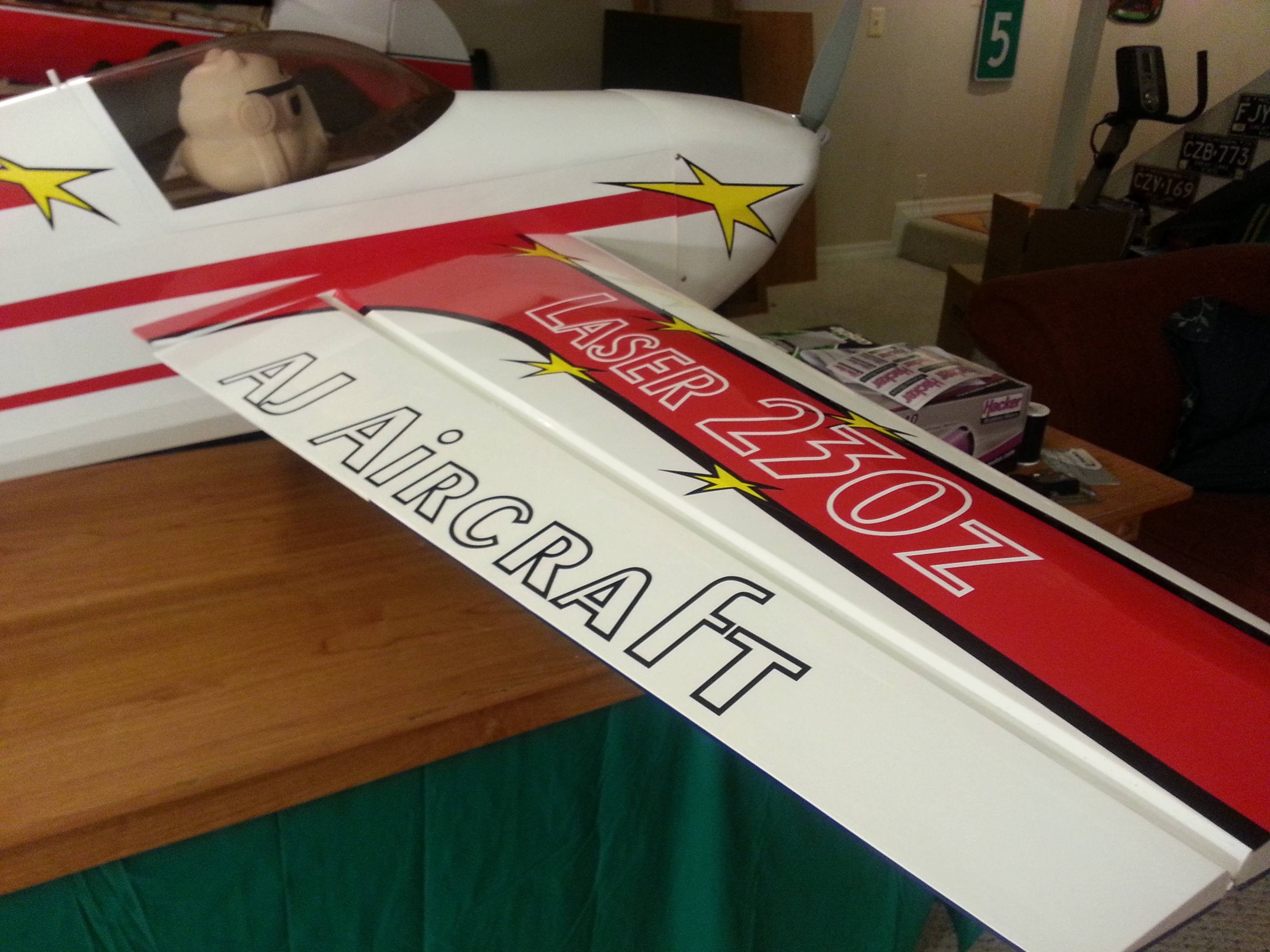

  • 2014-10-03 21.48.33.jpg
    2014-10-03 21.48.33.jpg
    2.2 MB · Views: 683

HornetNZ

50cc

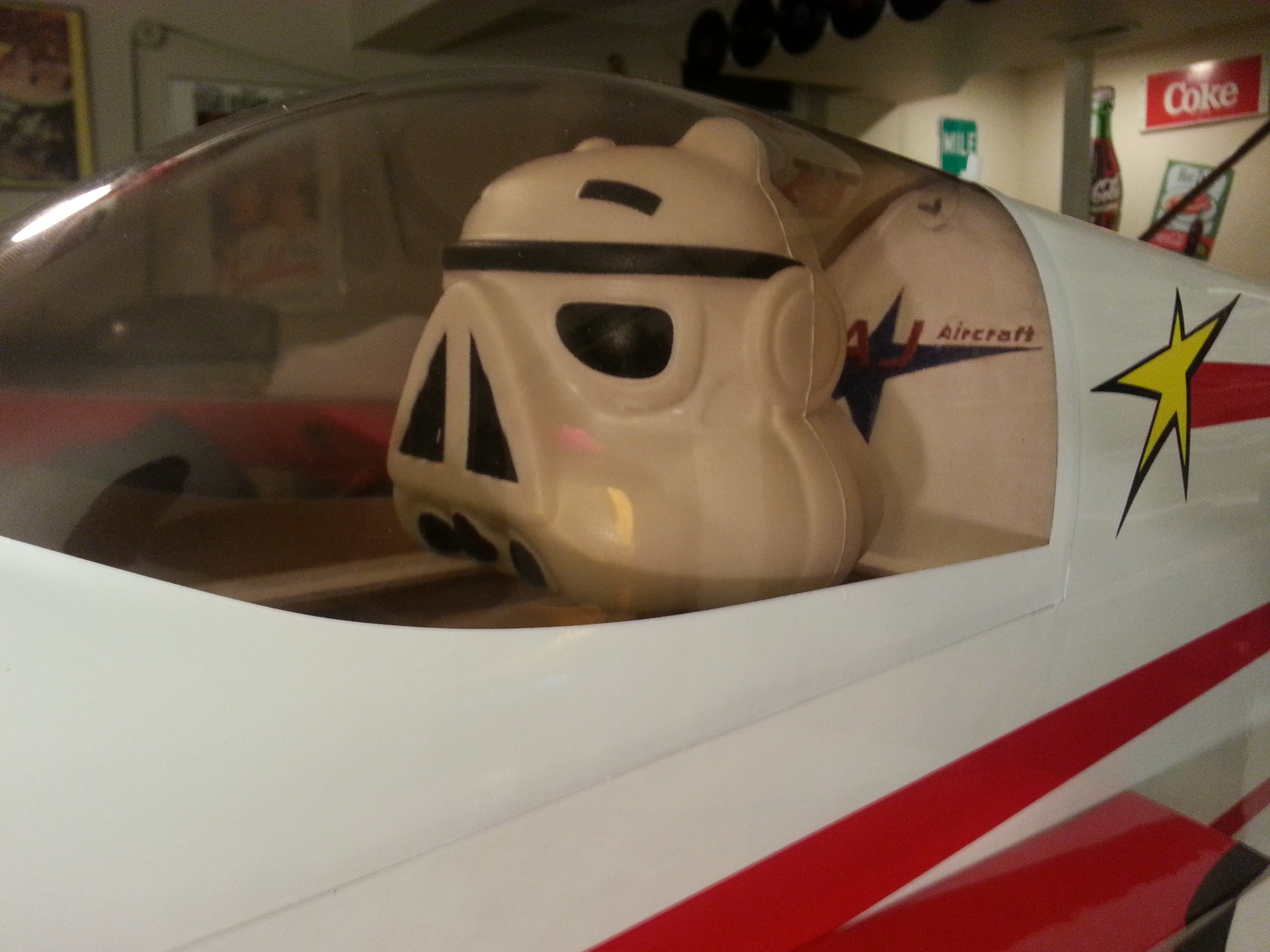

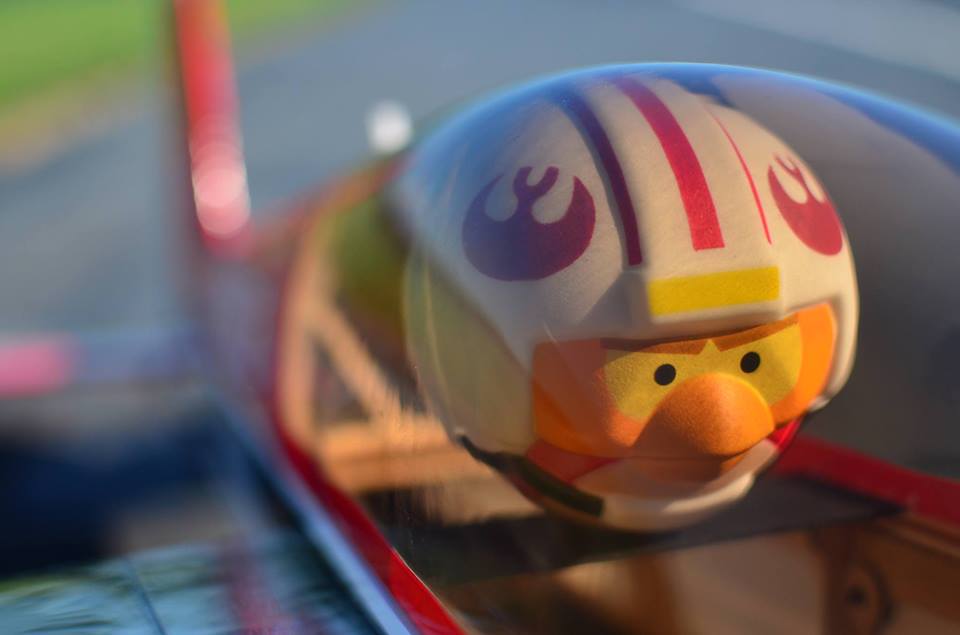

Haha, thanks. Star Wars Angry Birds foam heads. I found them at Toys R Us & Target. Put the Luke Redbird in my EF Extra. Still have a Darth Vader and Wookie one to put in something. :)


Attachments

  • 1174625_10153146820070068_409748672_n.jpg
    35.1 KB · Views: 523
