Emcotec Radio Power Systems, Perfect Regulators, Scott Grey Products Regulators!
Up for sale are a number of high end radio accessories. All are either brand new, or in perfect working used order (as noted). If you buy the item at my asking price, than shipping is on me (in the USA) - otherwise the shipping is negotiable!

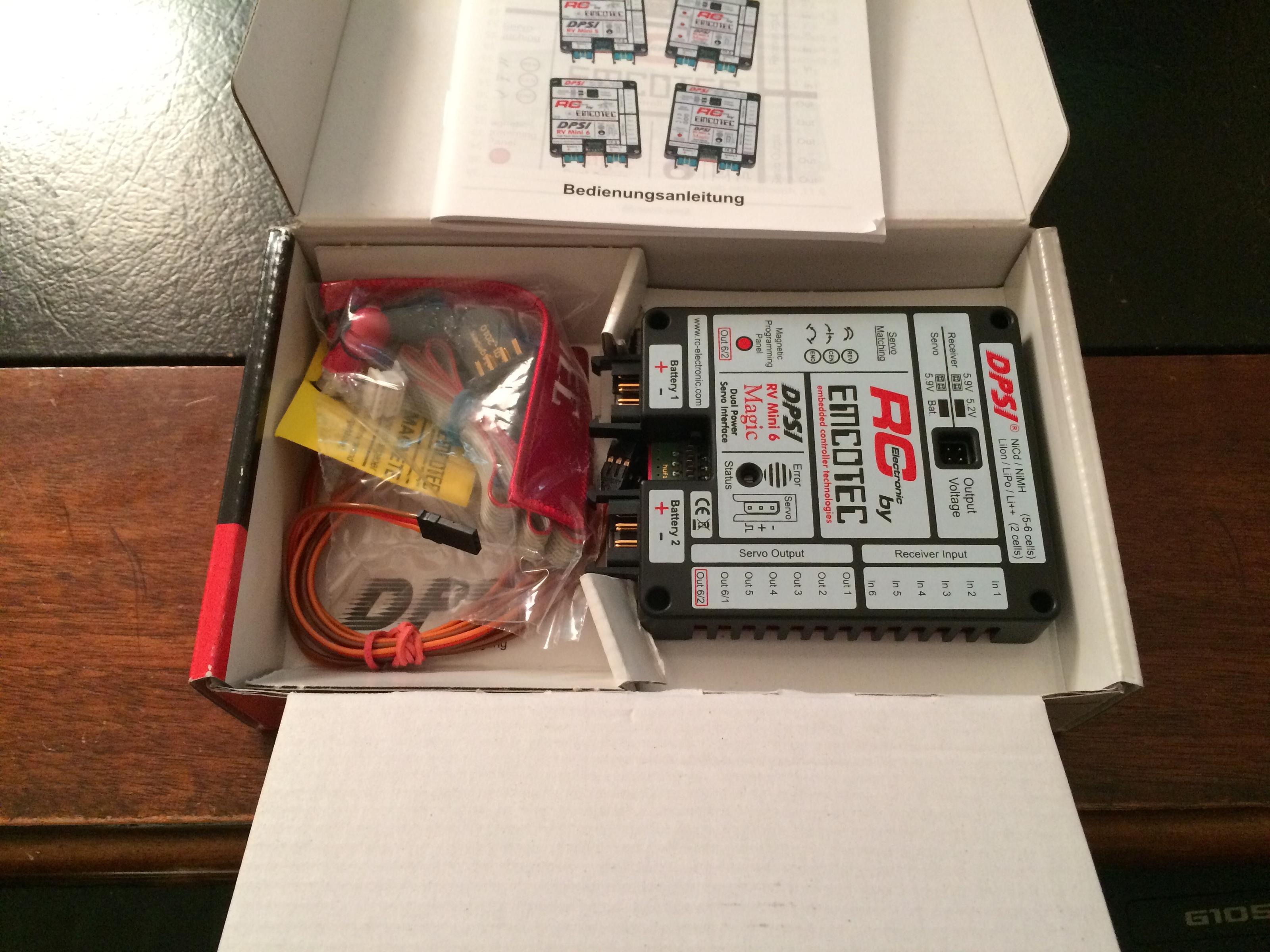

Emcotec DPSI Mini Magic 6 Power / Servo Mangement System - DPSI RV Mini 6 Magic
Fully redundant power and servo management system with current distribution of 6 receiver channels to 7 servos (additional servos directly connectable to the receiver).
Integrated servo matching: The slave servos connected to the match channels can be matched to the master servos. Turning direction, middle position and end positions can be adjusted. Simple programming of the servo settings with included magnet. No PC and no external programming unit necessary.
Up to 50A peak current load for optimal servo power. Failsafe electronical power switches with the proven pin switch actuator - the switching is not influenced by a micro controller (CSHC).
Regulated output voltage for the use of all battery types. DVS - Selectable Dual Voltage Supply for discrete receiver and servo voltage provisioning: Receiver voltage switchable between 5.2V and 5.9V, servo voltage switchable between 5.9V and 7.4V.
LowDropOut regulators for minimum dissipation loss and maximum power. Protection of the receiver against the so-called "dynamo effect".
APP - Advanced Push-Pull servo pulse amplification - ideal for 2.4GHz applications. HFIB - High Frequency Interference Blocking rejects interference from long servo cables.
IVM - Intelligent Voltage Monitoring with integrated status and alarm display. Easily programmable for all battery types: NiCd, NiMH, Li-Ion, Li-Po or LiFePo4. Optical and acoustical error indication . High grade ABS housing.
ATTENTION: The switching off process of DPSI works with a hall effect sensor. Hall effect sensors can be influenced by magnet fields. It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive). Current-carrying cables generate a magnet field. So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the switch acutator.
Delivery contents
Desired switch acutator
EMC high current connectors
Patch cables
Operating instructions
Small and Light enough for 25%, powerful enough for 40% New In Box, German Quality. Currently sells for over $250 - Asking $125 OBO !
(http://shop.rc-electronic.com/DPSI-...tec_e&SessionId=&a=article&ProdNr=A11036&p=13)

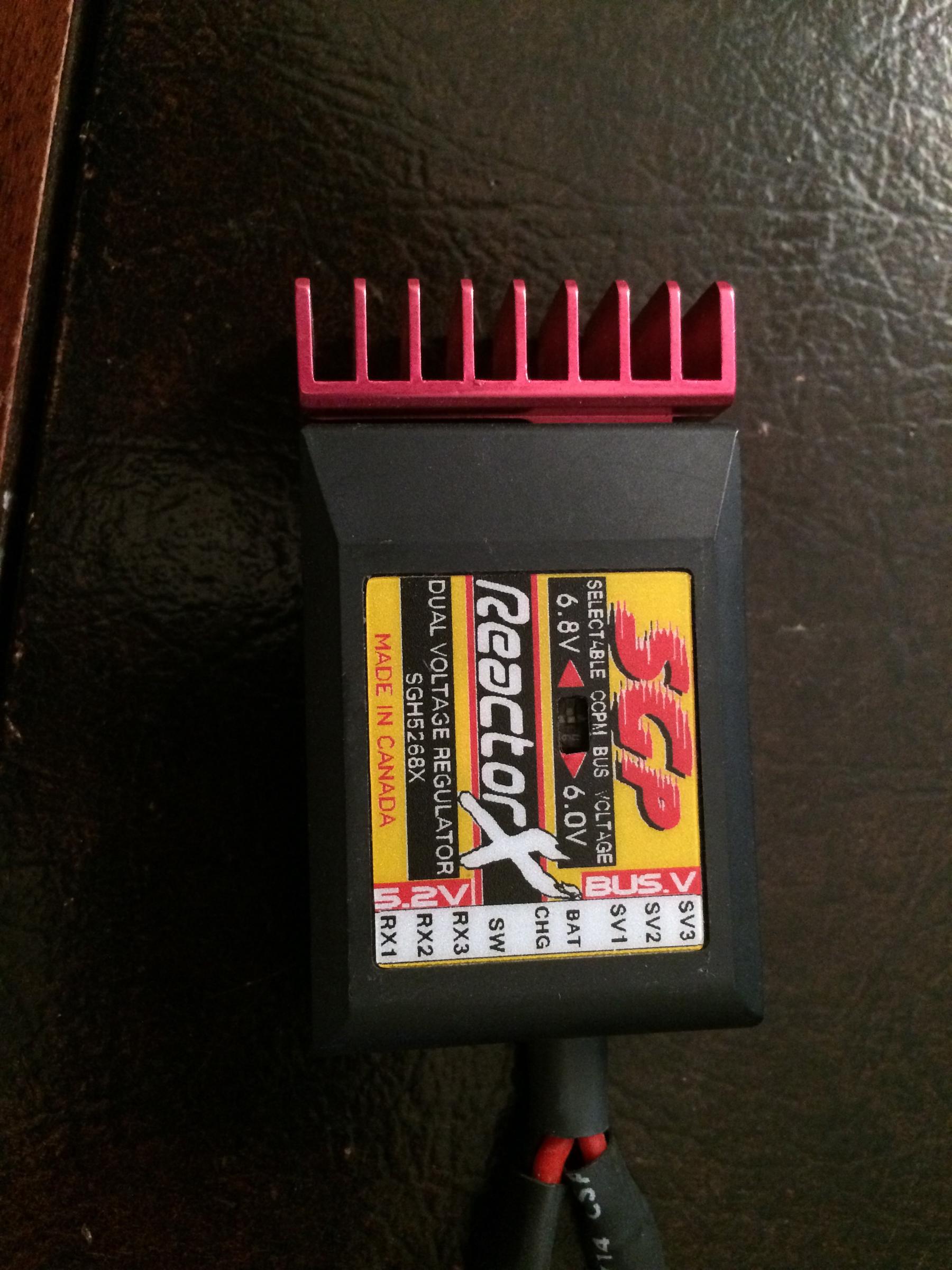

Scott Gray Products Reactor X CCPM Regulator - Used, but in excellent condition. Has Deans Ultra's on the battery and charge leads, and wires loomed. - Asking $25 OBO

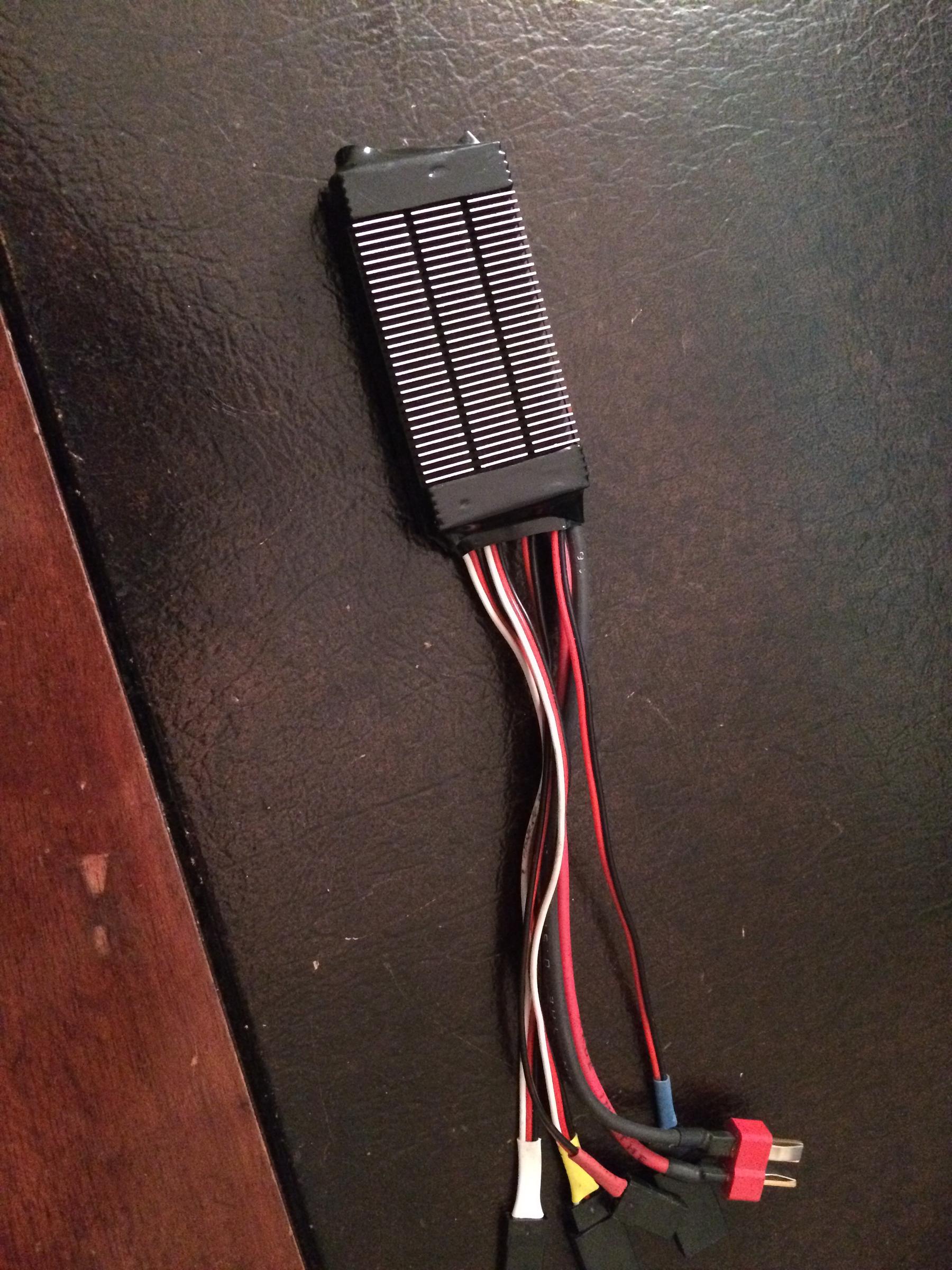

Perfect Regulators Flex Reg - Used excellent condition, Version 1.0 (which had the servo leads, instead of just pins) provides full voltage to the Cyclic Servos, with a regulated Tail Servo output. - Asking $25 OBO
(http://www.perfectregulators.com/index.php?route=product/product&path=37&product_id=51)
Please email me if interested at FL62@cox.net
Up for sale are a number of high end radio accessories. All are either brand new, or in perfect working used order (as noted). If you buy the item at my asking price, than shipping is on me (in the USA) - otherwise the shipping is negotiable!
Emcotec DPSI Mini Magic 6 Power / Servo Mangement System - DPSI RV Mini 6 Magic
Fully redundant power and servo management system with current distribution of 6 receiver channels to 7 servos (additional servos directly connectable to the receiver).
Integrated servo matching: The slave servos connected to the match channels can be matched to the master servos. Turning direction, middle position and end positions can be adjusted. Simple programming of the servo settings with included magnet. No PC and no external programming unit necessary.
Up to 50A peak current load for optimal servo power. Failsafe electronical power switches with the proven pin switch actuator - the switching is not influenced by a micro controller (CSHC).
Regulated output voltage for the use of all battery types. DVS - Selectable Dual Voltage Supply for discrete receiver and servo voltage provisioning: Receiver voltage switchable between 5.2V and 5.9V, servo voltage switchable between 5.9V and 7.4V.
LowDropOut regulators for minimum dissipation loss and maximum power. Protection of the receiver against the so-called "dynamo effect".
APP - Advanced Push-Pull servo pulse amplification - ideal for 2.4GHz applications. HFIB - High Frequency Interference Blocking rejects interference from long servo cables.
IVM - Intelligent Voltage Monitoring with integrated status and alarm display. Easily programmable for all battery types: NiCd, NiMH, Li-Ion, Li-Po or LiFePo4. Optical and acoustical error indication . High grade ABS housing.
ATTENTION: The switching off process of DPSI works with a hall effect sensor. Hall effect sensors can be influenced by magnet fields. It is possible that the DPSI switches off when exposed to a very strong magent field (i.g. electric drive). Current-carrying cables generate a magnet field. So please run all cables which are carrying a high current (>100A) with a distance of at least 3cm (1.18in) from the switch acutator.
Delivery contents
Desired switch acutator
EMC high current connectors
Patch cables
Operating instructions
Small and Light enough for 25%, powerful enough for 40% New In Box, German Quality. Currently sells for over $250 - Asking $125 OBO !
(http://shop.rc-electronic.com/DPSI-...tec_e&SessionId=&a=article&ProdNr=A11036&p=13)
Scott Gray Products Reactor X CCPM Regulator - Used, but in excellent condition. Has Deans Ultra's on the battery and charge leads, and wires loomed. - Asking $25 OBO
Perfect Regulators Flex Reg - Used excellent condition, Version 1.0 (which had the servo leads, instead of just pins) provides full voltage to the Cyclic Servos, with a regulated Tail Servo output. - Asking $25 OBO
(http://www.perfectregulators.com/index.php?route=product/product&path=37&product_id=51)
Please email me if interested at FL62@cox.net
