NEW Servos

ServoCity

ServoCity
GSN SPONSOR
Oh happy day when there are 4 NEW servos from Hitec! Did we mention that 3 are waterproof?
https://www.servocity.com/servos/hitec-servos

D840WP
D845WP
HS-1100WP
HS-1005SGT



stangflyer

I like 'em "BIG"!
D840WP:
Dimensions 2.59" x 1.26" x 2.44" (66mm x 32mm x 62mm)
Product Weight 227g (8 oz)
Output Shaft Style 15 tooth (D1) spline
Voltage Range 4.8V - 8.4V
No-Load Speed (4.8V) 0.17 sec/60°
No-Load Speed (6.0V) 0.14 sec/60°
No-Load Speed (7.4V) 0.11 sec/60°
Stall Torque (4.8V) 265.31 oz/in. (19 kg.cm)
Stall Torque (6.0V) 565.53 oz/in. (24 kg.cm)
Stall Torque (7.4V) 418.91 oz/in. (30 kg.cm)
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Material Steel
IP Rating IP67

D845WP:
Dimensions 2.59" x 1.26" x 2.44" (66mm x 32mm x 62mm)
Product Weight 8 oz (227g)
Output Shaft Style 15 tooth (D1) spline
Voltage Range 4.8V - 8.4V
No-Load Speed (4.8V) 0.26 sec/60°
No-Load Speed (6.0V) 0.21 sec/60°
No-Load Speed (7.4V) 0.17 sec/60°
Stall Torque (4.8V) 453.82 oz/in. (32.5 kg.cm)
Stall Torque (6.0V) 565.53 oz/in. (40.5 kg.cm)
Stall Torque (7.4V) 698.193 oz/in. (50 kg.cm)
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
IP Rating IP67

HS-1100WP:
Dimensions 2.52" x 1.30" x 2.87" (64mm x 33mm x 73mm)
Product Weight 12.80 oz (363g)
Voltage Range 11.1V - 14.8V
No-Load Speed (11.1V) 0.26 sec/60°
No-Load Speed (14.8V) 0.19 sec/60°
Stall Torque (11.1V) 1167 oz/in. (84 kg.cm)
Stall Torque (14.8V) 1528 oz/in. (110 kg.cm)
Motor Type 5-Pole Carbon Brushed Motor
Gear Material Steel
IP Rating IP67

HS-1005SGT:
Dimensions 2.52" x 1.3" x 2.9" (64mm x 33mm x 73mm)
Product Weight 10.93 oz (310g)
Output Shaft Style 15 Tooth (D1) Spline
Voltage Range 11.1V - 14.8V
No-Load Speed (11.1V) 0.26sec/60°
No-Load Speed (14.8V) 0.19sec/60°
Stall Torque (11.1V) 1,166.52 oz/in. (84.0kg.cm)
Stall Torque (14.8V) 1,527.58 oz/in. (110.0kg.cm)
Feedback Style 5KΩ Potentiometer
Output Shaft Support 2 Ball Bearings
Gear Material Steel

I think I just gotta give them D845WP's a shot. Dang....700 ouncse.....YES!!!
Too bad they are almost double size. Don't know that they will fit in anything at this time. And wow, the weight of them. PIGGY, PIGGY, PIGGY.


stangflyer

I like 'em "BIG"!
D840WP:
Dimensions 2.59" x 1.26" x 2.44" (66mm x 32mm x 62mm)
Product Weight 227g (8 oz)
Output Shaft Style 15 tooth (D1) spline
Voltage Range 4.8V - 8.4V
No-Load Speed (4.8V) 0.17 sec/60°
No-Load Speed (6.0V) 0.14 sec/60°
No-Load Speed (7.4V) 0.11 sec/60°
Stall Torque (4.8V) 265.31 oz/in. (19 kg.cm)
Stall Torque (6.0V) 565.53 oz/in. (24 kg.cm)
Stall Torque (7.4V) 418.91 oz/in. (30 kg.cm)
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Material Steel
IP Rating IP67

D845WP:
Dimensions 2.59" x 1.26" x 2.44" (66mm x 32mm x 62mm)
Product Weight 8 oz (227g)
Output Shaft Style 15 tooth (D1) spline
Voltage Range 4.8V - 8.4V
No-Load Speed (4.8V) 0.26 sec/60°
No-Load Speed (6.0V) 0.21 sec/60°
No-Load Speed (7.4V) 0.17 sec/60°
Stall Torque (4.8V) 453.82 oz/in. (32.5 kg.cm)
Stall Torque (6.0V) 565.53 oz/in. (40.5 kg.cm)
Stall Torque (7.4V) 698.193 oz/in. (50 kg.cm)
Motor Type Coreless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
IP Rating IP67

HS-1100WP:
Dimensions 2.52" x 1.30" x 2.87" (64mm x 33mm x 73mm)
Product Weight 12.80 oz (363g)
Voltage Range 11.1V - 14.8V
No-Load Speed (11.1V) 0.26 sec/60°
No-Load Speed (14.8V) 0.19 sec/60°
Stall Torque (11.1V) 1167 oz/in. (84 kg.cm)
Stall Torque (14.8V) 1528 oz/in. (110 kg.cm)
Motor Type 5-Pole Carbon Brushed Motor
Gear Material Steel
IP Rating IP67

HS-1005SGT:
Dimensions 2.52" x 1.3" x 2.9" (64mm x 33mm x 73mm)
Product Weight 10.93 oz (310g)
Output Shaft Style 15 Tooth (D1) Spline
Voltage Range 11.1V - 14.8V
No-Load Speed (11.1V) 0.26sec/60°
No-Load Speed (14.8V) 0.19sec/60°
Stall Torque (11.1V) 1,166.52 oz/in. (84.0kg.cm)
Stall Torque (14.8V) 1,527.58 oz/in. (110.0kg.cm)
Feedback Style 5KΩ Potentiometer
Output Shaft Support 2 Ball Bearings
Gear Material Steel

I think I just gotta give them D845WP's a shot. Dang....700 ouncse.....YES!!!View attachment 86158 Too bad they are almost double size. Don't know that they will fit in anything at this time. And wow, the weight of them. PIGGY, PIGGY, PIGGY.
I rely on you folks a lot it seems. If I ever need specs, I know one place I can go to get exactly what I need. Thanks Servo City.


Xpress

GSN Sponsor Tier 1
Hi guys.

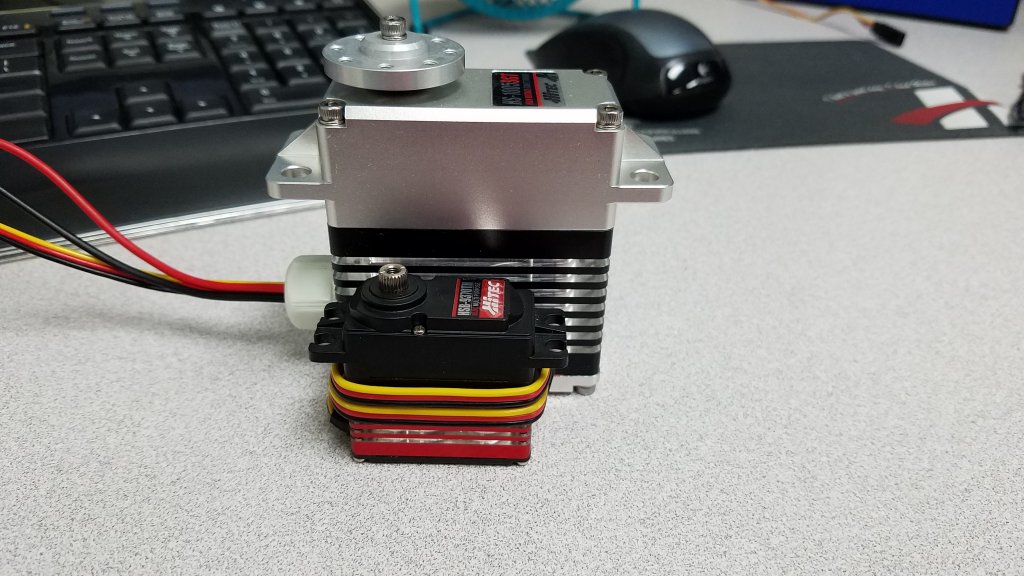

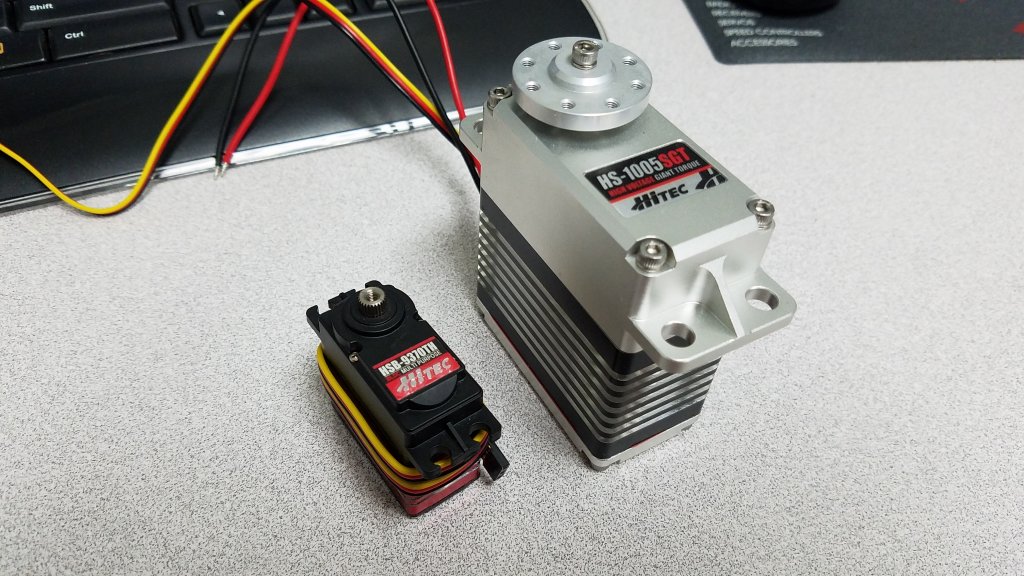

The D-840WP, D-845WP, HS-1005SGT, and HS-1100WP are all 1/4 scale size servos, made for either really big airplanes, or 1/5 scale cars and boats. Probably won't work so well in most of our airplanes, they're quite a big bigger than standard sized servos.
