For Sale PTE 36R version 3 Gasoline RC model aircraft engine 4 h.p "rear exhaust"

Ibcinyourc is the first distributor to import PTE products, we would appreciate your patronage! Also available is the PTE72 twin $385 shipped, and soon coming PTE60R rear exhaust! contact me for more details. 314-256-9987 or ibcinyourc@hotmail.com

Brand new in the box PTE 36R V3 $275 shipped - (3) available dealership warranty support right here in the USA. St. Louis Missouri to be exact!

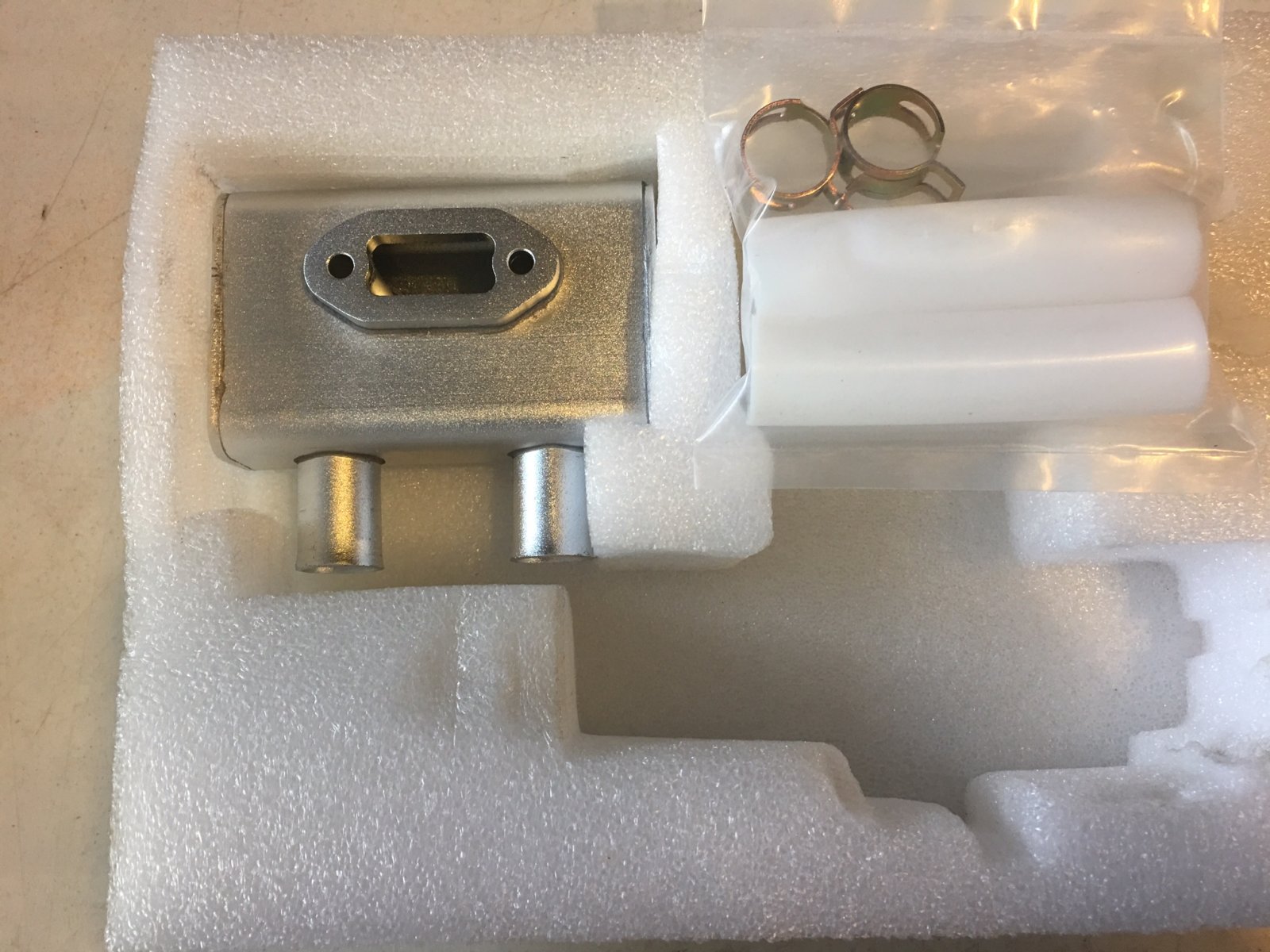

1) Pitts rear exhaust muffler included with the PTE 36R
2) High Power Design - the PTE spins a 20x8 with ease
3) The PTE 36 has Japanese Bearings for Long Life
4) The ignition can handle up to 7.2V on the PTE
5) The idle and transitions are BUTTERY Smooth
6) The PTE 36 has the same bolt pattern and prop bolt pattern as the DLE 30
7) The PTE has almost the same dimensions as the DLE 30
8) The PTE is only 2 ounces more than the DLE 30, but has SIGNIFICANT power increase
8)Every PTE is tested at the factory before boxing! (only started and quick run to assure quality control)

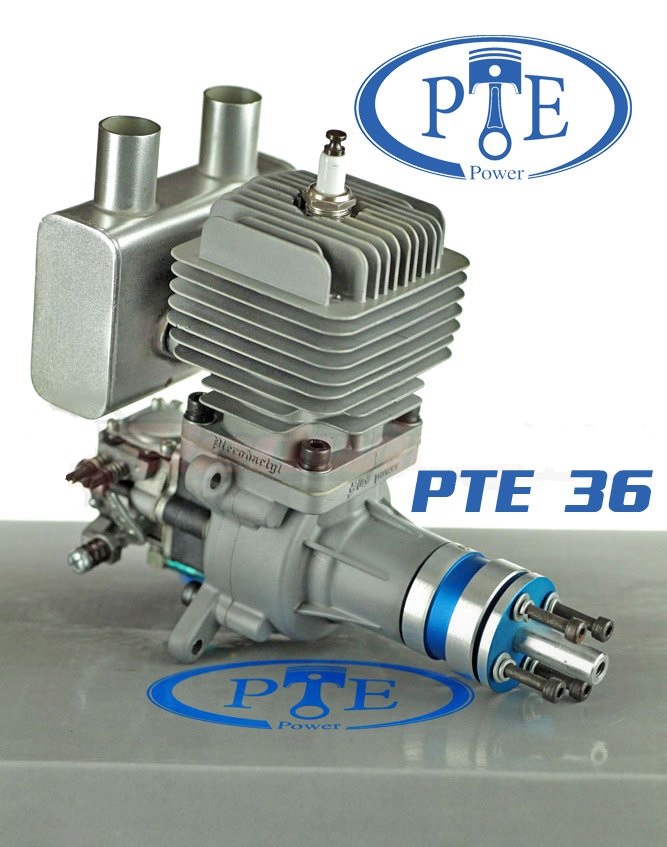

PTE-36
PTE 36 Mounting Template
PTE 36 Manual

Specifications:
Displacement: 36 cc
Bore X Stroke 38*32
Weight: 2.8 lb
RPM Range: 1,400-9,000
HP Apprx. 4 h.p.
Recommended Oil:
Break in: 1 Gallon with Lawnboy at 32:1
Then: Redline or other quality synthetic at 50:1

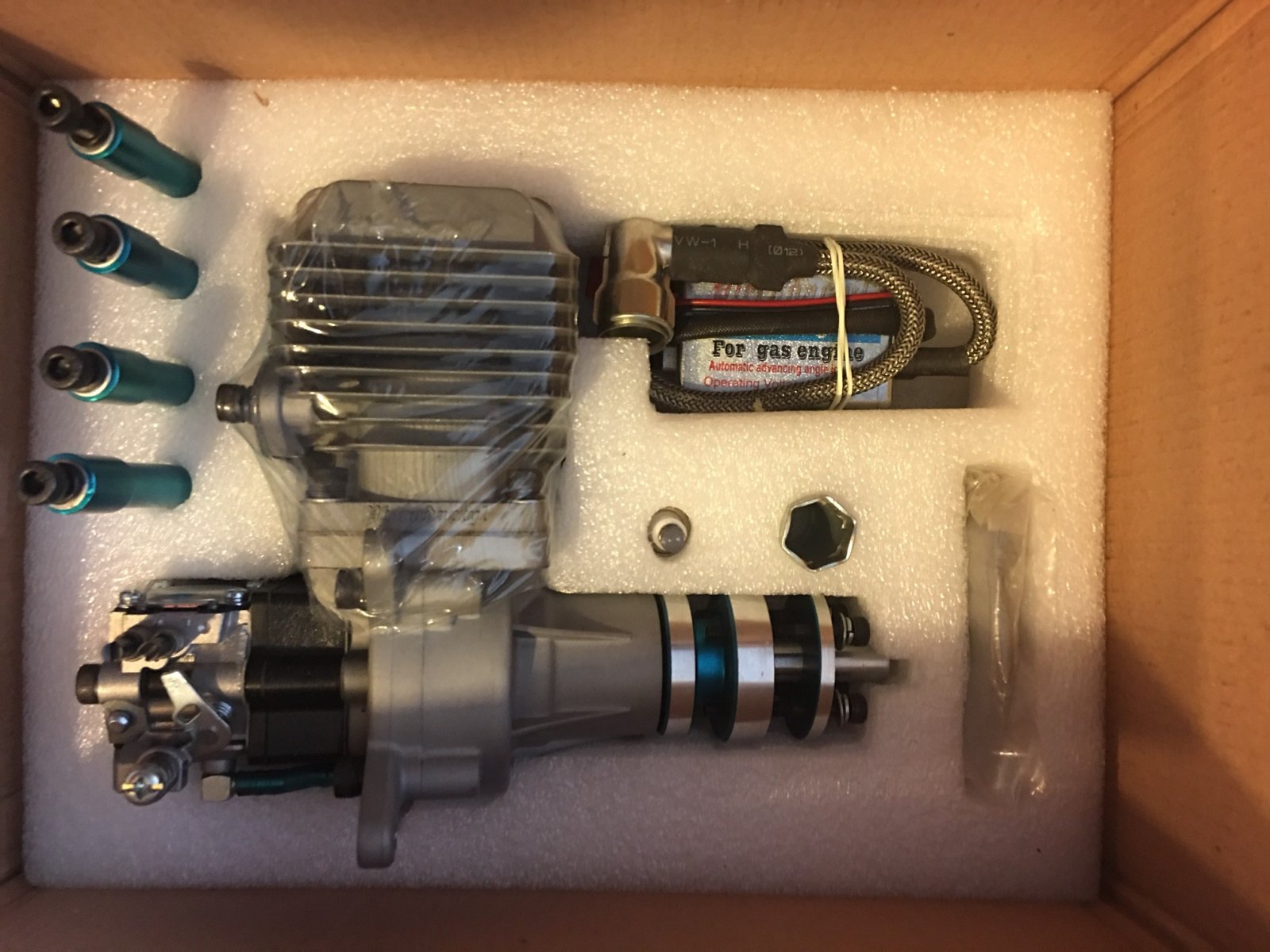

Includes:ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, Carbon Fiber throttle arm extension, mounting template, and prop template
Suggested Propellers: 18x8, 19x8 20x6,8,10
Suggested Break-in Prop: 19x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe
Compression Ratio: 7.6:1
Recommended Propeller: Falcon 19x8 - type 18x8, 19x8 Propeller
RPM Range: 1,400-9,000
