New Product Twisted Hobbys- Official REVO P3 build and review thread

Discussion in 'Foamies' started by Decal Dennis, Sep 19, 2016.


  1. Twisted Hobbys- REVO P3 biplane

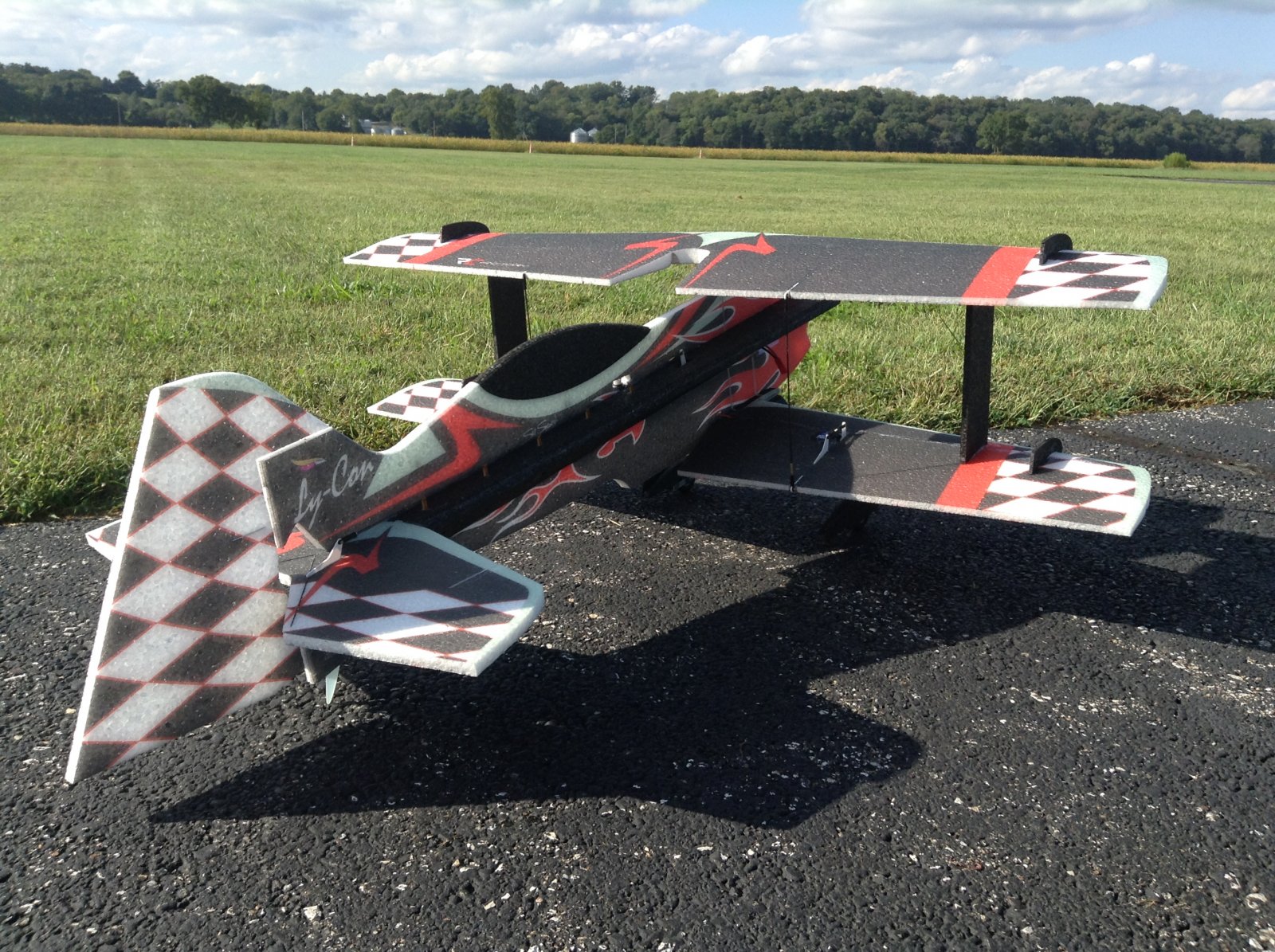

    P3 field.JPG
    Product Description

    We welcome another wild yet beautiful amazing creation from Rcfactory’s team the Revo P3. This new EPP biplane is a super-acrobatic biplane inspired by an actual world renown Revolution P3 aircraft flown by Skip Stewart. Special wing core shaping has been developed specifically for this model creating a sharp precision flight yet allowing the 3d beast to come out with-in on command! As expected RcFactory's attention to all details shows in keeping this model light weight yet durable with hardware and construction highest in its class. Twisted Hobbys has focused on creating a unique power system matched perfectly for your Revo P3 which will increase flight time and allow for the ultimate in flight experience. Come join the revolution with you very own Revo P3!

    Model Spec's:

    Wing Span = 37"
    AUW: 15-16.5oz (depending on components used)
    Full EPP construction
    Carbon Fiber landing gear
    EPP Durability

    Recommended Required Components:

    45-60g 1000kv brushless motor
    20-30A ESC
    Micro Receiver
    (4) 10-16g Servo’s
    10x3.8/10x4.7 Slow Fly Prop
    3s 850-1200mah Lipo

    stangflyer and pawnshopmike like this.
  2. Official build and review of the REVO P3 from Twisted Hobbys


    For this review I used the following items:


    REVO P3(black): https://twistedhobbys.com/rcf-37-revo-p3-biplane-black/

    Twisted DMG power combo: https://twistedhobbys.com/power-comb...ne-tmw-cs-dmg/

    Beacon Foam-Tac: https://twistedhobbys.com/beacon-foam-tac-glue-2-oz/

    Venom-fly 950mah 3s lipo packs

    Misc. thin and medium CA




    The build:

    Using the RCFactory instructions, the build is pretty straight forward, if you have built the TH 39" Crack Yak, it is similar to that build except for you have one more wing to install and the landing gear install is a bit different.

    Using Foam-Tac as the main adhesive, I built the P3 in 3 evenings: evening one was 7 hours, evening 2 was 4 hours and evening 3 was 4 hours. So a total of 15 hours, this time included Glue tack/setup time, setting up and programming my transmitter, installing servos, radio gear, esc/motor and checking/adjusting the CG. Flight ready!!



    The maiden flight:

    Of course the weather was bad, so I had to postpone the maiden a couple of days due to lots of rain, but when it was time to head out and get this sweet plane in the air I wasted no time at all!!

    It worked out that is was also time to go to the Show Me RC Big Bird event in St. Louis, MO., so we packed the KEG trailer full of planes and headed out. Nothing like the feeling when you maiden a new plane in front of a crowd of people[​IMG]



    First flight(maiden) impressions:

    The Revo P3 looks and flies scale. I spent the majority of the first flight doing minimal trimming, getting the feel of how it reacts to input and seeing how the CG is. The last minute or so of the flight I started into a few basic maneuvers. I was impressed with how it looks and flies. At the recommended 90mm CG mark, I think it is a little nose heavy for my flying style, but it is a great starting point.


    Second and third flight impressions:

    After getting use to the P3 on the first flight, I was ready to try out some 3D maneuvers. First up was the hover...no problems at all, just a little aileron and throttle jockey corrections needed(normal) and it has plenty of pull out power!

    Up second was upright and inverted flat spins(no power applied), again no problems, it did them with a little nose down attitude. I tried them again with a little power applied, it helped a little with the nose down attitude, but not much, but that is where a CG adjustment is needed.

    3rd: Was upright and inverted harriers, again no problem for the P3, I had to work a little extra to keep the nose up on the inverted harrier. I mainly fly off grass fields, harrier landings are a must for me.

    4th: Was the tail slide and elevator. The longest tail slide I got was about 25 feet or so before it flopped out. The elevator was absolutely perfect....nice and flat the whole way down! I let them go til about 3 feet off the ground. Elevator lands are possible given the right wind conditions.

    5th: Was the hammerhead and pop top. The rudder has plenty of authority to whip the tail around for the hammerhead. No problems on the pop top either[​IMG]

    6th: Lets see how she likes to fly knife edge.....fast and really slow high alpha KE, again no problem for the P3. I was amazed at how little rudder input was needed. It had a slight tendency to pull to the belly. KE loops are not a problem either. I like to do partial KE loops into a butterfly[​IMG]

    7th: Was rollers....my favorite[​IMG] The P3 does rollers like a boss!! Slow and fast, very little input needed.

    8th: Was the blender and waterfall. Again no problems doing blenders. Rudder correction is needed for waterfalls. It does really tight waterfalls if you switch on flaps!

    9th: Was point and snap rolls. Point rolls, fast and slow are not a problem for the P3. The snap rolls are wild and crazy with easy recovery.


    If I didn't mention a maneuver, then I haven't tried it with the P3 yet, but if it can perform the above maneuvers it shouldn't have any problems doing anything else.

    The REVO P3 is a 3D maniac!!


    Wrap up:

    As usual, with any Twisted Hobbys plane, the P3 is a well thought out and executed airframe design.

    Pros and cons:

    Pros: Easy and fast build, flies great slow and fast, no bad tendencies, oh and did I mention it is a 3D maniac??
    Cons: NONE

    pawnshopmike likes this.
  3. Since I used Beacon Foam-Tac as my main advesive, I start out building some sub assemblies so they can be set aside to tack up/dry.

    Photo Sep 12, 3 58 30 PM.jpg

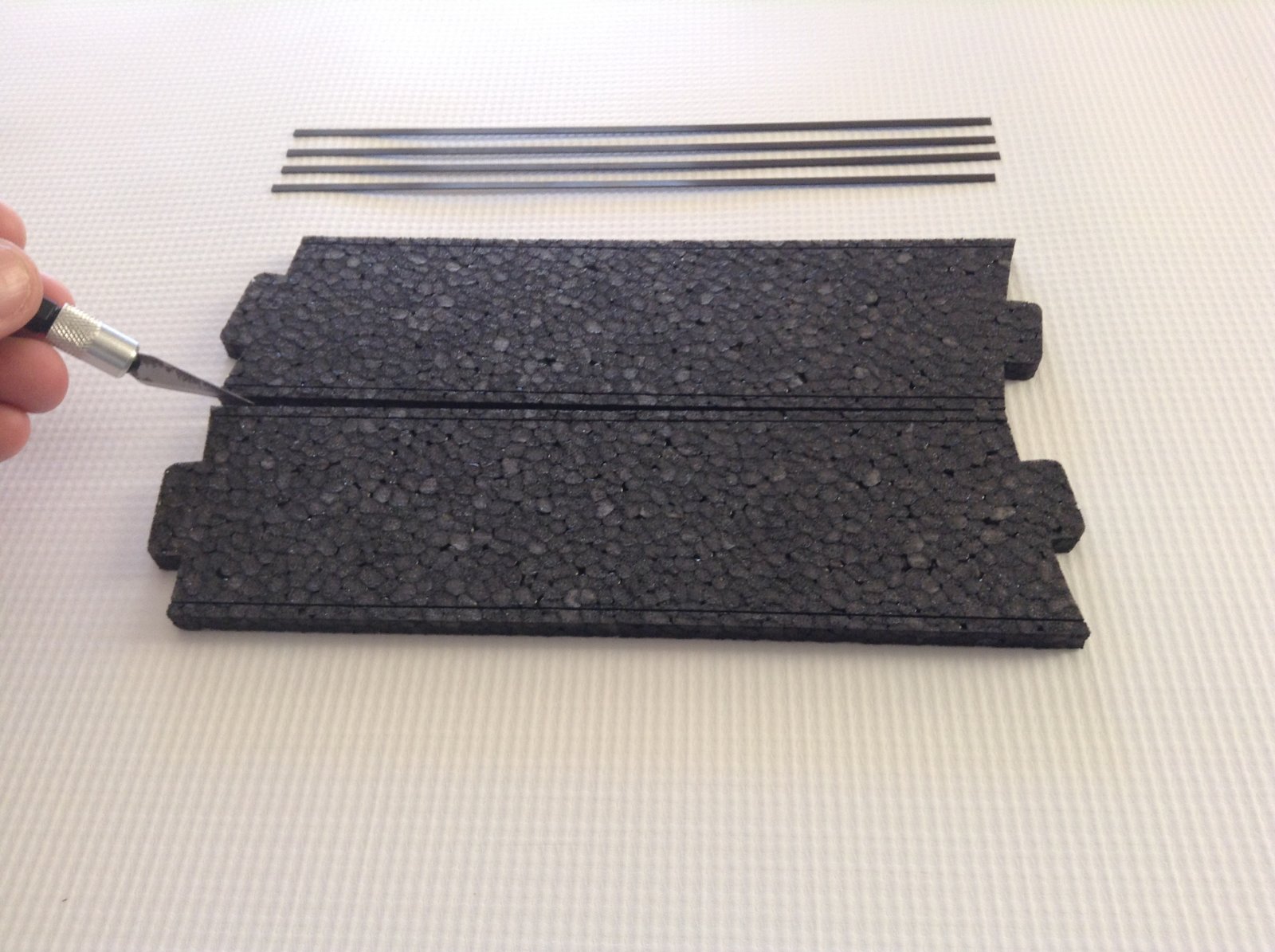

    Cut the wing struts apart

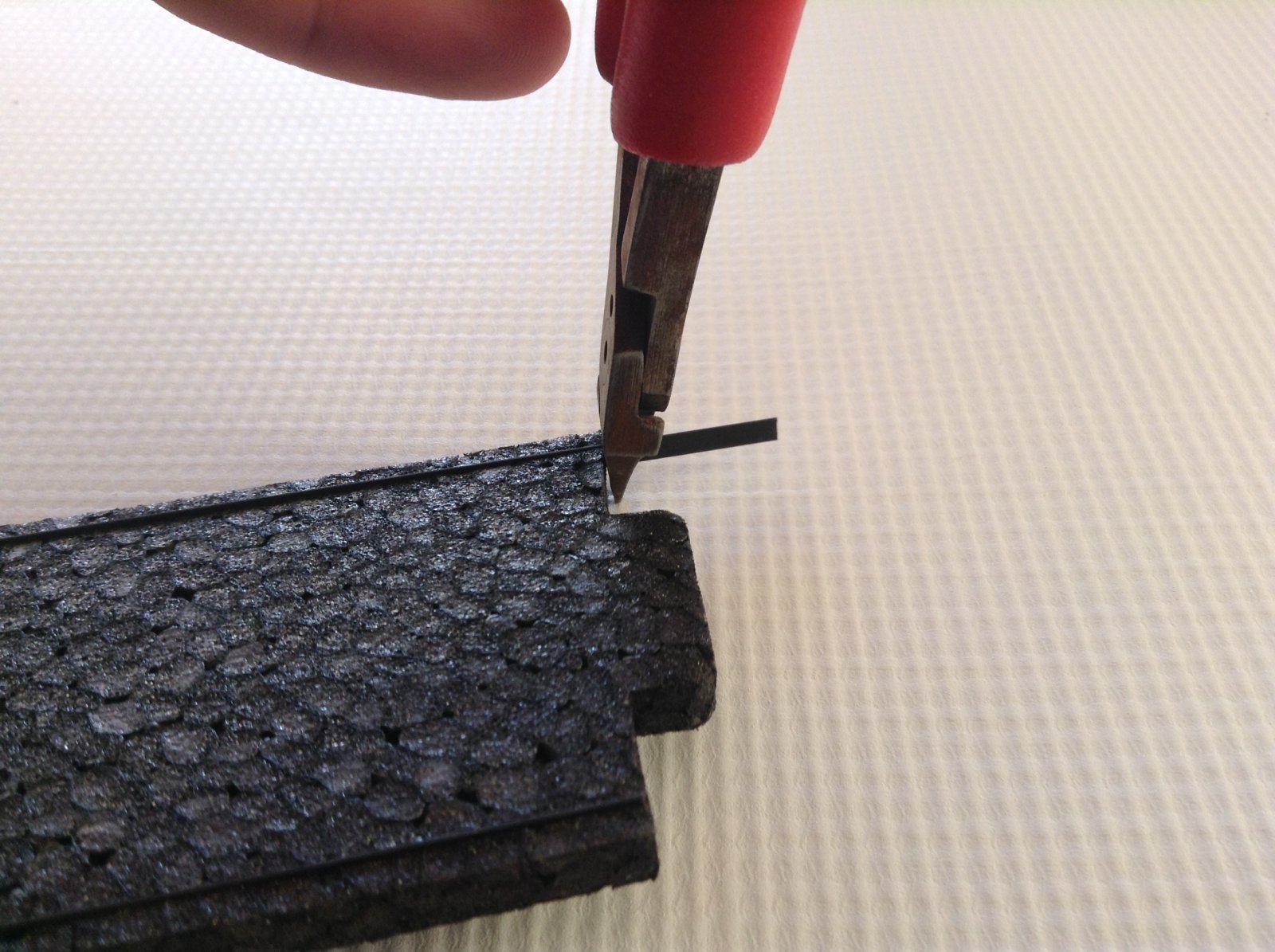

    Photo Sep 12, 4 03 50 PM.jpg
    The carbon supports for the wing struts are longer than needed, so the need to be cut to length

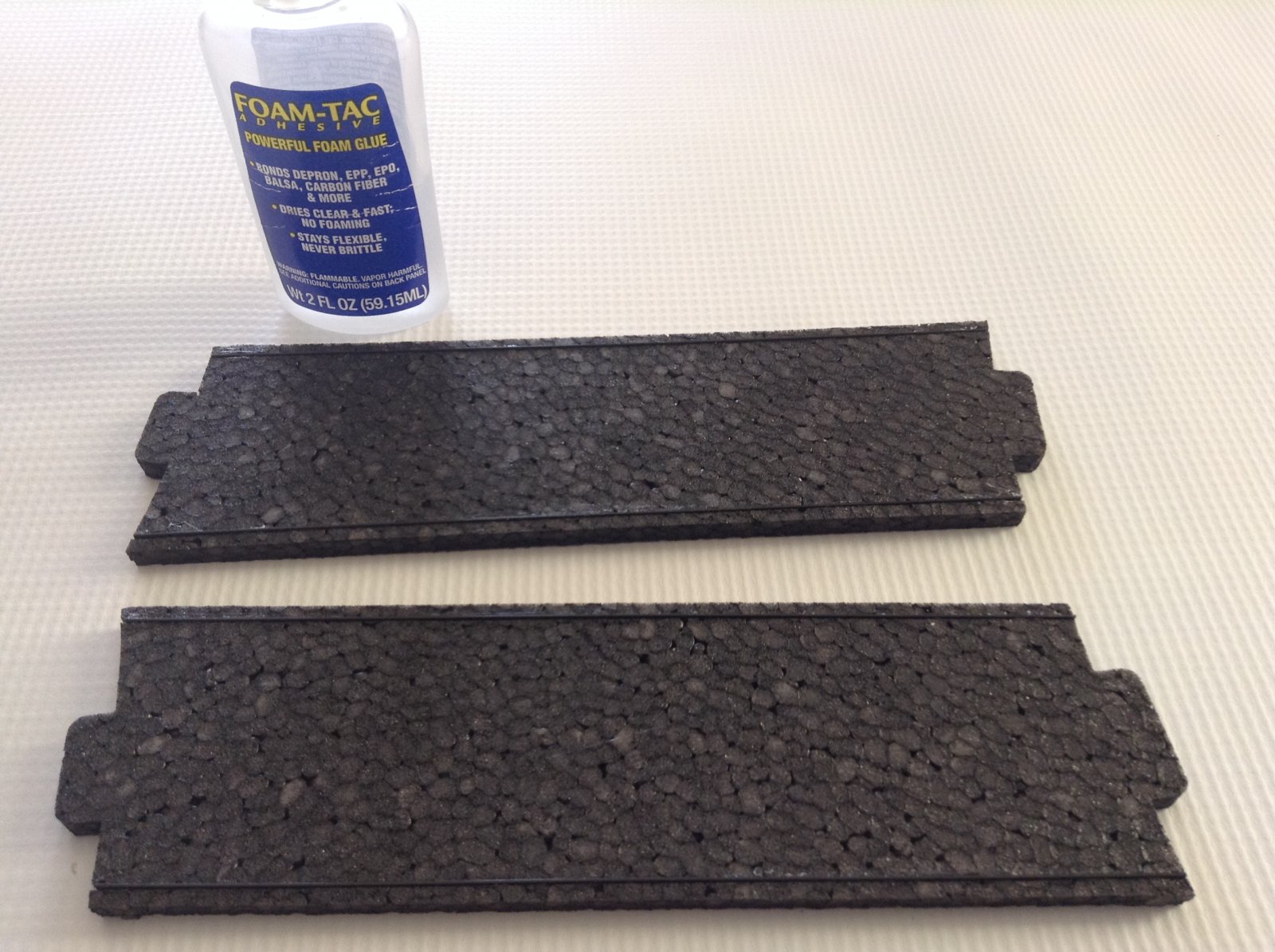

    Photo Sep 12, 4 09 20 PM.jpg
    Glue carbon supports in place, then set aside to dry. I applied weight to keep them nice and flat while the glue setup.

    pawnshopmike likes this.
  4. Photo Sep 12, 4 13 00 PM.jpg

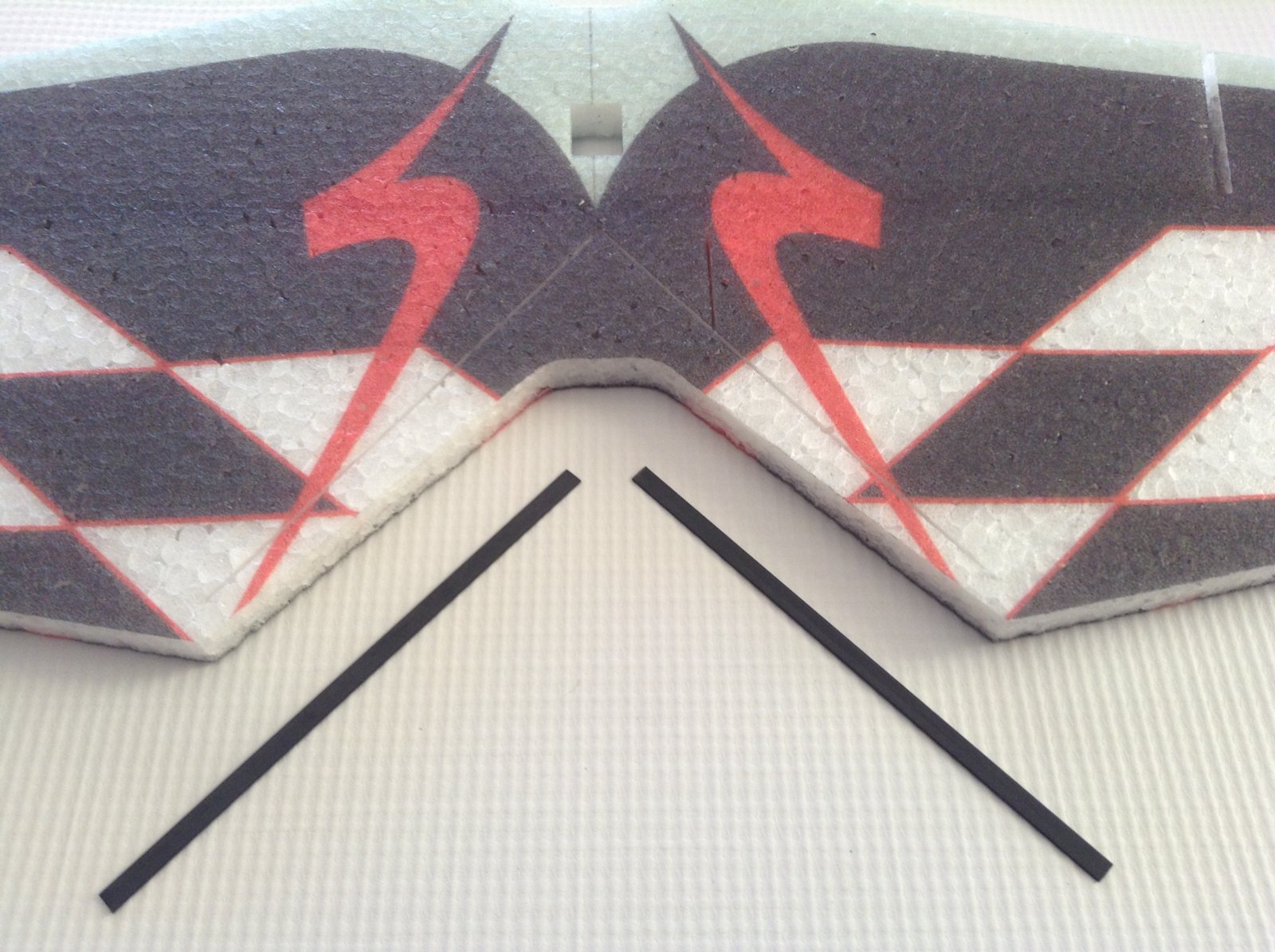

    Flat carbon for the top of the elevator, these are already cut to length

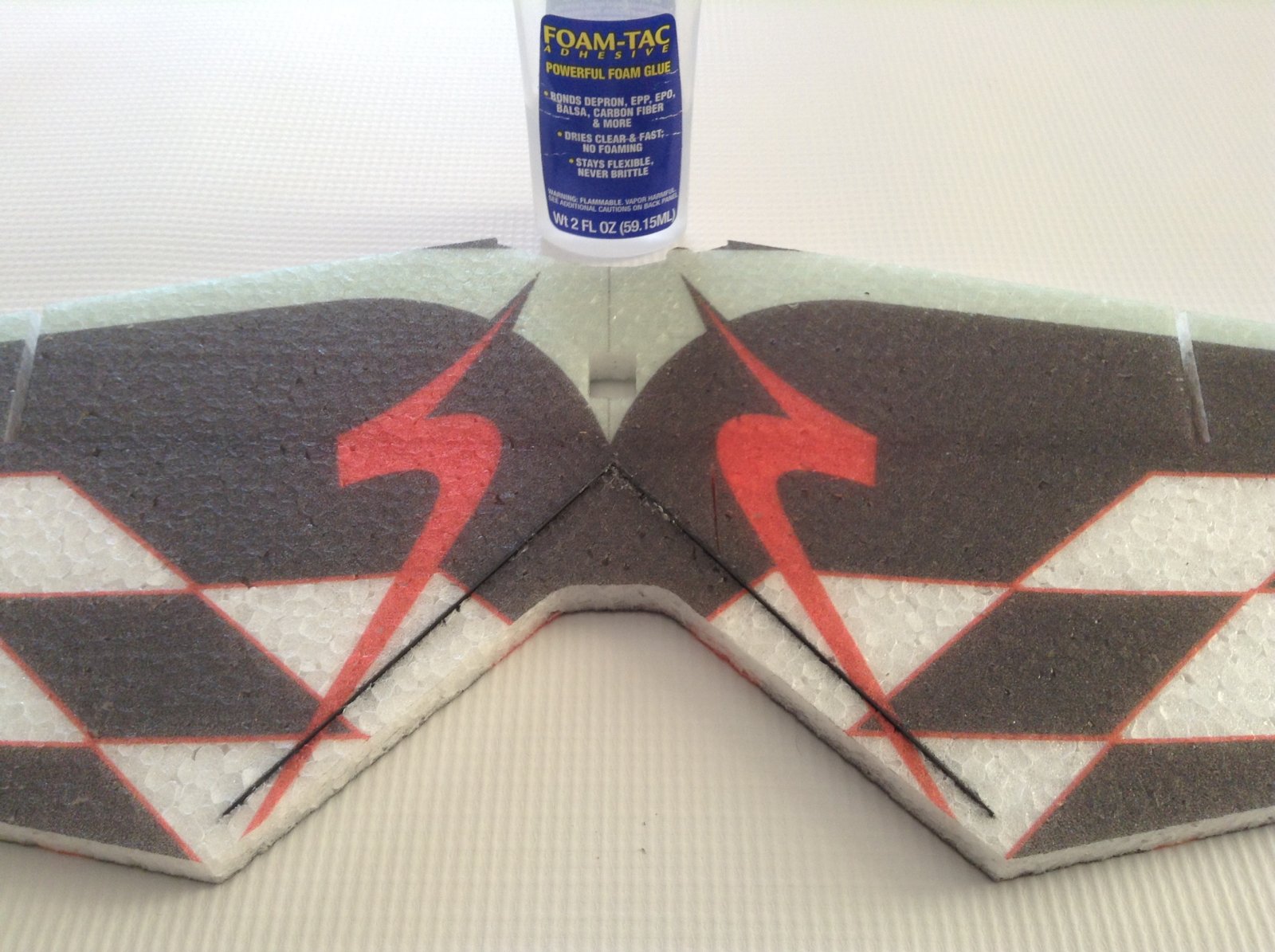

    Photo Sep 12, 4 15 43 PM.jpg
    Foam-Tac flat carbon in place.

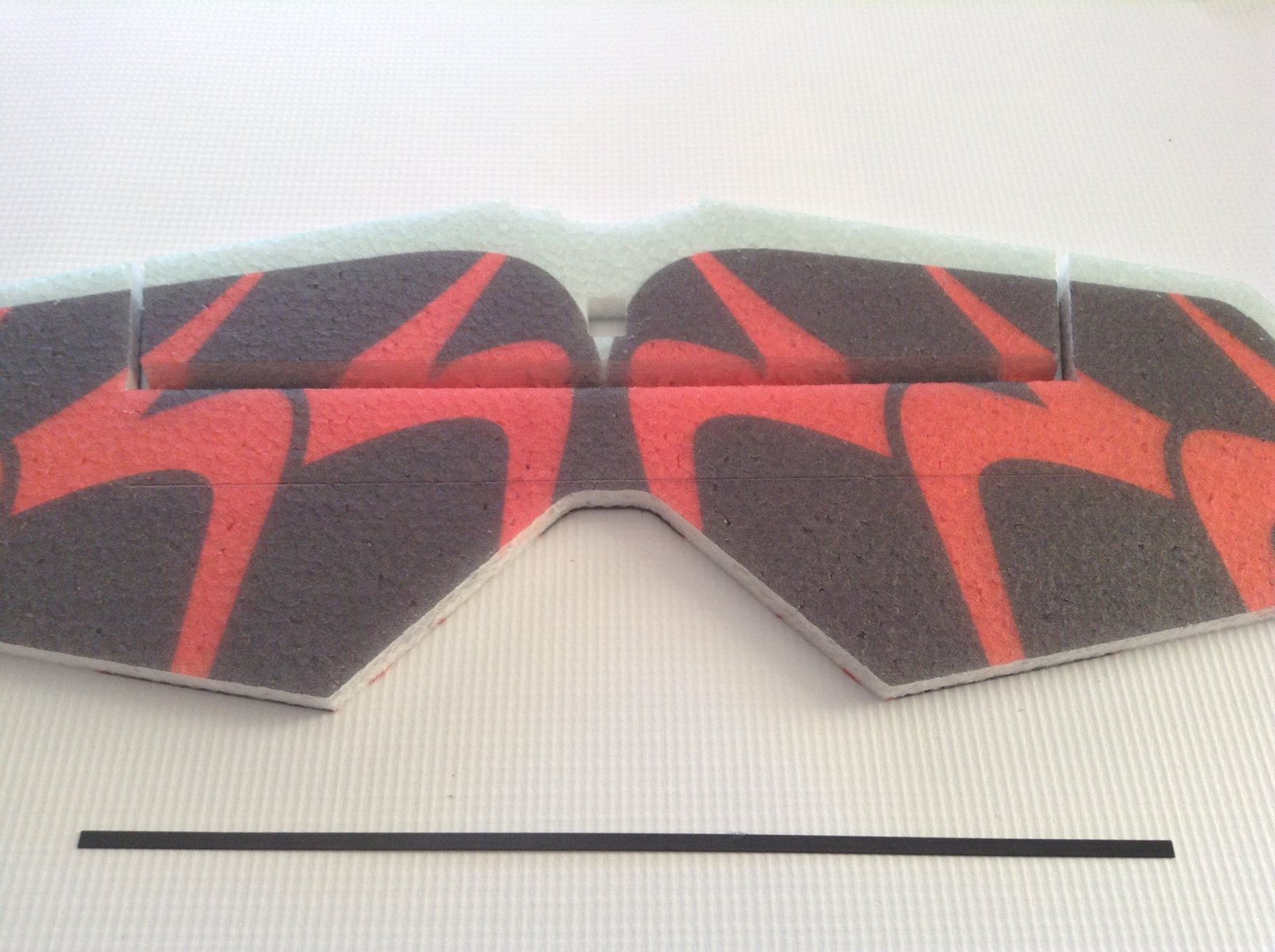

    Photo Sep 12, 4 16 26 PM.jpg
    Flat carbon for the bottom of the elevator, this is already cut to length





    Photo Sep 12, 4 19 24 PM.jpg

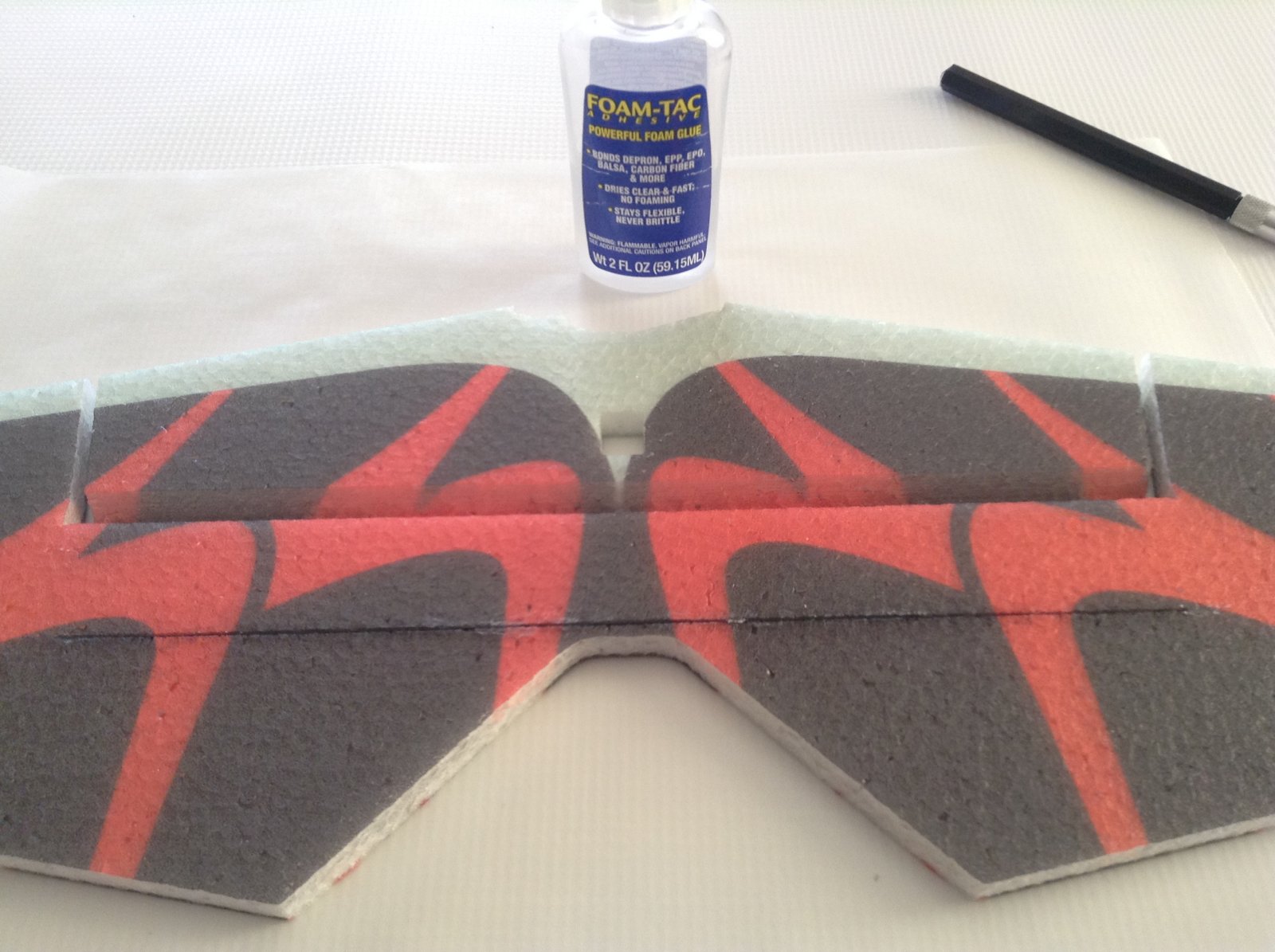

    Foam-Tac in place, set aside with weight on top to keep it nice and flat

    pawnshopmike likes this.

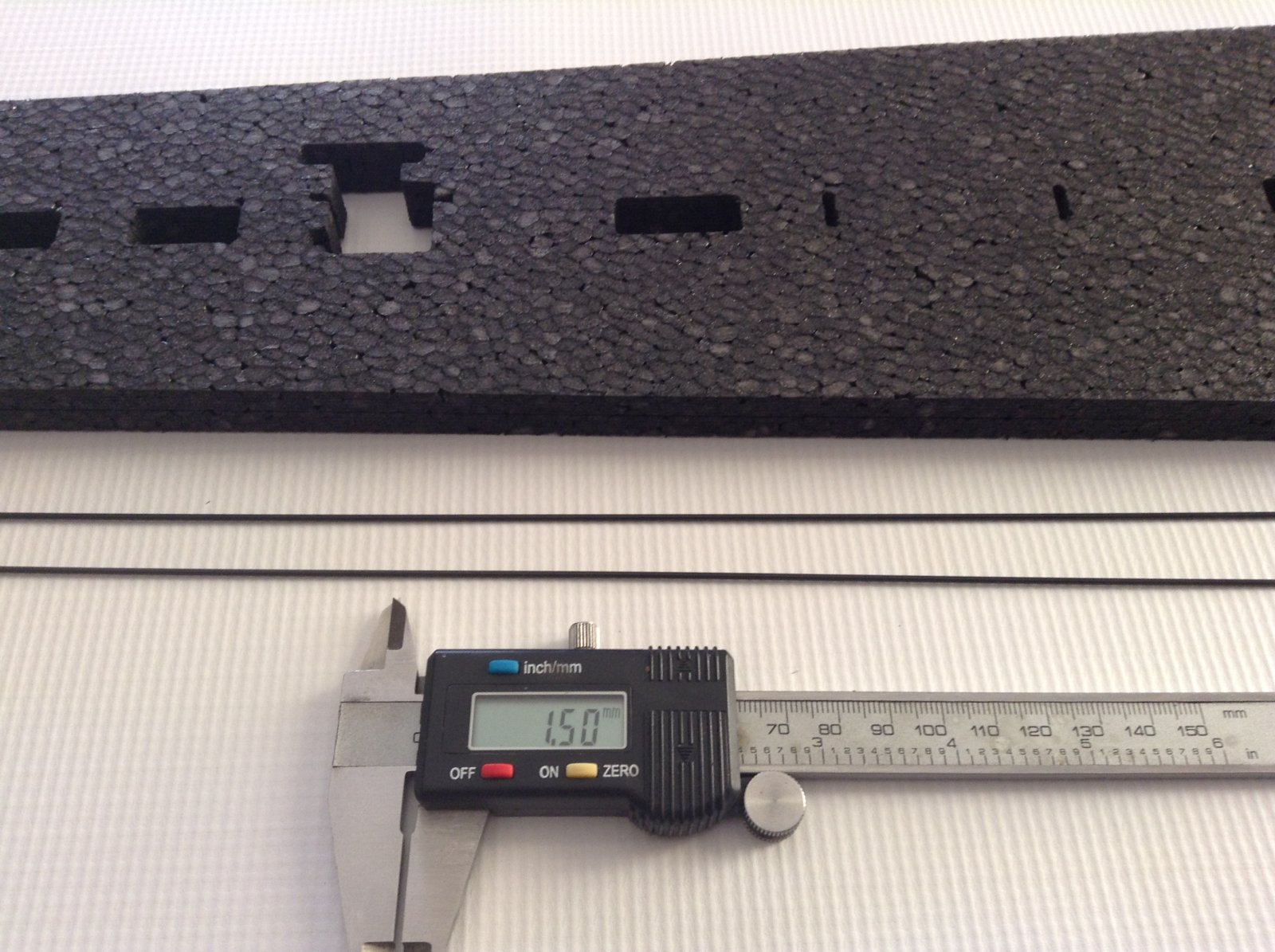

  5. Photo Sep 12, 4 29 23 PM.jpg
    Carbon rod for horizontal fuse

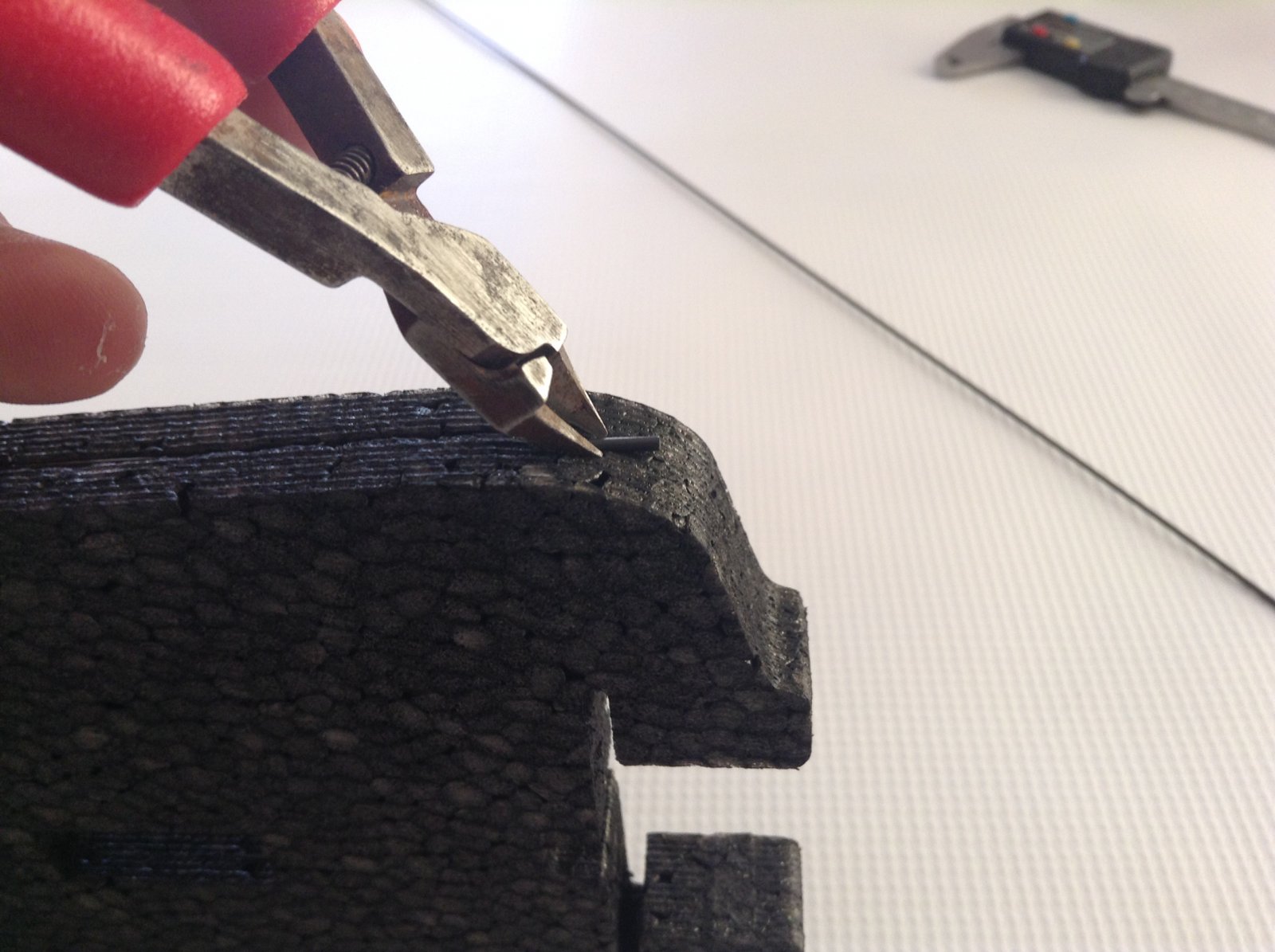

    Photo Sep 12, 4 31 50 PM.jpg
    I found they were a tad long, so I cut them to length




    Photo Sep 12, 4 44 42 PM.jpg
    Foam-Tac in place and set aside to dry, no need to weigh it down, but you can if you like.

    pawnshopmike likes this.

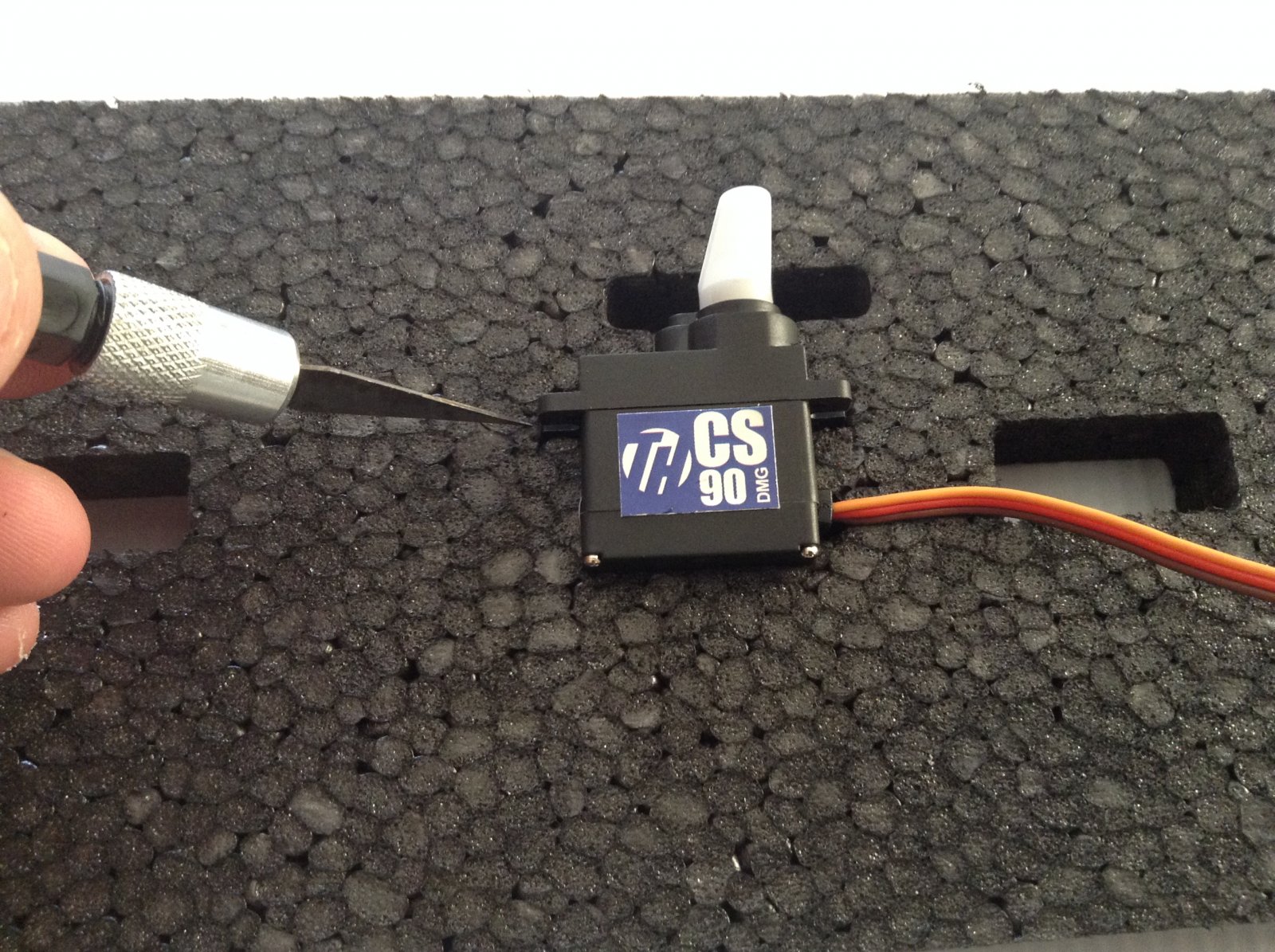

  6. Photo Sep 12, 4 46 02 PM.jpg
    You need to cut the slots for the elevator servo mounting ears

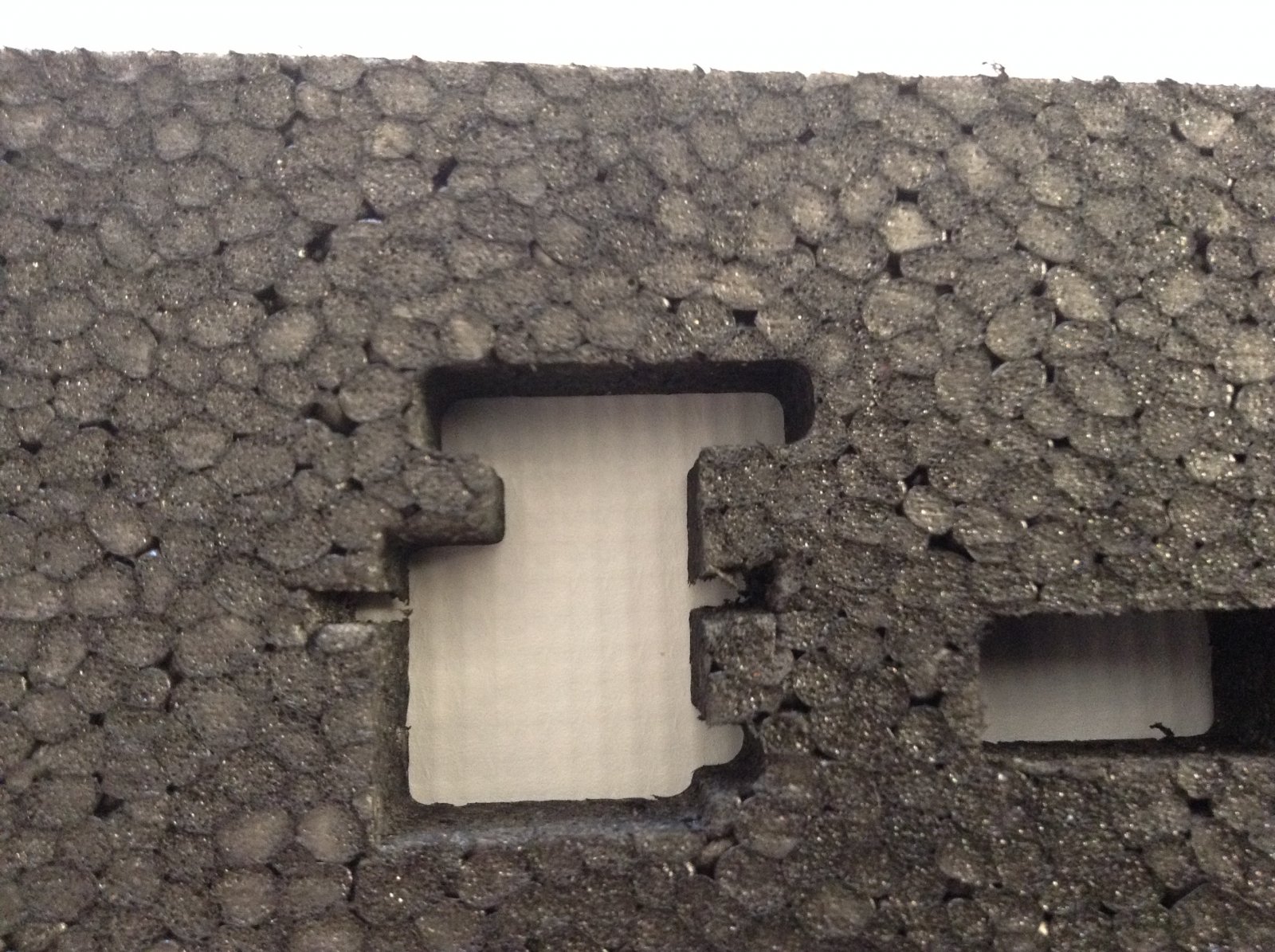

    Photo Sep 12, 4 46 37 PM.jpg

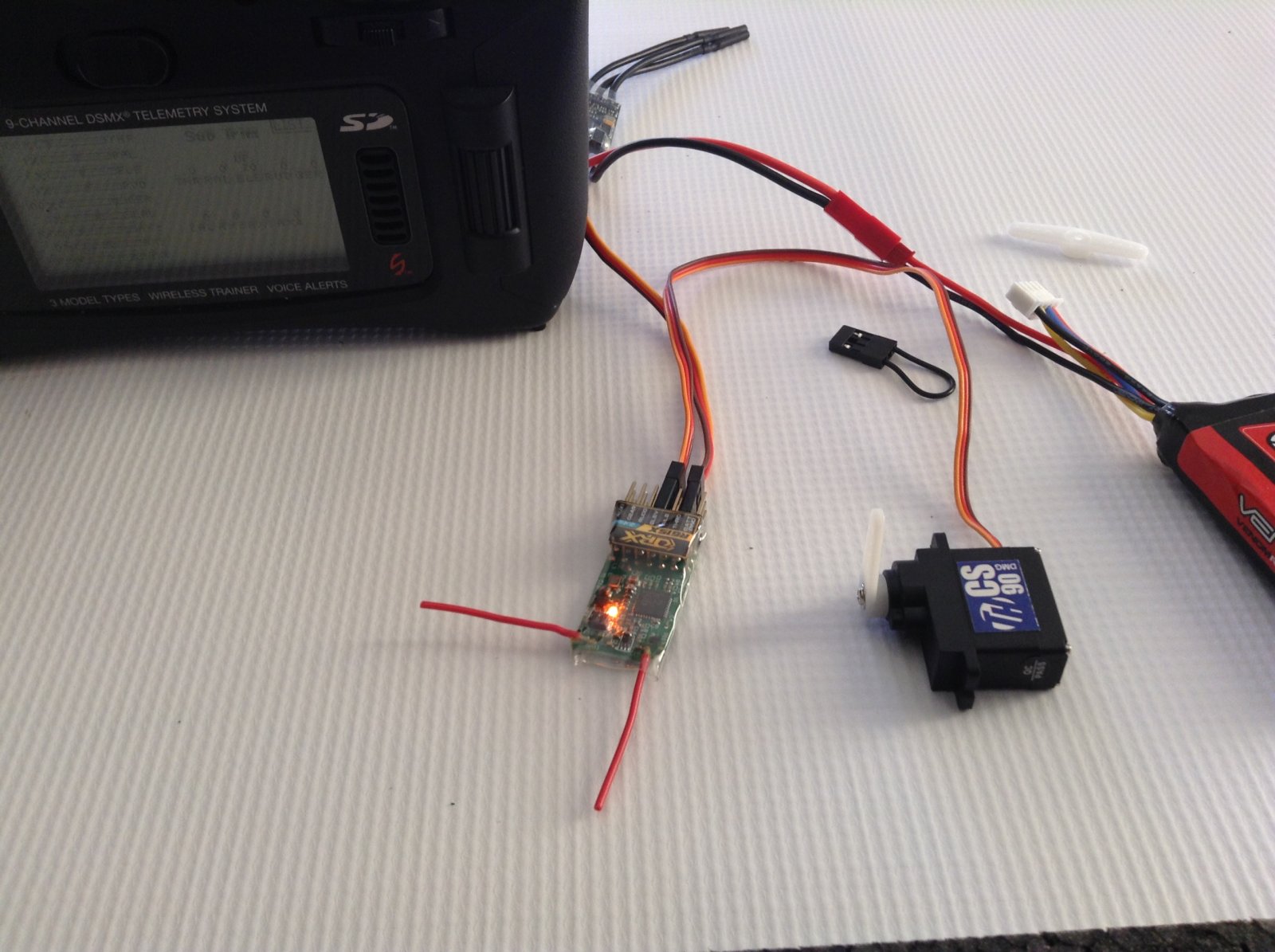

    Photo Sep 12, 4 57 12 PM.jpg Photo Sep 12, 5 11 40 PM.jpg
    Center servo, install servo arm and hot glue servo in place

    pawnshopmike likes this.

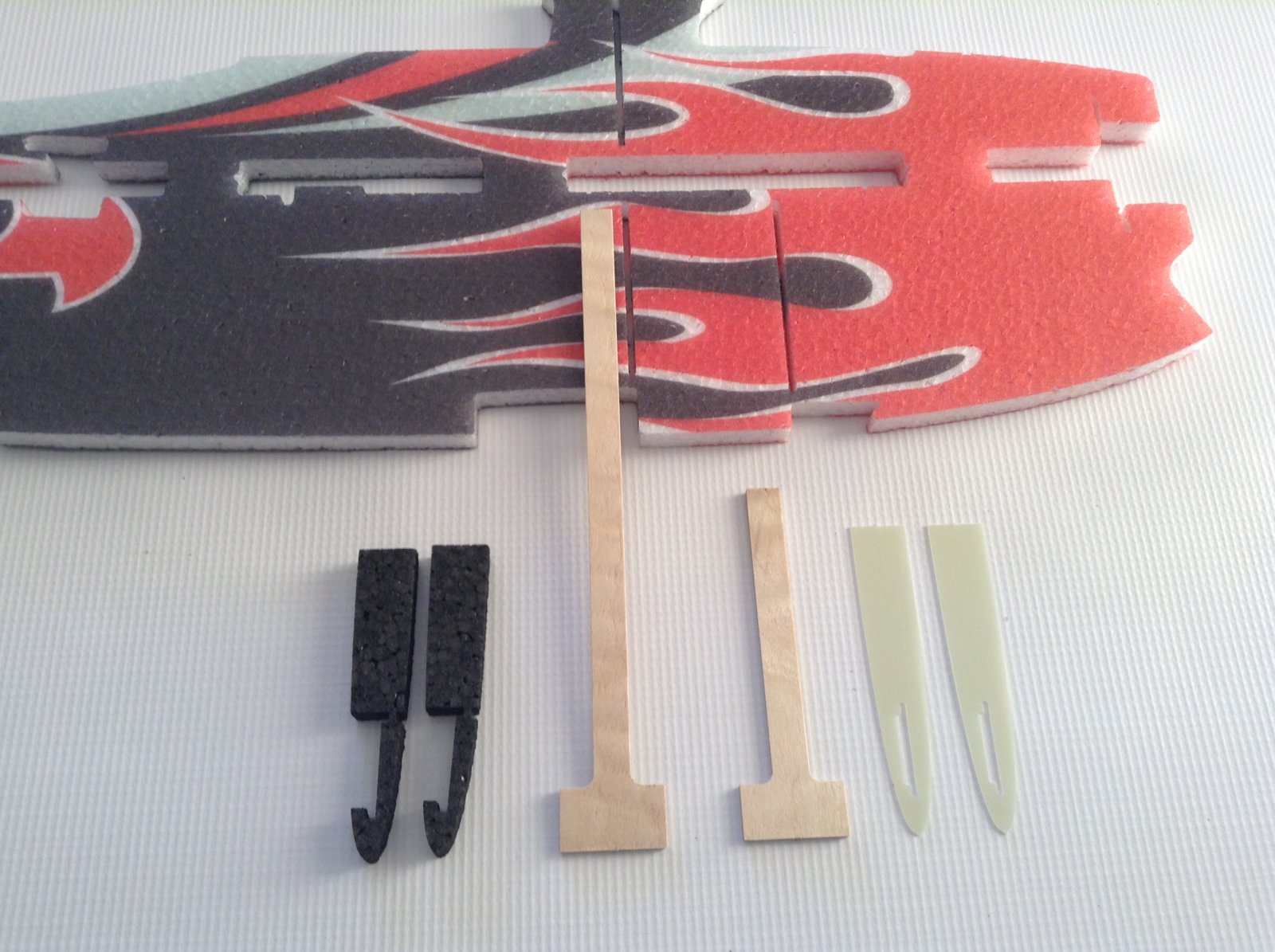

  7. Photo Sep 12, 5 30 41 PM.jpg
    Components need for the vertical fuse

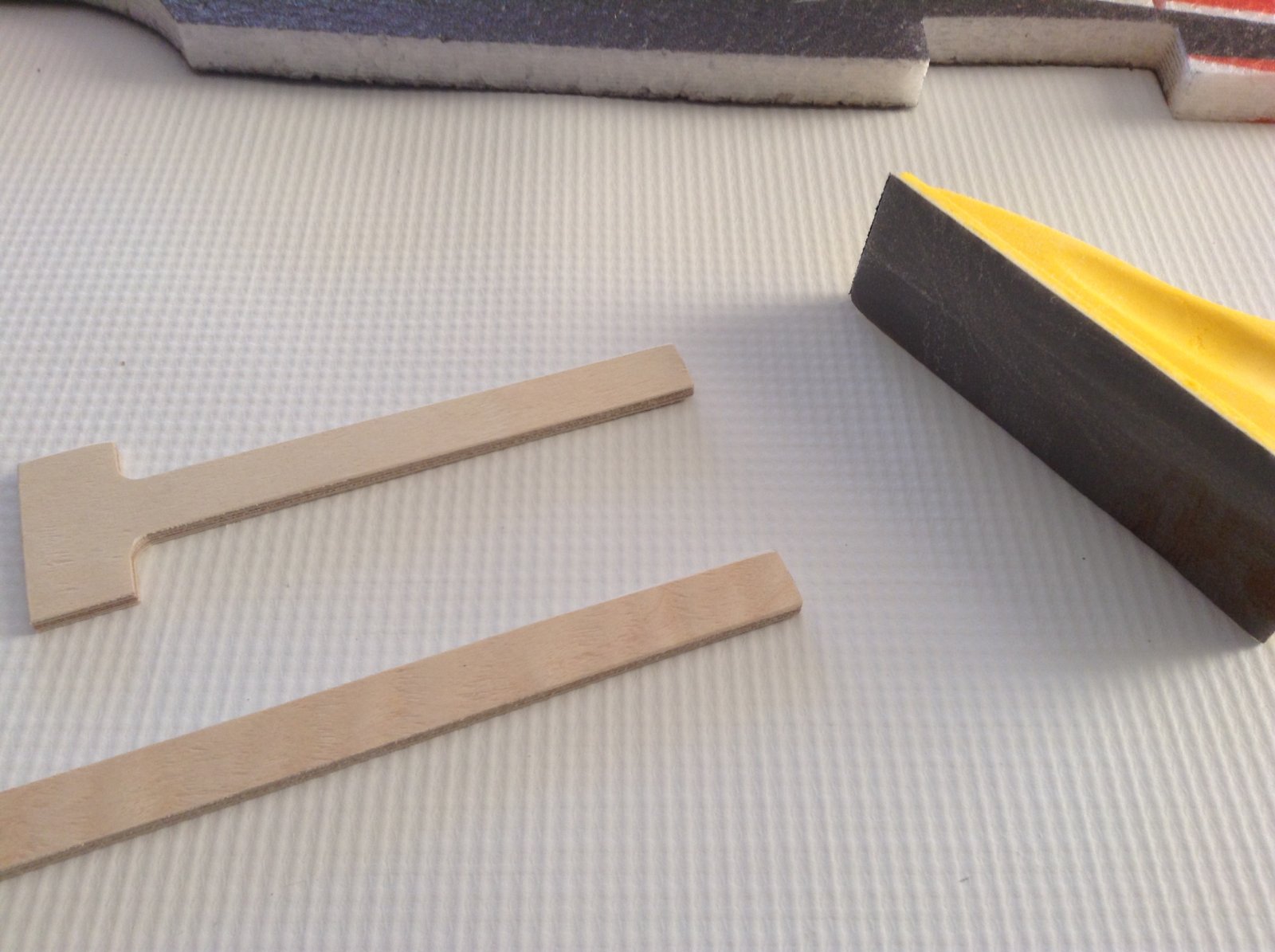

    Photo Sep 12, 5 39 00 PM.jpg
    Sand the burrs off the plywood

    pawnshopmike likes this.

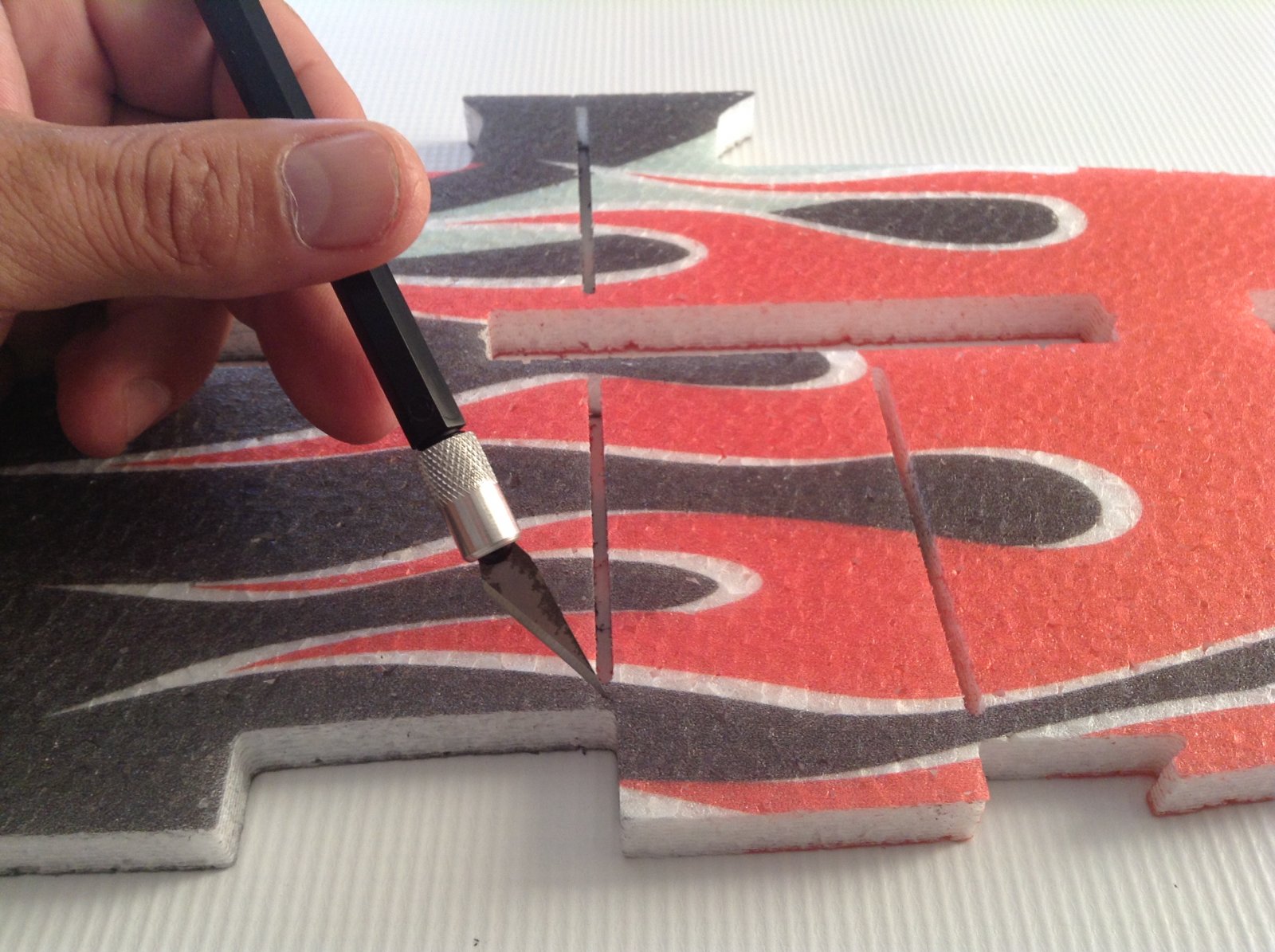

  8. Photo Sep 12, 5 40 38 PM.jpg
    Cut the vertical tabs loose




    Photo Sep 12, 5 43 03 PM.jpg

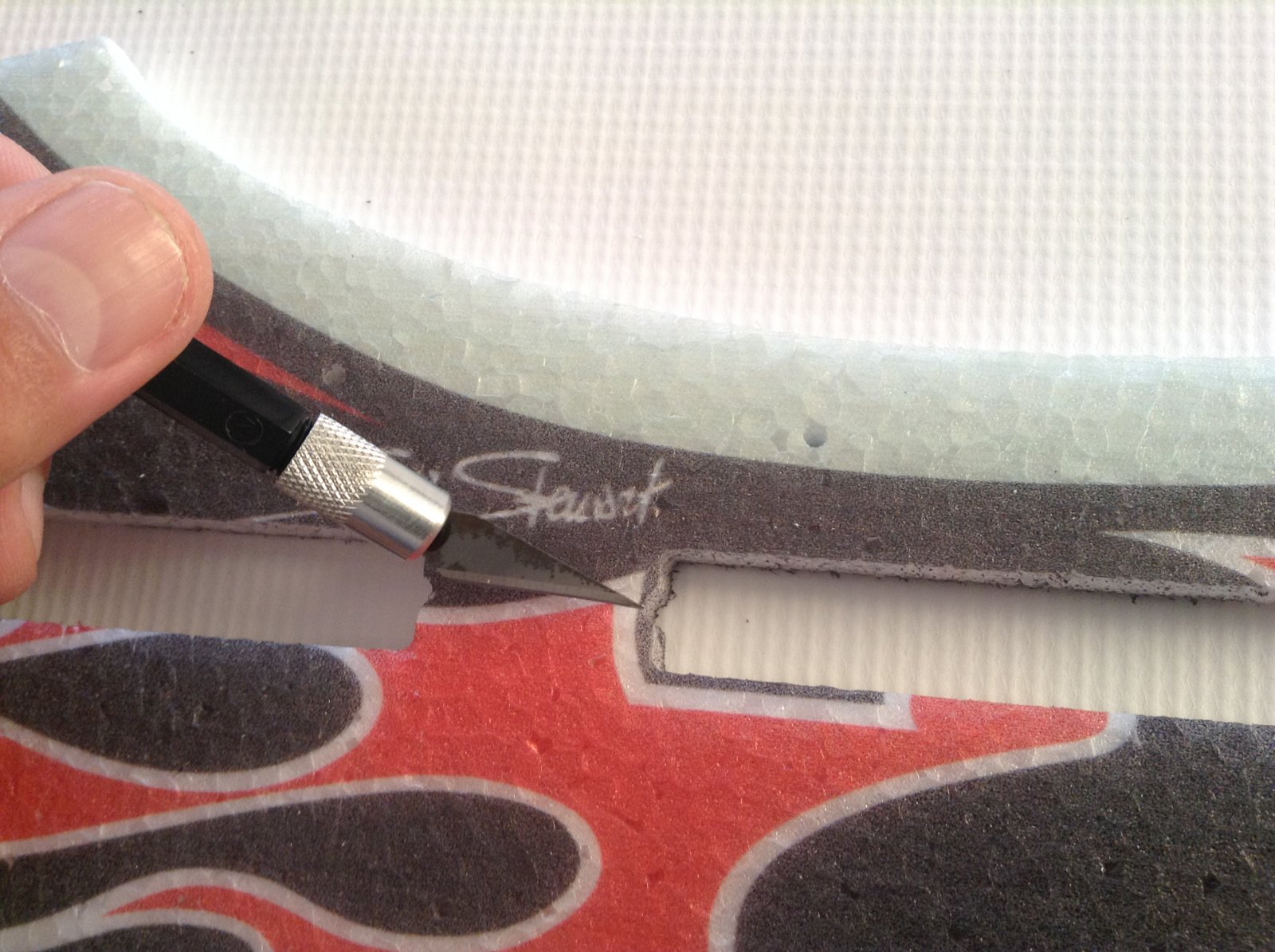

    Cut the horizontal tabs loose along the whole length of the fuse

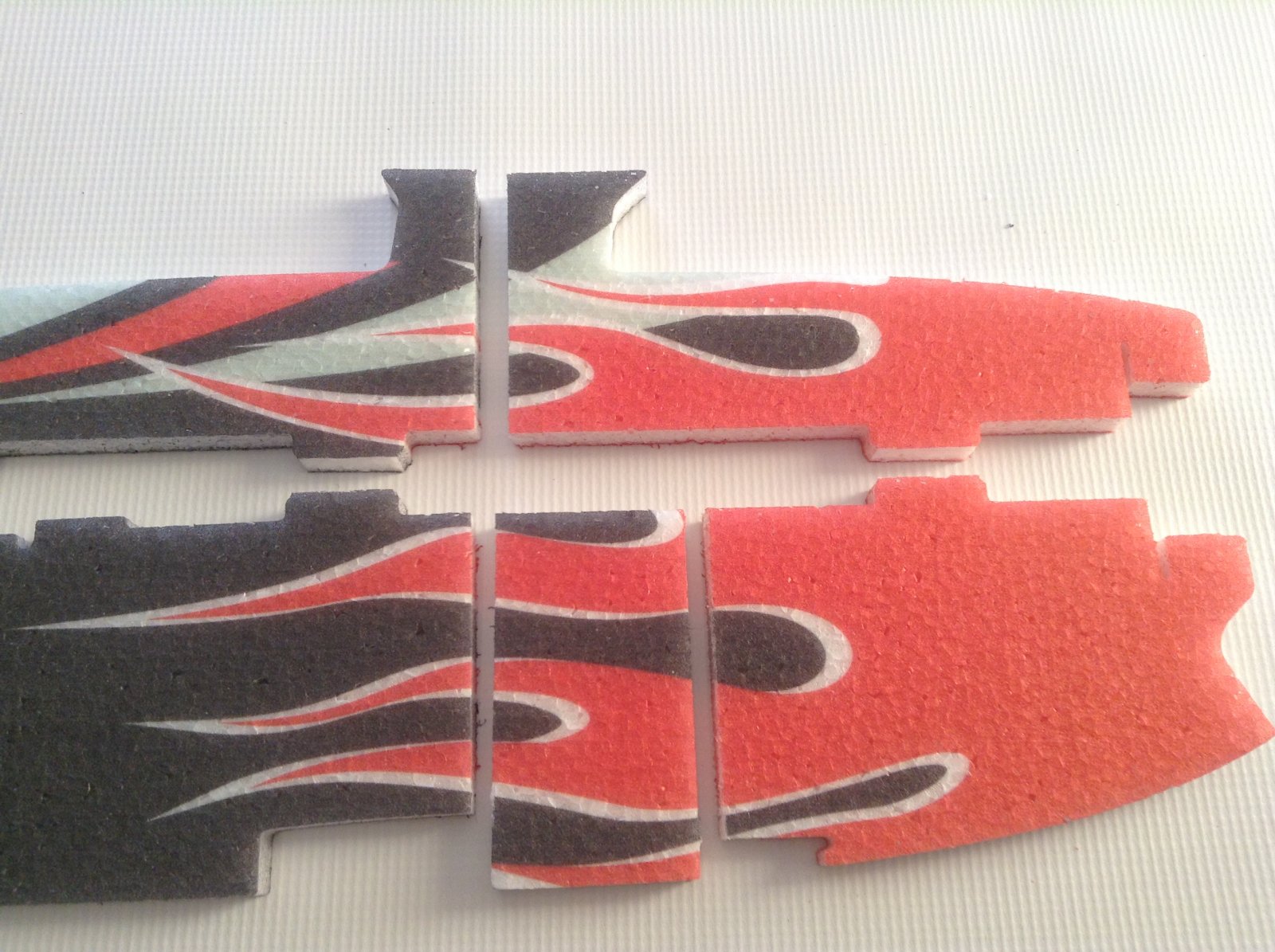

    Photo Sep 12, 5 50 56 PM.jpg
    This is what it will look like after you cut the tabs out

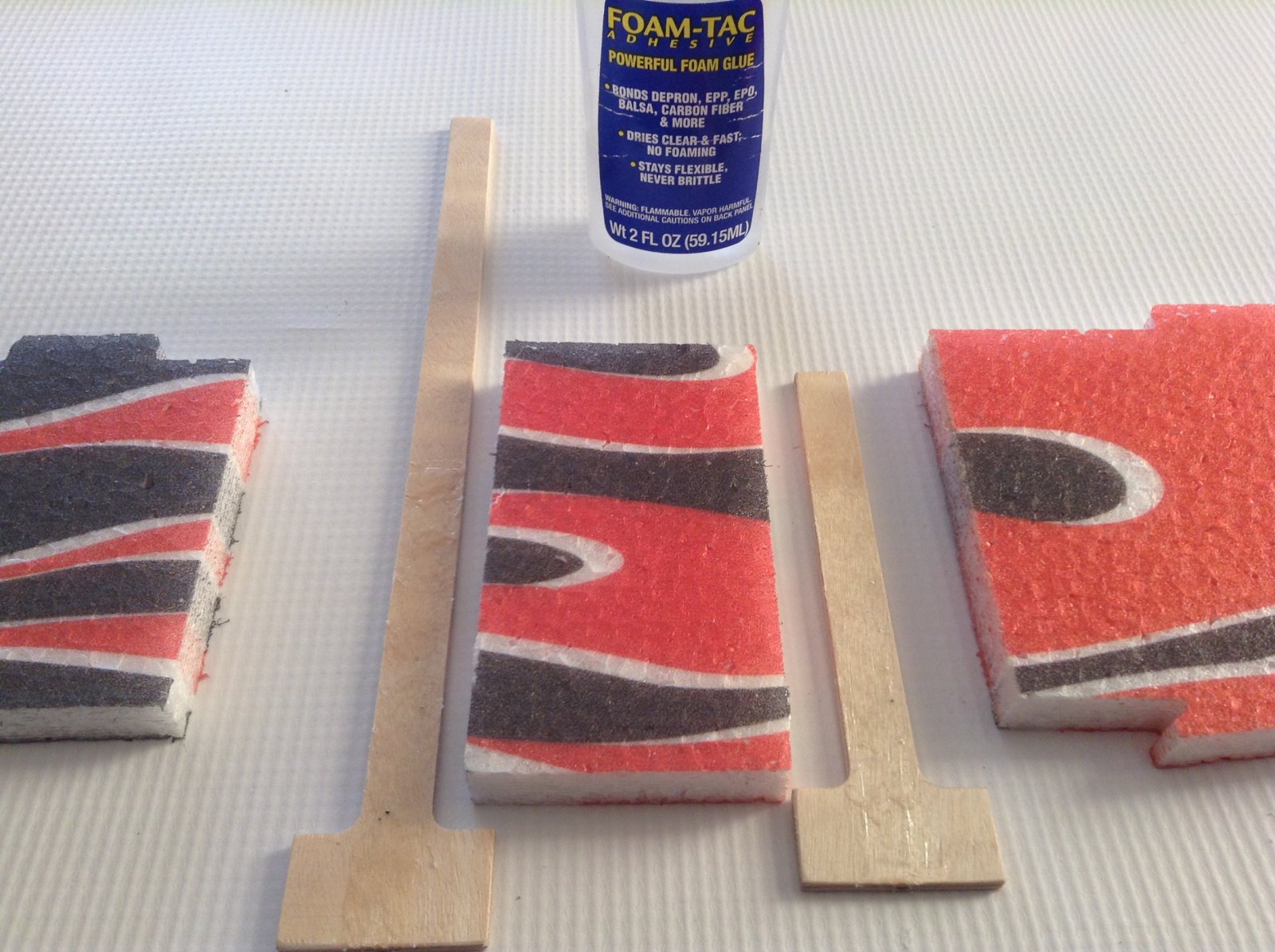

  9. Photo Sep 12, 6 00 56 PM.jpg
    Apply Foam-Tac to mating surfaces, push together then pull apart and let it tack up for 2-3 minutes, then assemble pieces

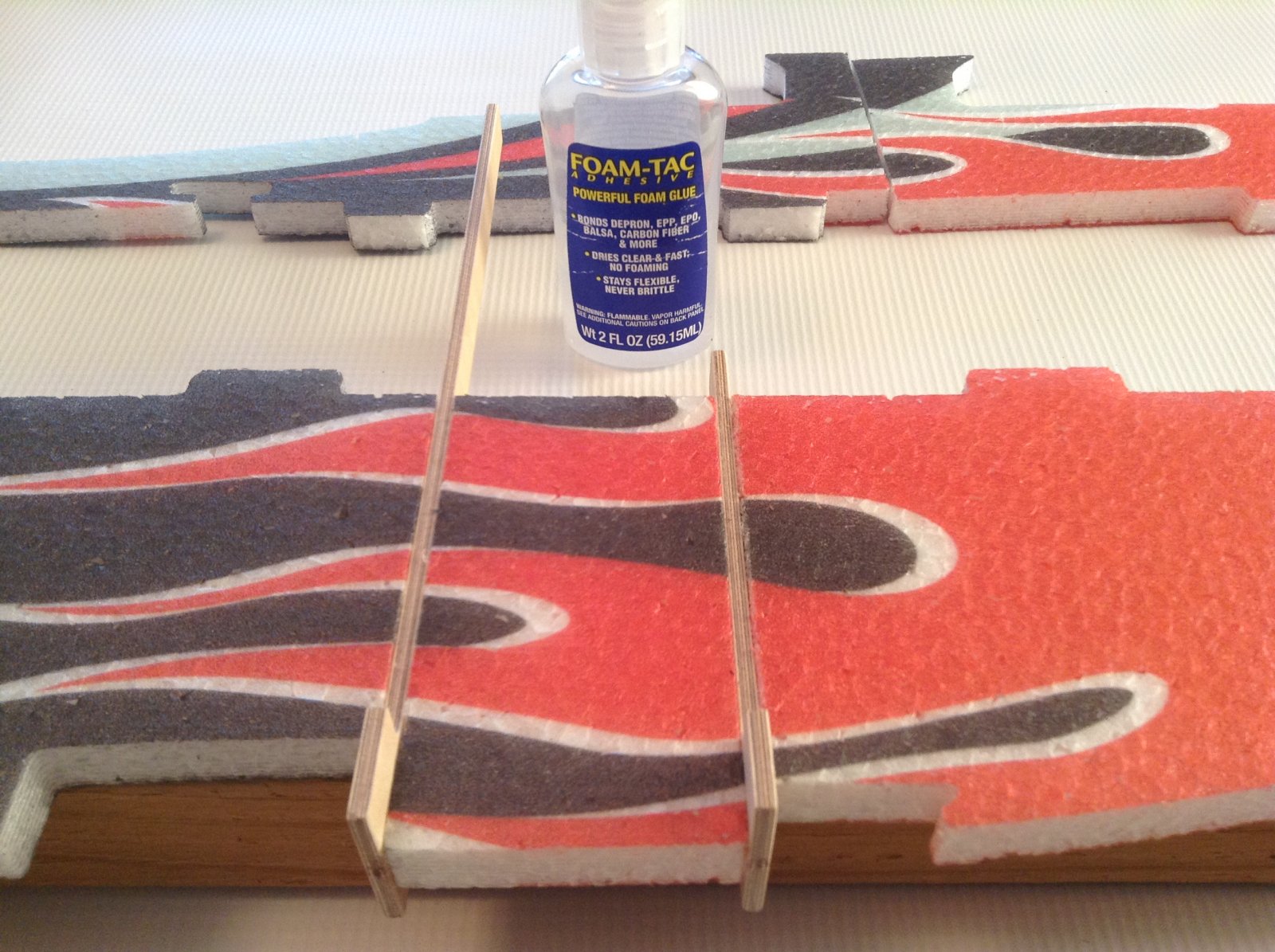

    Photo Sep 12, 6 12 03 PM.jpg
    It will look like this when assembled correctly

    pawnshopmike likes this.
  10. Photo Sep 12, 6 14 32 PM.jpg Photo Sep 12, 6 19 51 PM.jpg Photo Sep 12, 6 36 06 PM.jpg

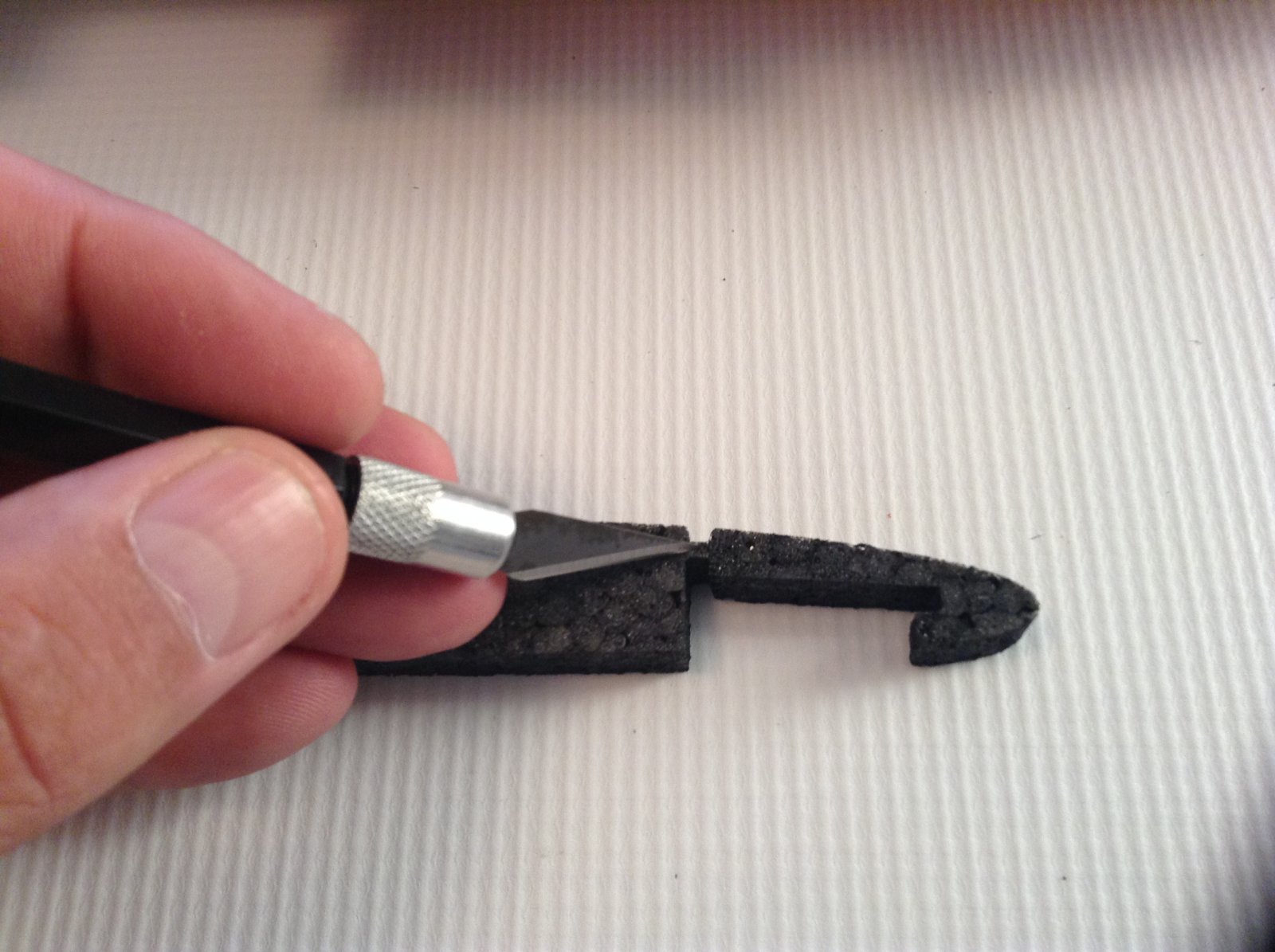

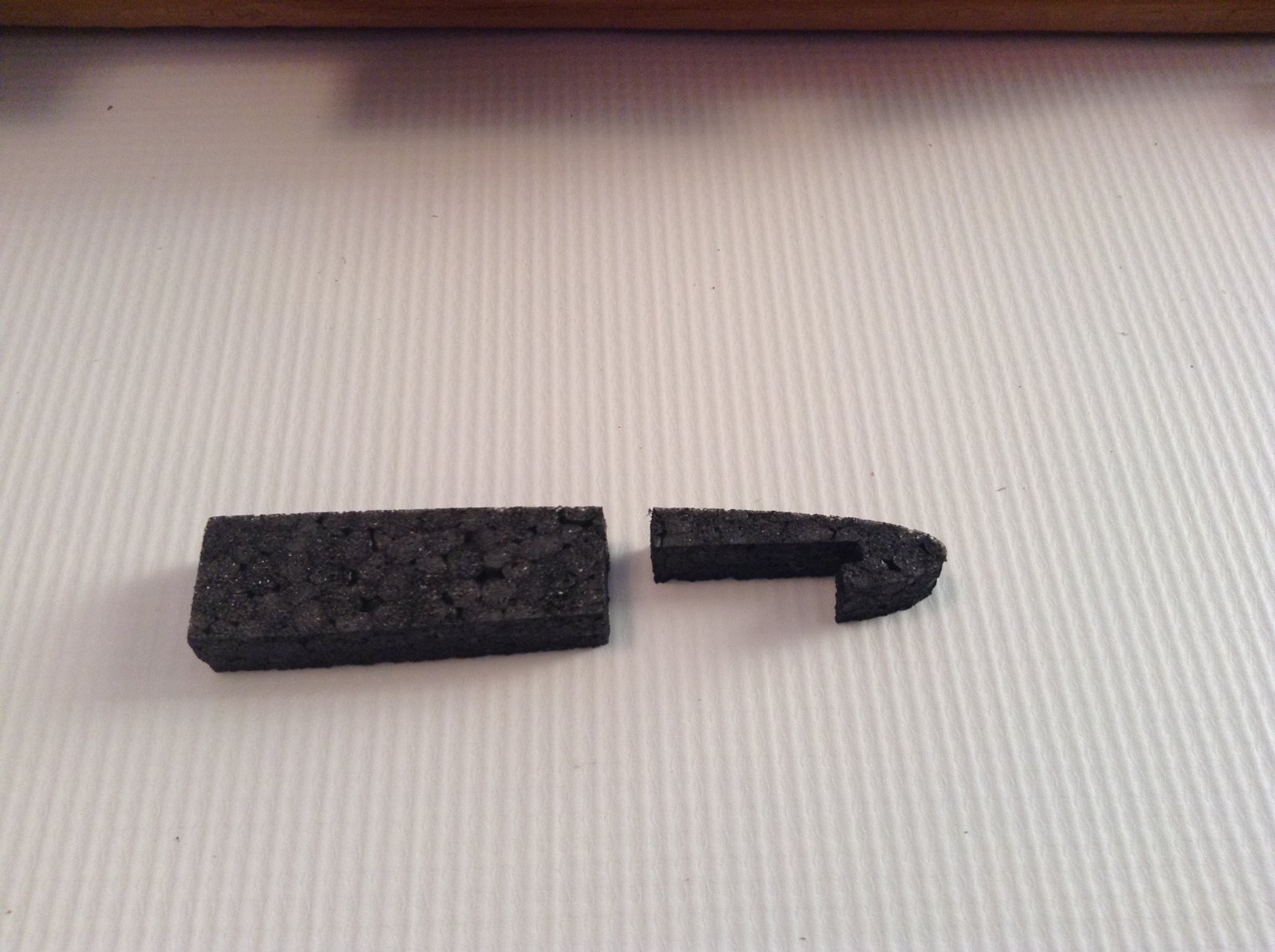

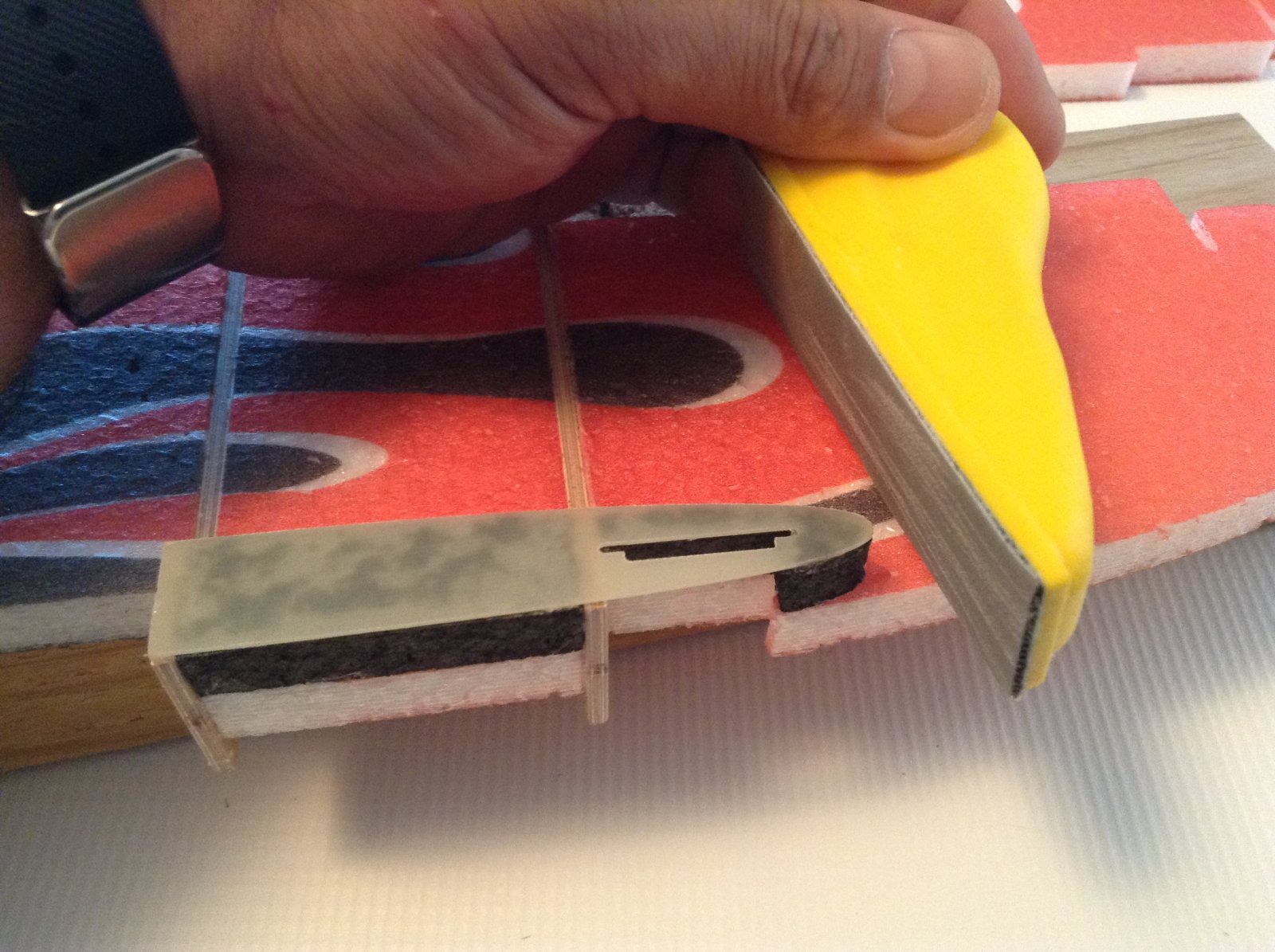

    Here I sanded the phenolic gear plate to match the foam contours, same steps for the other side

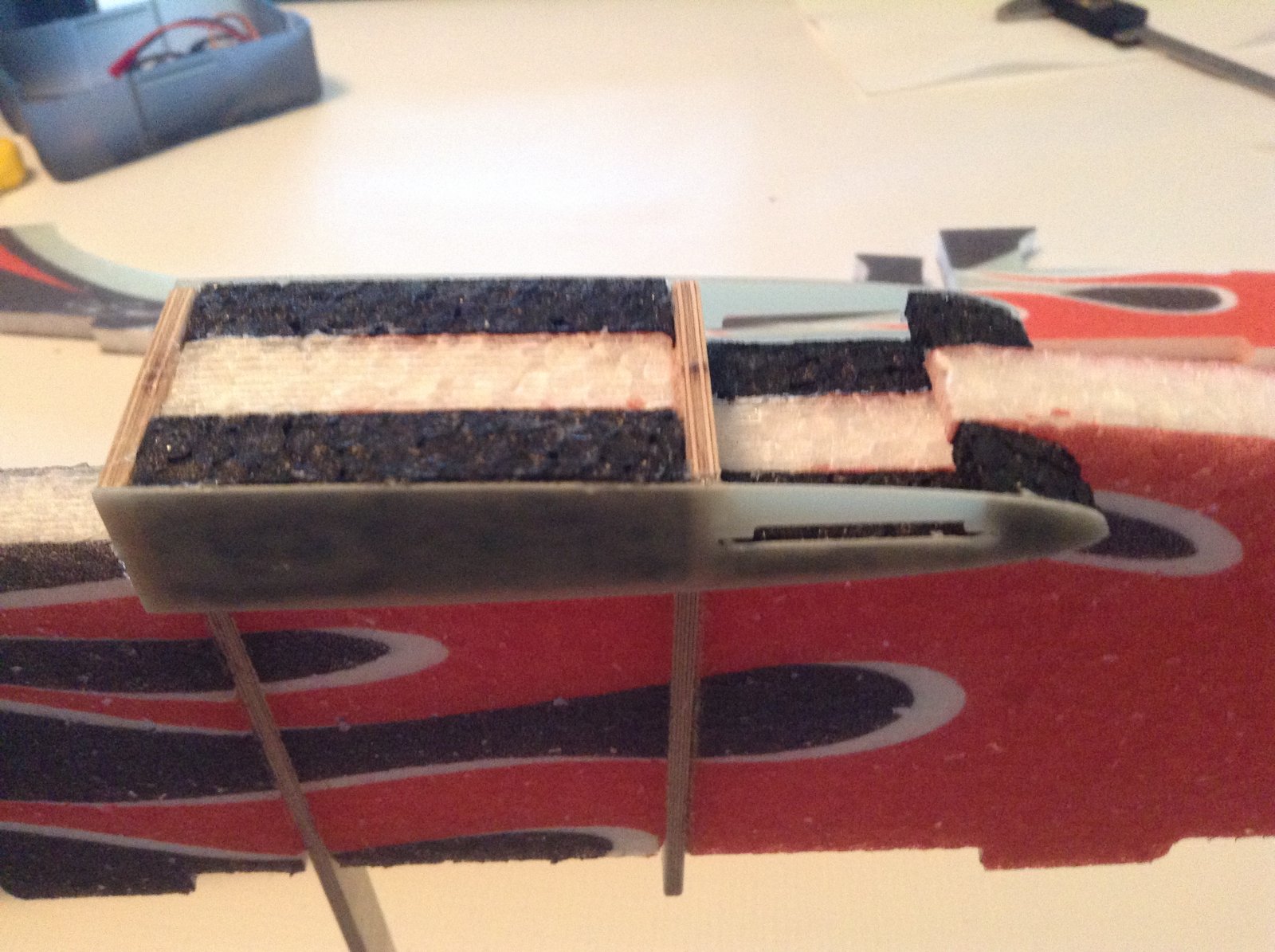

    Photo Sep 12, 6 46 29 PM.jpg
    Final landing gear mounting assembly

    pawnshopmike likes this.
