IMAC Carden Pro 124 Build, My Dream Plane

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by ROLLERMAN, Apr 8, 2015.


  1. ROLLERMAN

    ROLLERMAN 70cc twin V2

    Joined:
    Sep 8, 2014
    Messages:
    248
    Likes Received:
    392
    Location:
    Martinez GA
    View attachment 16478
    Hello all, I promised if I’d won the sanding blocks I would do a Carden PRO build here, SO Here we go. First apologies for any miss spellings, but the pictures usually speak for themselves.
    So, about a two years ago I made a HUGE mistake, actually three of them, I flew a Carden Pro with a 150, one with a 170 and one with a DA200. I just knew I would own one someday. (OH and one with a DLE 222)
    I am no Master builder but it will be built well and strong, I built a 118 which helped me get to the IMAC Worlds, I didn’t think I would do it again, but the cheaper way to do it is to just build one. I sold the 118 and lots of other stuff to be able to get it, I hated it to sell it but this will be my dream plane.

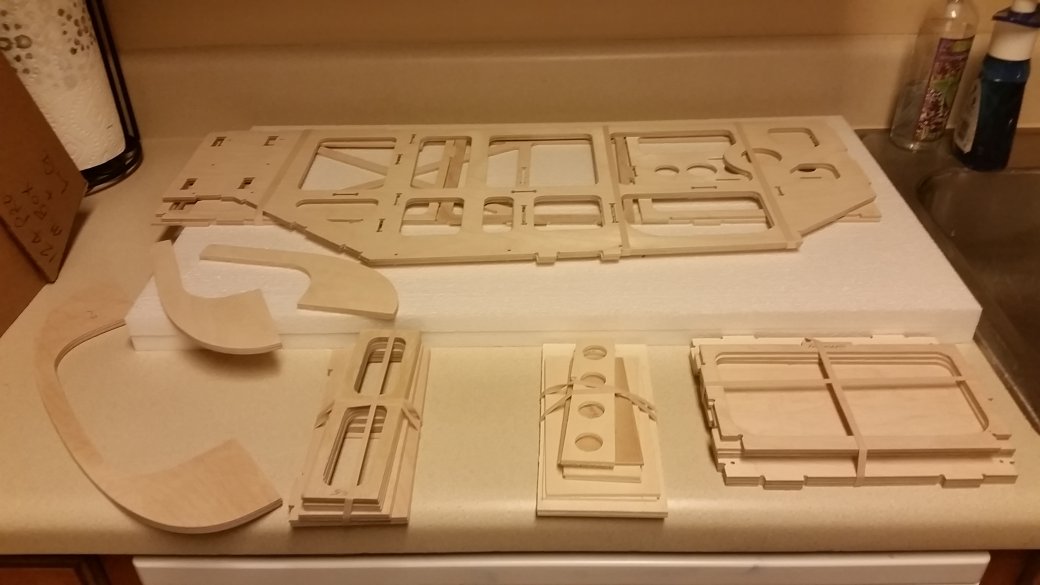

    The KIT, The quality is AMAZING!!! Well packaged.

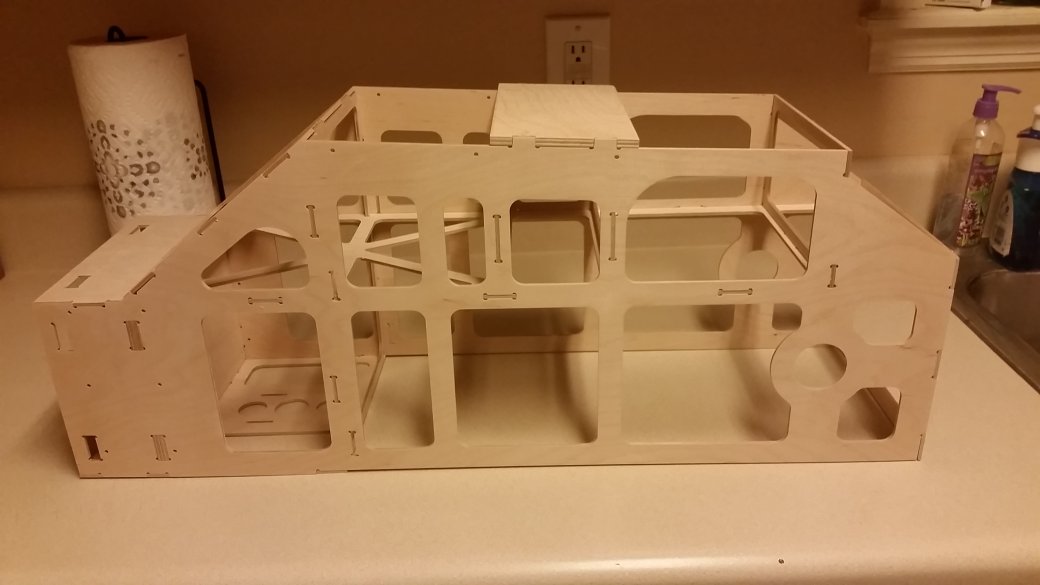

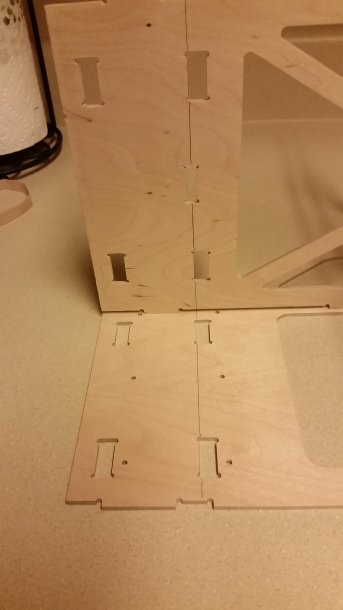

    As you guys can see on the first picture, between Kevin Turner and Wayne, I was able to get the kit last Sunday, TAHNK YOU GUYS. That same night after Family night I put together the motor box in about ten minutes, just a dry run to see how it goes together. Like a glove.

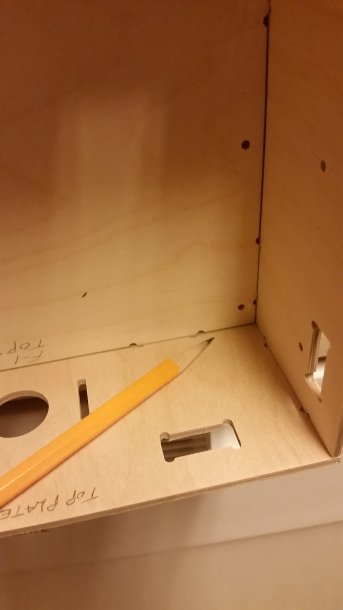

    Before the gluing begins, I think is best to pre drill F1 to whichever engine you are using, in my case DA200, KS 95’s rear dump. So lots of reading and a few calls later I have started on it. OK ENOUGH READING RIGHT? Pictures please!!!!

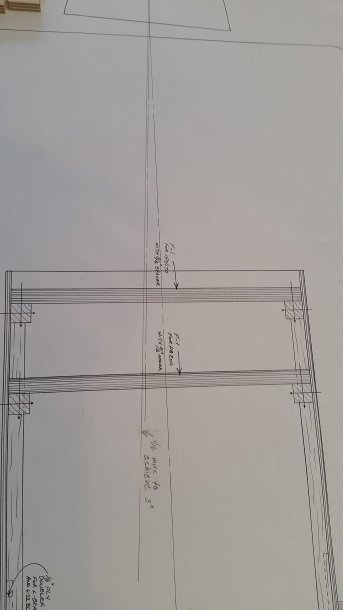

    View attachment 16478 20150406_185142.jpg

  2. ericb

    ericb Team WTFO GSN Contributor

    Joined:
    Jan 27, 2014
    Messages:
    1,904
    Likes Received:
    906
    Location:
    Worthing, SD
    Looking good. Can't wait to see it come together.

  3. mndless

    mndless Don't know a thing..

    Joined:
    Aug 26, 2014
    Messages:
    572
    Likes Received:
    331
    Location:
    Charleston, SC
    Following with interest !

  4. ericrs

    ericrs 70cc twin V2

    Joined:
    Aug 26, 2014
    Messages:
    217
    Likes Received:
    285
    Location:
    Copeland, KS
    Yay another build thread!!! I'll be watching!

  5. ROLLERMAN

    ROLLERMAN 70cc twin V2

    Joined:
    Sep 8, 2014
    Messages:
    248
    Likes Received:
    392
    Location:
    Martinez GA

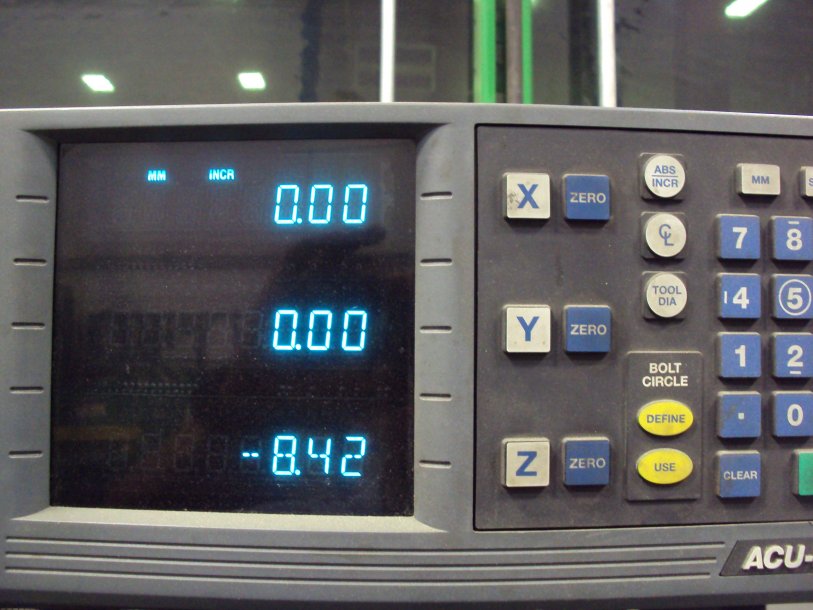

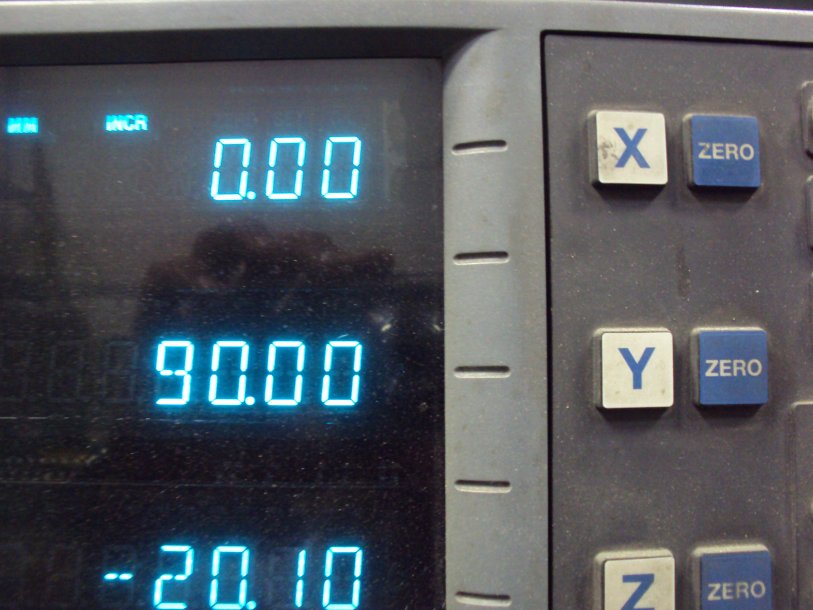

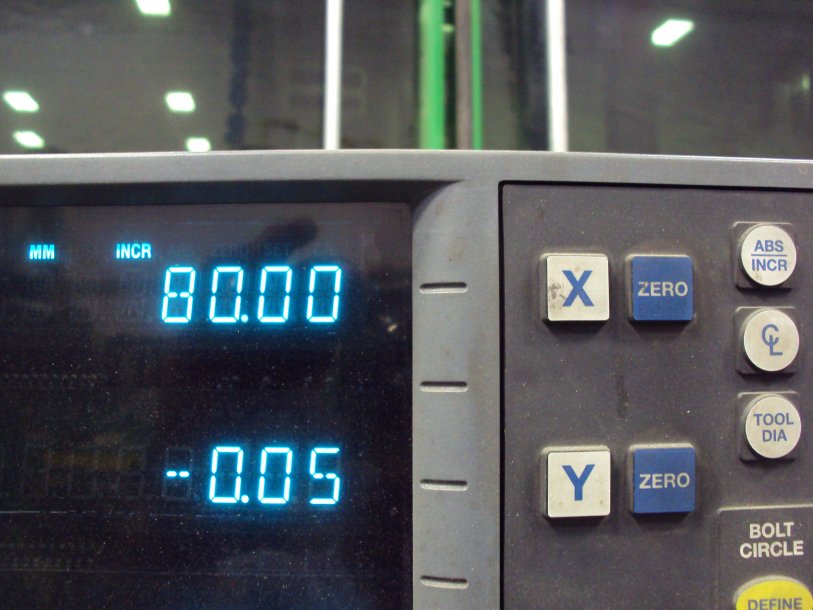

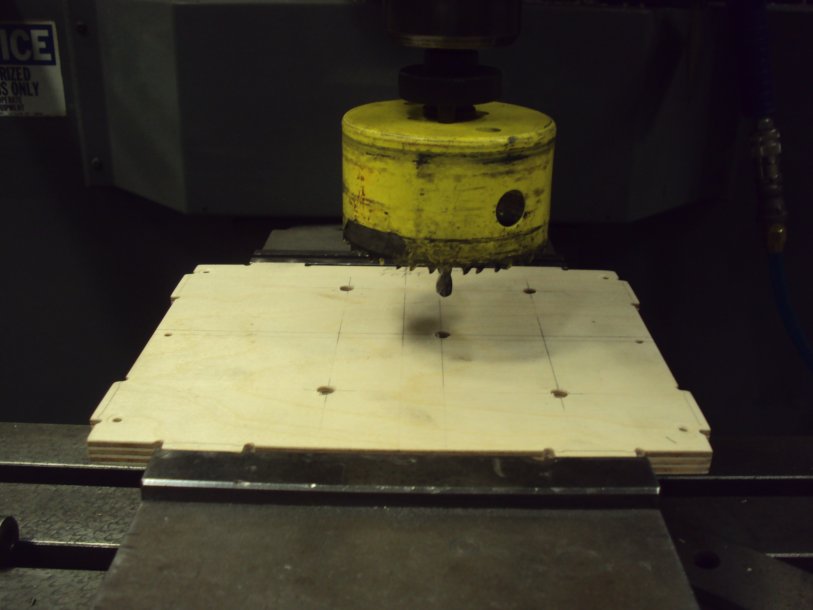

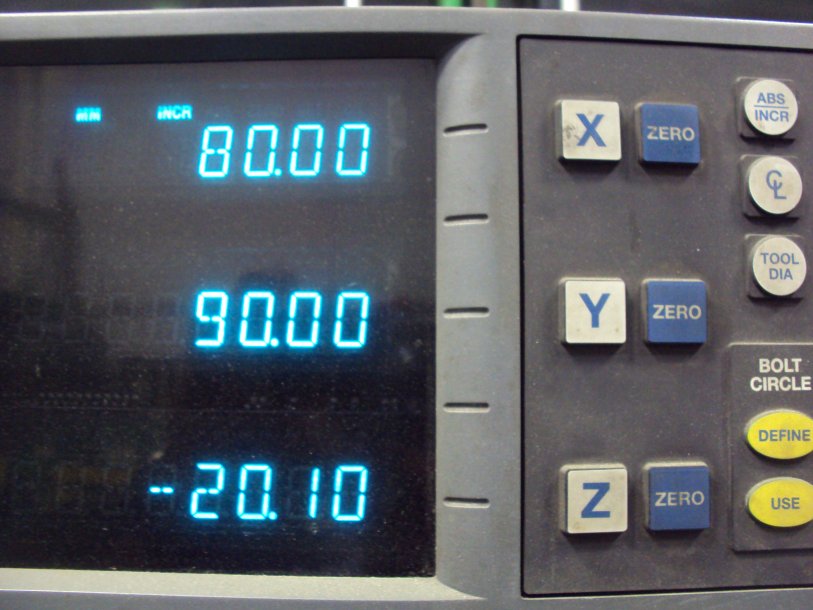

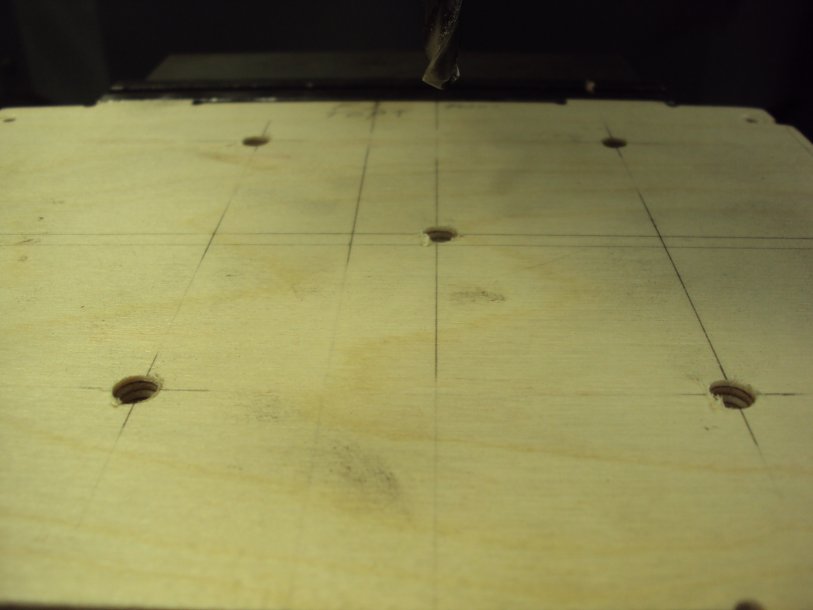

    So before I started drilling and boring out holes to save weight, I call DA to verify the centering of the mounting holes, 80mm on the horizontal line and 90mm vertical, once I was done measuring 1000 times I made my first mark. Using a Bridgeport mill with a digital display made things easy. Once I found my first point I zero the X and Y axis, I then moved over 80mm, drilled, down 90mm back over to zero.


    Attached Files:

    pawnshopmike likes this.
  6. ROLLERMAN

    ROLLERMAN 70cc twin V2

    Joined:
    Sep 8, 2014
    Messages:
    248
    Likes Received:
    392
    Location:
    Martinez GA
    I would love to post more, but I gues I need to work. Comments, Ideas, suggestions are more than welcome.


    Attached Files:

    pawnshopmike likes this.
  7. Alky6

    Alky6 100cc

    Joined:
    Aug 26, 2014
    Messages:
    871
    Likes Received:
    686
    Location:
    Dixon, CA
    Hey! That's cheating, using a milling machine with an DRO! LOL. Look forward to watching this come together.

    Jetpainter likes this.
  8. pawnshopmike

    pawnshopmike GSN Sponsor Tier 1

    Joined:
    Jul 27, 2014
    Messages:
    4,156
    Likes Received:
    3,639
    Location:
    Sullivan Missouri
    Awesome!
    [​IMG]

    stangflyer likes this.
  9. ChickenBalls

    ChickenBalls "Cool Guy"

    Joined:
    Aug 29, 2012
    Messages:
    1,725
    Likes Received:
    2,626
    Location:
    Robbins, NC
  10. ROLLERMAN

    ROLLERMAN 70cc twin V2

    Joined:
    Sep 8, 2014
    Messages:
    248
    Likes Received:
    392
    Location:
    Martinez GA

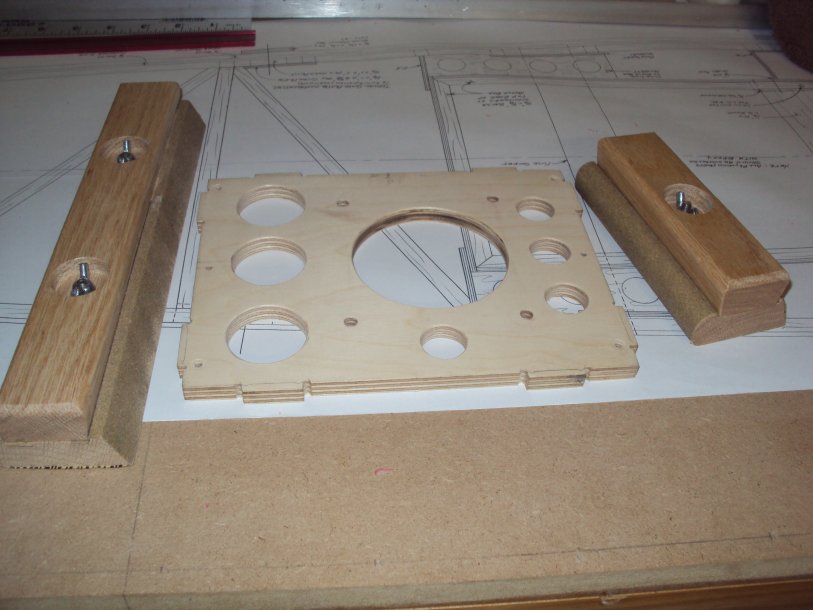

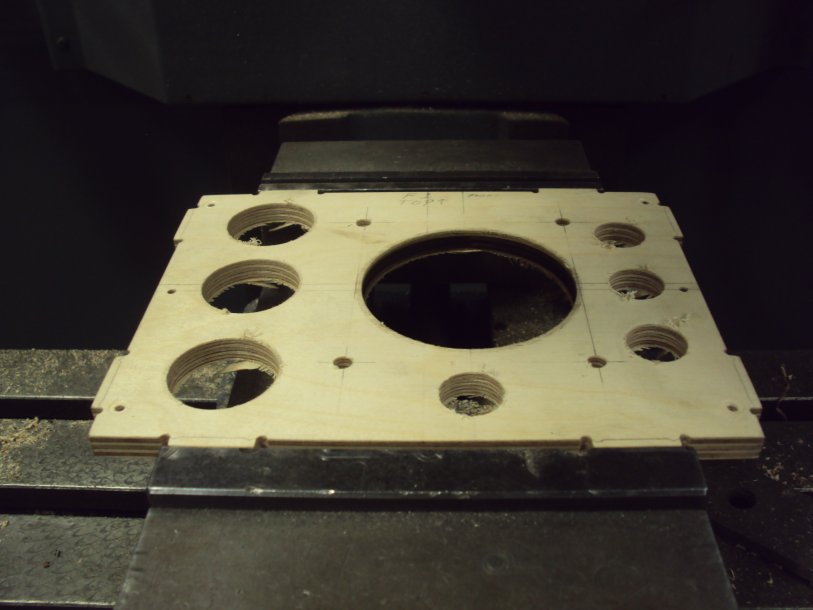

    The next few pics are to show what all I’ve done so far, I should be able to start gluing the engine box tonight. Unless I go and play a round with Tiger Woods at Augusta National today. It is a MAD house. I live about 20 minutes from the course.


    Attached Files:

    thurmma, SleepyC and ChickenBalls like this.
