3DHS 71" Slick Motor Box Repair

Discussion in 'ExtremeFlight/3DHS' started by Capt.Roll, Oct 17, 2012.


  1. FUD!!! Now What?

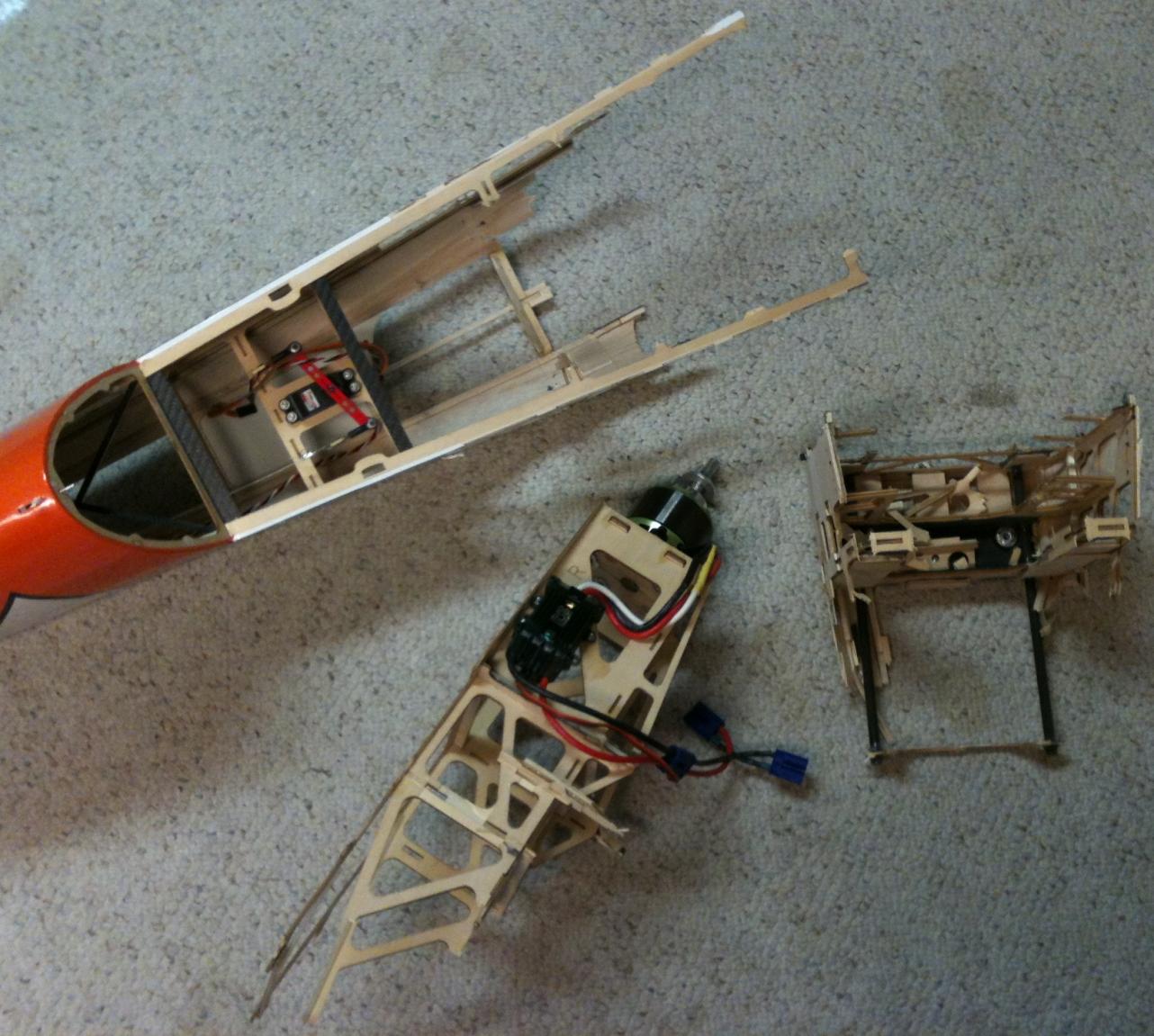

    71Slick busted.jpg

    I purchased a motor box kit a little over a year ago. I guess it's time to get some good out of it since I dumped my Slick last week. :sadface:

    Everything else up front (wings, wheel pants/gear, canopy, cowl) survived and no repairs required.

    Don't think it will be a difficult fix but really do not want to spend the time to put it back together. I'll work on it as time allows and should have it done in a couple of weeks. There is an electric fly-in at my club November 3rd, I'd like to have it done by then.

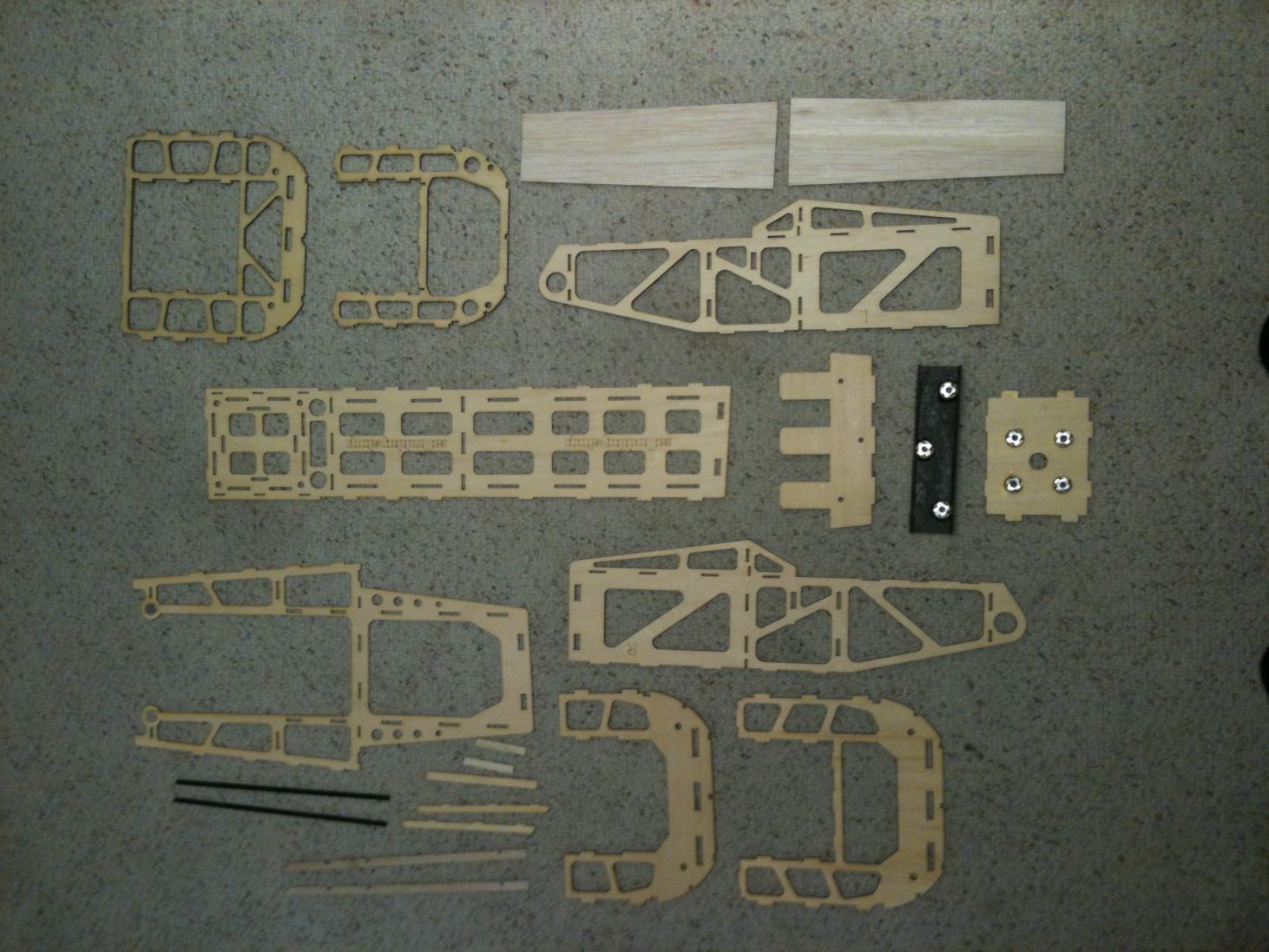

    I'll post some updates as I work through the repair. First up is to assemble the new motor box.


  2. Wow, motor box went together pretty fast. Laser cut parts are a tight fit but go together nicely.

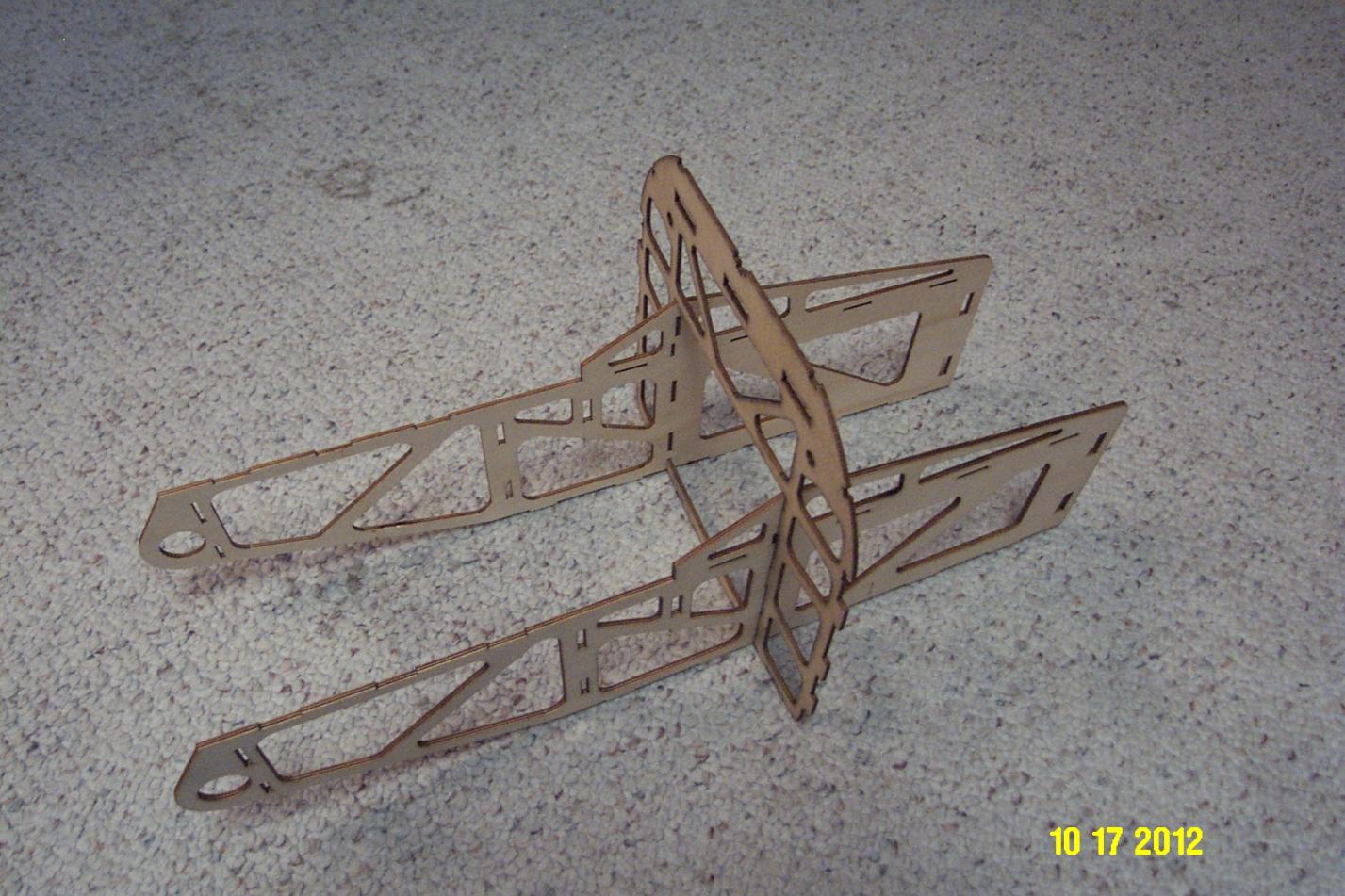

    Since there were no directions in my MB kit I started with the R & L sides and the first former.

    71Slick MB Assy1.jpg

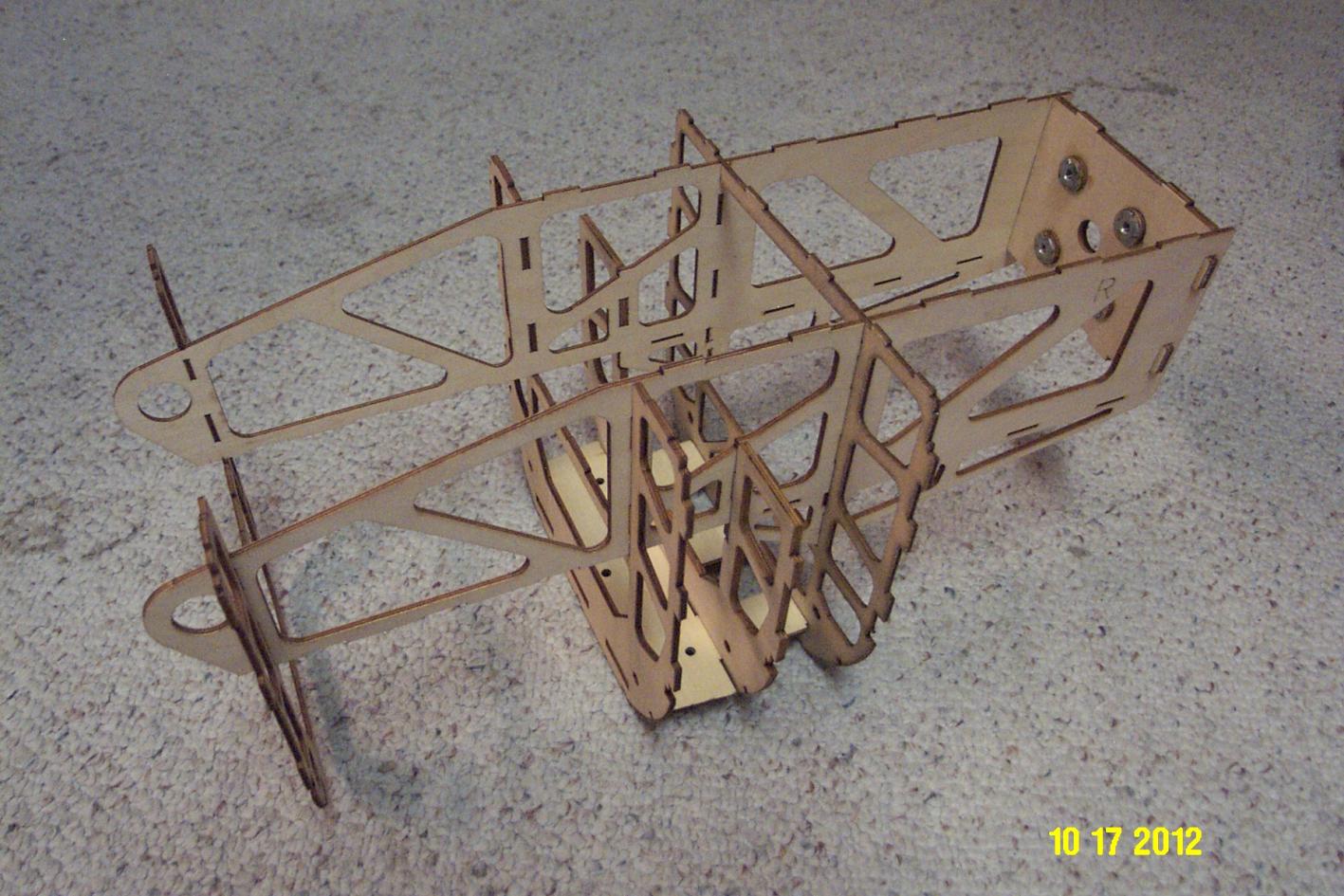

    Second step was to fit the wooden landing gear base with the second and third formers then install that assembly into the R & L motor box sides. The fourth former is a very easy fit at this point. This pic shows the firewall in place but I removed it. It was easier to fit later in the assembly.

    71Slick MB Assy2.jpg

    Third step was to install the battery tray. To get the interlocking tabs in place you have to bow the tray up or down so you have some room to help make everything fit.

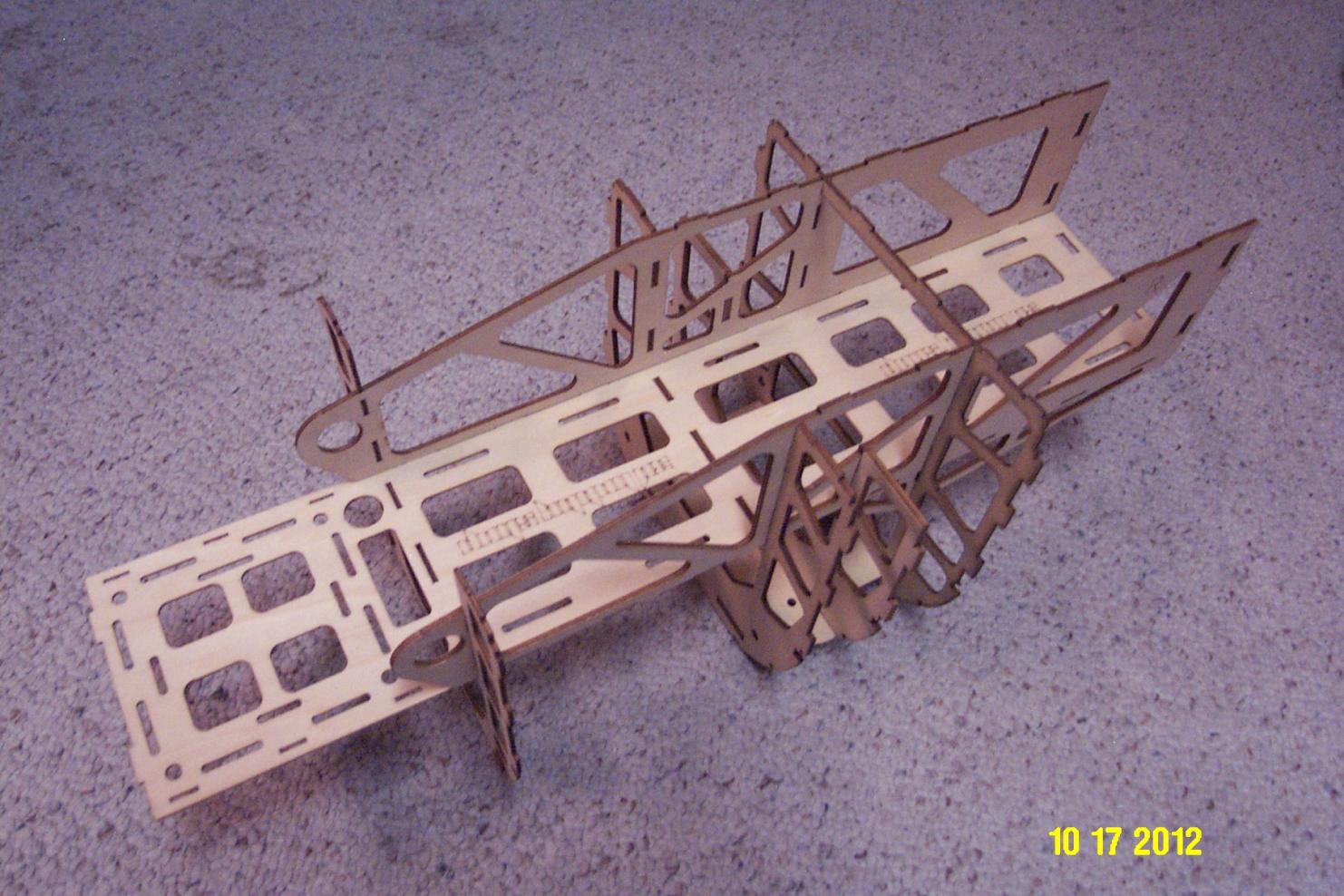

    71Slick MB Assy3.jpg

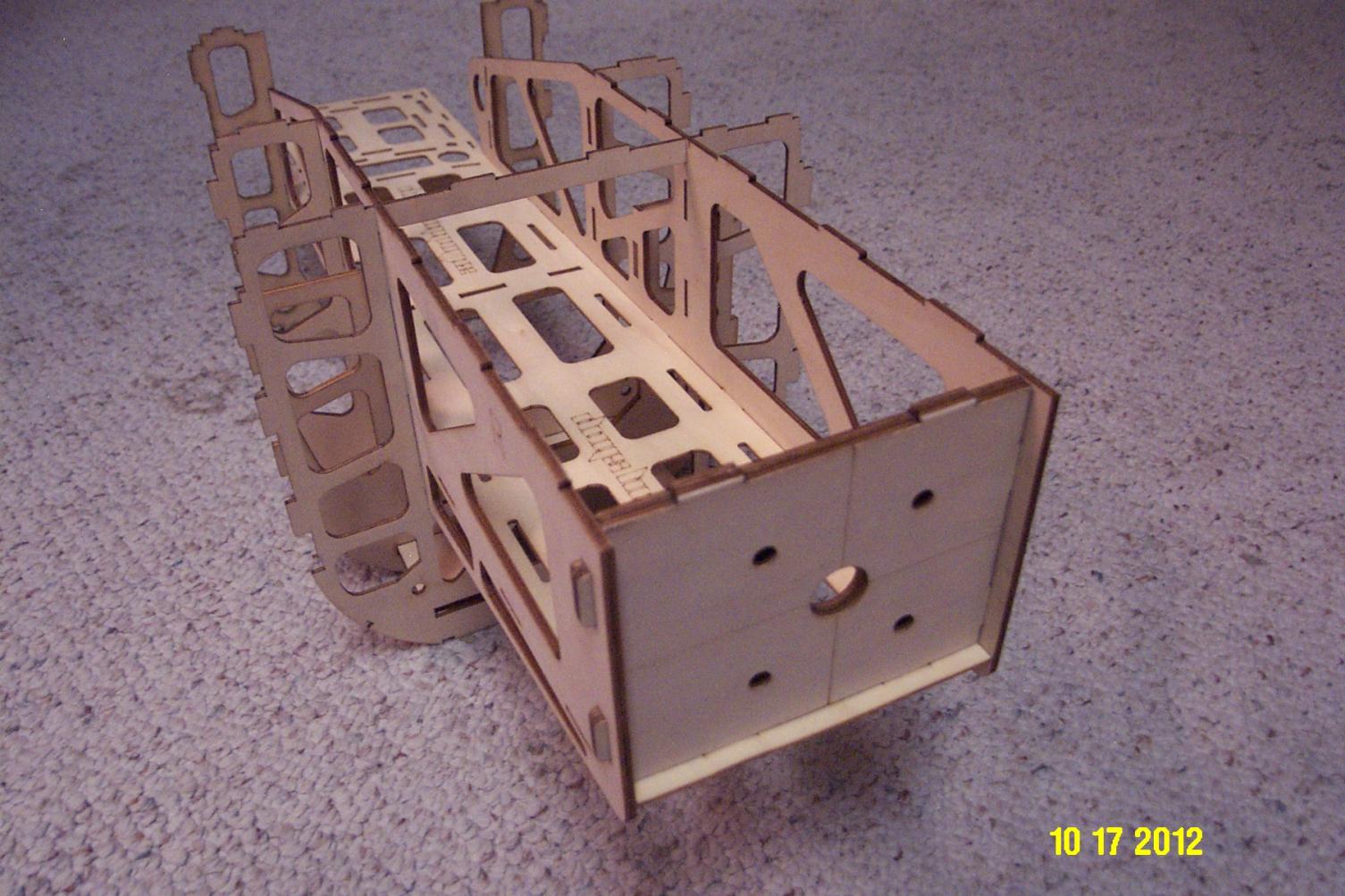

    Fourth step was to install the motor firewall at the front of the motor box.

    71Slick MB Assy4.jpg

    Fifth step was to lock in the top piece. Once installed the motor box is a pretty tight assembly and seems to be square.

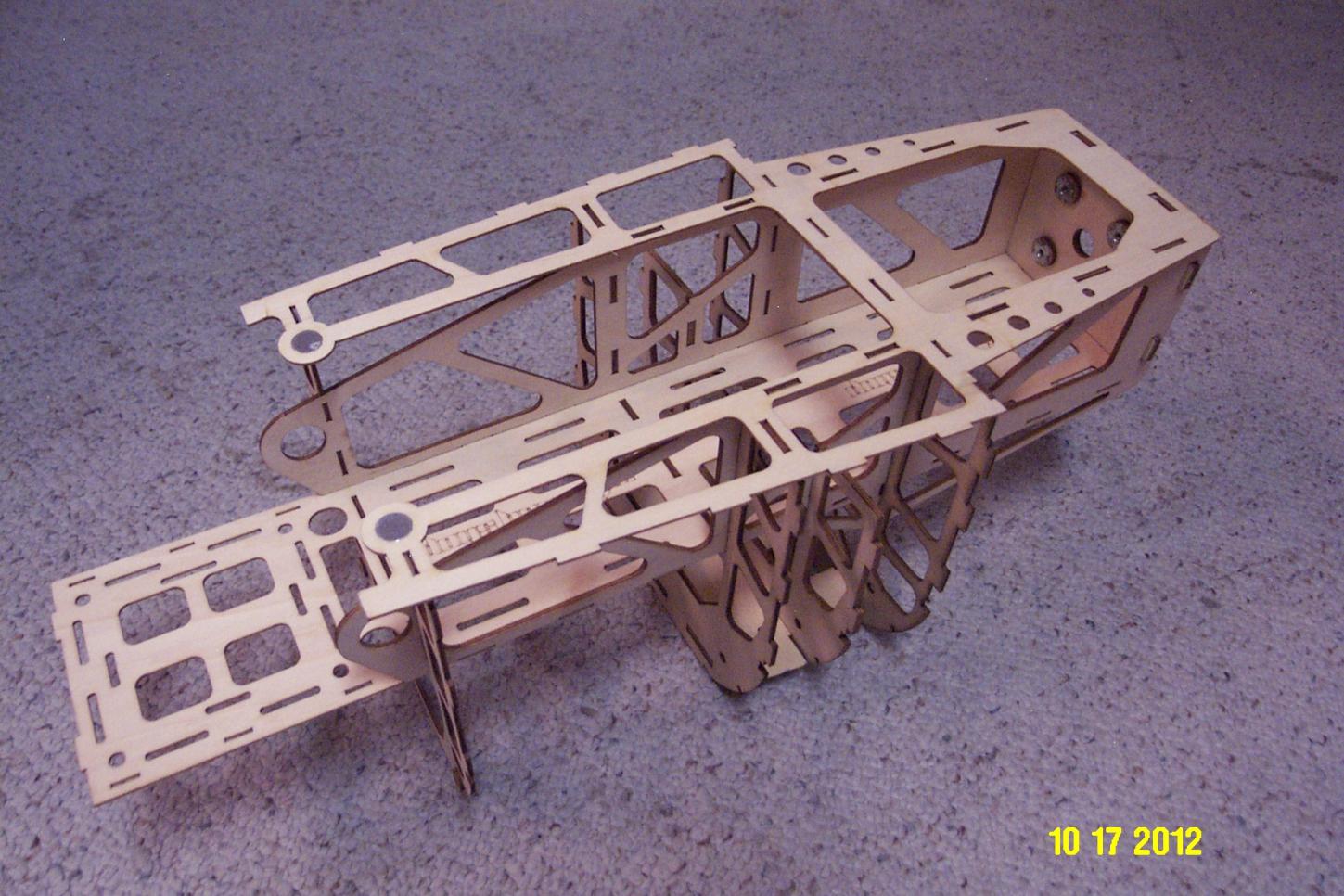

    71Slick MB Assy5.jpg

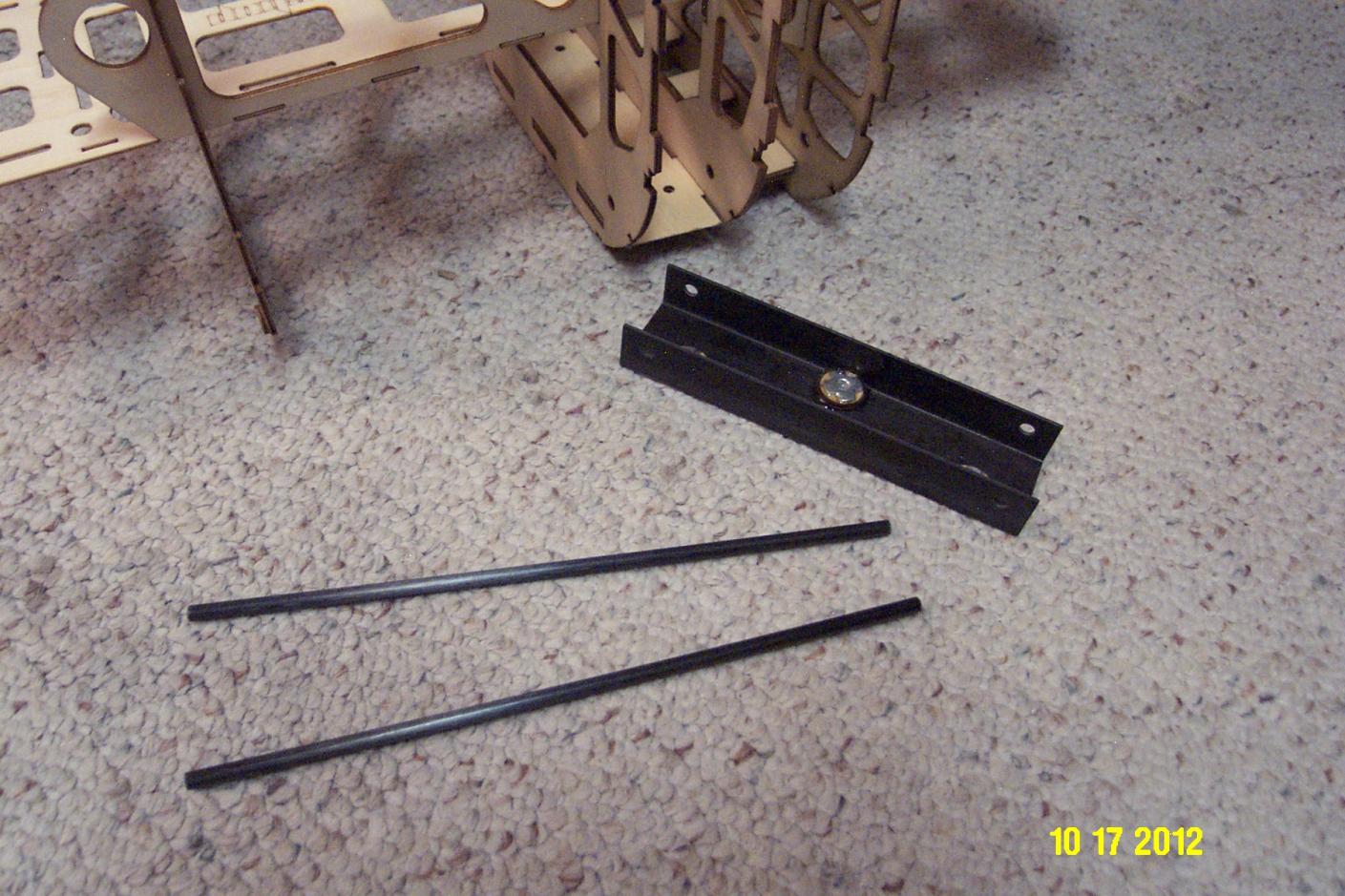

    At this point all I have left to do is CA all of the interlocking notches/tabs, epoxy in the carbon fiber LG plate and the two CF rods that run through the bottom of the four bulkheads and epoxy in the CF wing tube sleeve.

    71Slick MB Assy6.jpg

    Last edited by a moderator: Oct 17, 2012
  3. gyro

    gyro GSN Contributor

    7,806
    131
    63
    Texas
    AWESOME! Looking forward to seeing the rest of the repairs!

    Thanks Rex for posting this step by step motorbox repair log.... this will be helpful to a great many people!

  4. Made some progress this weekend...........motor box was easy, replacing the front of the fuse outside ply framework is a PITA. Basically I've had to reconstruct almost everything forward of the aft anti-rotation pin holes to the first former. It would be an easier task if I had the correct tools, thank goodness I at least have a drill press and a Dremel.

    It's nice being able to purchase a motor box kit from 3DHS but on this repair that covered about half the wood I needed. I think my next ARF will be a Pilot. If I need to ever make a repair like this I'll at least be able to get the cut pieces, that will make it much easier.

    Finished up the motor box assembly; installed the landing gear plate, carbon support rods and a couple of stringers.

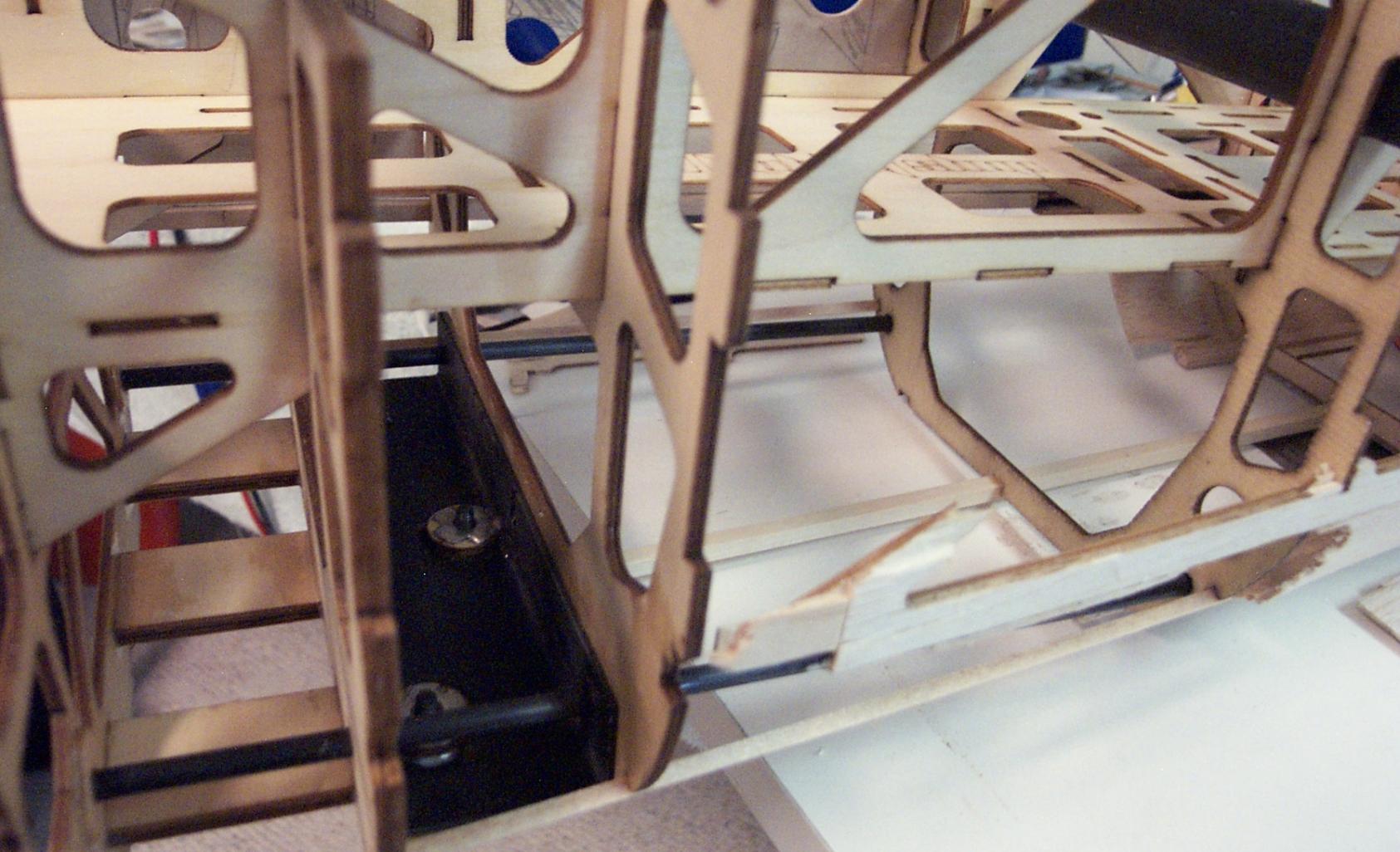

    71Slick MB Assy7.jpg

    Motor box spliced into the Slick fuse. Seems to be fairly well aligned; if it doesn't fly right I'll try to direct it towards the dumpster......LOL.

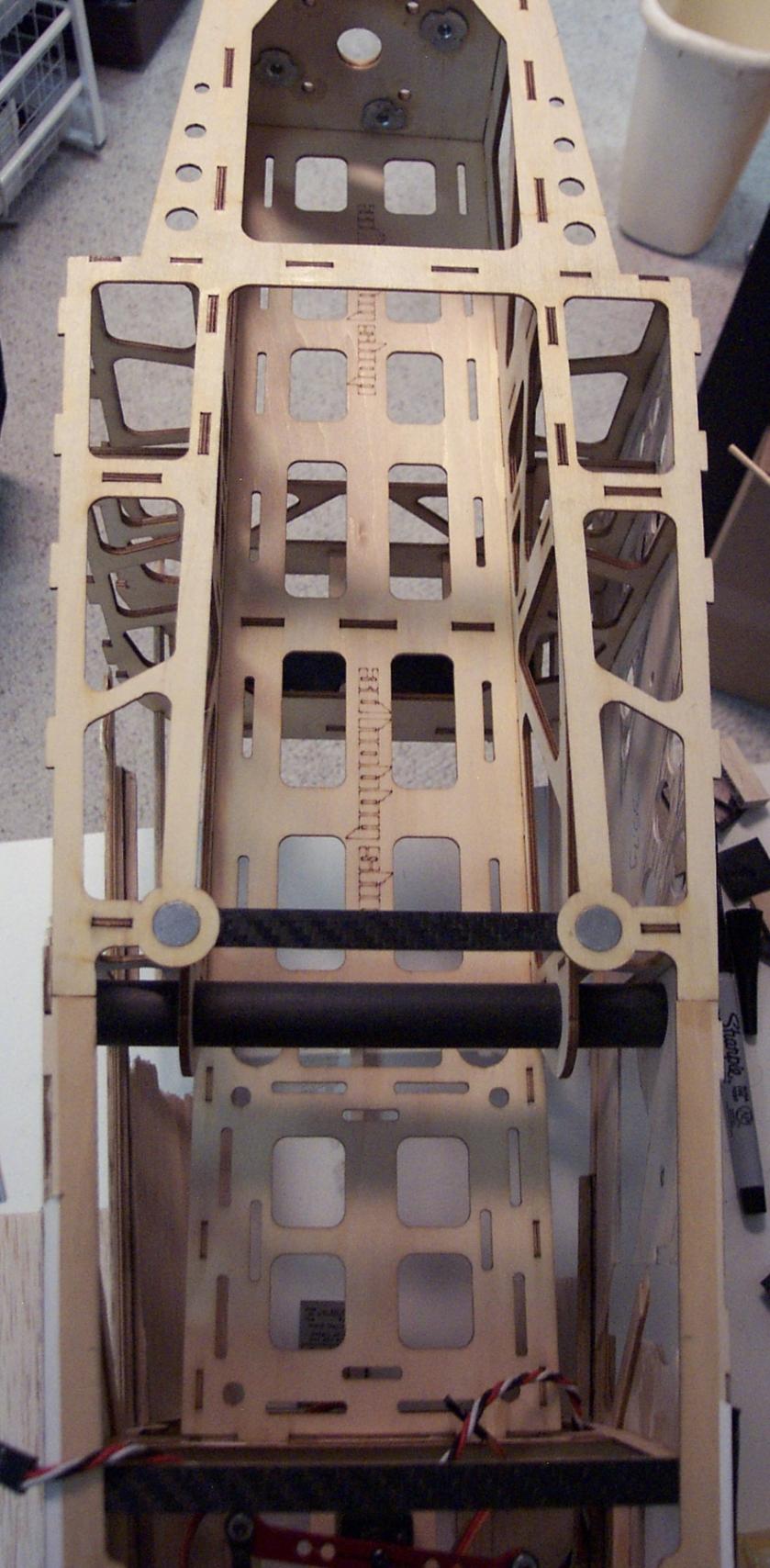

    71Slick MB Assy8.jpg

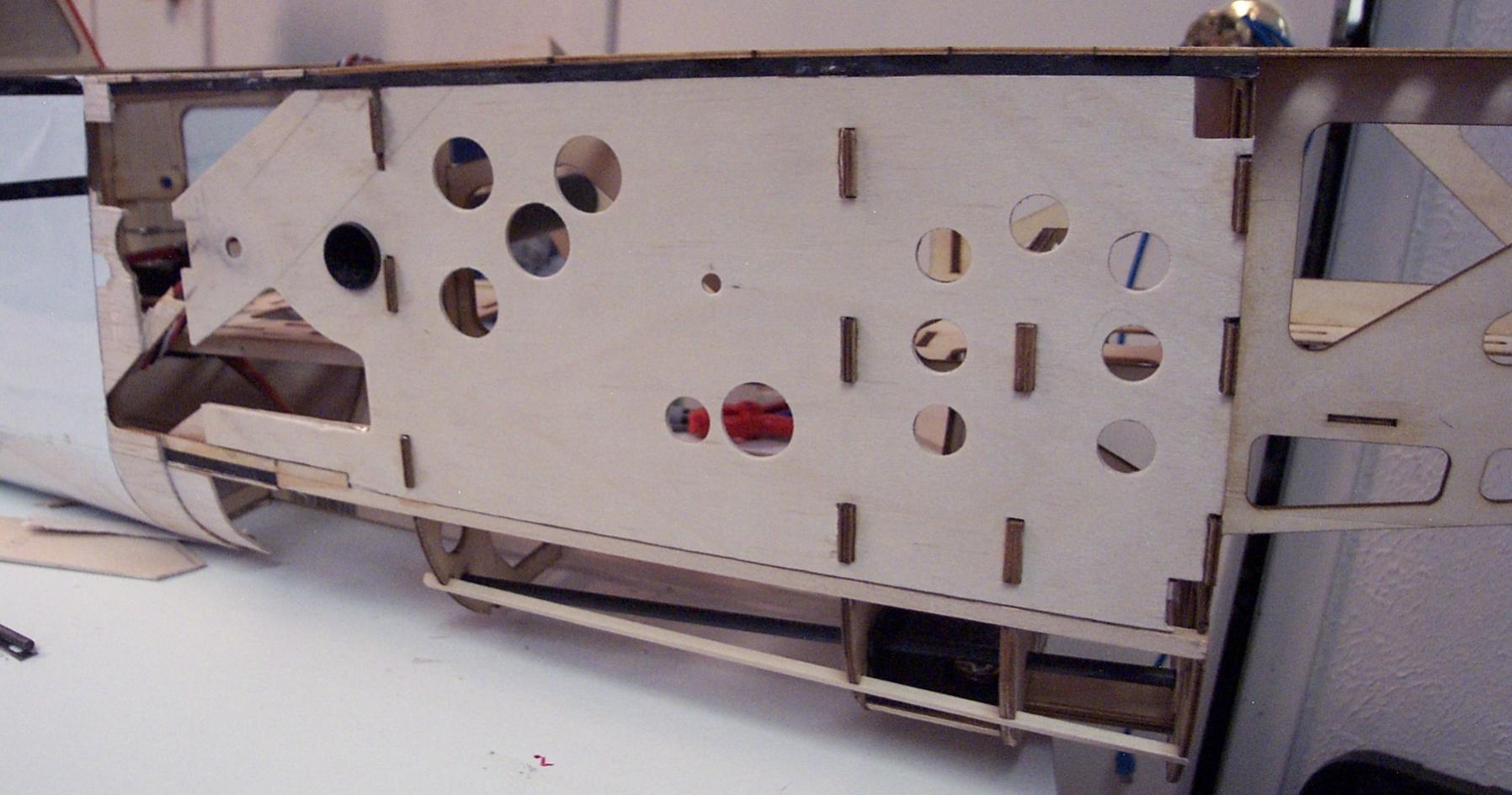

    Right outside motorbox/fuse frame made from 1/16 ply. There is room to lighten it some more. Starting weight of the 1/16 ply was 56 grams, as it is now the weight is 35 grams. Have to repeat the process for the left side now...........not looking forward to that.

    71Slick Ply Frame.jpg

    I'll work on the stringers this evening along with making new mounting tabs for the cowl......those all have to be hand cut as the old ones aren't usable. I'll pick up some 3/32 or 1/8 balsa sheeting at the LHS tomorrow. I think once the left side is done the sheeting and covering will go pretty quick.

  5. Pilot does have something cool there with the free parts for a crashed plane.


  6. Was able to make a little more progress on the Slick repair the last several days.

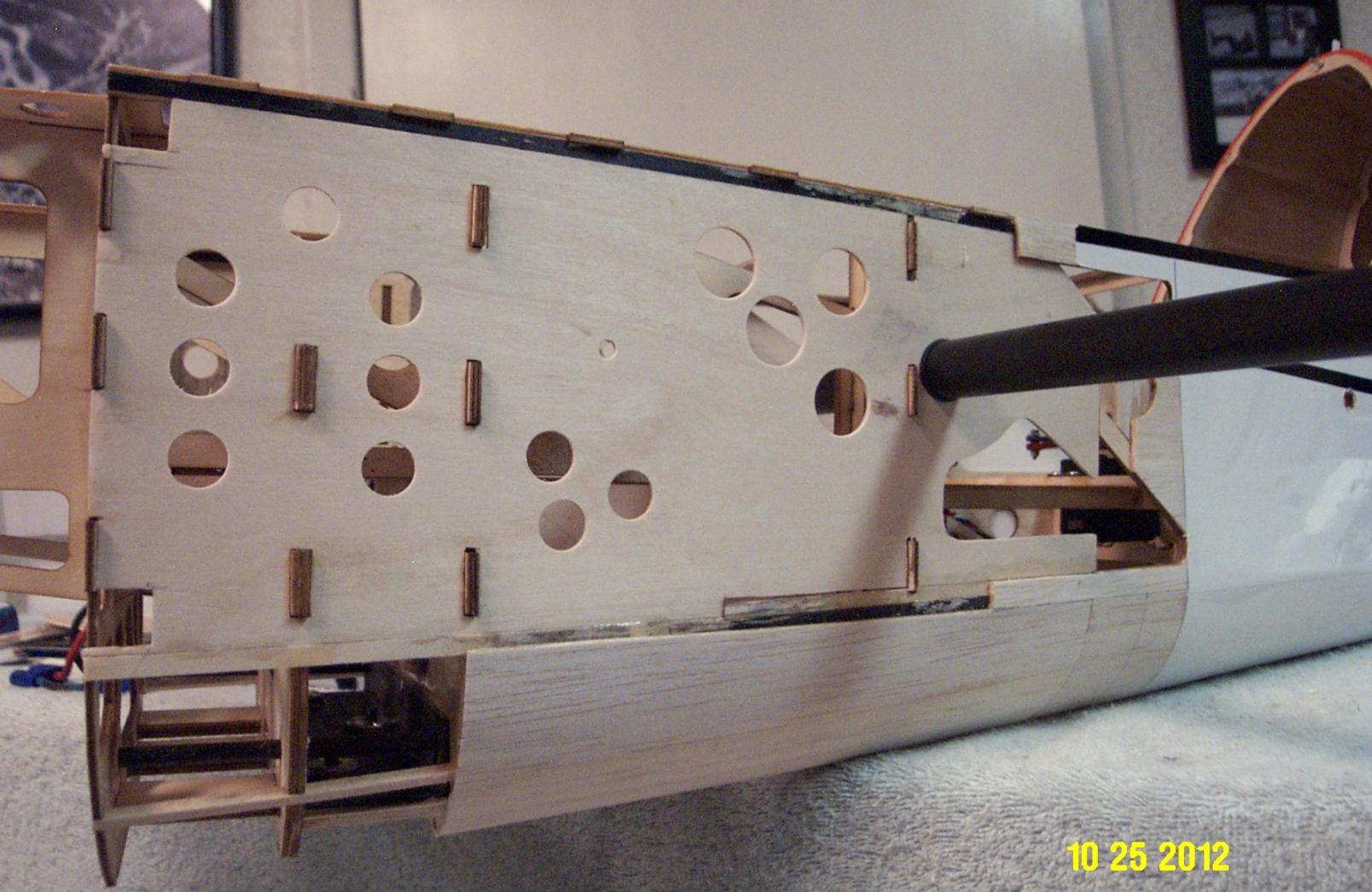

    Cut and installed the left side ply frame to the motor box. Wing tube, anti-rotation pins and wing bolts all seem to line up good. We'll see how good on the test flight after I finish the repairs.

    71Slick Ply Frame Left.jpg

    Put on the first two pieces of balsa sheeting. These are the only two pieces of sheeting that come with the motor box kit.

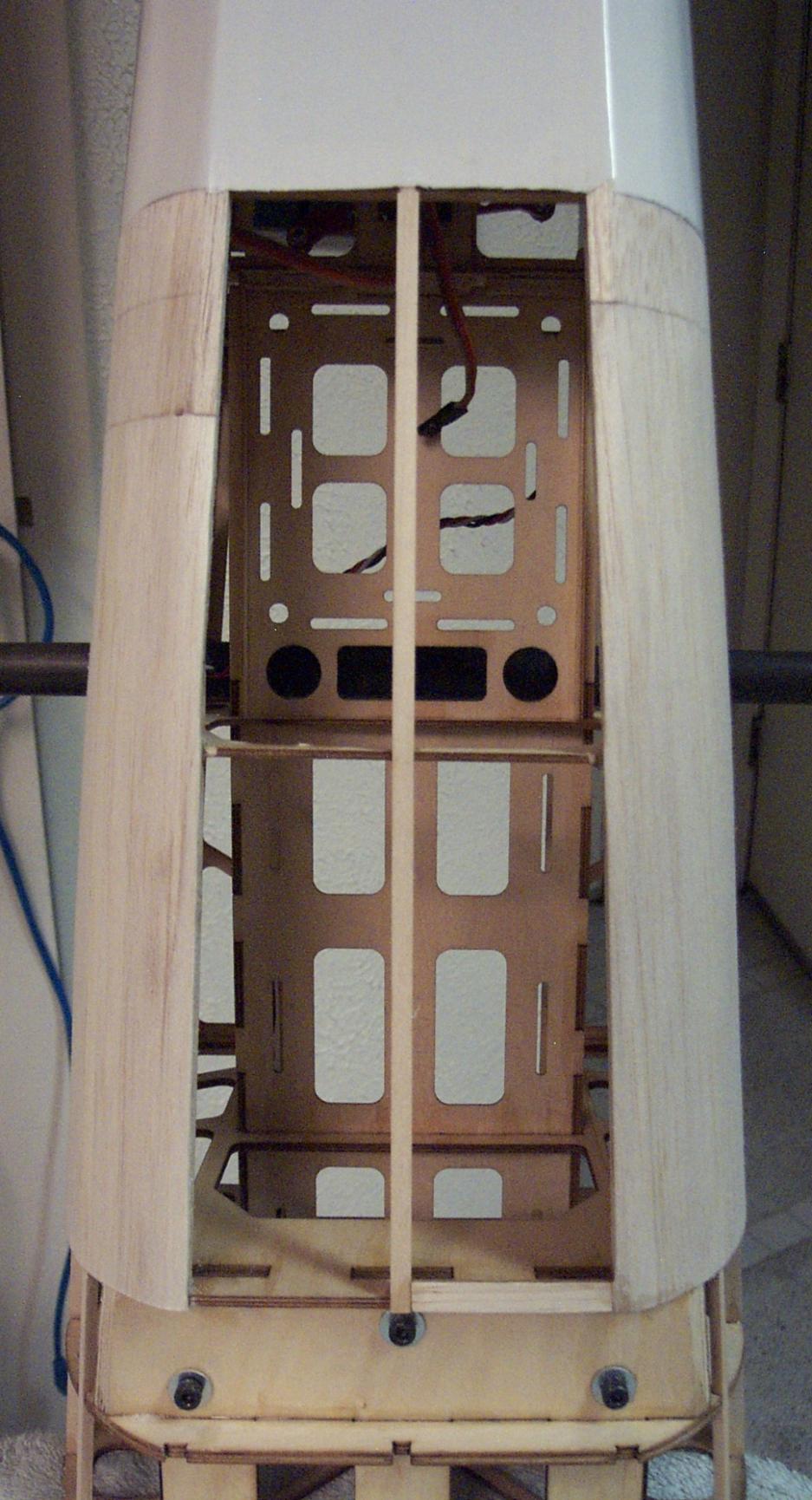

    Balsa Sheeting 1.jpg

    The repair should be pretty simple and quick from this point; I'm hoping to get the remainder knocked out Friday evening. May be able to get several test flights on Sunday. I will for sure have the Slick ready to go for electric fly-in on Nov. 3rd.

  7. gyro

    gyro GSN Contributor

    7,806
    131
    63
    Texas
    Looking good! Did u say electric flyin in? :p

  8. Ya.


  9. Left side is sheeted and ready to be covered. Working on the right side now.

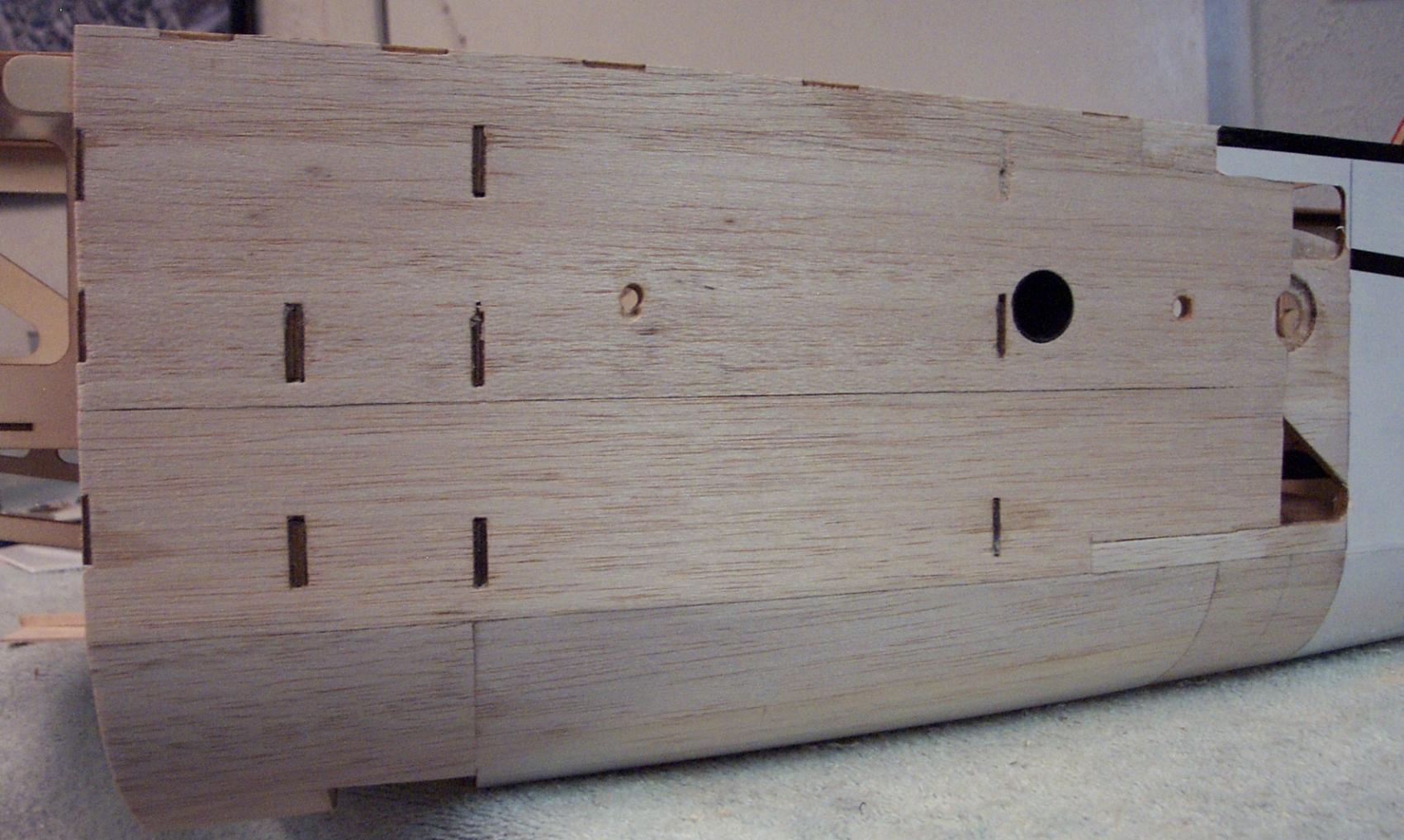

    Balsa Sheeting L.jpg

  10. Pretty well have the major parts of the repair complete.

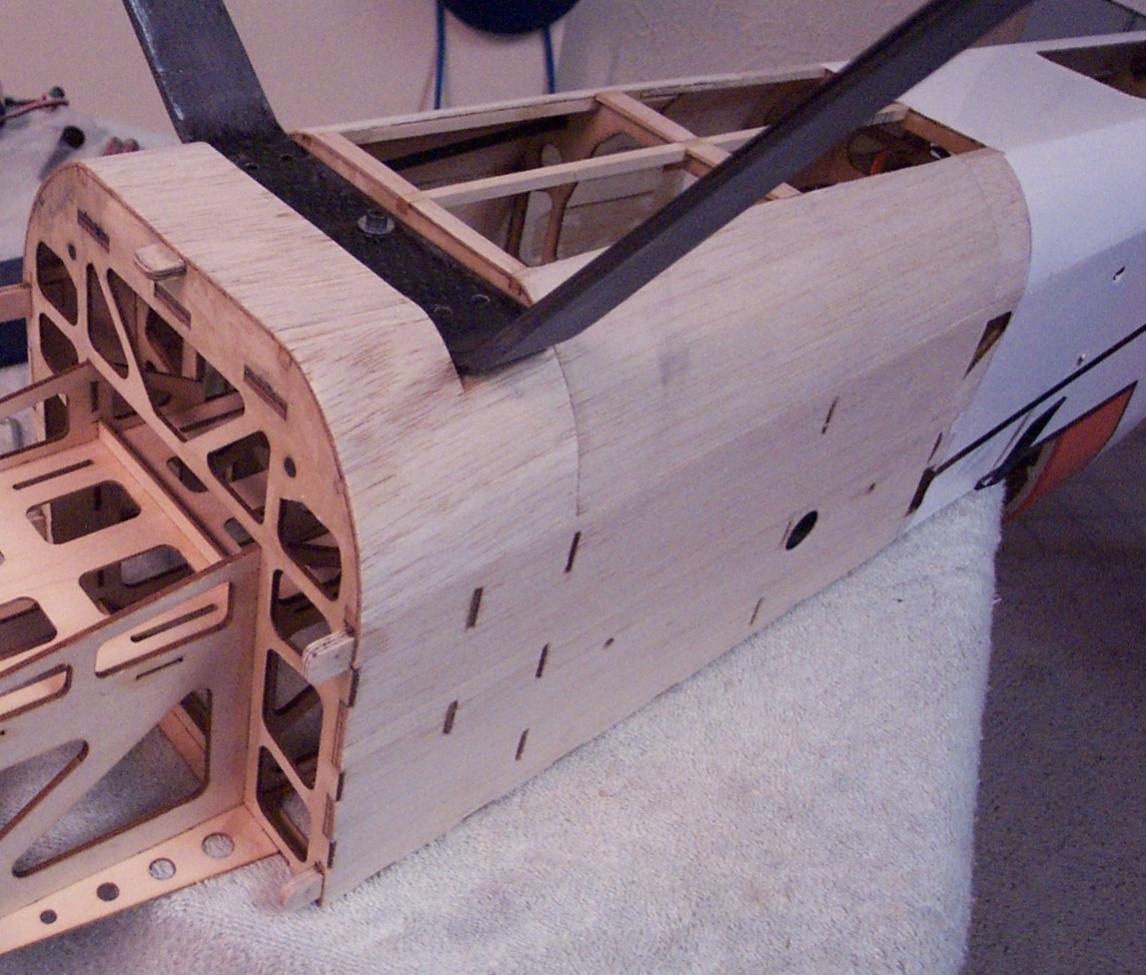

    Finished the balsa sheeting.

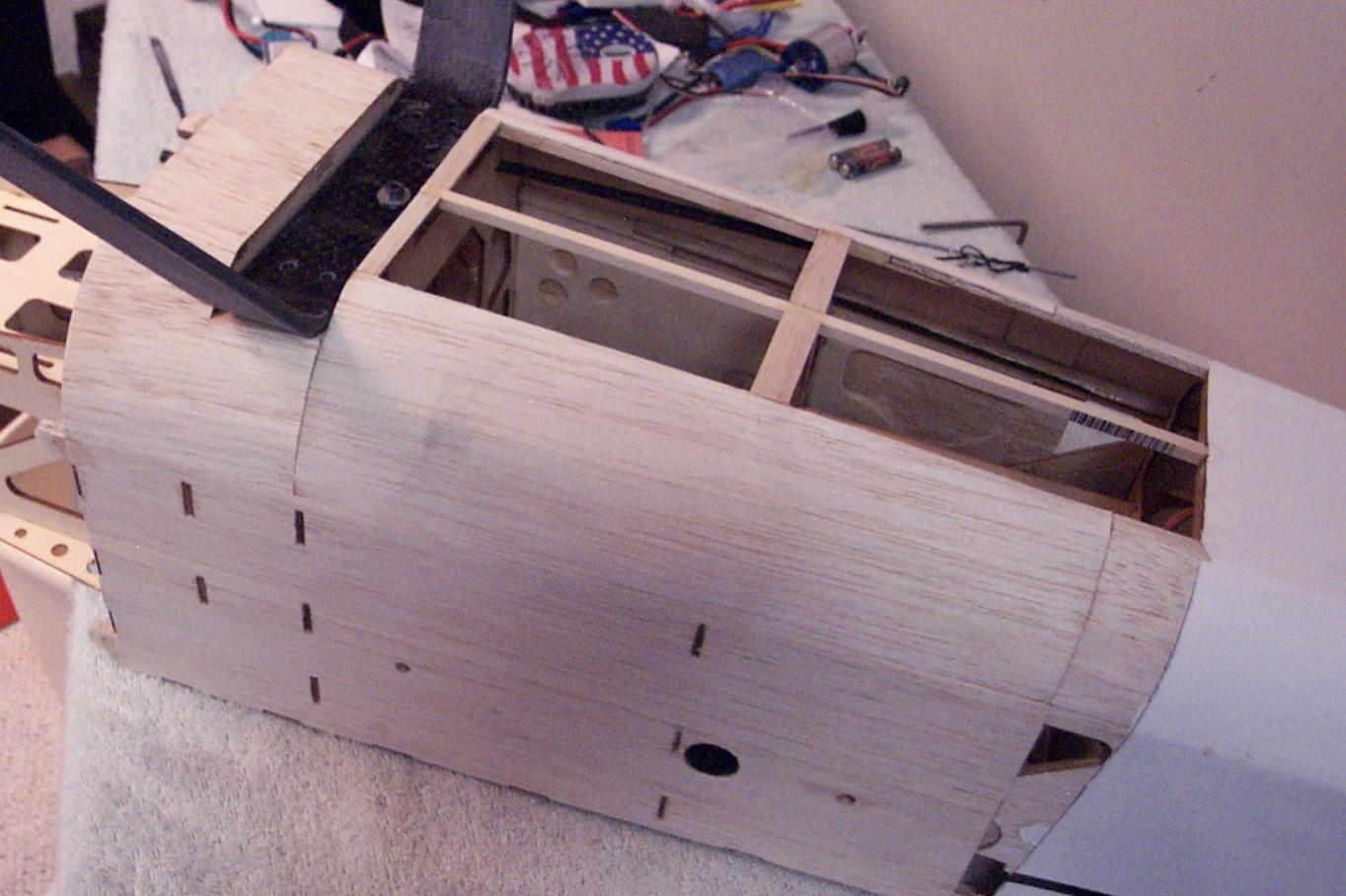

    Balsa Sheeting Finished 1.jpg Balsa Sheeting Finished 2.jpg

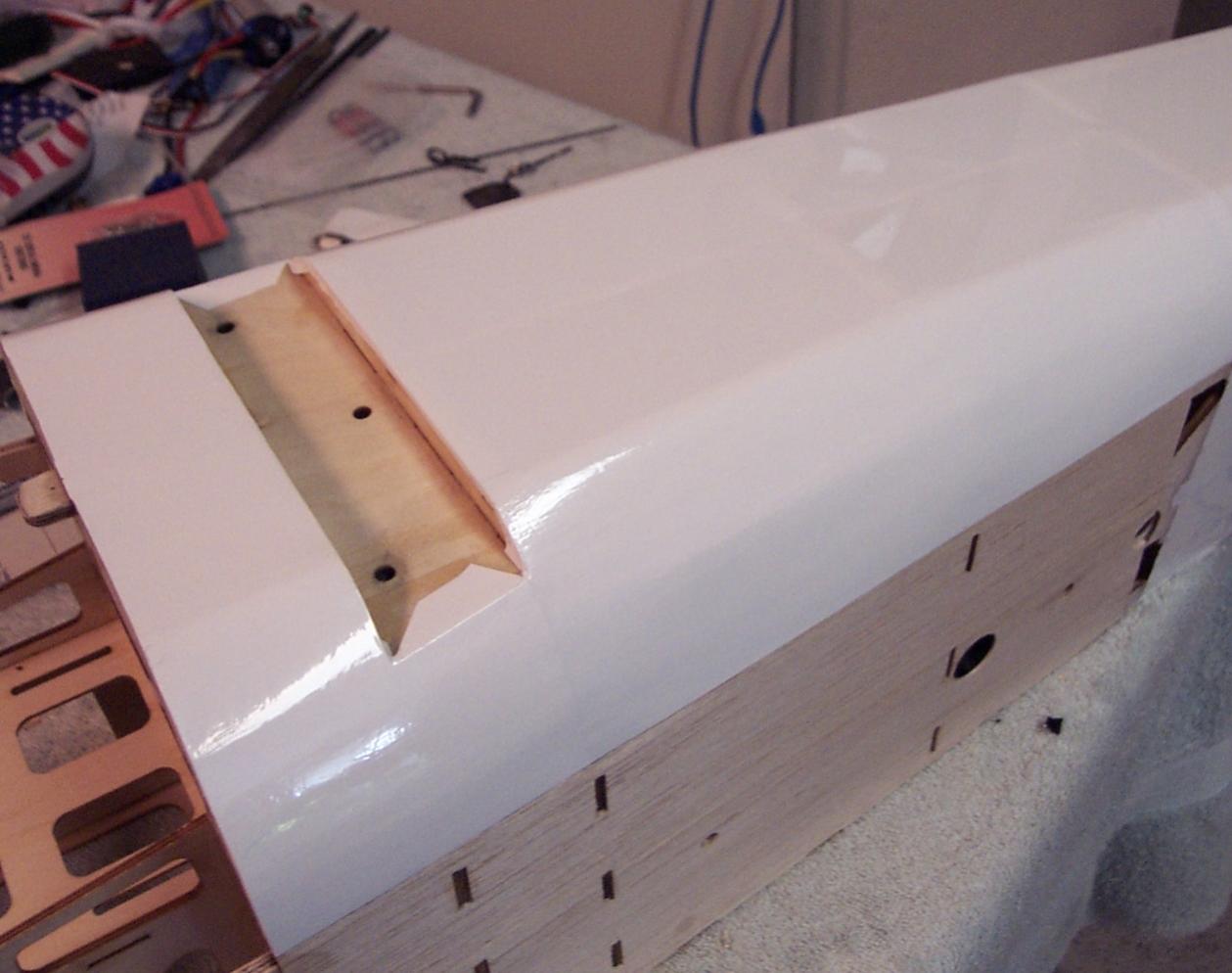

    First piece of covering. I sure like the Topflite Monokote White over any of the other brands. Much more opaque and very nice finish on the covering. I've heard people say that the Monokote is harder to work with than the Ultracoat. I've used both and really can't tell much difference between them.

    First Covering.jpg

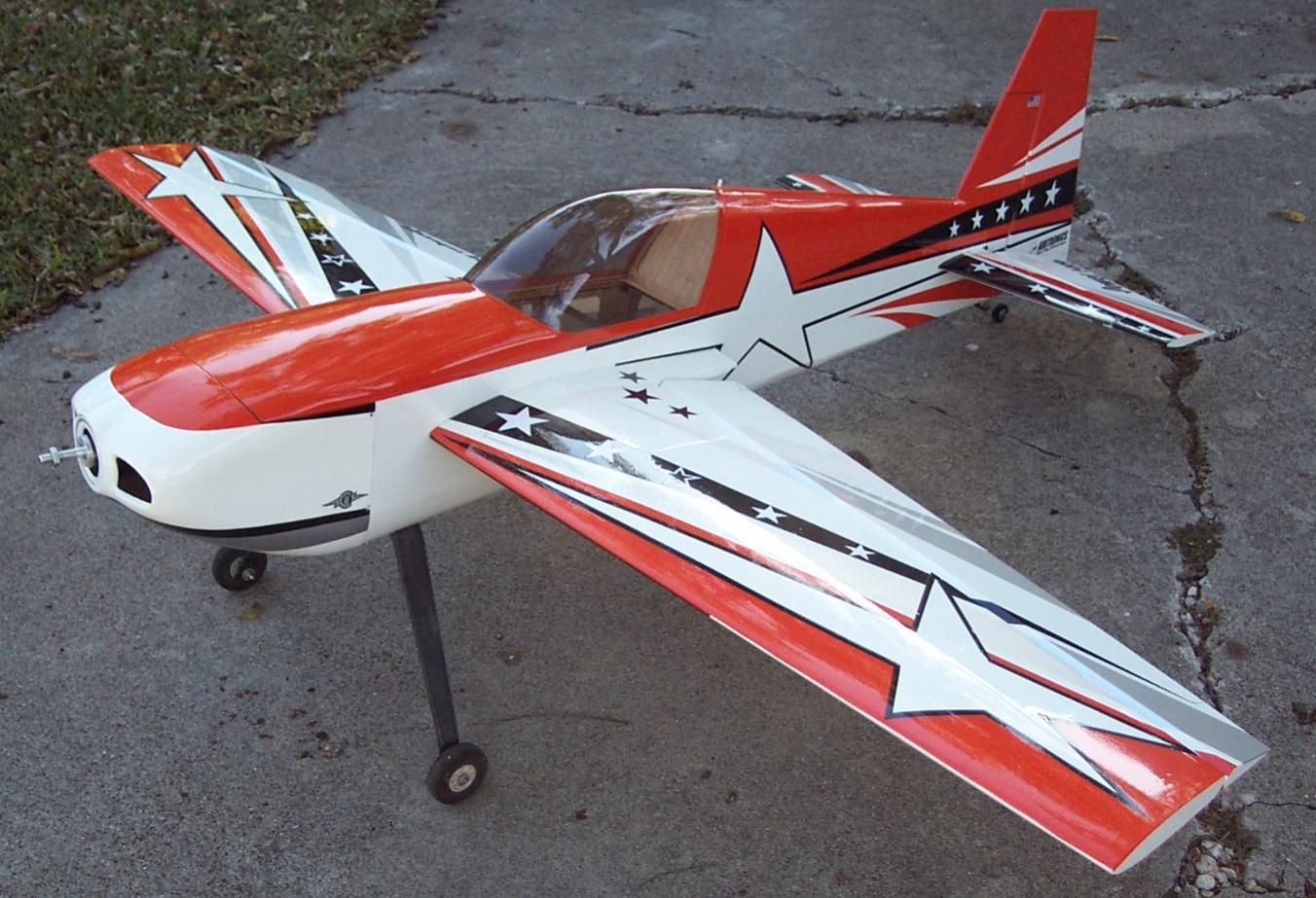

    Test fit with both wings, canopy and cowl. Everything lined up pretty good; spinner gap was spot on as well.

    Repair 1.jpg Repair 2.jpg

    Not much left to do, just some minor things.
    1. Finish the star points on the right and left fuse and add the silver/black trim that extends from the cowl on the lower fuse.
    2. Drill the cowl mounting holes in the mounting tabs and install the blind nuts.
    3. Attach the wheel pants. The LG isn't correct for the Slick, it's actually for a Yak 55. It's a little tall but it allow me to get a couple of test flights in before making or purchasing a new LG. If the plane doesn't fly "right" I won't spend any more cash on it.
    4. Install the RX and Lipo's, check the CG, test for proper operation, and range check the RX.

    Last edited by a moderator: Oct 28, 2012
