Aeroworks 150cc Yak 55M ARF QB

Discussion in 'Manufacturer's Announcements and Discussions' started by 3dmike, Jun 22, 2015.

  1. 3dmike

    3dmike 640cc Uber Pimp

    Guys check out this new Airframe from Aeroworks! Wow this is a looker and sure to be an awesome performer! This is due to arrive in the next 3 weeks so get your order in now!!!

    Link: http://www.aero-works.net/product/150cc-yak-55m-arf-qb/


    [h=2]150cc Yak 55M ARF QB[/h]Aeroworks is proud to add the 150cc Yak 55M ARF QB to their line of Quick Build Series Aircraft. The Quick Build (QB) Series is top quality in both design and performance that has set a new standard for ARF aircraft. Designed with the customer in mind to provide the highest quality, light weight construction and fastest build time possible.

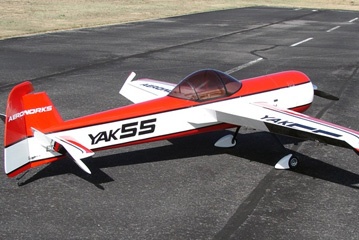

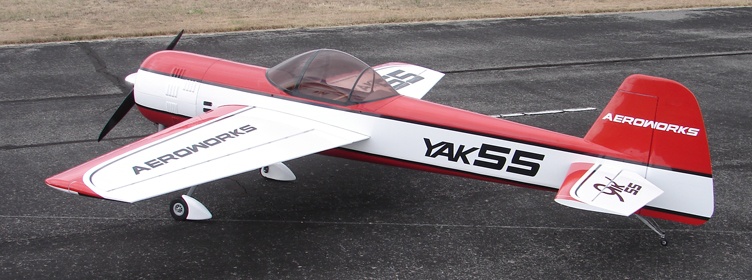

    The 150cc Yak 55M was designed to be the best looking and best performing Yak to date. This aircraft requires minimal mixing and aileron differential creating the truest flying Yak EVER! The Yak 55M has unbeatable stability and precision flight characteristics and is certain to please both the beginner as well as the advanced competitor. Designed for both Precision and 3D Style flying this plane is sure to out perform all other aircraft.

    Strong Light Weight Construction
    Professionally Covered in Ultracoteâ„¢
    Pre-Mounted and Tinted Canopy Hatch Assembly
    Pre-Mounted Fiberglass Cowl and Wheel Spats
    Flush Fit Cowling with No External Mounting Bolts
    Canister and Pipe Ready
    Pre-Installed Engine Baffling
    Pre-Installed and Fuel Proofed Engine Box
    Laser Marked Firewall for DA and DLE Engines
    Universal Engine Mounting Template Provided
    Two Servo Wing
    One Servo Elevator
    Carbon Reinforced Wing Spar Increases Wing Strength
    Large Control Surfaces Beveled for Maximum Throw
    Pre-Installed Slot Style Hinges
    Carbon Fiber Wing Tube
    Carbon Fiber Stab Tubes
    Carbon Fiber Landing Gear
    Carbon Fiber Tail Wheel
    Complete High Quality SAE Hardware Package Included
    Adjustable Pushrods with Centering Nut
    Complete and Detailed Instruction Manual
    12 to 14 Hours Assembly Time

    Optional Accessories:
    Dash Panel
    Wing and Stab Bag Set

    Wing Span 122 Inches
    Wing Area 2775 Square Inches
    Fuselage Length 109.5 Inches (Rudder to Front of Cowl)
    Fuselage Length 115.5 Inches (Rudder to Front of Spinner)
    Cowl Width 14 Inches
    Weight 38 to 40 Pounds
    Engine 150cc-200cc Gas
    Spinner Size 5 Inches
    Radio 6 Channels Minimum

    Recommended Servos:
    Throttle: Hitec HS-5625MG
    Aileron: Hitec HS-7955TG (Quantity 4)
    Elevator: Hitec HS-7955TG (Quantity 2)
    Rudder: Hitec HS-7955TG (Quantity 3)
    *See Manual for Minimum Operating Speed - Torque Output
  2. AeroWorks

    AeroWorks GSN Sponsor Tier 1

    Hello Mike,

    Thanks for the post the planes are In Stock and shipping!

  3. 3dmike

    3dmike 640cc Uber Pimp

    Sweet!!! Thanks for update Rocco!
  4. AeroWorks

    AeroWorks GSN Sponsor Tier 1

    New video Andrew Grant flying the Aeroworks 150cc Yak 55M QB!

  5. AeroWorks

    AeroWorks GSN Sponsor Tier 1

    Here's Joe Hunt’s slideshow of the photoshoot with Kylee and the 150cc Yak55M don’t miss the bonus footage at the end.


    Last edited by a moderator: Sep 16, 2015

  6. wfahey415

    wfahey415 3DRCF Moderator

    +1 :thumbup:
  7. AeroWorks

    AeroWorks GSN Sponsor Tier 1

    Here’s another great 150cc Yak55M video from Joe Hunt.

    Thanks Joe!

    [video=youtube;Vnn7Elh2uOQ]https://www.youtube.com/watch?v= Vnn7Elh2uOQ[/video]
    Last edited by a moderator: Oct 20, 2015
  8. Bushwacker

    Bushwacker 3DRCF Moderator

    Yeah think I would have to rate both a +10

    The model and the plane. :thumbup:
  9. extra260

    extra260 30cc

    so CA
    what there

    There was a plane in that video???? Beautiful both I fly a 55cc yak 55lm and is one of my best planes.
