AJ Aircraft - 93" Laser 230z

3dmike

640cc Uber Pimp
Description:
Whether you're looking to go out and do some 3d huckin' or lay down a smooth-as-butter precision flight, the 93" Laser 230z is for you! The wings have been thoroughly refined to allow precision flying, while not sacrificing any 3d characteristics. With a generous fuselage height, the model flies as well on its side as it does upright. Generously sized control surfaces give you excellent authority at all speeds. The Laser 230z features an awesomely light but strong airframe and a light wing loading that will handle anything you want it to.


Building the airplane is very straight forward. The rudder cables are pre-installed, hinges are pre-glued and sealed. AJ Aircraft goes the extra step to make it easy to get this bird in the air in no time flat. Mounting options designed right into the airframe make it a snap to setup with pull-pull or push-pull rudder configurations. Stand-offs perfect for the DA-70, a gas fuel tank and even a bag of extra hardware are all included. High quality parts including dual carbon fiber control horns, carbon fiber wing tube and heavy duty ball-links and turnbuckles ensure you won't need to spend more money replacing cheap hardware.


This 30% airframe was designed around the DA-70 or equivalent, with lots of room for this beast of an engine without having to cut holes in the side of your cowl. Mounting templates are included for the DA-60/70 and 3W-50 to make engine installation as easy as can be. A full length pipe tunnel and 3 different pipe mounts gives you the ability to easily add pipes to tame your DB levels. Trust us when we say once you go full throttle with this baby, you won't want to slow down! As with its siblings, you'll see this is designed with next-gen building techniques to handle the punishment of todays 3D and extreme aerobatics with confidence.


Prefer electrons over ignition? A Hacker Q-80 with 10-12s lipos will have the Laser screaming across the field and you cackling with glee. The crazy power and instant throttle response of the Q-80 makes the 93" Laser 230z a 3D/XA pop-toppin', tumblin', knife edge spinnin' insanity machine! Whichever you choose, we're sure it'll put a smile on your face every time you fly it!
Up Your Game! Fly AJ.


The 411:
Wing Span - 93"
Length - 88"
AUW - ~18-20 lb
Power(Elec) - Q-80
Power(Gas) - 60-70cc
Radio - 6 channel with 5 high torque servos

What's in the box:

Carbon reinforced landing gear mount
Pre-hinged glued and sealed ailerons & elevators
Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
Removable horizontal stabs & rudder
Carbon fiber main gear
Carbon fiber control horns
Carbon fiber wing tube
High quality ball links & turnbuckles for all connections
Padded wing bags & stab bags
Full-length pipe tunnel
Genuine Ultracote covering in 2 color scheme choices including the AJ Competition Scheme
Fuel tank
3 different muffler can mounts
3/4" standoffs for gas engine (~3" standoffs will be required for electric setups)
Firewall drilling templates for DA-60/70 & 3W-50
Aluminum re-enforced firewall
Thick heavy duty pre-drilled wheel pants
Pre-drilled & rubber lined landing gear cuffs
3 1/2" rubber wheels w/ aluminum hubs
Heavy duty steel axles
Velcro for fuel tank or battery restraint
Extra hardware bag for spares

AJ flies this airframe with the following equipment:
Hacker Q-80
Falcon 24x10 prop
Castle 160 ESC
2x 6s Thunder Power lipo
Castle Pro BEC
Thunder Power 2s 3800mah G8 Pro-lite + 25C
Futaba S-9157 servos on Elevator/Rudder/Ailerons

Also needed to complete:

2x 6" extension for ailerons (not needed for S-9157)
2x 6" extensions from the receiver to the aileron servos
2x 48" extensions for the elevators
1x 12" extension for the ESC to Receiver (if electric)
1x 12" extension will be needed for the throttle servo and ignition (if gas)
4x 1 3/4" servo arms for elevators & ailerons
1x 3 1/2" servo arm for rudder
4" spinner

Link:
http://aj-aircraft.com/93-Laser-230z_p_55.html

Video:
[video=youtube;bxe45OStMF4]https://www.youtube.com/watch?feature=player_embedded&v=bxe45OStMF4[/video]

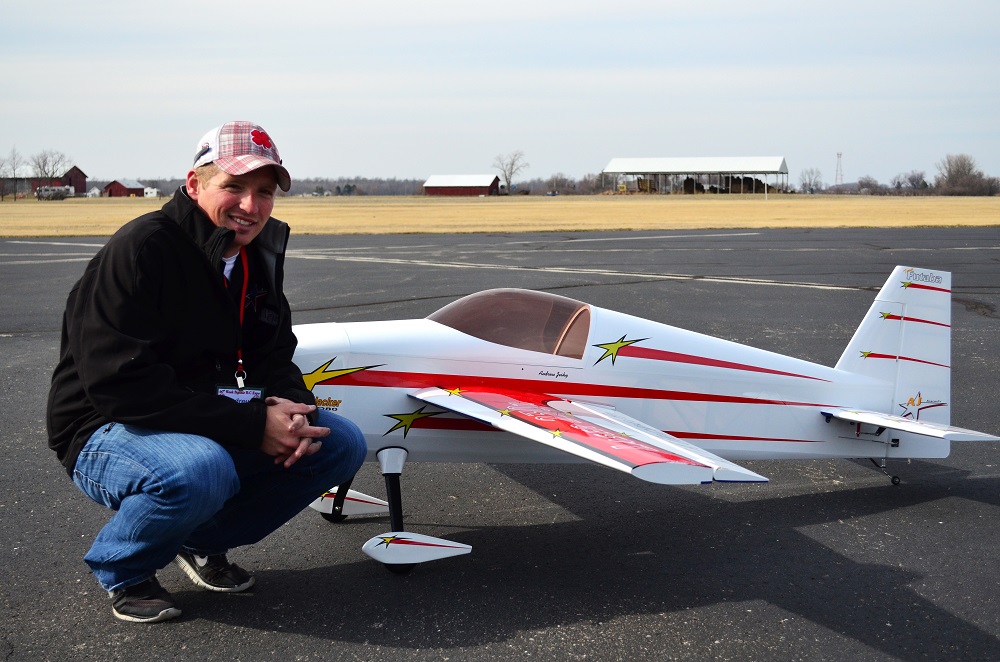

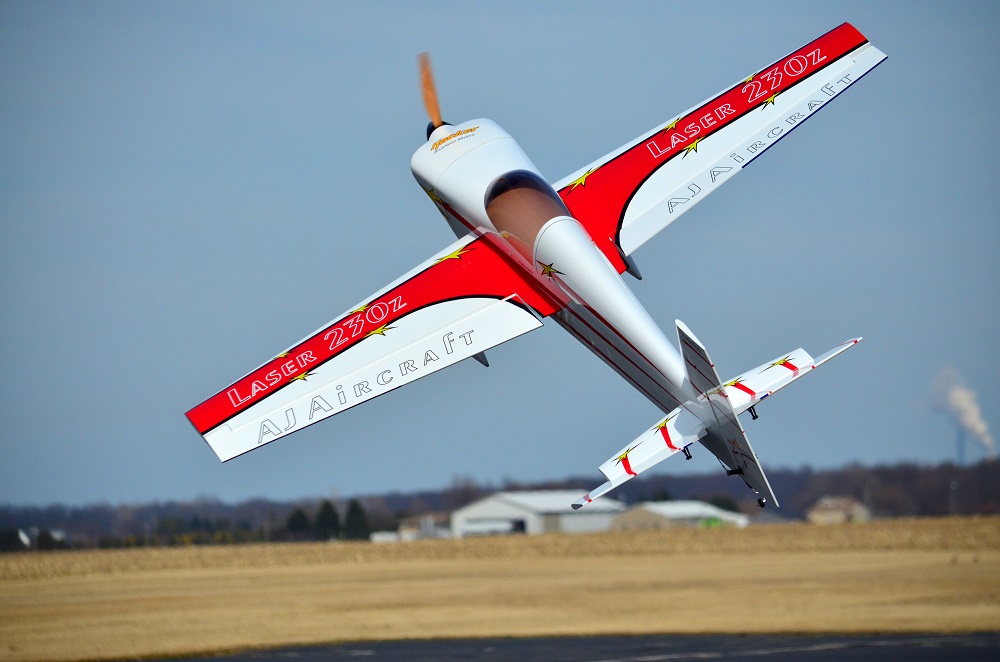

Pics:


HornetNZ

50cc
Can't wait to get mine put together this summer!


Attachments

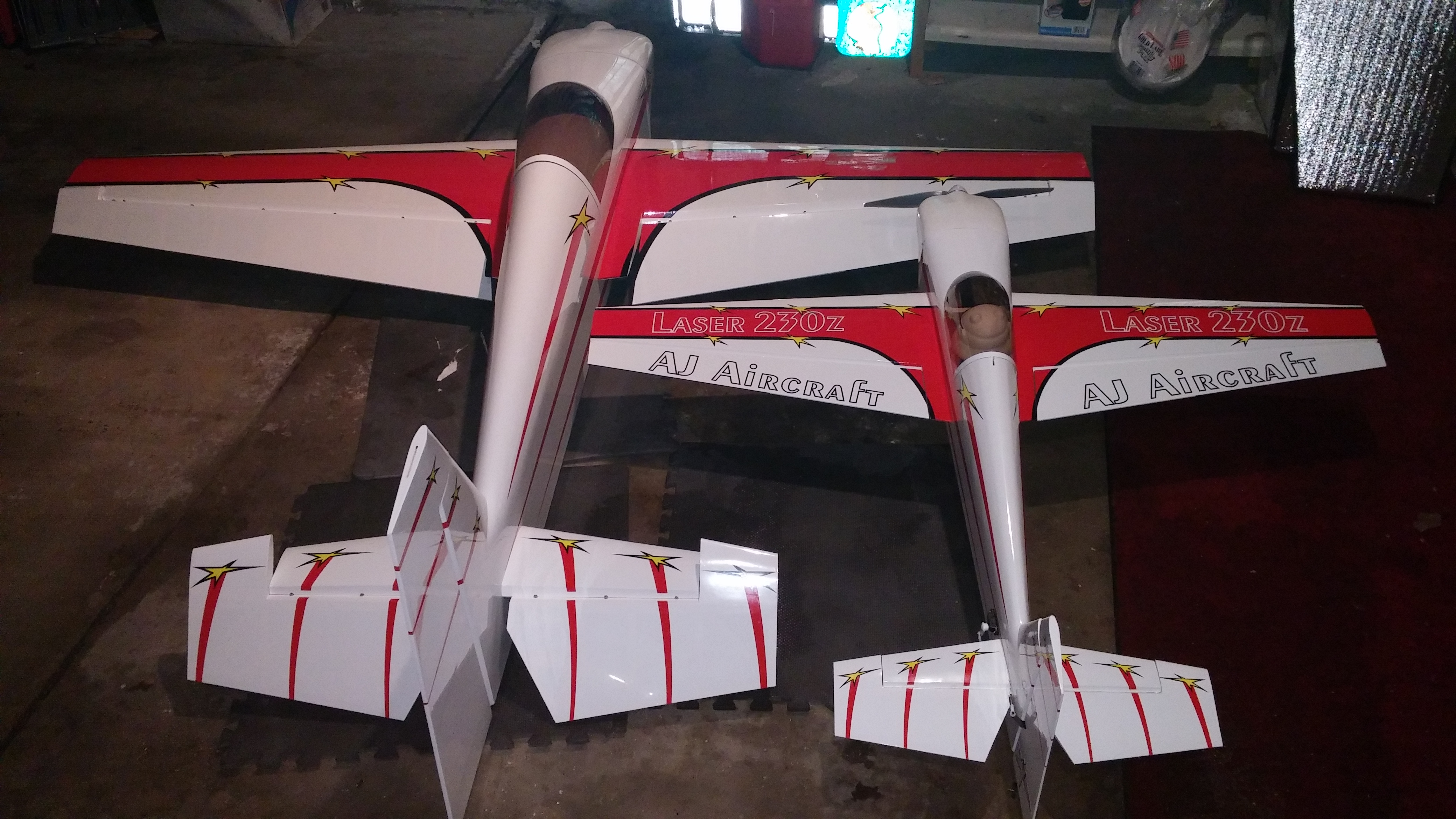

  • 2015-01-19 18.08.10.jpg
    2015-01-19 18.08.10.jpg
    3.5 MB · Views: 757

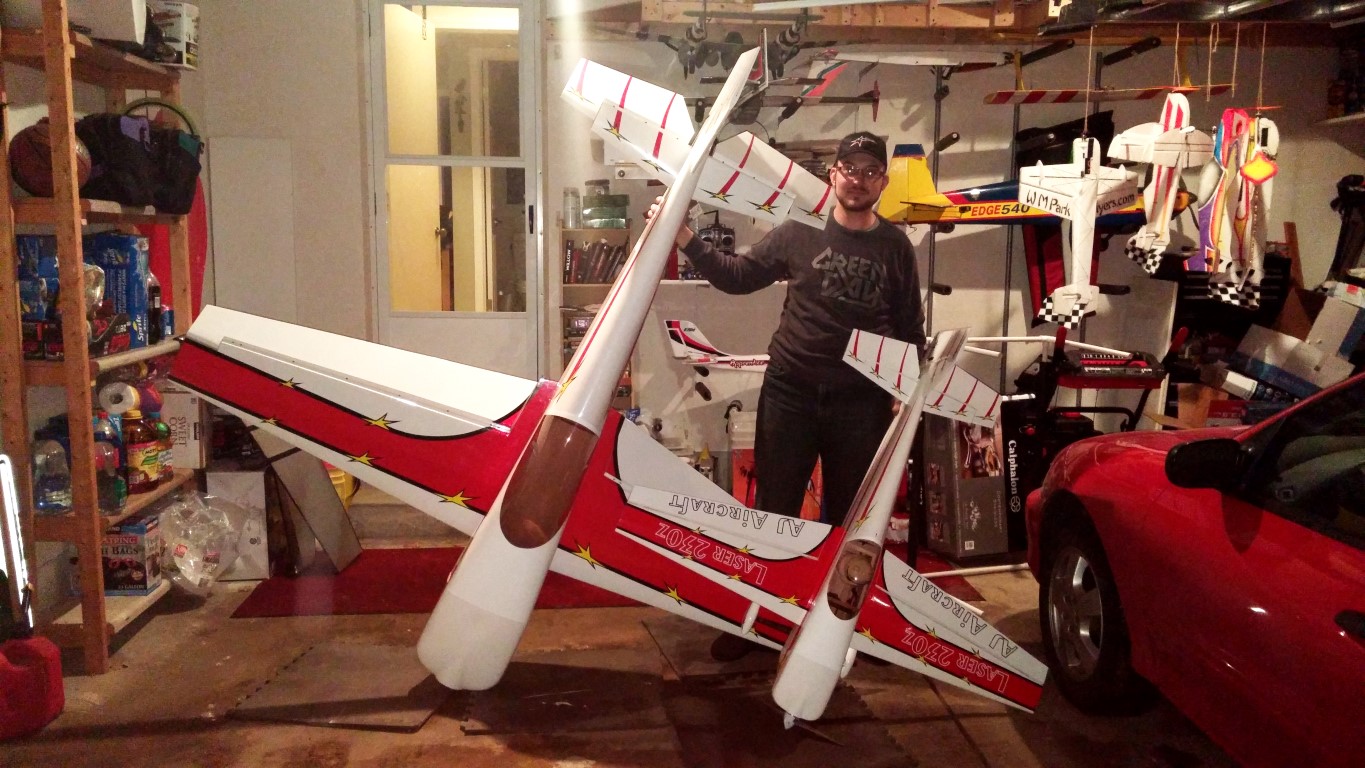

  • 2015-01-19 19.34.53 (Medium).jpg
    2015-01-19 19.34.53 (Medium).jpg
    301.3 KB · Views: 644

HornetNZ

50cc

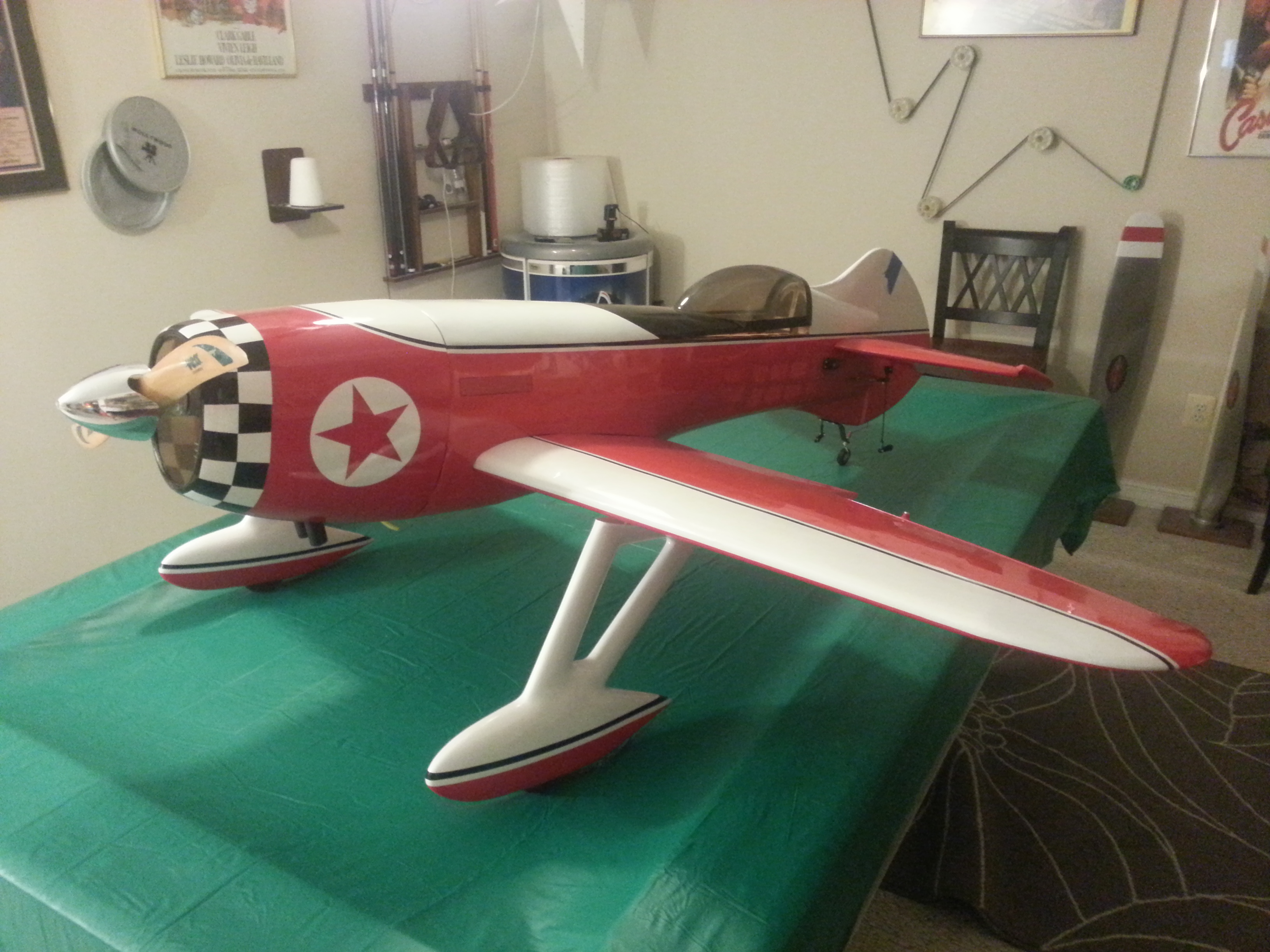

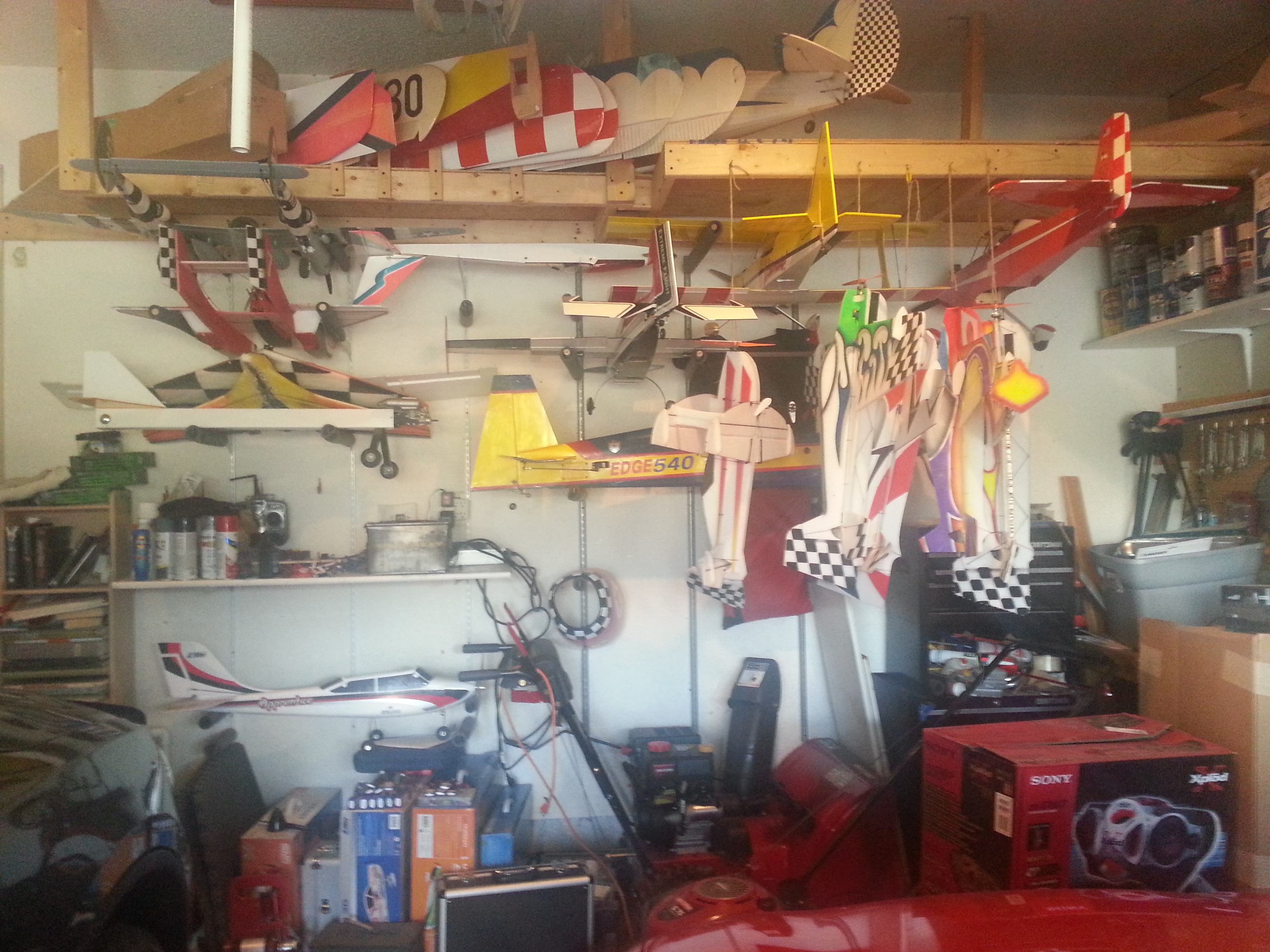

Thanks, my hangar has really grown now that I finally have my own house. Now the question is, where the heck am I going to store this 93 and the big GeeBee R3 30cc when they're done?! :flyer:


Attachments

  • 2014-07-27 19.53.23.jpg
    2014-07-27 19.53.23.jpg
    2.3 MB · Views: 691
  • 2014-08-03 00.33.33.jpg
    2014-08-03 00.33.33.jpg
    1.8 MB · Views: 625

3dmike

640cc Uber Pimp
93" Laser 230z with 2 into 1 cannister setup on a DA70!

[video=youtube;zrwiSJllQTQ]https://www.youtube.com/watch?v=zrwiSJllQTQ[/video]


3dmike

640cc Uber Pimp
Smoking 70cc Laser 230z

[video=youtube;eRGhnTwgR78]https://www.youtube.com/watch?v=eRGhnTwgR78[/video]


vegasking

70cc twin V2

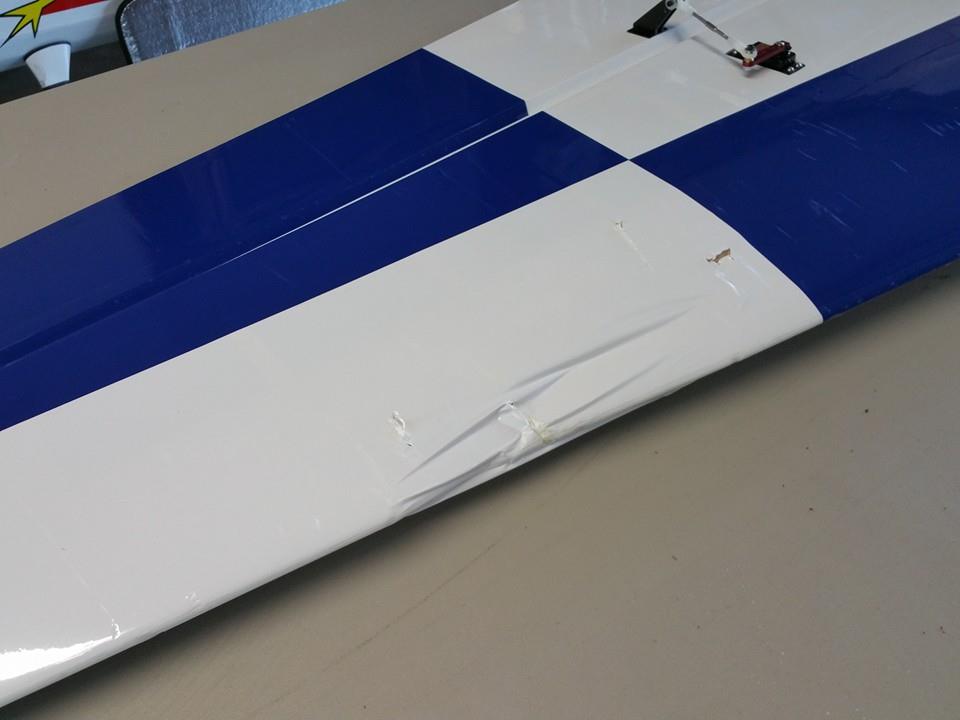

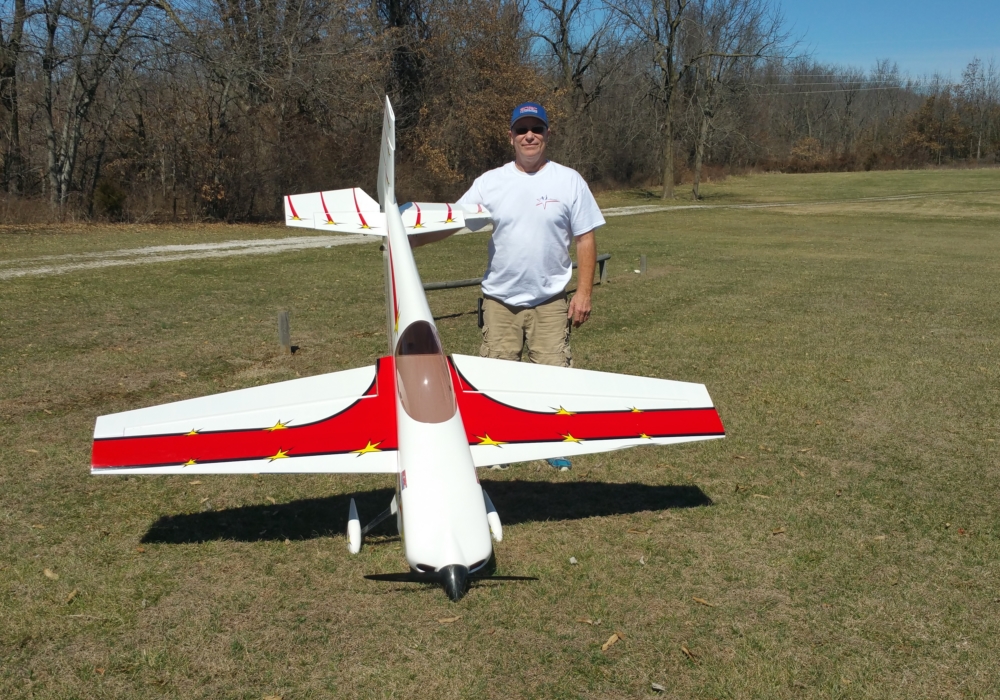

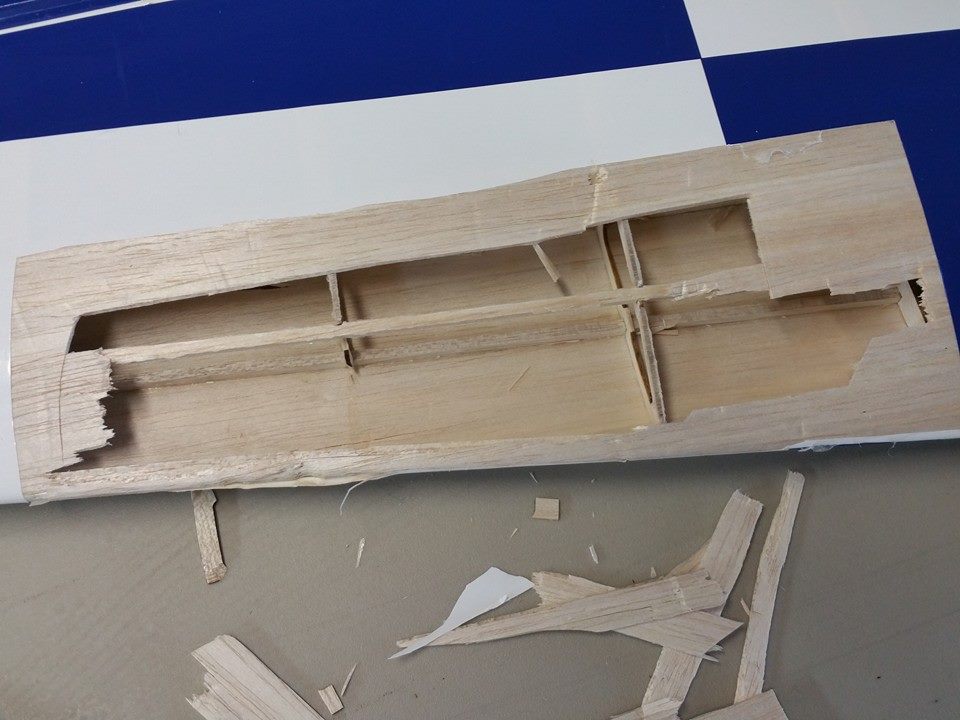

Got to maiden mine finally, almost no trim needed, cg right on the money. The DA-70 was a little lean on the top end, maybe because I had just replaced the original reeds with the updated ones. All good up until I went through the top of a big Oak tree at the left end of our local Hillbilly field. I normally don't wear glasses and decided to wear them today and not being used to them, I think it messes up my depth perception cause I would've thought I had cleared the tree. Lucked out and only crushed a 10" section of the left leading edge and got it down ok, considering it should have been in 50 pieces. Might repair it eventually, but going to try to get a new left wing for now.

[video=youtube;owAv8pHq4HE]https://www.youtube.com/watch?v=owAv8pHq4HE&feature=youtu.be[/video]

Laser Maiden.jpeg10996314_1029418560404910_2294826492134838007_n.jpg 11070061_1029418583738241_482712263878168633_n.jpg


SnowDog

Moderator
Darn, Kelley , that's a real shame to hear about the mishap. Sure is a beautiful plane.
You are right the damage does not look too severe...is AJ stocking replacement parts for his airframes? Let us know...that's a big selling point in his favor if he does.
