For Sale RCGF 30CC TWIN Cylinder Gas Engine (New version with 1/4 32 angled spark plugs)

Discussion in 'Fueled Engines (Gas/Glow) and Parts' started by Ibcinyourc, May 7, 2017.

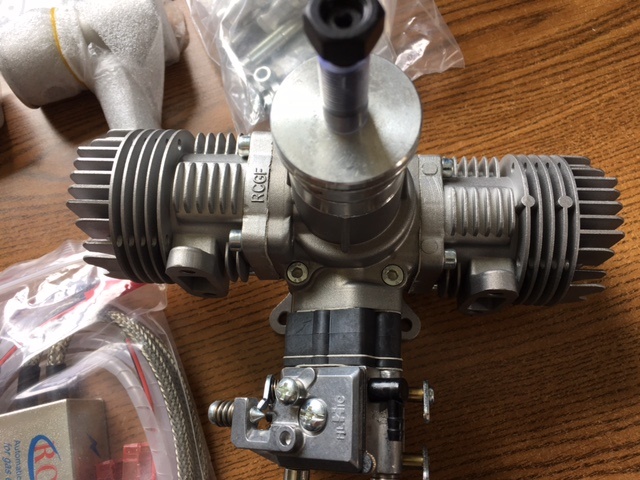

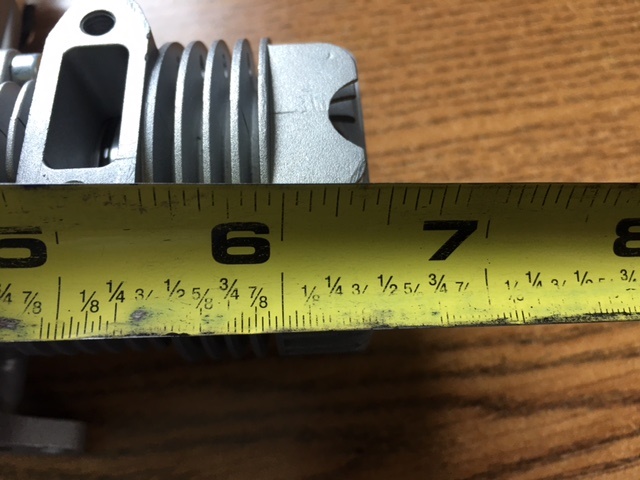

  1. RCGF 30CC TWIN Cylinder Gas Engine (New version with 1/4 32 angled spark plugs) Brand new in the box, only taken out to take these pics. Call text or email 314-256-9987 or ibcinyourc@hotmail.com $369 shipped
    Includes a "FREE" 19x8 Falcon German Beechwood prop, $17.80 value free with this engine.
    RCGF 30cc TWIN clyinder 3.7h.p. R/C aircraft engine 19x8 7000rpm (1 min 51 sec)

    NOTE: above video is older version!

    30cc twin March 2017 revised cylinders with angled 1/4 32 plugs
    Twin Brand NEW in the Box, new version with angled/slanted spark-plugs instead cm6 plugs in center of cylinder straight out. Will fit in many more applications due to simple fact they are narrower width.

    Super Smooth

    With the RCGF 30cc twin , It's small & powerful easy starting, Very good choice for small size twin cylinder engine applications

    RCGF 30cc T

    Type : 2 cycle piston valve type gasoline engine for airplane
    Piston displacement Cylinder (cc) : 30cc (1.83 cu in)
    Bore x Stroke (mm): 1.26 in(32mm) x 0.77 in (19.6mm)
    Carburetor : RCGF
    Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
    Power supply: 4.8-8.4V
    Maximum Output :3.7HP /7500rmp
    Requires: Gasoline, 2-cycle oil, ignition battery & propeller
    speed rang : 1500-8500rpm
    Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommendhttps://www.GiantScaleNews.com/forums/images/temp/30.gif1
    (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
    Lubrication Oil : 2 cycle engine oil
    Propeller : 18X8 7500rpm (Standard Two blade prop)

    Suggested Propellers: 18x8, 18x10, 19x8 & 20x8

    Suggested Break-in Prop: 18X8
    Sparking plug: 14/32 Type
    Cooling System : Air Cooled

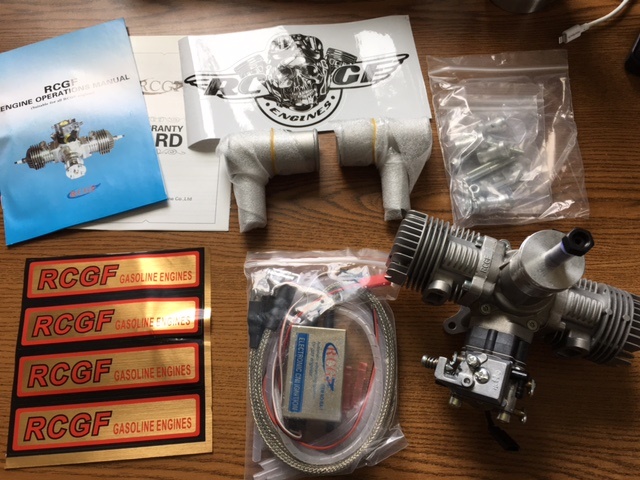

    RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

    Weight :

    Engine: 2.03 lb (923 g)
    2XMuffler: 2.71 oz (77 g)
    Ignition Module: 5.1 oz (145 g)
    Total: Weight: 2.53 lb (1145 g)

    Technical Data:
    Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
    Gasoline/Oil Mix: 30:1
    Replacement Spark Plug: NGK 1/4 32 or equivalent
    dle Speed: 1500 rpm/min
    Static Thrust:
    17.2 lb (7.8 kg) @ 328 ft (100 m) altitude
    15.9 lb (7.2kg) @ 5,900 ft (1800 m) altitude

    Attached Files:
