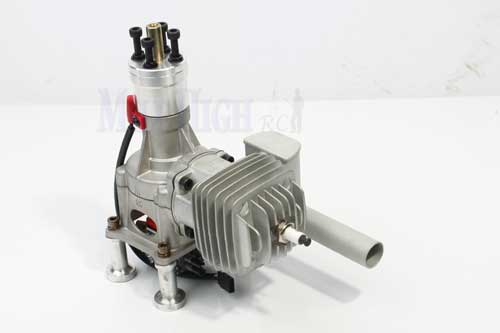

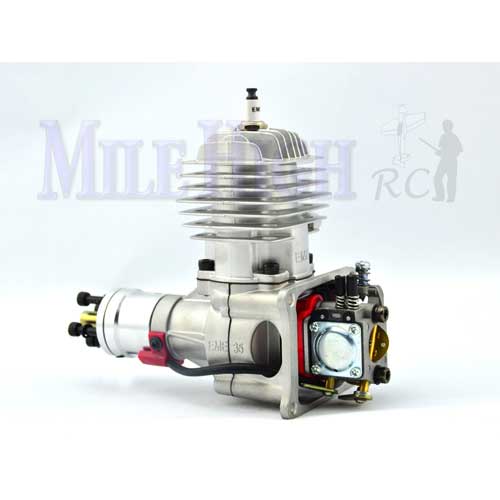

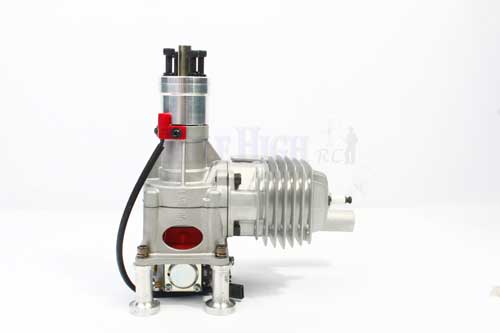

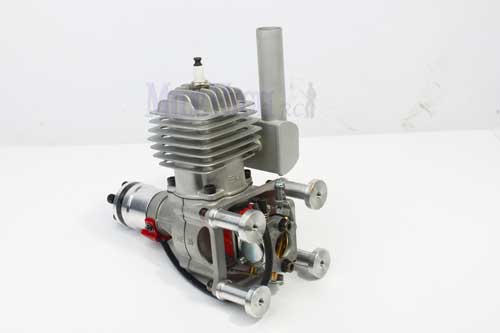

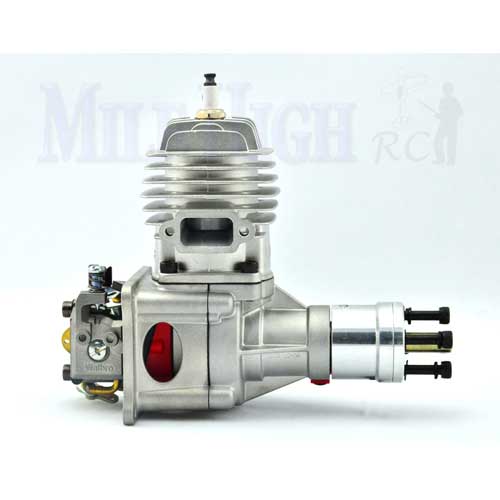

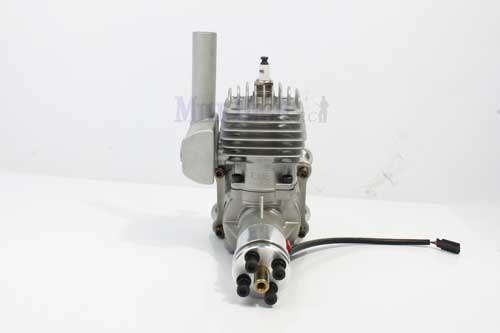

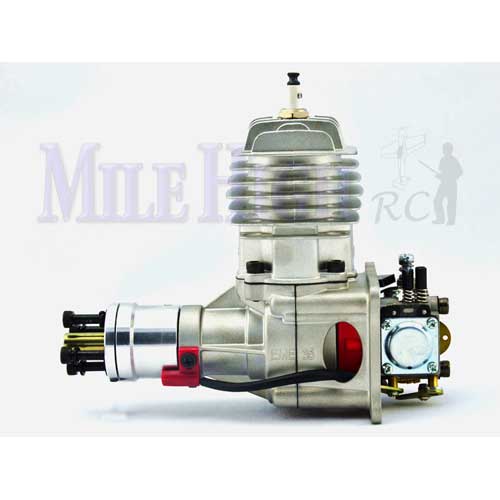

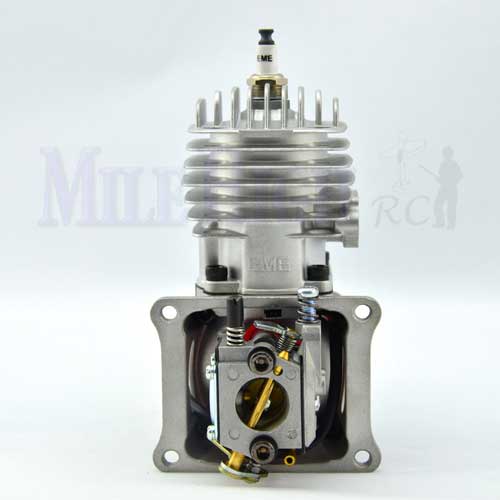

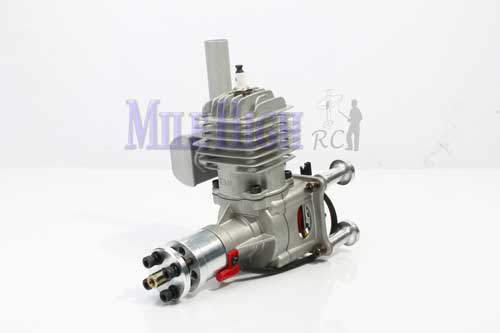

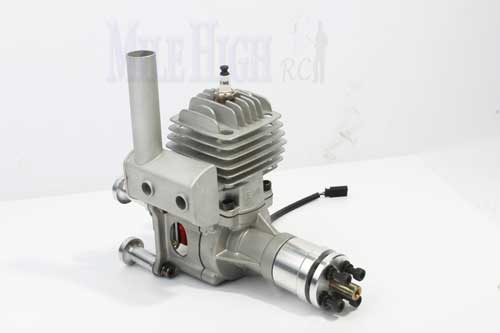

EME 35CC GAS ENGINE
[video=youtube;lfd0EsMOs2E]https://www.youtube.com/watch?v=lfd0EsMOs2E[/video]
Download the Manual - Here
Dimension Diagram - Here
Parts list Here
Specifications:
Displacement: 35 cc
Weight: 2.52 lb (includes muffler and ignition)
RPM Range: 1,550-7,500
Output: 3.6 hp @ 7,100 rpm
Thrust: 9kgf @ 200M (19.8 lbs) ~ 8.1kgf @ 2000m (17.8 lbs)
Requires: unleaded gasoline 91-93 octane, oil 1:30 - 1:35, ignition battery ( 4.8v-6V) & propeller (18x10, 19x10, 20x8)
Includes: electronic ignition, muffler, spark plug, gasket, steel bolts, machined aluminum standoffs, throttle arm
Suggested Propellers: 18x10, 19x8, 19x10 & 20x8
Technical Data:
Ignition Battery: 4.8-8.4V HV Ignition
Compression Ratio: 7.6:1
Gas/Oil Mix: 30:1
Replacement Spark Plug: CM6
Weight Breakdown: Engine: 33.86 oz (960 g); Muffler: 1.58 oz (45 g); Ignition: 4.9 oz (140g)
Ignition: Rcexl
