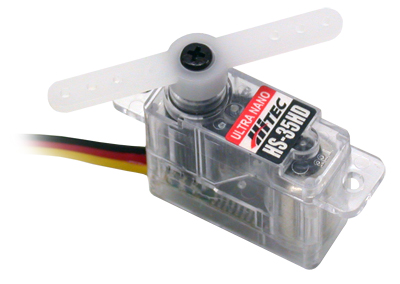

HS-35HD BACK IN STOCK @ ServoCity !!

ServoCity

ServoCity
GSN SPONSOR
Hurry and get yours while inventory lasts !!



Price: $24.99



Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 Volts
Operating Temperature Range: -20 to 60 Degree C
Test Voltage: 4.8 Volts
Operating Speed: 0.10 sec/60° at no load
Stall Torque: 11.11 oz/in. (0.8 kg.cm)
Operating Angle: 40° one side pulse traveling 400usec
Continuous Rotation Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Direct Drive
Bearing Type: Bushing
Gear Type: Metal Karbonite Gear Train
Connector Wire Length: 6.29" (160mm)
Dimensions: 0.73†x 0.30†x 0.61†(18.6mm x 7.6mm x 15.5mm)
Weight: 0.158oz (4.5g)​
