Scale 50% Dalotel 165

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by Forgues-Research, Aug 16, 2014.


  1. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113

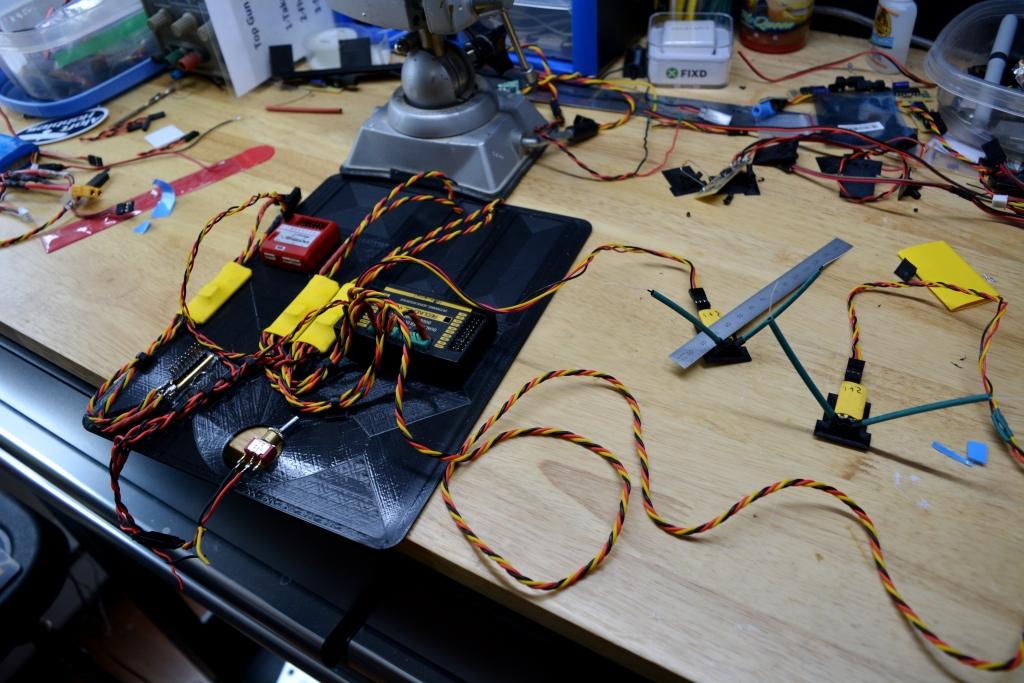

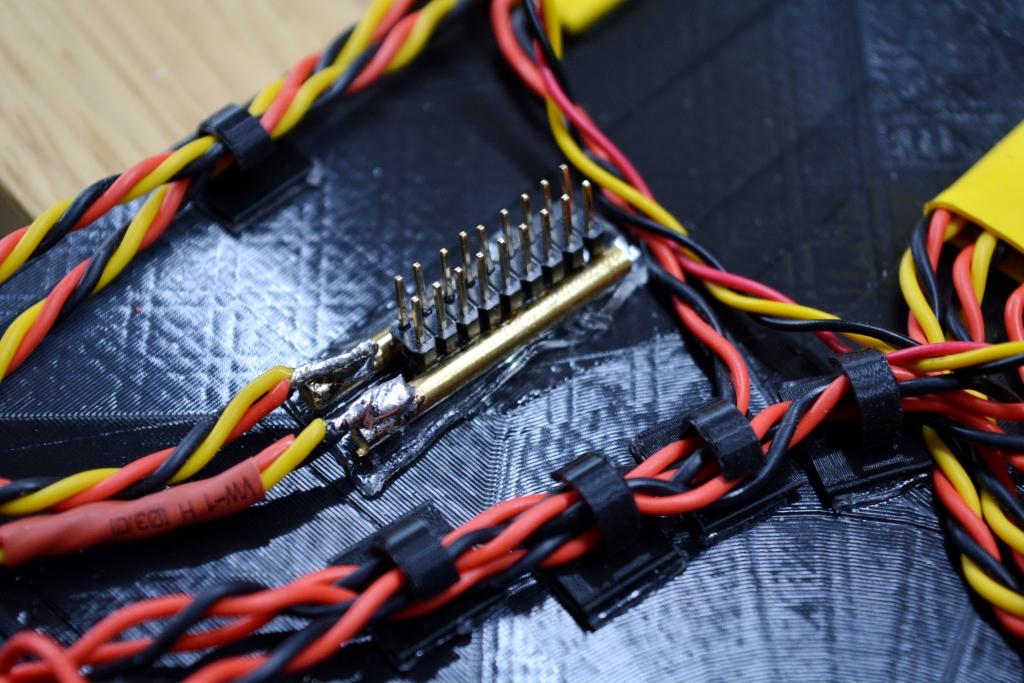

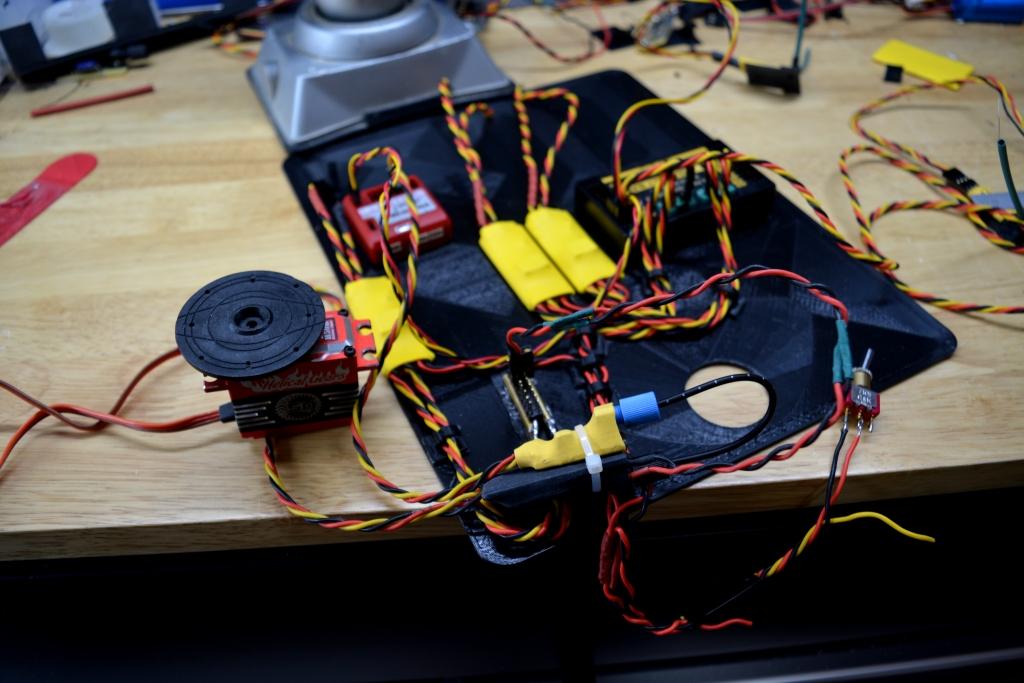

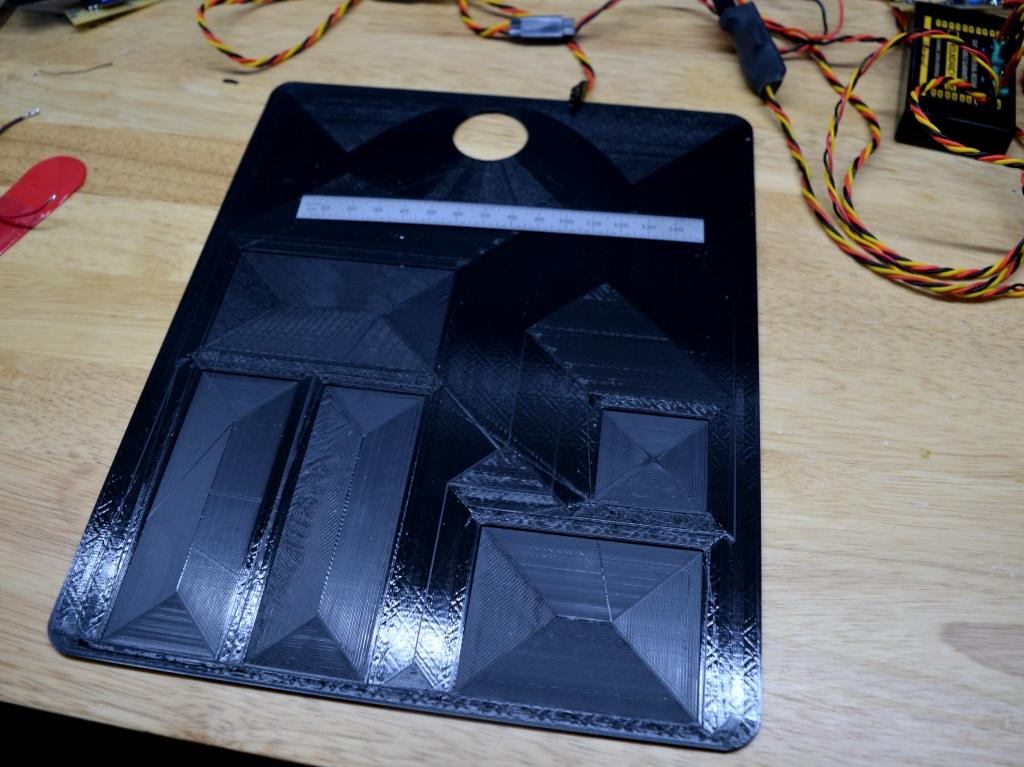

    The mounting plate to be hidden behind the back seat, will hold all electronics and batteries, Right now the batteries aren't there , but you can see the redundancy bus in place, the little red unit is an aura 8 stabilizer but this is not the one I will use , I will use the Spirit Pro for aero. also waiting for it , the 3 yellow rectangle units are the failsafe electronic switches, with each a 65 amp mosfet, so no heating problems.

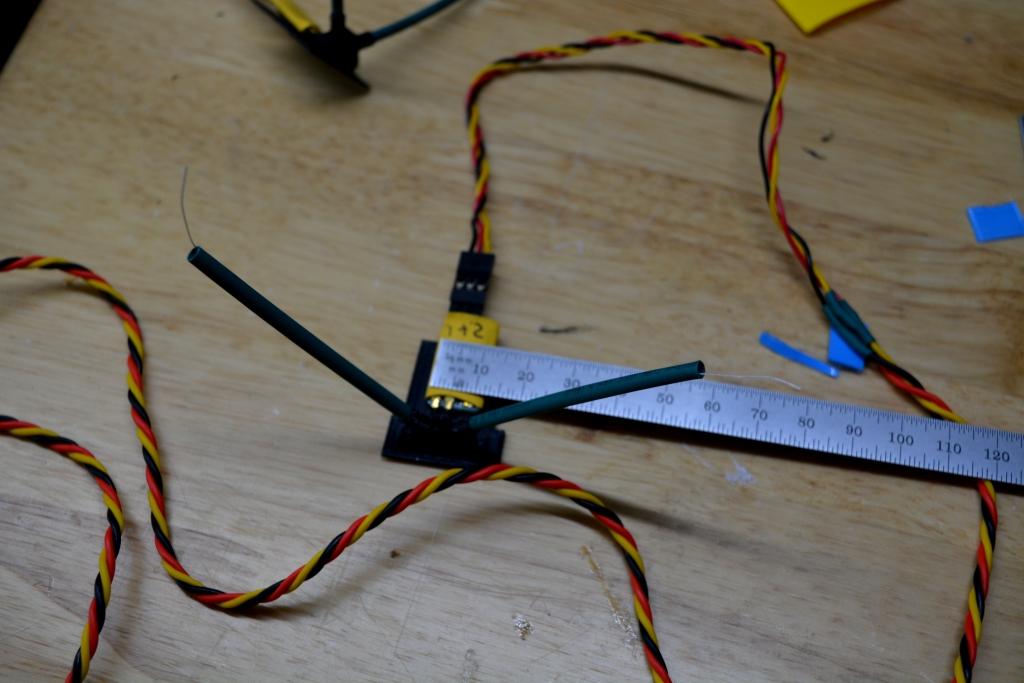

    The two small units outside the black plate with with the green Y are the tiny receivers, They are small because they only need very little electronics, no servo plugs into them , but rather use SBUS system for a full 16 channels each, but am using them as satelites for better signal coverage, one will have telemetry. Going back to the failsafe electronic switches, will be armed by the key on the rear instrument panel, since they need very little current to arm. There is at least one of these switches missing right now for the ignition but that will be up front , and one also for the starter. So there you have it , still not complete because waiting for parts but getting there


    Attached Files:

    • ajh.JPG
      File size:
      144.8 KB
      Views:
      52
    • aji.JPG
      File size:
      112.8 KB
      Views:
      50
    • ajj.JPG
      File size:
      157.7 KB
      Views:
      49
    • ajk.JPG
      File size:
      157.3 KB
      Views:
      51
    • ajl.JPG
      File size:
      111.9 KB
      Views:
      52
    • ajm.JPG
      File size:
      111.9 KB
      Views:
      51
    • ajn.JPG
      File size:
      131.2 KB
      Views:
      51
  2. stangflyer

    stangflyer I like 'em "BIG"!

    Wow! It makes me dizzy and my head spins when I "attempt" to think about all the engineering and designing you are putting into this plane. (You are either completely insane by now, (I know I would be) or an absolute genius) Just one question, would it not be easier to just locate a size reduction chamber somewhere, get a full scale Dalotel and then reduce it to the size you want? LOL...just kidding bro. I am so intrigued with this build. Nothing like I have ever seen.

    Snoopy1 and Forgues-Research like this.
  3. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113
    Insane , probably something my ex would have said LOL Genius hmmm I have been called worst LOL

    49dimes likes this.
  4. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113

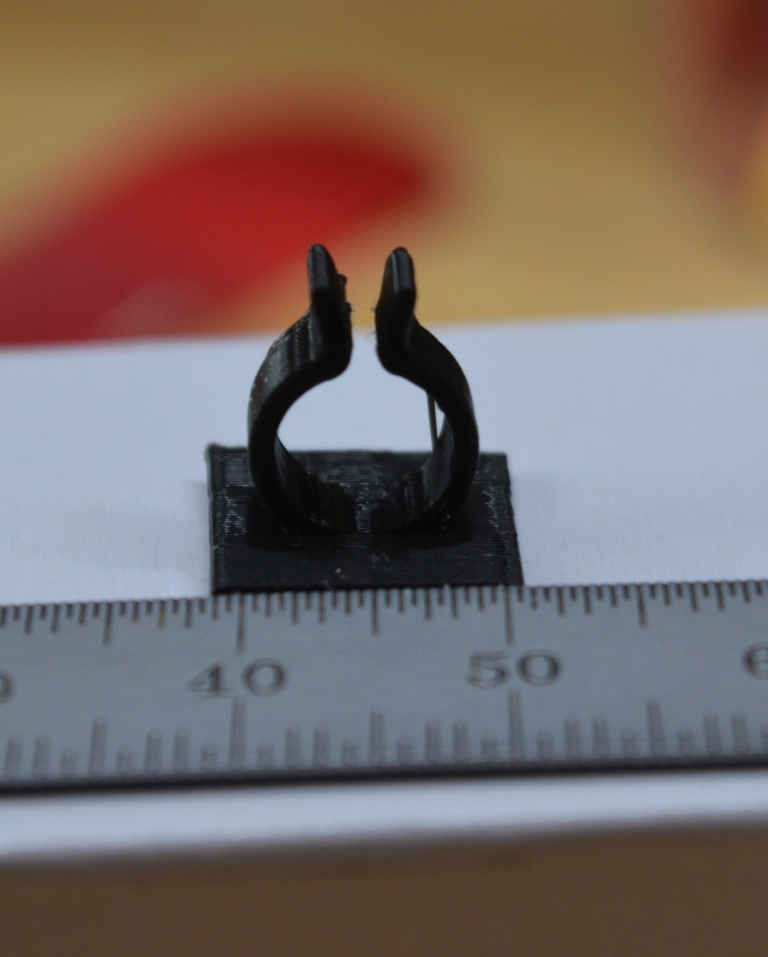

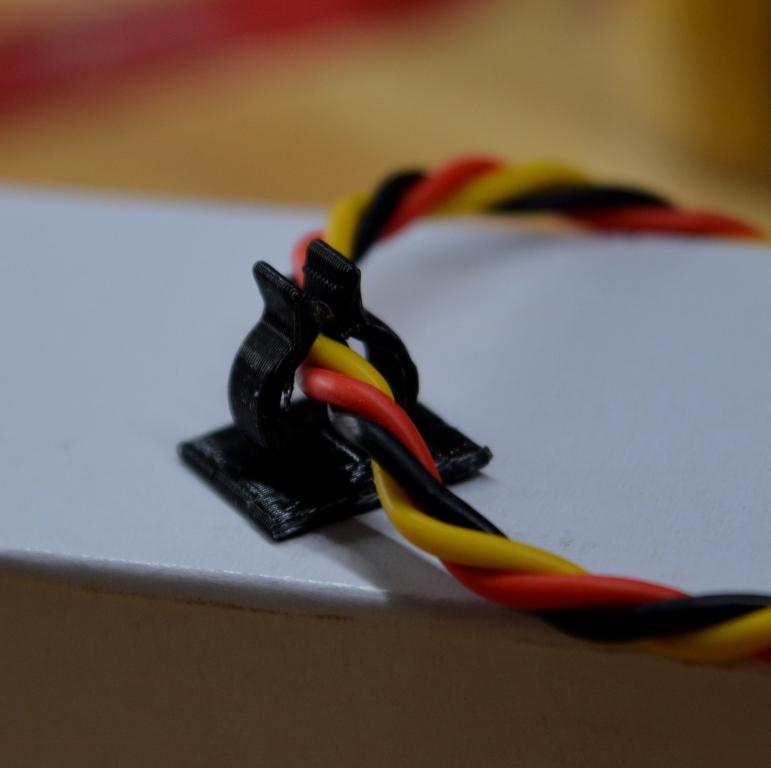

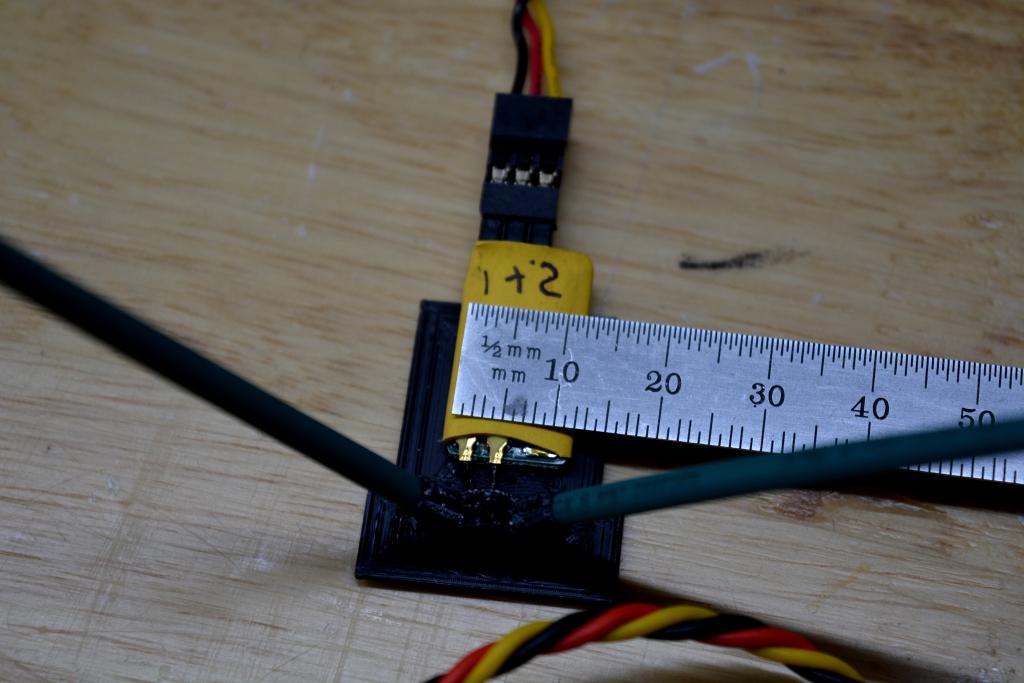

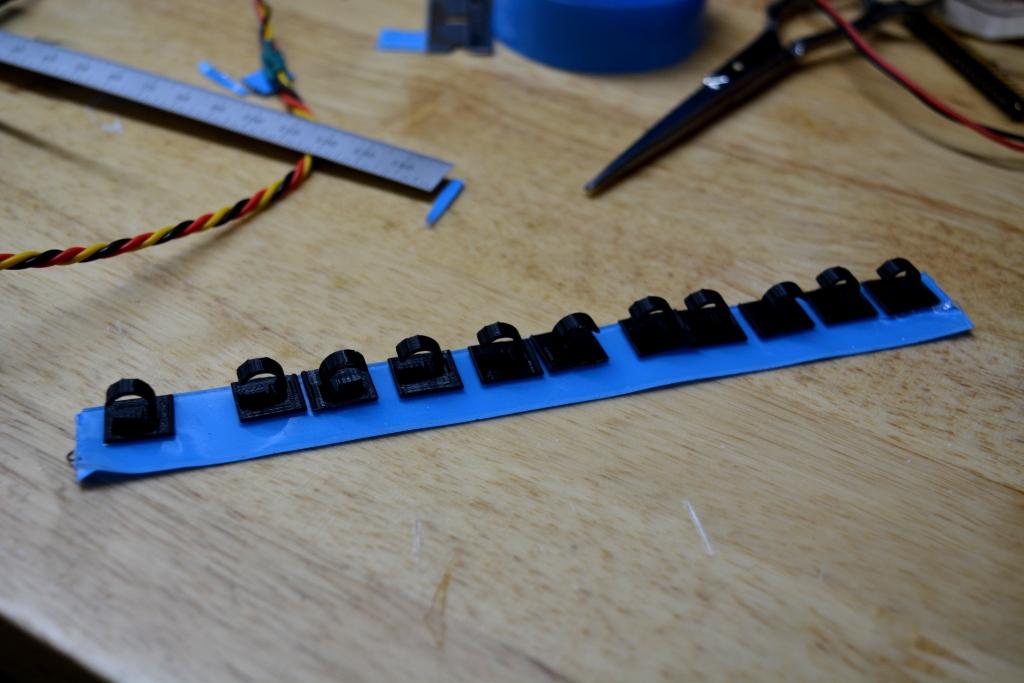

    on a smaller note, I needed some small wire keepers, then it dawned on me, I have a 3D printer , so lets make some and let me tell you itworks just as I had hoped for that's a servo wire you see


    Attached Files:

    • ajo.JPG
      File size:
      350.3 KB
      Views:
      51
    • ajp.JPG
      File size:
      81.3 KB
      Views:
      48
    49dimes, AKNick and pawnshopmike like this.
  5. Snoopy1

    Snoopy1 640cc Uber Pimp

    2,810
    3,654
    113
    Canada
    I have to hand it to you, you one creative person and it is always a pleasure to read the things you are doing.

    49dimes and Forgues-Research like this.
  6. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113
    Thank you , that is very kind of you .

    Snoopy1 likes this.
  7. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113

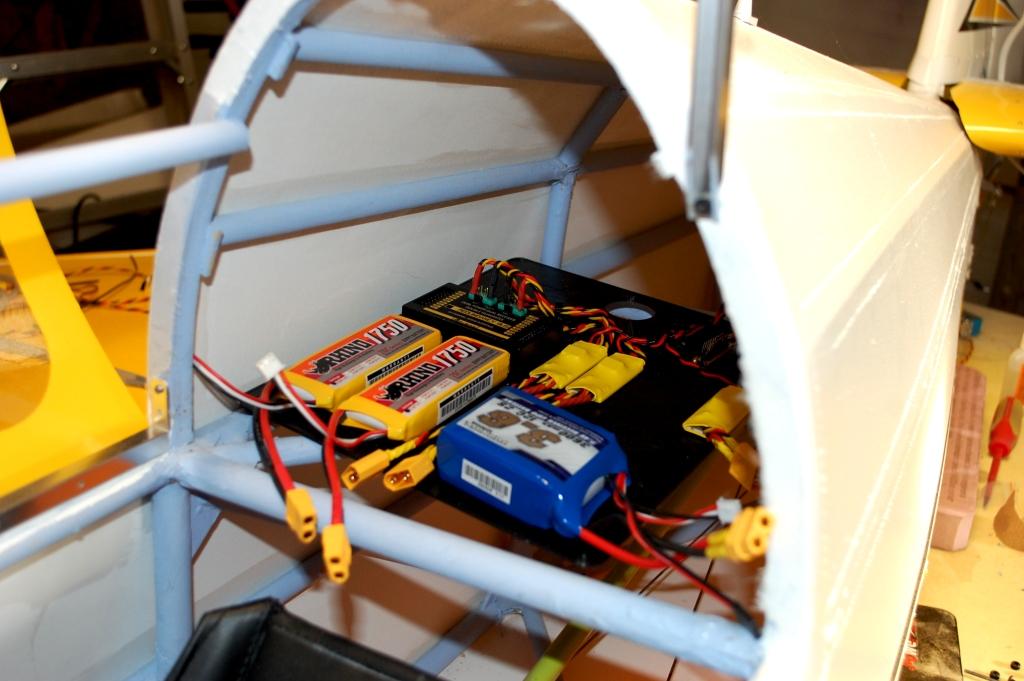

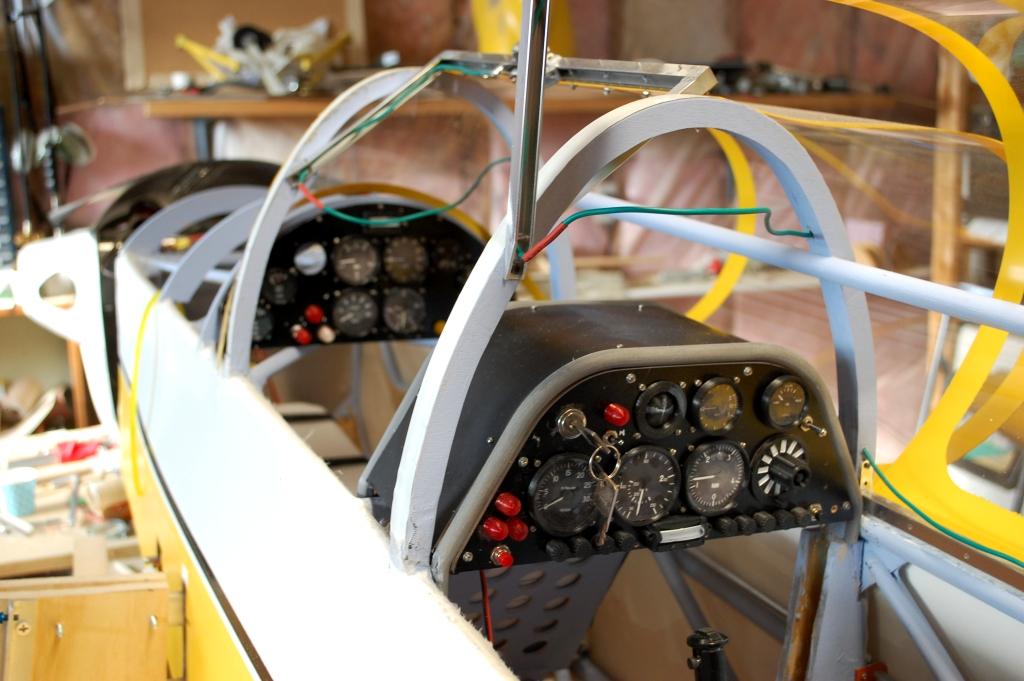

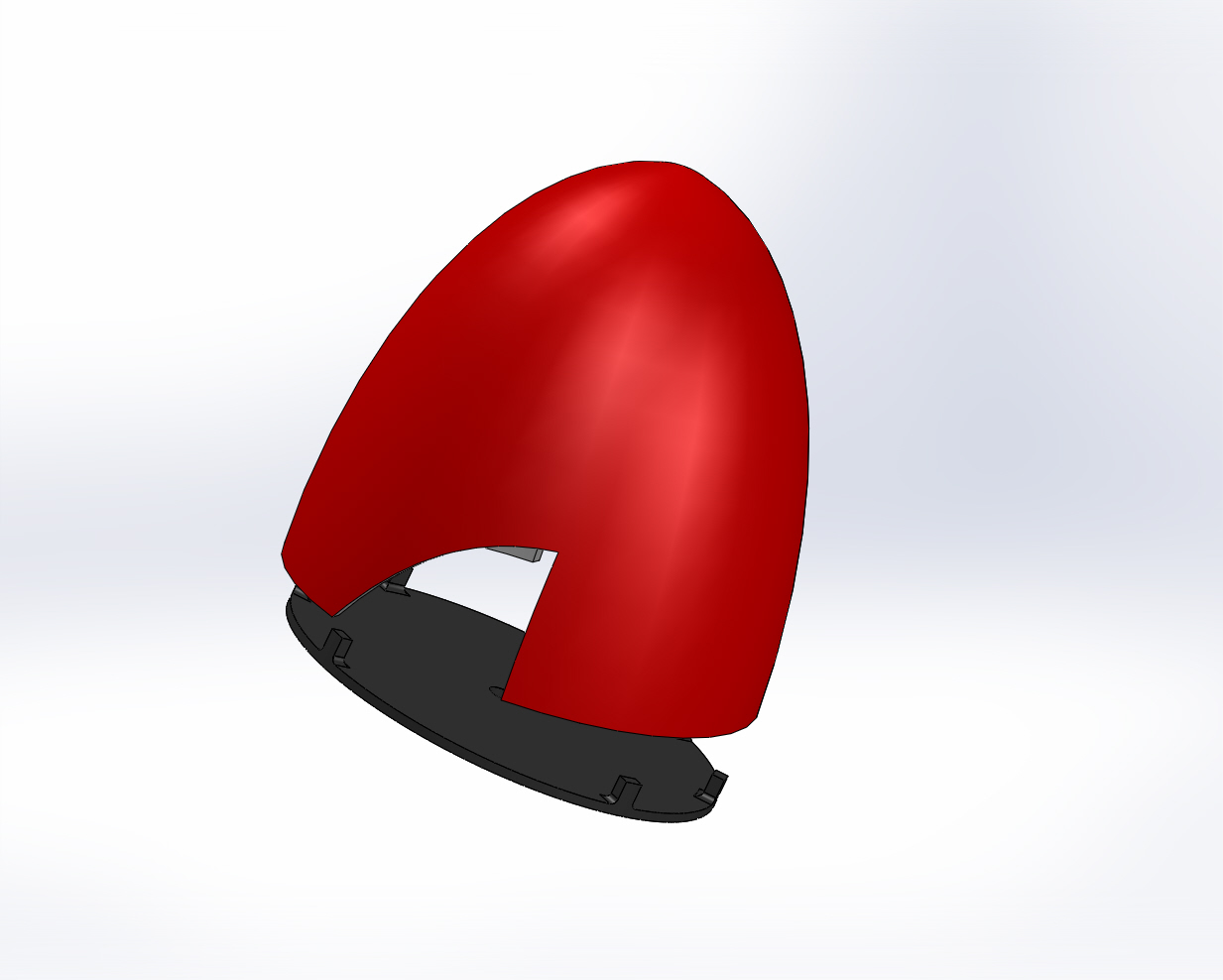

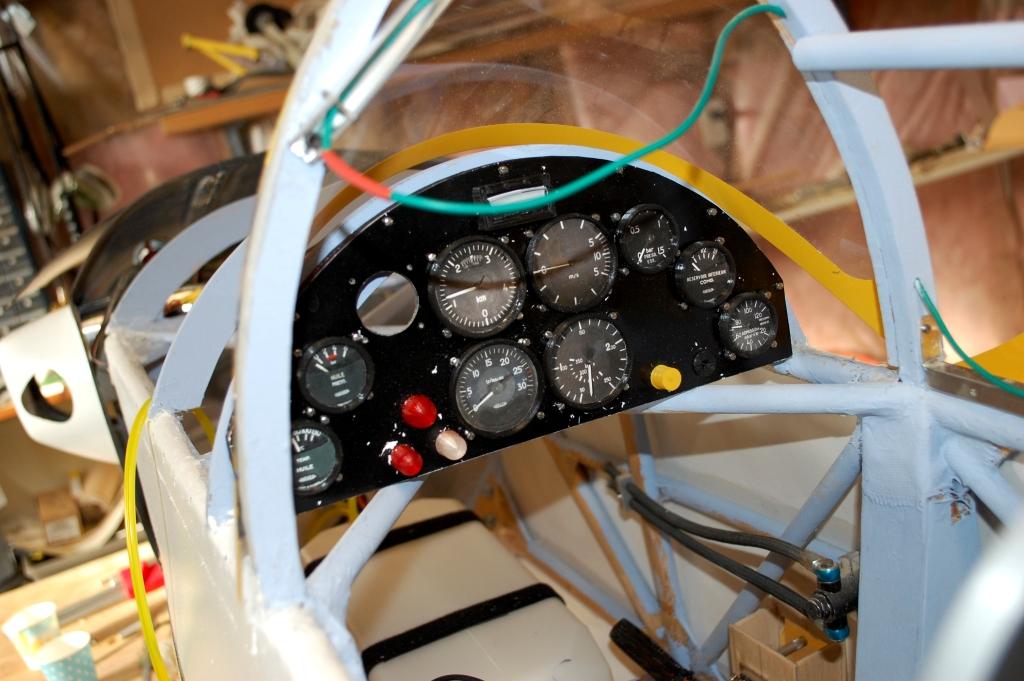

    included photos of the front instrument panel now that cameral battery is fully charged, and testing for size of the electronics behind the rear seat, looks good, redesigned the spinner and back plate to leave space for the propeller., but this is not printed yet


    Attached Files:

  8. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113

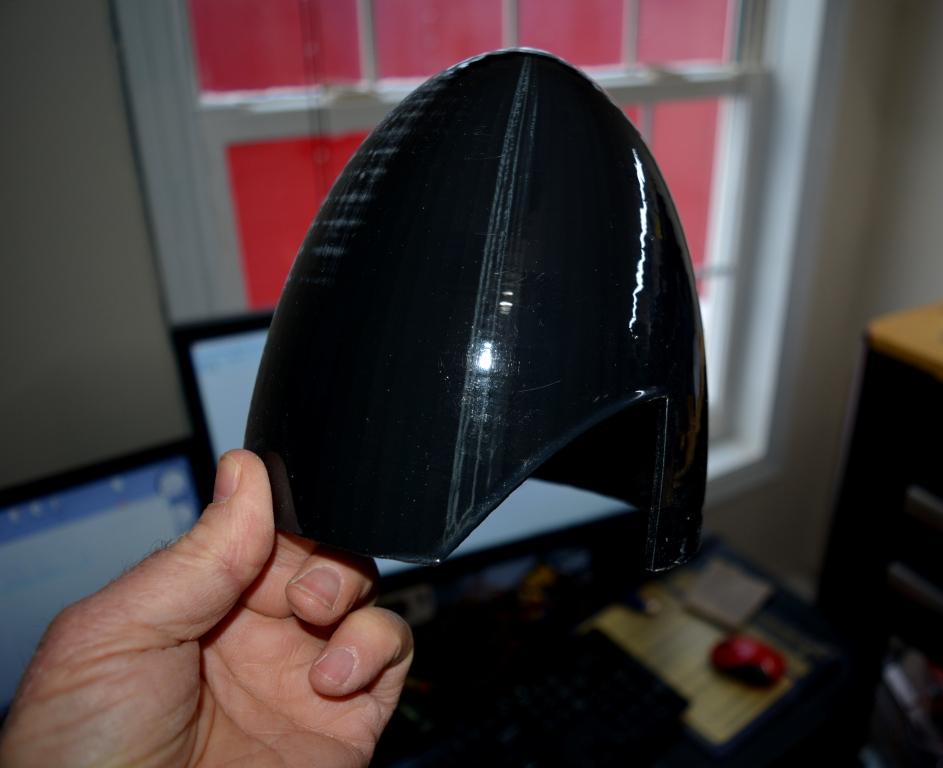

    Here is a picture of the 3D printed spinner, on this picture there is a coat of filler specifically for 3D printed items, and you can see I have started to sand to make it smooth, the back plate is also printer and it fits perfectly and tight , I'm very happy with this


    Attached Files:

    • ajt.JPG
      File size:
      94.1 KB
      Views:
      30
  9. Snoopy1

    Snoopy1 640cc Uber Pimp

    2,810
    3,654
    113
    Canada
    Are you ok with boulting the prop up against the plastic. I not sure the types of plastic that is printable. But pleas make sure that the plastic you are using has no creep under a load.

  10. Forgues-Research

    Forgues-Research 150cc

    1,088
    1,322
    113
    Although I have more tests to do, I am quite confident it will be OK , because I printed solid and no percentage of infill, one solid piece.

    stangflyer and 49dimes like this.
