AJ 93" Laser Reflex build/assembly!!!

Discussion in 'Giant / Scale ARF Build Threads' started by Carrid02, Sep 18, 2017.


  1. Carrid02

    Carrid02 50cc

    55
    103
    33
    Sooooo i flew one of these at "The Great Canadian Huckfest" a few weeks ago and decided I HAD to have one... Great group of guys!!!

    I already had a DA 70 that wasn't doing anything so I ordered the reflex scheme. It arrived a couple weeks ago and I've been piddling with it off/on. Radio will be my JR11x and servos will be mostly 8611a's. .

    So, here we go!!!

    -Craig

    AKNick, Alky6 and pawnshopmike like this.
  2. Carrid02

    Carrid02 50cc

    55
    103
    33

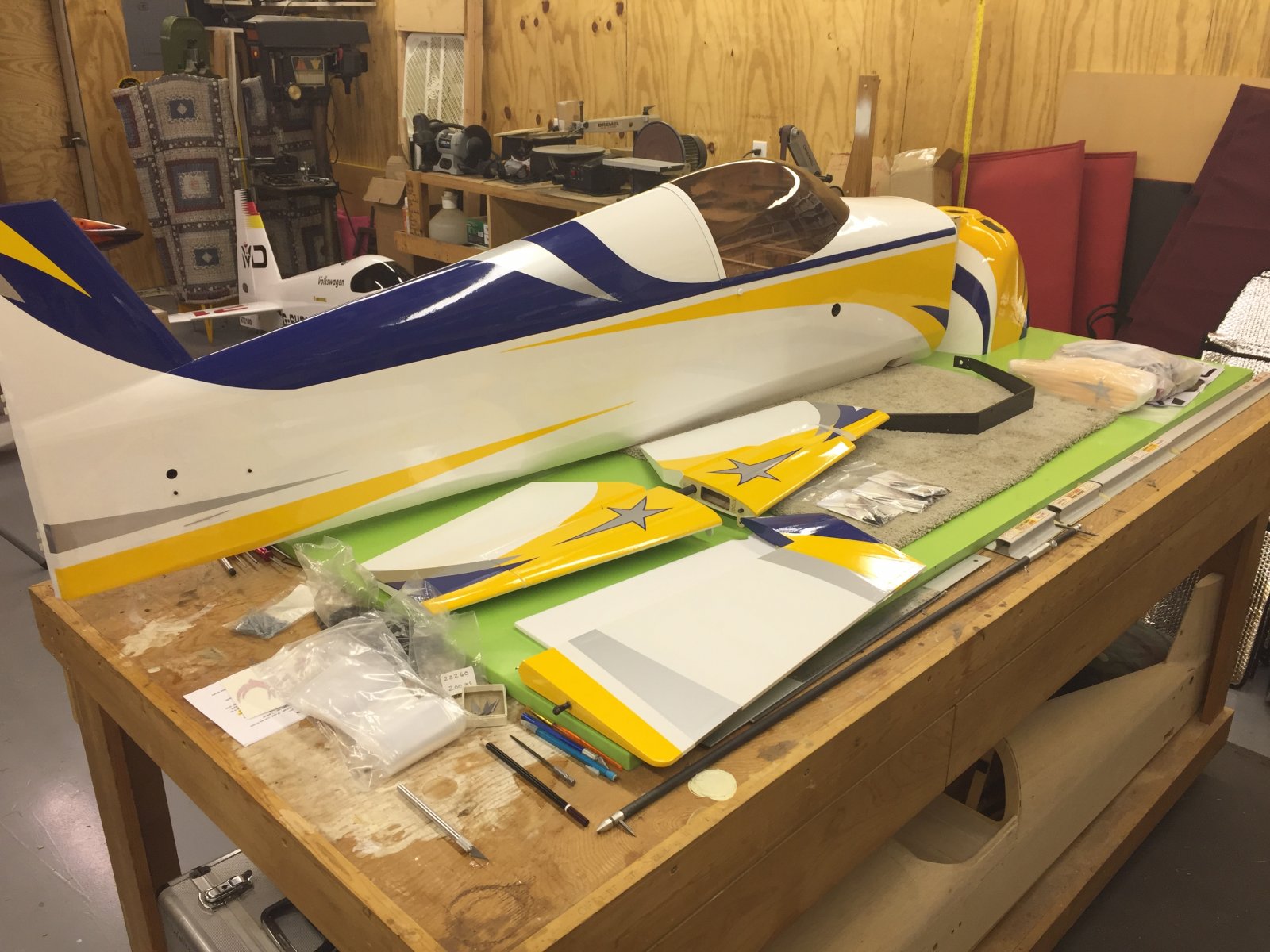

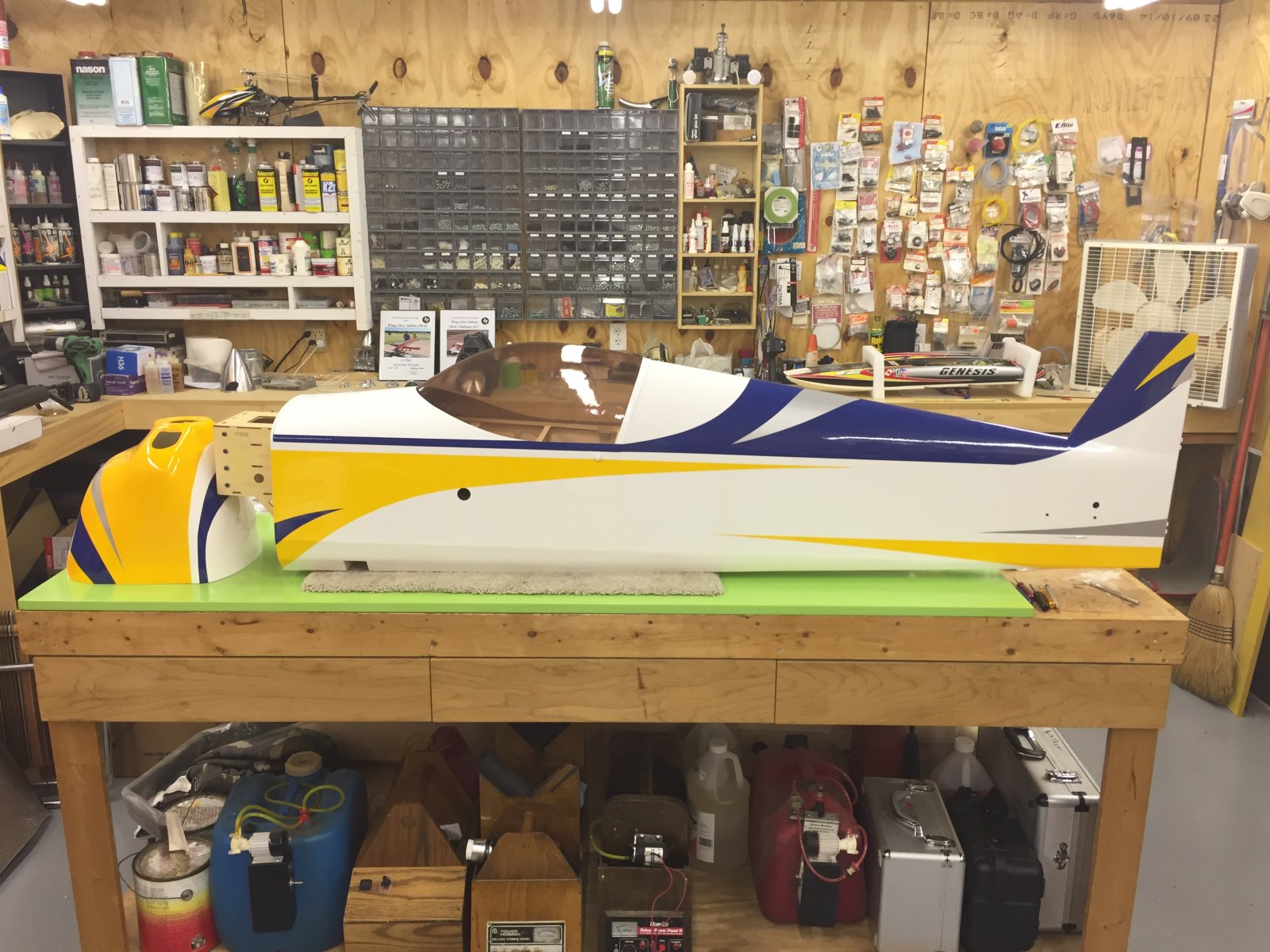

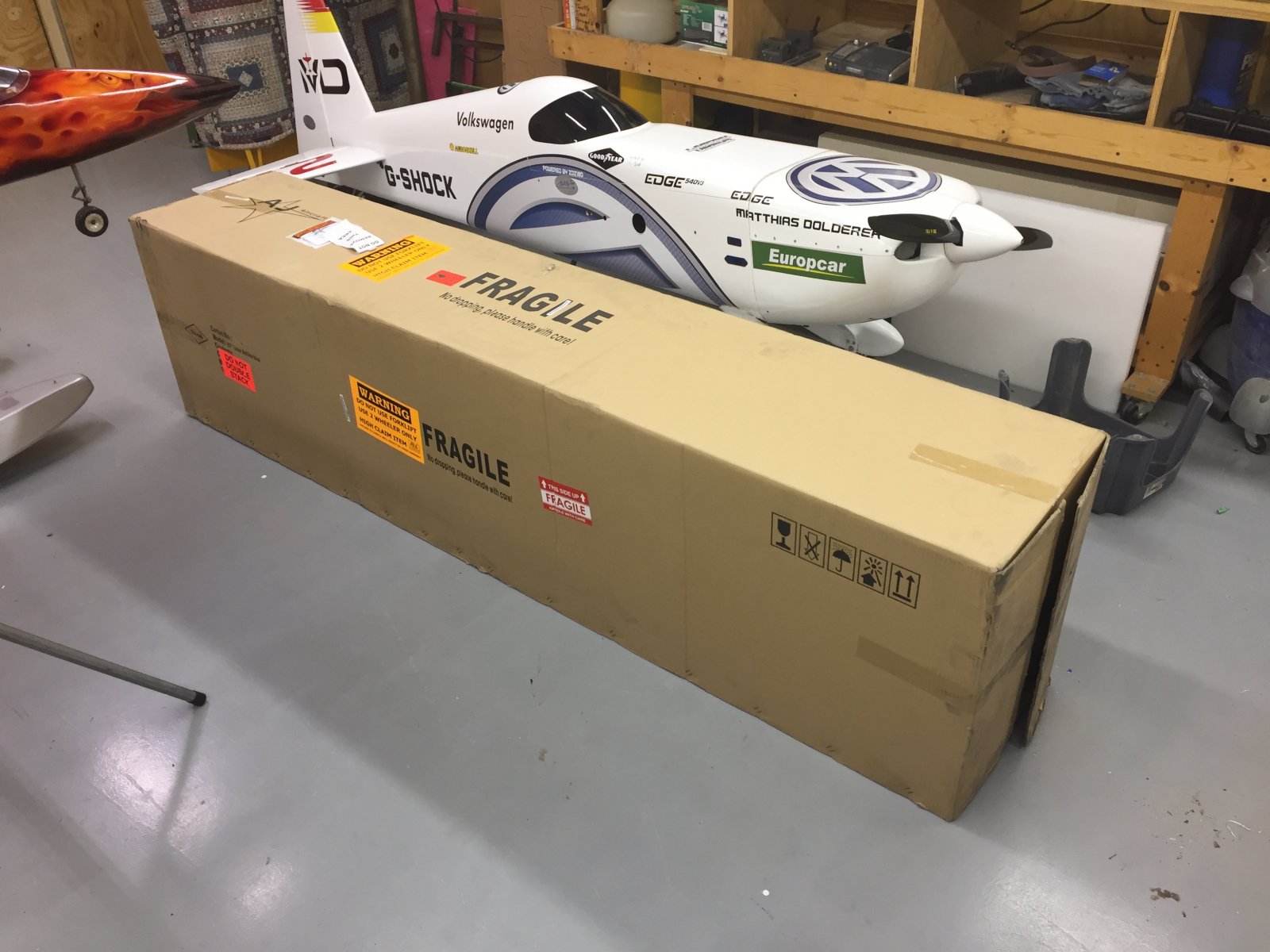

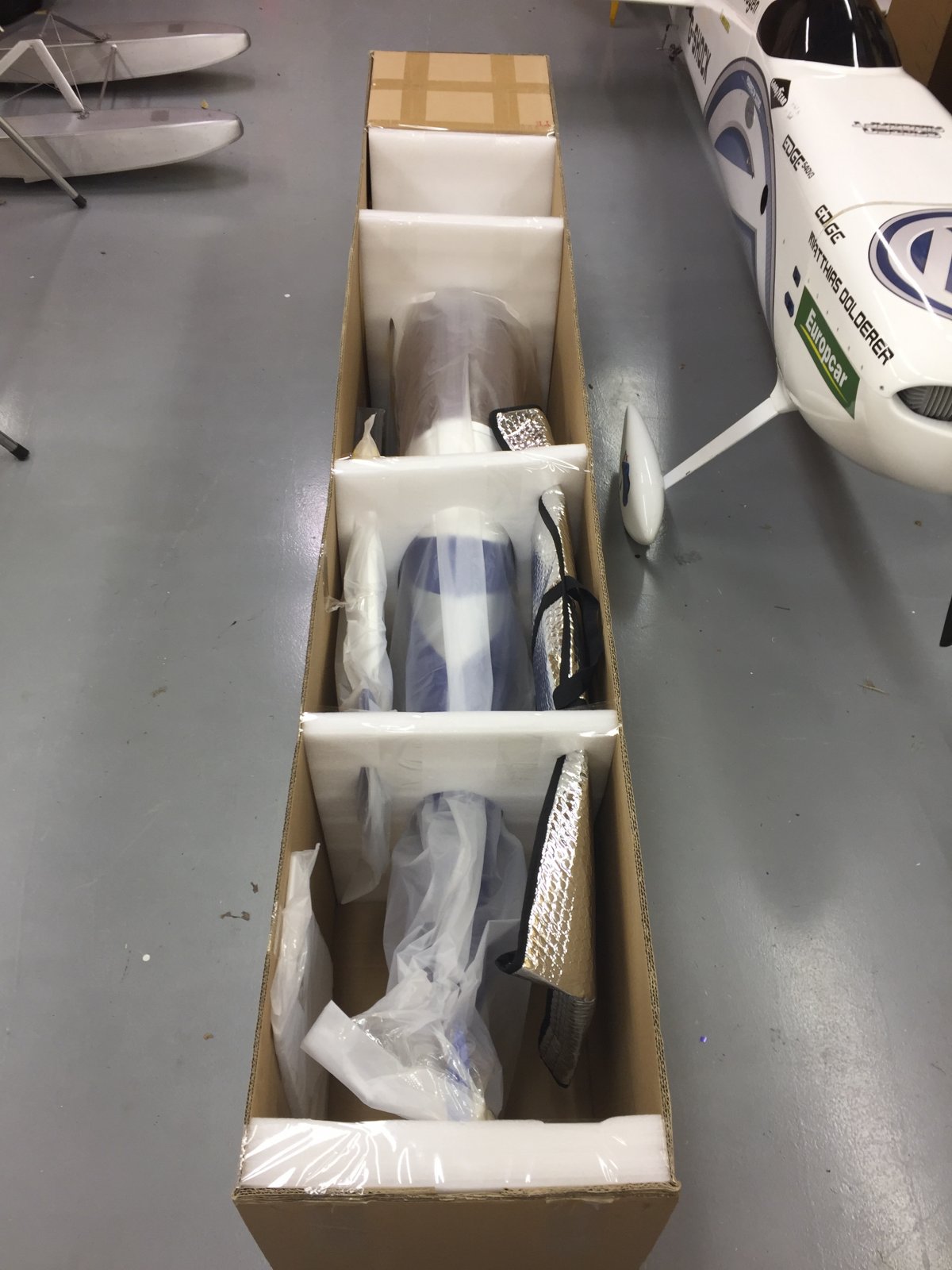

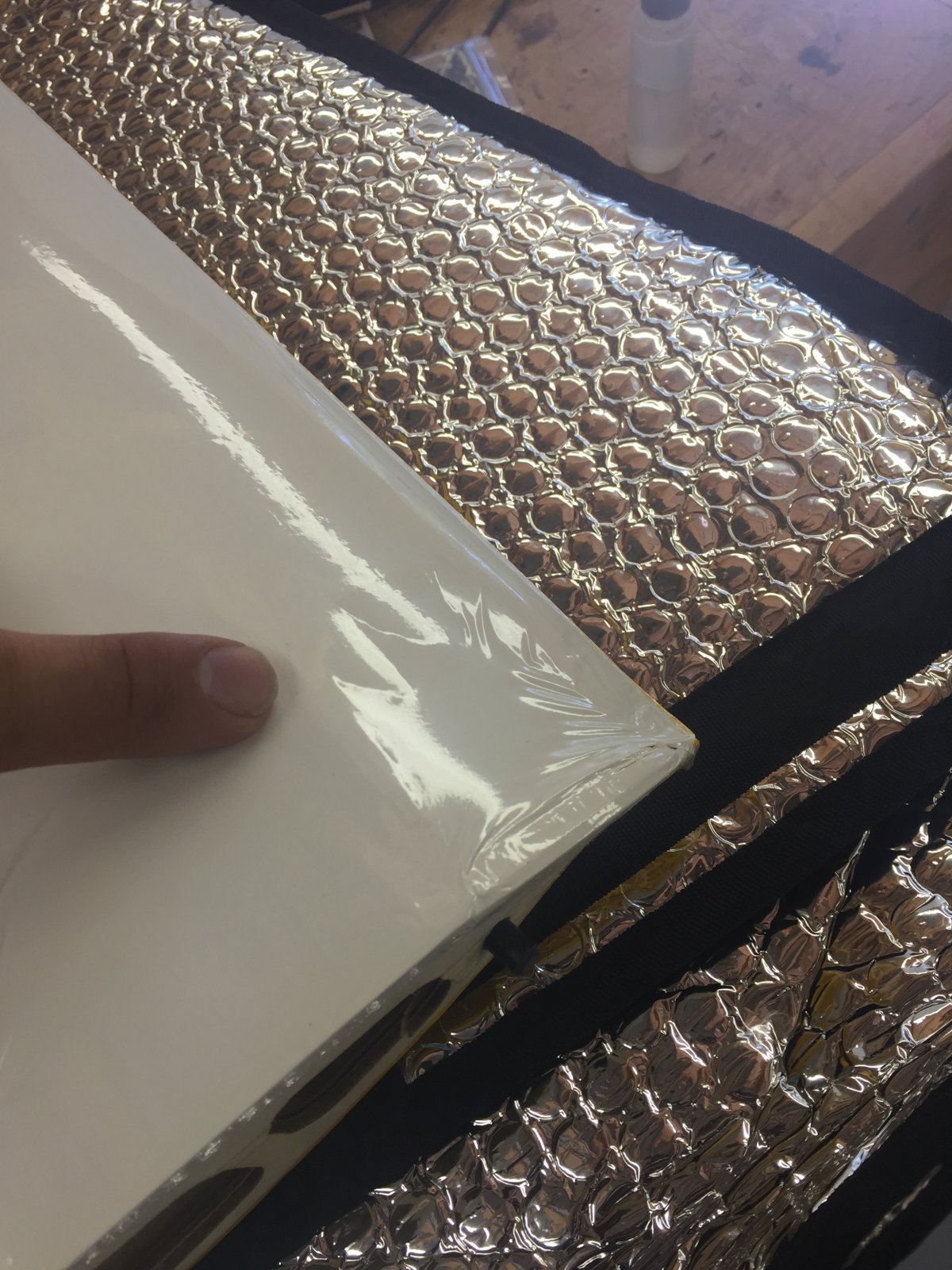

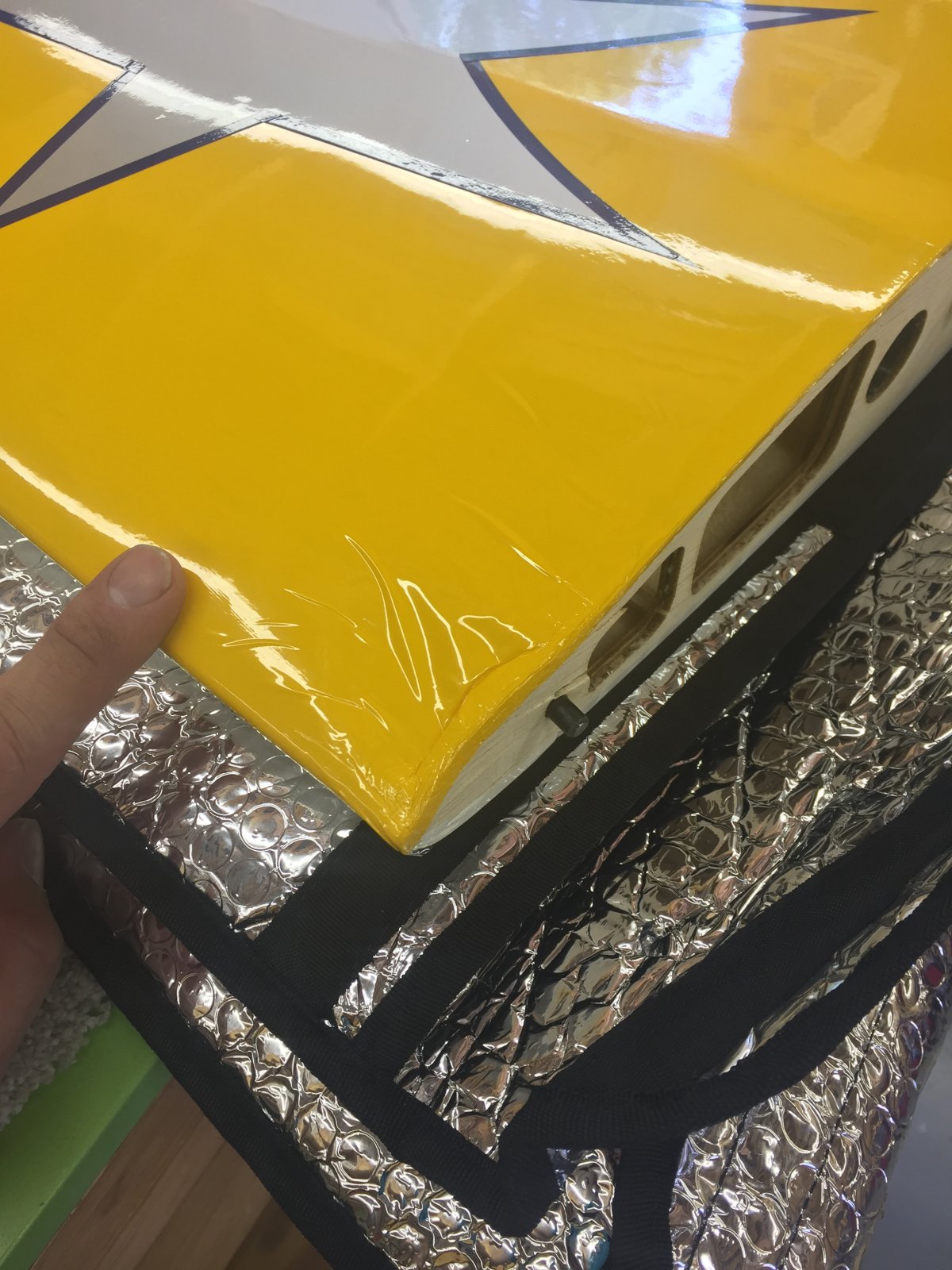

    First, I gotta show how the boxes arrived. Fuse box was near perfect... all contents were 100%. The wing box, however, sustained some damage. AJA did a FANTASTIC job with packaging... it wasn't their fault at all. For as bad as the box looked, there was only minimal damage to one of the wings.

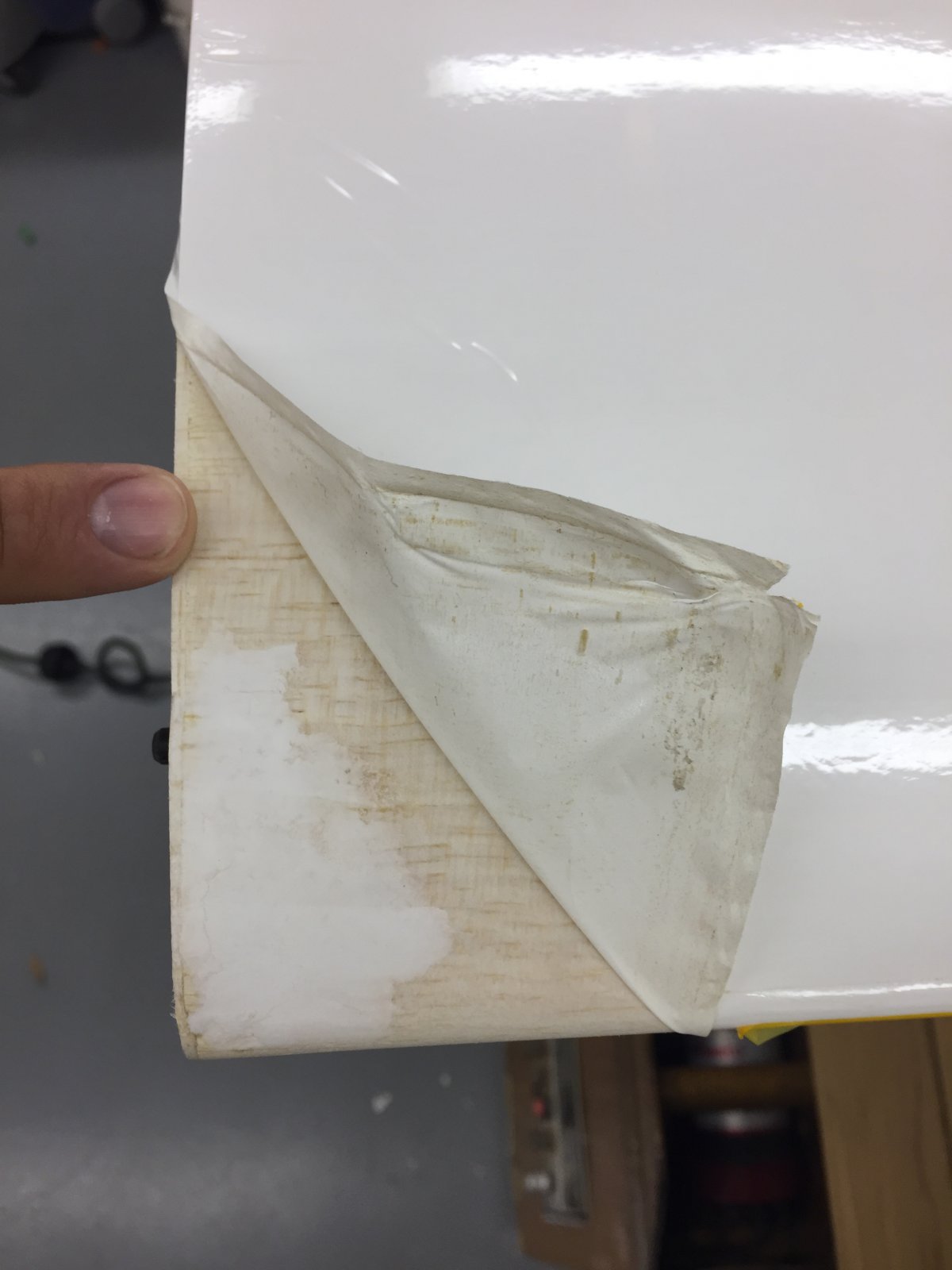

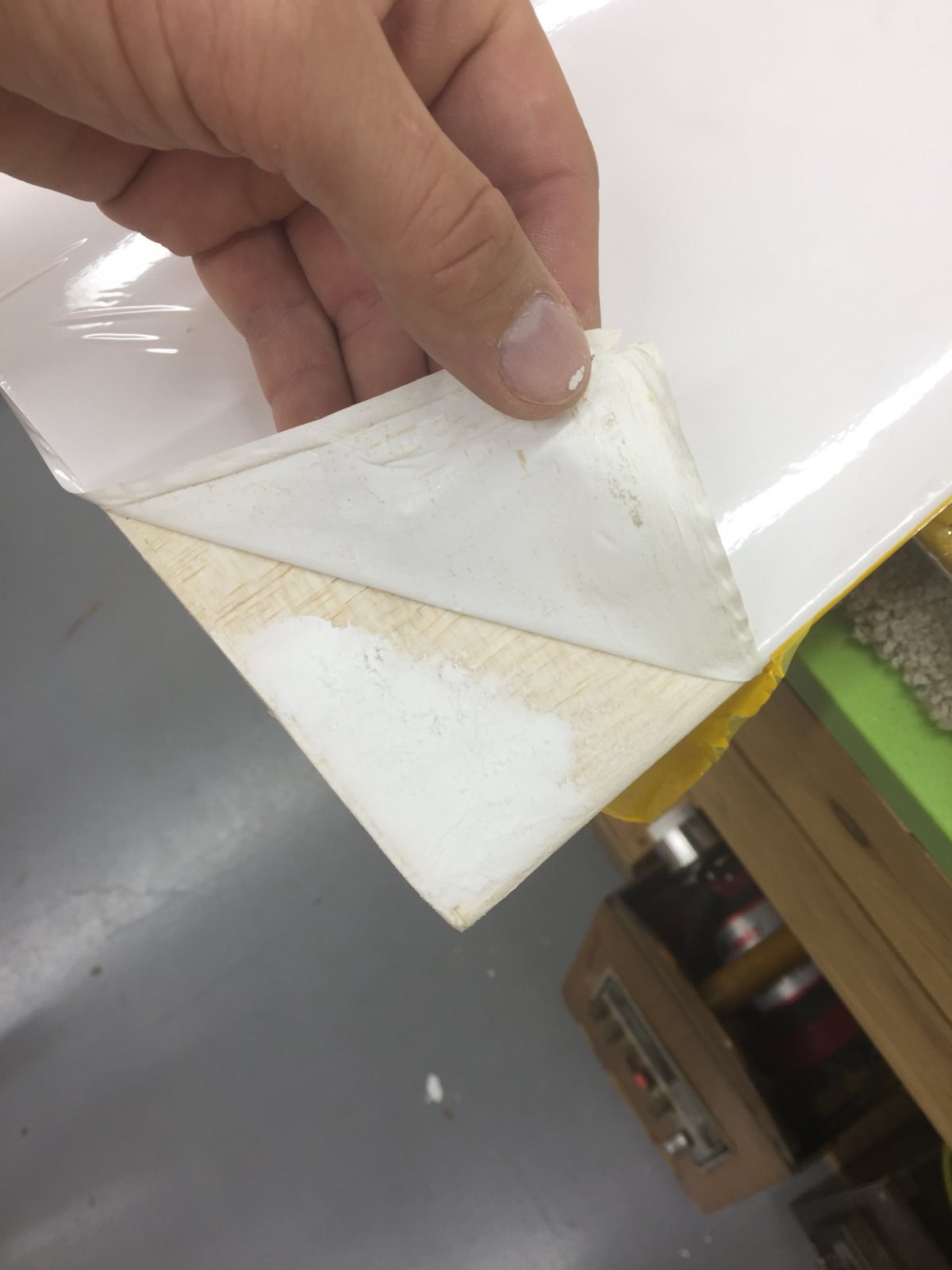

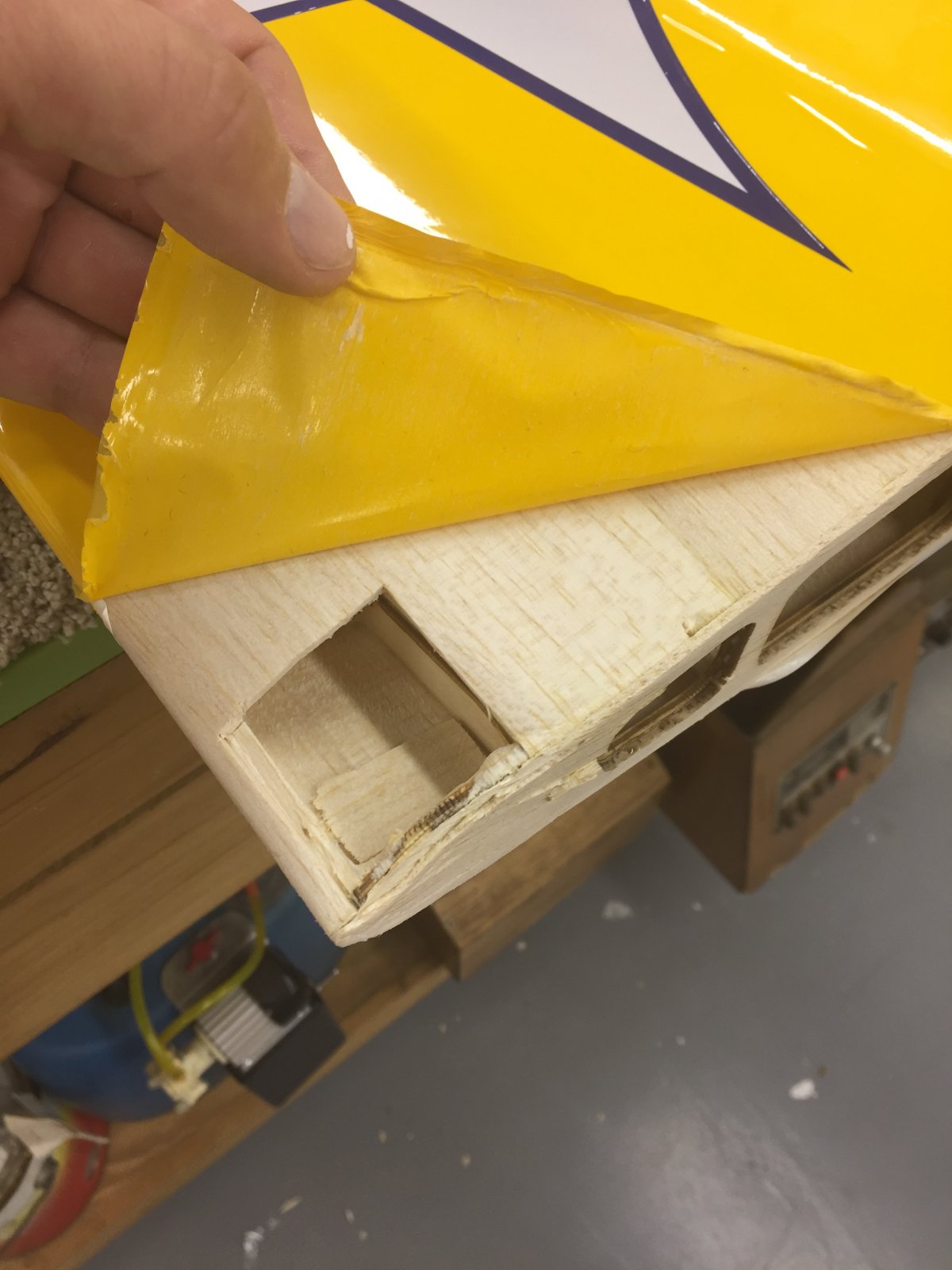

    Repair consisted of pealing back the covering, fixing broken wood, hysol and iron the covering back down. It's all good

    I did call and talk to Tim about the damage... he was MORE than willing to take care of me, I just didn't see the need because the damage was minimal and the repair was quick/easy.

    -Craig





    IMG_1566.JPG IMG_1567.JPG IMG_1569.JPG IMG_1570.JPG IMG_1571.JPG IMG_1572.JPG IMG_1573.JPG IMG_1574.JPG IMG_1575.JPG

  3. Carrid02

    Carrid02 50cc

    55
    103
    33

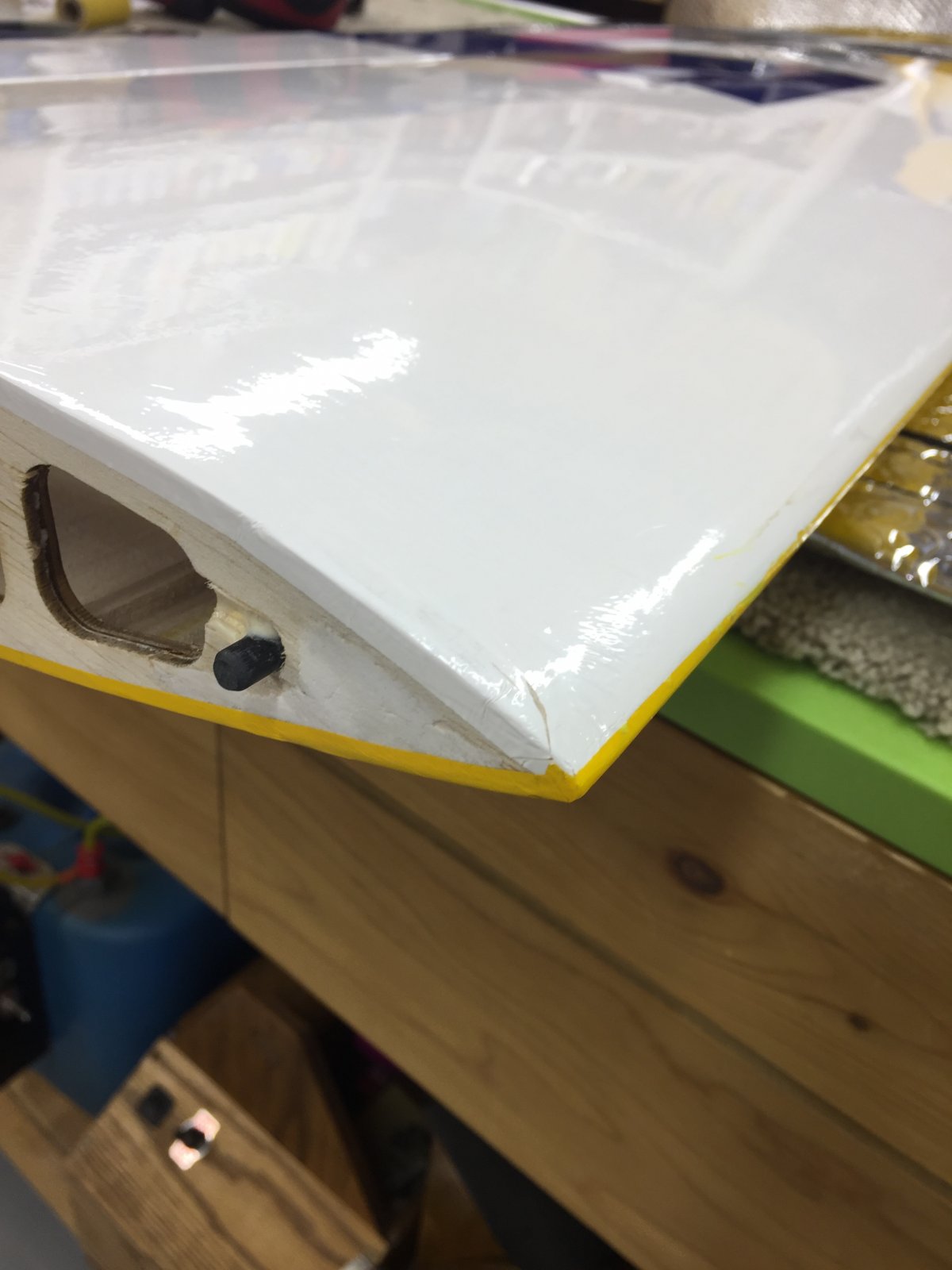

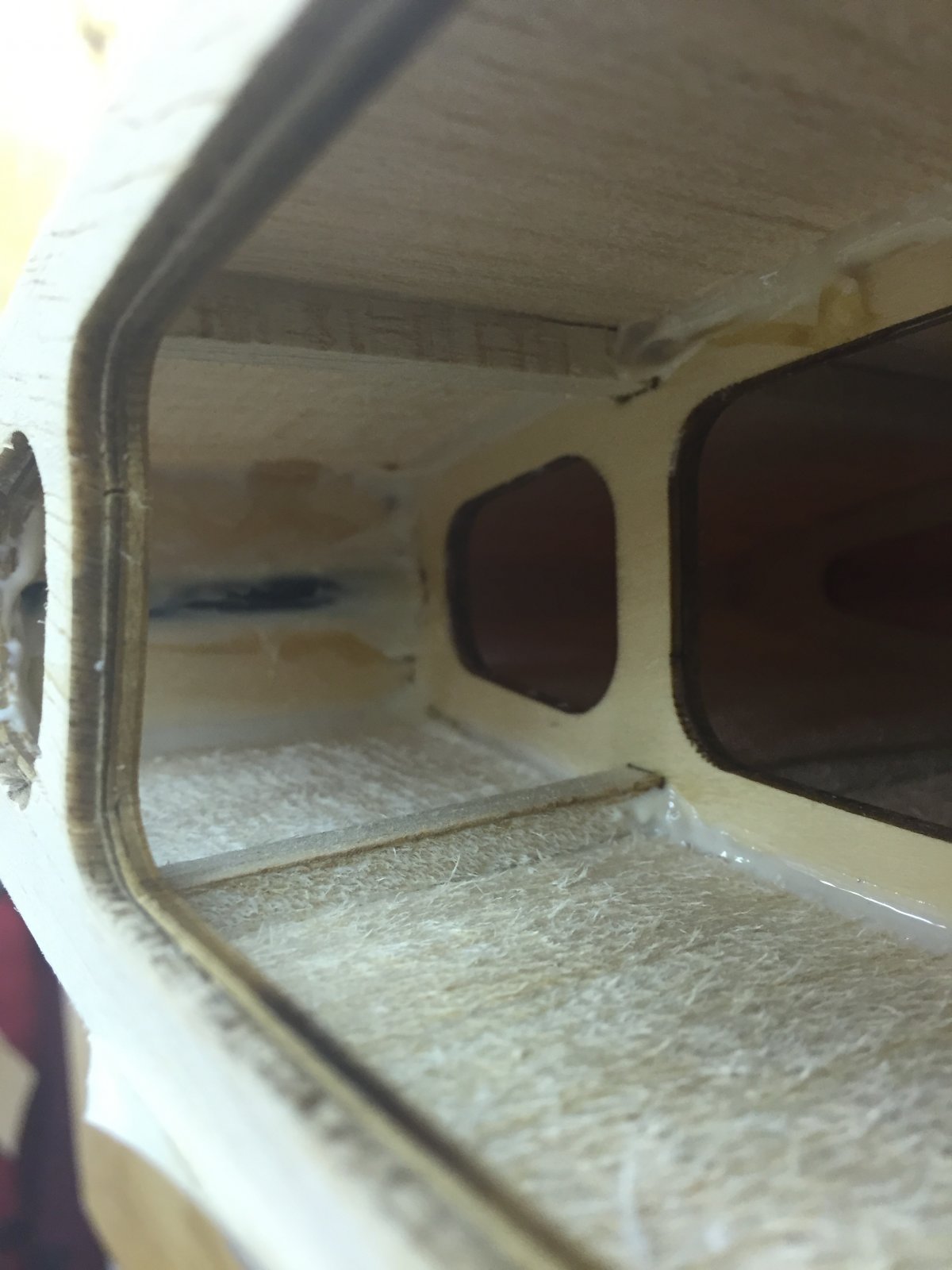

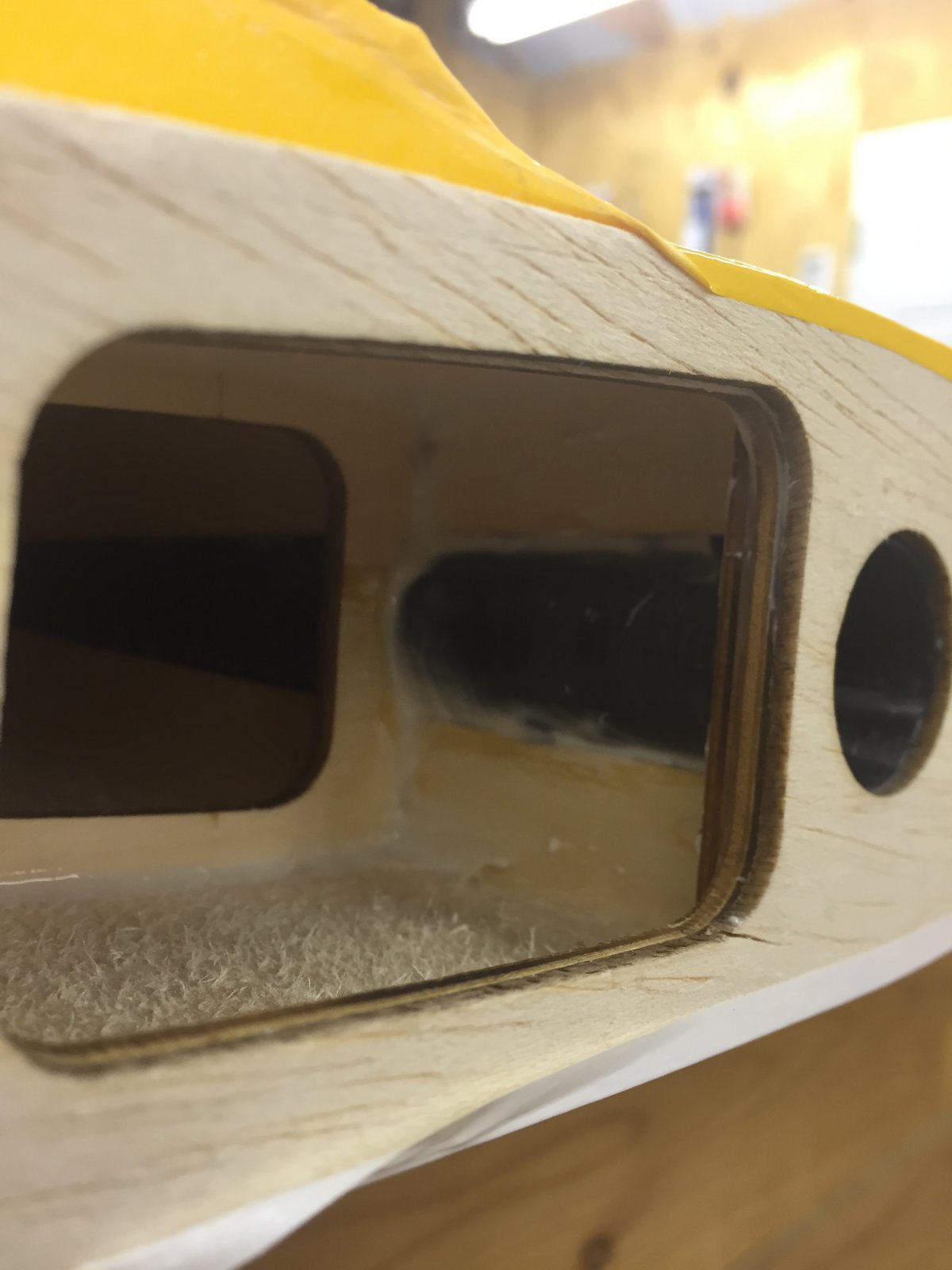

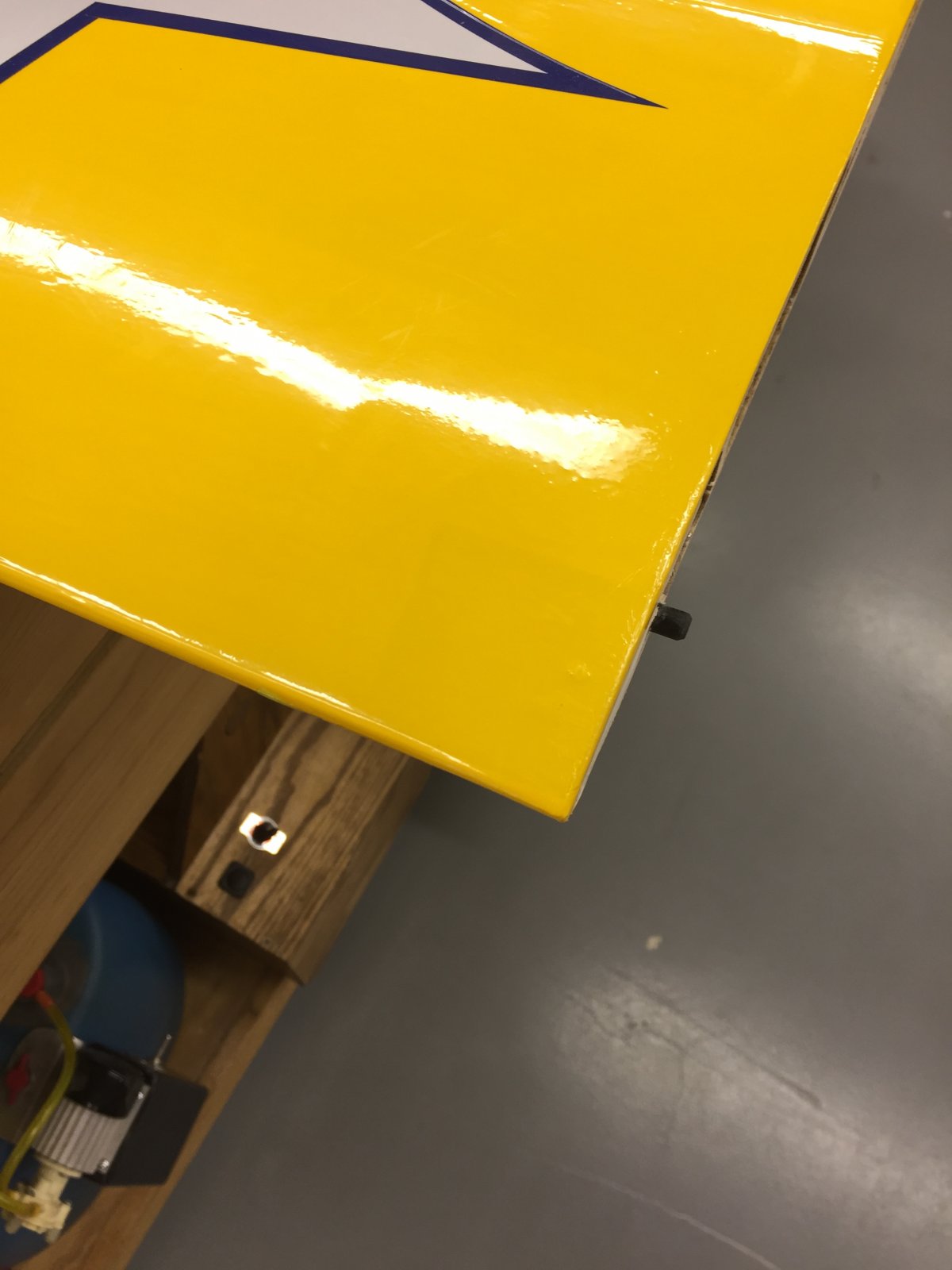

    Repair work done!



    IMG_1596.JPG IMG_1597.JPG IMG_1598.JPG IMG_1599.JPG IMG_1600.JPG IMG_1601.JPG IMG_1602.JPG IMG_1603.JPG

  4. Carrid02

    Carrid02 50cc

    55
    103
    33

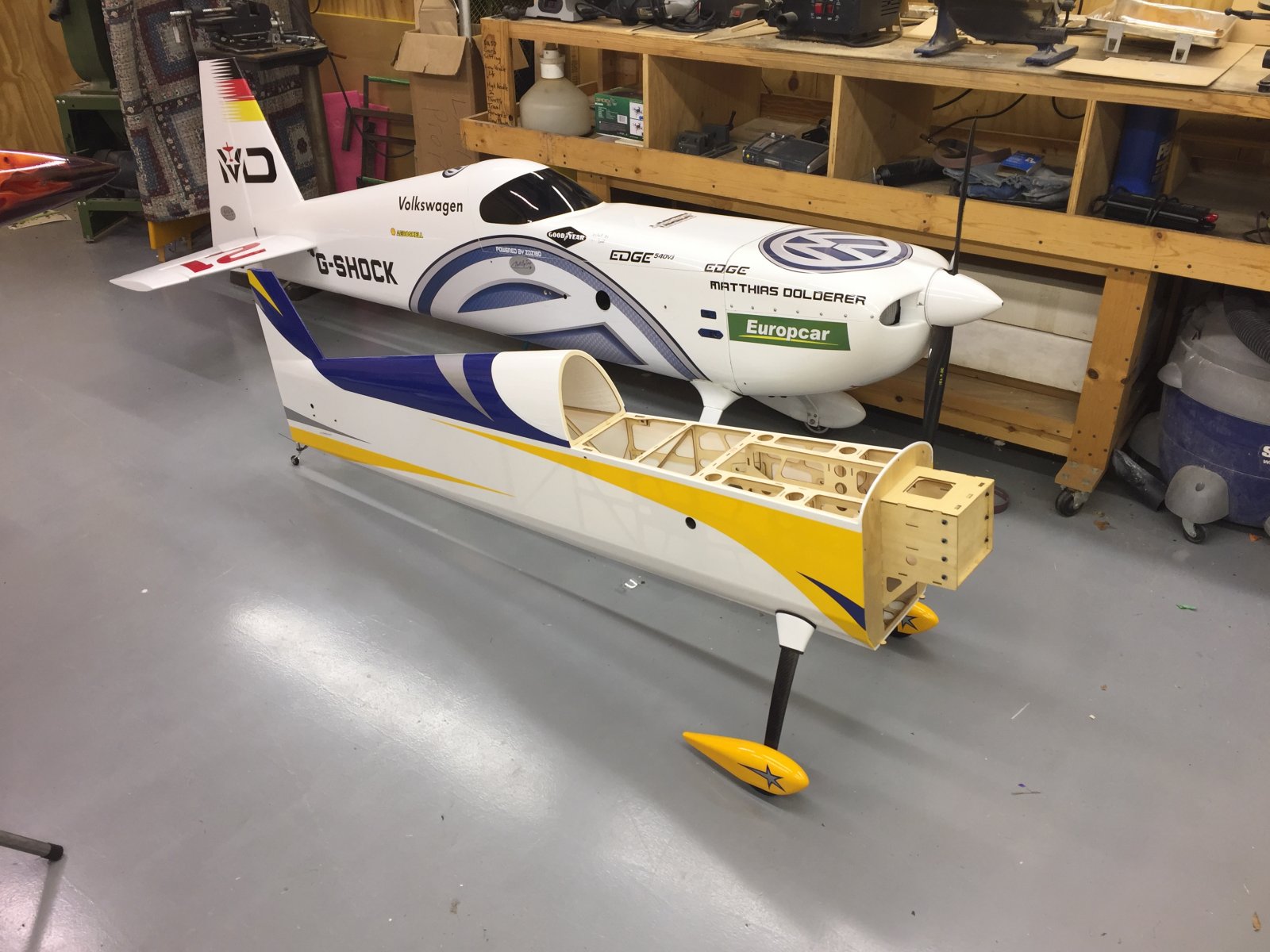

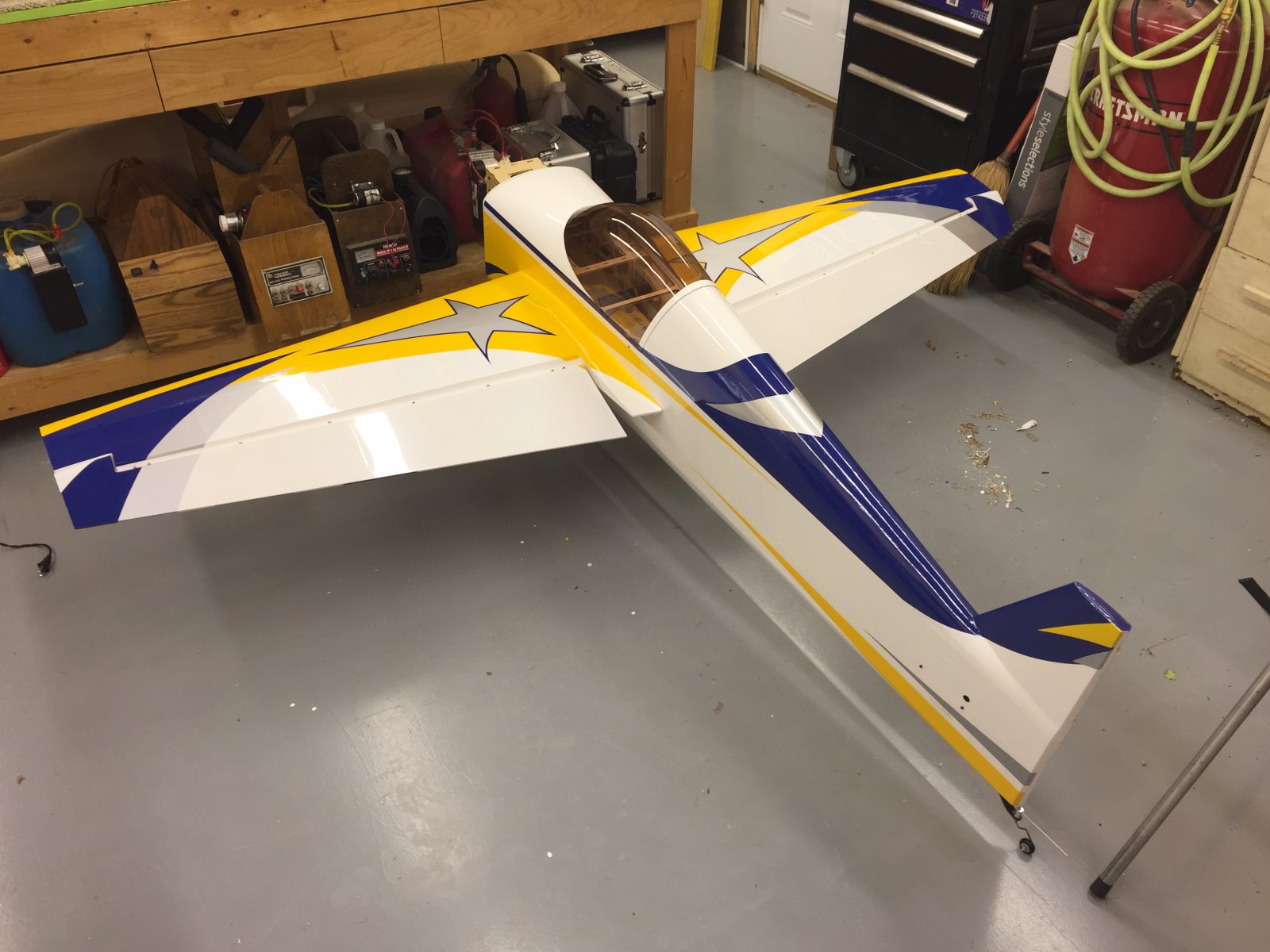

    Up on wheels!

    IMG_1595.JPG IMG_1604.JPG

  5. Alky6

    Alky6 150cc

    Looks like the Blue def and plane met and the Urea won. ;) Bummer. Nice fix though! Pretty impressed with these from what I have seen so far.

    HRRC Flyer likes this.
  6. Luchnia

    Luchnia 70cc twin V2

    I think that color scheme is the best one so far.

    AKNick and Alky6 like this.
  7. HRRC Flyer

    HRRC Flyer GSN Sponsor Tier 1

    :I_agree:

    Alky6 likes this.
  8. Carrid02

    Carrid02 50cc

    55
    103
    33

    Yep, this scheme and the blue/red are my favorite!

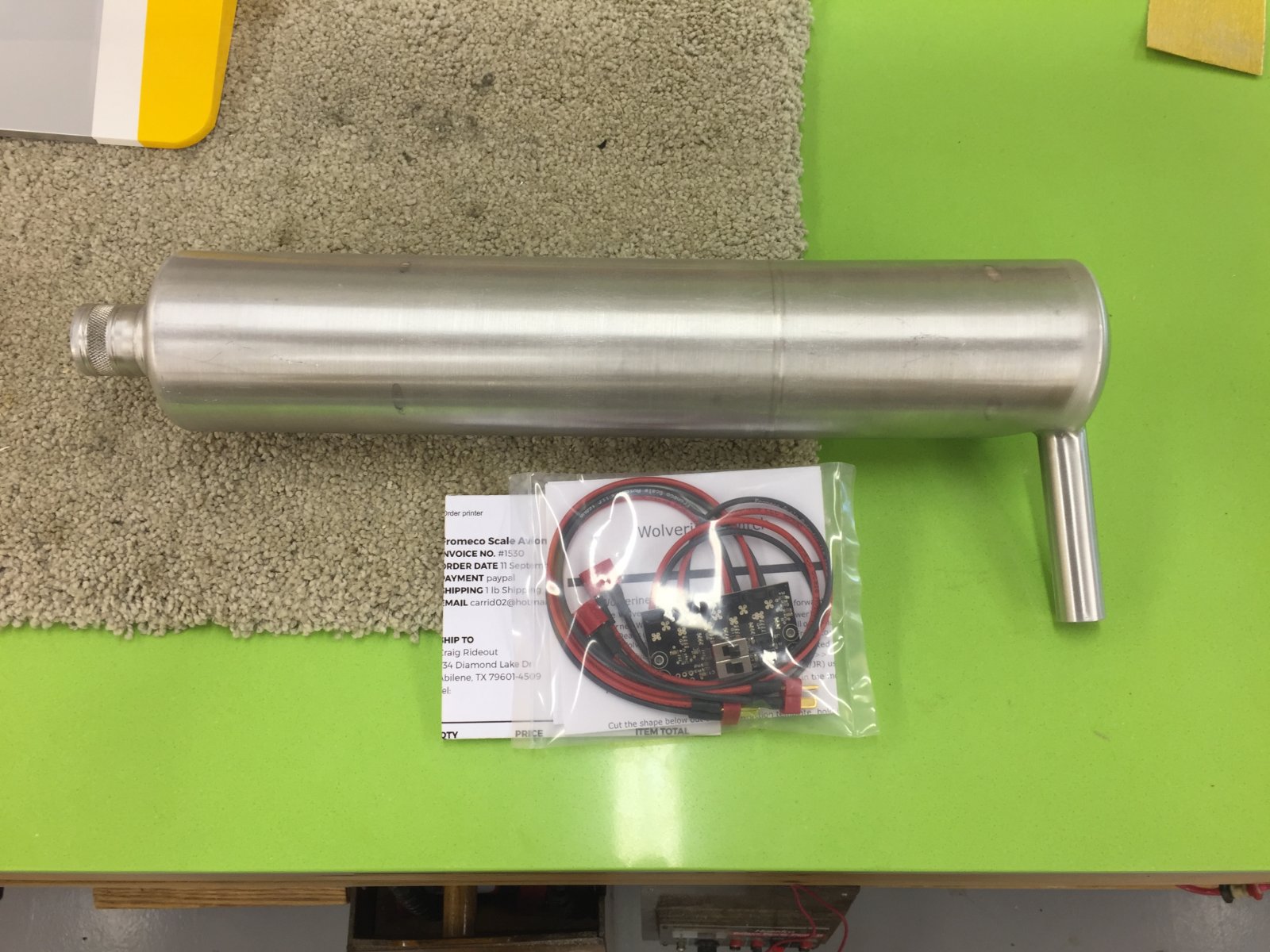

    I got the canister and switch in the mail yesterday. Now I have 95% of what I need to complete this thing.

    -Craig

    Luchnia, Alky6 and pawnshopmike like this.
  9. Carrid02

    Carrid02 50cc

    55
    103
    33

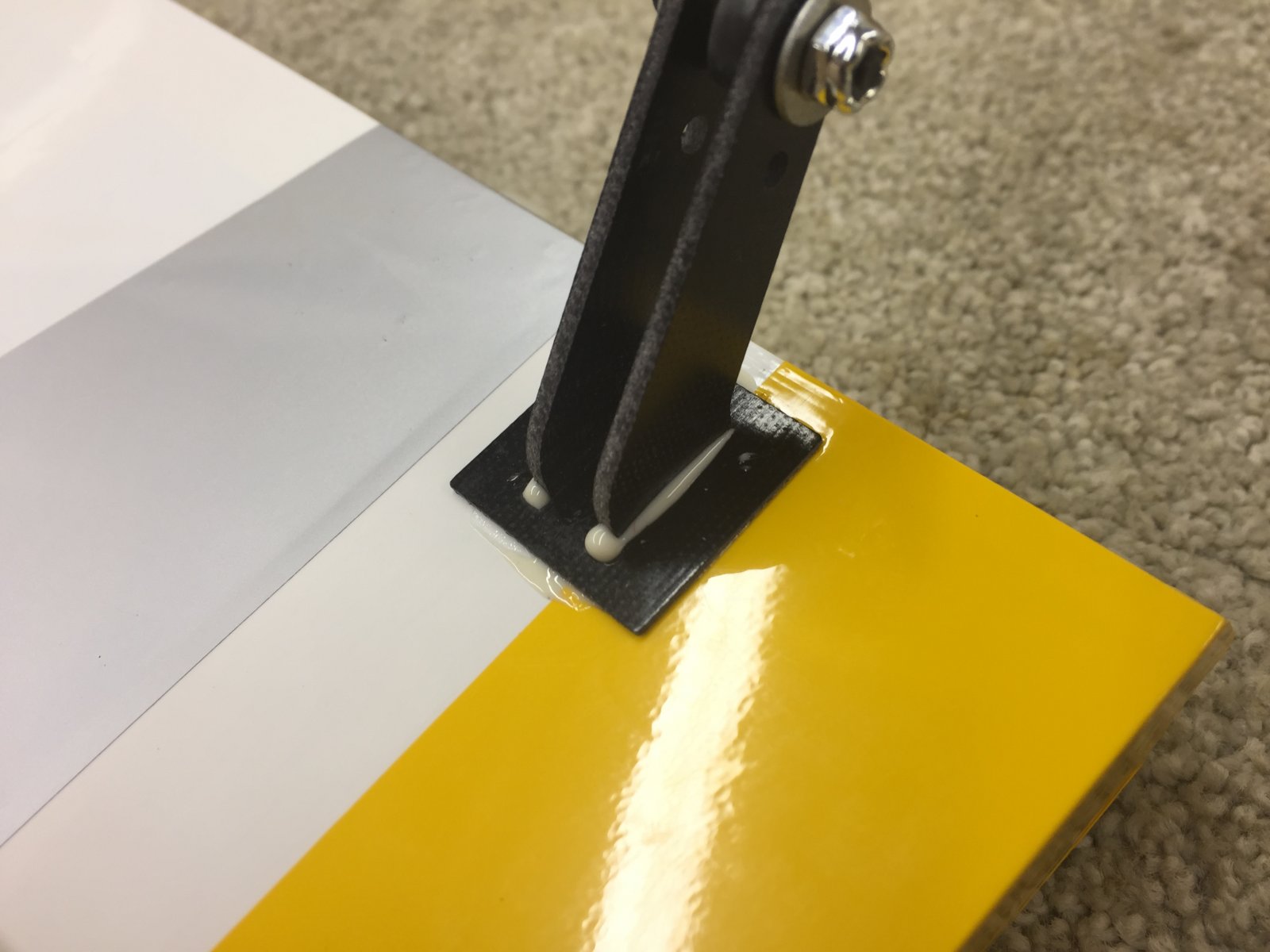

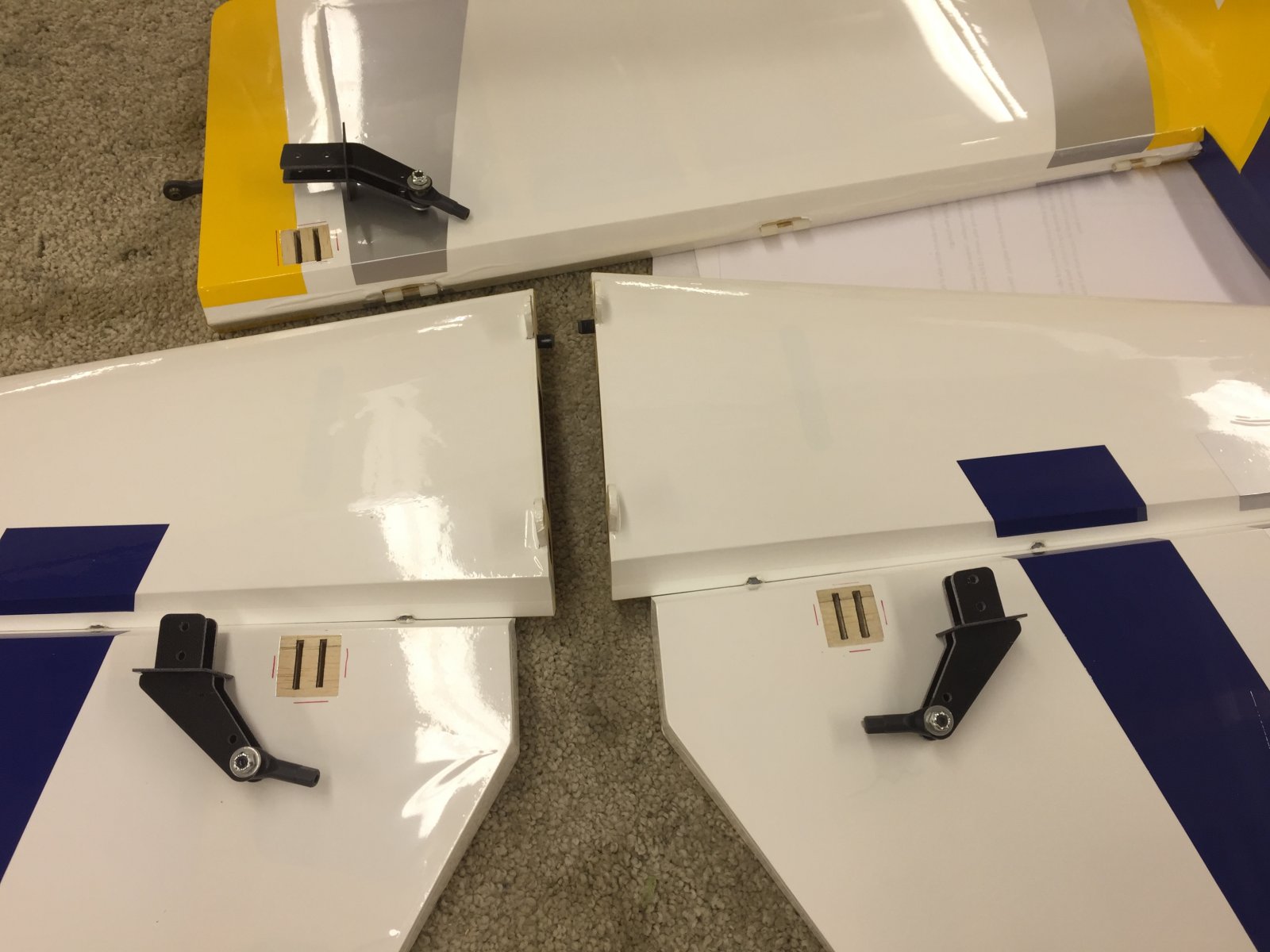

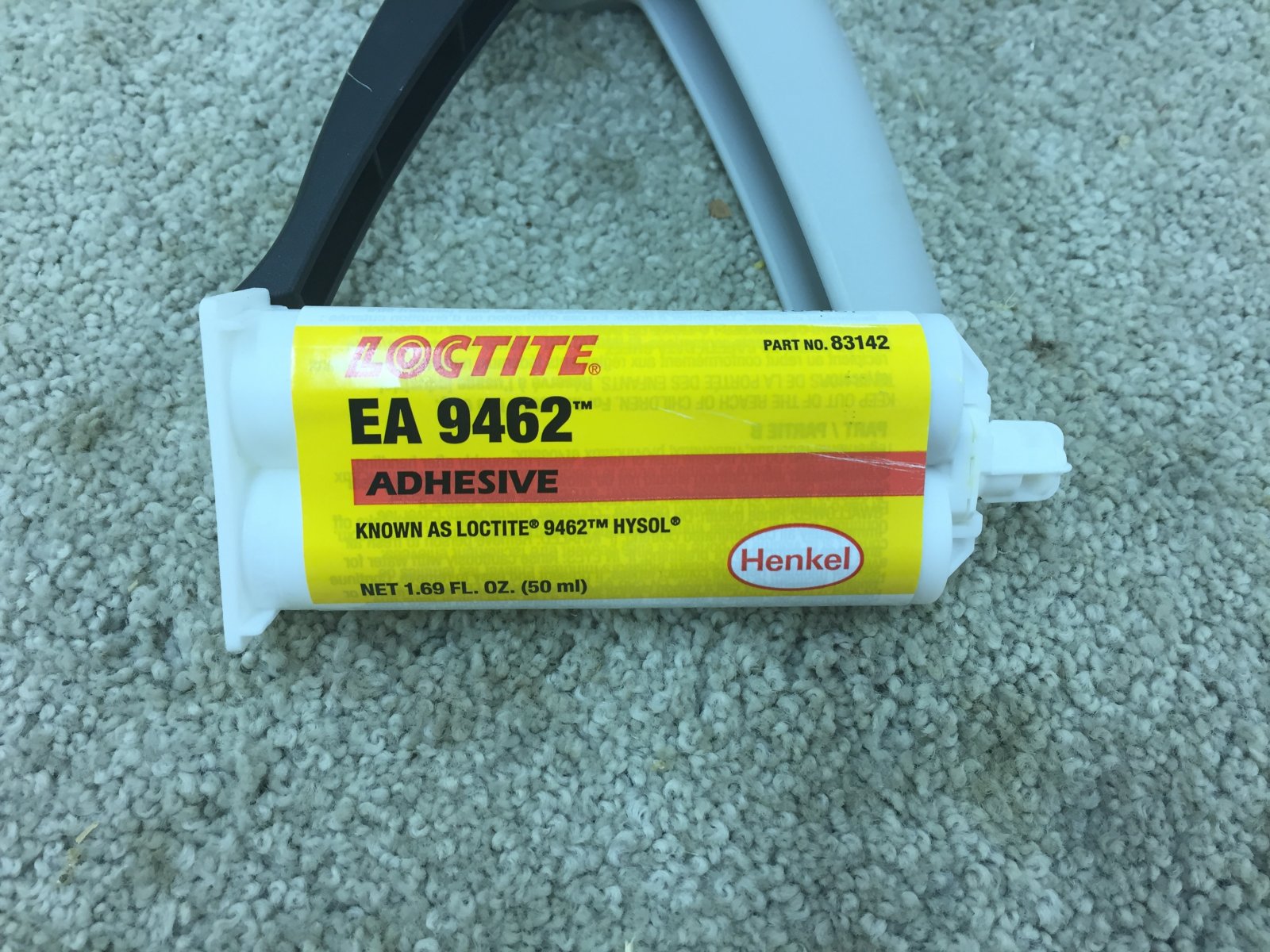

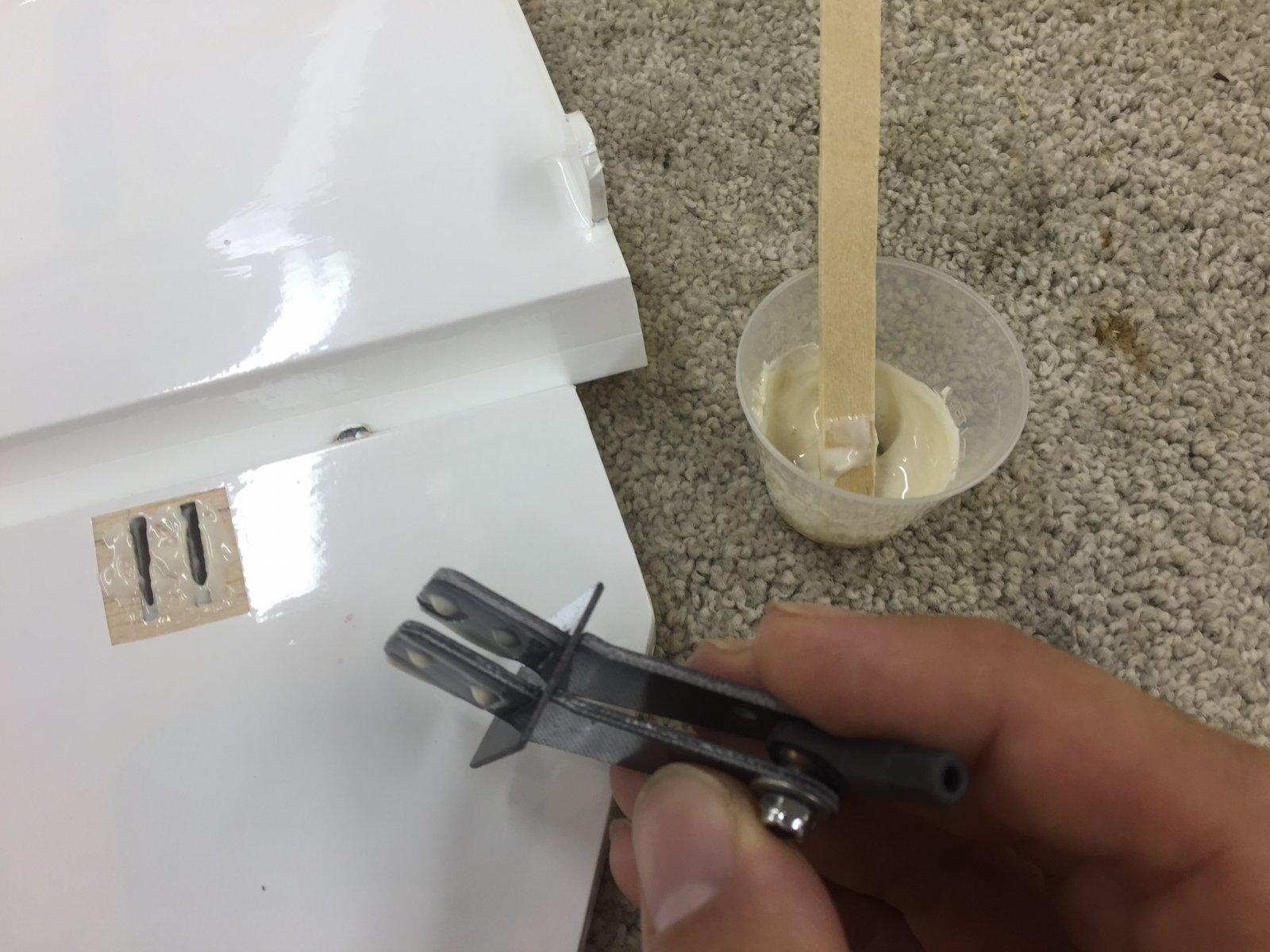

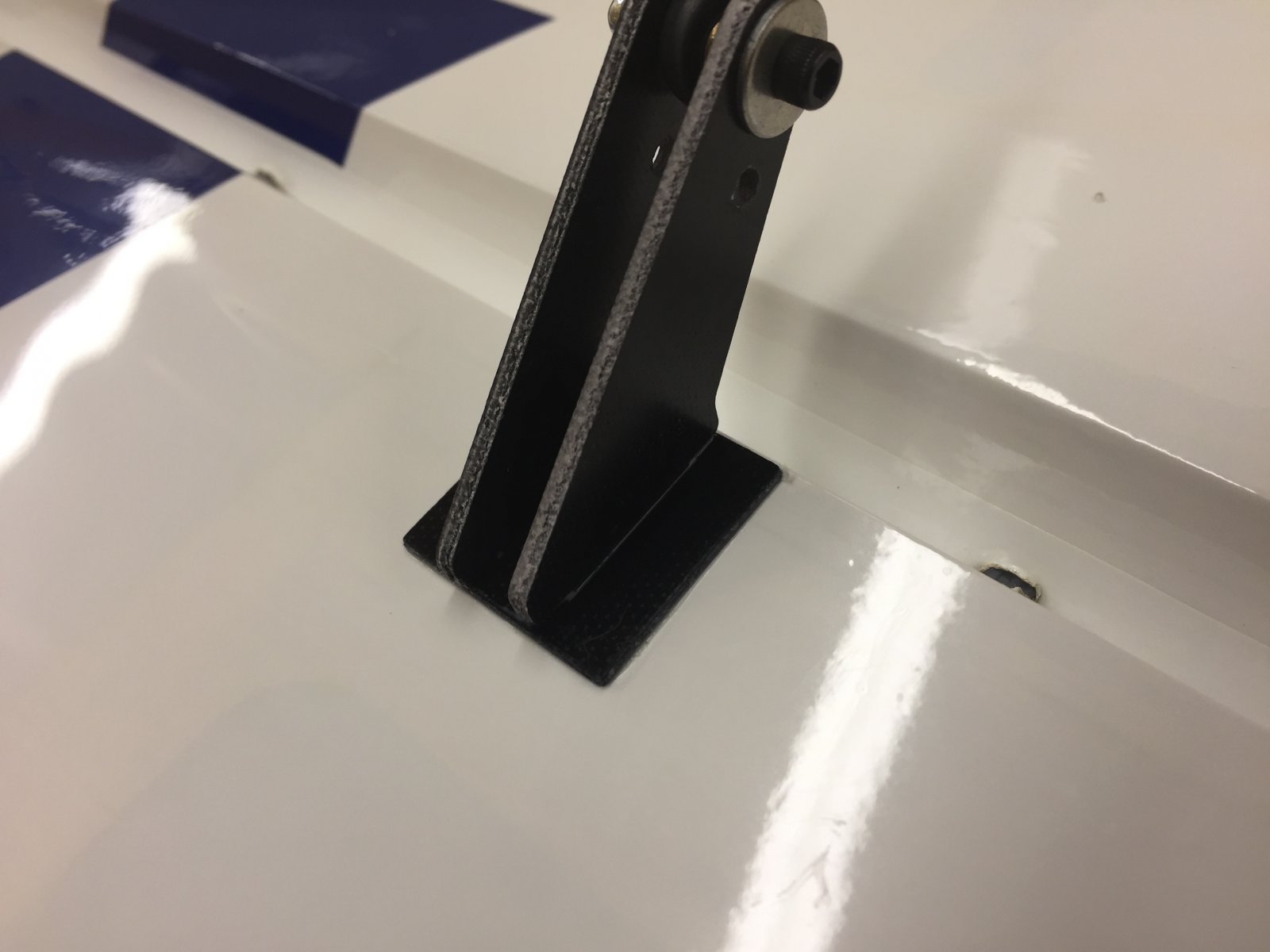

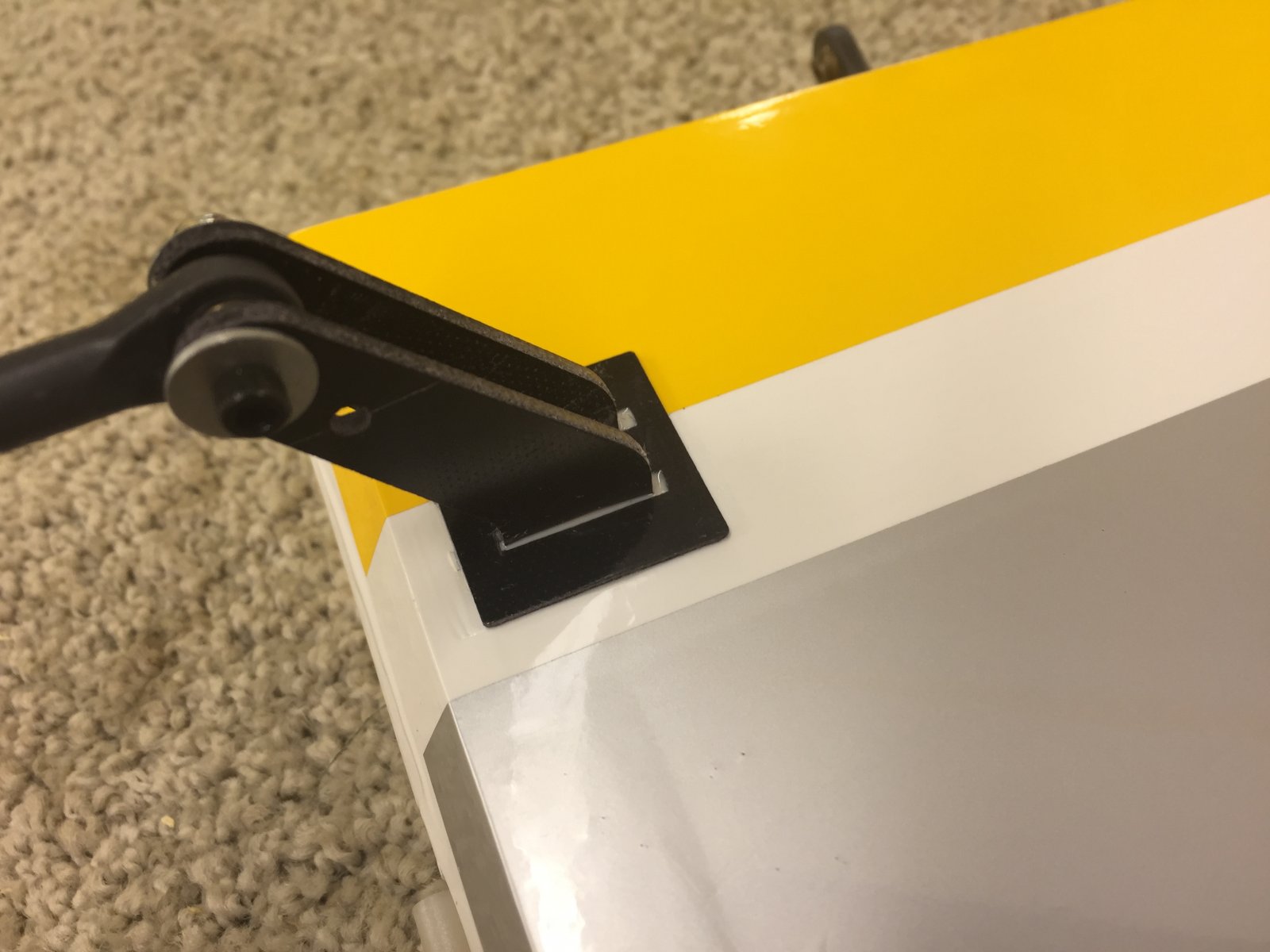

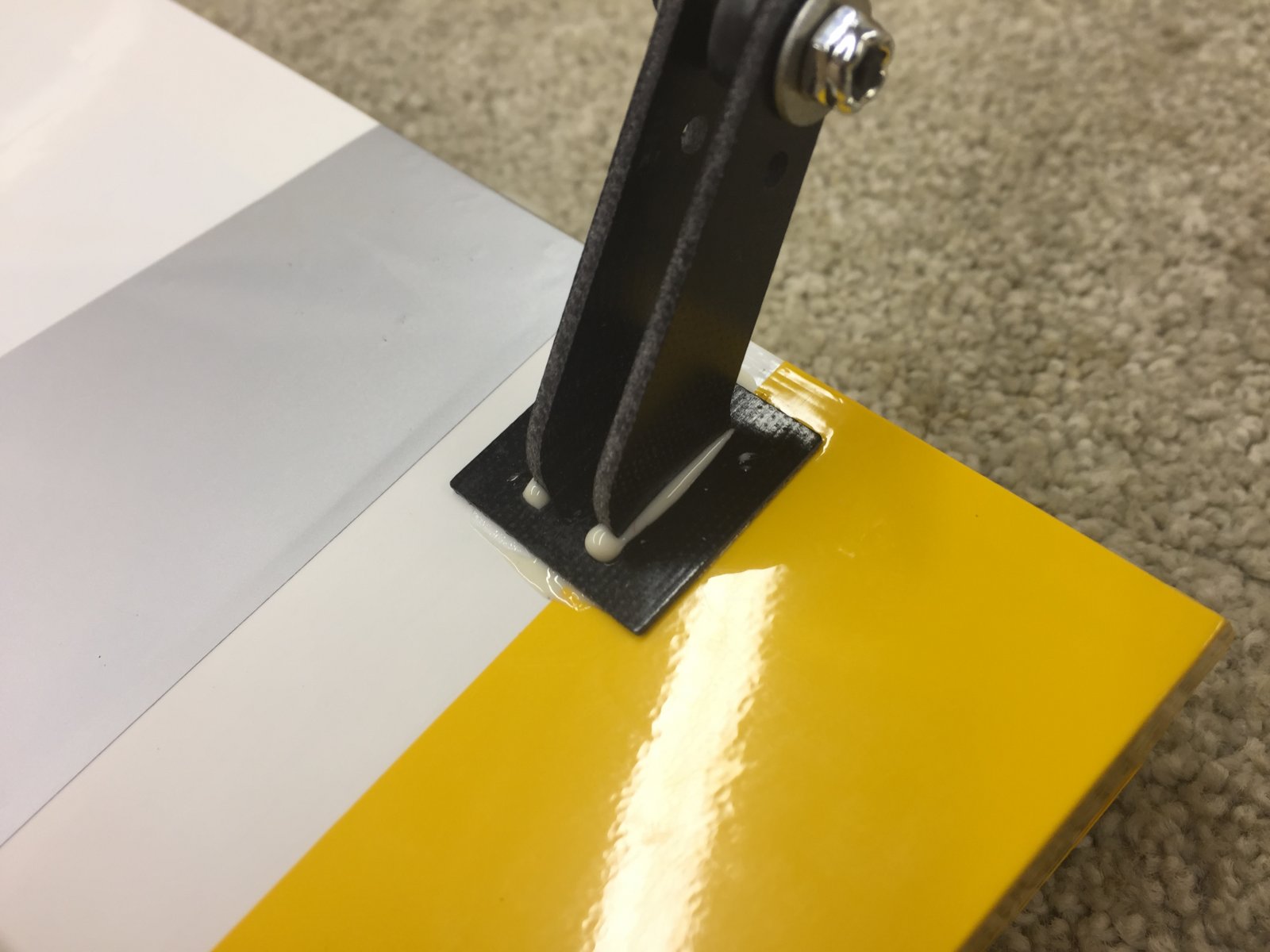

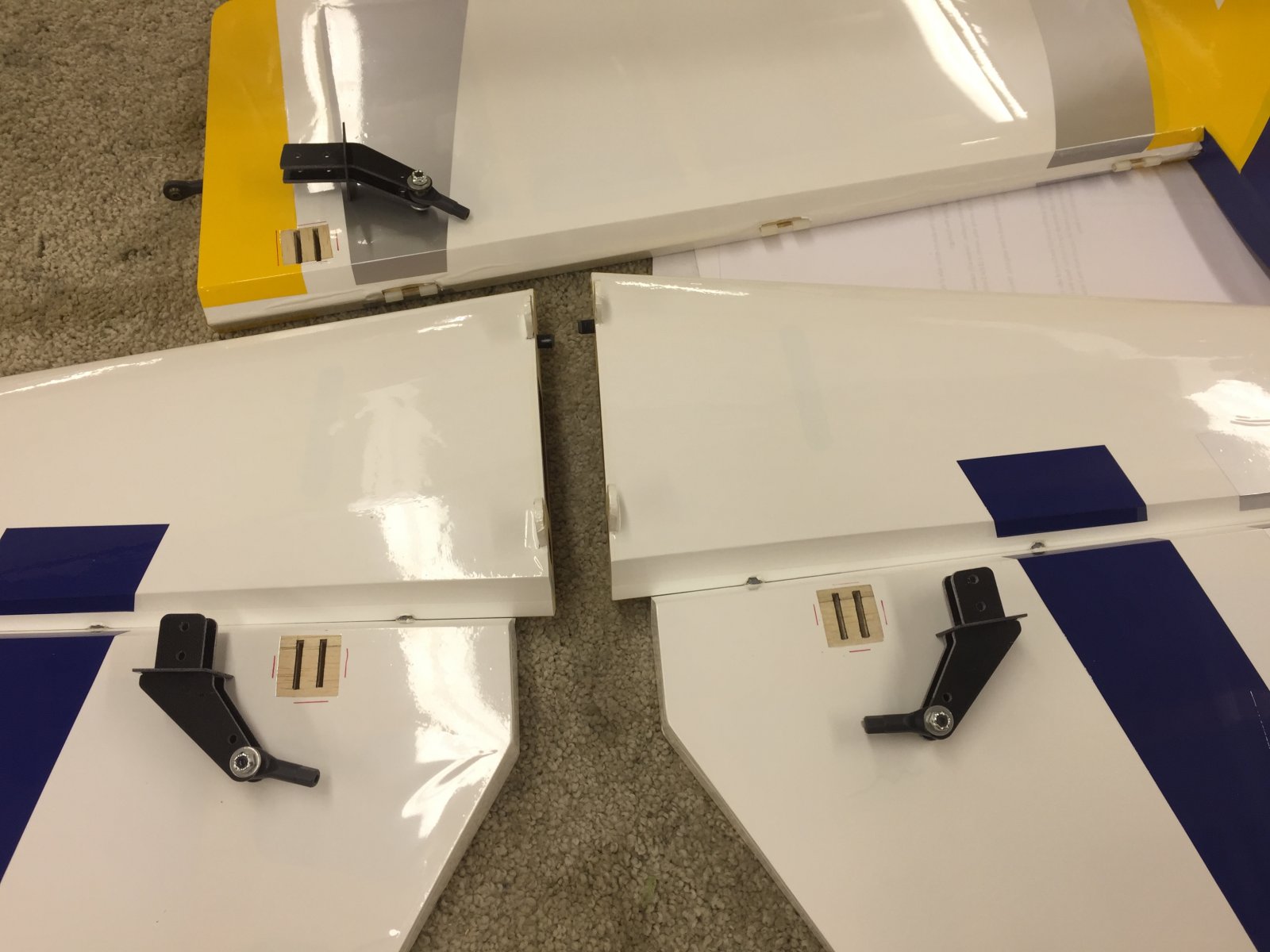

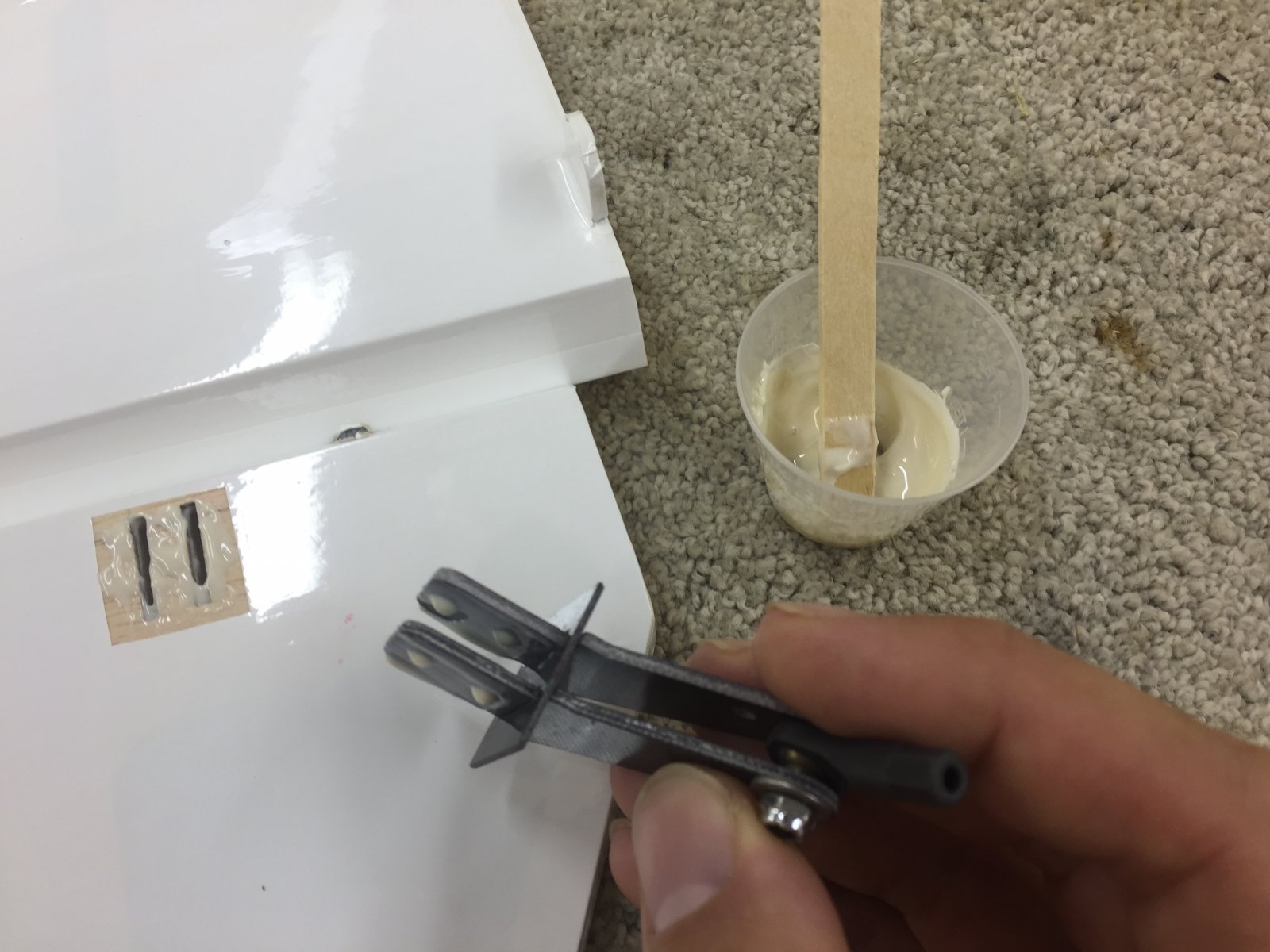

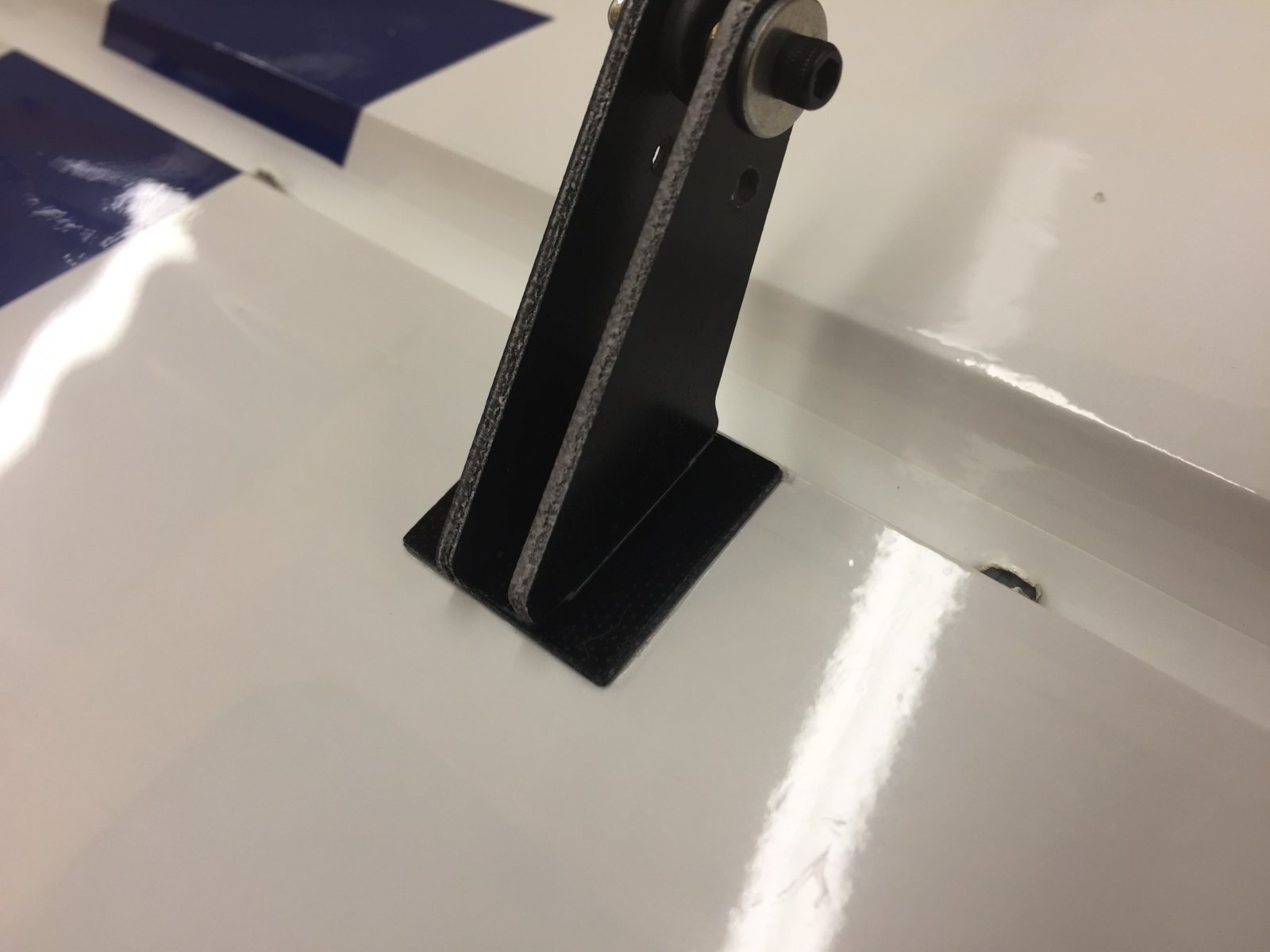

    I started on the control horns this morning. I opted for hysol instead of epoxy simply because I had some handy. I don't use a long "application tip" on the hysol because it wastes soooo much. So, I dispensed a little in a small mixing cup and worked glue in the slots with a stick. Pushed the assembled horn in place and cleaned up with alcohol.

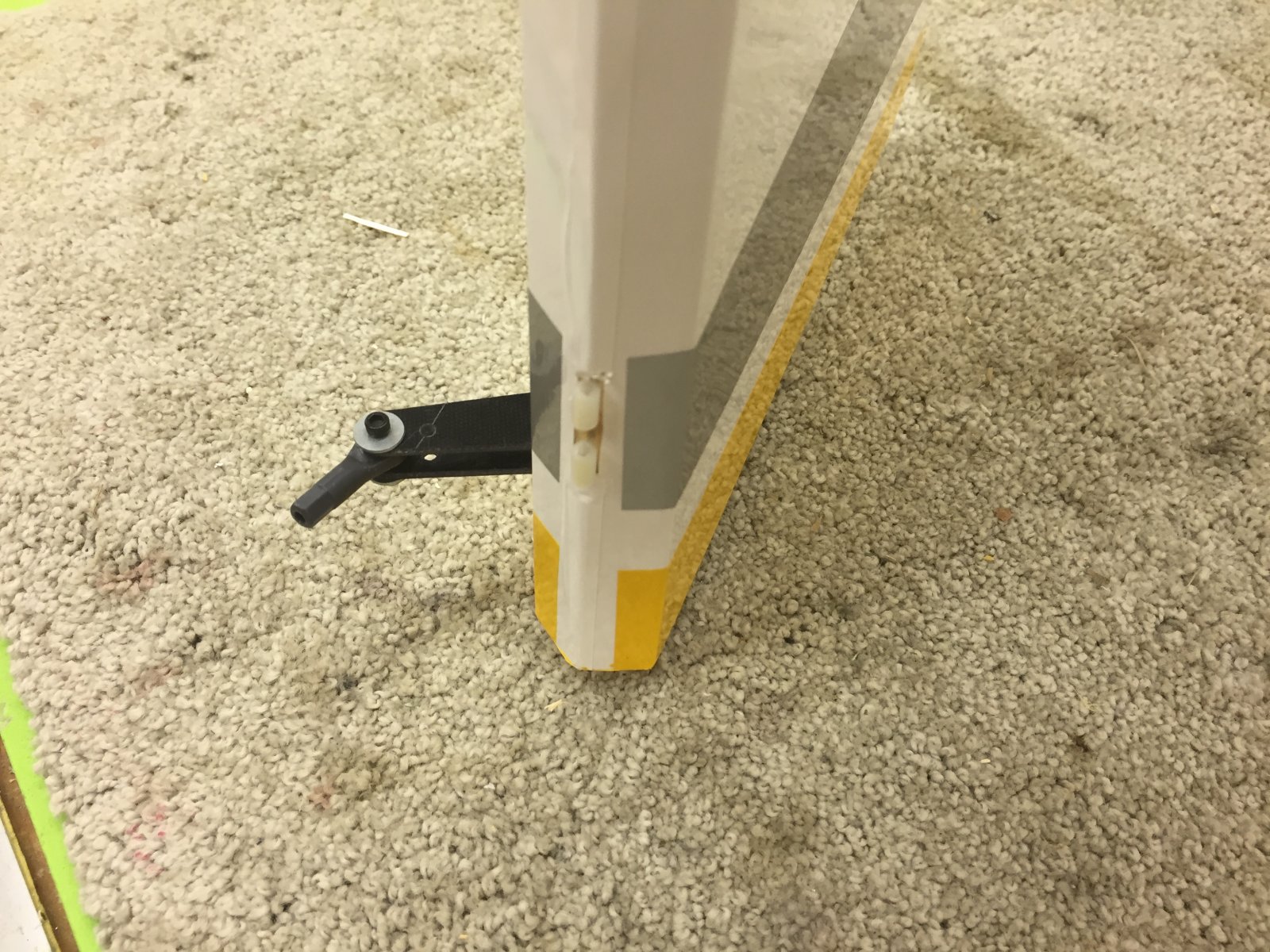

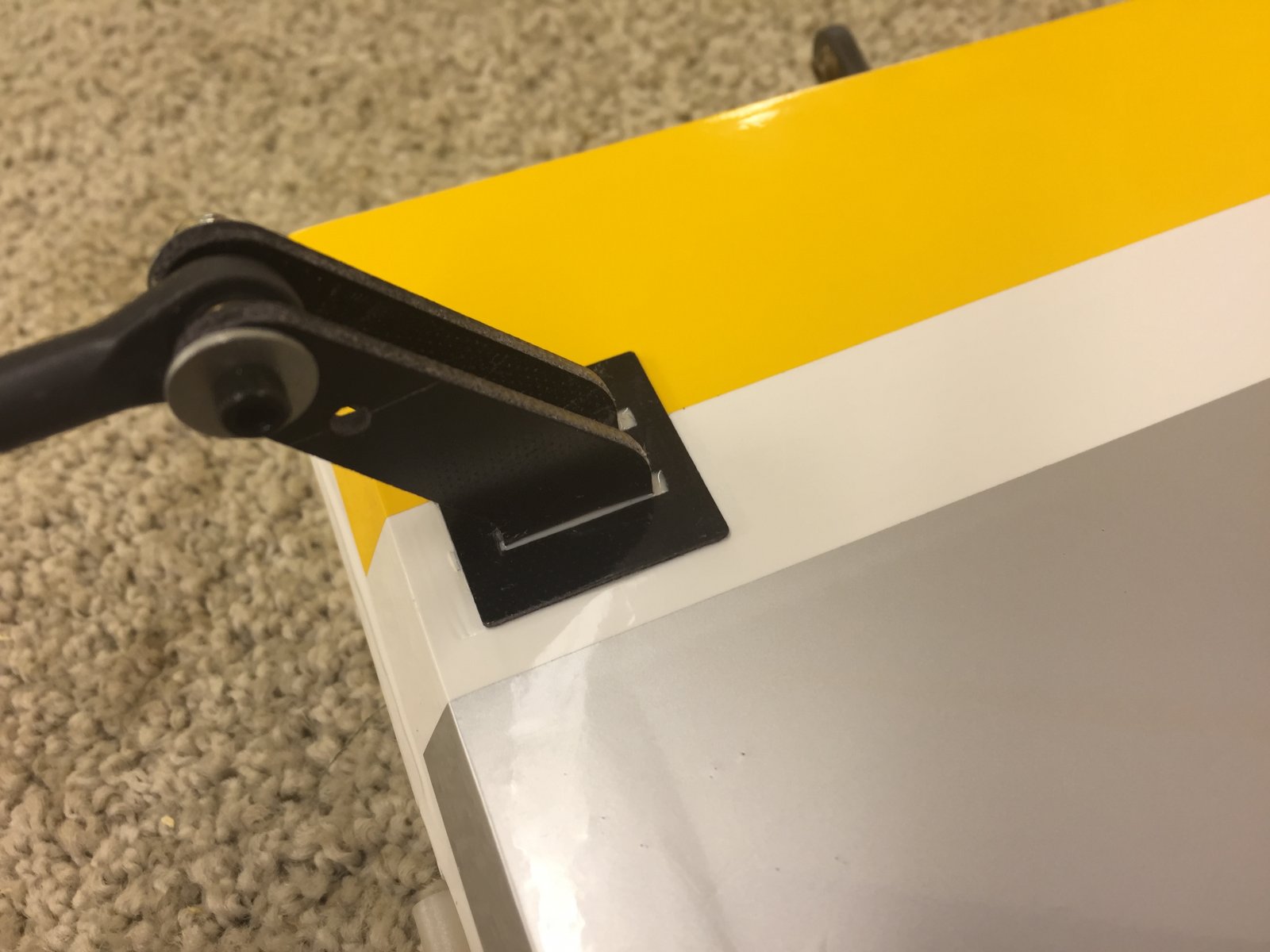

    Also, I opted for 1 servo push-pull to operate the rudder so I cut off one side of the rudder control horn so that side of the rudder would remain uncut/clean.

    More to come!

    -Craig



    IMG_1636.JPG IMG_1639.JPG IMG_1640.JPG IMG_1641.JPG IMG_1643.JPG IMG_1644.JPG IMG_1645.JPG

    Luchnia, AKNick and pawnshopmike like this.
  10. Alky6

    Alky6 150cc

    What a great idea on the Hysol mixing. Can't believe I never thought of that. Such a waste using the mixing tubes, unless you're doing a lot of it!

    Luchnia likes this.
