Scale F7F Tigercat 1/4 scale

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by Forgues-Research, Mar 3, 2020.


  1. WMcNabb

    WMcNabb 150cc

    1,410
    2,975
    113
    TN, USA
    I had seen the Mustang before, and posted in one of the threads here, but that was a few years ago.
    http://www.spitfireinmyworkshop.net/mustang-intro.php

    The Spitfire seems to go to another level!
    Have to go check that one out.

    Thanks Roger!

    Last edited: Mar 22, 2020
    Forgues-Research likes this.
  2. Absolutely phenomenal.

  3. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113

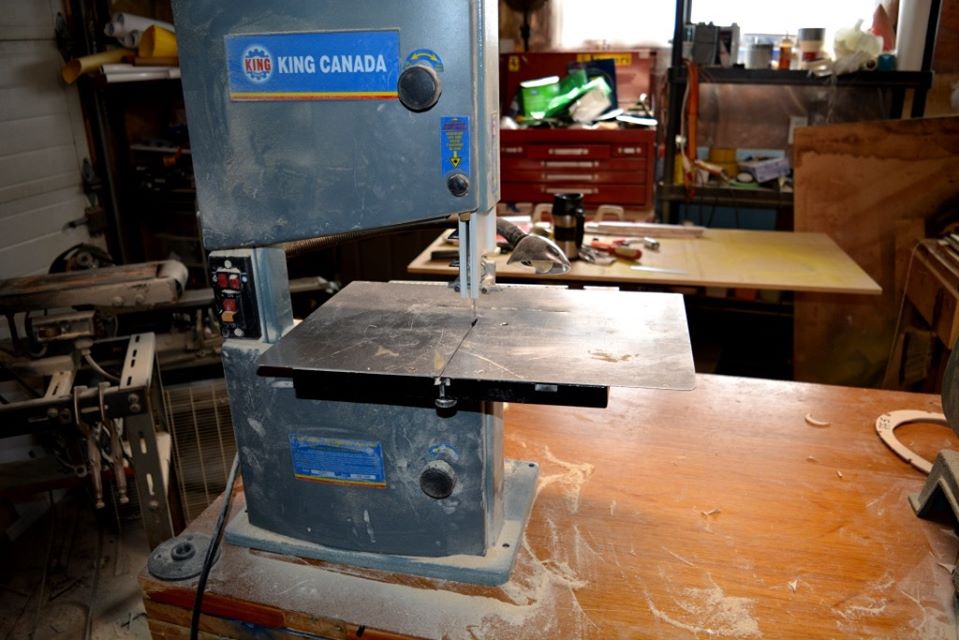

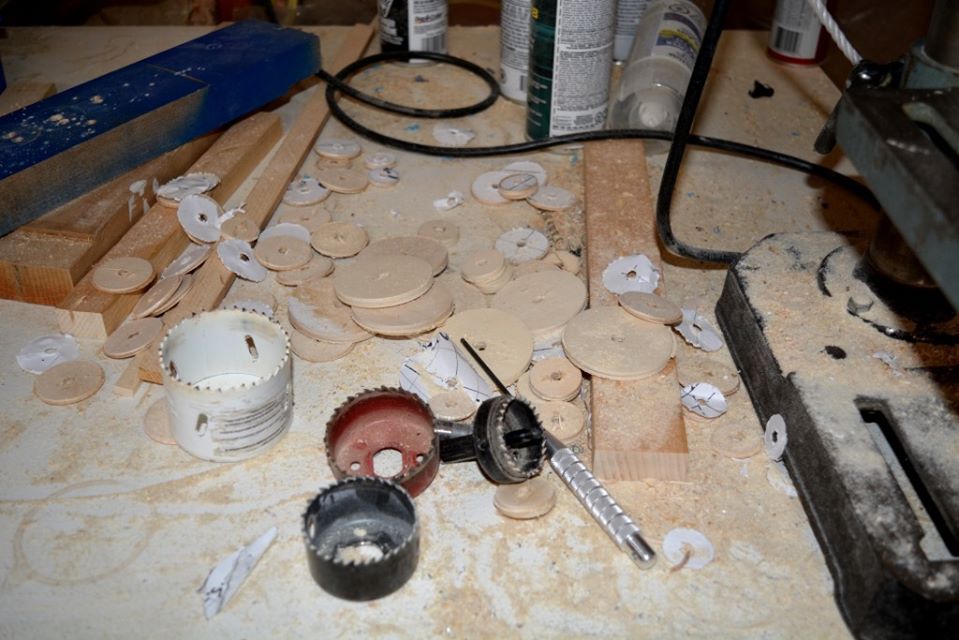

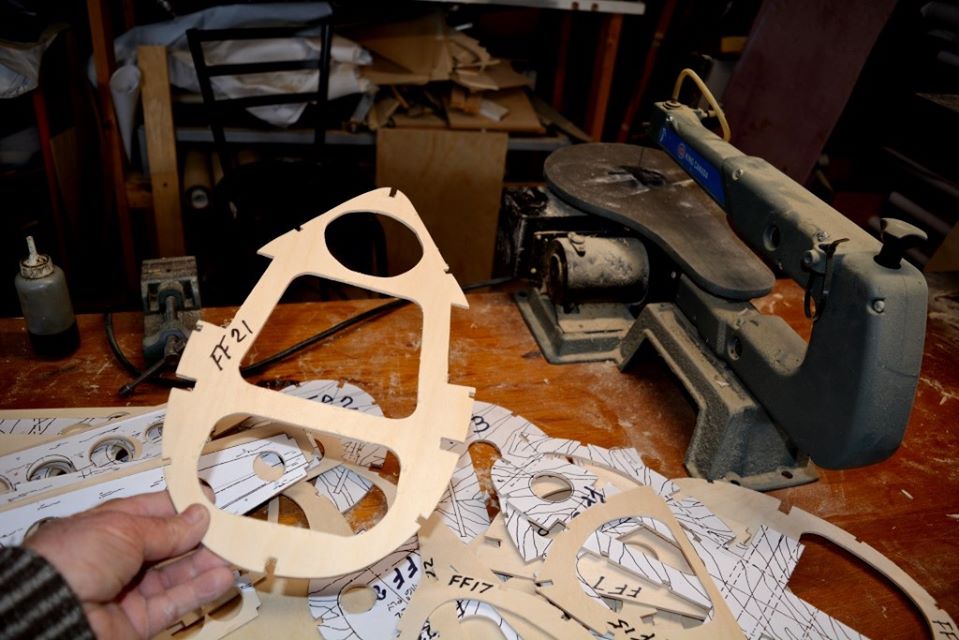

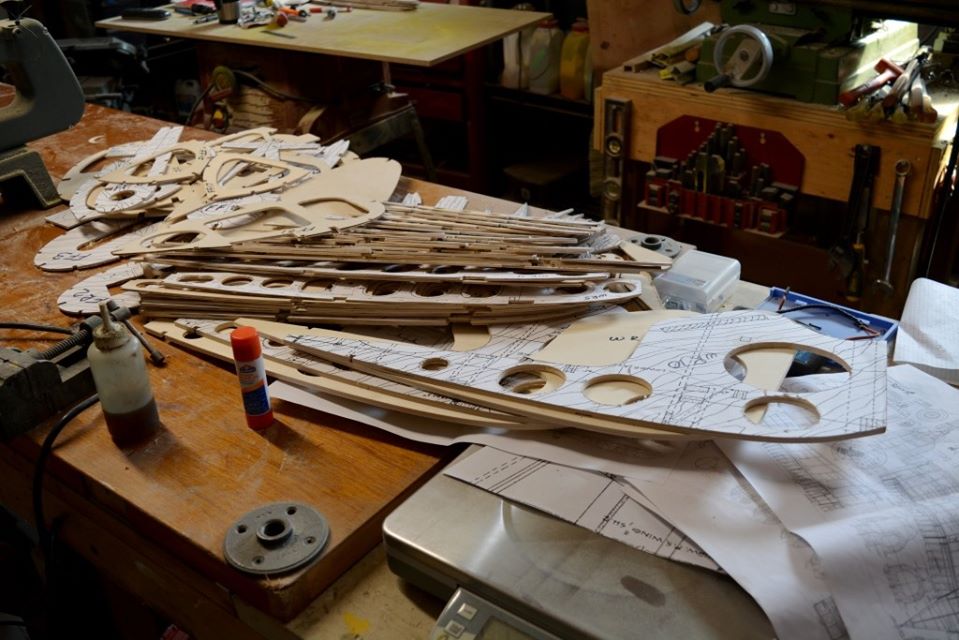

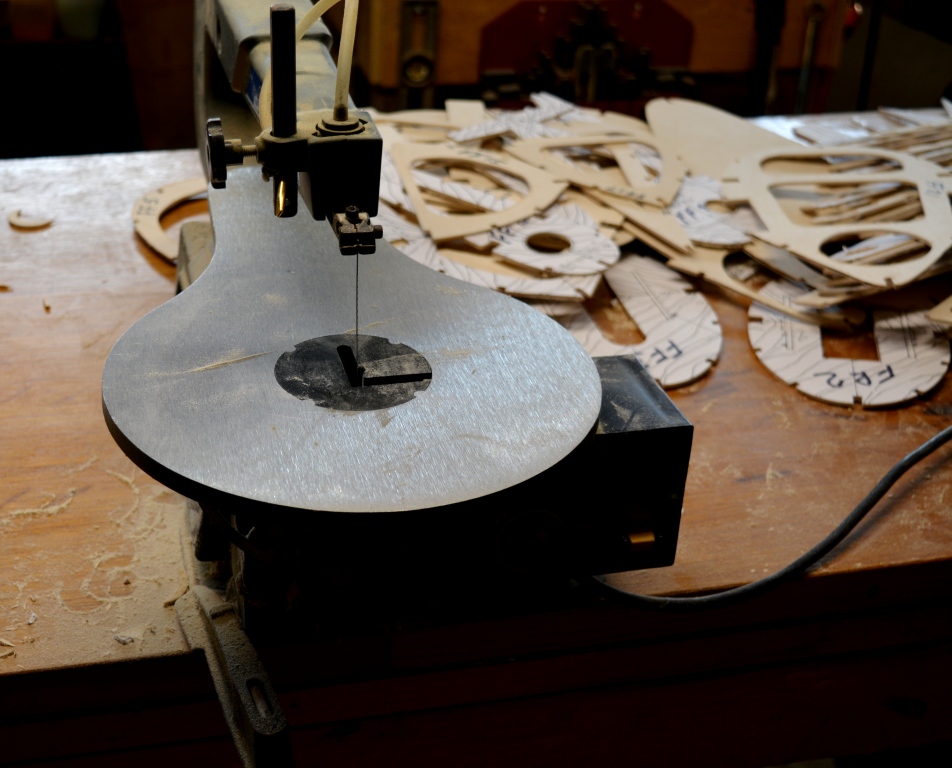

    more work done, all ribs and formers done, with weight reduction, probably 10 lbs, and more work done on cad as well


    Attached Files:

    • 9.jpg
      File size:
      92.8 KB
      Views:
      19
    • 10.jpg
      File size:
      94.1 KB
      Views:
      19
    • 11.jpg
      File size:
      90.8 KB
      Views:
      19
    • 12.jpg
      File size:
      218.5 KB
      Views:
      19
    • 13.jpg
      File size:
      101.3 KB
      Views:
      20
    dhal22, WMcNabb and pawnshopmike like this.
  4. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113

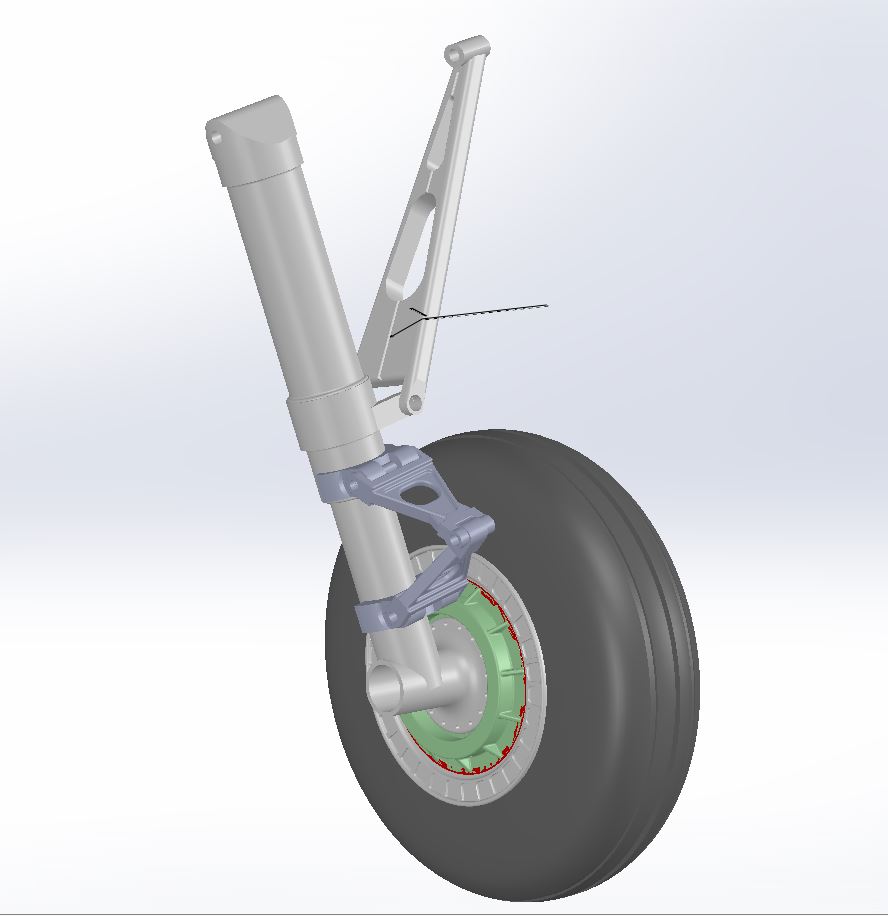

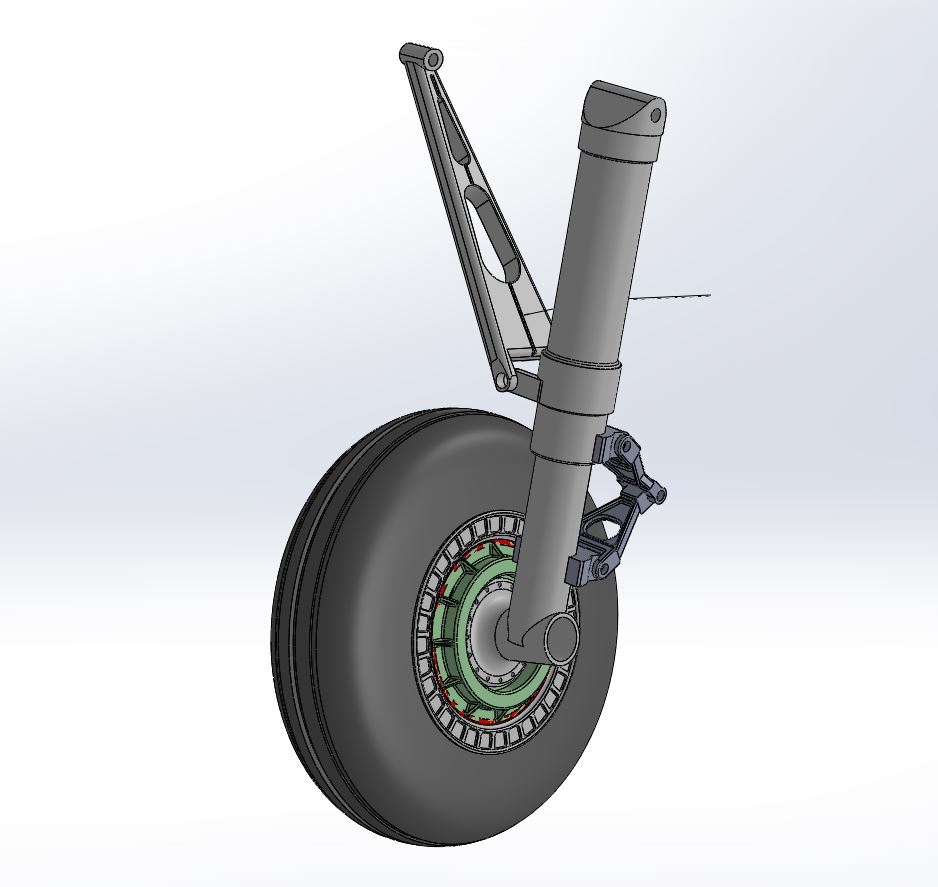

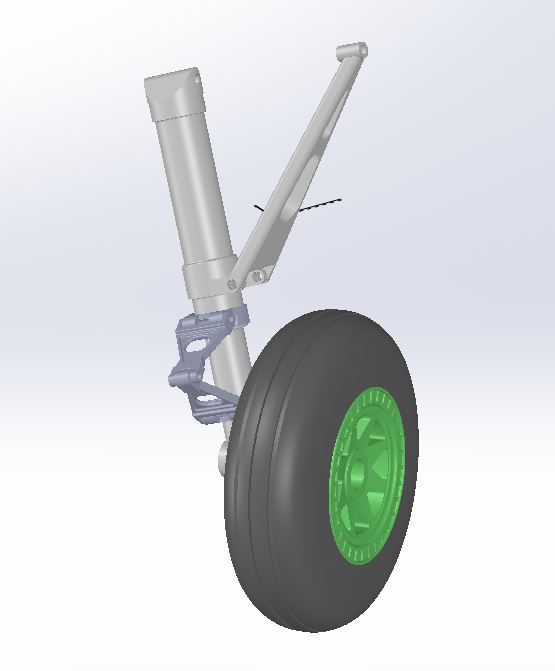

    forgot the cad drawings


    Attached Files:

    • 5.jpg
      File size:
      50.5 KB
      Views:
      19
    • 6.jpg
      File size:
      37.3 KB
      Views:
      19
    • 7.jpg
      File size:
      19.4 KB
      Views:
      19
    dhal22, AKNick, WMcNabb and 1 other person like this.
  5. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113
    [​IMG]

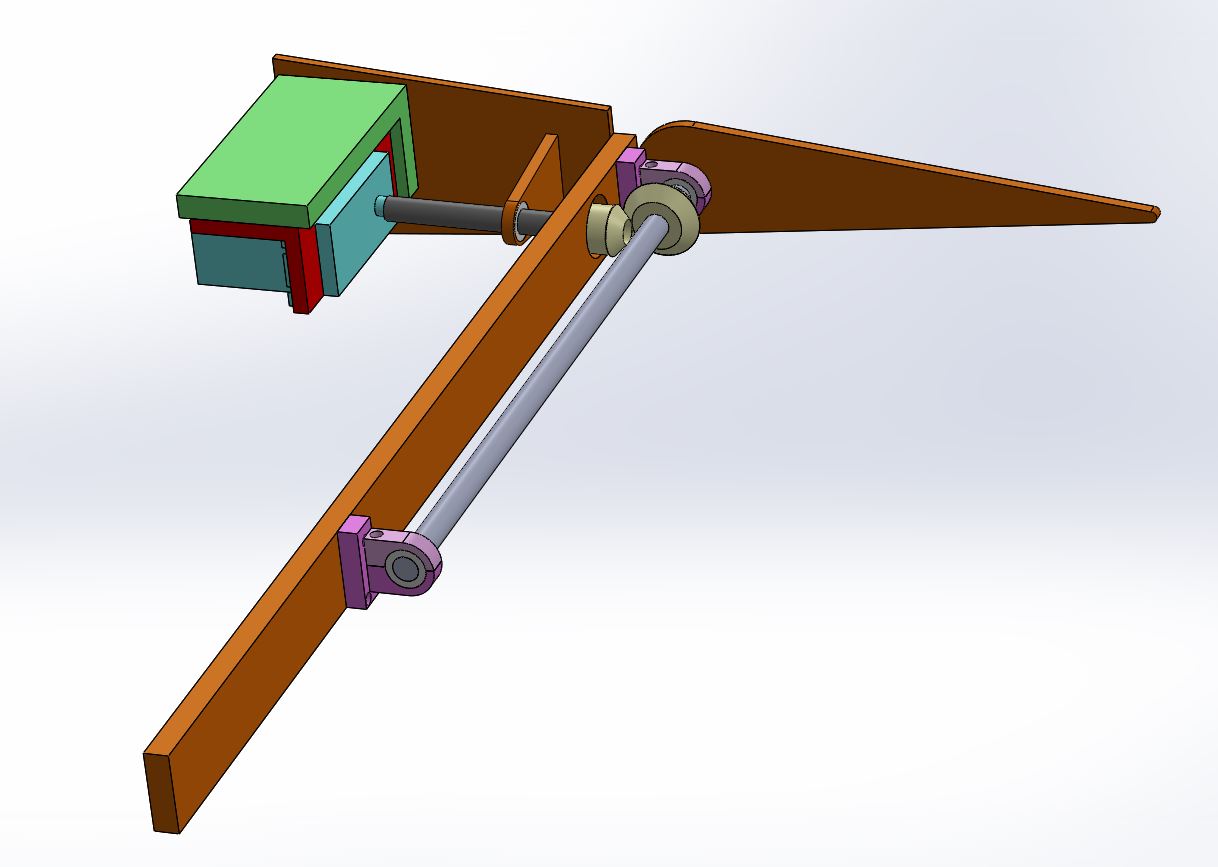

    The Tiger cat doesn't have exterior control pusrods and its impossible for me to use the same method as I did for the Dalotel, I decided to try something like this with bevel gears, once pleased with the design, I have already started printing parts to assemble a proof of concept , then if all goes well, will make the real thing

    The aileron will have rotating shaft as in this picture held by ball bearings , the servo wing rib will be reinforced it should work quite well but good or bad , I will not hide behind my keyboard :):):)

  6. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113
    this is a revised drawing with trailing spar and bearing support


    Attached Files:

    dhal22, BalsaDust and pawnshopmike like this.
  7. Rube Goldberg would be proud. :D

    dhal22 and TonyHallo like this.
  8. WMcNabb

    WMcNabb 150cc

    1,410
    2,975
    113
    TN, USA
    pawnshopmike likes this.
  9. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113
    Thanks, it is a good system but for smaller models where there is less stress, remember this airplane is very large as compare to what this system was intended for, Now I wish I would have made this airplane smaller LOL

    WMcNabb likes this.
  10. Forgues-Research

    Forgues-Research 150cc

    1,379
    1,998
    113
    [​IMG]
    So for now I reverted back to this more standard system, the bevel gear system would work but much mods would have to be made
