Scale RCM 1/3 Scale Champ Build

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by TonyHallo, Jan 5, 2019.


  1. Yes the hardest part is completed. Can't wait to get back to building the Champ.

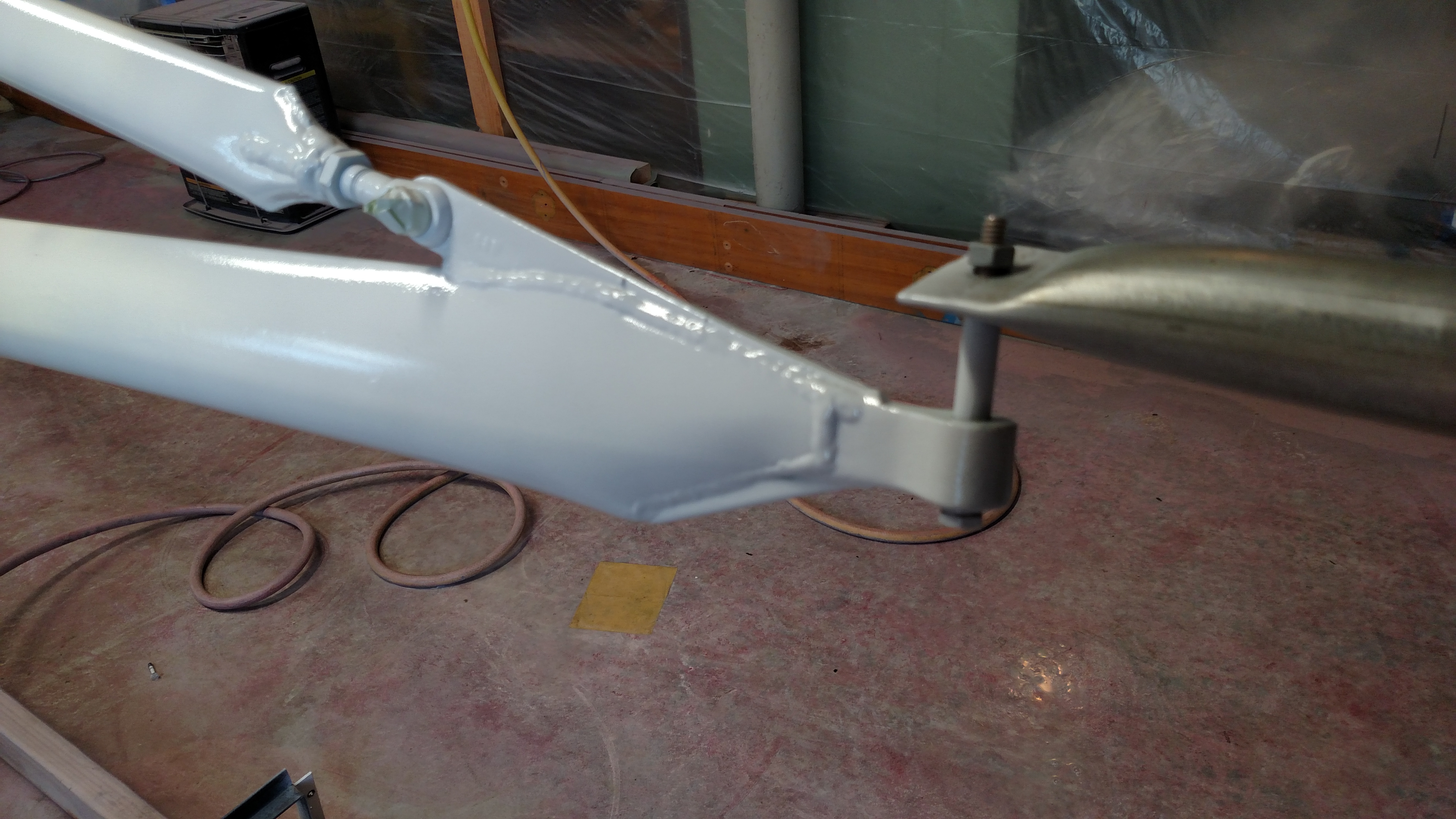

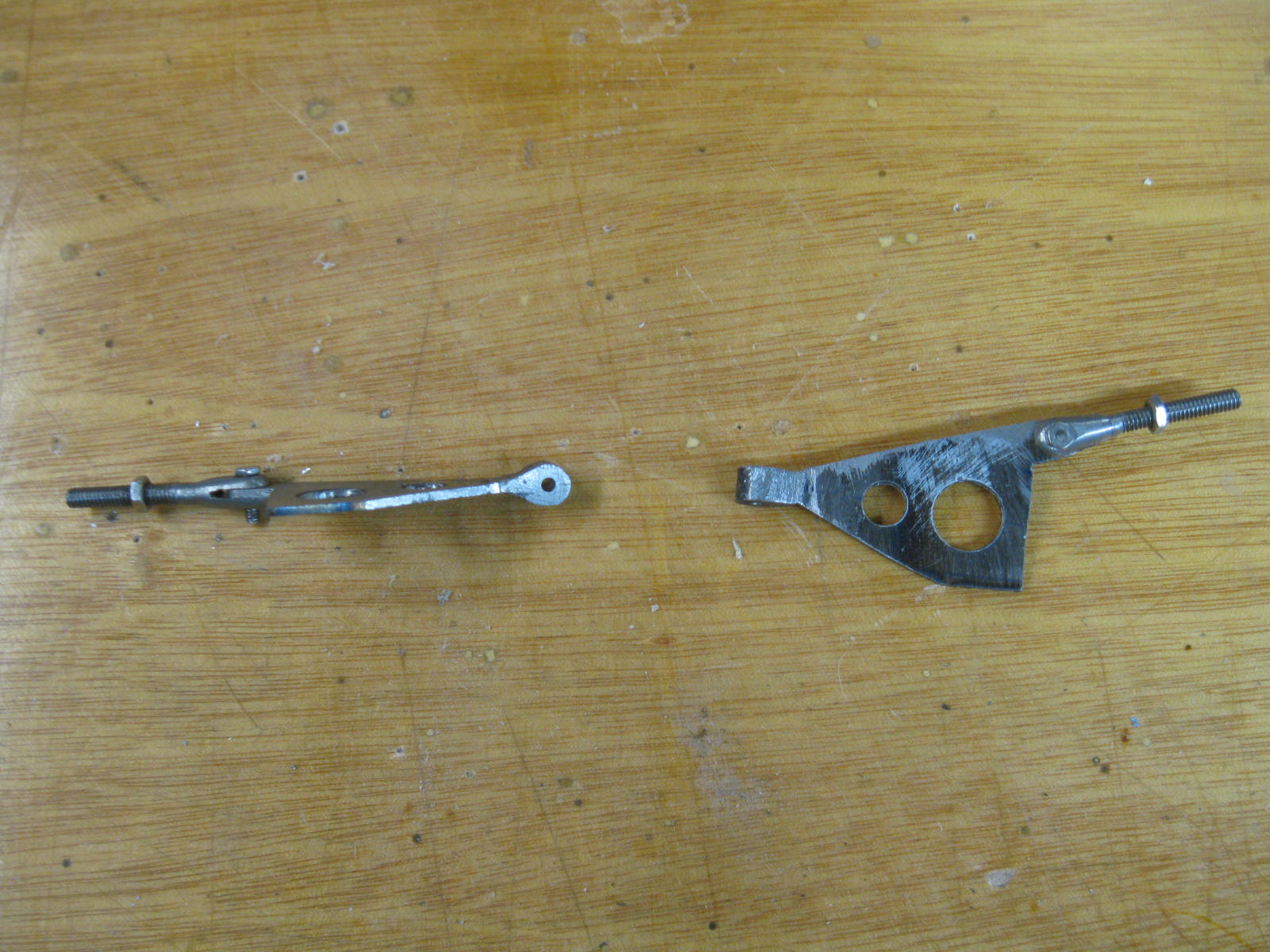

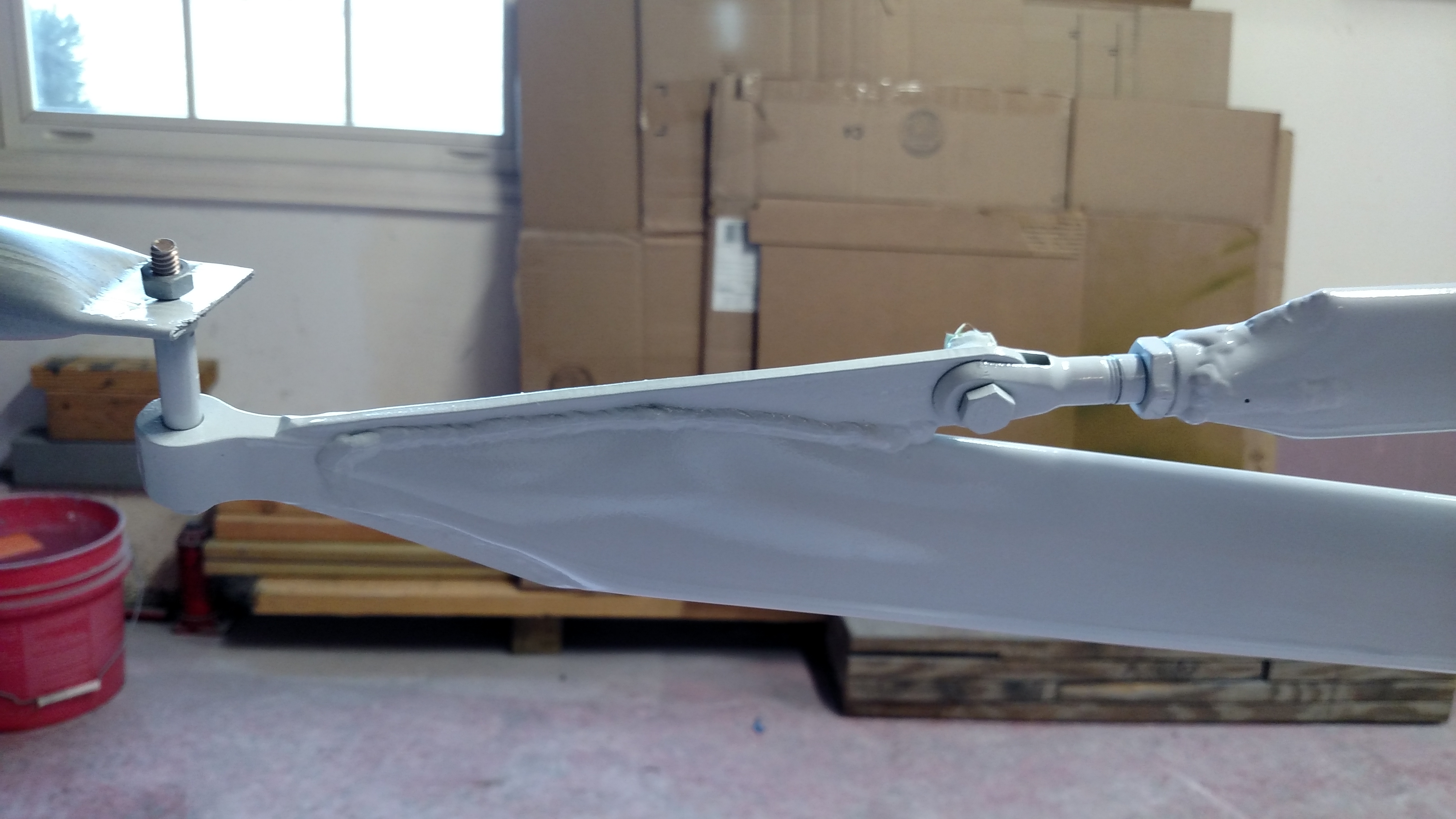

  2. I ran out of excuses time to get back to work. Decided to ease into the project with the wing struts. Bartman provided me some great photos of the his full scale project. Started making the fittings for the fuselage connection. These are made from 5/16" round bar and 14 gage steel sheet welded together with full penetration weld, then sawed and filed into the final shape. I had previously made the forks. The stainless steel streamline tubes will be silver brazed to the fittings. The wing connection requires a 5/16" box tube and a 5/16" round tube. I plan to smash a 3/8" steel fuel line into a square and use 5/16" fuel tube for the round. These are next up. Strut Bottom 1.jpg Strut bottom.jpg IMG_2777.JPG

    WMcNabb, AKNick, dhal22 and 4 others like this.
  3. RichardGee

    RichardGee New to GSN!

    LOVE your Champ build. GREAT engine choice!

    TonyHallo likes this.
  4. dhal22

    dhal22 GSN Sponsor Tier 1

    Loving the metal work! So timely for me as I build my Cub.............

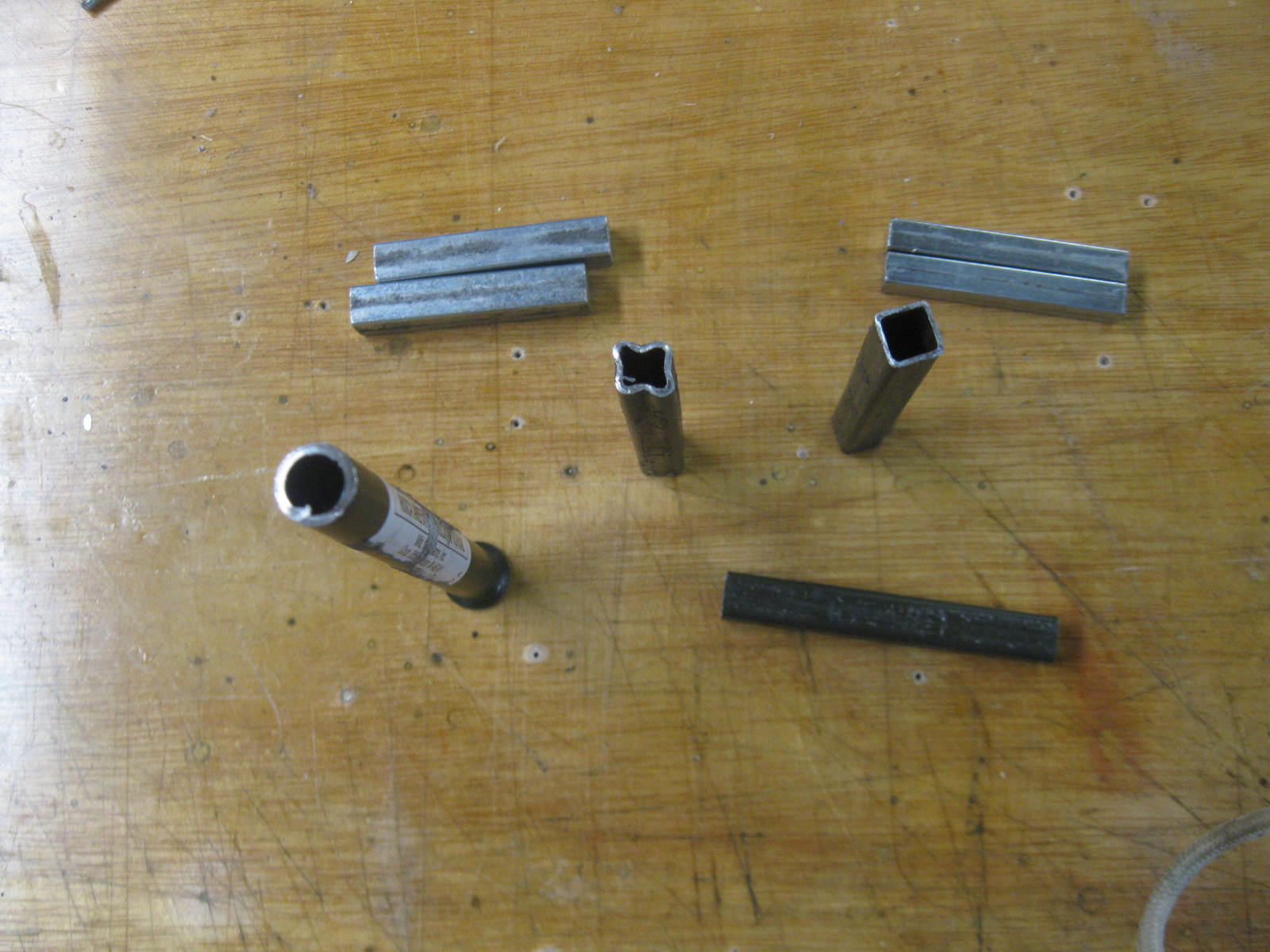

  5. Not much work today, spent the morning shopping and most of the afternoon and evening playing 500 bid with friends. Did find time to get the tubing and do some smashing. I bought 5/16" key stock to use as a spacer in the vice however the first attempt failed as shown in the photo, back to hardware store for 1/4" key stock to stuff inside the tube while smashing. The 1 foot of tube yielded enough for 1 prototype and two pieces for the main struts. I need to get the plane back on the bench and take final measurement for the the strut length and start joining pieces together. I'm quite happy with the result. The full scale versions are quite crude and I am trying to duplicate them

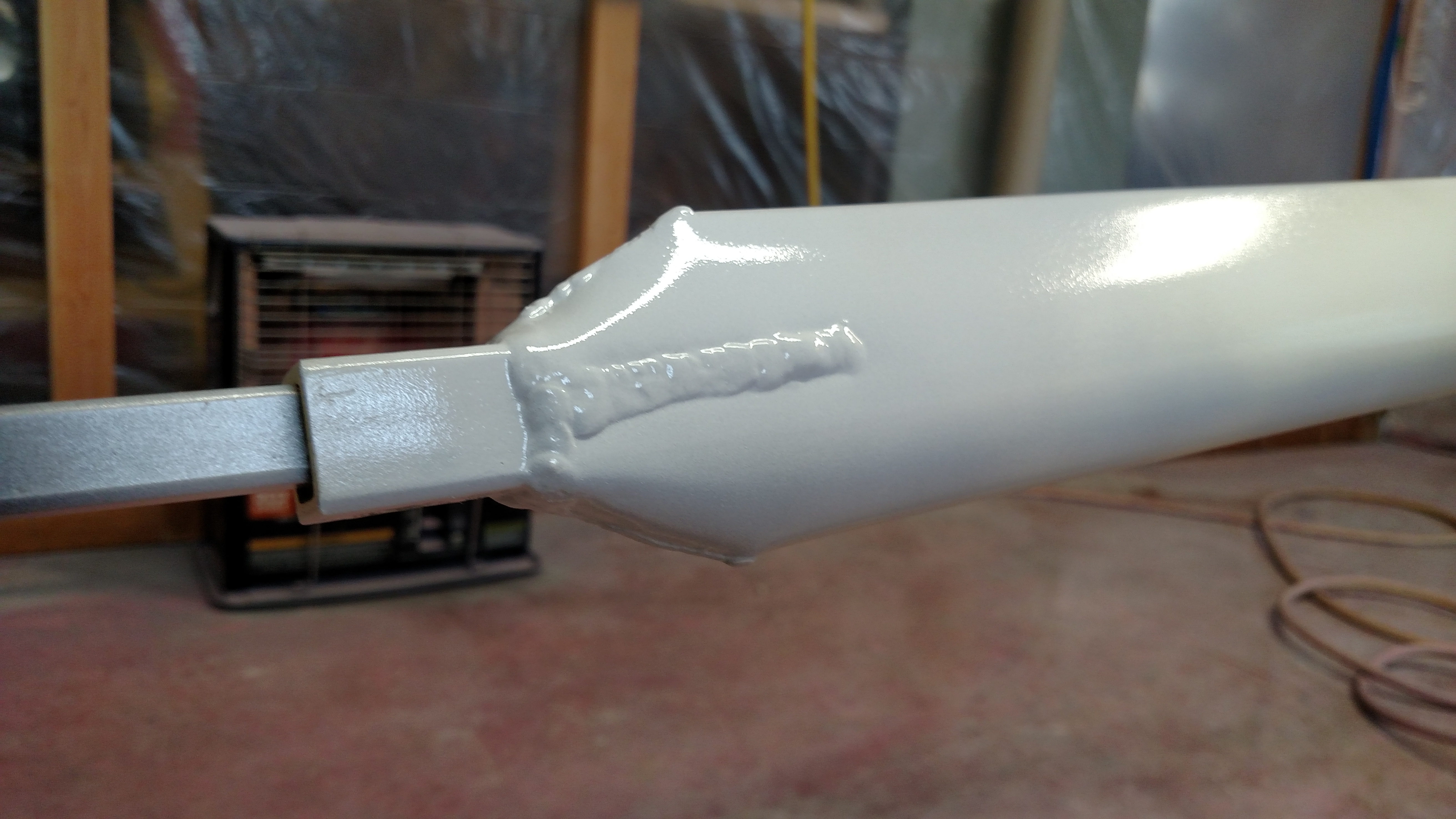

    Strut Top 2.jpg IMG_2778.JPG

    dhal22 and pawnshopmike like this.

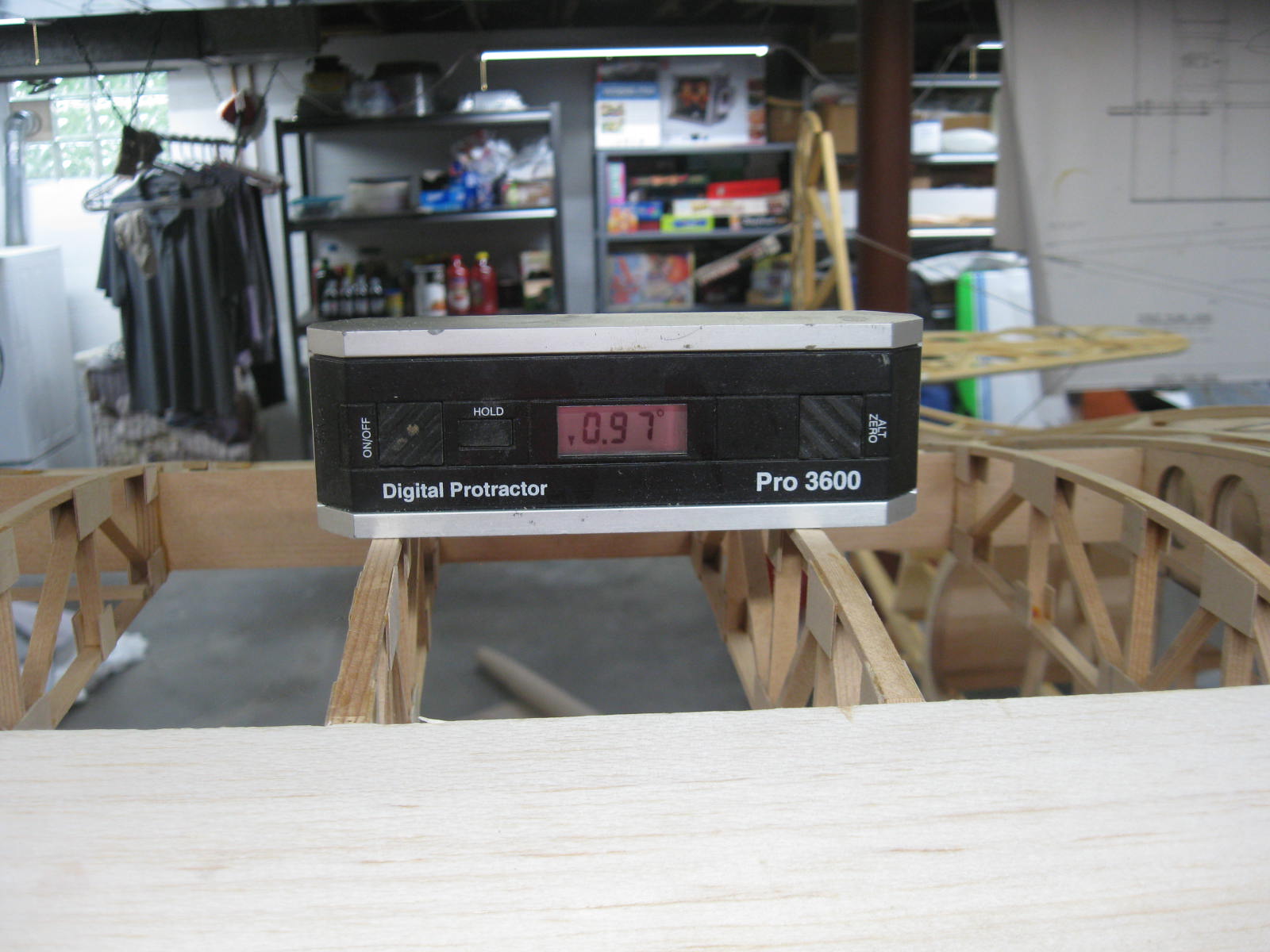

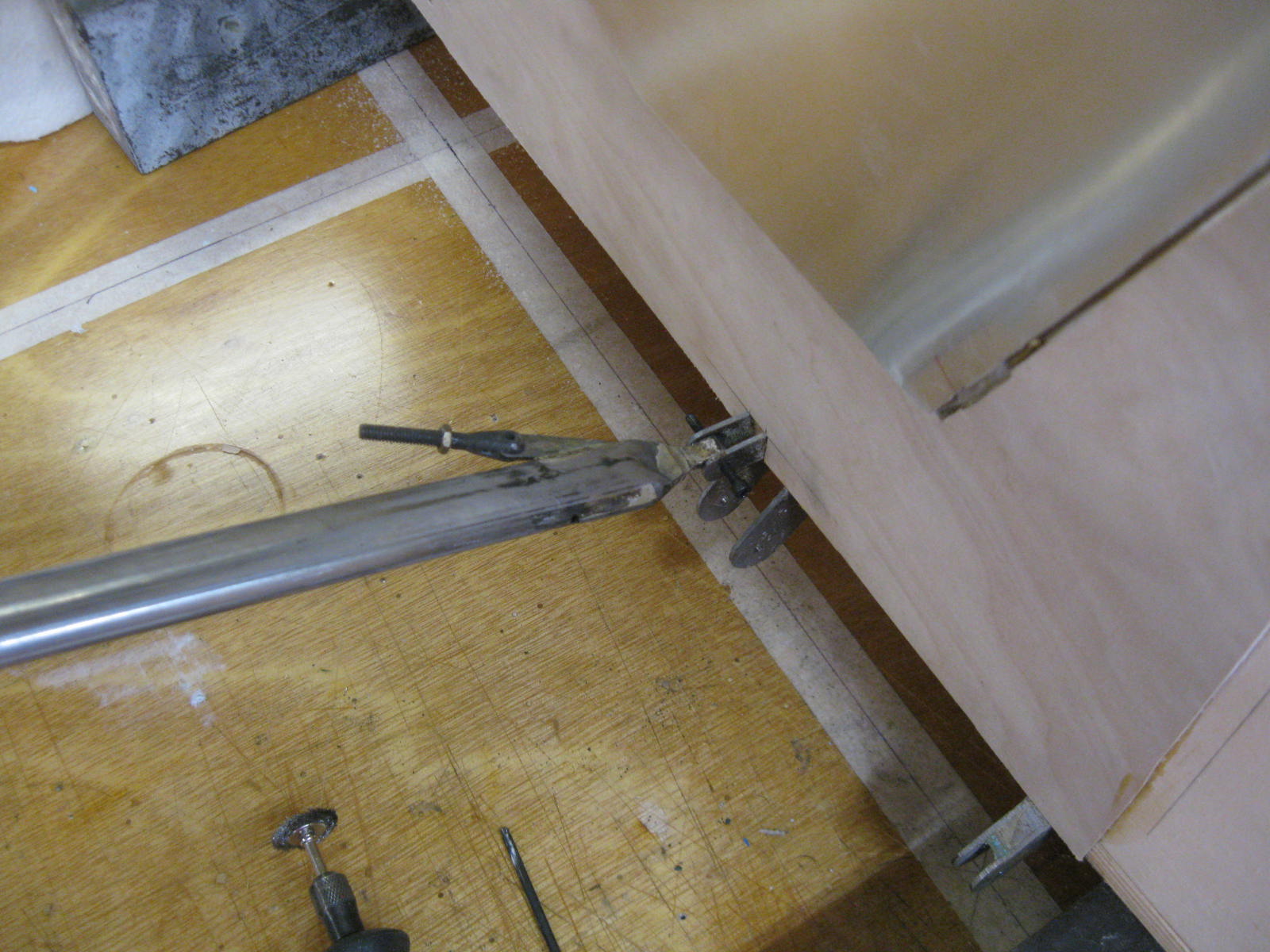

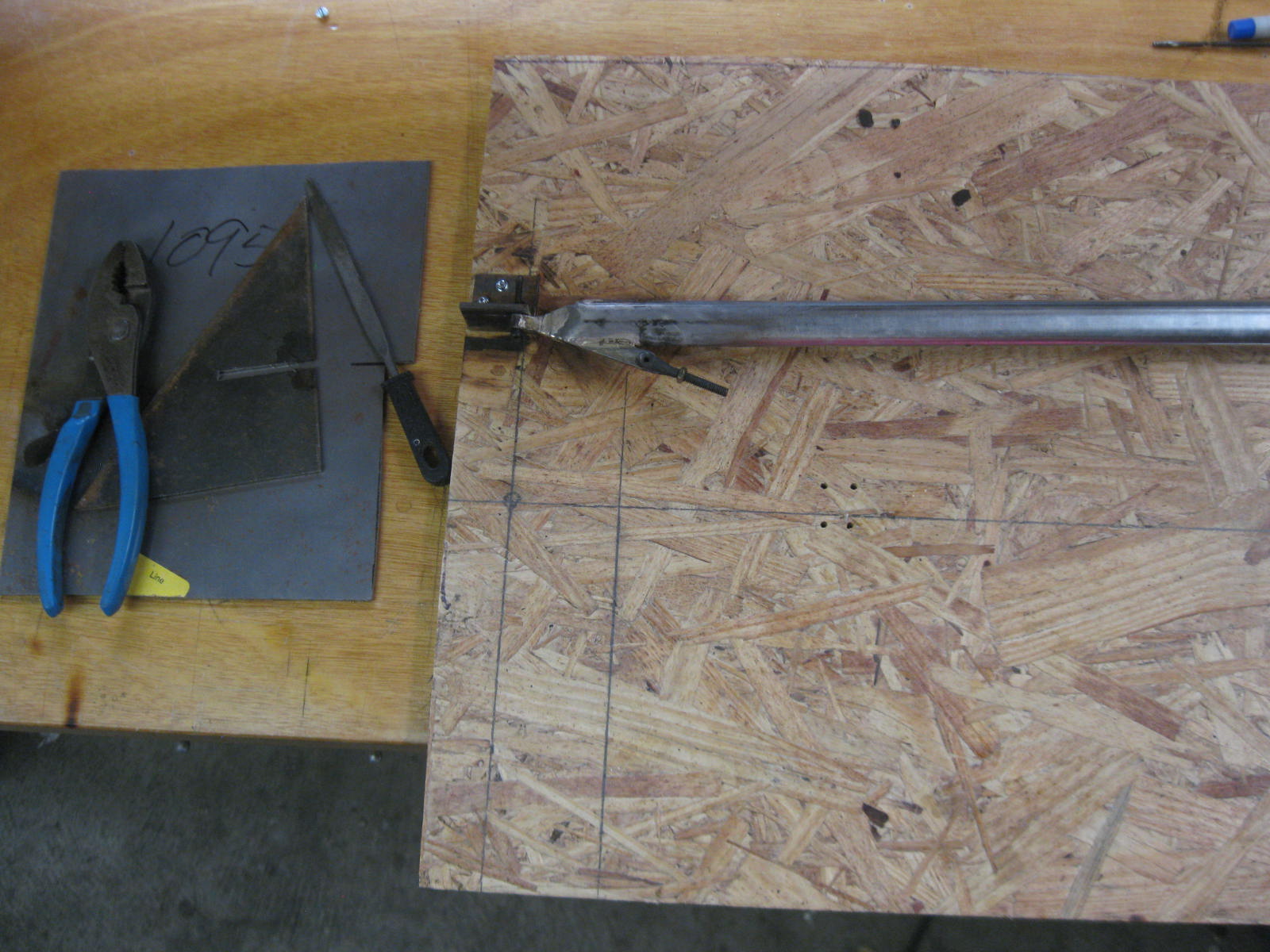

  6. IMG_2783.JPG I jigged the fittings at the proper length and offset on a piece of scrap lumber sheeting and 1" x 1/8" steel angle while silver brazing. The main strut is fixed length and sets the dihedral angle at 2 degrees. Close enough. I need the lathe to make the parts for rear strut however I decided to put new headstock bearings in it. The bearing are due here today, might get it back together tomorrow

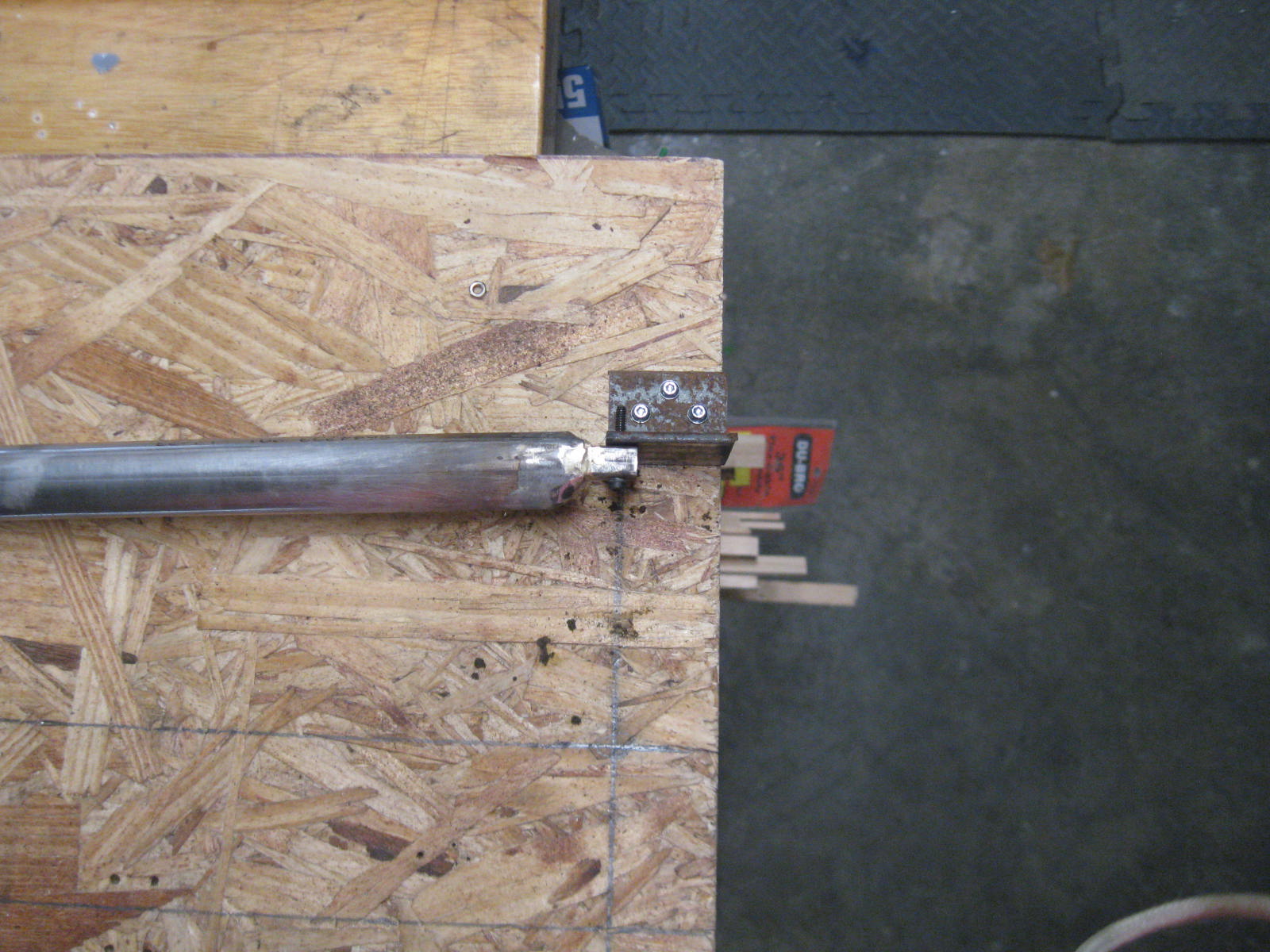

    IMG_2779.JPG IMG_2780.JPG IMG_2781.JPG

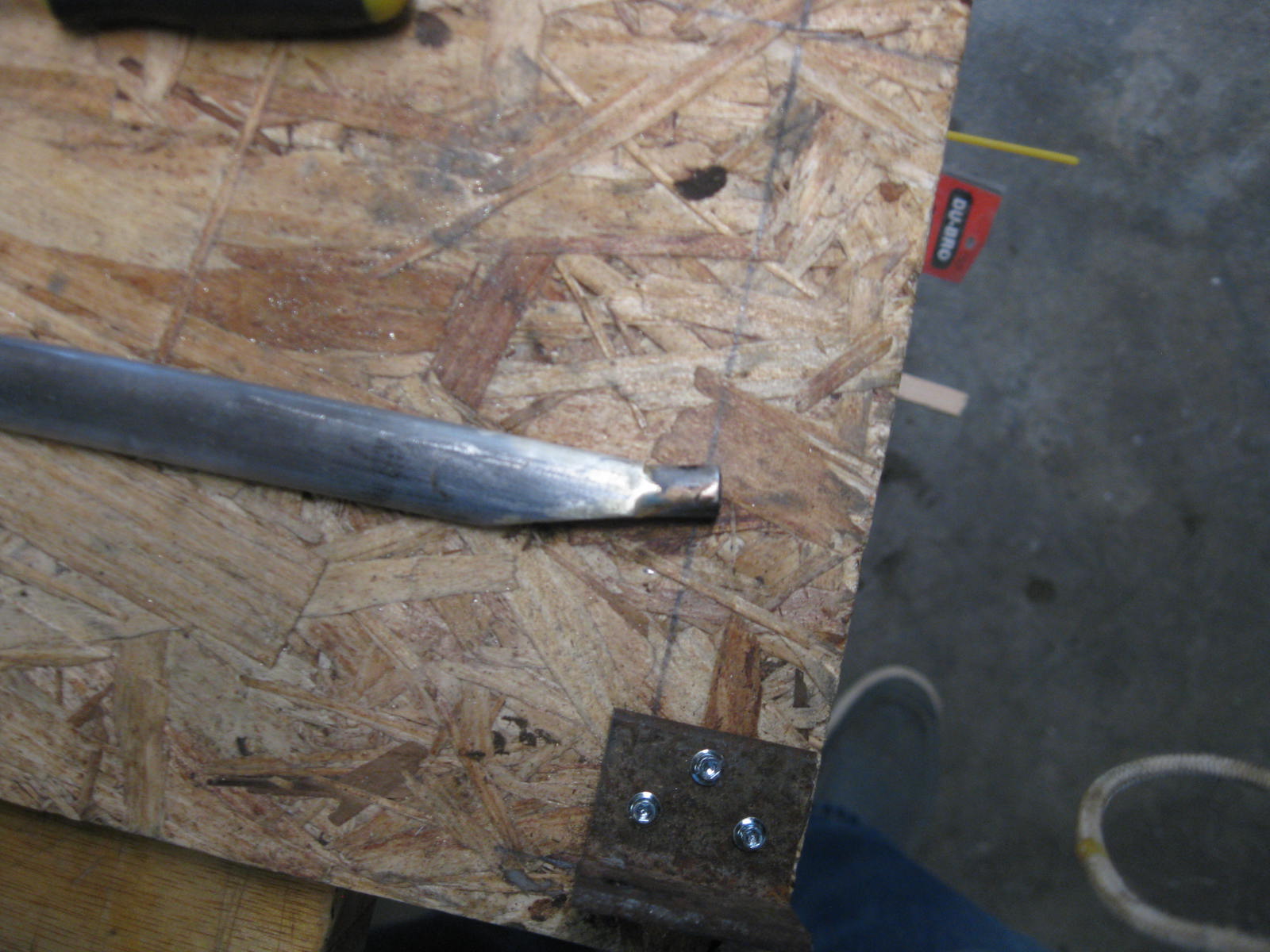

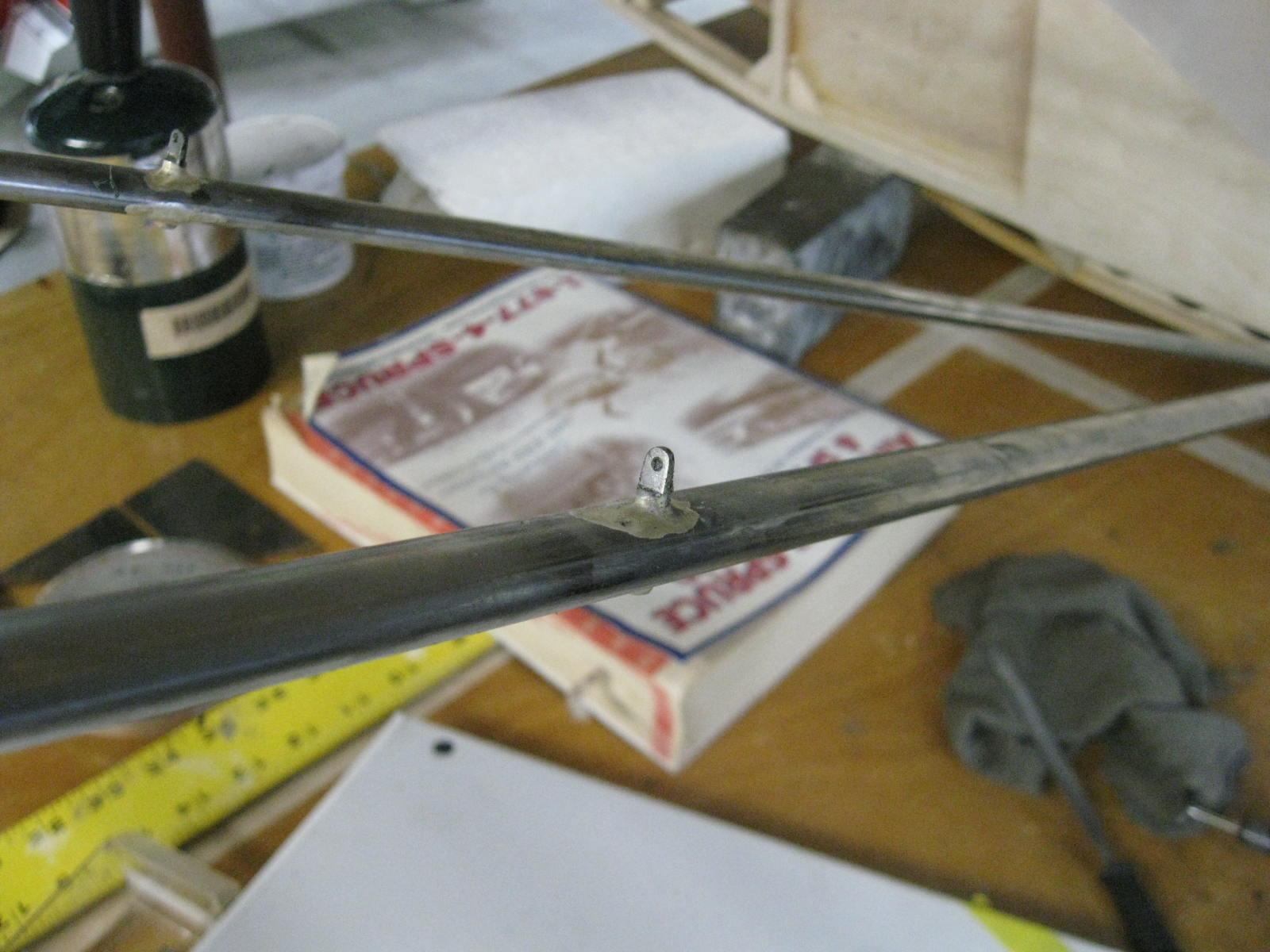

  7. More work on the struts today. Completed the rear strut to wing connection. This is a 5/16" brake tube inside the stainless steel strut. Then began making the jury strut eye bolts. The full scale uses 10-32 bolts for the jury strut, I will be using 2-56.


    Last edited: May 23, 2020

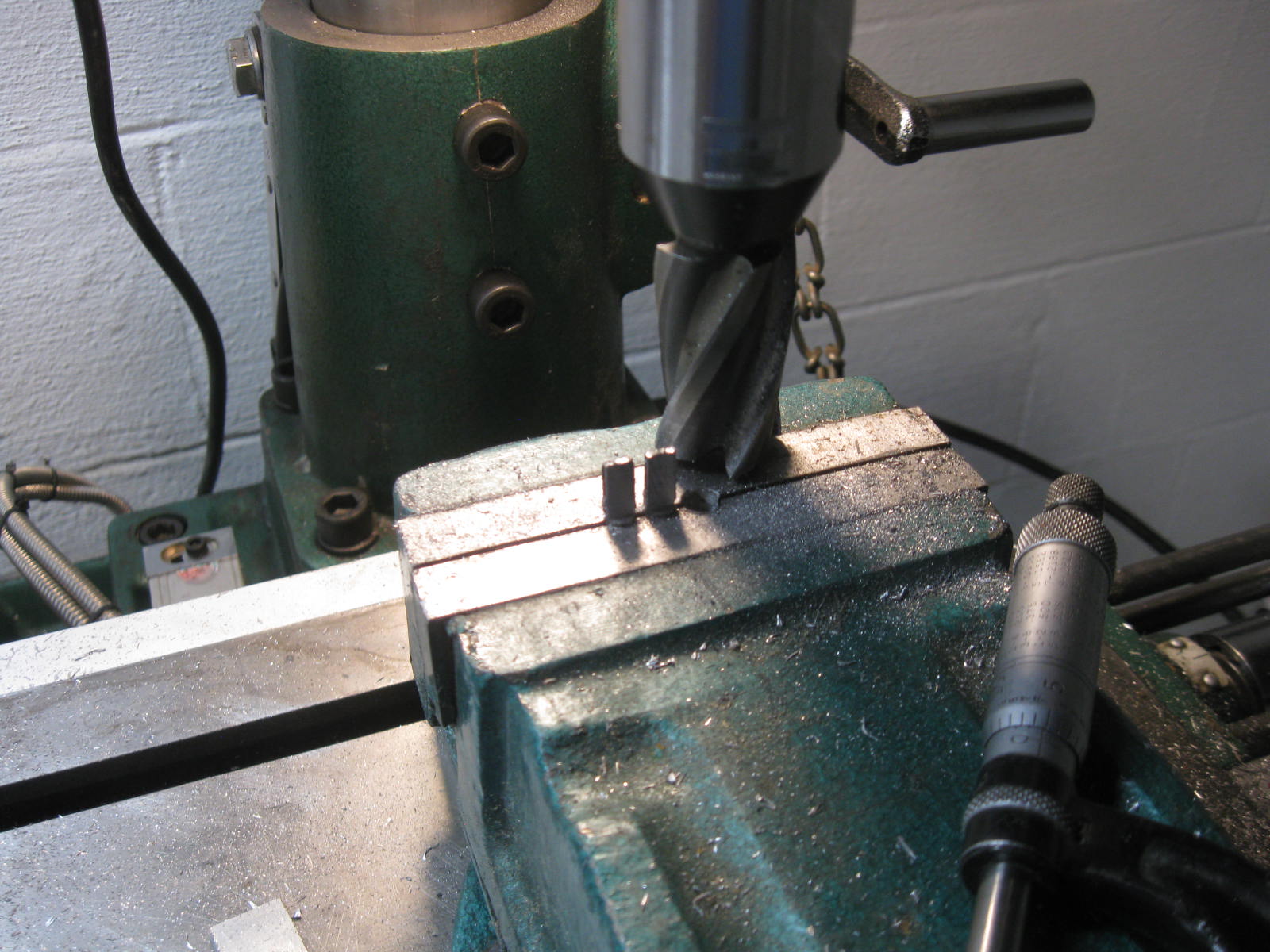

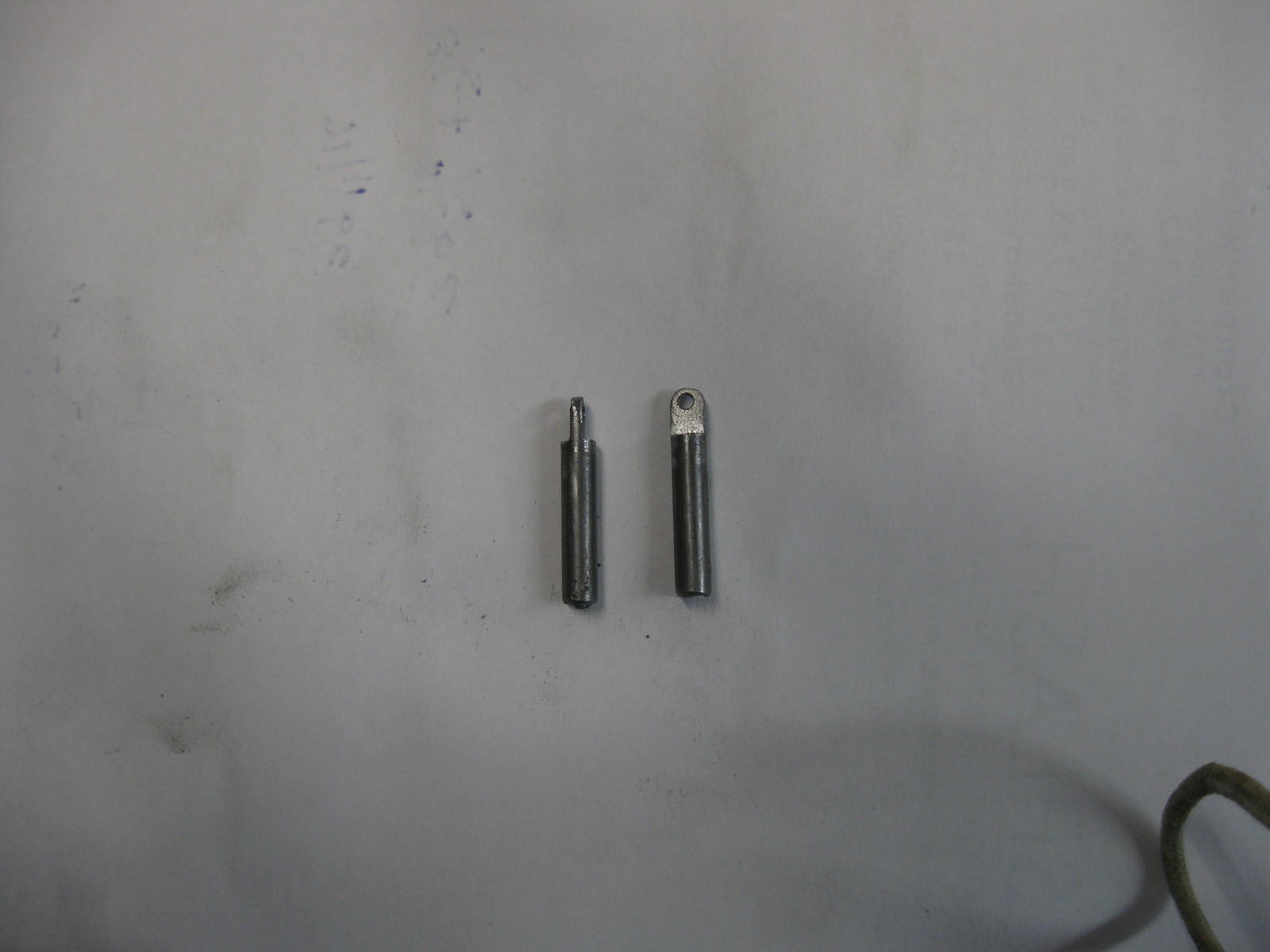

  8. I am using 3/16" steel rod for the eyebolts. The vise was rescued from the scrap bin and repaired. I use it for holding small round parts. Drilled two 3/16" holes in the split line to hold the rod fast. Then mill away, the center leaf is 1/16" thick. Need to make the Jury struts and the right side will be complete, then on to the left side.

    IMG_2784.JPG IMG_2785.JPG

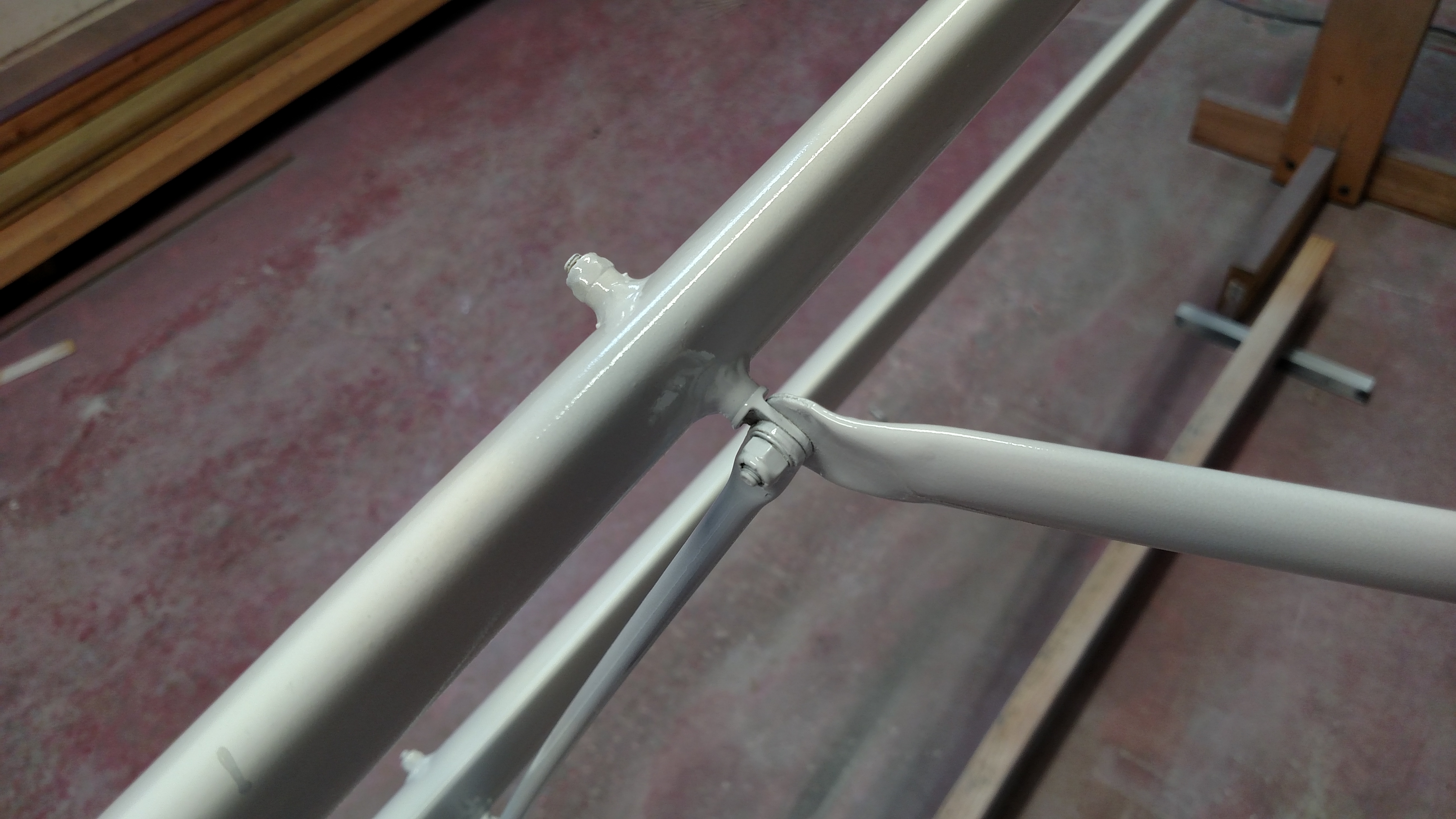

    Strut Jury 1.jpg

    BalsaDust and dhal22 like this.
  9. dhal22

    dhal22 GSN Sponsor Tier 1

    That end mill chewed those little pieces up like candy I bet.

  10. There is a lot of spring in those small parts. I started at 010" on the first side and finished at .005", the second side was started at .005" and the last .012 was cut at .002". I'm really liking the DRO.
