Scale RCM 1/3 Scale Champ Build

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by TonyHallo, Jan 5, 2019.

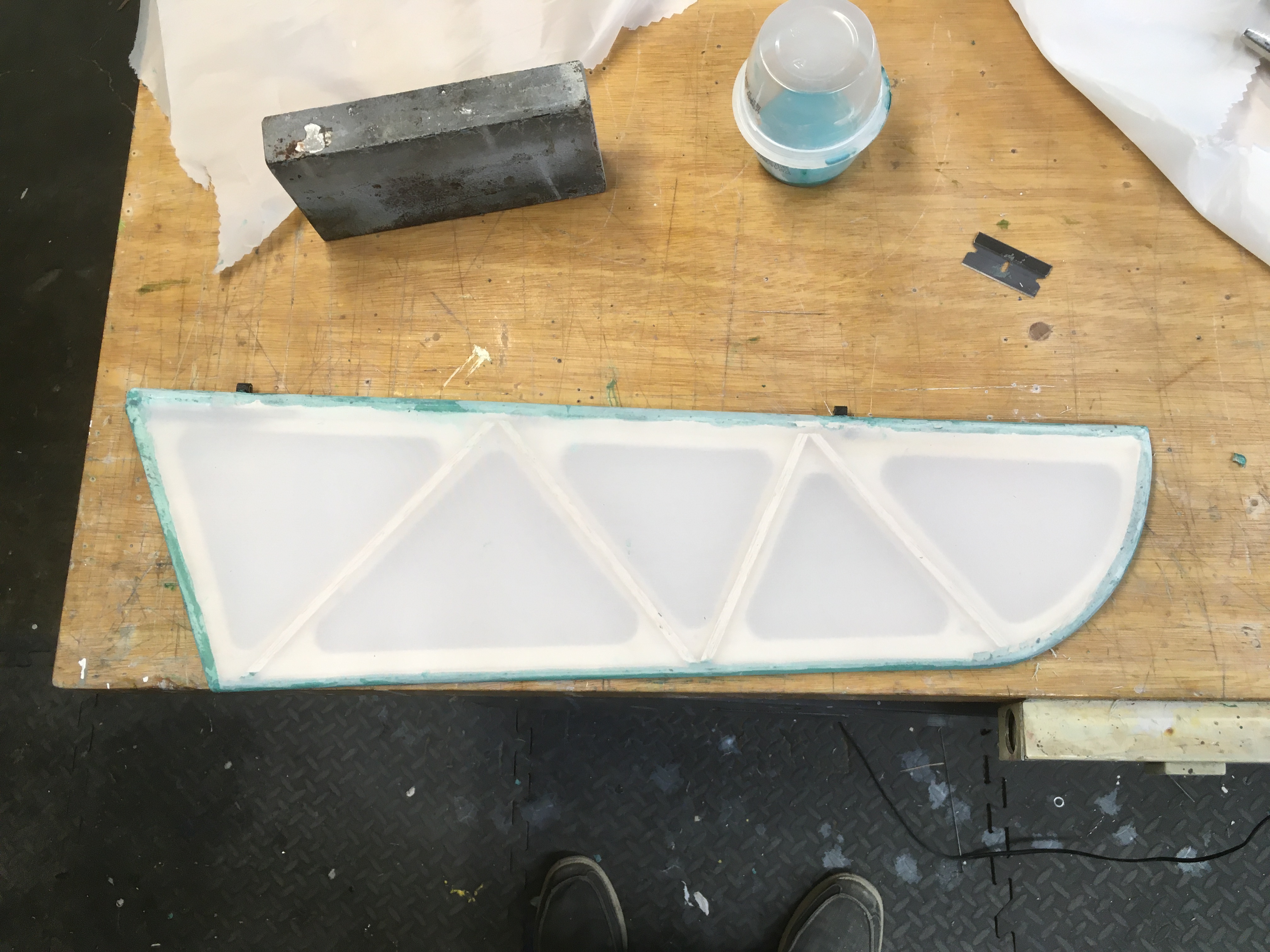

  1. Well i got the right elevator covered with fabric yesterday before happy hour. Need to relearn the covering process.

    Last edited: Feb 20, 2021
    AKNick, Stevendavis, WMcNabb and 4 others like this.

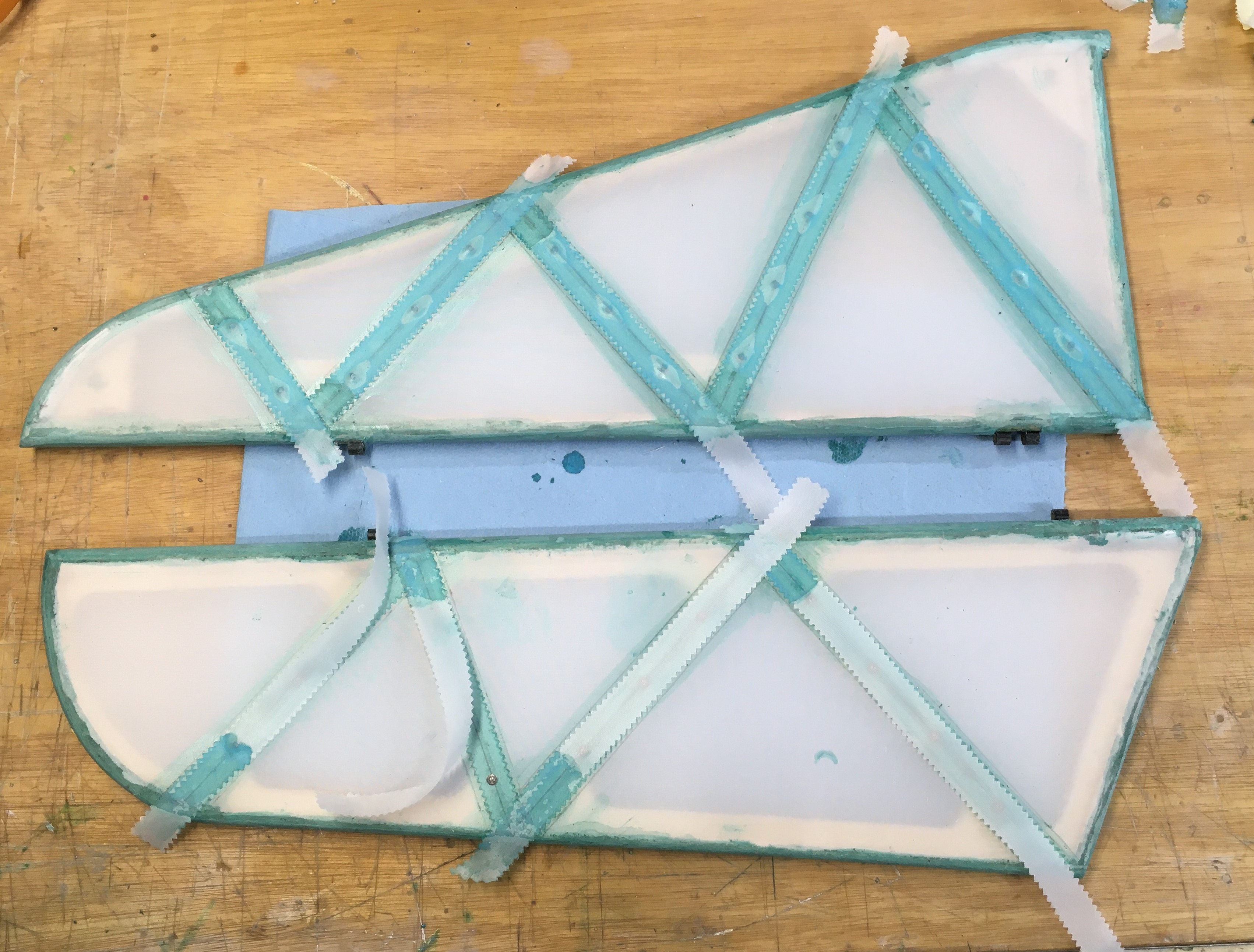

  2. Covered the right stab today, installed the screws, the stab has rib tape on the top and bottom, and starting the rib tape on the elevator. There are 60 screws on the right side. Had to go through all 16 pages of Champ photos to find a good photo shot of the tail to determine the correct spacing. Should finish the right side tomorrow and hopefully start the left side. The left side has the trim tab so it will be a little more work as the top control cable passes through the elevator. Heck I might just put the left side off and do the rudder, who knows?


    AKNick, Stevendavis, -Rick- and 4 others like this.
  3. dhal22

    dhal22 GSN Sponsor Tier 1

    What fabric? Somehow I missed/ forgot that part of your build.

  4. WMcNabb

    WMcNabb 150cc

    1,705
    3,446
    113
    TN, USA
    From the color of the glue, I’m guessing it’s the Stewart system - https://stewartsystems.aero/

    dhal22 likes this.
  5. Yes it is, no odor to deal with in the house. Using Stits lite fabric and tape.

    AKNick, Stevendavis and WMcNabb like this.
  6. WMcNabb

    WMcNabb 150cc

    1,705
    3,446
    113
    TN, USA
    That reminds me, I need to place an order with the good folks who carry the Stits lite fabric. Are you using F&M Enterprises - https://www.stits.com/

  7. Yes, but I bought the material several years ago, would image the weather has them in a tizzy! I need more tape. I think I may have pickup the material at the Toledo show and it has been many years since they last attended.

    WMcNabb likes this.

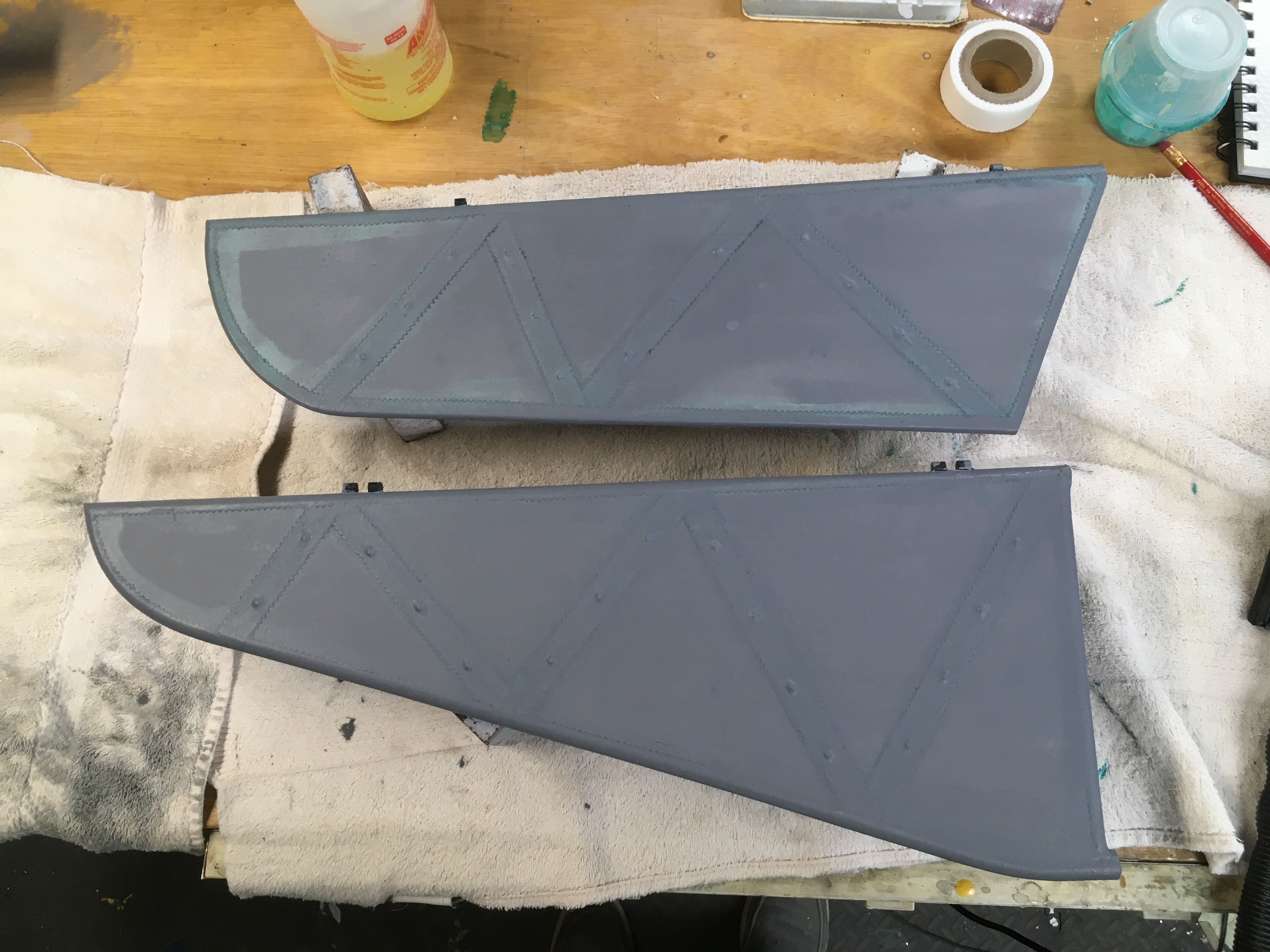

  8. I'm using Ecofill to fill the weave rather than the thinned Ecobond that was used on the wings. Thinned Ecobond does a wonderful job filling the weave however it remains tacky forever so if there are any close clearances below the fabric you run the risk of the fabric sticking to the subsurface structure. There are a few of these on the wings that presented a problem that I had to work around during painting, there are many on the fuselage and you constantly handling it. To avoid this the manual indicates treating those areas with Ecofill before filling the weave with thinned Ecobond. According to the various videos on line, Ecofill was once used to fill the weave and was changed to Ecobond in 2017. I decided to use Ecofill rather guess where it might stick in the future. The tail parts are a training session for the fuselage, much easier to redo if needed. Ecofill is gray colored and high solids, the paint is settling while you stir it! Some of the tapes fuss up after the first coat but you iron it back. I will give the surfaces one coat of white Ecoprime before the yellow color coat.

    AKNick, -Rick-, Stevendavis and 3 others like this.
  9. Stevendavis

    Stevendavis 70cc twin V2

    I was really planning on using the film on my Cub. Now you are really making me think about doing a fabric and paint! So much more work!

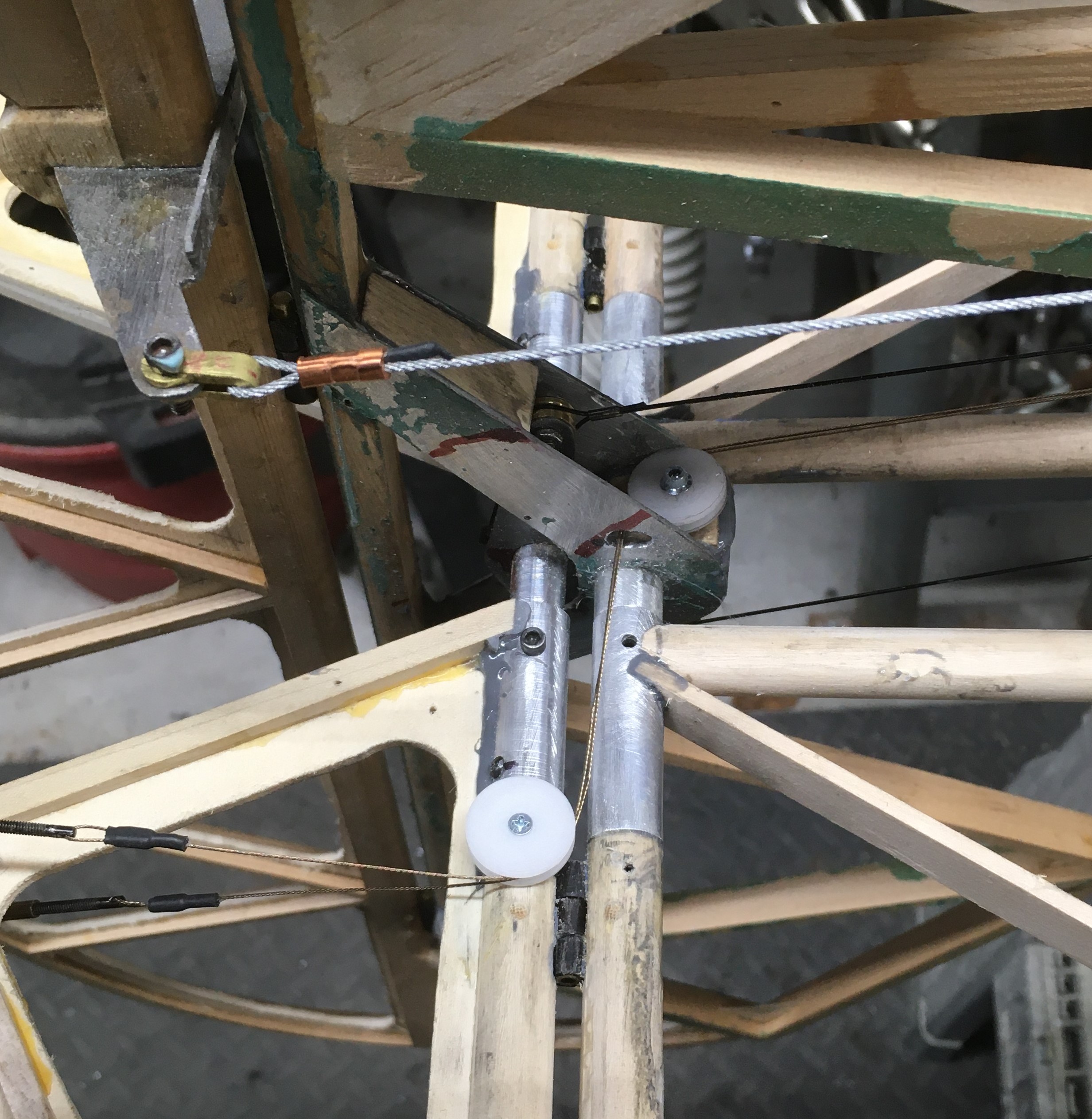

  10. More covering work today, started thinking about the cable passing through the elevator fabric and the layout of the holes. Decided the cable was too stiff for the size of the pulleys and the tension in the cable. You can see in the first photo how the wire along the trailing edge is bowed out.

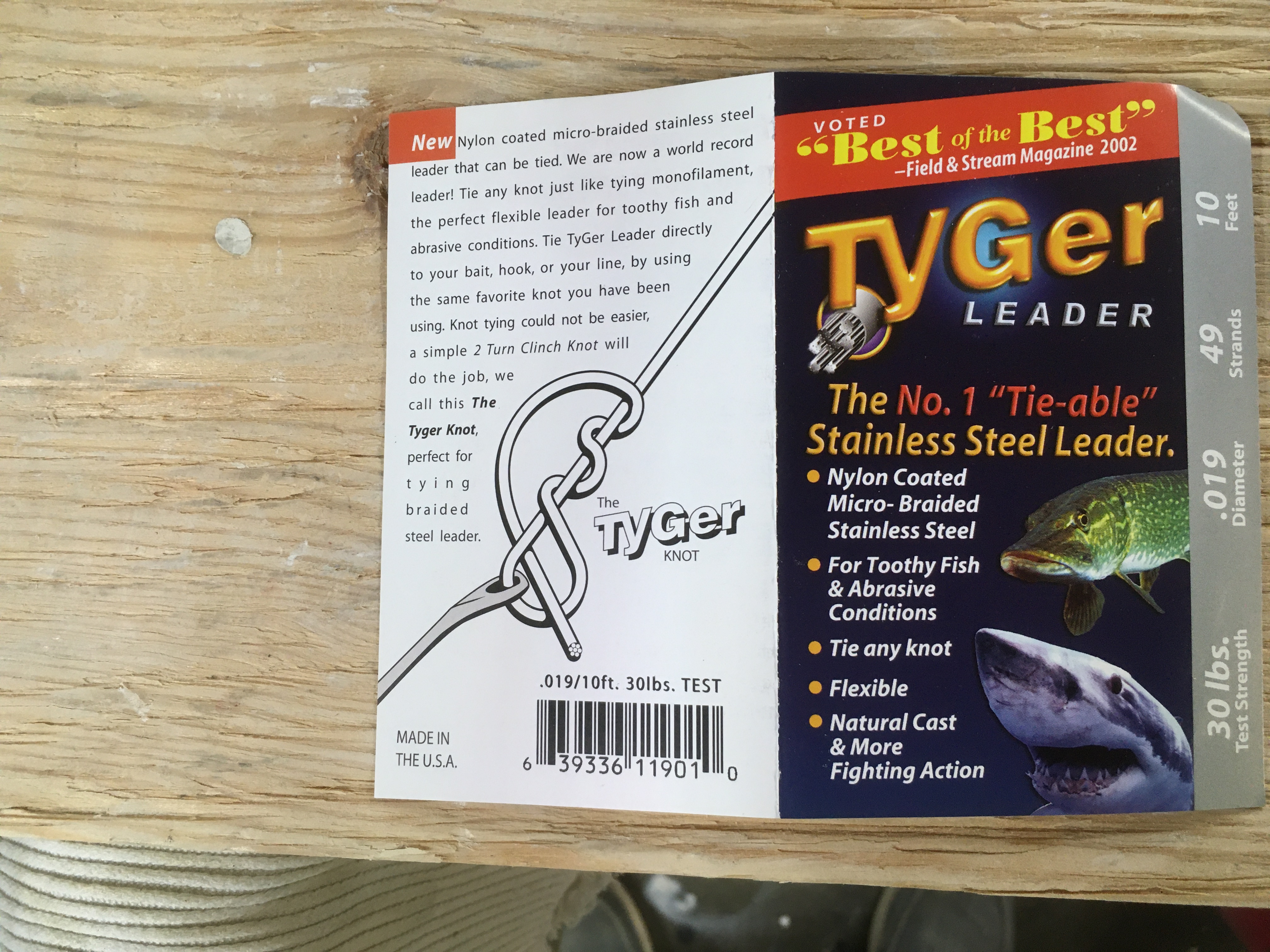

    Started looking thought my cable stock and found this Tyger leader. Thankfully I had bought two 10' packages, I bet I bought this 10 years ago in Key West, a little pricey, $14 for 10'. It is so flexible you can tie it in a knot.

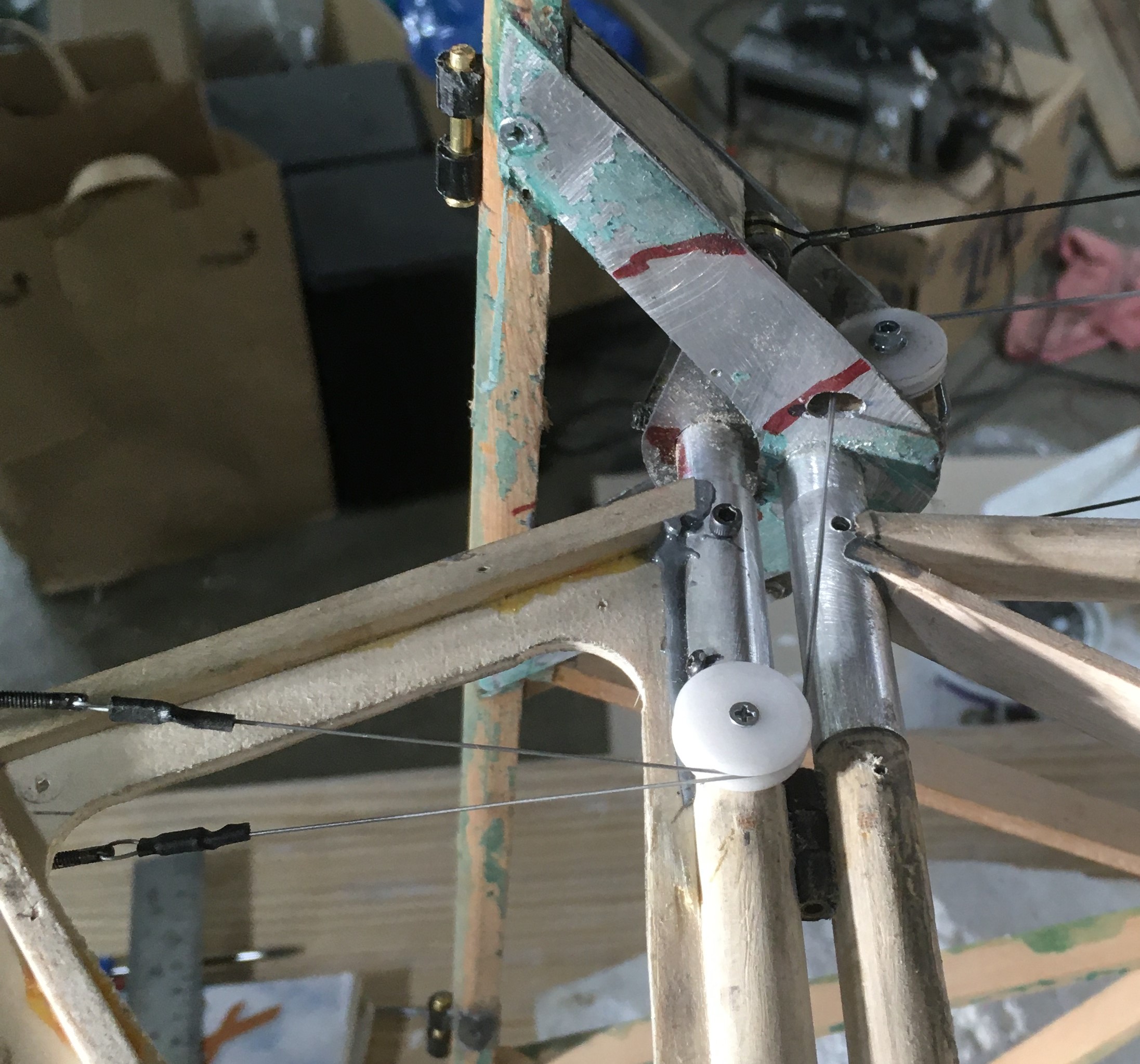

    The last photo is with the Tyger cable, nice and straight.

    dhal22, AKNick, Stevendavis and 3 others like this.
