103" Extra 330SC Building, Flying, and Questions

Beto did I get your paint to match if not let me know, I'll iron a piece down to some balsa and take it to work and scann it and could mix ya some

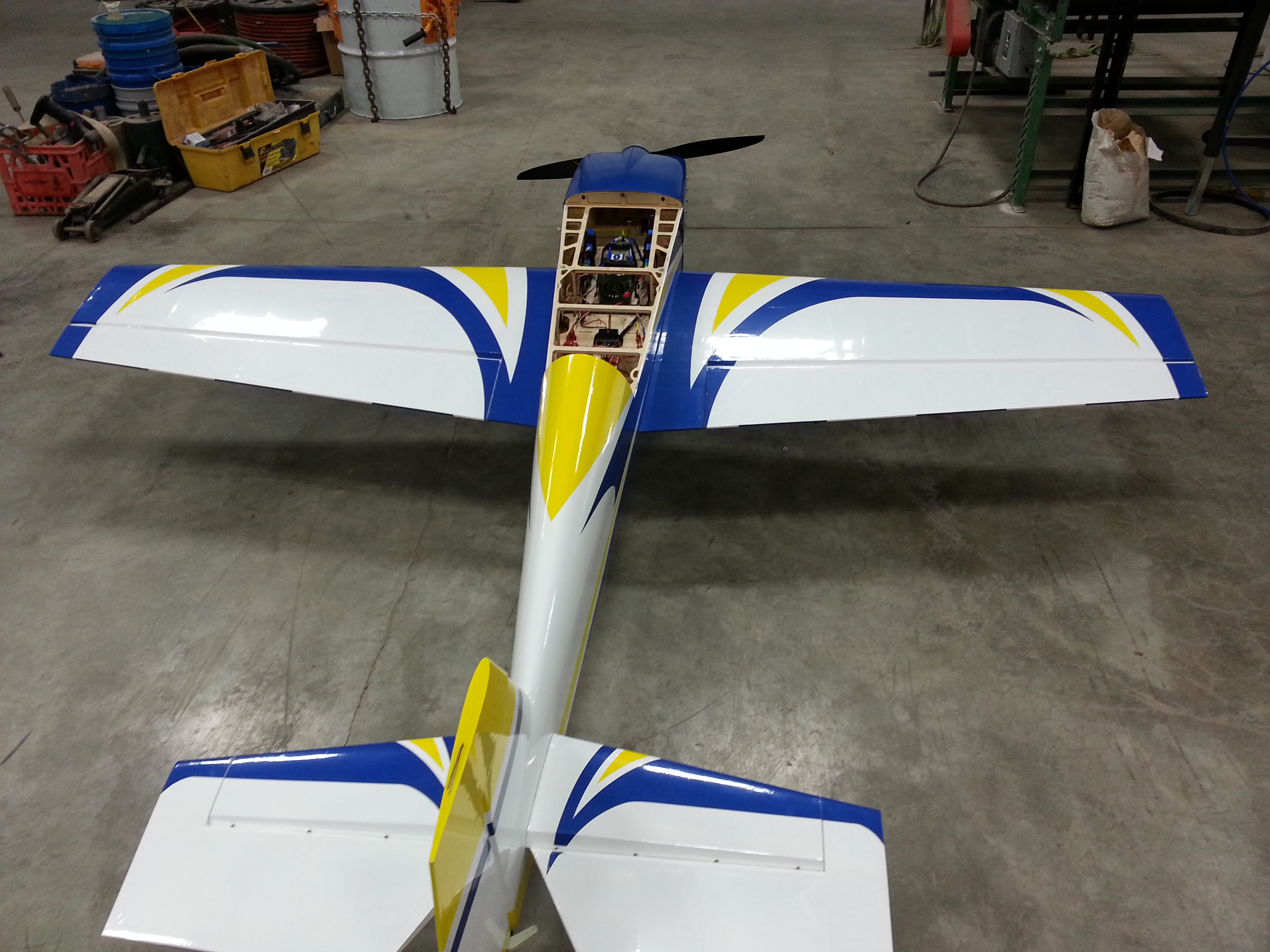

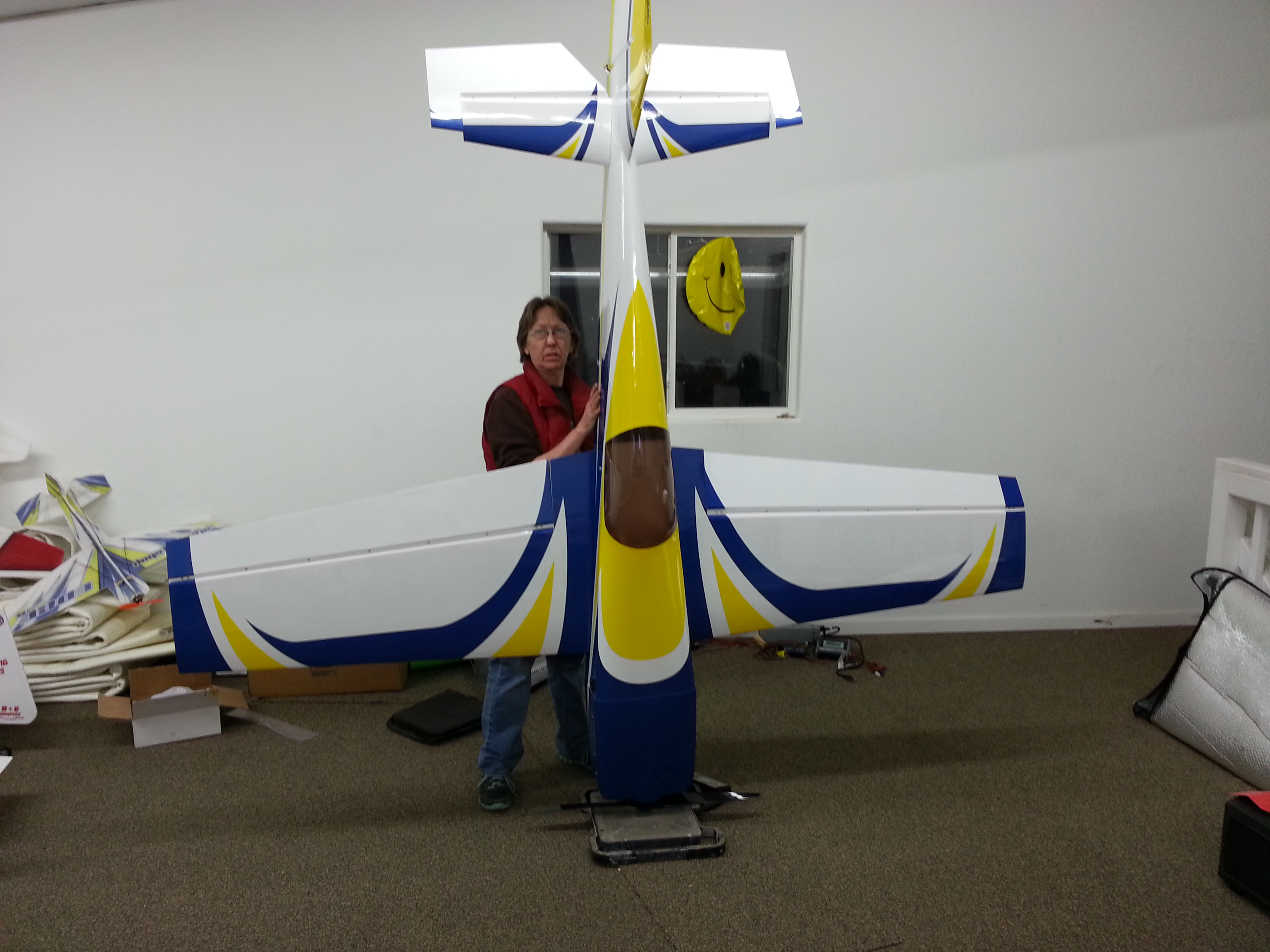

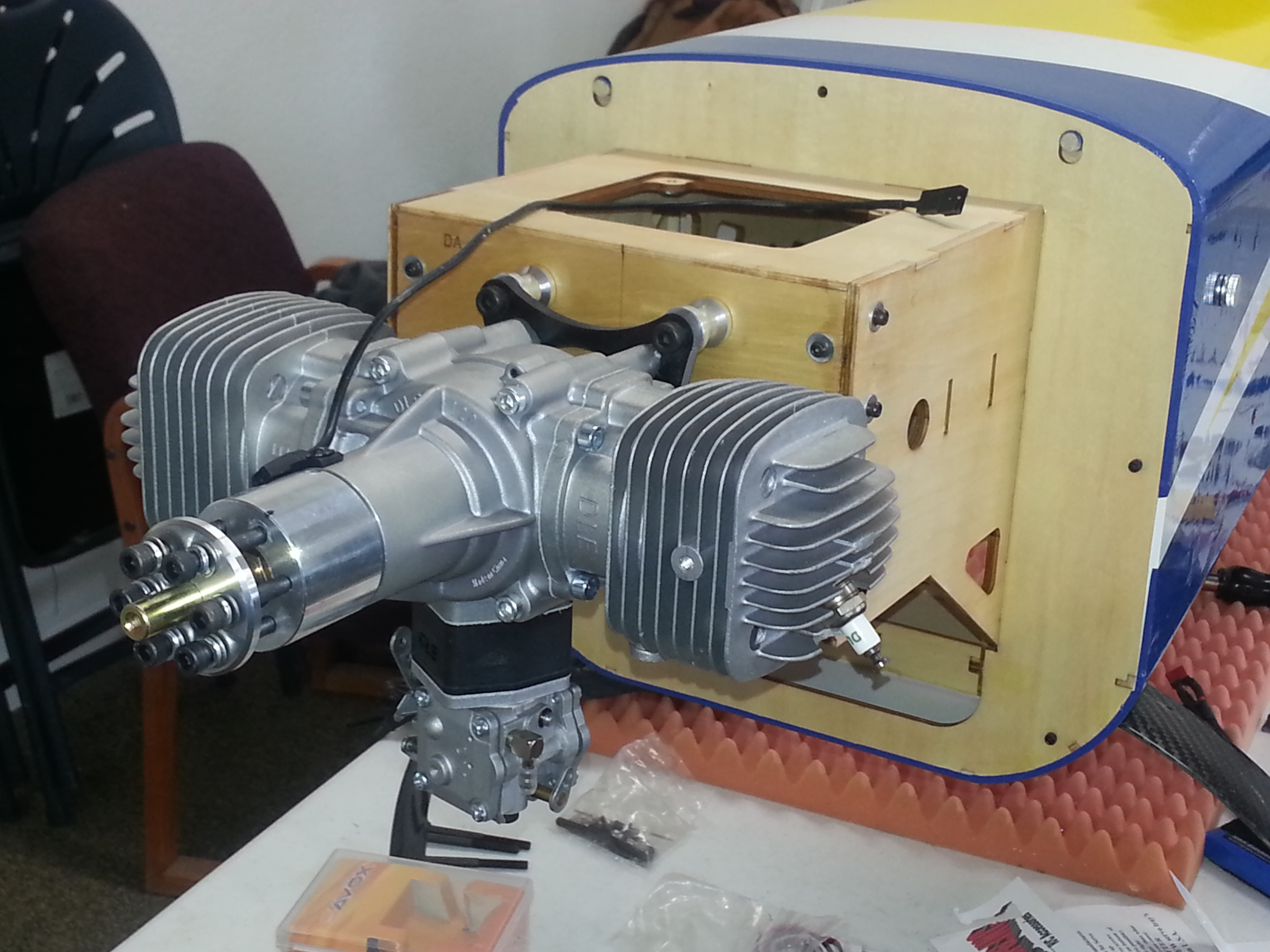

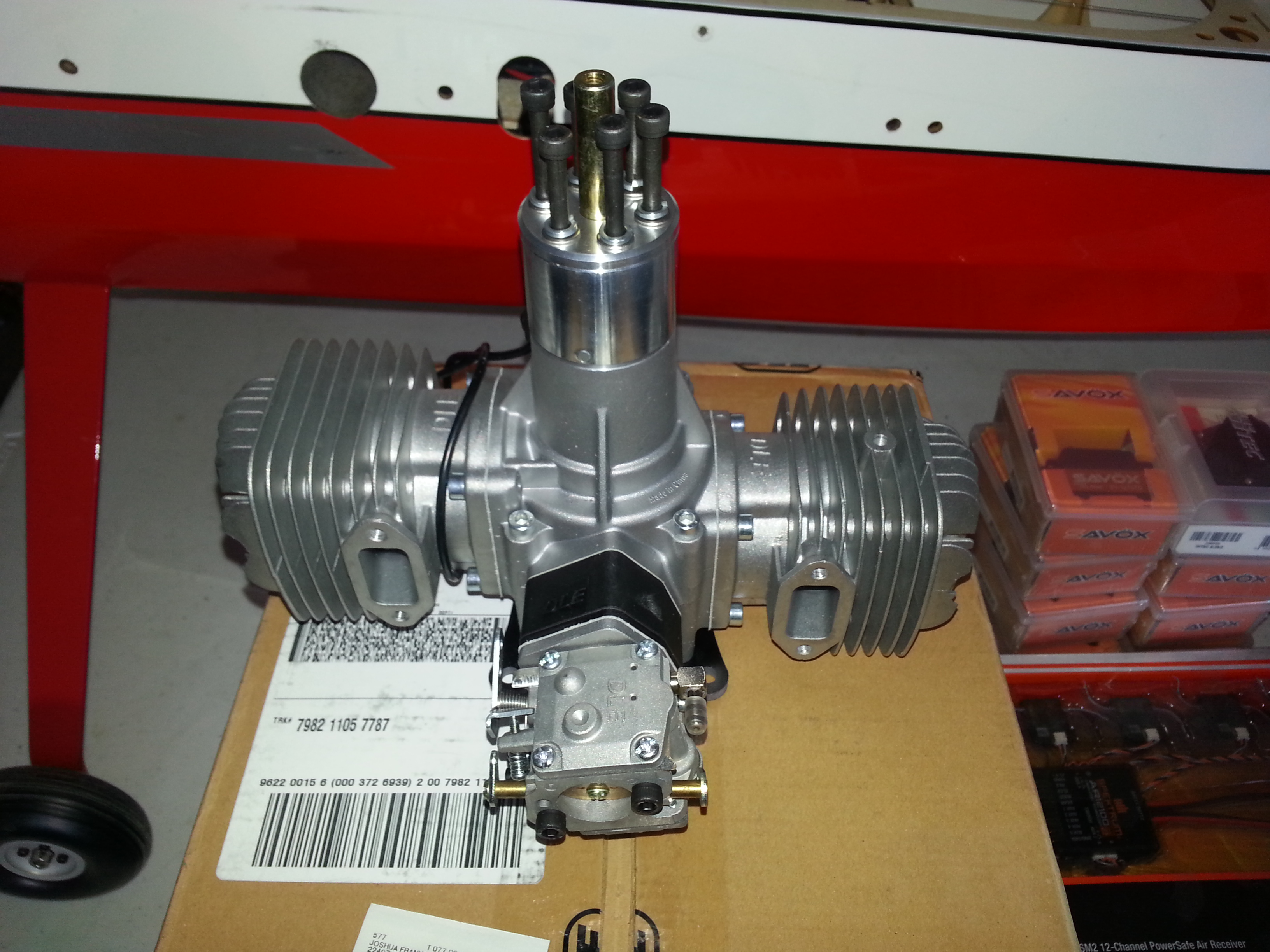

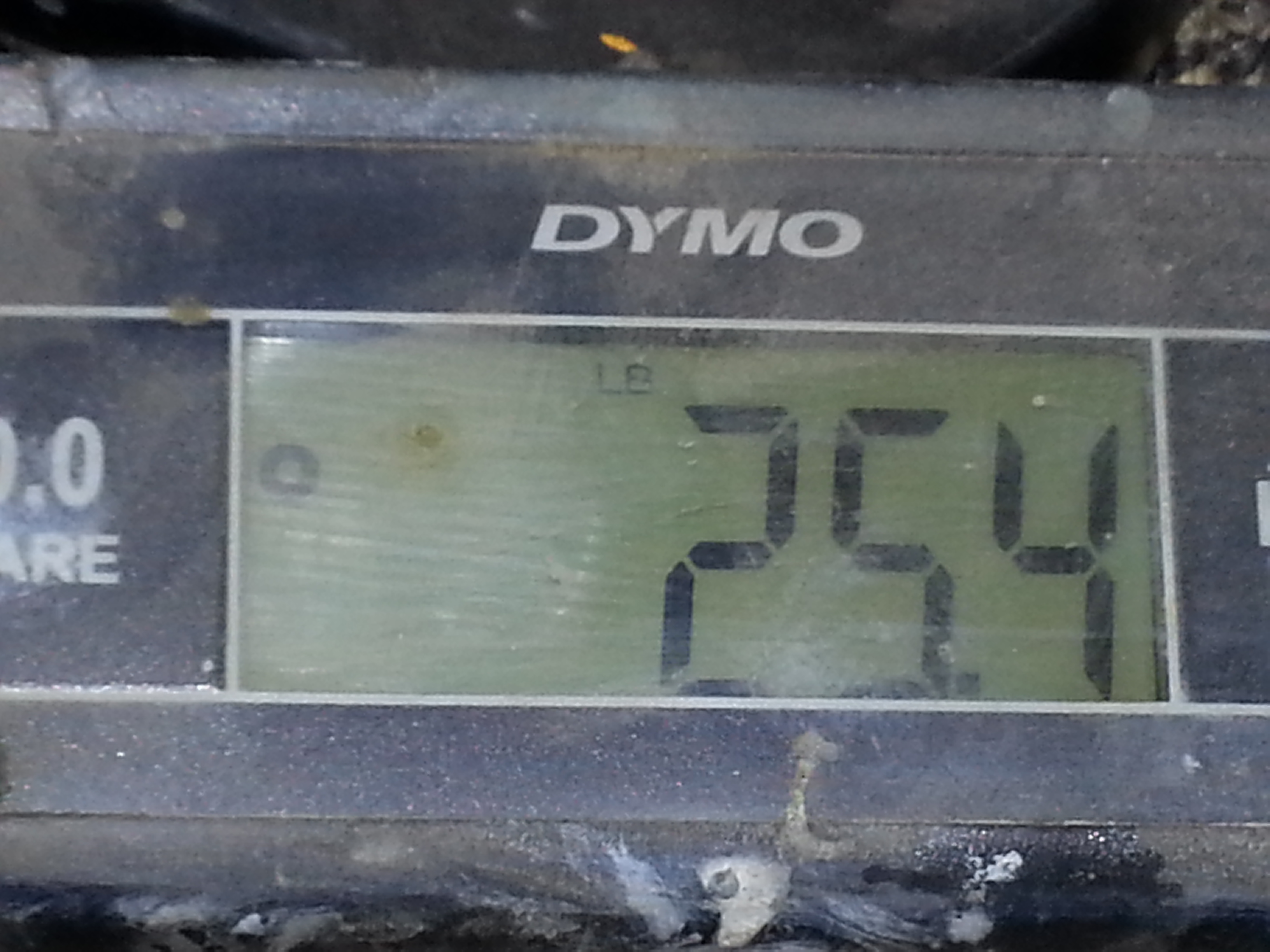

I got to maiden my new 103 extra this weekend. The Dle120 combo is a lot of fun. Especially weighing 25lbs 4 oz. The build was fun. Knife edge almost hands off but I think I can make it better moving the battery back. I like this plane a lot. 20140326_182348.jpg20140326_182244.jpg20140327_112853.jpg20140323_133316.jpg20140318_125426.jpg

Got my 2nd and 3rd flight in on the 103 this morning. Tried the sfg's for the first time and they are sweet. Dle120 is a power house and is running great. My pic size was to big of a file so I had to change it a little.


Attachments

  • 103 XTRA.pdf
    759 KB · Views: 401
Got my 2nd and 3rd flight in on the 103 this morning. Tried the sfg's for the first time and they are sweet. Dle120 is a power house and is running great. My pic size was to big of a file so I had to change it a little.


Attachments

  • 103 Xtra 2.jpg
    103 Xtra 2.jpg
    1.3 MB · Views: 364

purcilas

New to GSN!
Im in the process of building mine too. I got the airframe used from a guy in VA. It had some minor hangar rash which I am fixing but for the most part in very good shape.

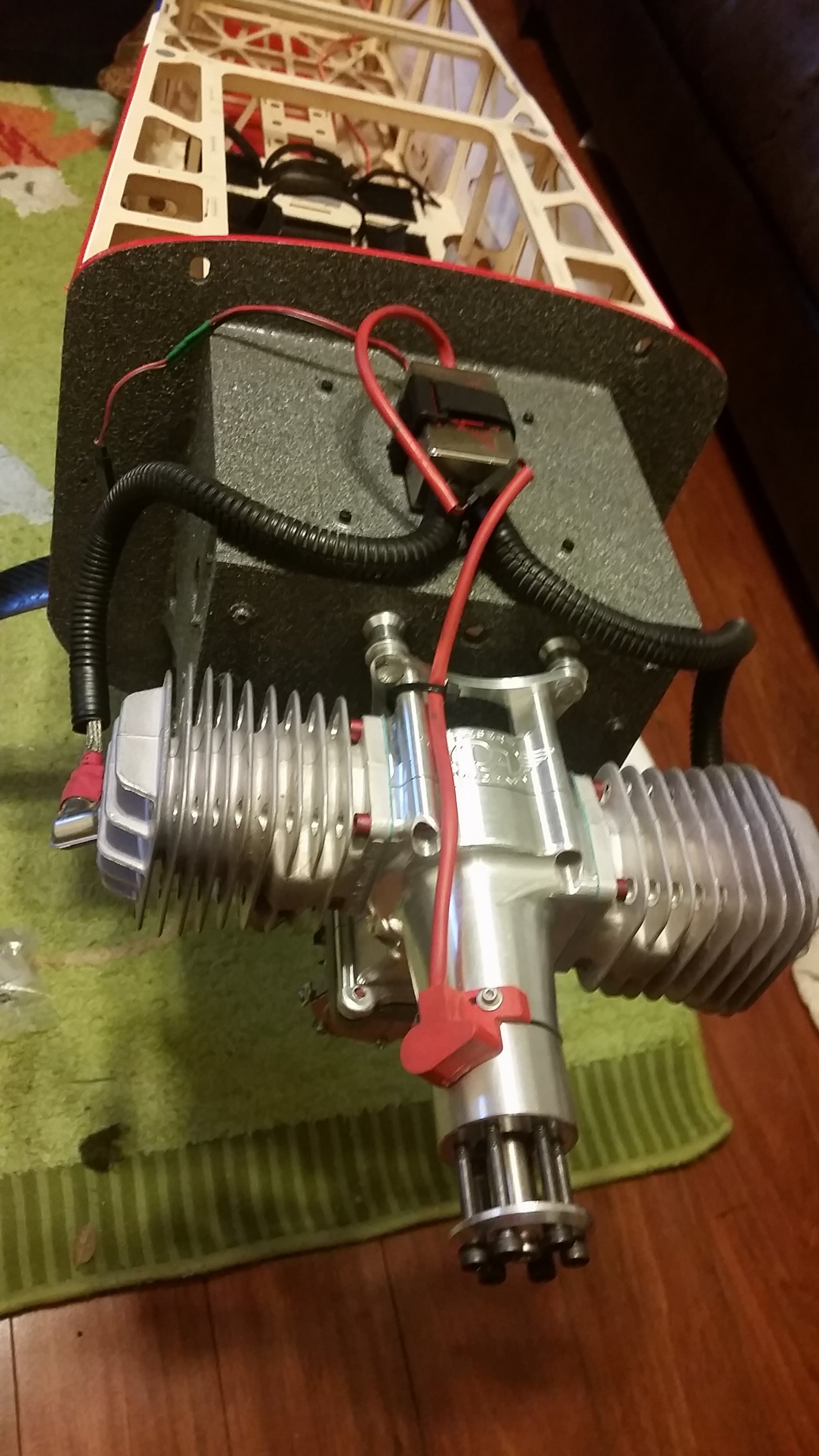

I am putting a DA-100 (original).
MTW75 Cannisters
Savox 1270TG on all surfaces except throttle.
Savox 1267SG for throttle.

So far I painter the motor box (no real need but it looks nice) and mounted the engine. Just ordered the servos & servo arms.

I am planning on using a JR 12 channel powersafe RX and 2 3300mah lipos for power. I love simplicity!

Also going to cover all the wires in braided loom... just because it looks awesome hehe.

Bivens, im the guy that bought the Beast from you :) It's still flying! Love that plane.
