For Sale FS/TRADE: Motor & ESC for 40-50% airplane $550

Nutball

30cc
$550

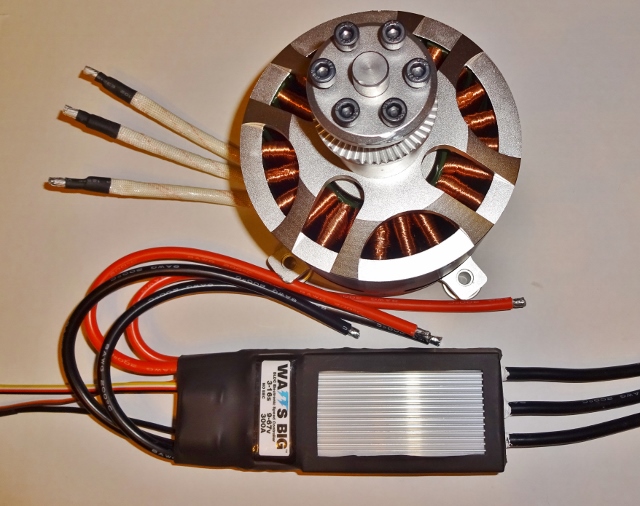

WB10640 95KV motor in new/tested scratch & dent working condition. This is one of the biggest motors for rc aircraft and will fly a 35-50lb 3D airplane or 40-50% scale. This is one motor of a few that were not padded well enough when I received them, so they bumped around and caused very minor dents and scratches that do not affect performance. I have test run it with a propeller to make sure it works and put Scorpion bearing oil on it. It is meant to run on 14-18s. A NEW 300A 16s ESC is included, best performance will be acheived using 16s and at least 15,000mah, 12Ah or 16Ah would wire up easy as the ESC has 2 pairs of input wires. Using 16s will have very similar or better performance than a hacker A200, but 14s and a larger prop may be used. An inexpensive way to finish this setup would be with 8000mah 30-40c lipos from china making 16Ah 16s, and a turnigy dual 400W powered by a lipoconnectionsolutions 750W power supply. For little ground clearance a 33x14 or 3 blade 32x14 would work very well on 16s or use a 34-36x12-14

68mm standoffs are a good fit in a 40% cowl

ESC specs: Add $15 for an ESC programmer.
Continuous Amps at full throttle: 300A up to 18kW 24hp
Continuous Amps partial throttle: 100A up to 6kW
Burst from cool temp, 5 seconds: 500A up to 30kW
Voltage range: 9-67v
Weight: 630g
Dimensions : 170mm X 60mm X 40mm

I'll consider trades, mainly looking for turnigy/zippy 8s lipos or 4-6s all in the 5-6Ah range great condition, DLE 170cc, or just make trade offer


Attachments

  • DSC00454 (640x506).jpg
    DSC00454 (640x506).jpg
    218.3 KB · Views: 446
