Pilot 30% Edge 540. Who's Flying it!?

[49dimes]

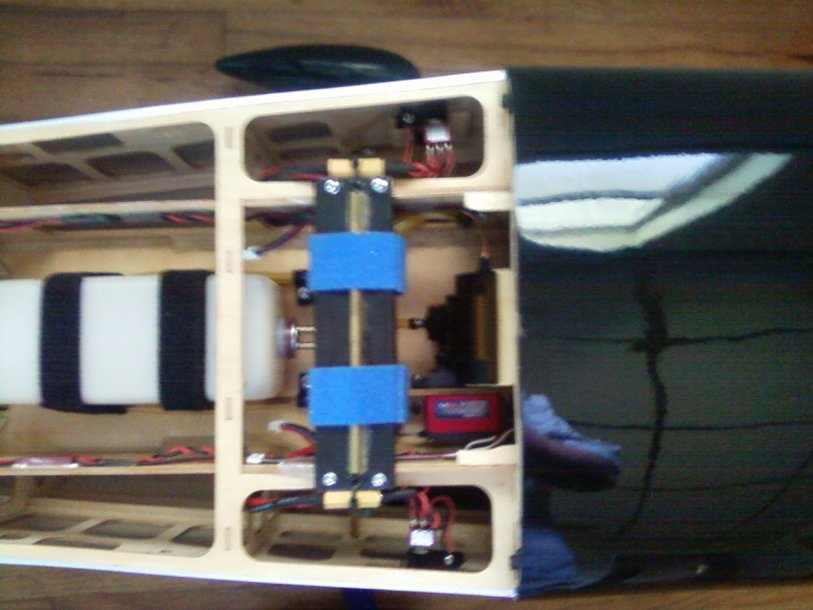

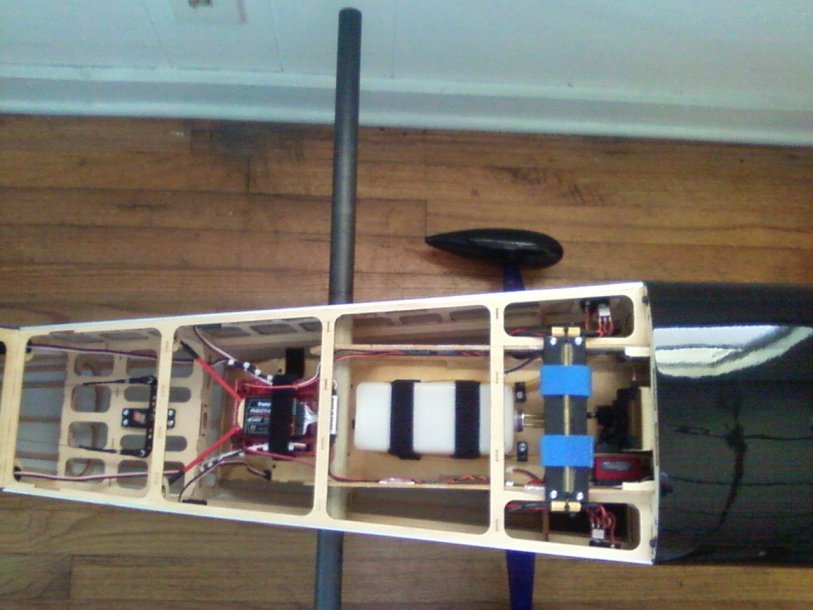

Donnie....... The batteries are at that location for a neutral cg. You can see the throttle servo very close to the fuel filter....
Hope this helps. Call me if you want.



[49dimes]

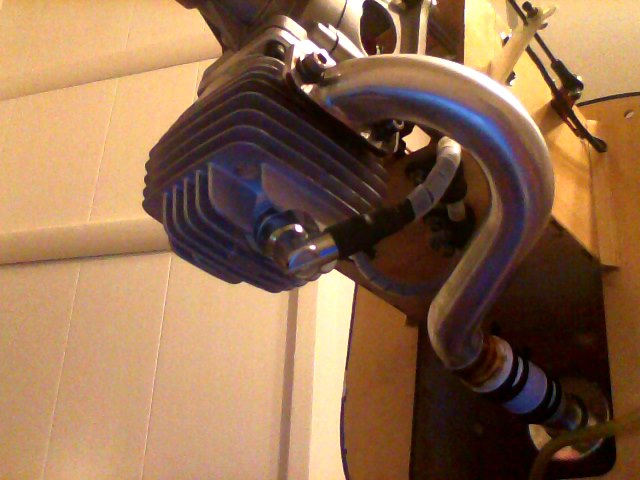

Here is another pic on how I did the choke for the EME60



[49dimes]

Here ya go Donnie......



[ChickenBalls]

Thanks Kelly, you have the side servo mount for throttle? I see the vents now from post above.@emtp275 looks like he put his same place you have yours on extra



[49dimes]

Thanks Kelly, you have the side servo mount for throttle? I see the vents now from post above.@emtp275 looks like he put his same place you have yours on extra

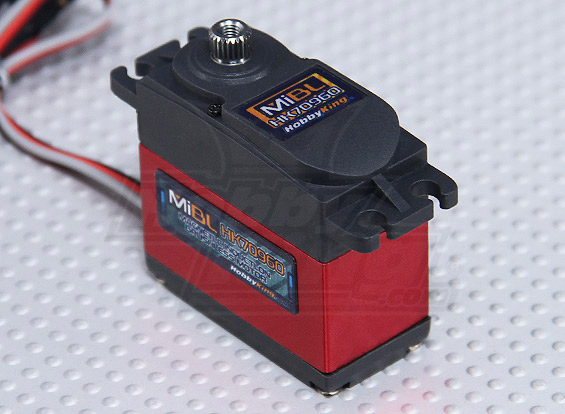

Yes side servo mount 1/2" arm facing down; servo "pushes" to WOT.



[49dimes]

Thanks Kelly, you have the side servo mount for throttle? I see the vents now from post above.@emtp275 looks like he put his same place you have yours on extra

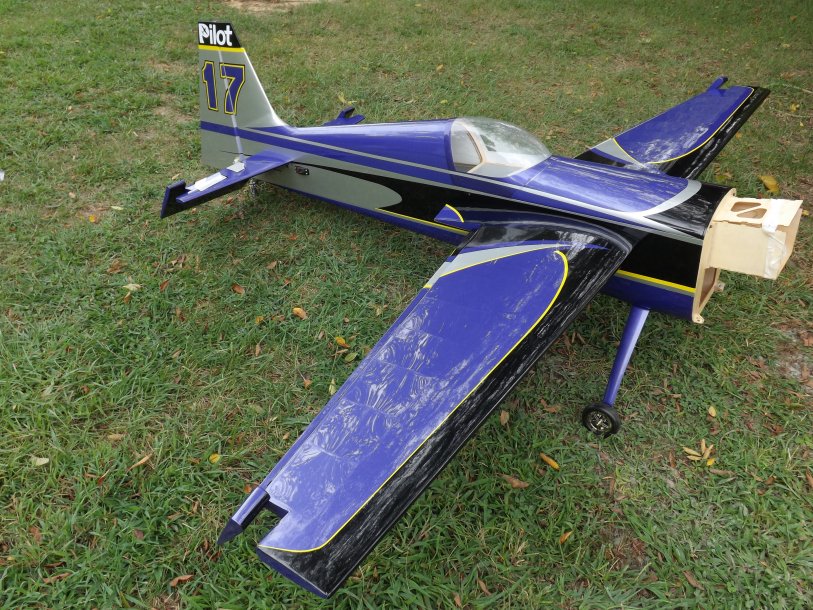

Lets see some pics of your plane!



[ChickenBalls]

Lets see some pics of your plane!

Just finished fuel proofing FW an little bit of tank area. @emtp275 , myself, @mulehead1969 @Paul Puszynski got together Sun, and watched Justin program my servos. P/P setup, and install canister, and I'll be ready for final assembly. I'll try an get some final assembly pics while I'm putting her back together. I had to order servo mount, so I could be like you, and JustinBTW @emtp275 Paul's looking to talk to you



[49dimes]

Just finished fuel proofing FW an little bit of tank area. @emtp275 , myself, @mulehead1969 @Paul Puszynski got together Sun, and watched Justin program my servos. P/P setup, and install canister, and I'll be ready for final assembly. I'll try an get some final assembly pics while I'm putting her back together. I had to order servo mount, so I could be like you, and JustinBTW @emtp275 Paul's looking to talk to you

Was there not a side servo mount tray with your plane? Mine came with one. So did the peak extra.



[emtp275]

Was there not a side servo mount tray with your plane? Mine came with one. So did the peak extra.

It would need to be glued in and make it hard to remove the servo if need be



[49dimes]

It would need to be glued in and make it hard to remove the servo if need be

Don't think it shows up in my earlier pics but the mount is actually secured in place with 4-40 hex caps and blind nuts x2. Use blue locktite when installing.
