Ultimate Bipe Assembly

[combat chicken]

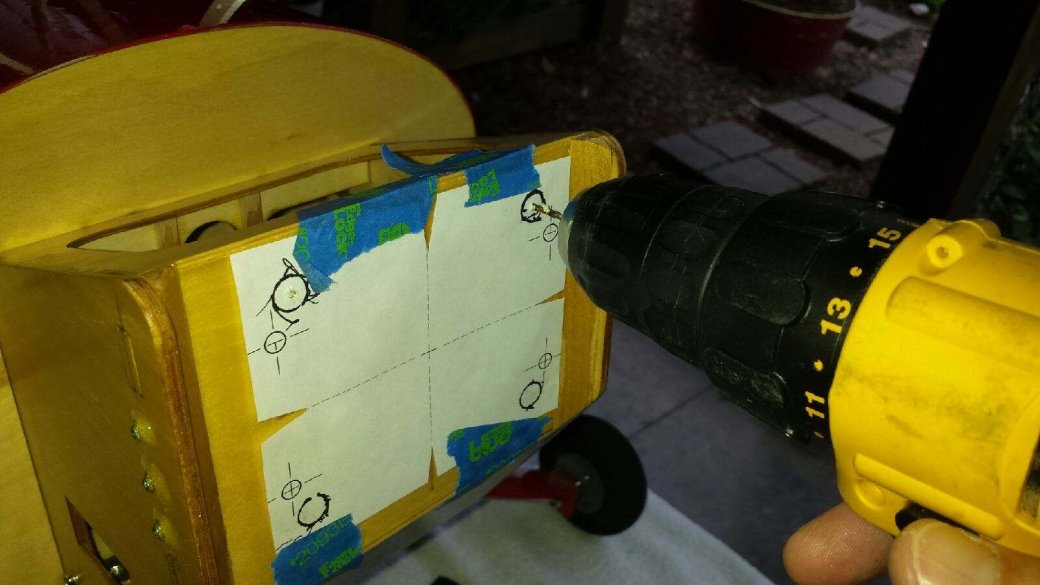

Drilled out the holes for the standoffs. Pre drilled with 5/32nd then finished off the holes with 1/4th.



[combat chicken]

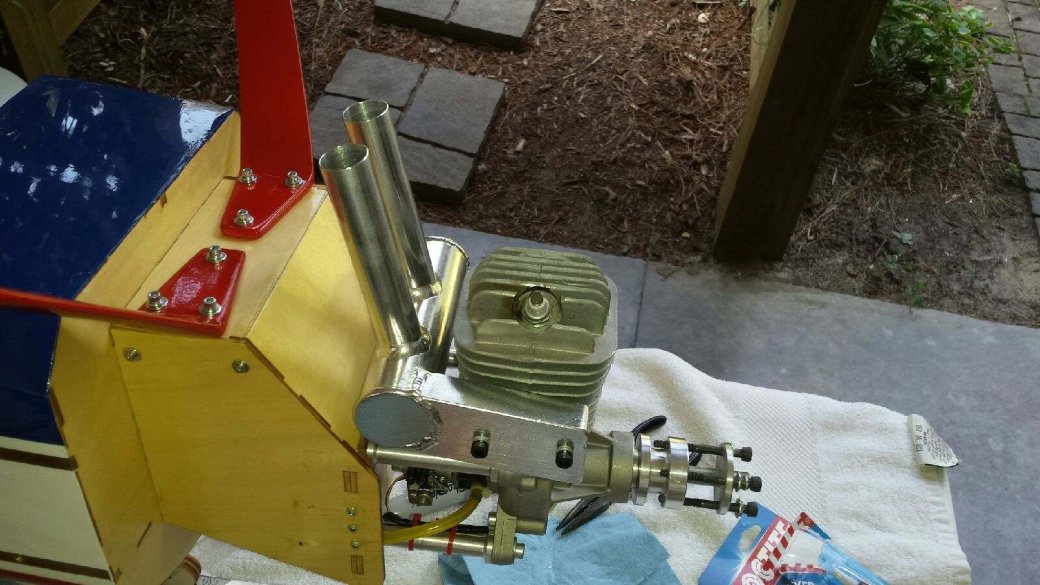

Mounted the 50 and attached the wrap around pitts courtesy of @jtec/radiowave. Looks very nice and can't wait to hear the sweet sound that those pitts stacks make.



[combat chicken]

Mounted the throttle servo and linkage. Getting closer! More to come!



[combat chicken]

Well folks, got some more done on the ultimate today. This has been one long build!

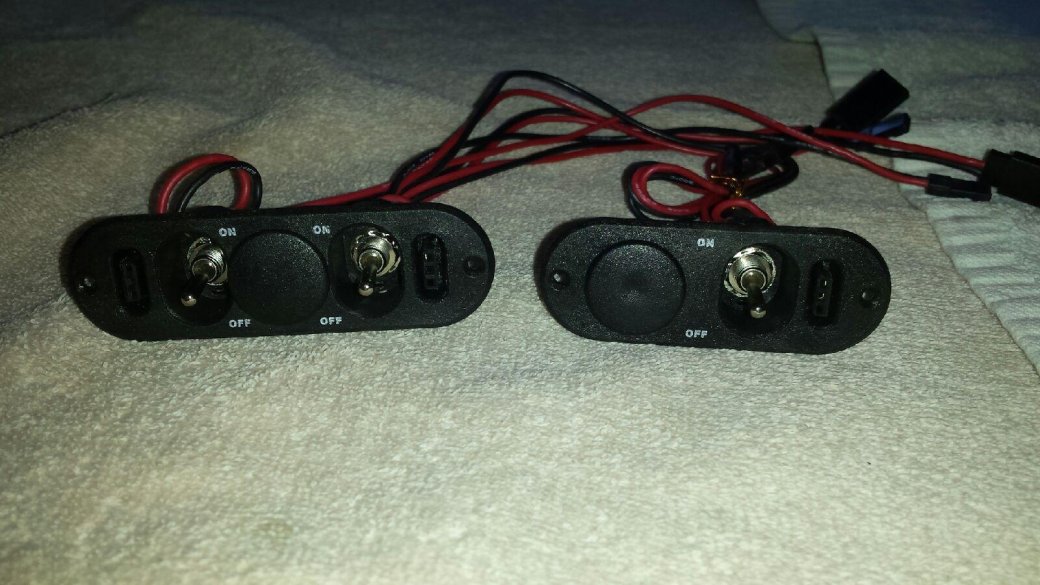

Ok here are the switches I'm installing. Ordered from Vally View Hobbies. Never used these types before so we will see how well they work.



[combat chicken]

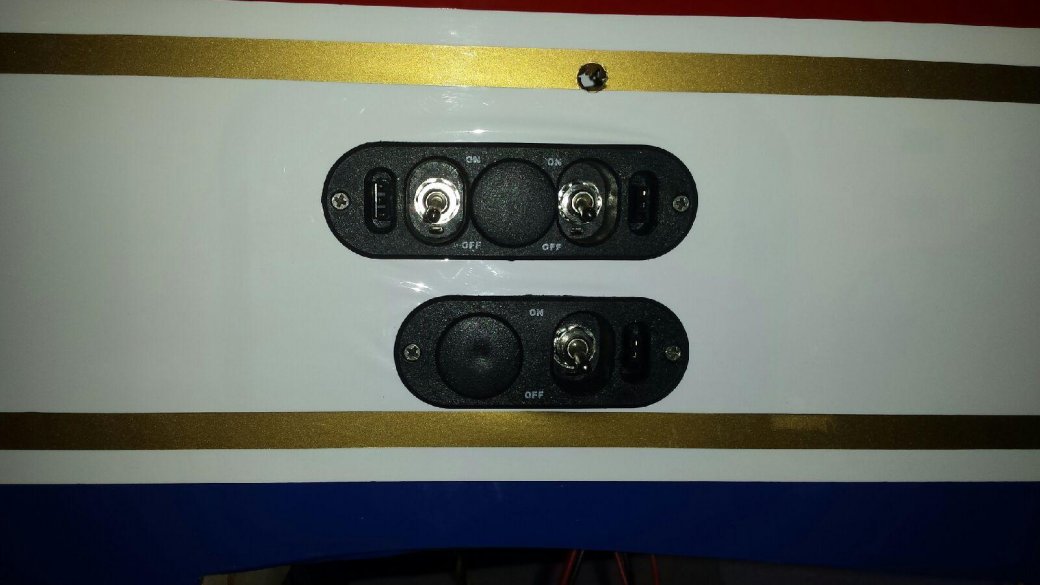

The fueler is part of the switch assembly. A little cautious over having electrical next to fuel lines but I can't imagine this not working as long as you have a long enough fuel tube to extend away from the switch when fueling.



[combat chicken]

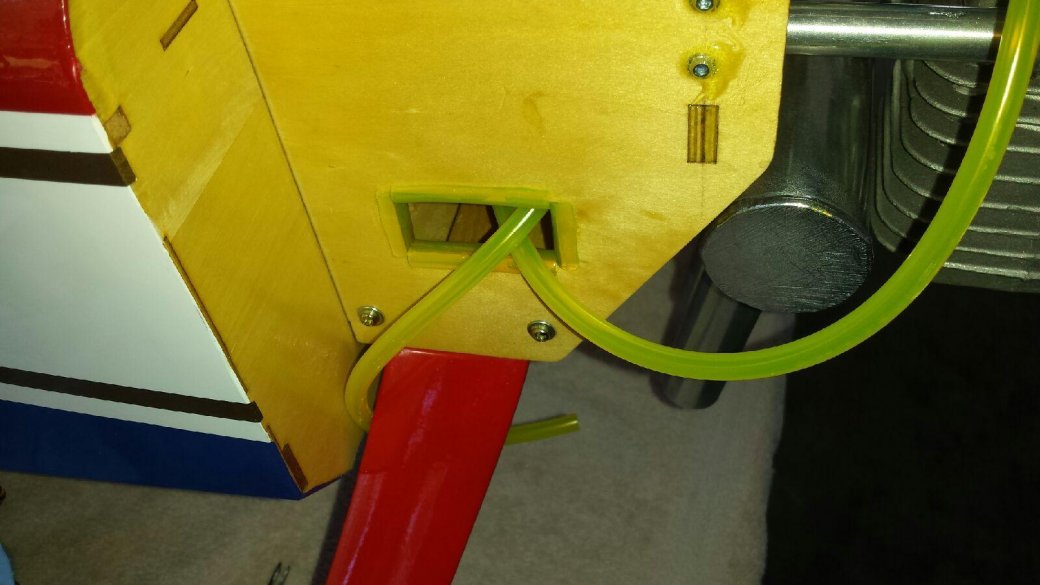

Have the fuel lines installed. I also used fuel line to outline(pad) the opening since I am not installing the throttle servo at that location and running the lines through the opening. I am anal about fuel line rubbing not against another surface and getting leaks.



[combat chicken]

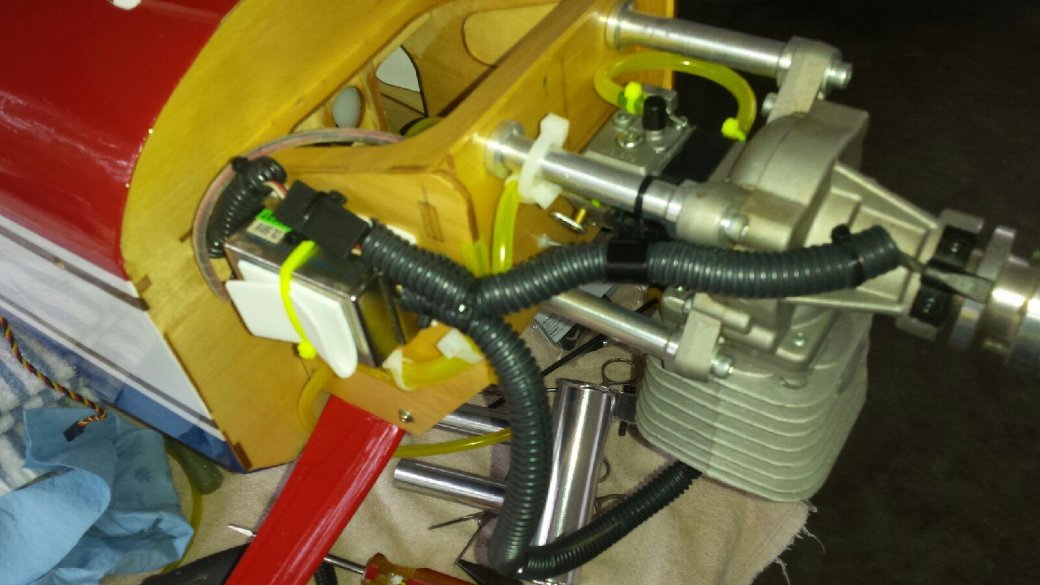

Installed the EI. Used high density foam for the unit and wrapped all electrical lines in plastic conduit. Again always worried about vibration cutting a wire.



[combat chicken]

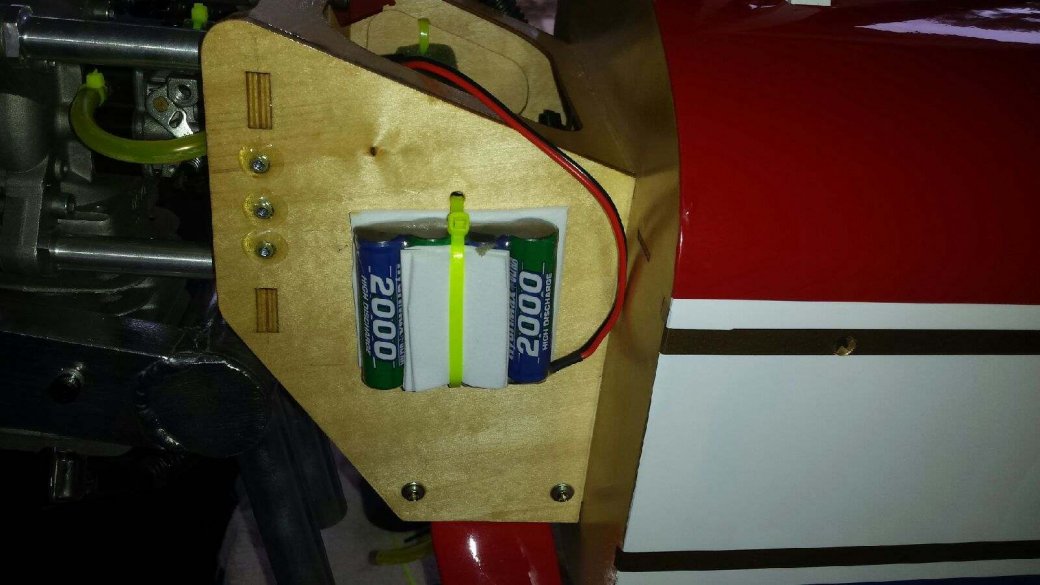

Installed NIMH using the high density foam.



[ChickenBalls]

Installed the EI. Used high density foam for the unit and wrapped all electrical lines in plastic conduit. Again always worried about vibration cutting a wire.

Looking good Bart



[combat chicken]

Used the high temp RTV silicone for the muffler gasket!
