IMAC Delro 2.5M Raven Build

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by Wacobipe, Oct 22, 2014.


  1. HRRC Flyer

    HRRC Flyer GSN Sponsor Tier 1

    Hey Brett,

    Don't worry about being away from your Raven for so long. I haven't touched any of my planes all year. . . . .:(

    Wacobipe likes this.
  2. AKNick

    AKNick 100cc

    728
    362
    63
    Alaska
    Is that some sort of S-Glass around the wing tube? nice build thus far!

    Jetpainter likes this.
  3. That is 1/16" G-10 fiberglass sheet. I purchase it from McMaster Carr.

  4. AKNick

    AKNick 100cc

    728
    362
    63
    Alaska

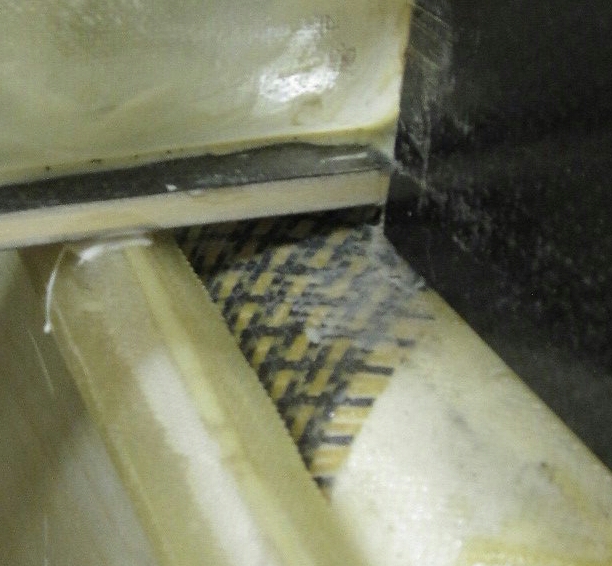

    I guess I meant under and aft of the wing tube. looks kindof like Kevlar and carbon woven together.

  5. Ah...that! That is a sandwich of 1/4 inch ply with carbon fiber on either side. Not really necessary in that application but I had it laying around. It is nice in that the carbon fiber layer stops any denting of the ply from the washer/nuts that are tightened on it. That piece is there to support the rear hanger for the canister.

  6. AKNick

    AKNick 100cc

    728
    362
    63
    Alaska
    LOL I need a red marker to point out what I'm looking out ha ha! Its on the inside of the fuse, on either side supporting the area around and mostly aft of the wing tube. definitely two different types of woven fibers. Not a big deal was just curious.

  7. Jetpainter

    Jetpainter 640cc Uber Pimp

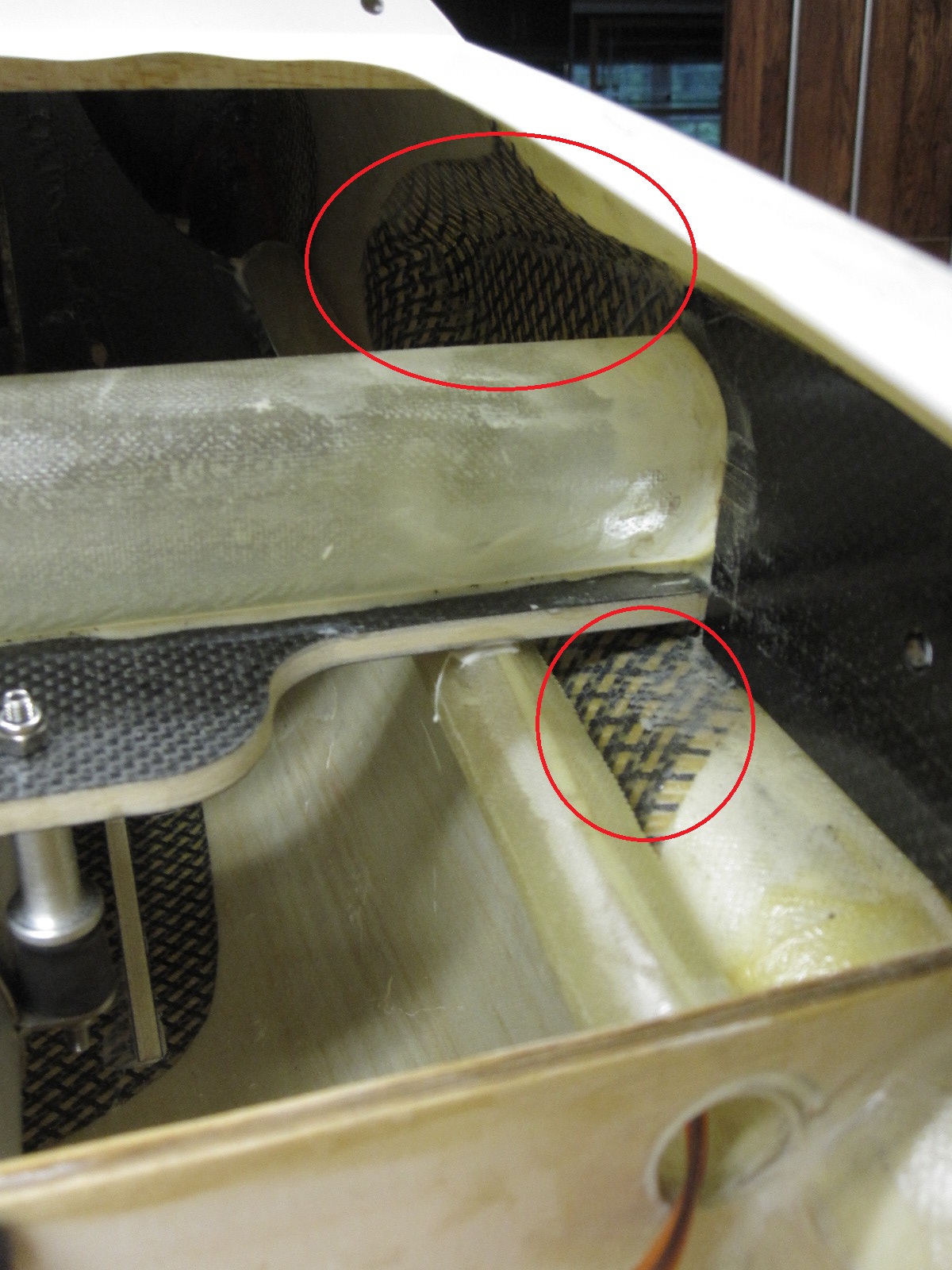

    I think I can translate here. I think he's asking about the fabric in the center of this picture.

    AKNick likes this.
  8. AKNick

    AKNick 100cc

    728
    362
    63
    Alaska
    THATS IT!!! :dancing-chicken::lol2:

  9. Yeah..I figured that out but have been travelling so unable to answer clearly!

    I am unsure exactly what the material is as it was molded into the fuse on delivery. It is definitely carbon fiber, but I am unsure whether the other material is fiberglass or Kevlar. It is only a single layer and it's been layered in there to reinforce the area...the fuselage on this plane is very thin so all stress areas are reinforced in some manner.

    fiberglass electrical tubes 2 (2).jpg

    AKNick and Jetpainter like this.

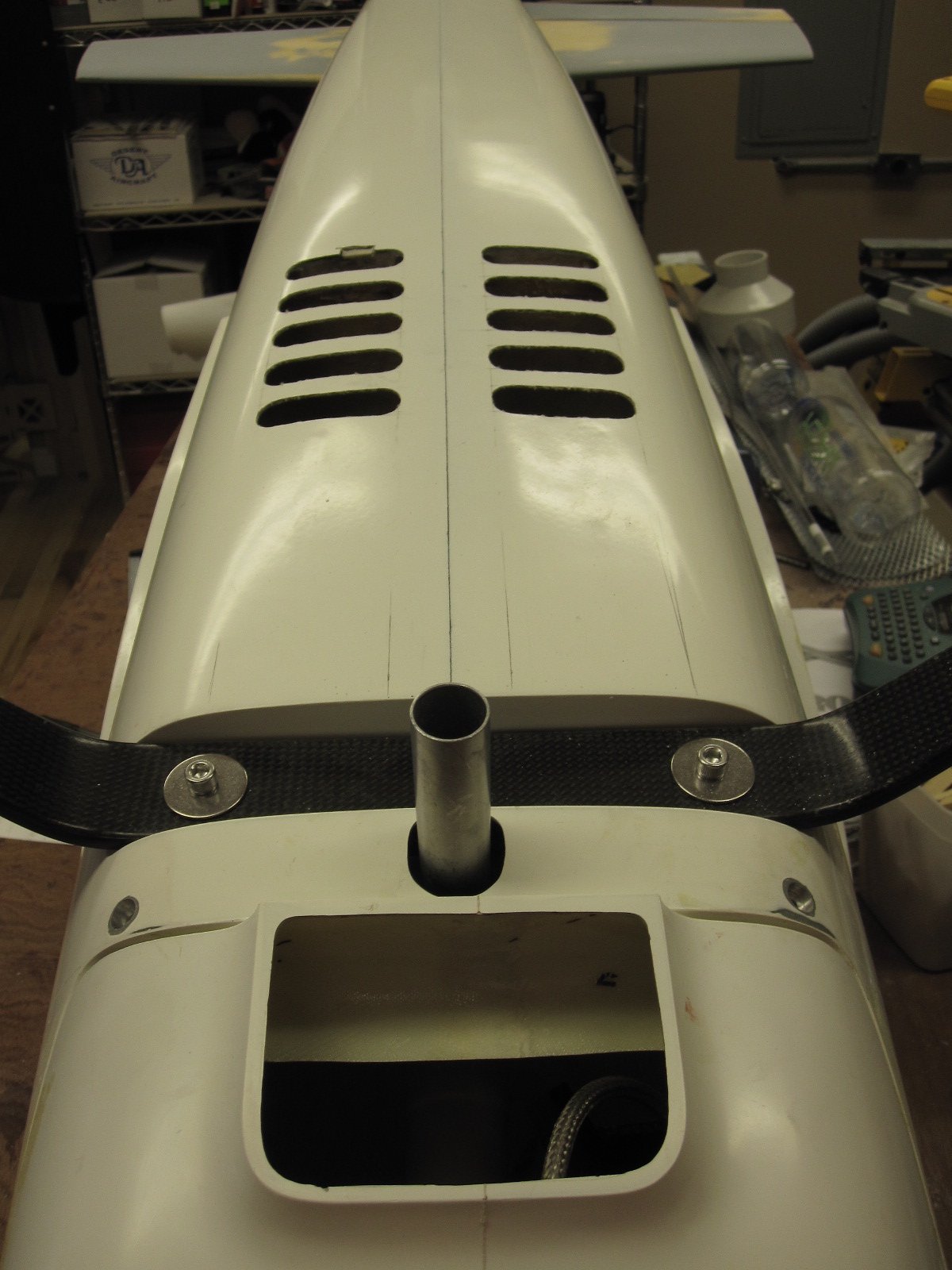

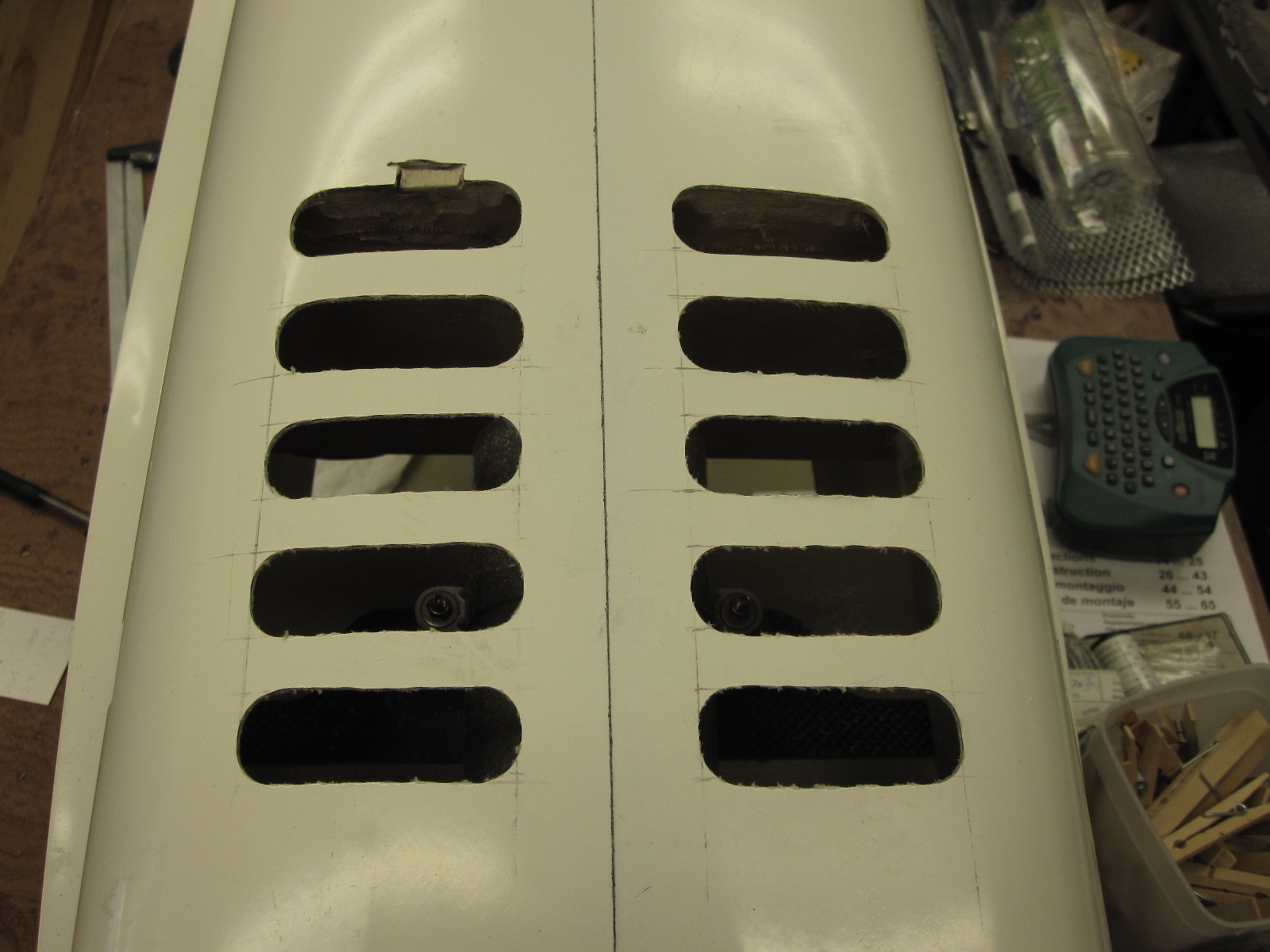

  10. Today's work was all about cooling the engine...The cooling air entry holes were already cut but I cut in the cooling slots in the fuse belly today.

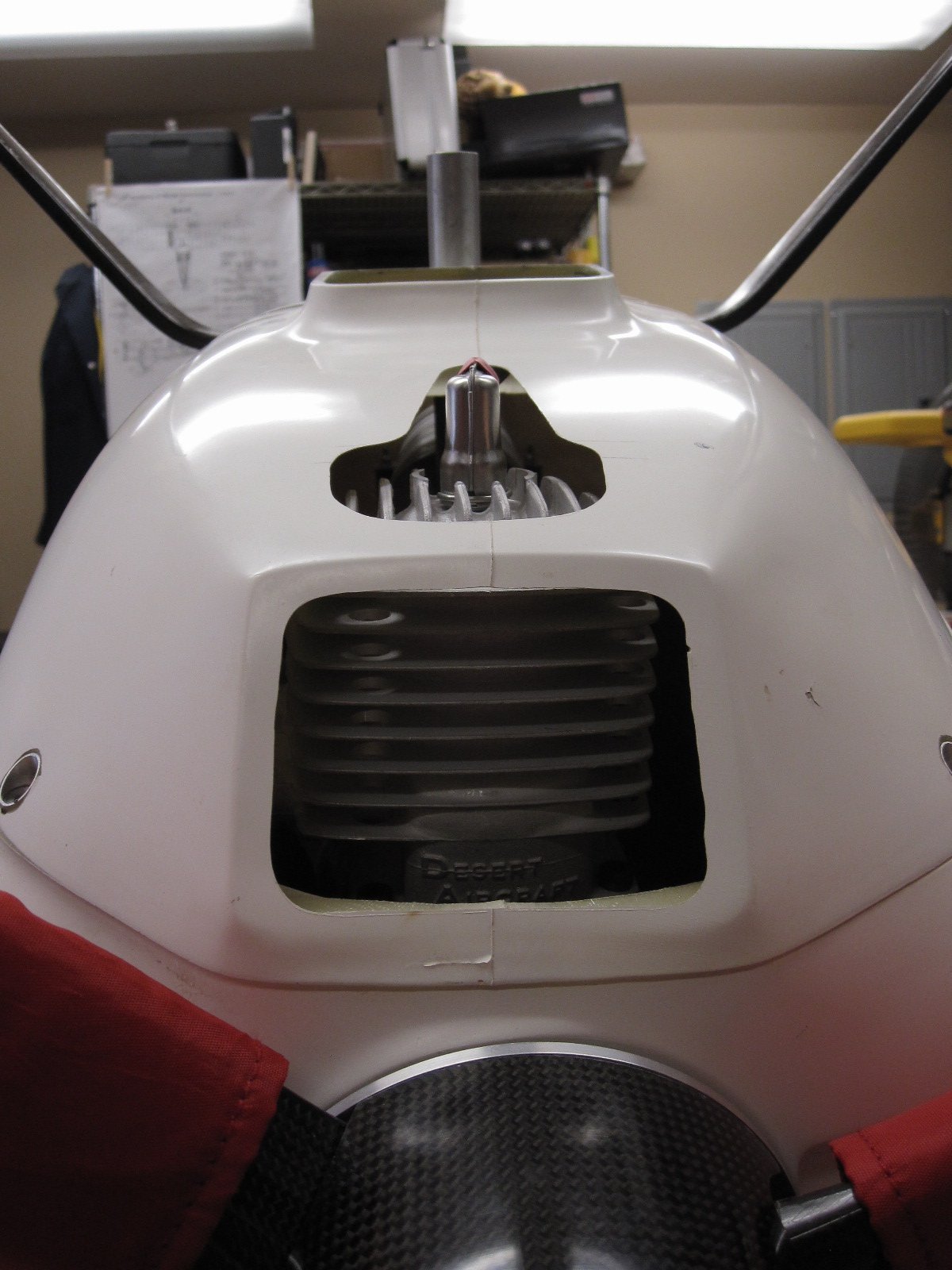

    IMG_1082.JPG IMG_1083.JPG IMG_1084.JPG
