3D Edge 540 Profile Build (Glitter JR)

Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by BalsaDust, Feb 4, 2019.


  1. BalsaDust

    BalsaDust Moderator

    Ok seemed enough people where interested so I will start a build thread on the little profile I designed.
    Based off of the Edge 540
    44" span
    40" lentgh
    40-45 ounces
    3542 outrunner
    60amp esc
    3S or 4S 2200mah lipo dependent on KV of motor and what size prop you prefer.
    Pictures uploaded out of order but I have description under each one

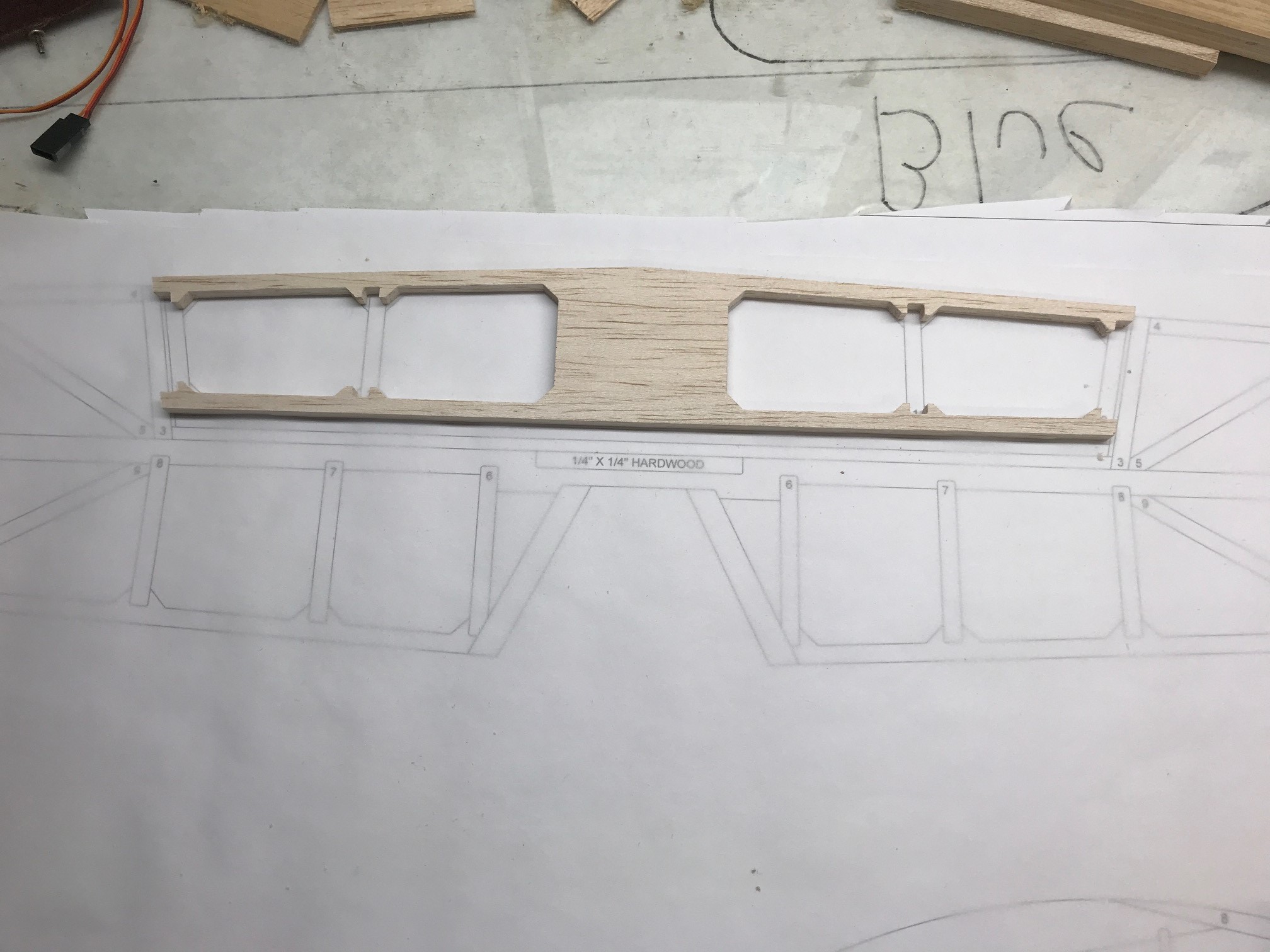

    IMG_5560.JPG Stab outer frame cut part.

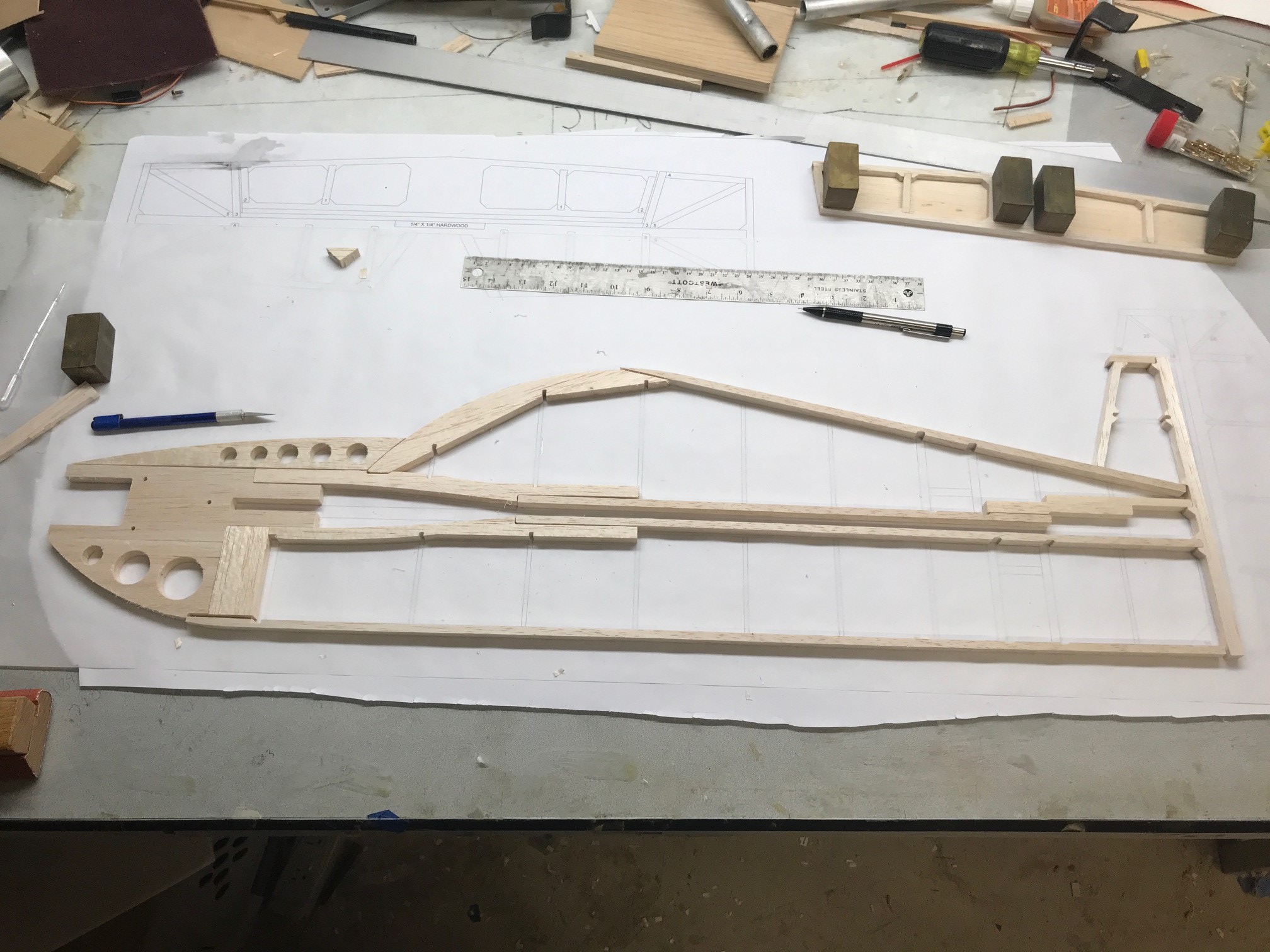

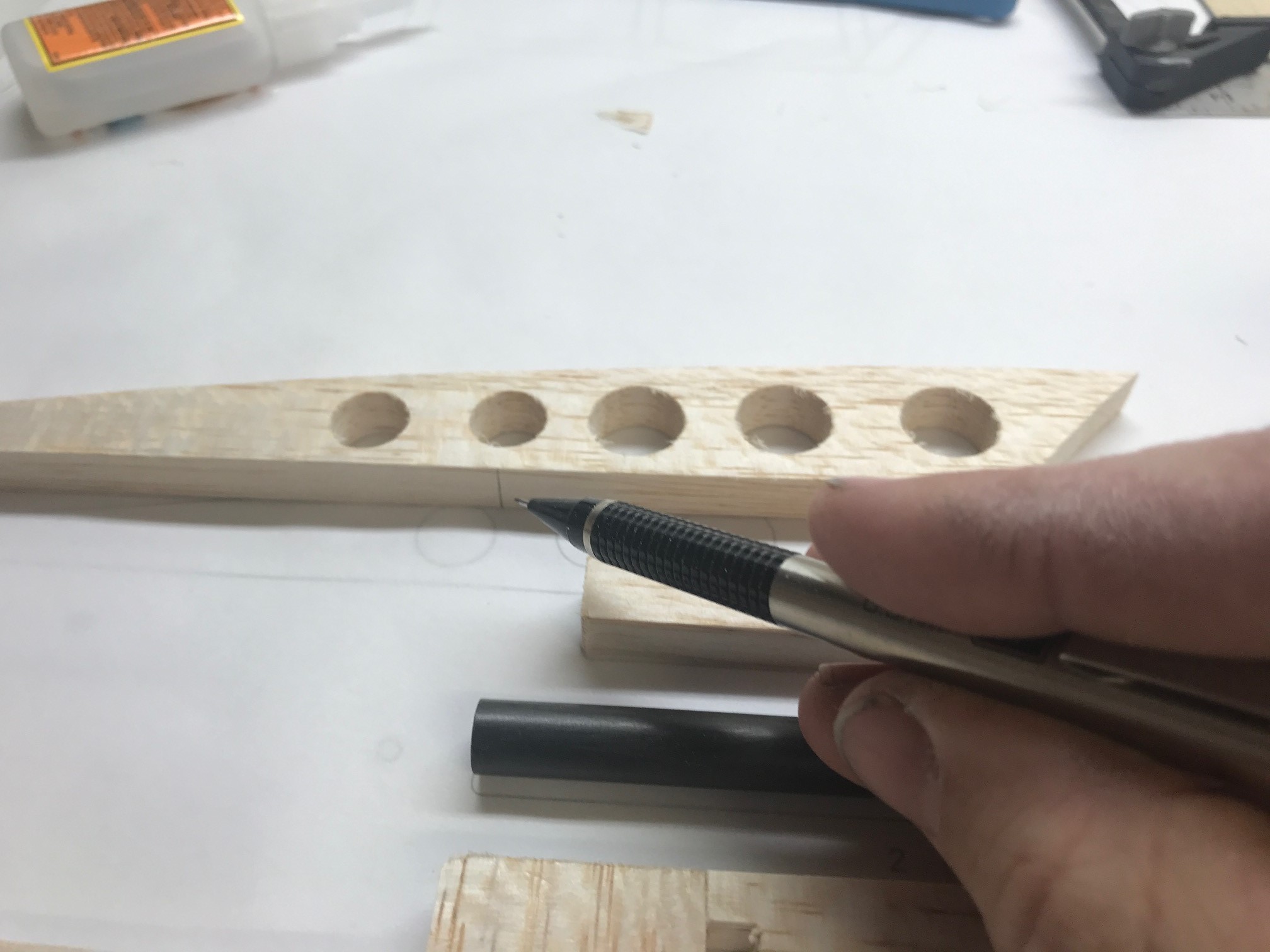

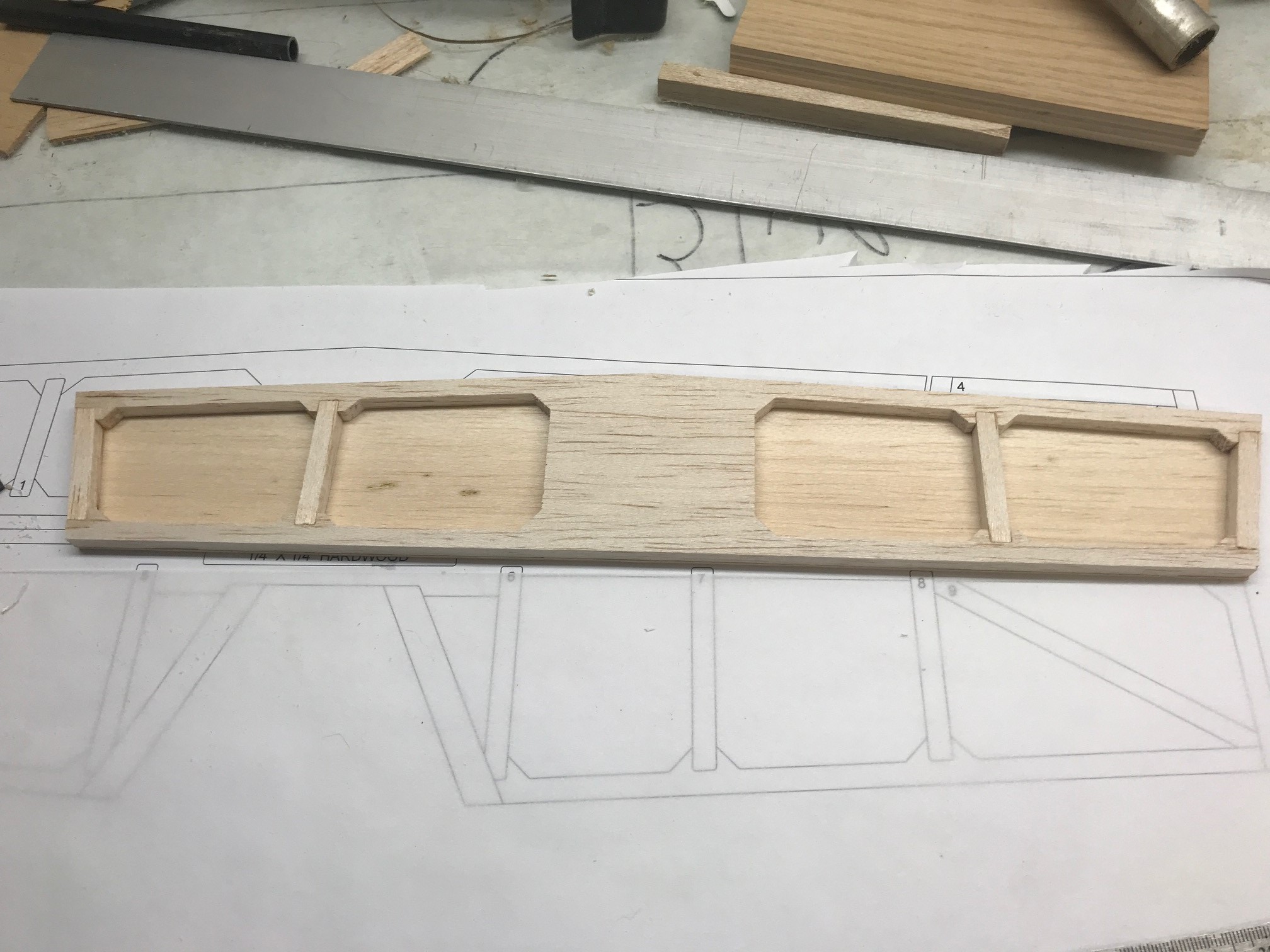

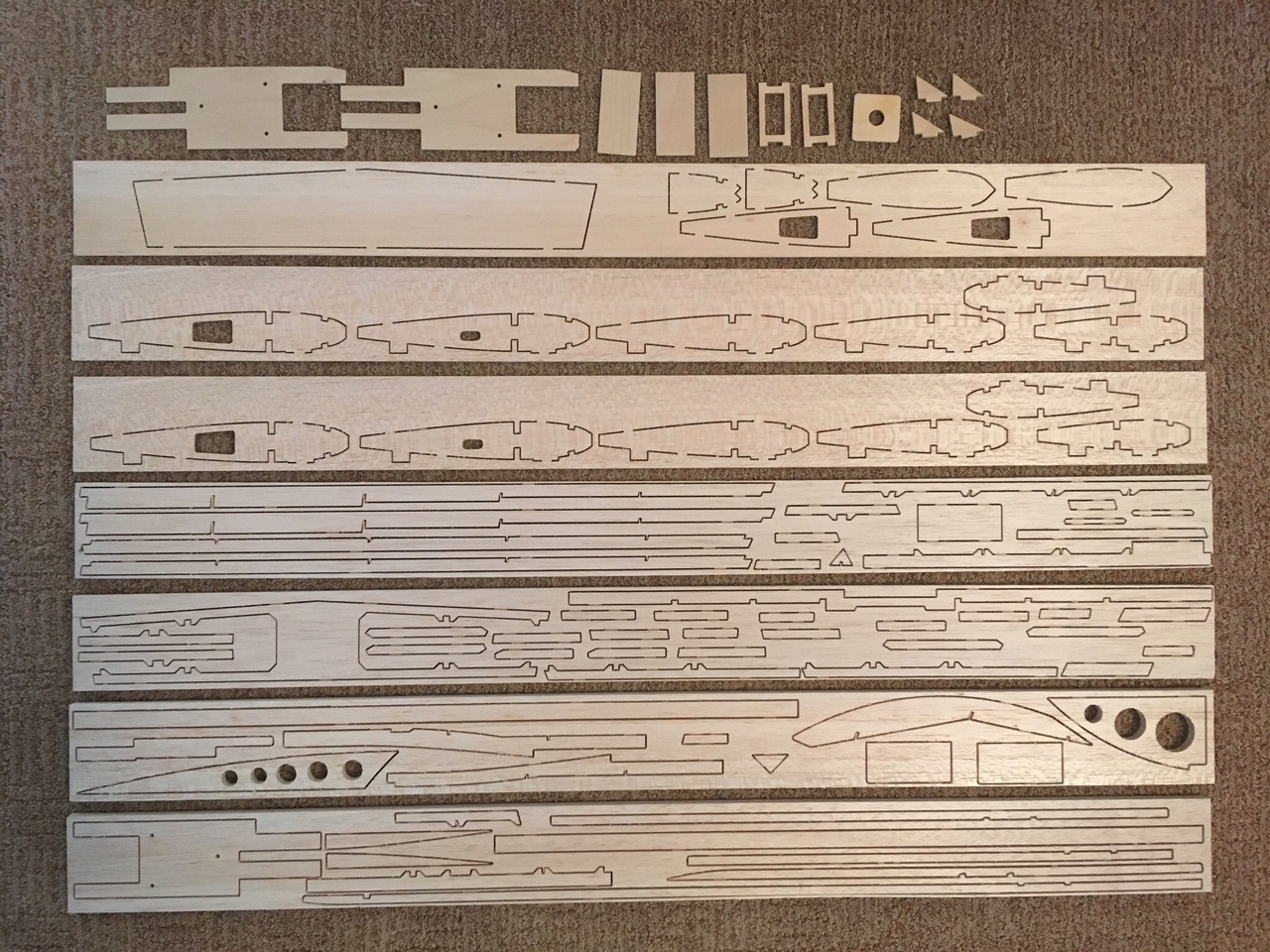

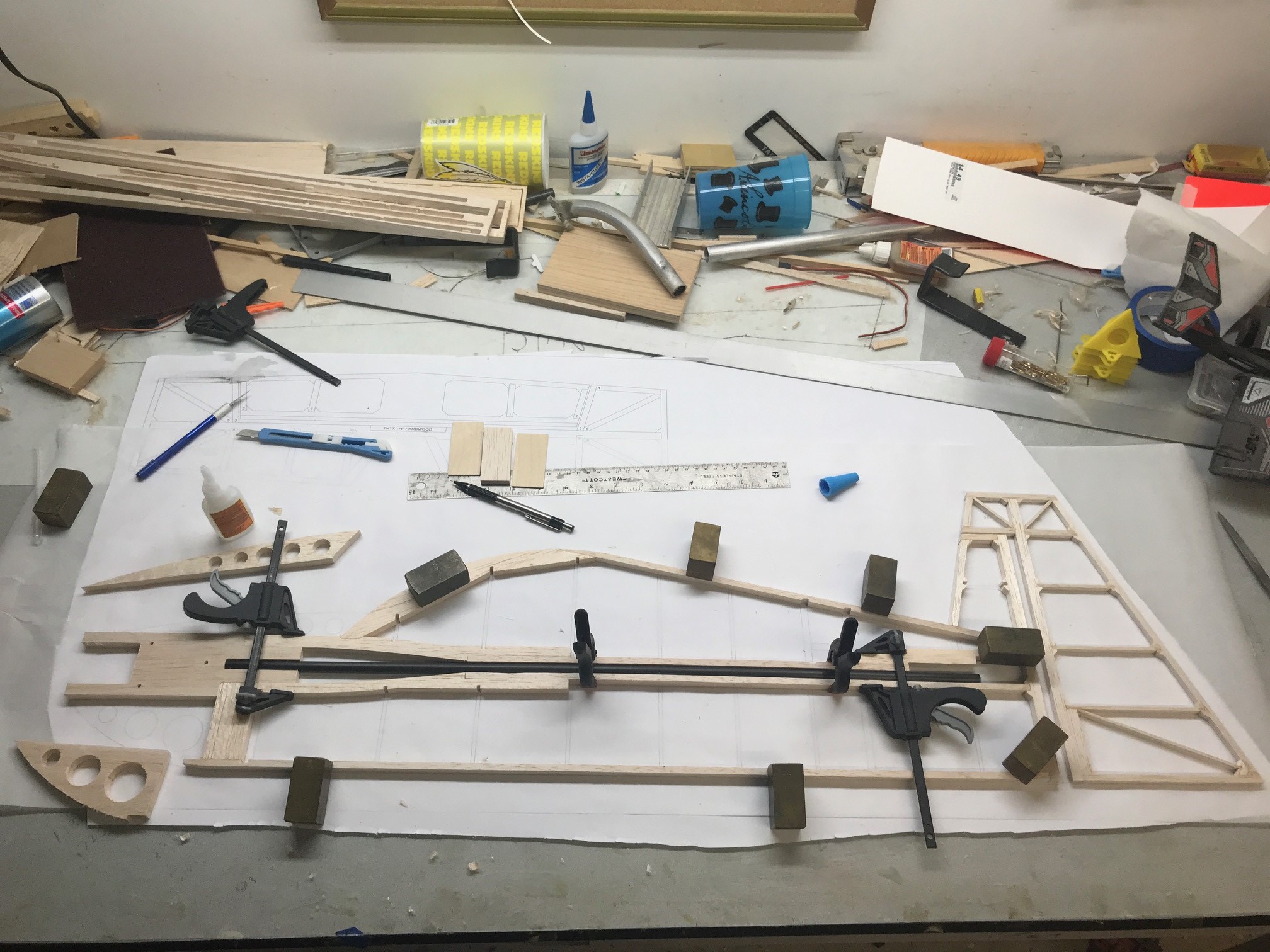

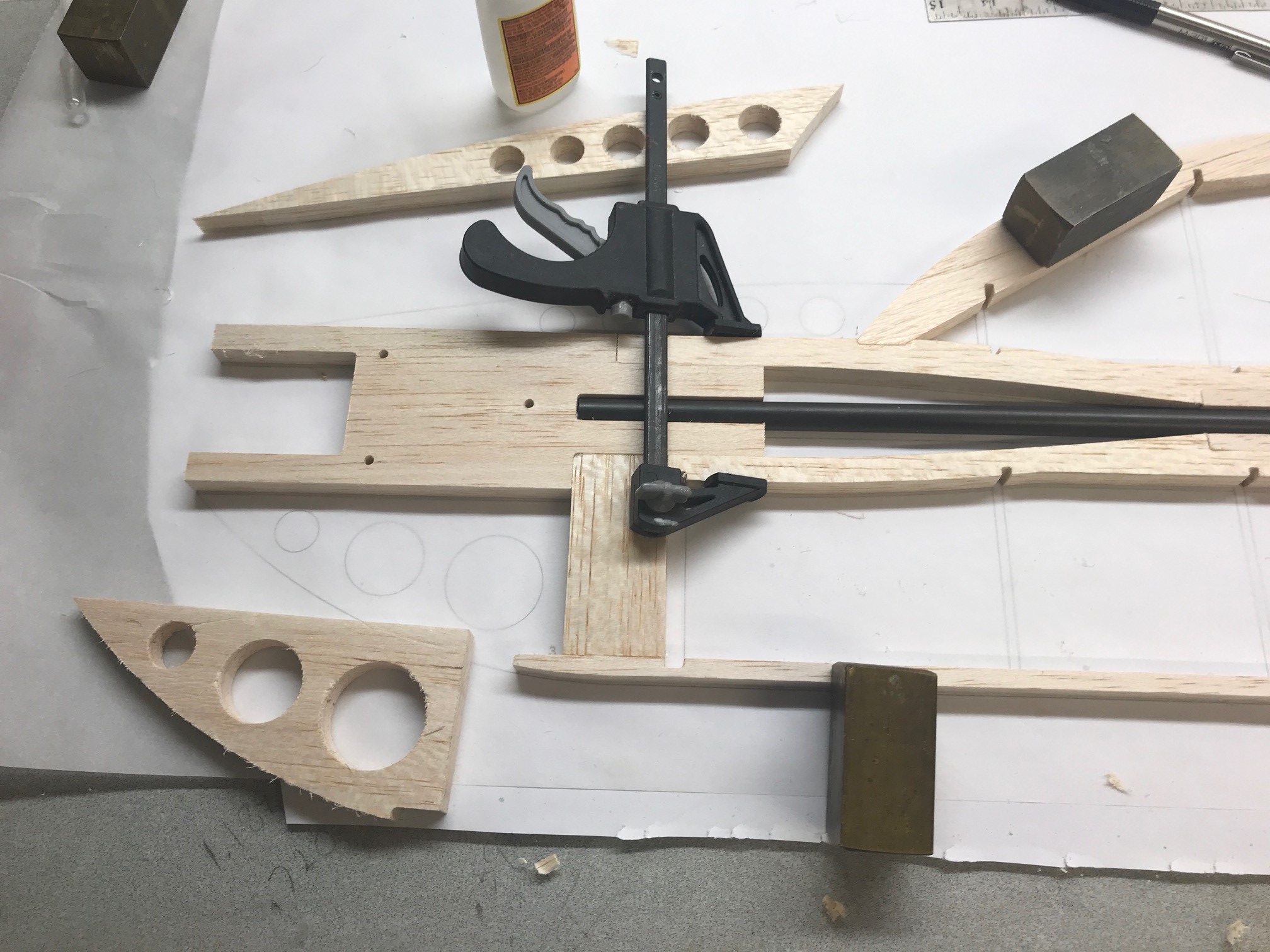

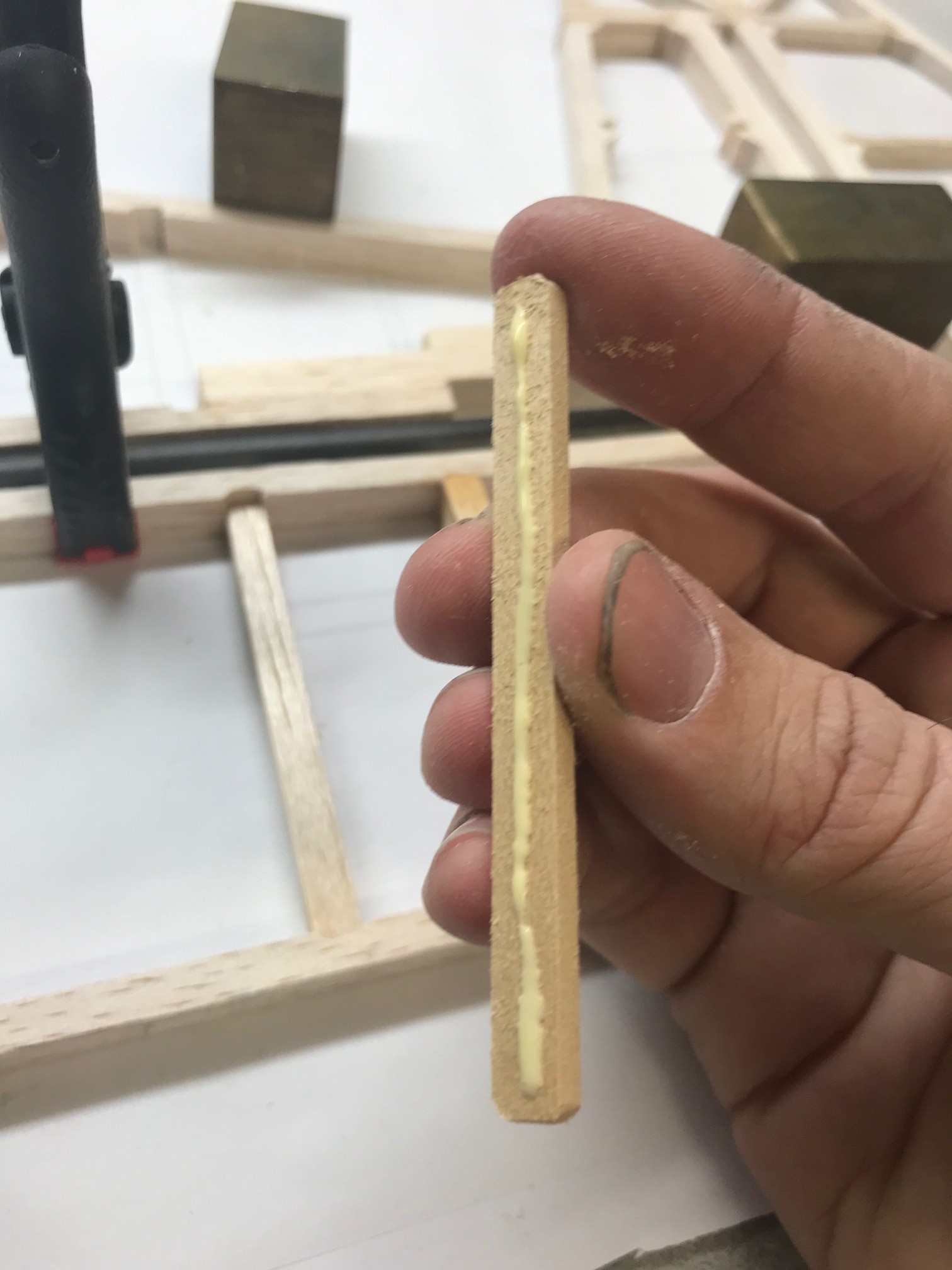

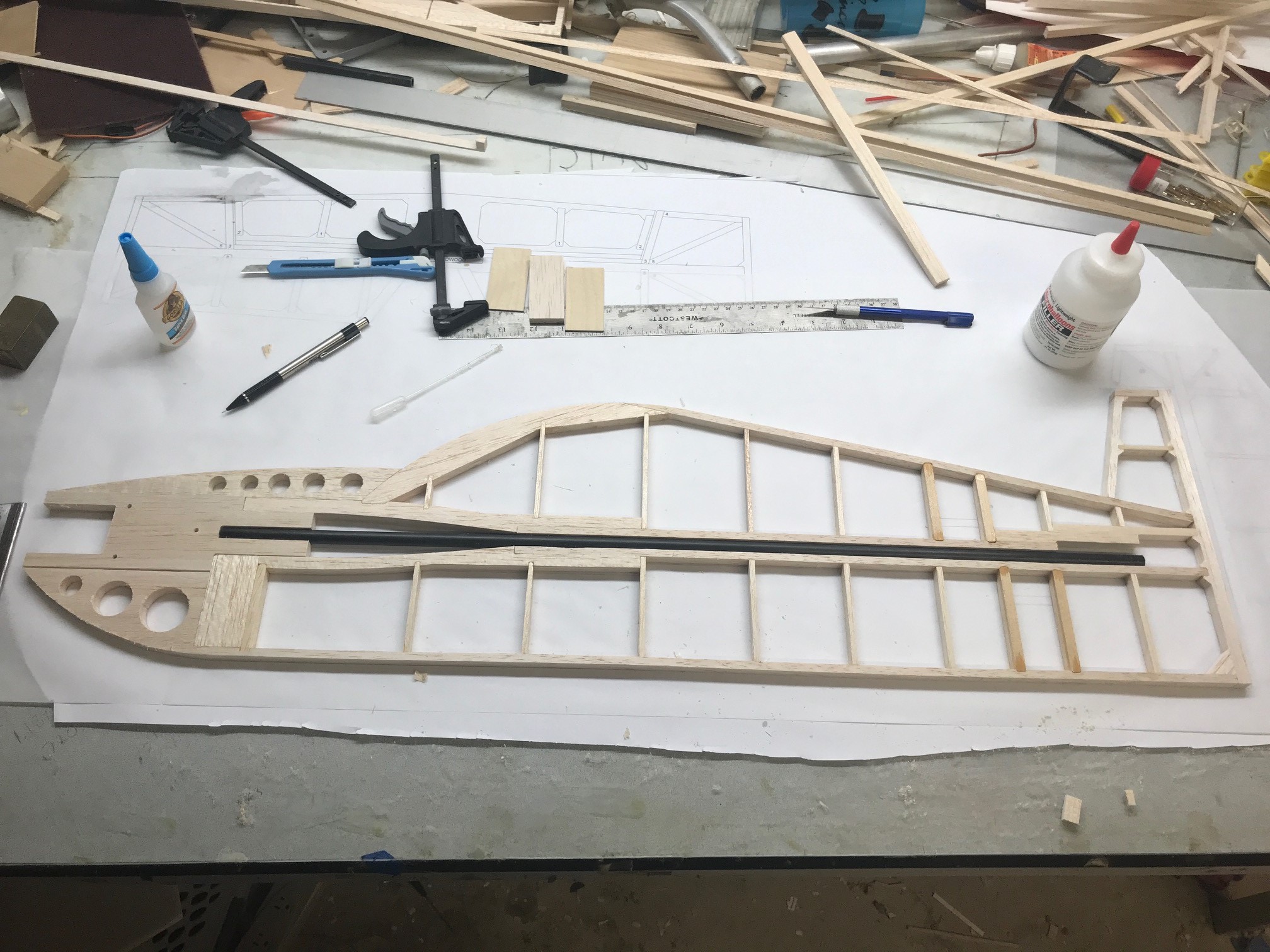

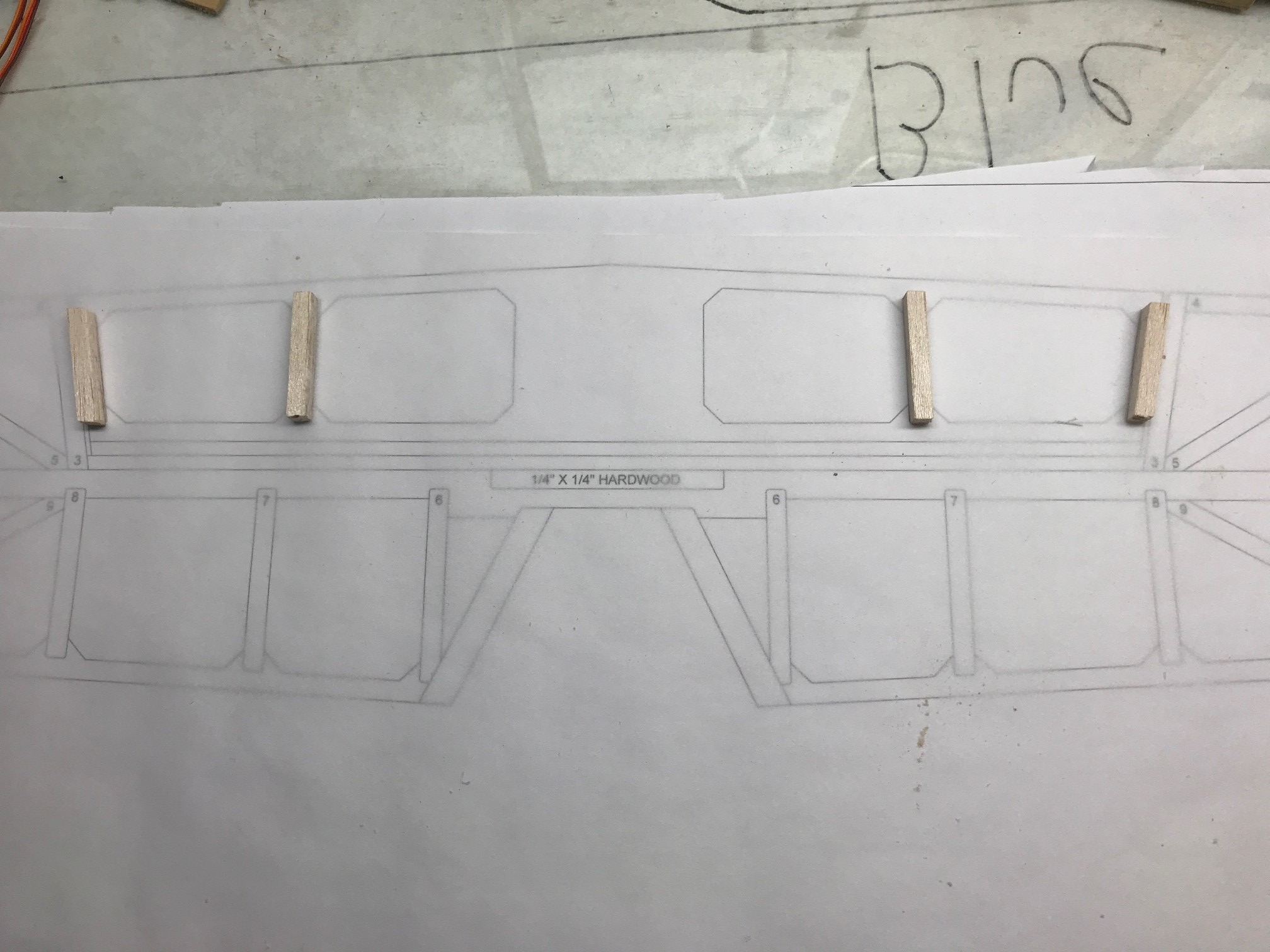

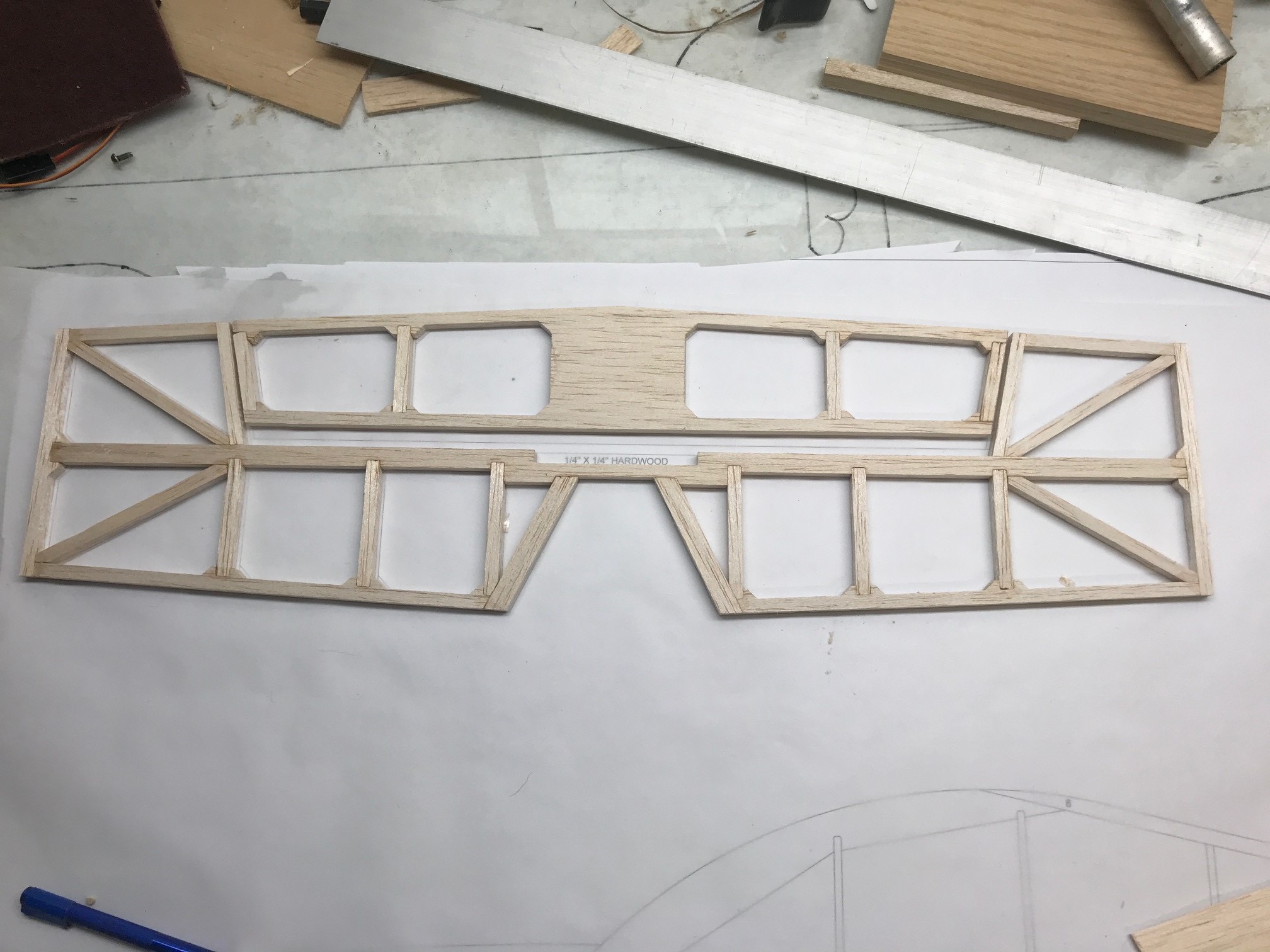

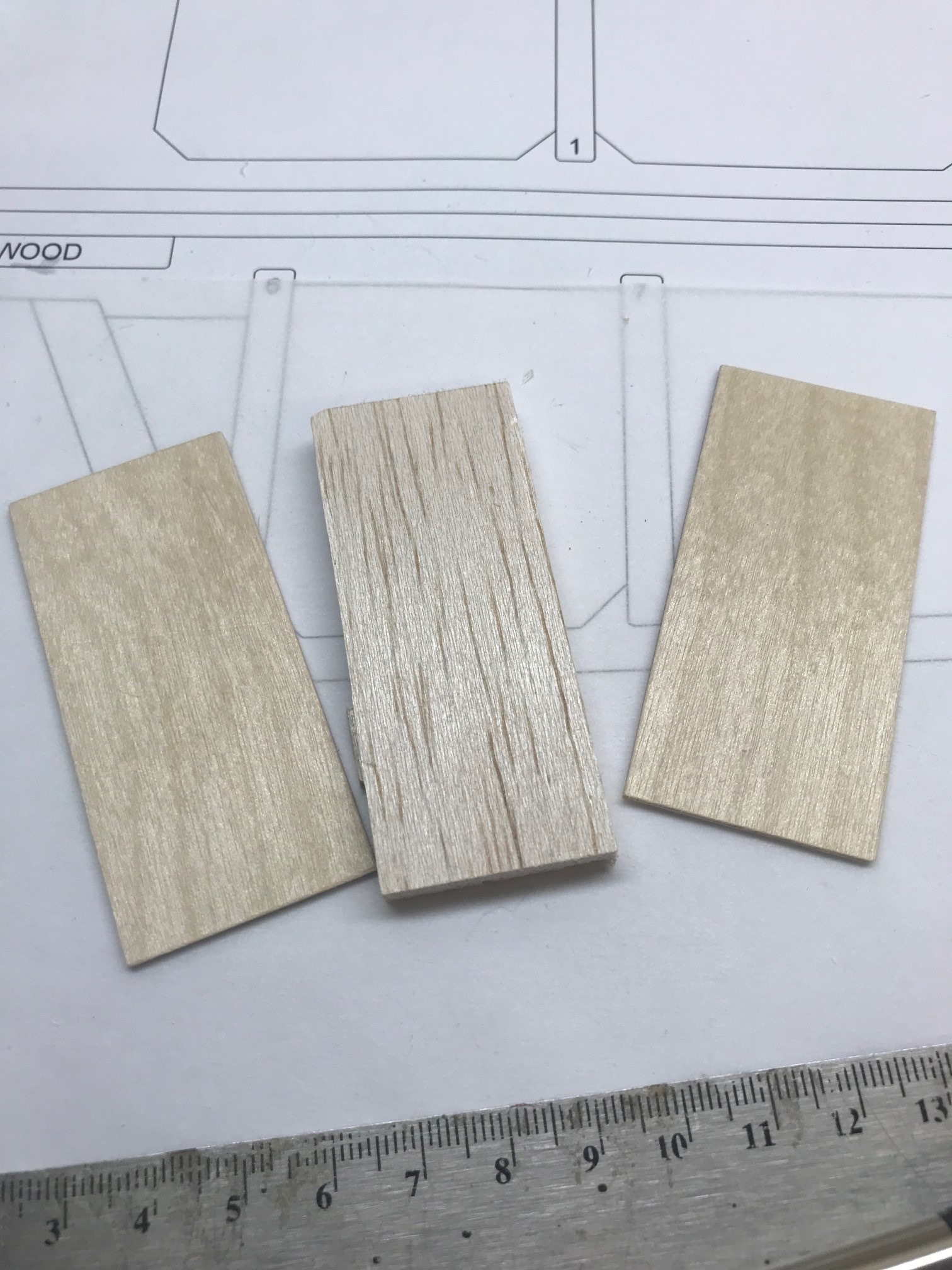

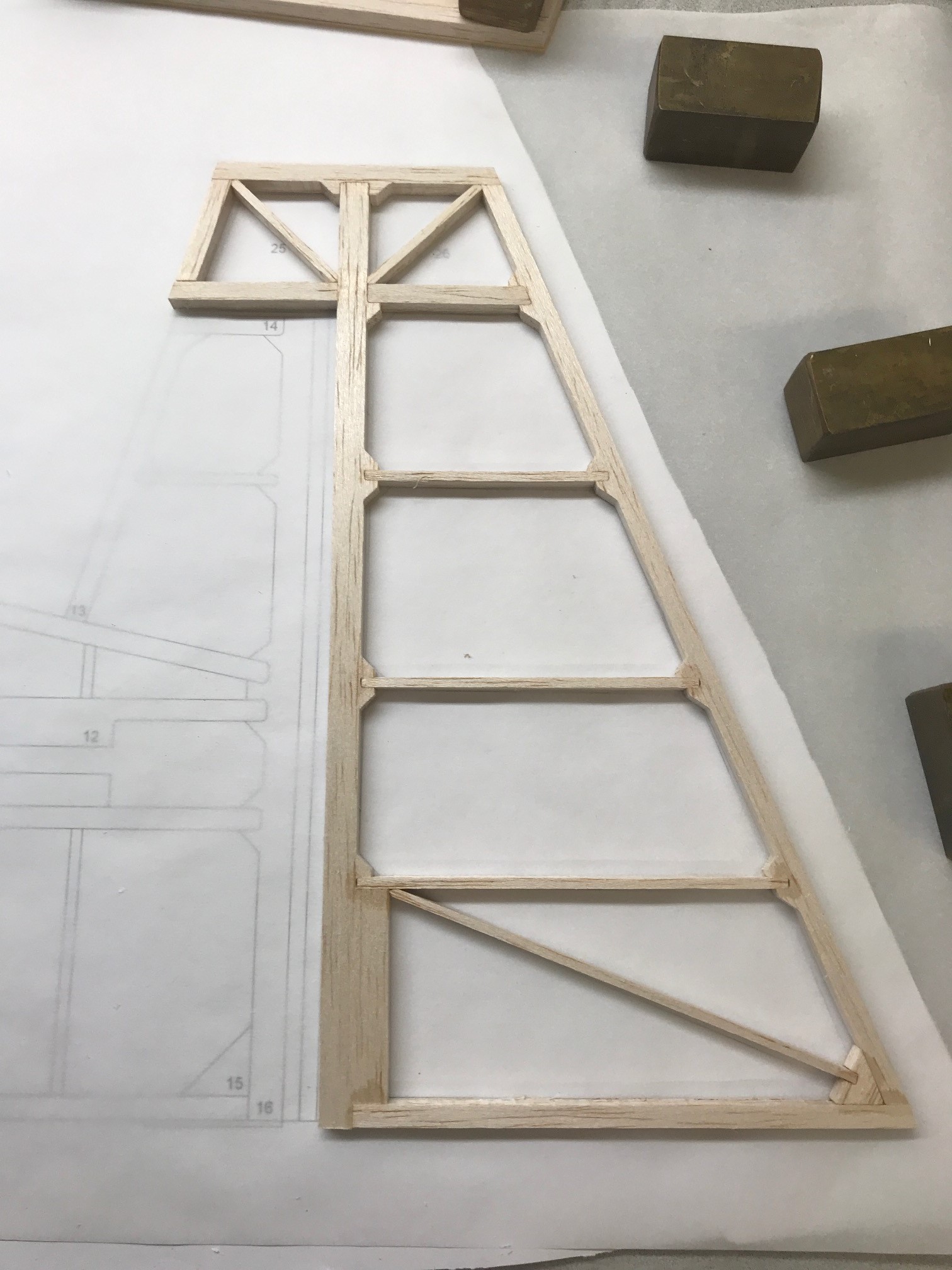

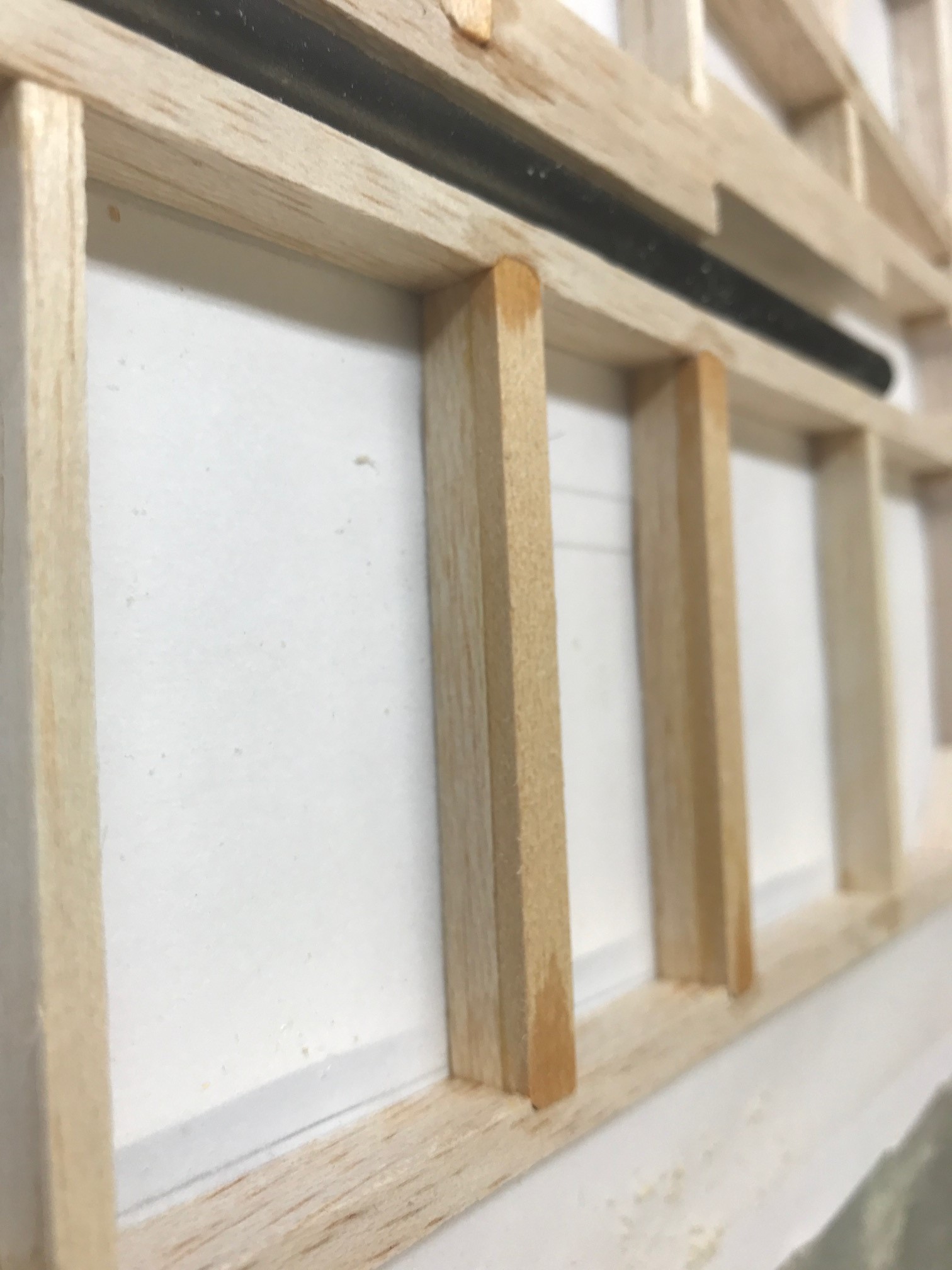

    IMG_5561.JPG Framework for inside of stab. IMG_5562.JPG Elevator and stab all built. Need to sheet one side of the stab and then glue on tristock to both. Stab ends up 1/16" thicker than elevator is because of sheeting. IMG_5563.JPG Just your normal looking rudder IMG_5564.JPG Fuse cut parts just laid in place. IMG_5581.JPG Cut parts right after coming off of the CNC machine. IMG_5583.JPG Stab sheeted IMG_5584.JPG Landing gear block option 2. If you plan to install landing gear you will want to laminate these two 1/16 ply parts to the outside of the 1/4 balsa core. I will not be using landing gear and will either catch or belly land in the grass those I'm just installing the 3/8" thick landing gear block instead. IMG_5585.JPG 3/8" tube cut to length and cut parts clamped to it. Do no I repeat do not glue the tube in at this time. IMG_5586.JPG Close up of the clamp around the motor mount area. Another do no is no not glue to the motor mount. It still needs to be laminated with ply on both sides and will be the very last piece installed on plane when doing final glue up after it is covered. IMG_5587.JPG Parts that have a larger gluing area I like to mark the edges and then run a bead of medium CA and glue in place instead of trusting that thin CA will get into the entire joint. IMG_5588.JPG Servo rails in the tail of the plane. Pick which side you want your servos installed on. You can do the entire rail as bass wood but I prefer to first glue in a piece of 1/4 square balsa then laminate a piece of bass on top. I do it this way to keep as much weight out of the tail. I like to use wood glue for this as I feel CA doesnt hold to harder woods as well. IMG_5589.JPG Here you can see both rails made up. I do hit the ends with a little thin CA. IMG_5590.JPG Install all the vertical stringers and the fuse is done minus tristock on the rudder post and a final sand. Again note the tube and motor mount are not glued to anything.

    Will post more tomorrow after I get more done.

    49dimes, Luchnia, Snoopy1 and 2 others like this.
  2. Woo Hoo! A build thread! Looking great BD...
    SUBSCRIBED!!!!

    49dimes and pawnshopmike like this.
  3. Thanks for doing the build thread brother. This should be fun.

    49dimes likes this.
  4. Snoopy1

    Snoopy1 640cc Uber Pimp

    4,263
    5,955
    113
    Canada
    Love build threads will enjoy the build and learn some new techniques. Thanks for doing it.

    49dimes likes this.
  5. BalsaDust

    BalsaDust Moderator

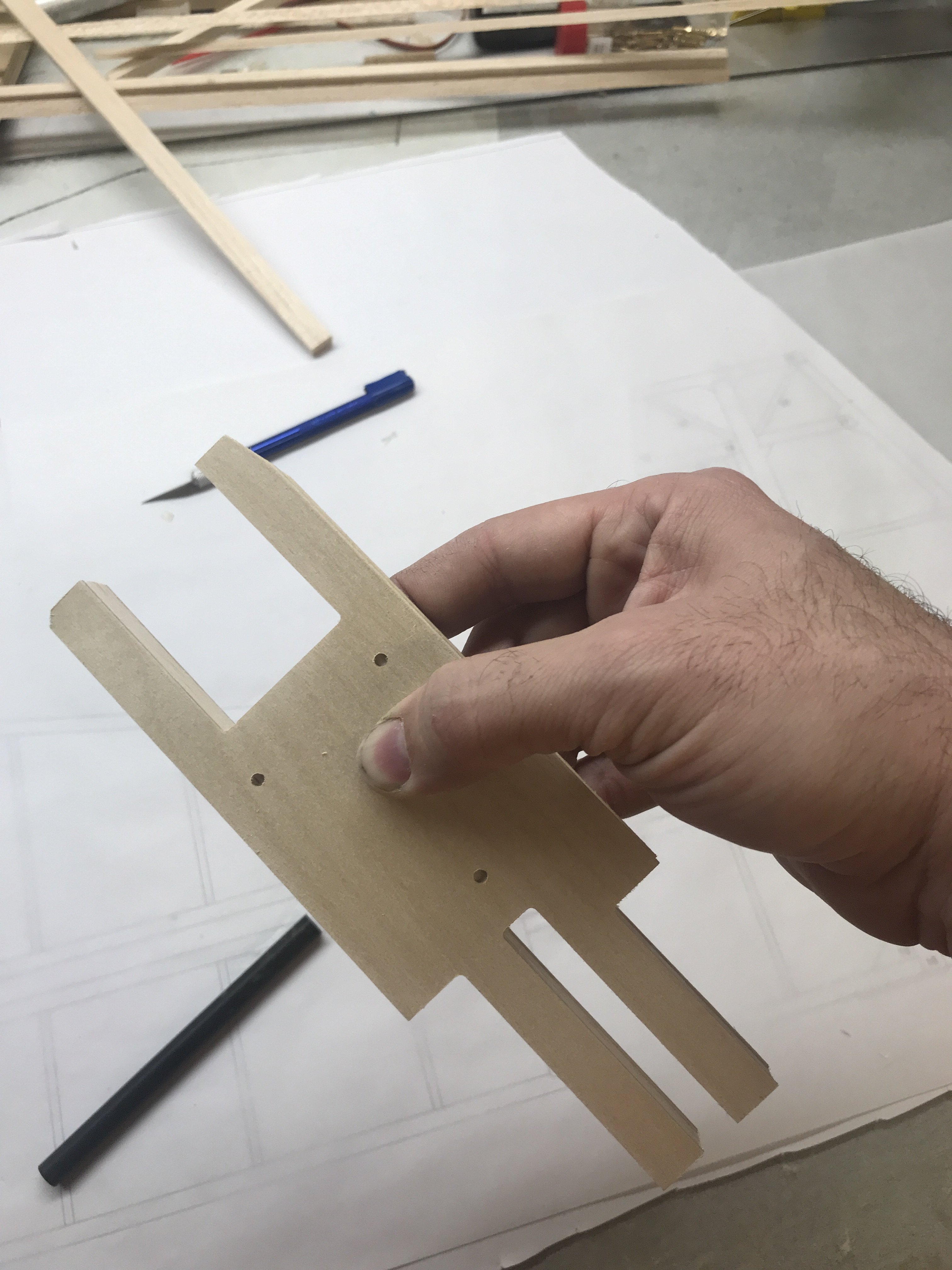

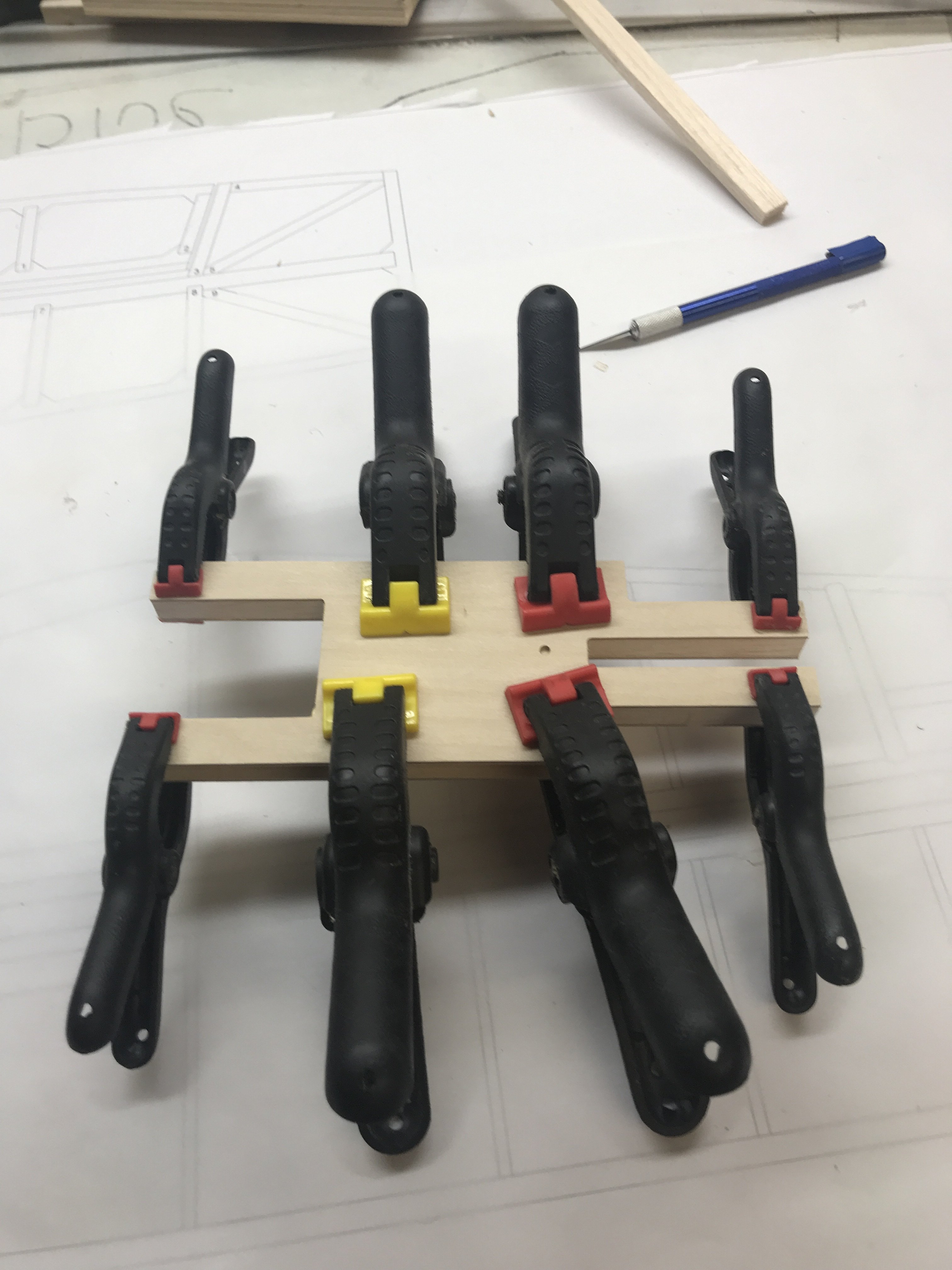

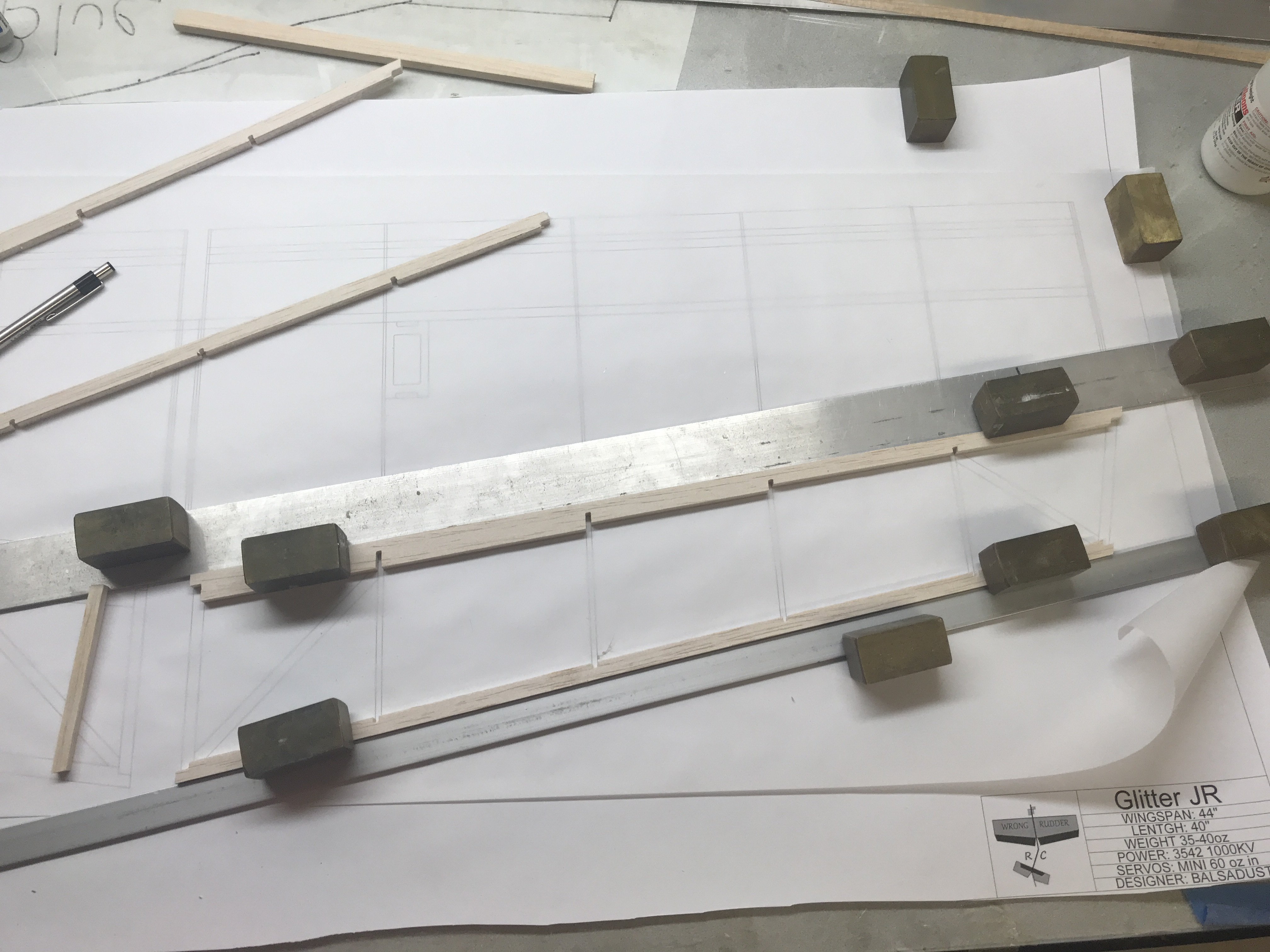

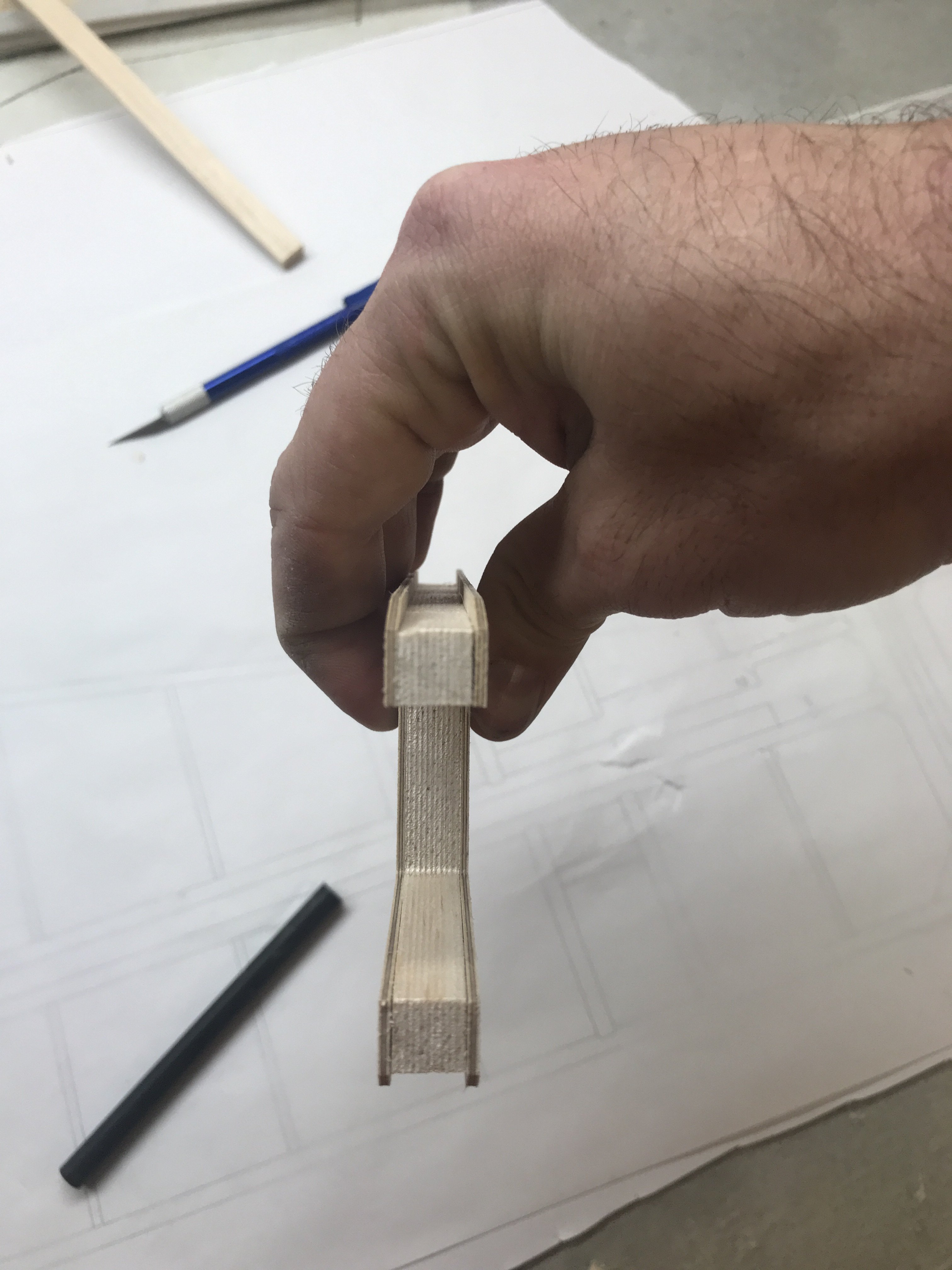

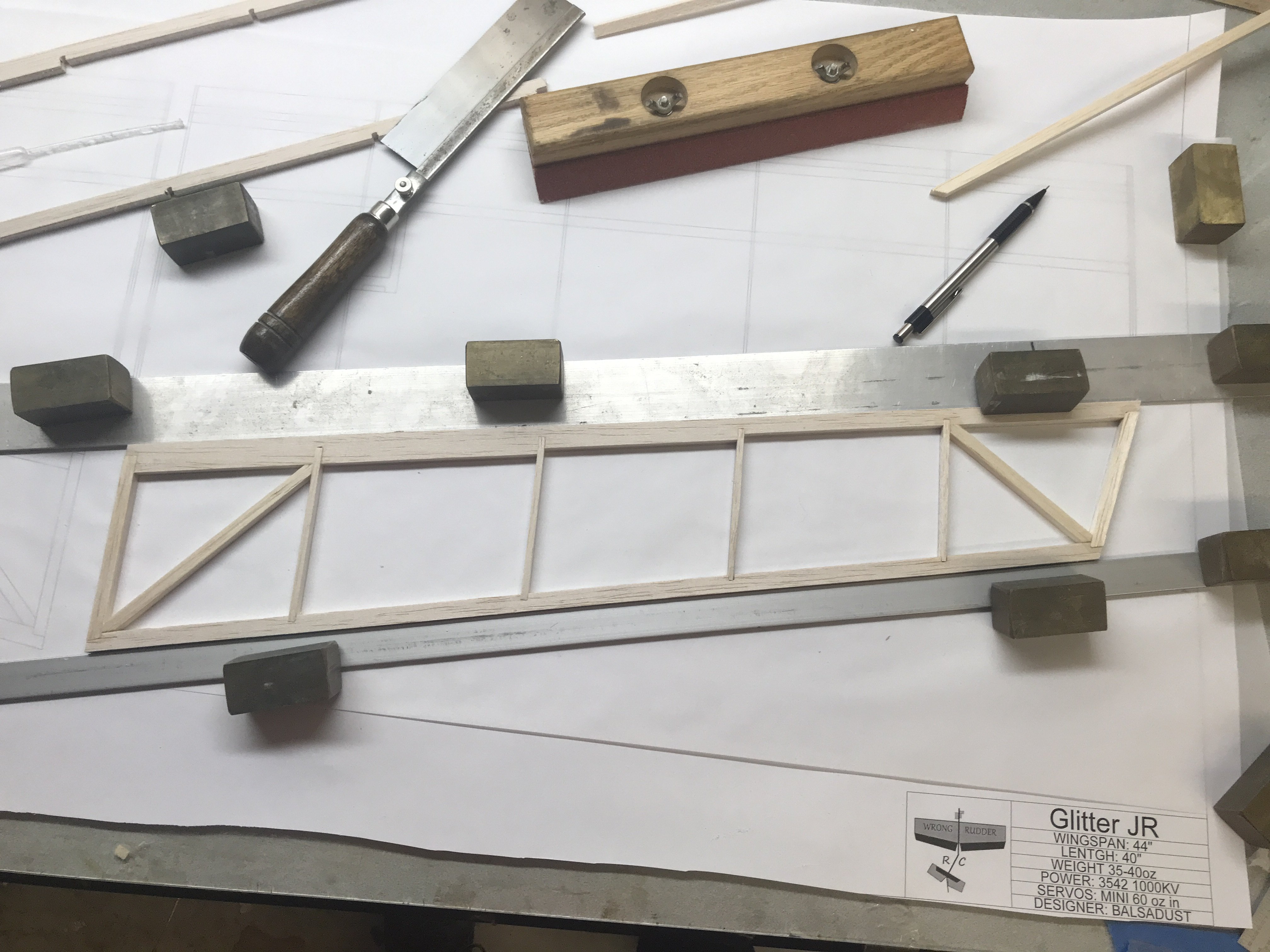

    F77D1783-CEE9-48A8-9C40-9B88D0C61BE6.jpeg Up next is laminating the motor mount it’s a 3/8” balsa core with 1/16” birch ply on both side. This is where I found my second mistake in my CAD work just now the other is in the wing and will point out when I get there. On the motor mount I drew three 1/8” holes that you could install 1/8” dowels I go to align everything. Some how the holes are off so I had to do everything by eye. 60F65F8E-55EF-4591-9B49-BA3D9E6A9009.jpeg When assembling you will have a 1/8” overhang top and bottom that will look like a groove. CD2CEB43-BCA3-430D-8557-03B7672CA53C.jpeg Coat the balsa core with wood glue and line it all up and clamp tight. Since the holes didn’t work for me I put a dab of medium CA in each corner that would set quickly and keep the parts from shifting when clamps where applied. D0D9BD40-5A15-4469-982E-5BA0A4D4B2EF.jpeg Now onto the ailerons. I like to lay a straight edge down at the LE and TE to keep it all straight. C73EC078-94C2-4253-9AAB-7AB97D35E70C.jpeg Only the LE and TE are CNC cut for the ailerons but a single stick of 1/4” square balsa and 1/4”x1/8” balsa that are 36” long will be enough to fill in the gaps. I’m thinking of adding the 1/4” square pieces to the cut sheets. E646BAF3-2CB5-4EA1-987F-EBBAAA2102A9.jpeg Lastly if anyone was wondering these are my preferred glues. Tight bond 2 wood glue for all laminations. For thin CA I only use Bob Smith Industries and you can get it at your local hobby town or order. Hobby town rebrands it with their label but it’s BSI. For Medium CA I normally just get a small bottle of the gorilla glue brand from Walmart. I don’t use a lot of it so it’s not worth buying a big bottle.

    WMcNabb, 49dimes, Luchnia and 3 others like this.

  6. BalsaDust

    BalsaDust Moderator

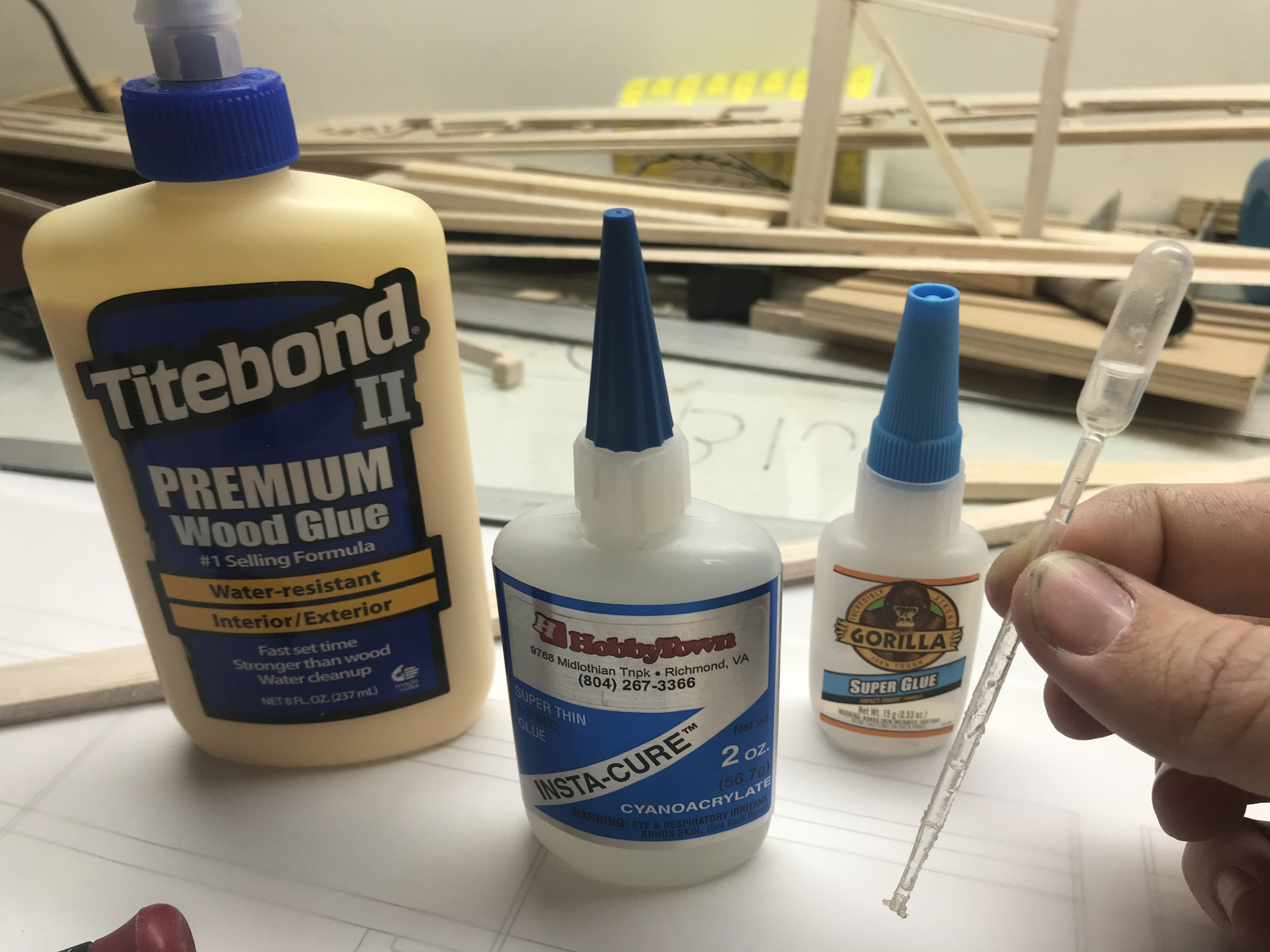

    I forgot to mention in that last photo. For thin ca I like to use the little pipettes to apply it. I find I can control it better and it gets into tight spots.

    49dimes and Snoopy1 like this.
  7. Alky6

    Alky6 150cc

    I’m in too. Looking good!

    49dimes likes this.
  8. 49dimes

    49dimes Damn I'm hungry

    Always "Fun" to see cool fun planes come to life. And is it really a coincidence we use the same glues? NOT :laughing:.

  9. JasonMcD

    JasonMcD New to GSN!

    Thank you for the build log, I can’t imagine how much longer it takes to build when you are also documenting every step. Your pics and descriptions are great!

    Bartman likes this.
  10. BalsaDust

    BalsaDust Moderator


    For reference the prototype I built back in 2015 went from and idea in my head, to maiden in six days. I need to find a picture of it. It was ugly as sin but flew awesome.
