Scale 20cc DHC-2 "Beaver" Kit Build from Moustache Model Works

[TonyHallo]

I seem to remember preparing the surface with steel wool rather than sanding.



[AKNick]

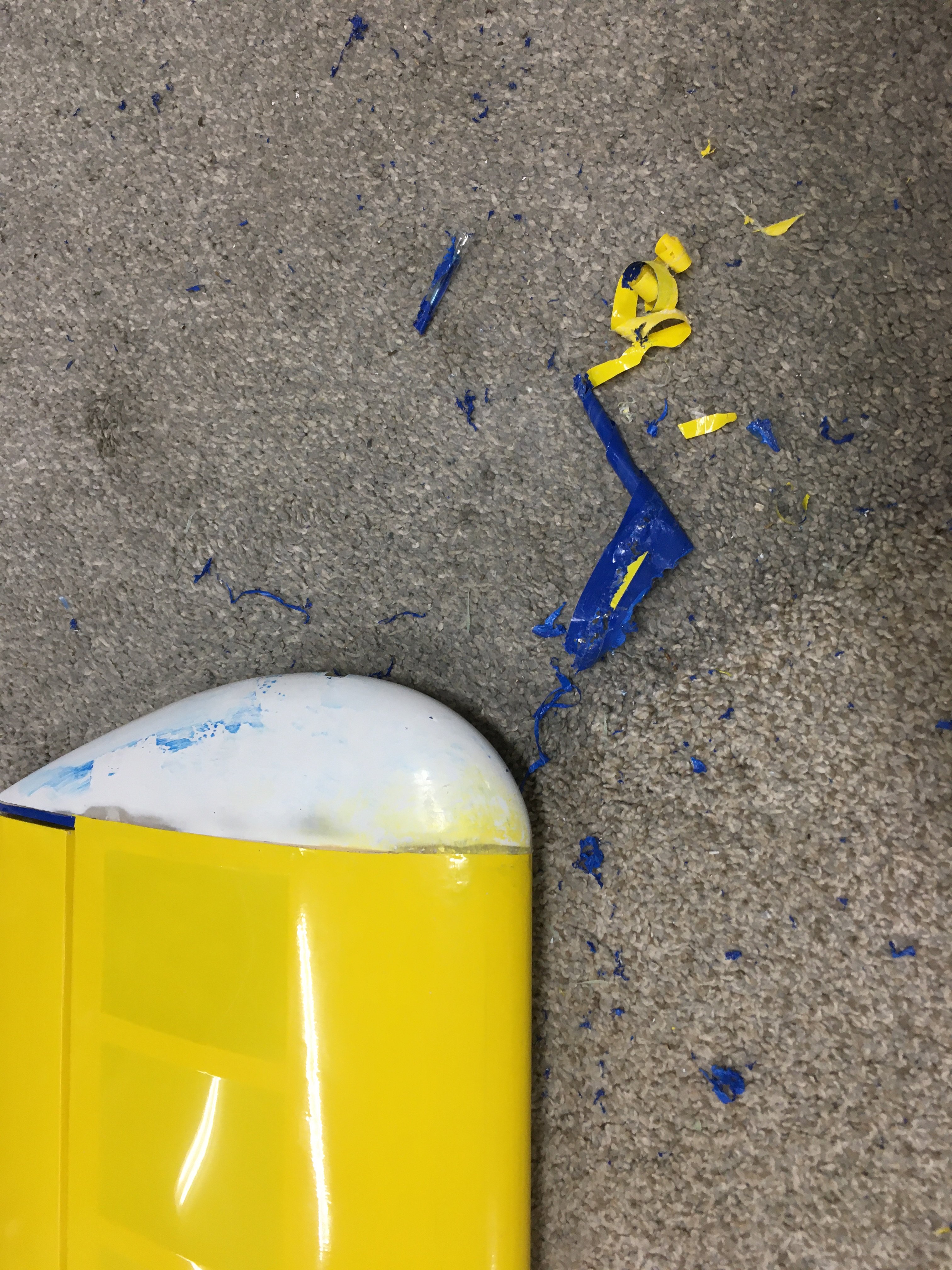

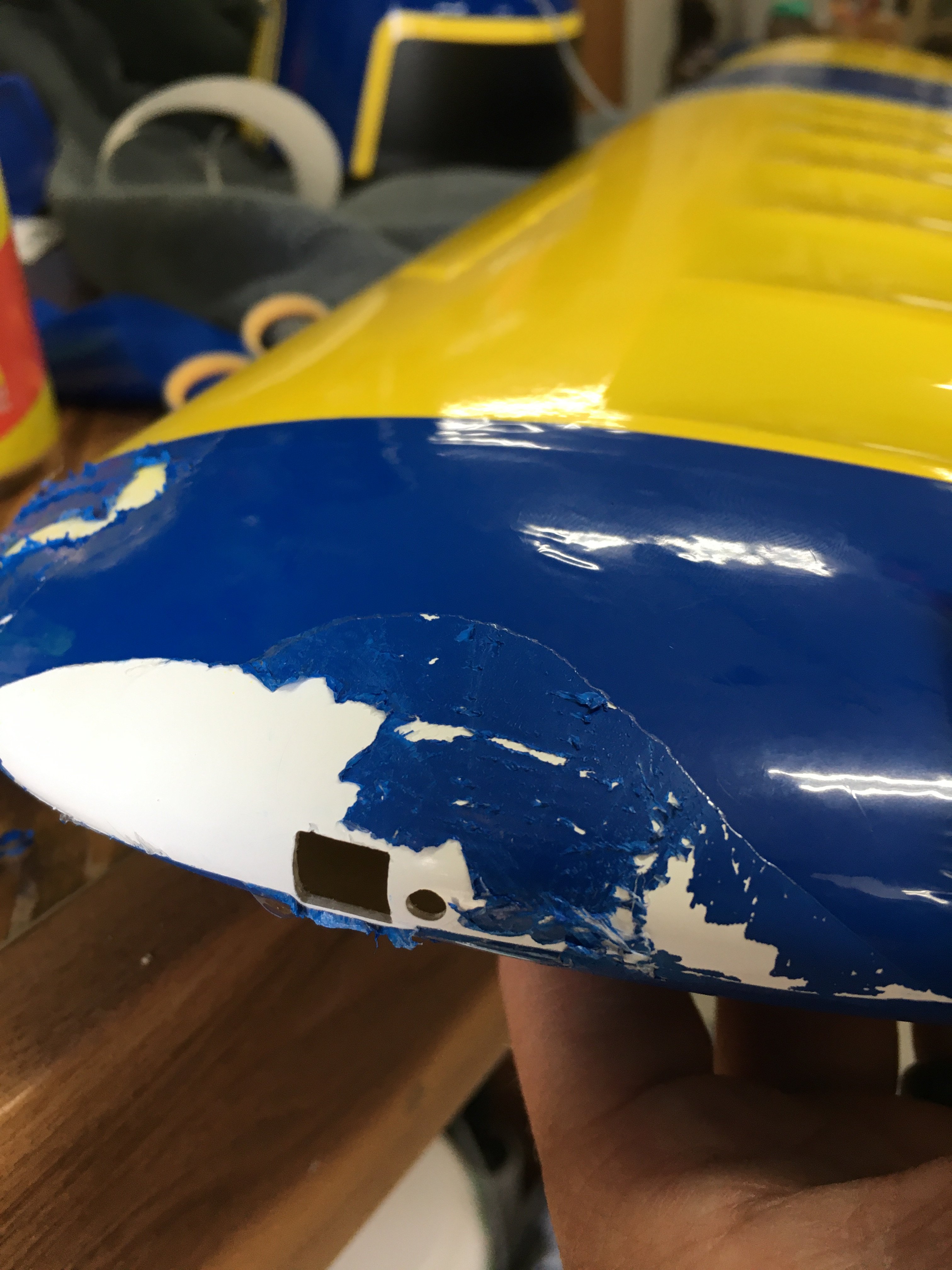

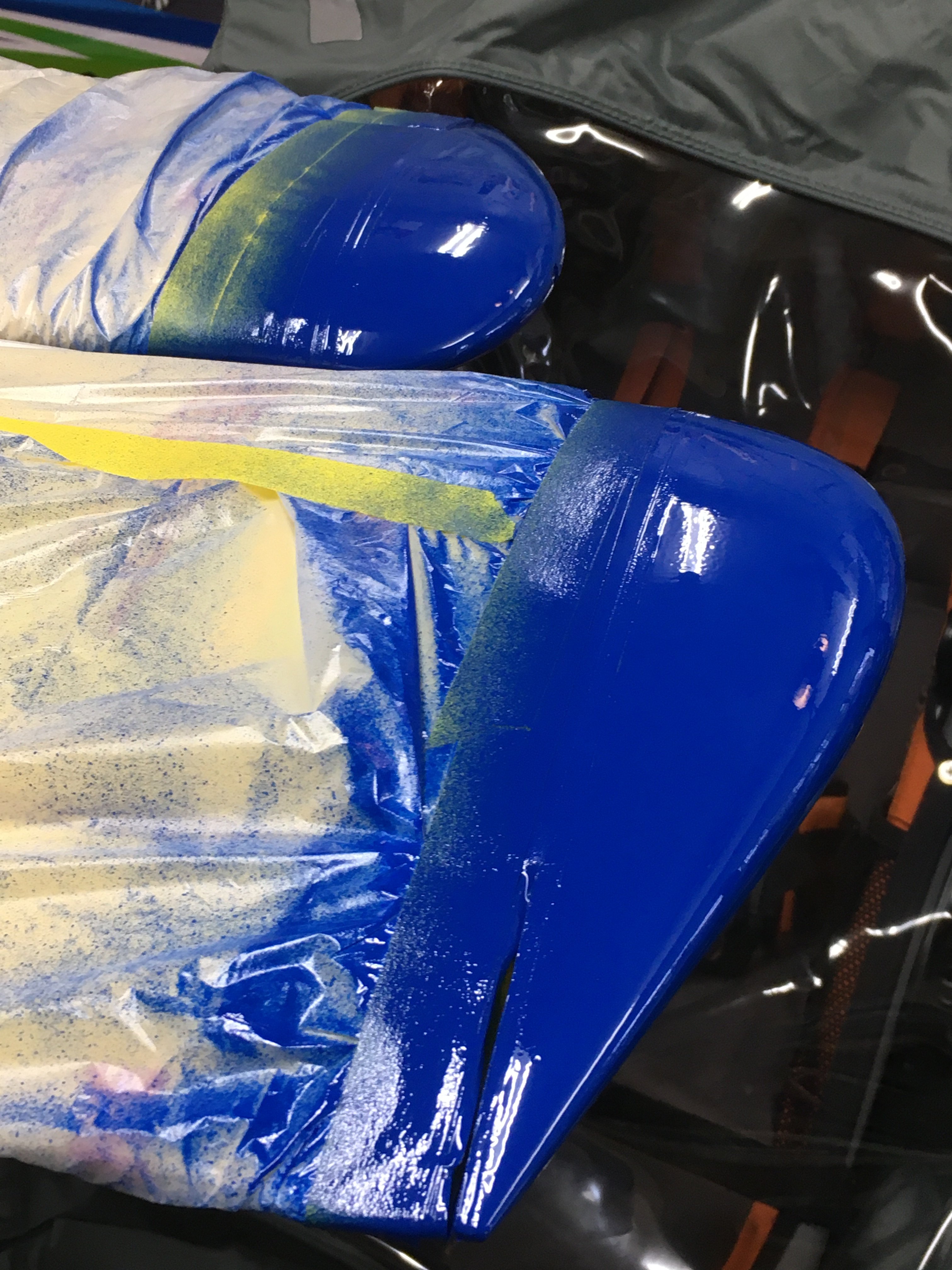

Wingtip update. Turns out the high heat method followed by mini iron circles is the absolute worst for removing the film if need be. . . I spent HOURS removing the covering in preparation for paint. Ended up with four light coats of paint.
I may clear coat it in a week.



[AKNick]

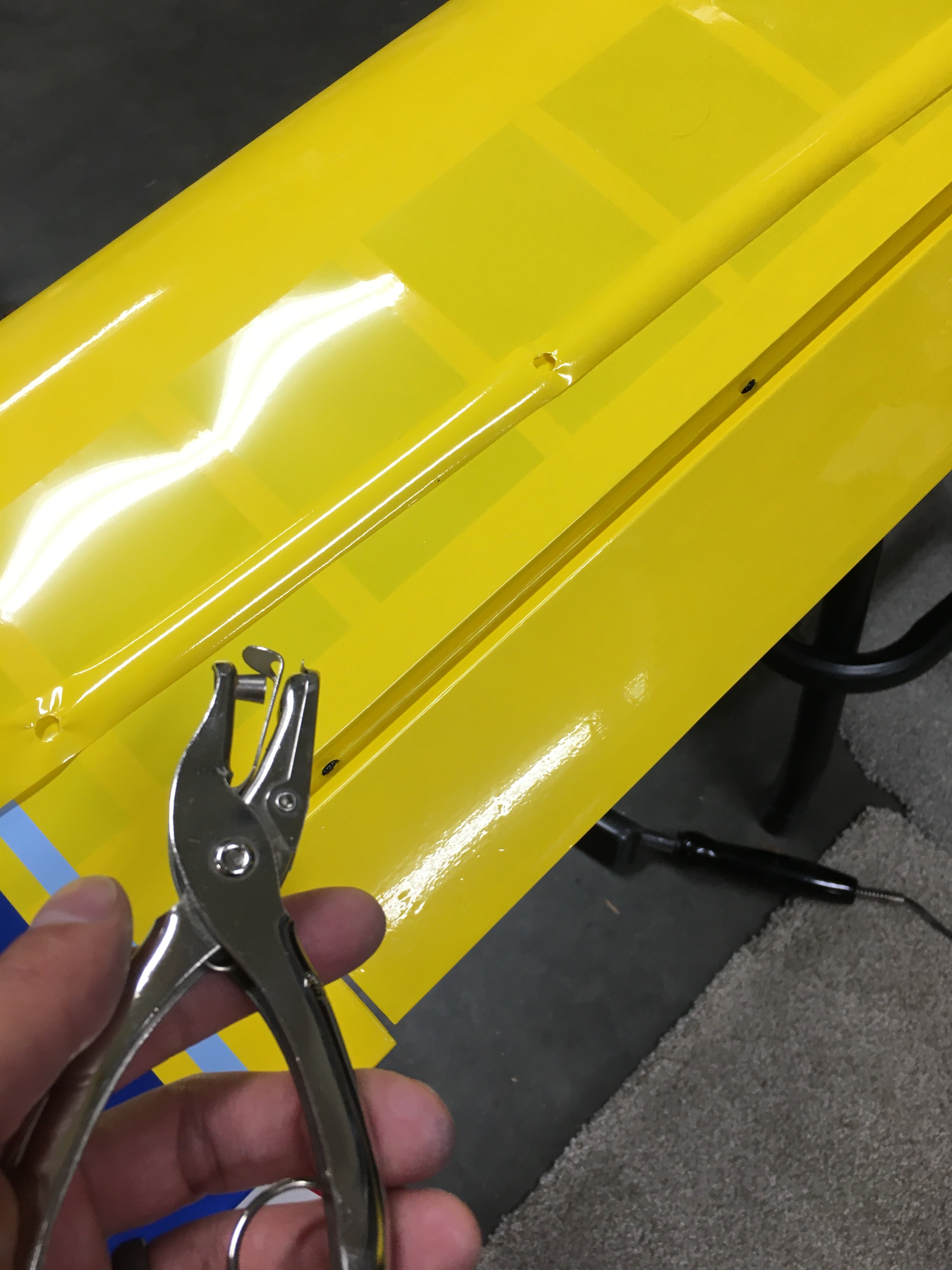

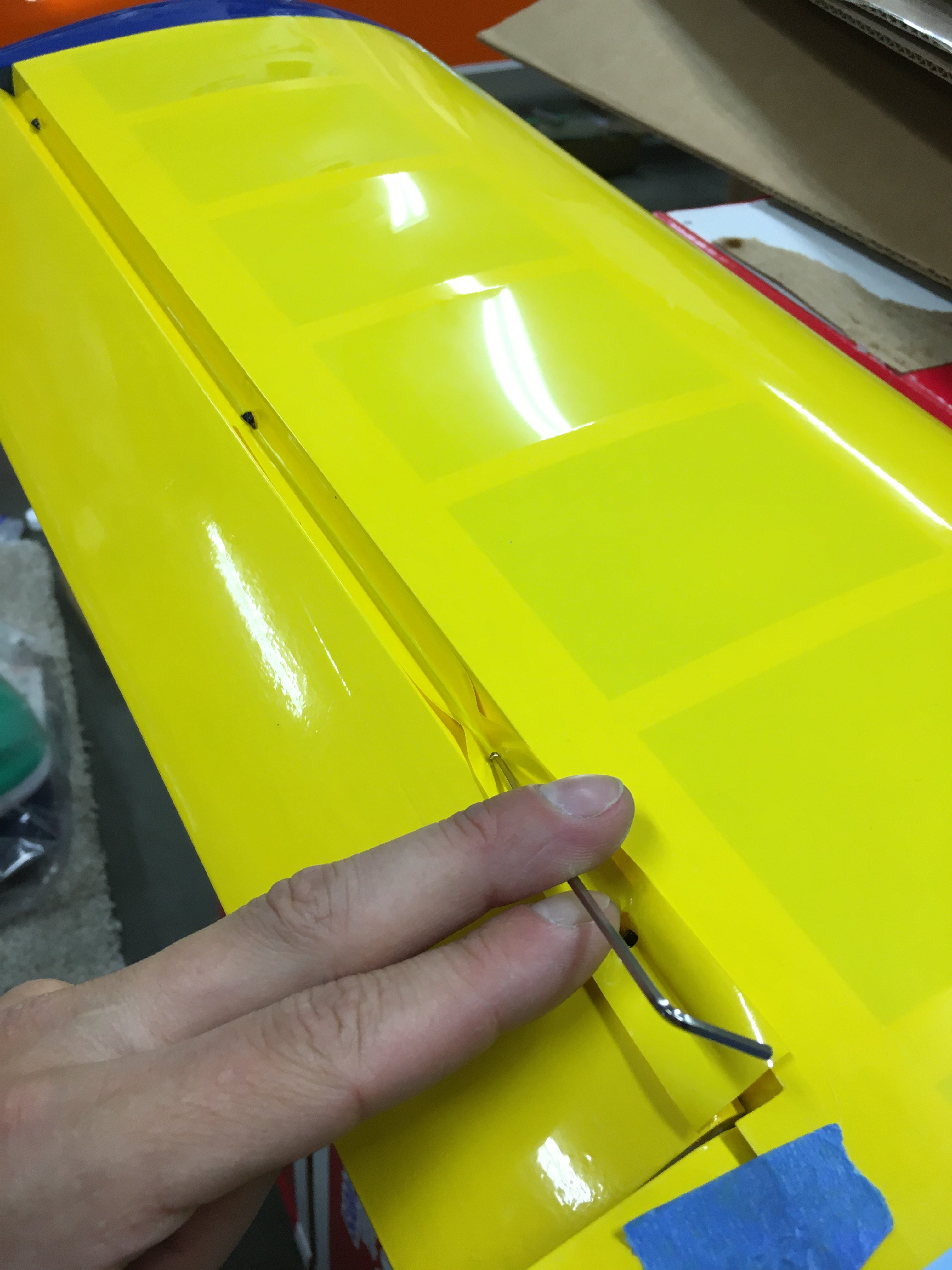

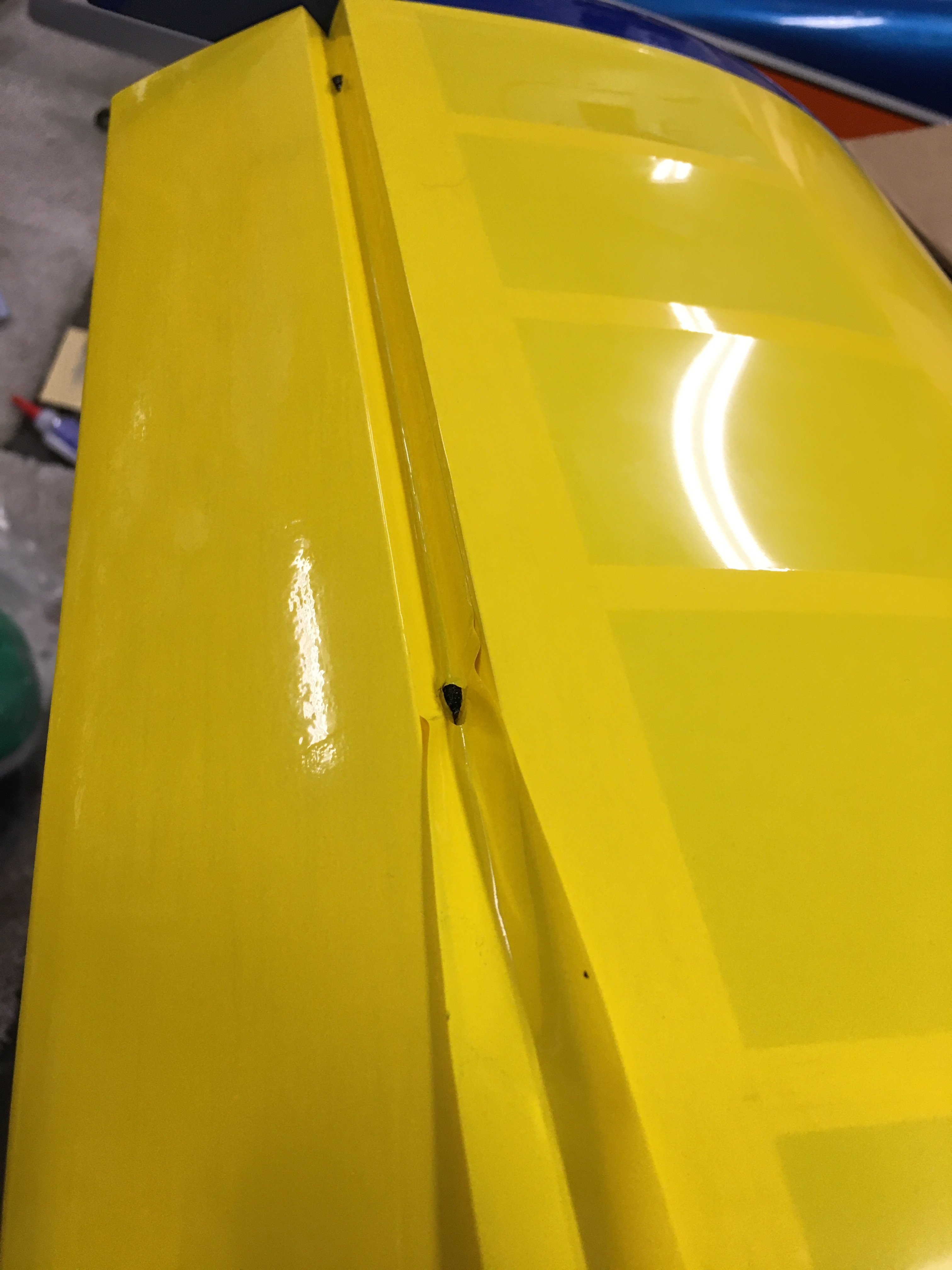

Gap sealed the ailerons with matching ultracote cut to 3/4” strips. Used an incredibly dull hole punch for the hinges as the crinkling sound is just too much for me. LOL



[AKNick]

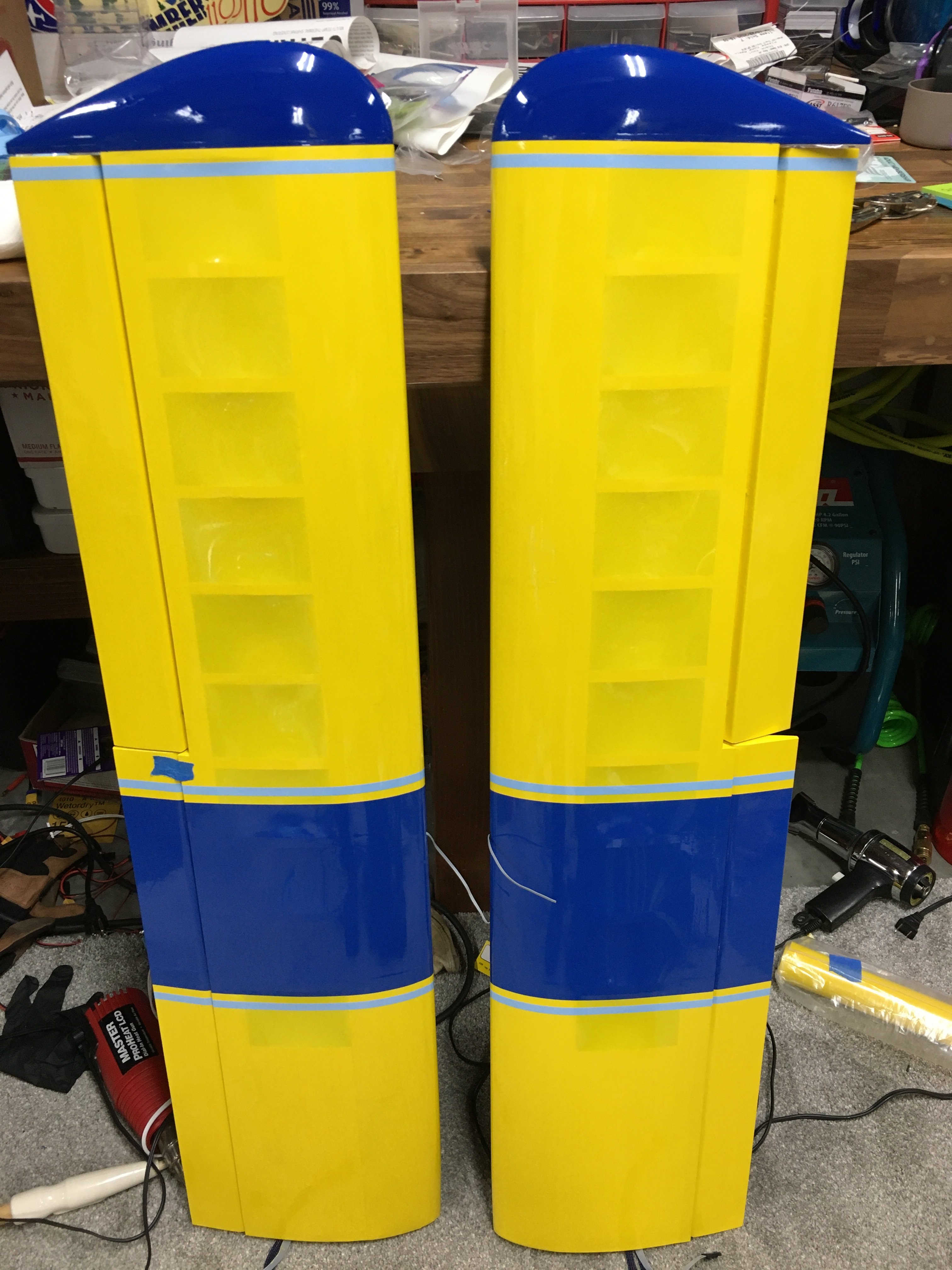

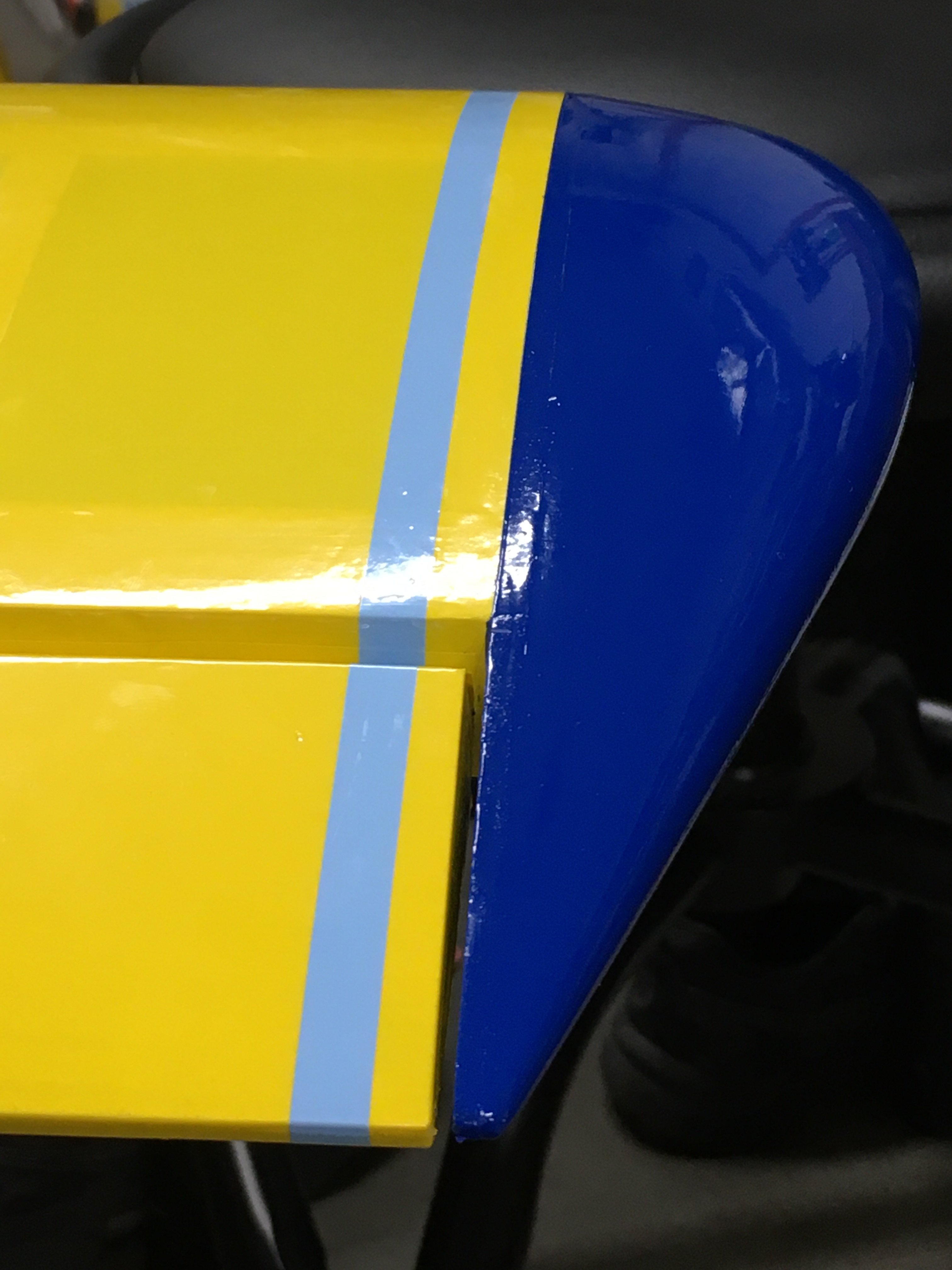

Added my light blue trim line....
Other than the gear... I am basically done with all the iron on covering at this point!!!



[AKNick]

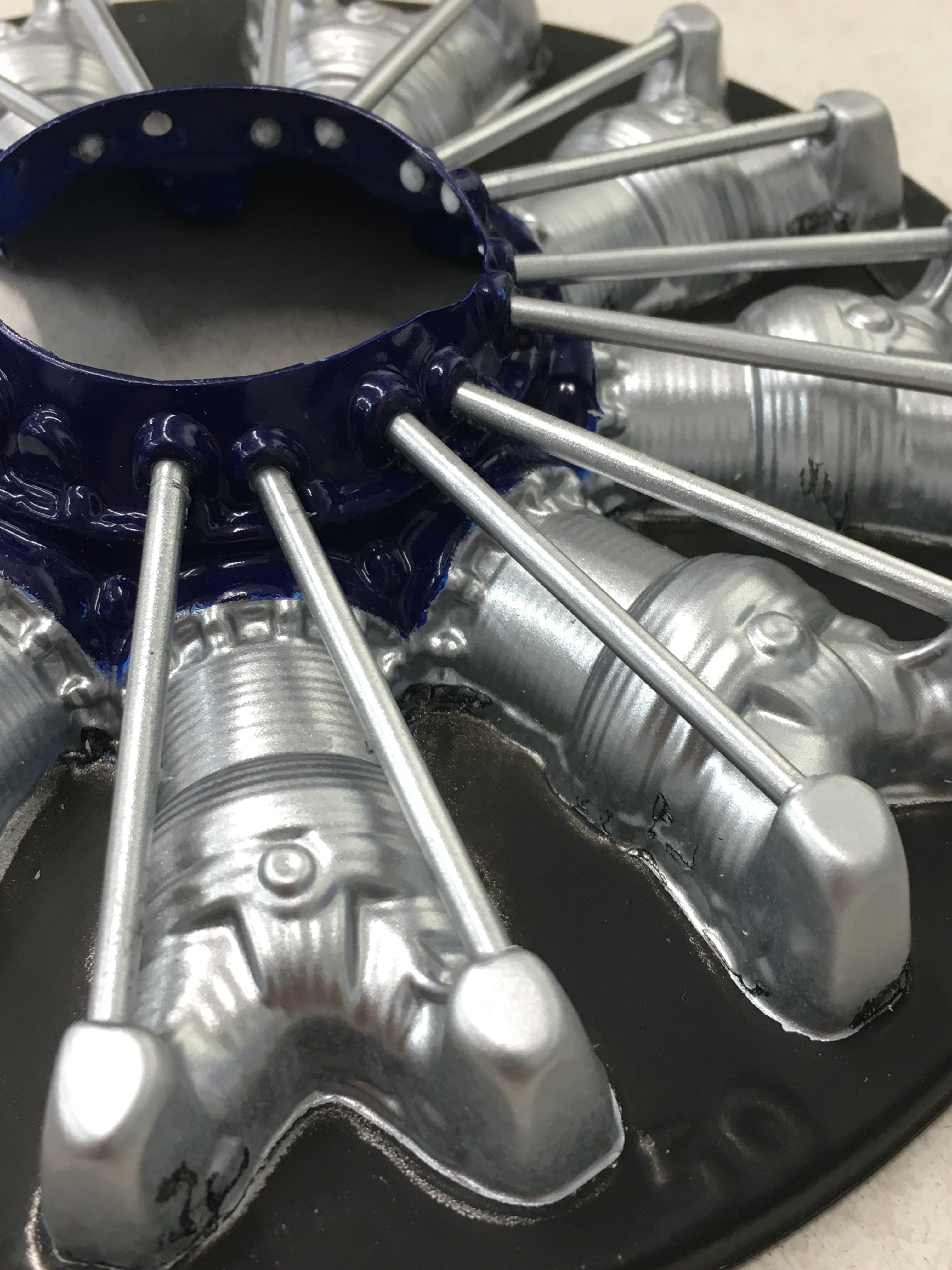

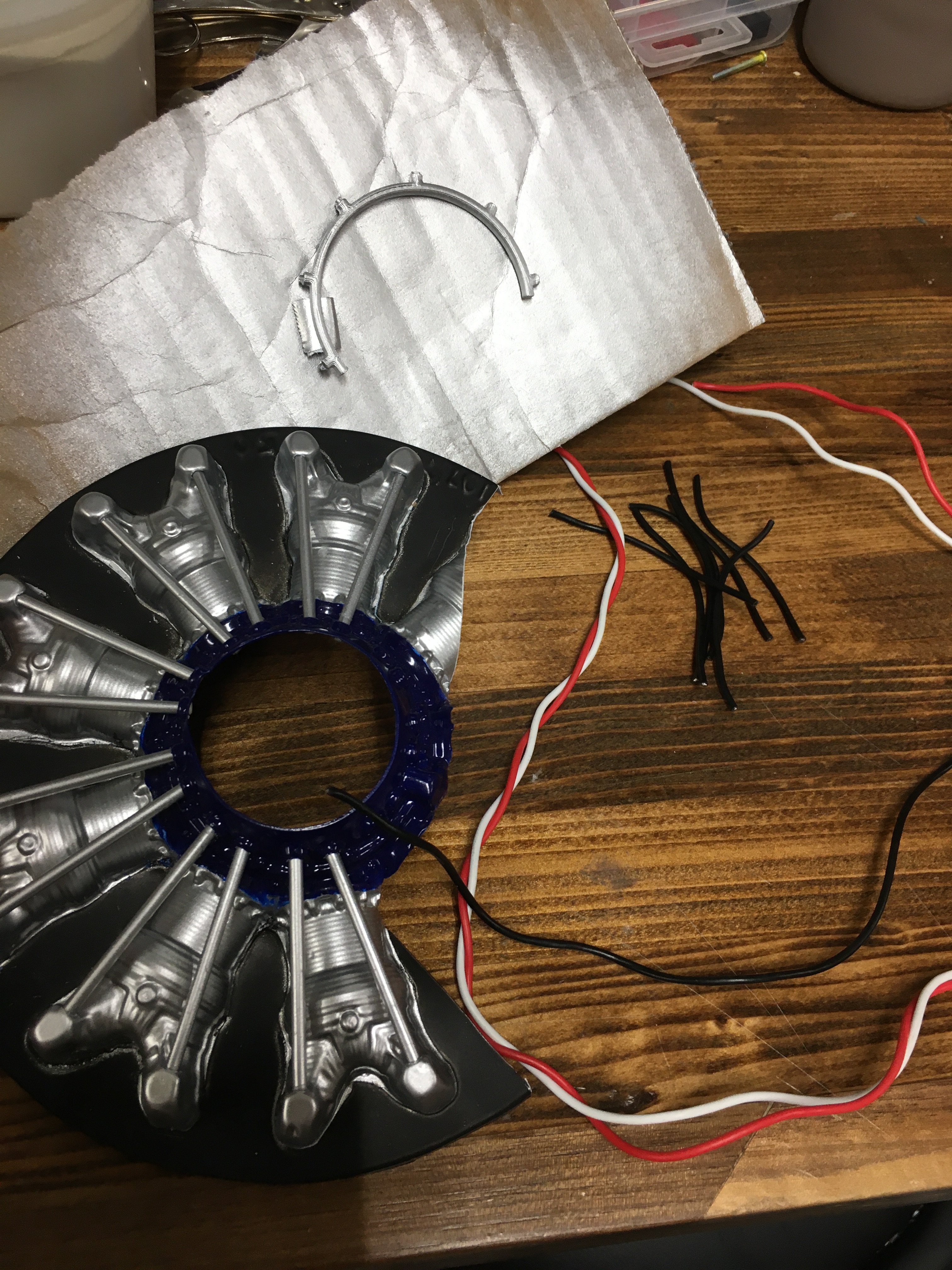

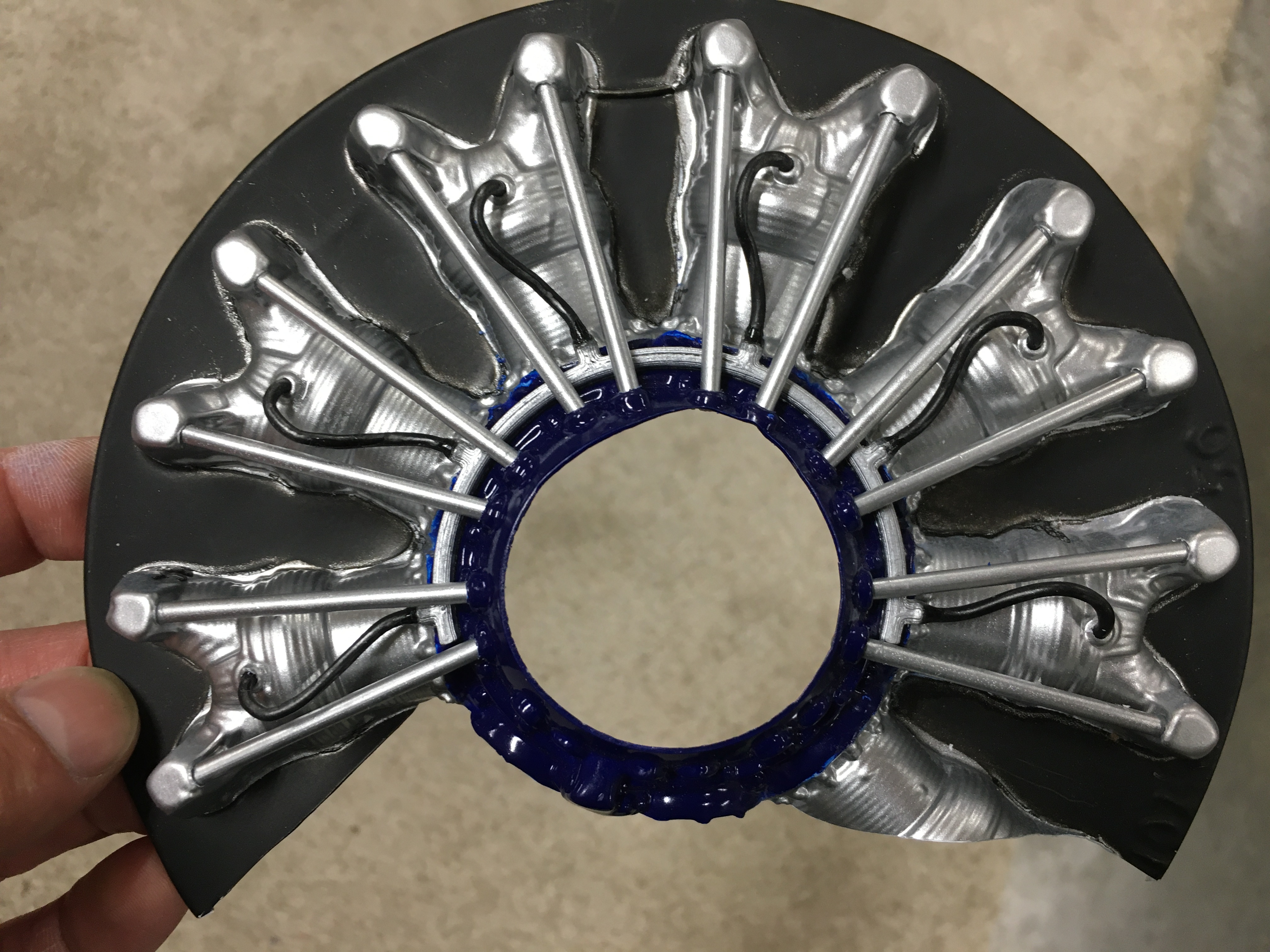

R985 Detailing. I couldn’t remember where I left off... but I made pushrods, designed and 3D Printed an ignition harness.... yeah... LOL
Used 20AWG servo wire for my ignition leads.
Not too bad! Worth the effort. Now I need to glue it to the cowling.



[AKNick]

Been getting some more tinker time on this bird. Worked on the aileron horns. There was a discrepancy in the plans for too small aileron horn blocks. So if your going to use the supplied horns - be smarter than me and make sure the blocks are big enough for them.

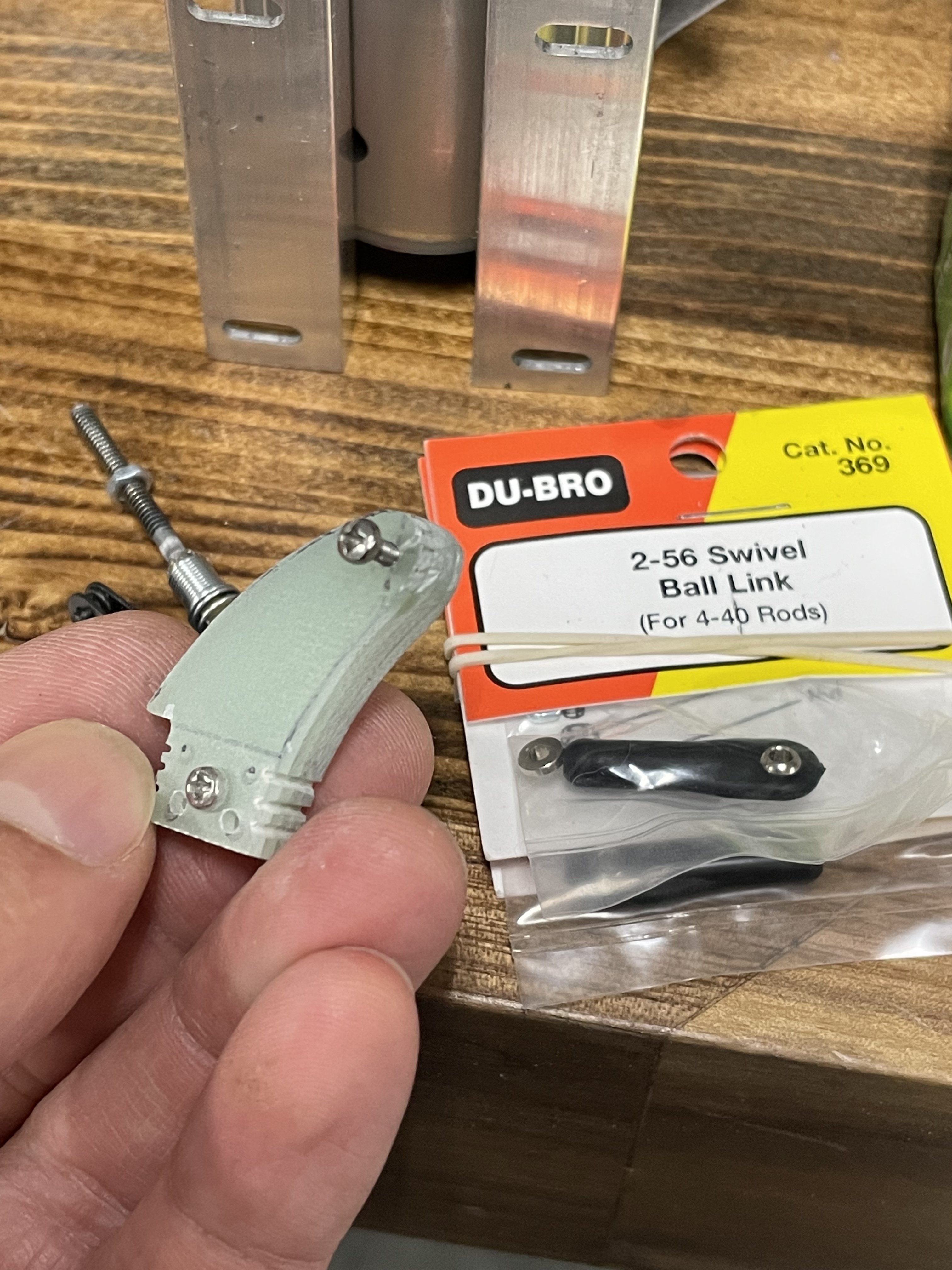

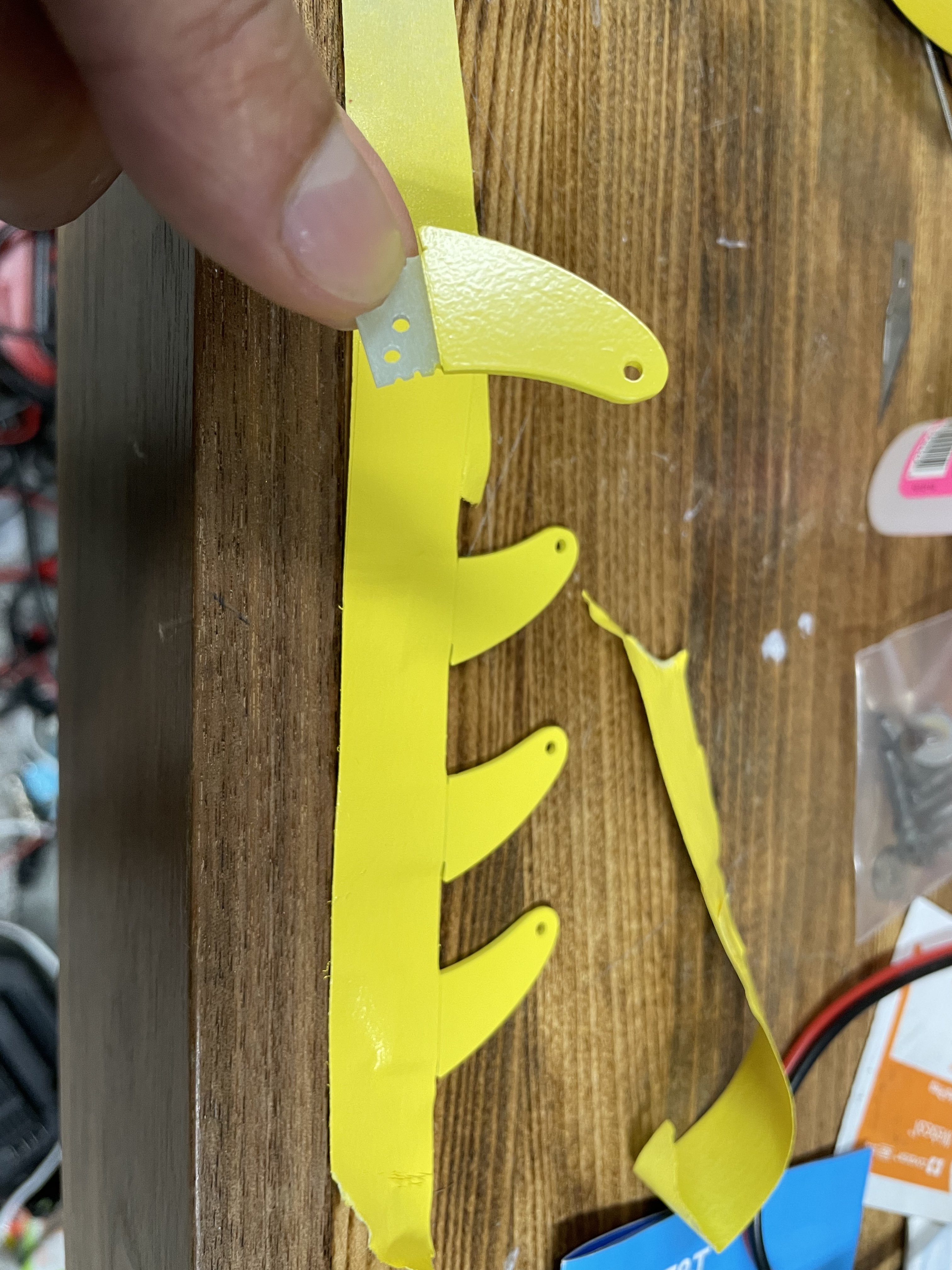

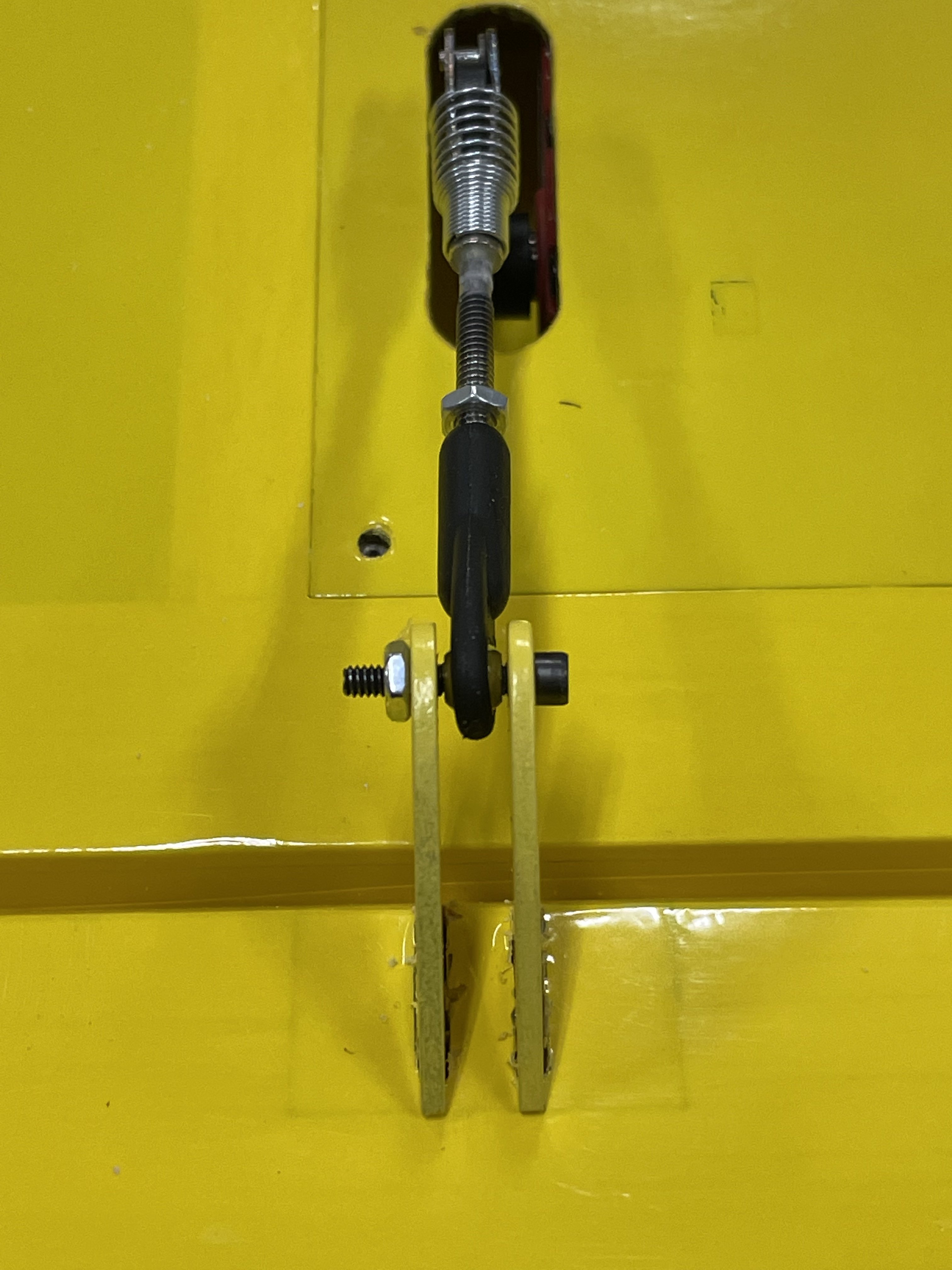

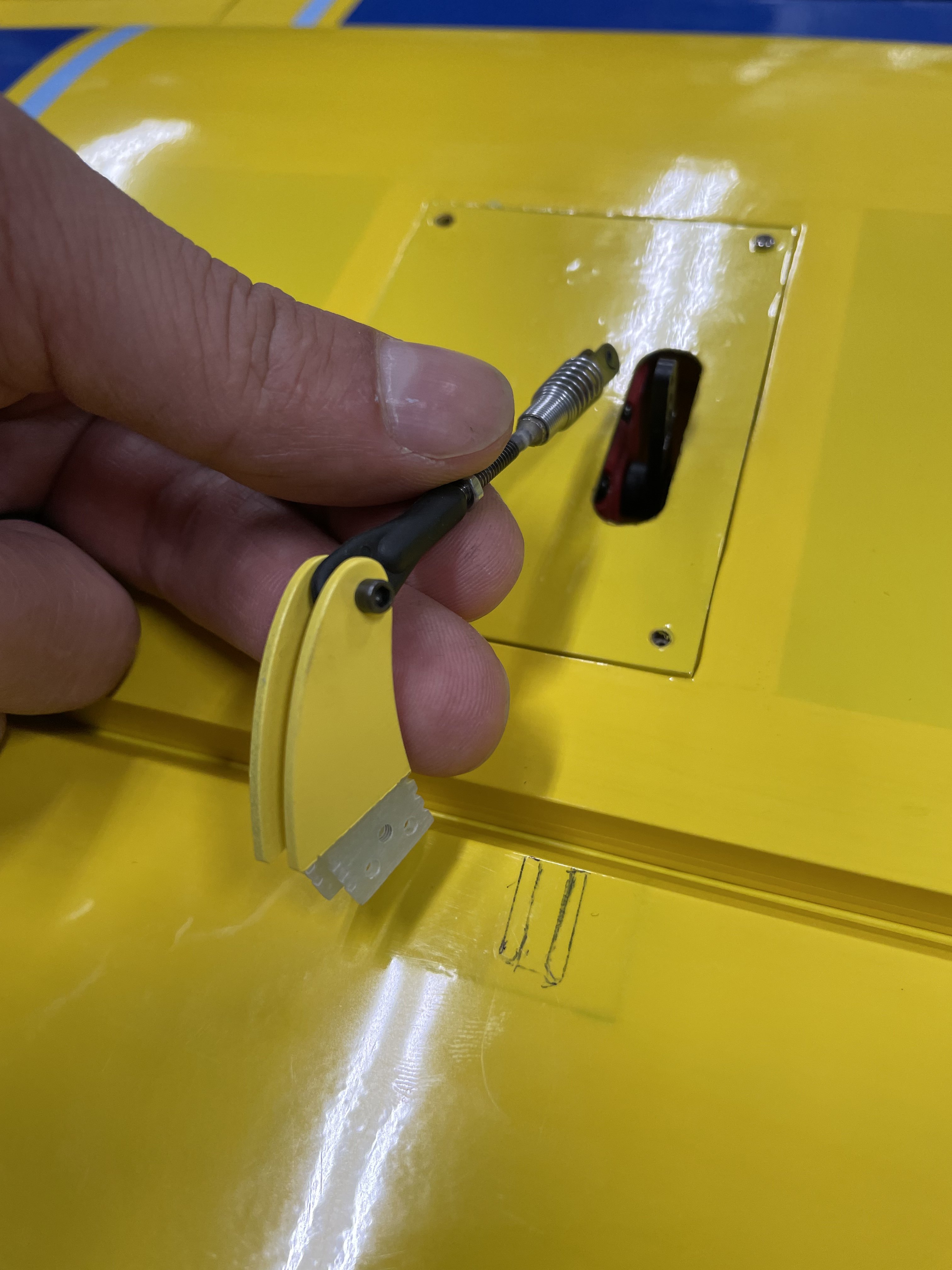

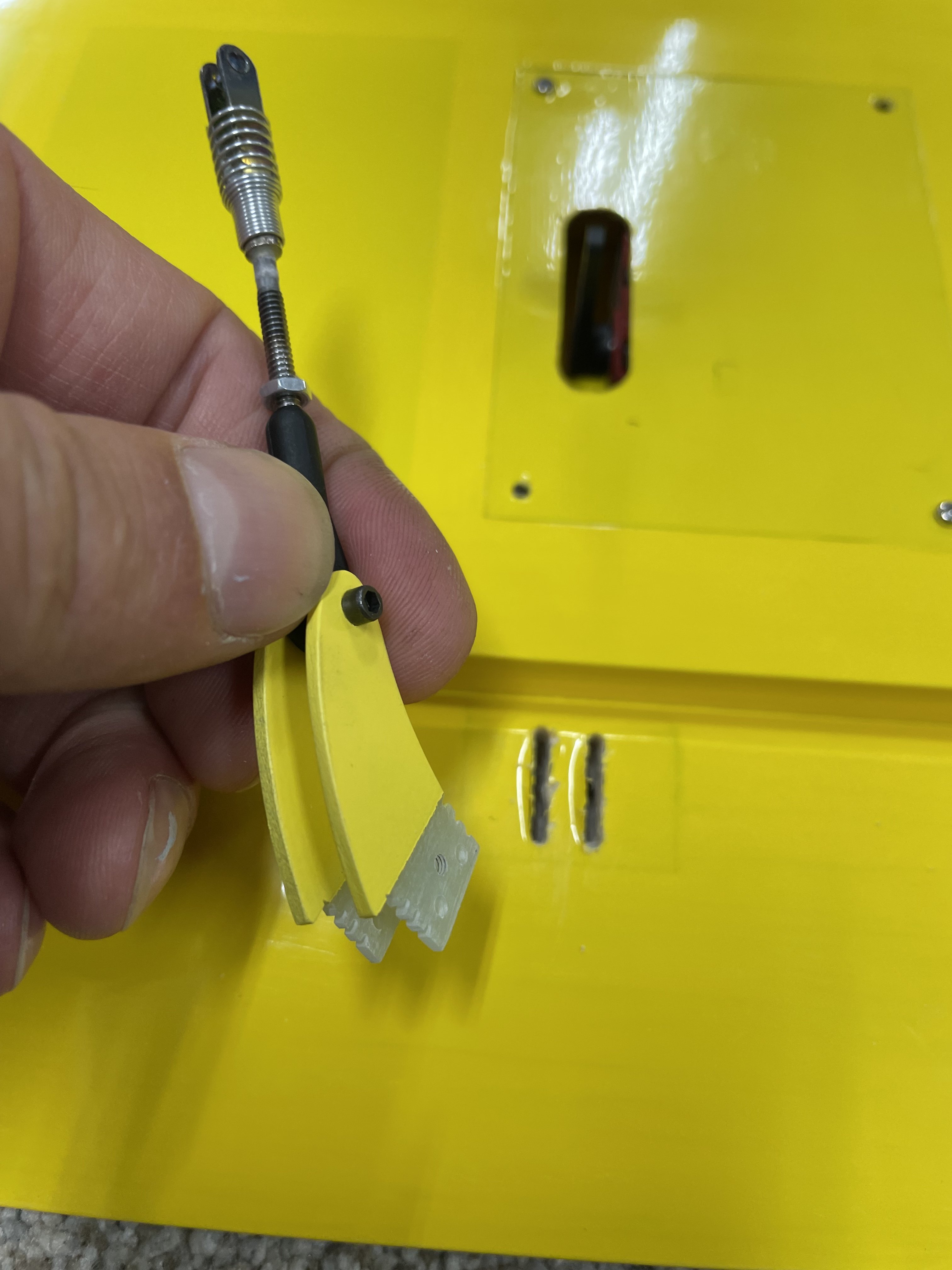

Decided to make some horns from G10 board and utilize a ball link. Masked and painted to match.

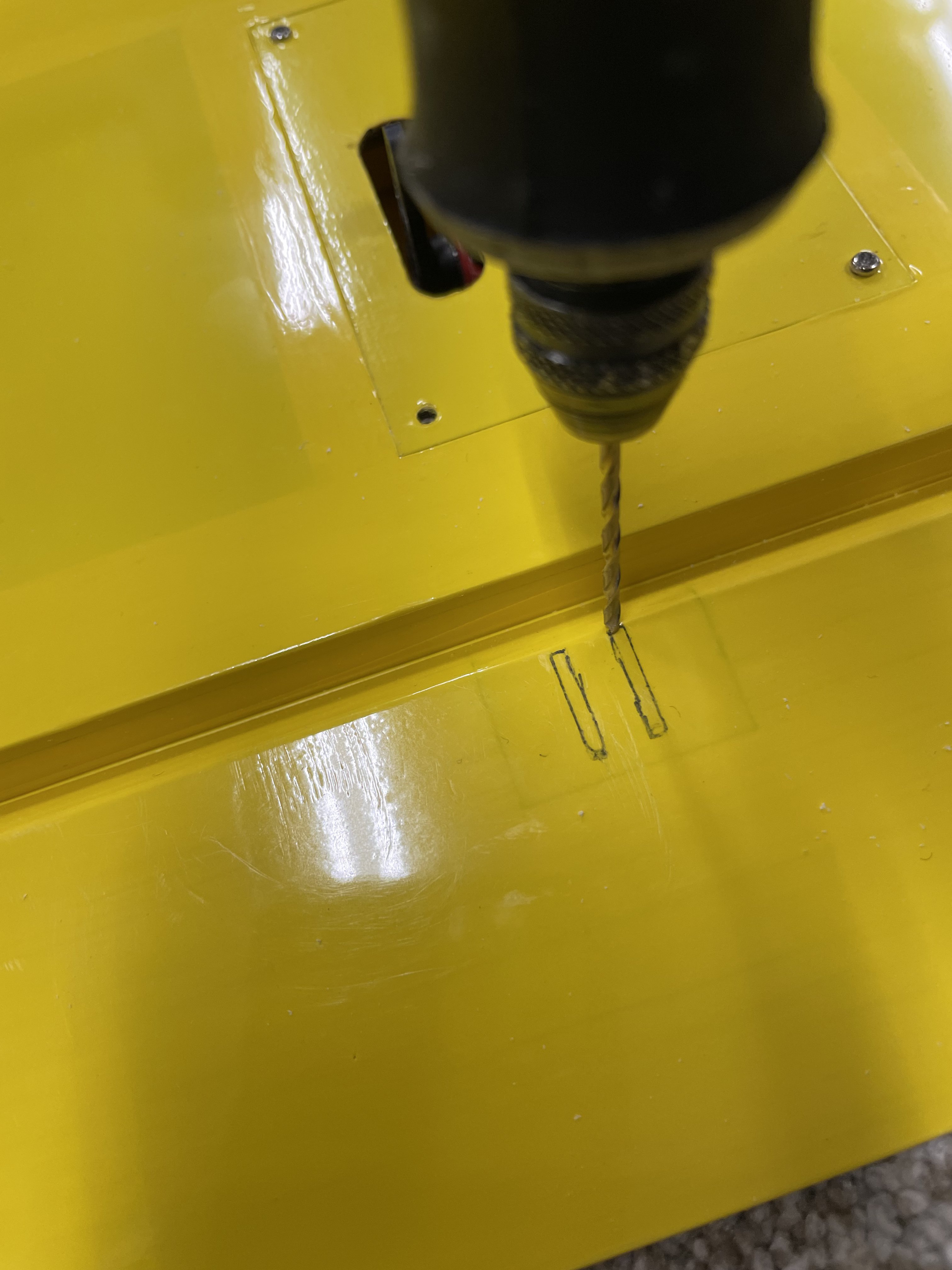

Marked the location to drill within the block.



30min epoxy



[AKNick]

My decal dilemma was solved by inquiring a quote from Callie Graphics. Guess what showed up!

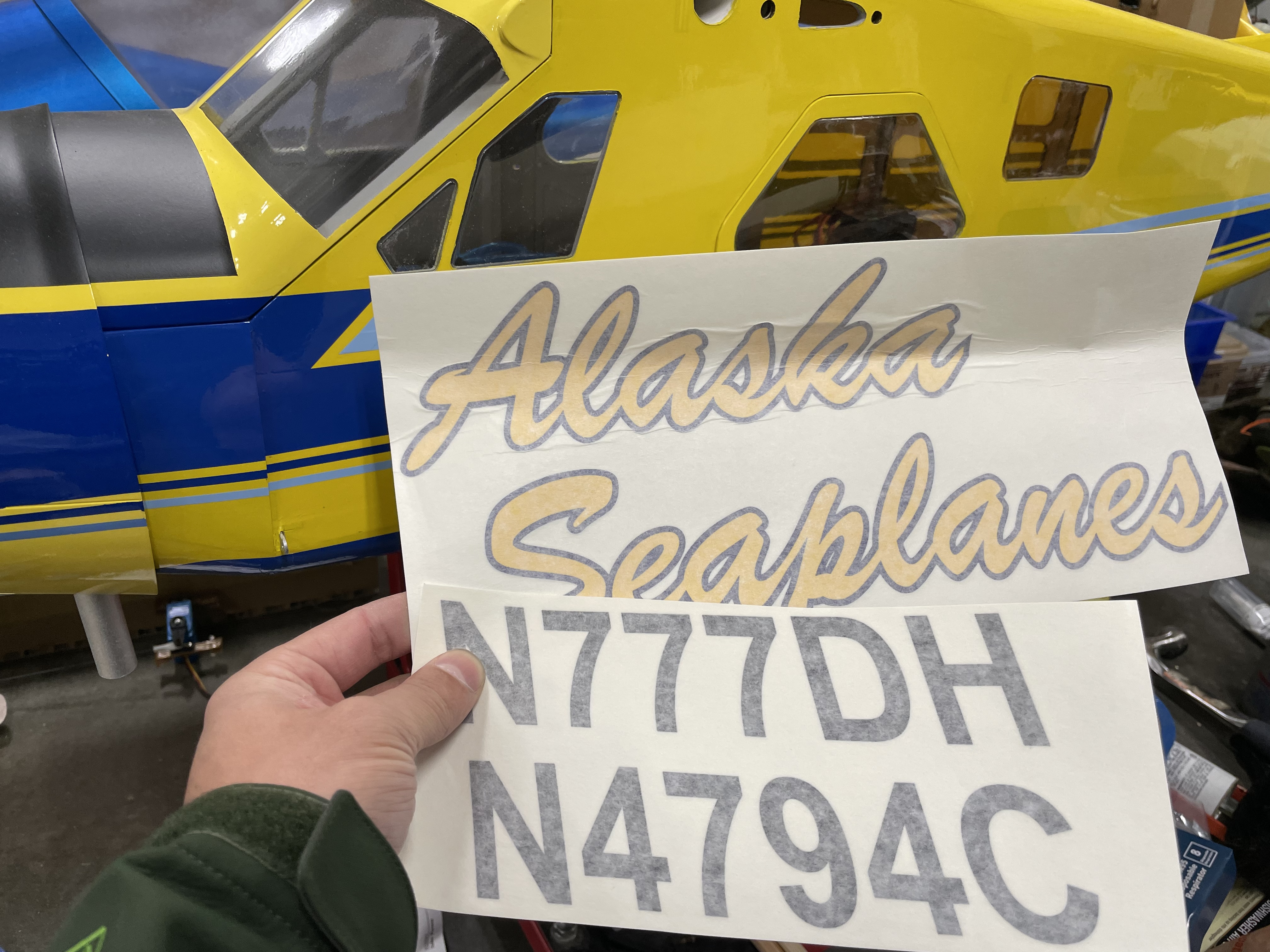

Callie Graphics nailed it! Super impressed. I asked for two logos and two pairs of separate N#’s; gave them some size restrictions, scale pics, and the model scale.




I take pride in using my A&P license during this process.

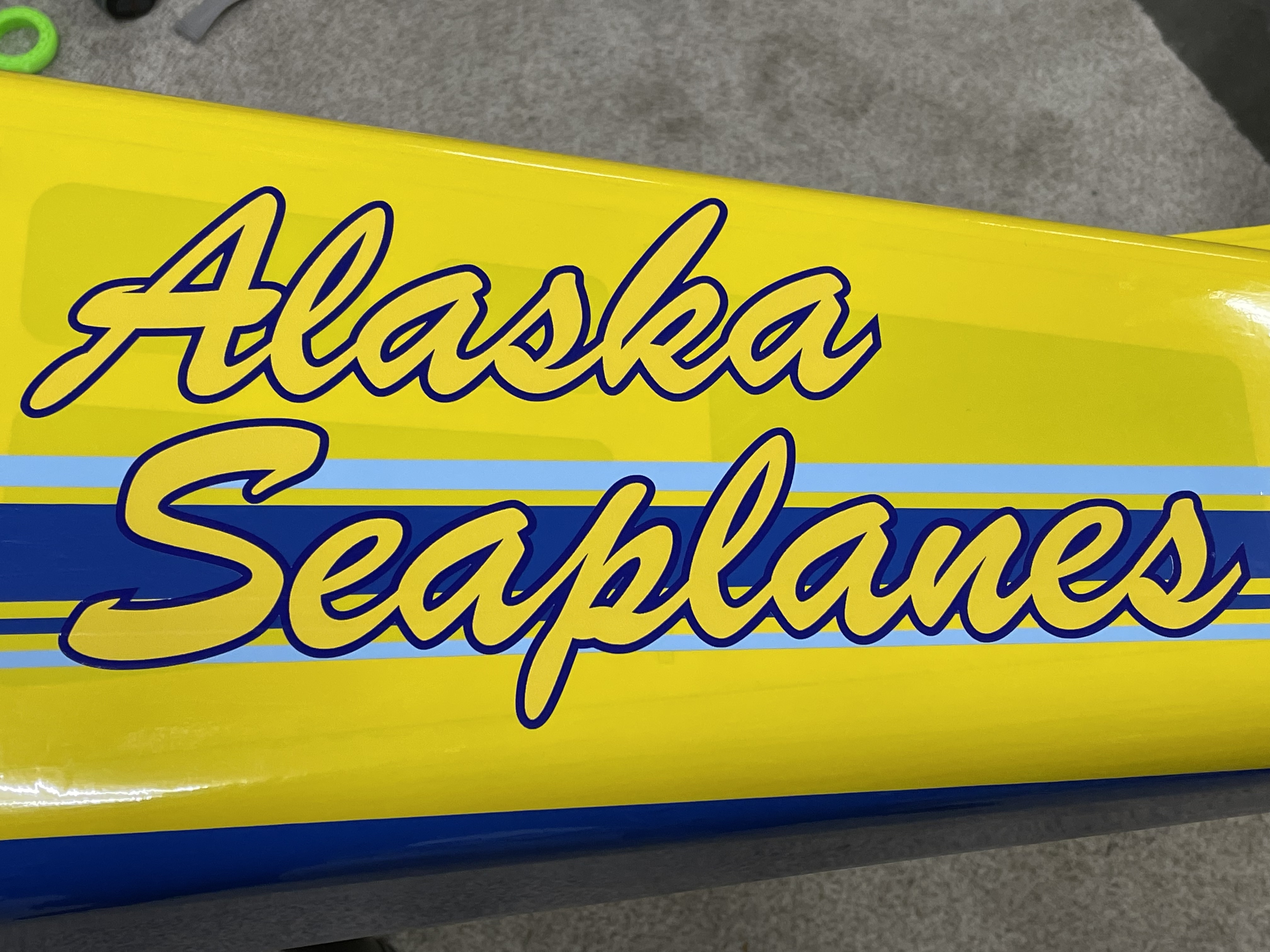

not bad!



[pawnshopmike]

Looks great!! Mike’s like.



[WMcNabb]

My decal dilemma was solved by inquiring a quote from Callie Graphics. Guess what showed up!
View attachment 118546

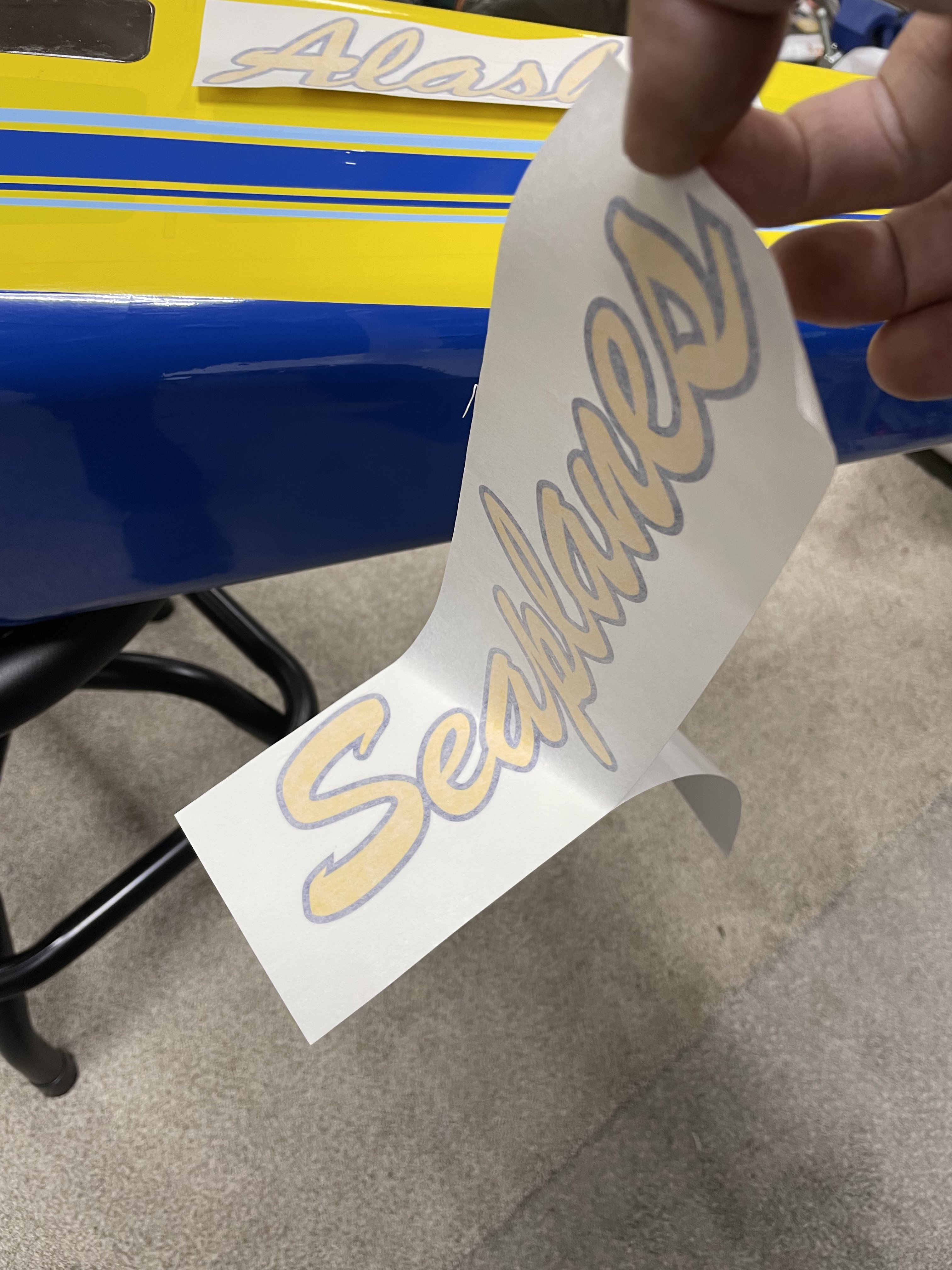

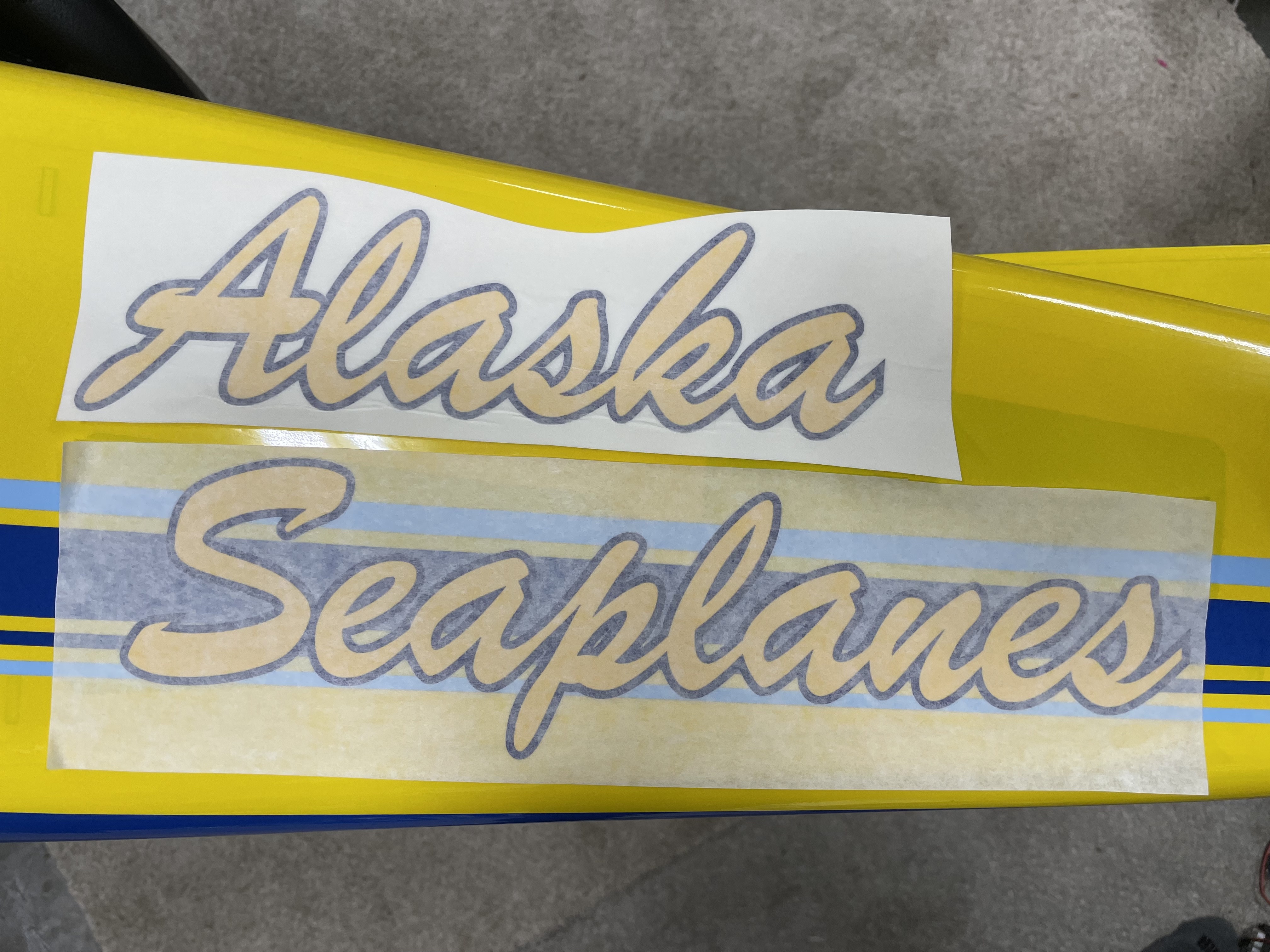

Callie Graphics nailed it! Super impressed. I asked for two logos and two pairs of separate N#’s; gave them some size restrictions, scale pics, and the model scale.
View attachment 118545

View attachment 118547 View attachment 118548

I take pride in using my A&P license during this process.

View attachment 118549

not bad!

View attachment 118550

Callie does great work! Results look fantastic!
