Doc Austin
70cc twin V2
EDIT: I'm not sure how this happened. I posted a link to the article and the whole thing showed up instead. May as well leave it since everything seems correct.
I've been flying my Screaming Yellow Zonker 64" MXS so hard for the past two years that the checkerboard finally blew off of the tail! I lived with it for awhile by putting a big Extreme Flight roundel on one elevator, but the whole time it kind of drove me crazy. As a result, I was fully intending to kill the plane so I could buy another one!
Of course, I just couldn't bring myself to fly her that carelessly. I have always loved this plane and often refer to her as "the best plane ever." That description is not off the mark, either.
This one doesn't owe me a nickel for a lot of reasons. First, I have been hammering the snot out of it for about two years, and we have also shot a ton of video with it. It's been a most awesome plane, and I think this is probably the best flying plane I have ever owned or even flown. It's been simply perfect, except, that is, for the peeling Ultrakote.
Here is the last video we shot with this plane, and you can see the checkerboard is missing from the left side. She's still a good looking plane, but the asymmetry makes me a bit crazy. When the checkerboard on the other side started to peel, that was when it became time to do something one way or the other.
I stole the power system from the yellow Zonker to get my 60" Edge EXP flying, and then hung her in the garage. There was just no more room for her in the house, and I suppose I was going to sell her if I ever got up the heart to let her go. Whenever I would be out there working, I would catch myself stopping to admire her, and that's when I realized that I either needed to get another one or recondition the current one.
Obviously, I wanted to fix the checkerboard, but there were also a few other things I wanted to tighten up. She's had a hard life needed a thorough clean up and inspection.
Control System
Everything will wear out eventually, and since this plane has been flown so hard I was expecting to find a few things that would need replacing. I was actually mildly surprised that there was so little to do though. The plane has held up remarkably well.
However, I found an alarming amount of sloppiness in the control surfaces. Checking the hinges, linkages, ball links and control horns, everything seemed tight, so all that was left was to incorrectly blame the problem on excessive gear lash in the servos.
This turned out to be completely wrong, because in reality all of the looseness was coming from the aftermarket servo arms, which were not Hi Tec arms. Apparently the splines in the arms had spread out under load and now we had a sloppy mess with the arms wobbling around on the servo output shafts. In 35 years of RC I had never seen anything like this, so it kind of blindsided me. I lived with the problem for awhile thinking it was the servos, but eventually the plane started to fly badly.
The last thing in the world you need on a high speed precision/3D ship like the MXS is sloppy control response, and I was starting to get enough of that I was not enjoying flying the plane. Previously the MXS was always super locked in, so when it started wandering off course and losing trim,I became considerably less happy with it. The plane didn't fly well and lost it's precision edge. It just took the fun out of flying it because I was always fighting the plane.
Fortunately it turns out the fix was easy and inexpensive enough. I switched to the Hi Tec PN55709 servo arm set. I have used these types of arms before flying a 65" plane with HS985MG servos. The splines on the two servos are the same, so it was a perfect fit. Since these arms were no problem on a bigger, heavier plane, they will work just fine on this one. I also tested them on my 60" Edge and they have so far stayed tight.
A nice side benefit is that the set comes with extra servo hardware such as grommets and screws .... stuff I am always scratching around for anyway. Most importantly included is the bolt that holds the servo arm on....you know, the one that you're always losing. It's great to have spares.
Servos
While I already had the plane apart, it was a great time to send the servos off to Hi Tec for a good cleaning and inspection. They have had a hard life, and are nearly two years old. A good cleaning and service is simply inexpensive insurance. Hi Tec service is top rate and they usually don't charge me for anything (and did not this time either) other than whatever parts the servos need.
All of the servos were still operating properly and centering fine. Three of my four servos had reasonably tight gear trains. The rudder servo has some slop in it, and this turned out to be a broken case, presumably from the several ground strikes it has suffered. That was a $16 repair. Considering the usage I've gotten out of these servos, I don't think that's too bad.
The Unfair Bad Rap
The HS5245MGs have unfairly gotten a bad rap lately for being sloppy and centering poorly, but I attribute that to the aftermarket servo arms being so sloppy. If the arms are flopping around loose on the servo, you're damm right the control surface isn't going to center well.
While there's some less complimentary talk on the internet forums about these servos, mine have been pretty close to golden. I always check the dead bands on the servos when I get them, and they center very nicely.
I've also never gotten any stalling or blowback with one of these servos. You can see for yourself on any of my videos how hard I push the plane and how the servos never let me down. In the future I do plan to try some of the much more expensive HS7254MG servos, because expensive servos are generally worth it. However, the HS5245MGs have served me very, very well in these 60" planes and they have been worth every penny.
I take great pains to make sure there is no drag or binding in my linkages and I always seal all my control surface gaps. I also use an Airboss ESC so I am sure that the servos are being fed on a full 6 volts.
In the end, the truth about these servos is that if you set them up properly, set the plane up properly, and try to take care of them, they will serve you extremely well.
CONTROL SET UP
Before I took her apart, this plane was set up exactly the way I wanted her, so I tried to be careful not to lose that when I changed the arms out. Fortunately, the hole spacing on the new arms is exactly identical to the old arms. That just made the whole process easy.
By contrast, a pack of the arms that were causing the problem cost about $12, whereas the Hi Tec arms, which work, only costs about $4.95. Talk about a no brainer.
Of course, I deleted the plane's memory from my TX, so I have to start over, but this plane takes so little mixing, and I use the set up from the manual anyway.
Ailerons
Using the outermost hole on the smallest arm from the pack, I'm getting exactly the same throw as I was getting from the aftermarket arm. The only difference is the aftermarket arm was one hole longer, but I always used the second hole anyway. I am going to get the same amount of control deflection.
Elevator
Elevator throw is unchanged because the single large Hi Tec arm is the exact same size as the aftermarket arm that I was using before, only again, one hole shorter. Again, I use the second from the outside hole anyway, so the Hi Tec arm duplicates what I had before. I'm getting about 65 degrees of throw, which on a 60" plane is considerable. We are so used to seeing 88 degrees on the 48" EXPs that 65 degrees doesn't look like much, but it is. The pitch authority feels about the same as a 48" Extra, which to me is perfect.
I don't think I could get any more throw anyway because the elevator pushrod is almost hitting the bottom of the stab at full deflection.
Rudder
Rudder is a little different. There was only one long single arm in the pack, so I cut one side off the shorter of the double sided servo arm.
With these arms, nothing really changes except they fit tight and stay tight on the servo output shaft. There is still a minute amount of slop, but the new arms are so much better that this was worth doing. Basically I just saved myself the cost of four new servos by spending less than five dollars for good servo arms.
Eventually I will put an SWB aluminum arm on the elevator because those take out every little bit of play. They have a cinch bolt that tightens the spline down on the servo output shaft. The only problem with those arms is that my LHS doesn't carry them and I need to order some.
I initially got five if them, but used them all up on my 48" planes. The spline is the same as the HS85MG I use on those plane's elevator servos. I was getting really bad slop there too, but the SWB arms took all of that out.
Checkerboard Restoration
One of the great discoveries I have made in the last couple of years is 3M High Performance Vinyl. Places like B and E Graphics can make you almost anything you want. They just print the pattern on it and all you have to do is apply it. It can be a little tricky if you've never worked with it, but once you learn a trick or two it's easy.
3M High Performance vinyl is also very sweet stuff to work with, so it made sense to go with this for putting the checkerboards back on. I peeled off the bad Ultrakote checkerboard and then cleaned up the mess. Once the clear covering peels off, all that's left is colored goo, and it cleans off easy enough with lacquer thinner, which won't hurt the covering. It just stinks.

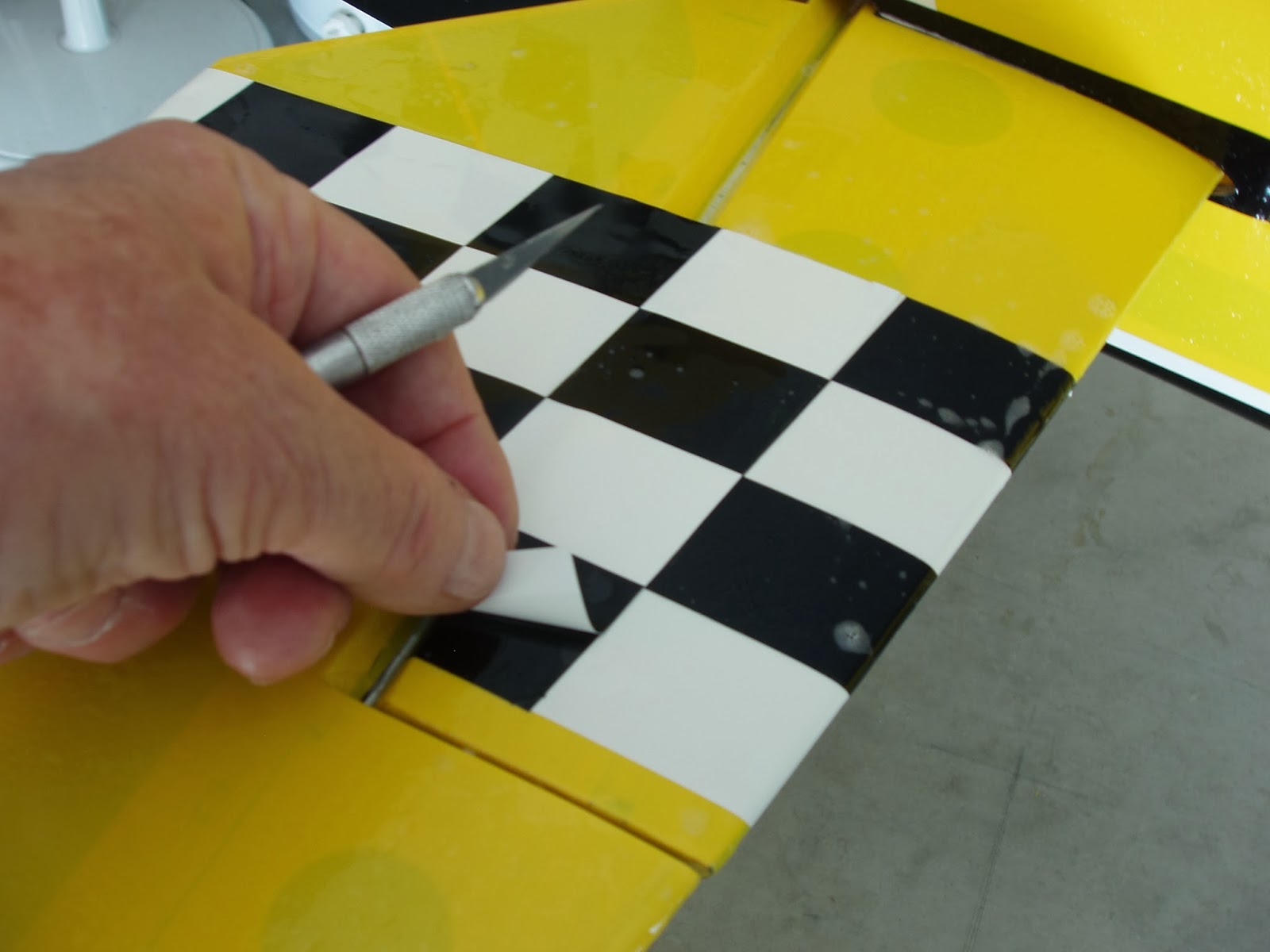

There was still good checkerboard on the right stab, so I laid a strip of the material over the elevator and lined it up with the existing checkerboard. Here I used plenty of Rapid Tac decal application fluid so I could float the decal into perfect position.
I measured the right side when I was finished, and then tried to duplicate that on the left. From there I used a straight edge to cut the decal at the hingeline.

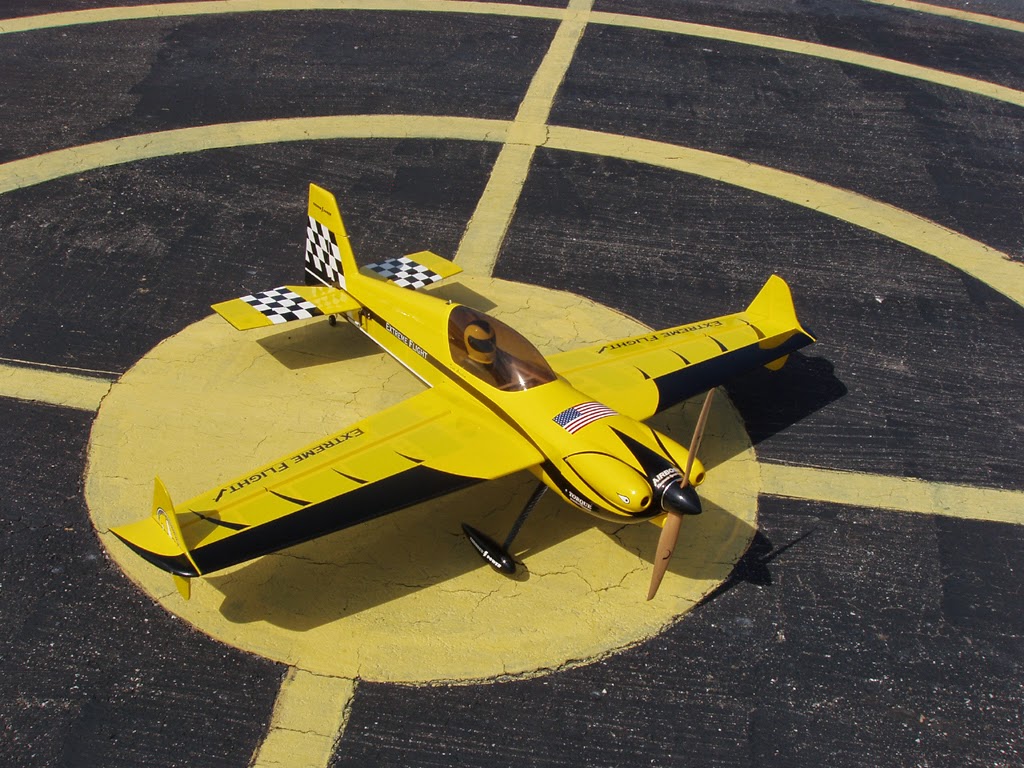

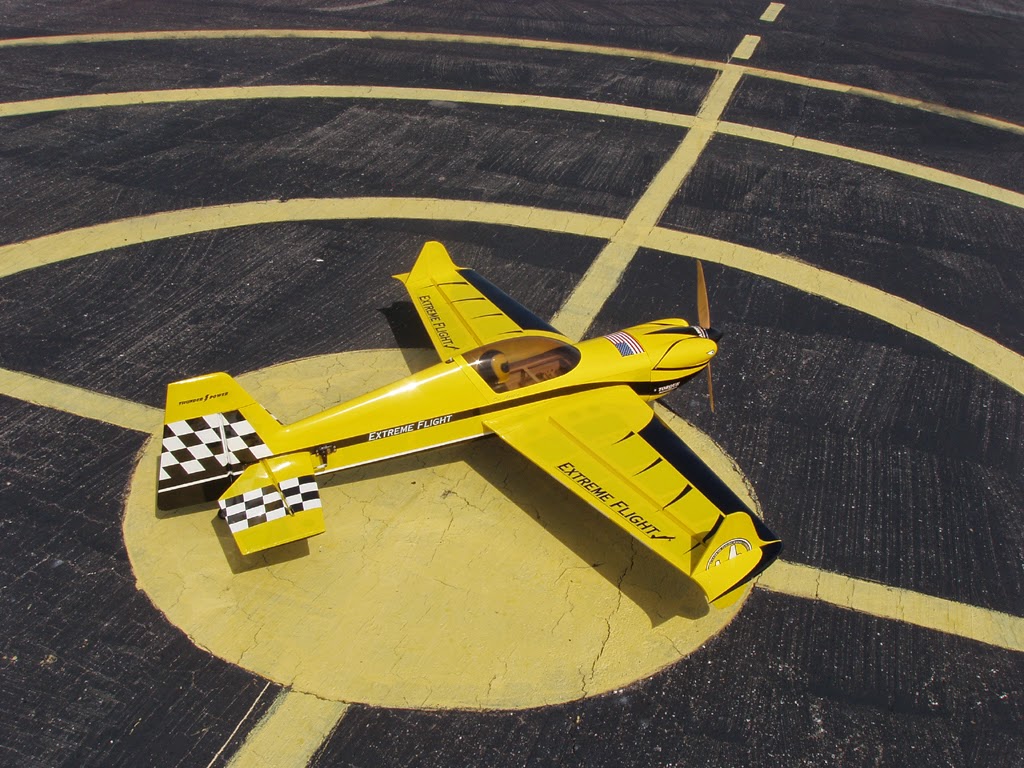

It's not exactly perfect, but I think it's pretty close. It was certainly less expensive and less work than building a new plane!
From there it was a matter of checking, cleaning and tightening up everything. Everything on the plane is in surprisingly good shape, so all it took get her looking nearly new was a lot of scrubbing and a new set of wheel pants. The originals had taken a few knocks, but are still good enough to repaint. I'll get to those down the road, but since I had a new set in my parts box it seemed like a good time to use them.
POWER SYSTEM
Part of what put this plane on the sidelines was that I needed the power system to get my new 60" Edge flying. Once financing stabilized from that project I ordered a new Torque 4016/500 V2 motor and Airboss 80 ESC. I've been running the Torque 4016 and it's predecessor, the Torque 4014, in all my 55" to 64" planes since I got into electrics and have been exceptionally pleased with all of them.
You can see in any of my MXS videos how much crazy power I've got, and the reliability speaks for itself.
Everyone has their own way of mounting the ESC, but early on I got in the habit of putting them on the left side of the motorbox. I like the on/off switch to be on the left hand side of the plane because in the old nitro days, the exhaust was usually on the right. Mounting the switch on the opposite side kept it out of the goo coming from the engine and it's just a habit I never got out of. I also like that this places the deans plug in a most convenient and out of the way position.
I still have to shrink wrap the bullet connectors and tuck all the wires away, but outside of that, this is what the motor/ESC installation will look like.
BATTERIES
Previously I had flown this plane with Thunder Power 6s 3850 65C Pro Power batteries with great success. However, they were a bit large, and therefore heavy for the application, making balancing the plane a bit difficult. I had to add a bit of lead to the tail wheel bracket to get the CG where I wanted it. Weight is bad.
When I built my new red 64" MXS, I made an effort to get rid of the extra battery weight and also the tail weight by buying some Thunder Power 6s 3300 70C Pro Force packs. I put Pro Force in italics because I have been saying Pro Power for so long that Pro Force still doesn't sound right to me!
With the battery all the way against the wing tube and 1/2 ounce of lead in the tail, the CG is just right. I still hate having that lead there, but it hurts the way the plane flies a lot less than having it be nose heavy.
My initial impression flying the 3300 packs is that they are even more powerful than the 65C packs. Of course, my 65C packs are over two years and 400 or so flights old, so it's probably not a fair comparison. Still, the 70c packs give me blistering,frightening power, especially on a fresh charge. That first downwind, full throttle pass is always breathtaking.
Now the plane feels lighter. I know this sounds a bit nuts considering that we only dropped 550mah worth of weight, but it shows up handsomely when the MXS will just hang there in the air and rotate around her yaw axis in a pop top. The first time I tried it I thought I had hit a monster thermal or something because the plane just sat there, spun and hung in the air. It's probably not quite that dramatic, but I am getting a full turn more than with the lighter packs.
Later this summer I plan to try some lighter 40C Pro Force packs. I've got so much power now that I can't even use it all. I can give up some and never even miss it, and the lower C packs will get some more weight out of the plane. If I can lose enough battery weight to ditch the tail weight, that will be pretty sweet.
Flying
I got my servos today and put everything back together and took her out of six flights. She's the same MXS I've been in love with from the beginning. With the new servo arms she tracks beautifully ..... just like I remember when she was new. At the end of the day the arms were still tight and I never touched the trims except to put in a notch of up on the remaiden.

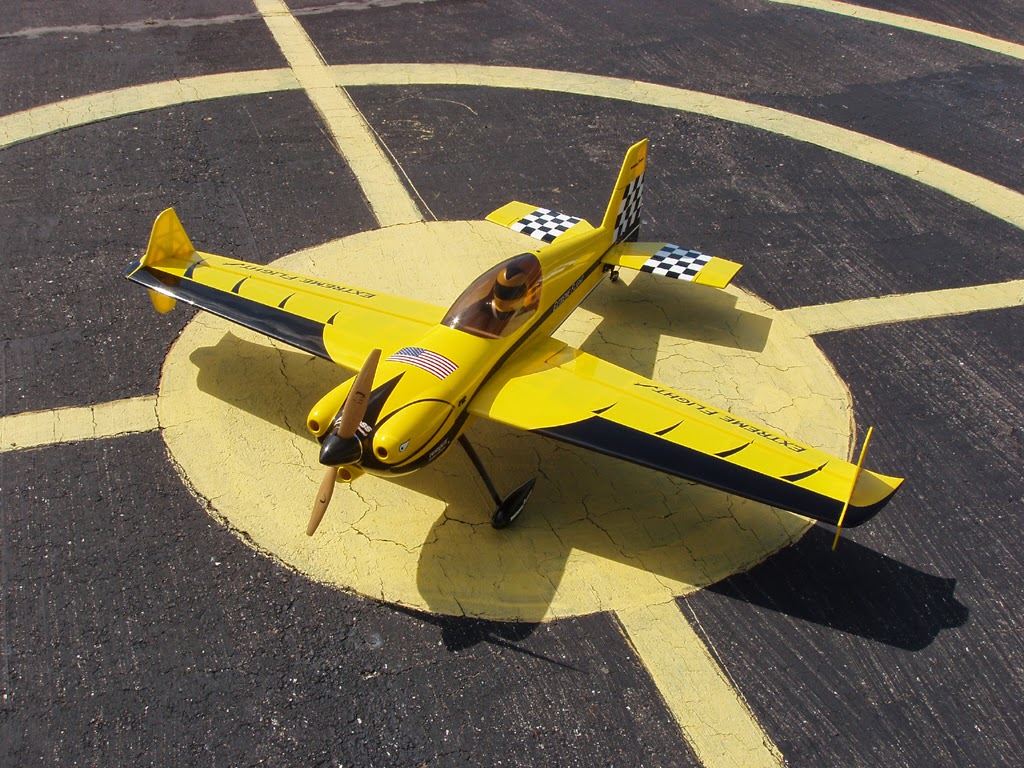

After flying out the day my conclusion is that this plane was definitely worth all the effort and a tiny expense. It was a lot of work, but this has been such a special airplane and I am really glad to be flying her again.
Unfortunately, no camera was on hand, but we hope to get some flight video soon. Stay tuned.
The Zonker Rides Again!
I've been flying my Screaming Yellow Zonker 64" MXS so hard for the past two years that the checkerboard finally blew off of the tail! I lived with it for awhile by putting a big Extreme Flight roundel on one elevator, but the whole time it kind of drove me crazy. As a result, I was fully intending to kill the plane so I could buy another one!
Of course, I just couldn't bring myself to fly her that carelessly. I have always loved this plane and often refer to her as "the best plane ever." That description is not off the mark, either.
This one doesn't owe me a nickel for a lot of reasons. First, I have been hammering the snot out of it for about two years, and we have also shot a ton of video with it. It's been a most awesome plane, and I think this is probably the best flying plane I have ever owned or even flown. It's been simply perfect, except, that is, for the peeling Ultrakote.
Here is the last video we shot with this plane, and you can see the checkerboard is missing from the left side. She's still a good looking plane, but the asymmetry makes me a bit crazy. When the checkerboard on the other side started to peel, that was when it became time to do something one way or the other.
[video=vimeo;67948094]http://vimeo.com/67948094[/video]
I stole the power system from the yellow Zonker to get my 60" Edge EXP flying, and then hung her in the garage. There was just no more room for her in the house, and I suppose I was going to sell her if I ever got up the heart to let her go. Whenever I would be out there working, I would catch myself stopping to admire her, and that's when I realized that I either needed to get another one or recondition the current one.
Obviously, I wanted to fix the checkerboard, but there were also a few other things I wanted to tighten up. She's had a hard life needed a thorough clean up and inspection.
Control System
Everything will wear out eventually, and since this plane has been flown so hard I was expecting to find a few things that would need replacing. I was actually mildly surprised that there was so little to do though. The plane has held up remarkably well.
However, I found an alarming amount of sloppiness in the control surfaces. Checking the hinges, linkages, ball links and control horns, everything seemed tight, so all that was left was to incorrectly blame the problem on excessive gear lash in the servos.
This turned out to be completely wrong, because in reality all of the looseness was coming from the aftermarket servo arms, which were not Hi Tec arms. Apparently the splines in the arms had spread out under load and now we had a sloppy mess with the arms wobbling around on the servo output shafts. In 35 years of RC I had never seen anything like this, so it kind of blindsided me. I lived with the problem for awhile thinking it was the servos, but eventually the plane started to fly badly.
The last thing in the world you need on a high speed precision/3D ship like the MXS is sloppy control response, and I was starting to get enough of that I was not enjoying flying the plane. Previously the MXS was always super locked in, so when it started wandering off course and losing trim,I became considerably less happy with it. The plane didn't fly well and lost it's precision edge. It just took the fun out of flying it because I was always fighting the plane.
Fortunately it turns out the fix was easy and inexpensive enough. I switched to the Hi Tec PN55709 servo arm set. I have used these types of arms before flying a 65" plane with HS985MG servos. The splines on the two servos are the same, so it was a perfect fit. Since these arms were no problem on a bigger, heavier plane, they will work just fine on this one. I also tested them on my 60" Edge and they have so far stayed tight.
A nice side benefit is that the set comes with extra servo hardware such as grommets and screws .... stuff I am always scratching around for anyway. Most importantly included is the bolt that holds the servo arm on....you know, the one that you're always losing. It's great to have spares.
Servos
While I already had the plane apart, it was a great time to send the servos off to Hi Tec for a good cleaning and inspection. They have had a hard life, and are nearly two years old. A good cleaning and service is simply inexpensive insurance. Hi Tec service is top rate and they usually don't charge me for anything (and did not this time either) other than whatever parts the servos need.
All of the servos were still operating properly and centering fine. Three of my four servos had reasonably tight gear trains. The rudder servo has some slop in it, and this turned out to be a broken case, presumably from the several ground strikes it has suffered. That was a $16 repair. Considering the usage I've gotten out of these servos, I don't think that's too bad.
The Unfair Bad Rap
The HS5245MGs have unfairly gotten a bad rap lately for being sloppy and centering poorly, but I attribute that to the aftermarket servo arms being so sloppy. If the arms are flopping around loose on the servo, you're damm right the control surface isn't going to center well.
While there's some less complimentary talk on the internet forums about these servos, mine have been pretty close to golden. I always check the dead bands on the servos when I get them, and they center very nicely.
I've also never gotten any stalling or blowback with one of these servos. You can see for yourself on any of my videos how hard I push the plane and how the servos never let me down. In the future I do plan to try some of the much more expensive HS7254MG servos, because expensive servos are generally worth it. However, the HS5245MGs have served me very, very well in these 60" planes and they have been worth every penny.
I take great pains to make sure there is no drag or binding in my linkages and I always seal all my control surface gaps. I also use an Airboss ESC so I am sure that the servos are being fed on a full 6 volts.
In the end, the truth about these servos is that if you set them up properly, set the plane up properly, and try to take care of them, they will serve you extremely well.
CONTROL SET UP
Before I took her apart, this plane was set up exactly the way I wanted her, so I tried to be careful not to lose that when I changed the arms out. Fortunately, the hole spacing on the new arms is exactly identical to the old arms. That just made the whole process easy.
By contrast, a pack of the arms that were causing the problem cost about $12, whereas the Hi Tec arms, which work, only costs about $4.95. Talk about a no brainer.
Of course, I deleted the plane's memory from my TX, so I have to start over, but this plane takes so little mixing, and I use the set up from the manual anyway.
Ailerons
Using the outermost hole on the smallest arm from the pack, I'm getting exactly the same throw as I was getting from the aftermarket arm. The only difference is the aftermarket arm was one hole longer, but I always used the second hole anyway. I am going to get the same amount of control deflection.
Elevator
Elevator throw is unchanged because the single large Hi Tec arm is the exact same size as the aftermarket arm that I was using before, only again, one hole shorter. Again, I use the second from the outside hole anyway, so the Hi Tec arm duplicates what I had before. I'm getting about 65 degrees of throw, which on a 60" plane is considerable. We are so used to seeing 88 degrees on the 48" EXPs that 65 degrees doesn't look like much, but it is. The pitch authority feels about the same as a 48" Extra, which to me is perfect.
I don't think I could get any more throw anyway because the elevator pushrod is almost hitting the bottom of the stab at full deflection.
Rudder
Rudder is a little different. There was only one long single arm in the pack, so I cut one side off the shorter of the double sided servo arm.
With these arms, nothing really changes except they fit tight and stay tight on the servo output shaft. There is still a minute amount of slop, but the new arms are so much better that this was worth doing. Basically I just saved myself the cost of four new servos by spending less than five dollars for good servo arms.
Eventually I will put an SWB aluminum arm on the elevator because those take out every little bit of play. They have a cinch bolt that tightens the spline down on the servo output shaft. The only problem with those arms is that my LHS doesn't carry them and I need to order some.
I initially got five if them, but used them all up on my 48" planes. The spline is the same as the HS85MG I use on those plane's elevator servos. I was getting really bad slop there too, but the SWB arms took all of that out.
Checkerboard Restoration
One of the great discoveries I have made in the last couple of years is 3M High Performance Vinyl. Places like B and E Graphics can make you almost anything you want. They just print the pattern on it and all you have to do is apply it. It can be a little tricky if you've never worked with it, but once you learn a trick or two it's easy.
3M High Performance vinyl is also very sweet stuff to work with, so it made sense to go with this for putting the checkerboards back on. I peeled off the bad Ultrakote checkerboard and then cleaned up the mess. Once the clear covering peels off, all that's left is colored goo, and it cleans off easy enough with lacquer thinner, which won't hurt the covering. It just stinks.
There was still good checkerboard on the right stab, so I laid a strip of the material over the elevator and lined it up with the existing checkerboard. Here I used plenty of Rapid Tac decal application fluid so I could float the decal into perfect position.
I measured the right side when I was finished, and then tried to duplicate that on the left. From there I used a straight edge to cut the decal at the hingeline.
It's not exactly perfect, but I think it's pretty close. It was certainly less expensive and less work than building a new plane!
From there it was a matter of checking, cleaning and tightening up everything. Everything on the plane is in surprisingly good shape, so all it took get her looking nearly new was a lot of scrubbing and a new set of wheel pants. The originals had taken a few knocks, but are still good enough to repaint. I'll get to those down the road, but since I had a new set in my parts box it seemed like a good time to use them.
POWER SYSTEM
Part of what put this plane on the sidelines was that I needed the power system to get my new 60" Edge flying. Once financing stabilized from that project I ordered a new Torque 4016/500 V2 motor and Airboss 80 ESC. I've been running the Torque 4016 and it's predecessor, the Torque 4014, in all my 55" to 64" planes since I got into electrics and have been exceptionally pleased with all of them.
You can see in any of my MXS videos how much crazy power I've got, and the reliability speaks for itself.
Everyone has their own way of mounting the ESC, but early on I got in the habit of putting them on the left side of the motorbox. I like the on/off switch to be on the left hand side of the plane because in the old nitro days, the exhaust was usually on the right. Mounting the switch on the opposite side kept it out of the goo coming from the engine and it's just a habit I never got out of. I also like that this places the deans plug in a most convenient and out of the way position.
I still have to shrink wrap the bullet connectors and tuck all the wires away, but outside of that, this is what the motor/ESC installation will look like.
BATTERIES
Previously I had flown this plane with Thunder Power 6s 3850 65C Pro Power batteries with great success. However, they were a bit large, and therefore heavy for the application, making balancing the plane a bit difficult. I had to add a bit of lead to the tail wheel bracket to get the CG where I wanted it. Weight is bad.
When I built my new red 64" MXS, I made an effort to get rid of the extra battery weight and also the tail weight by buying some Thunder Power 6s 3300 70C Pro Force packs. I put Pro Force in italics because I have been saying Pro Power for so long that Pro Force still doesn't sound right to me!
With the battery all the way against the wing tube and 1/2 ounce of lead in the tail, the CG is just right. I still hate having that lead there, but it hurts the way the plane flies a lot less than having it be nose heavy.
My initial impression flying the 3300 packs is that they are even more powerful than the 65C packs. Of course, my 65C packs are over two years and 400 or so flights old, so it's probably not a fair comparison. Still, the 70c packs give me blistering,frightening power, especially on a fresh charge. That first downwind, full throttle pass is always breathtaking.
Now the plane feels lighter. I know this sounds a bit nuts considering that we only dropped 550mah worth of weight, but it shows up handsomely when the MXS will just hang there in the air and rotate around her yaw axis in a pop top. The first time I tried it I thought I had hit a monster thermal or something because the plane just sat there, spun and hung in the air. It's probably not quite that dramatic, but I am getting a full turn more than with the lighter packs.
Later this summer I plan to try some lighter 40C Pro Force packs. I've got so much power now that I can't even use it all. I can give up some and never even miss it, and the lower C packs will get some more weight out of the plane. If I can lose enough battery weight to ditch the tail weight, that will be pretty sweet.
Flying
I got my servos today and put everything back together and took her out of six flights. She's the same MXS I've been in love with from the beginning. With the new servo arms she tracks beautifully ..... just like I remember when she was new. At the end of the day the arms were still tight and I never touched the trims except to put in a notch of up on the remaiden.
After flying out the day my conclusion is that this plane was definitely worth all the effort and a tiny expense. It was a lot of work, but this has been such a special airplane and I am really glad to be flying her again.
Unfortunately, no camera was on hand, but we hope to get some flight video soon. Stay tuned.
Last edited by a moderator:
Doc Austin
70cc twin V2
[video=vimeo;92001468]https://vimeo.com/92001468[/video]
alawson999
70cc twin V2
Great flying !
Thanks for sharing
Thanks for sharing
AKfreak
150cc
Hey Doc, what is the AUW of your re-born plane? Also where did you buy the arms for $4 bucks? Thanks
dth7
3DRCF Regional Ambassador
+1 on the Hitec arms. The 7245s don't come with long enough arms do they?
Doc Austin
70cc twin V2
I never weigh my planes because once they are built you can't do anything about the weight, but I can't believe it is any heavier than it was before.
I got them for $4.95 at my local hobby shop. You can probably get them at Tower or from Hi Tec. If you mail order it you'll probably pay that much in postage, so get your LHS to order you a couple of sets.
This is for our UTube viewers...........
[video=youtube;QeN9NypSVBs]https://www.youtube.com/watch?v=QeN9NypSVBs&list=UU-lhsyjR_FoZpf-WjKYZ67Q[/video]
cwojcik
70cc twin V2
Find someone buying 7955's, 7954's, any of the high end Hitec servos. They will likely put aluminum arms on them and throw out the FRP Hitec arms. Mine were all left over from other big Hitec servos I had.
