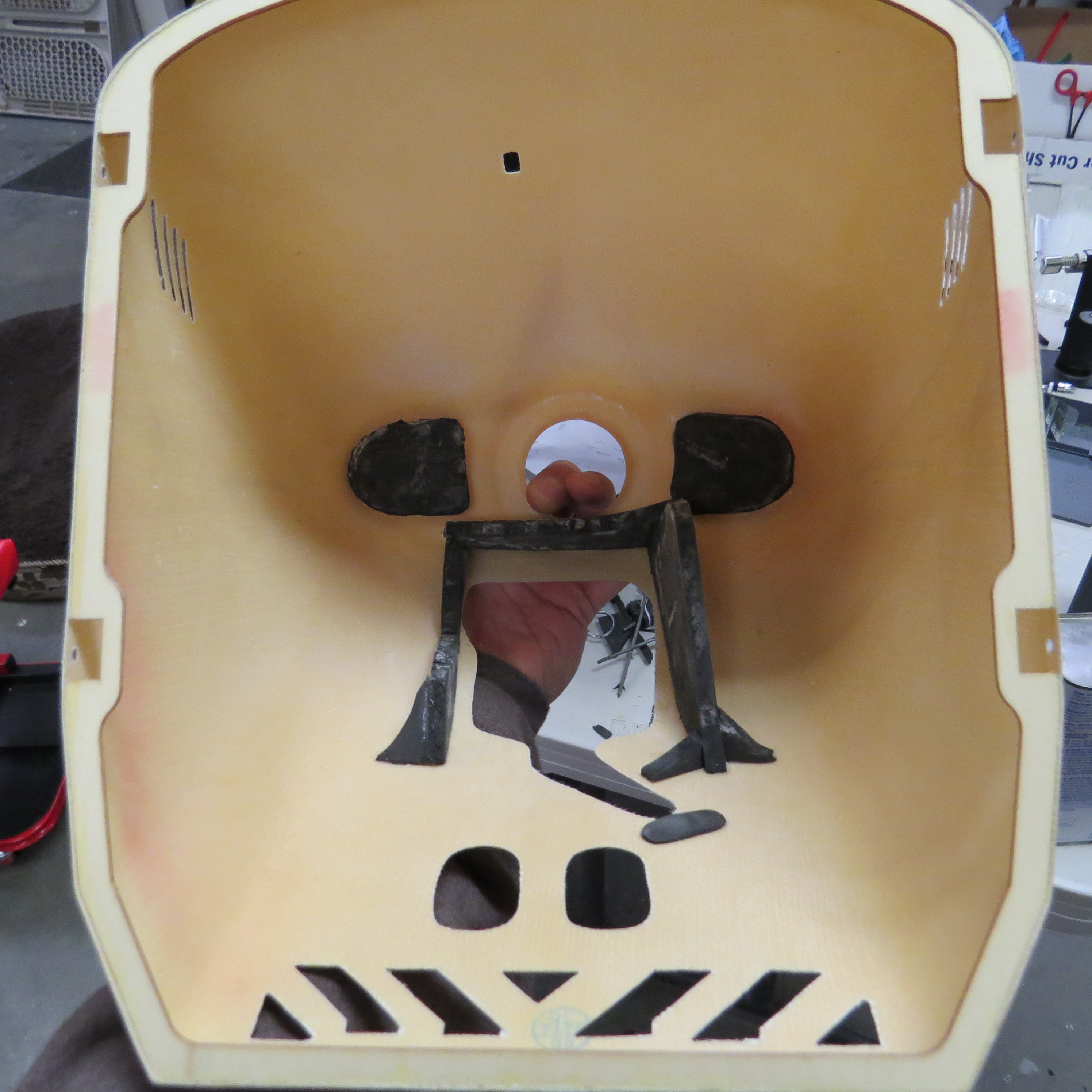

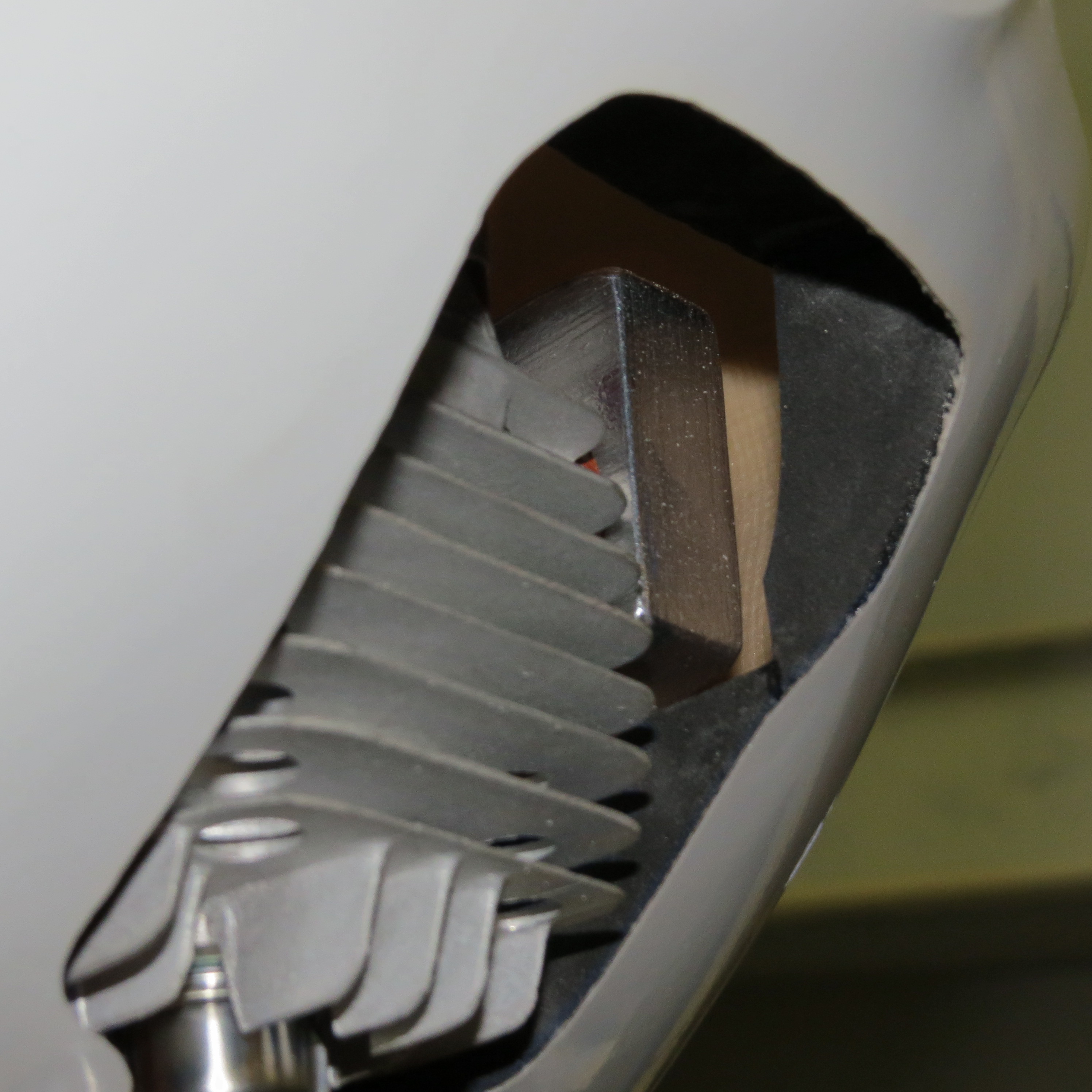

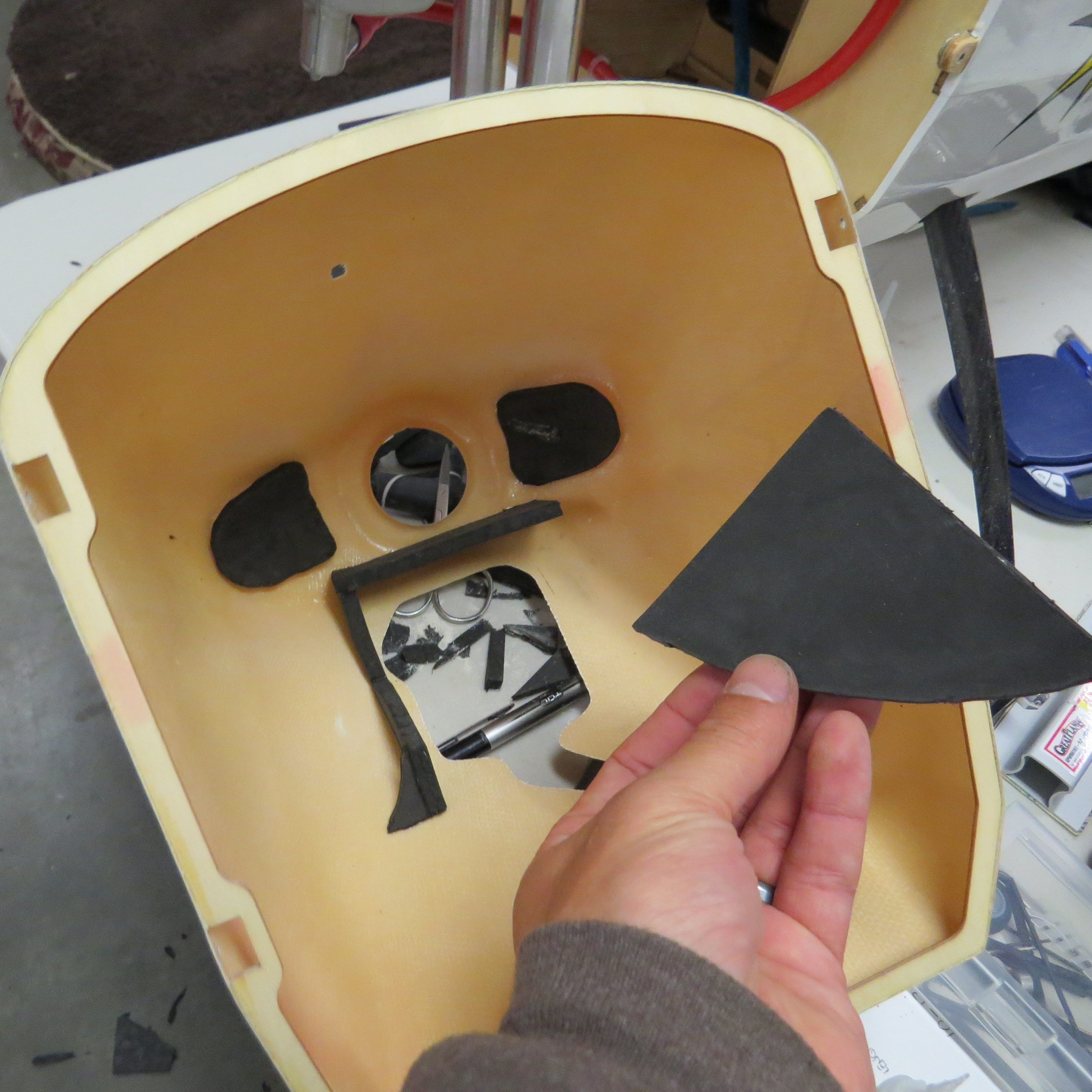

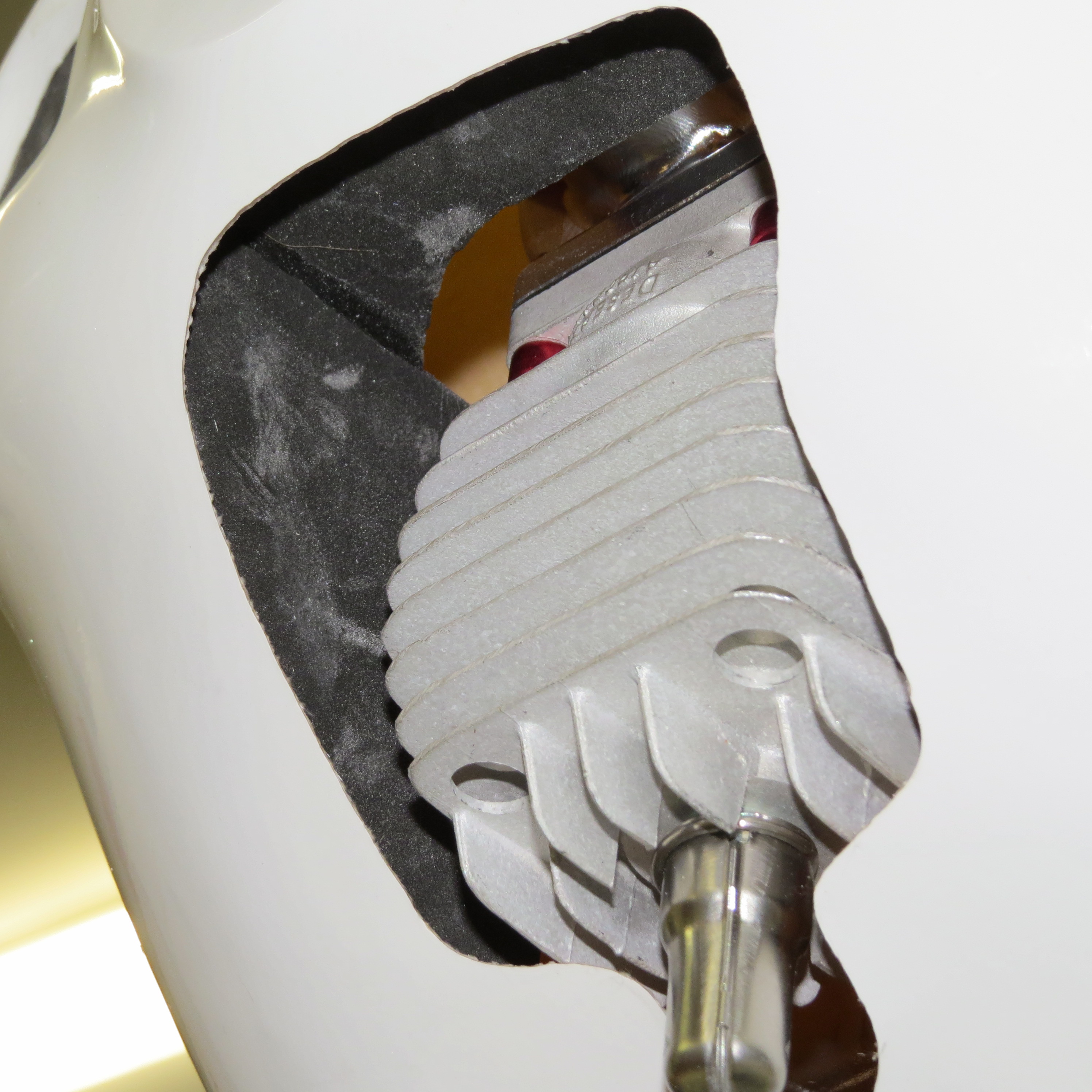

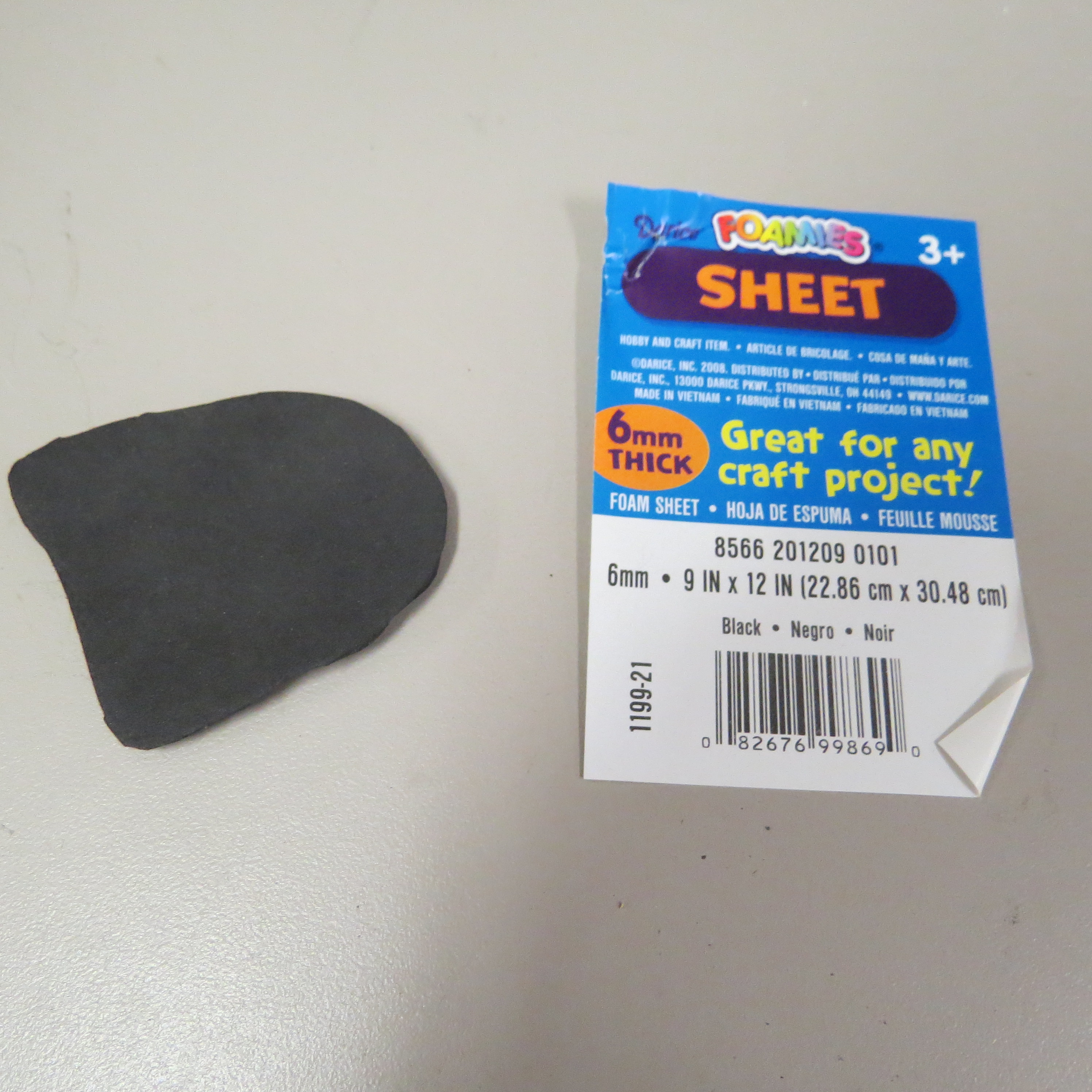

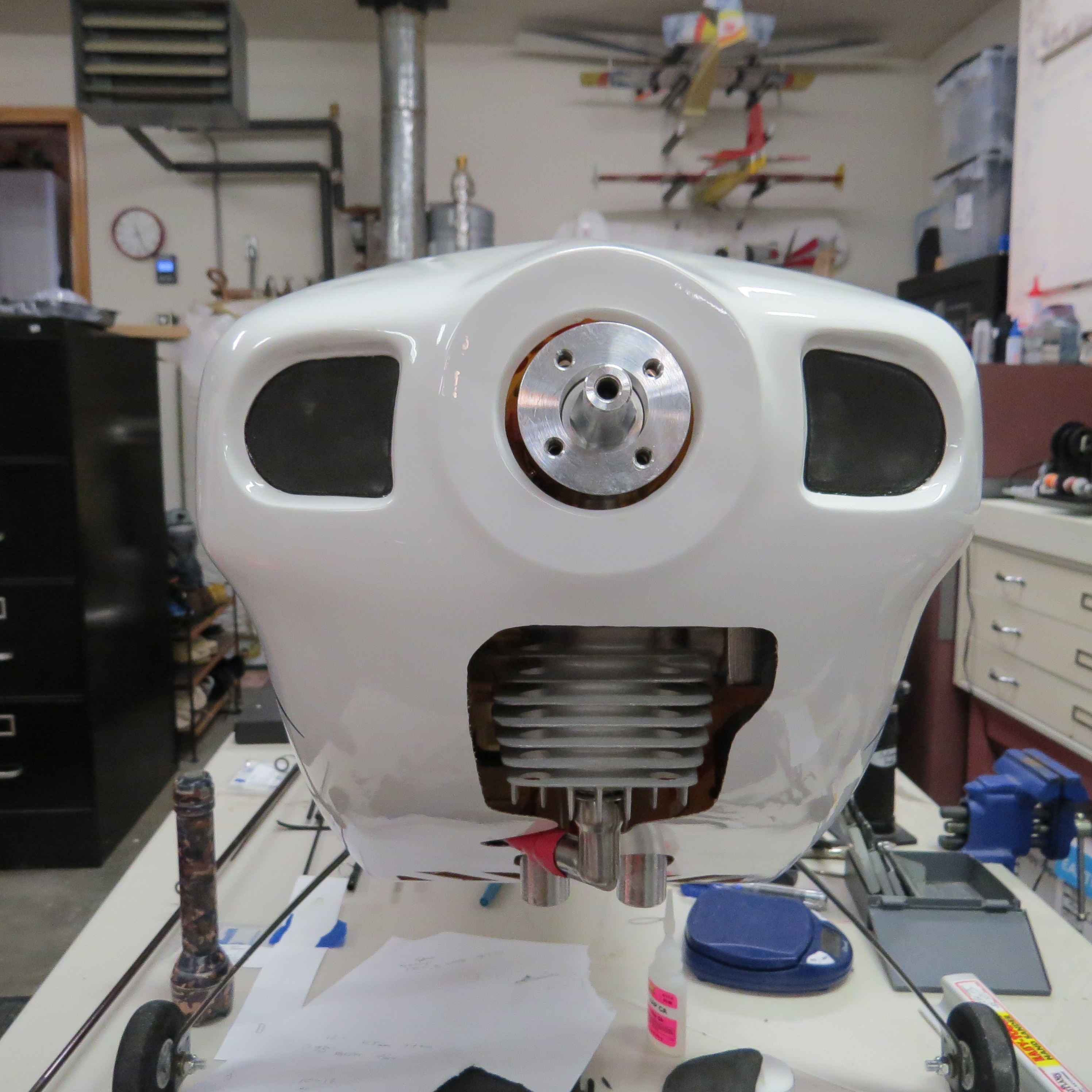

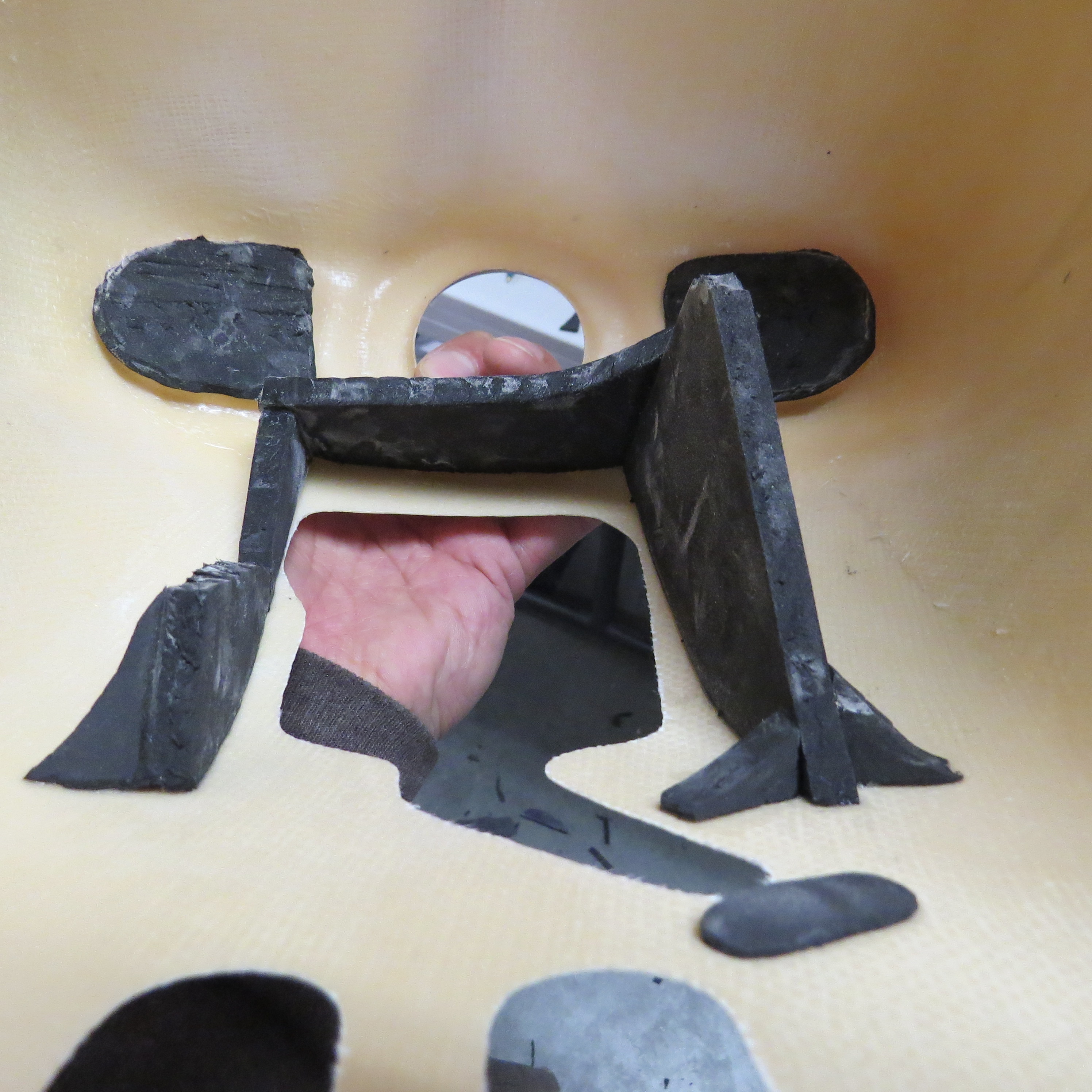

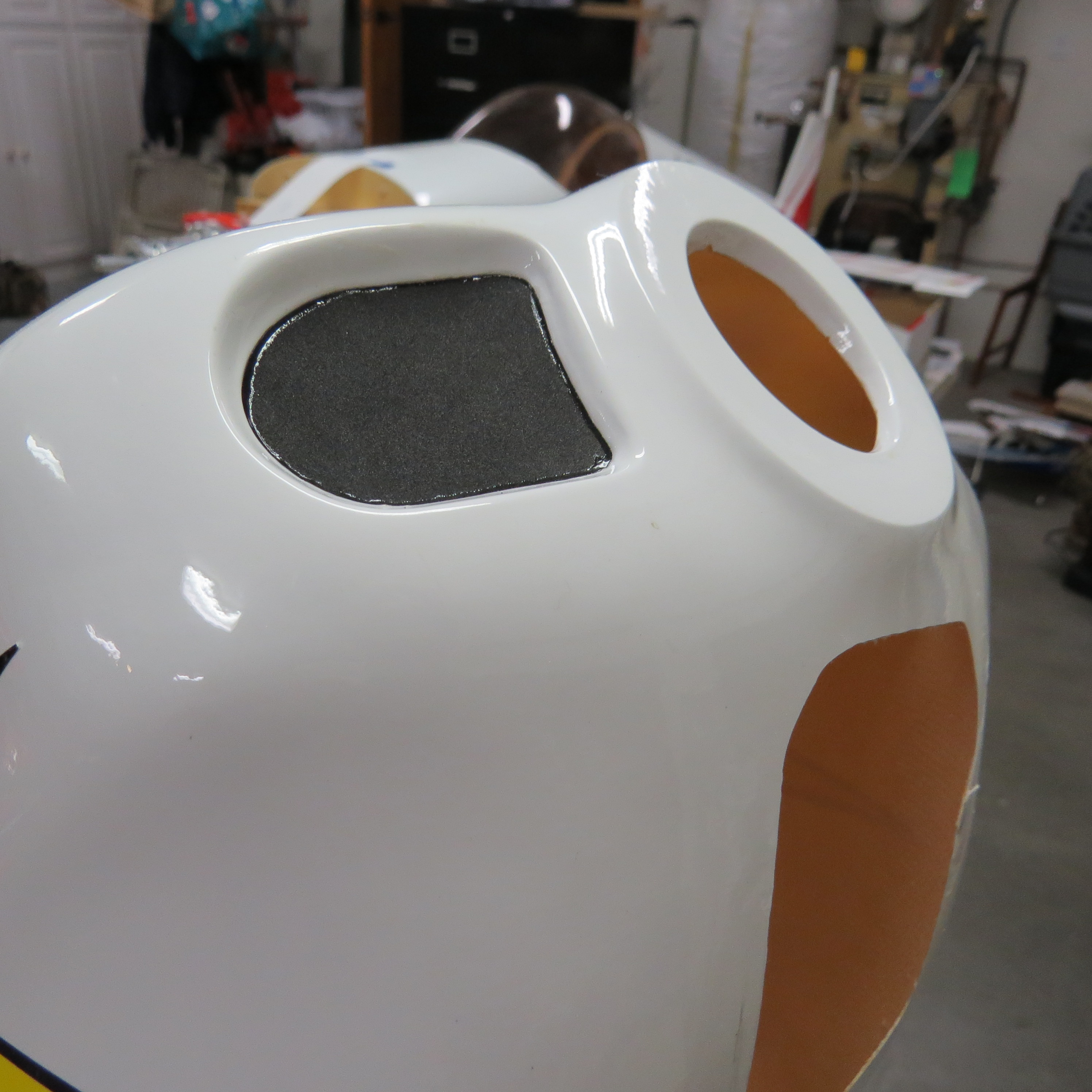

I bought 6mm and 3mm craft foam from Joan's Fabric, as long as it isn't too close to the exhaust or cooling fins it wont melt. The general purpose of doing this is so that the air moving through the cowl's opening is kept/directed around the cooling fins and exhaust port of the engine so that the hot air will not be stagnant and the cooling air will efficiently pass over the heated areas. I used Zap Medium CA to tack it on and then added a filet. Note the 90 degree foam supports, and the piece of foam under where the spark plug wire could potentially come into contact with. Also note that I opened up the cowling a bit more and even more so in front of the exhaust.
We shall see if it melts!! ha ha

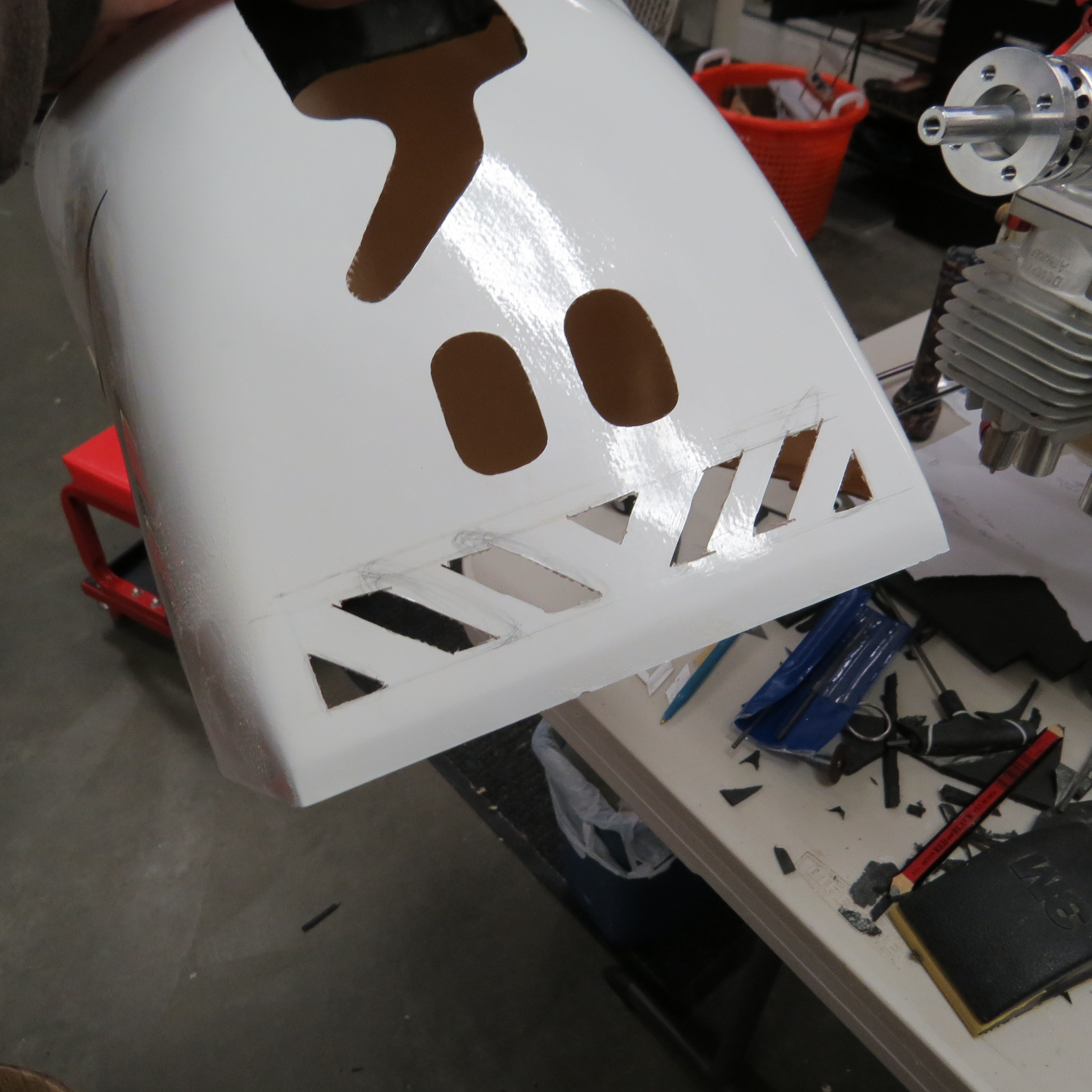

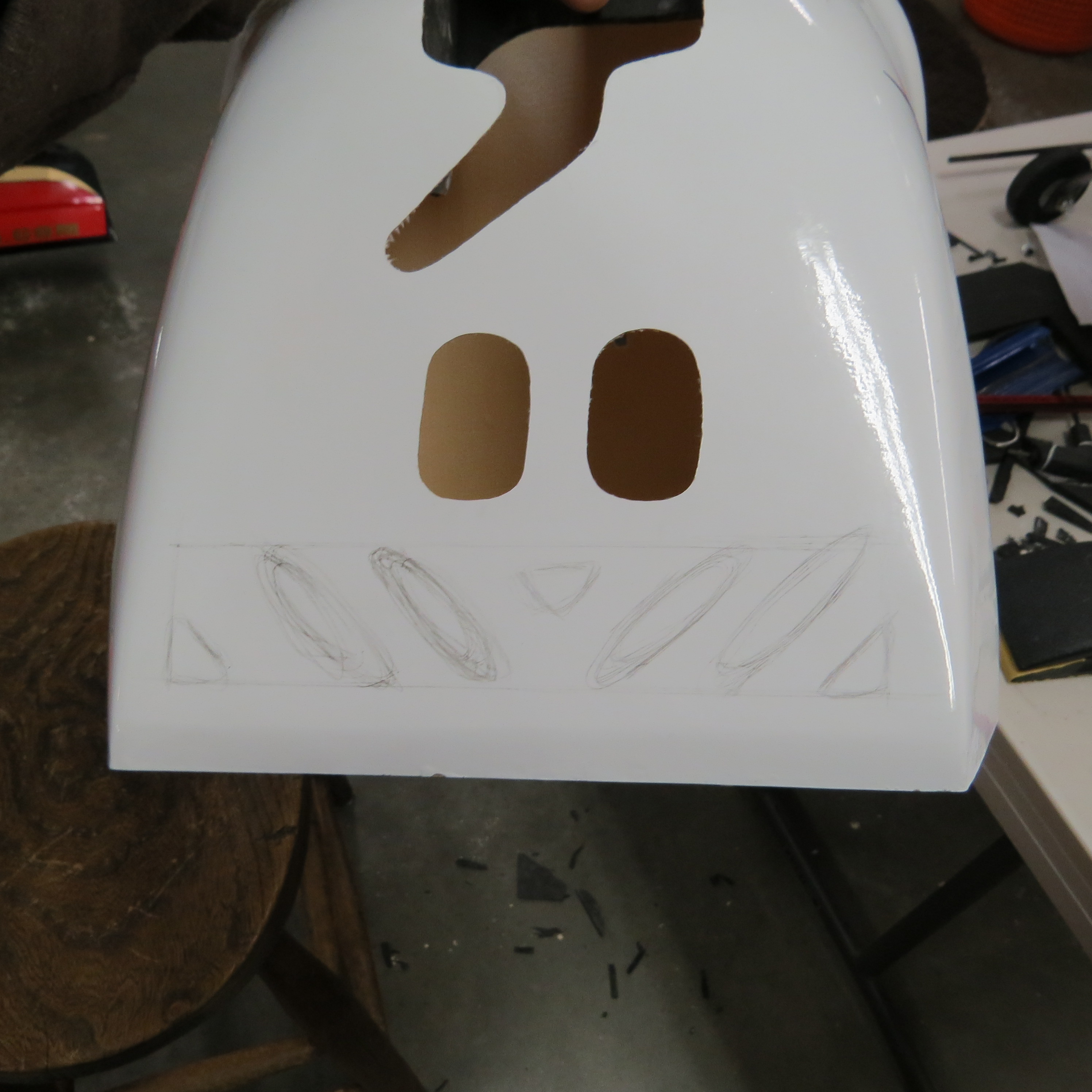

I vented the lower bottom part of the cowling to prevent any "pressurized cowl" effects that may happen. I kinda like making a little design of some sort.

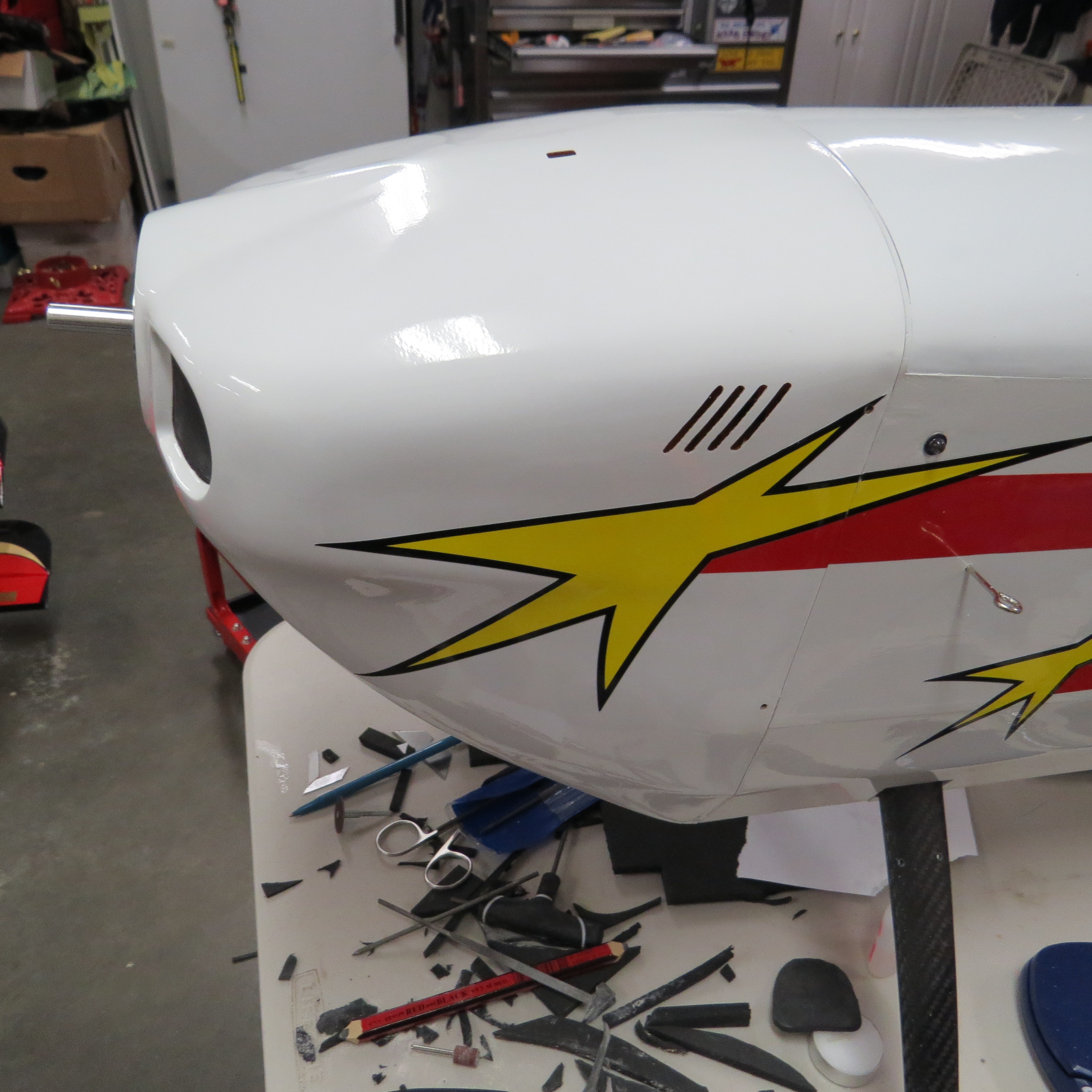

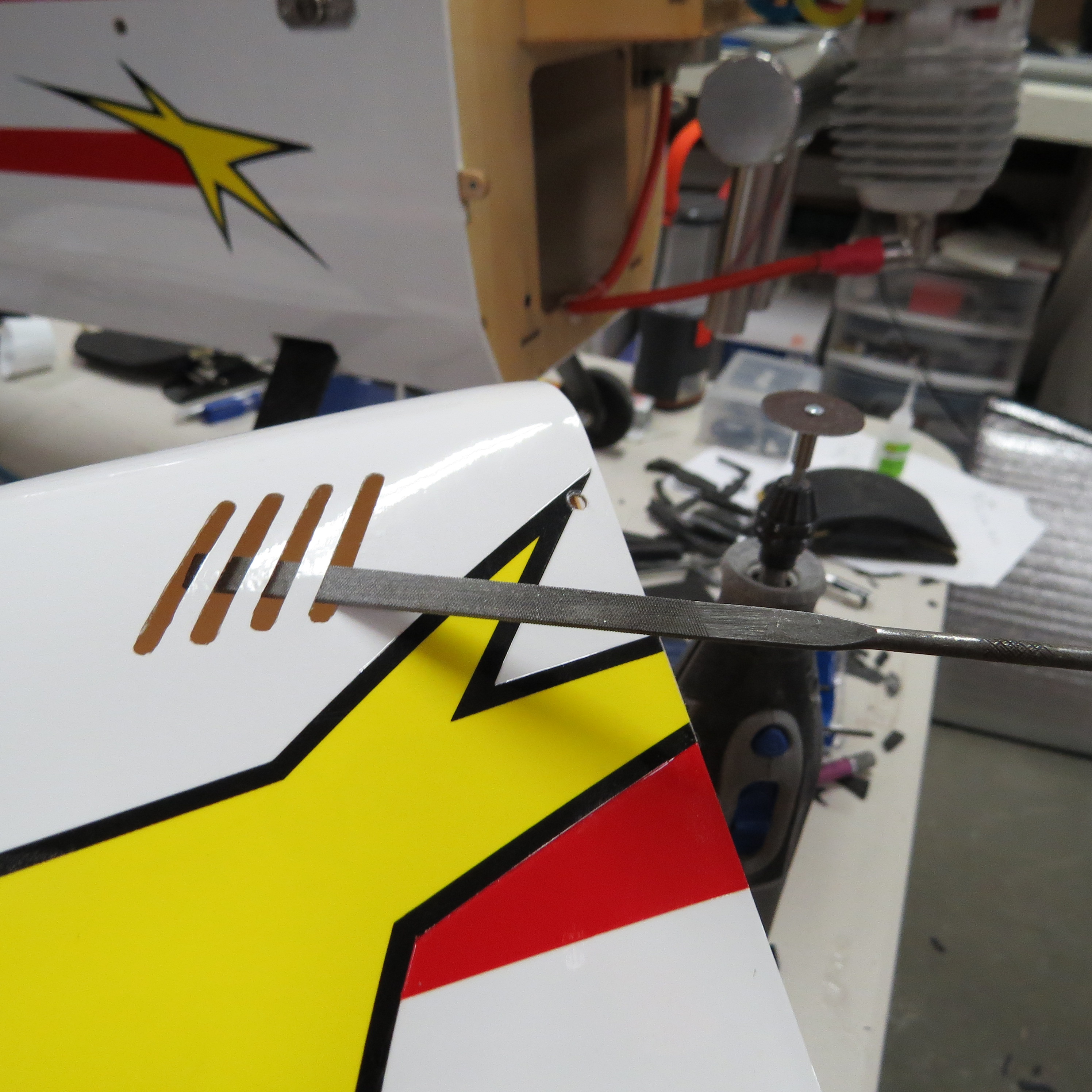

I added some slits on the upper outboard section of the cowl so that any rising hot air during a ground run has a place to escape.

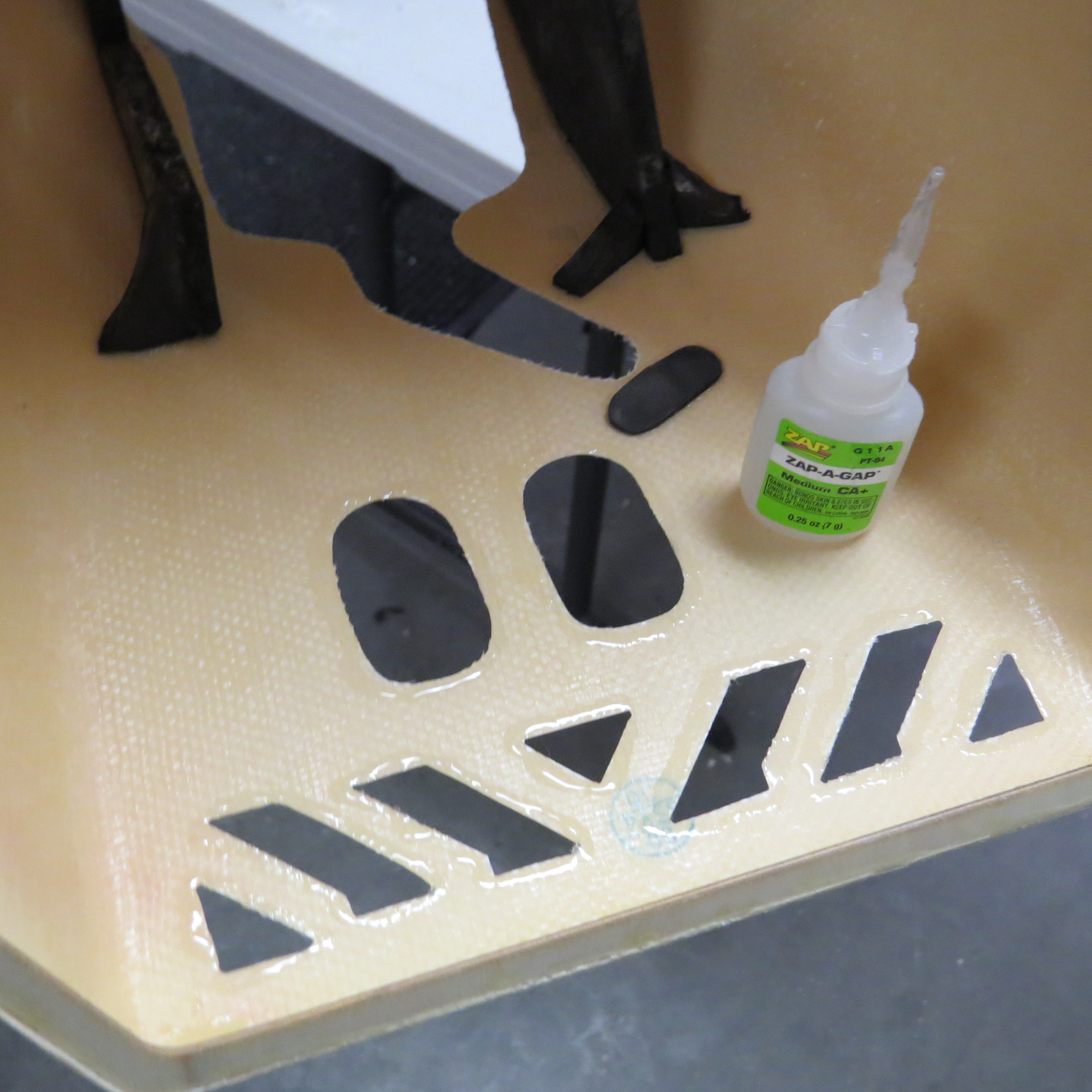

Dont forget to add a bead of medium zap ca around the openings you cut to help strengthen it a bit and keep any oil or fuel from entering through the loose fiberglass braids.

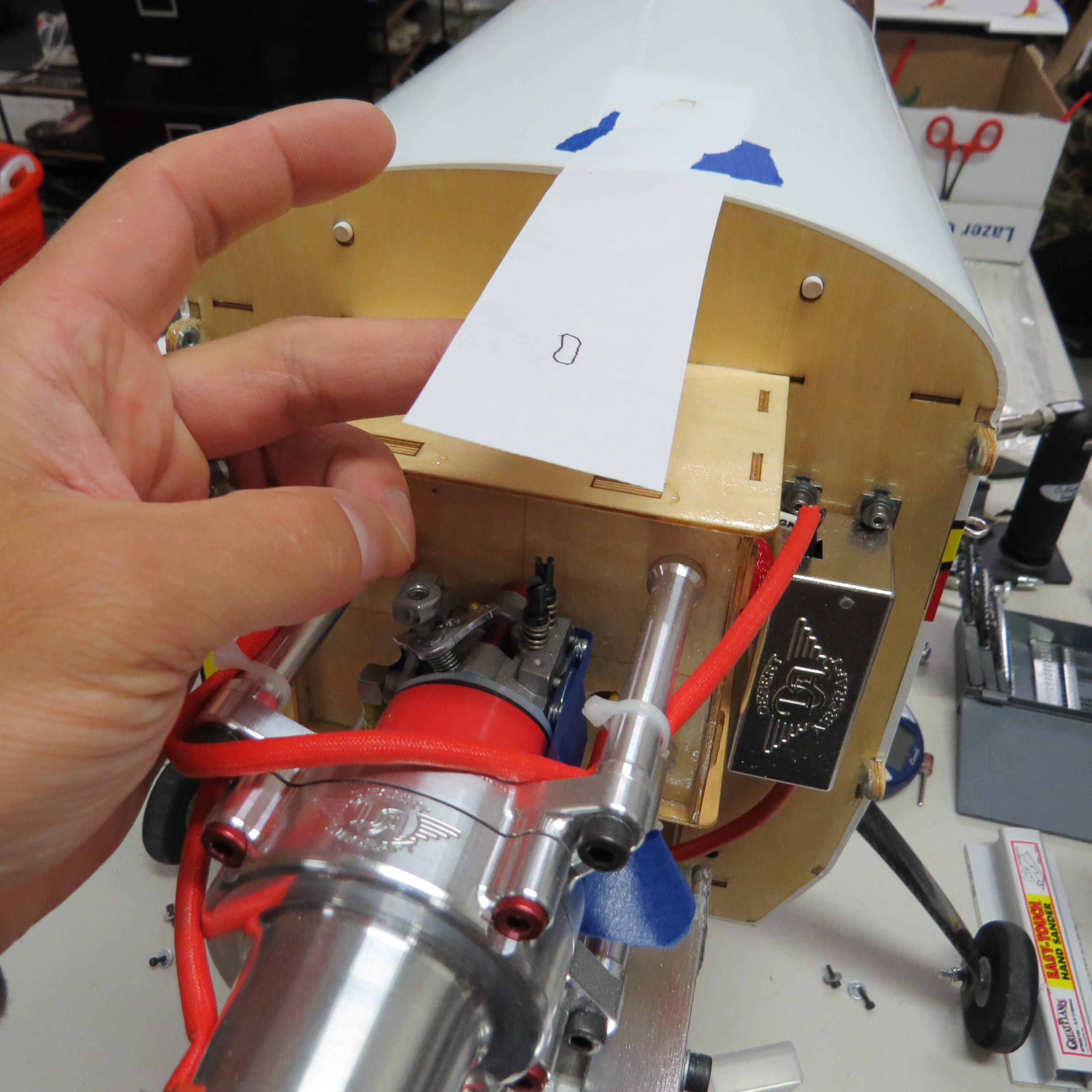

I took the liberty of putting a small opening to adjust the needles without removing the cowling. may look a little sloppy, but totally practical.
WOW that was a lot of pics!! This essentially concludes my build, but I still need to do a ground run... after a get a new fuel jug setup... I hope to have the engine running in a week and maybe a maiden shortly there after. I will also mention that I did a pre-pre flight and made sure every component was secured, and linkages were tight. My oh my this build has taken me eternity! (My fault!!! not AJ ha ha)
I bought 6mm and 3mm craft foam from Joan's Fabric, as long as it isn't too close to the exhaust or cooling fins it wont melt. The general purpose of doing this is so that the air moving through the cowl's opening is kept/directed around the cooling fins and exhaust port of the engine so that the hot air will not be stagnant and the cooling air will efficiently pass over the heated areas. I used Zap Medium CA to tack it on and then added a filet. Note the 90 degree foam supports, and the piece of foam under where the spark plug wire could potentially come into contact with. Also note that I opened up the cowling a bit more and even more so in front of the exhaust.
We shall see if it melts!! ha ha
I vented the lower bottom part of the cowling to prevent any "pressurized cowl" effects that may happen. I kinda like making a little design of some sort.
I added some slits on the upper outboard section of the cowl so that any rising hot air during a ground run has a place to escape.
Dont forget to add a bead of medium zap ca around the openings you cut to help strengthen it a bit and keep any oil or fuel from entering through the loose fiberglass braids.
I took the liberty of putting a small opening to adjust the needles without removing the cowling. may look a little sloppy, but totally practical.
WOW that was a lot of pics!! This essentially concludes my build, but I still need to do a ground run... after a get a new fuel jug setup... I hope to have the engine running in a week and maybe a maiden shortly there after. I will also mention that I did a pre-pre flight and made sure every component was secured, and linkages were tight. My oh my this build has taken me eternity! (My fault!!! not AJ ha ha)
