Scale Nelitz 1/3 scale Cub build

[dhal22]

That's a great tip, thanks.

Even a blind squirrel finds a nut once in a while........



[dhal22]

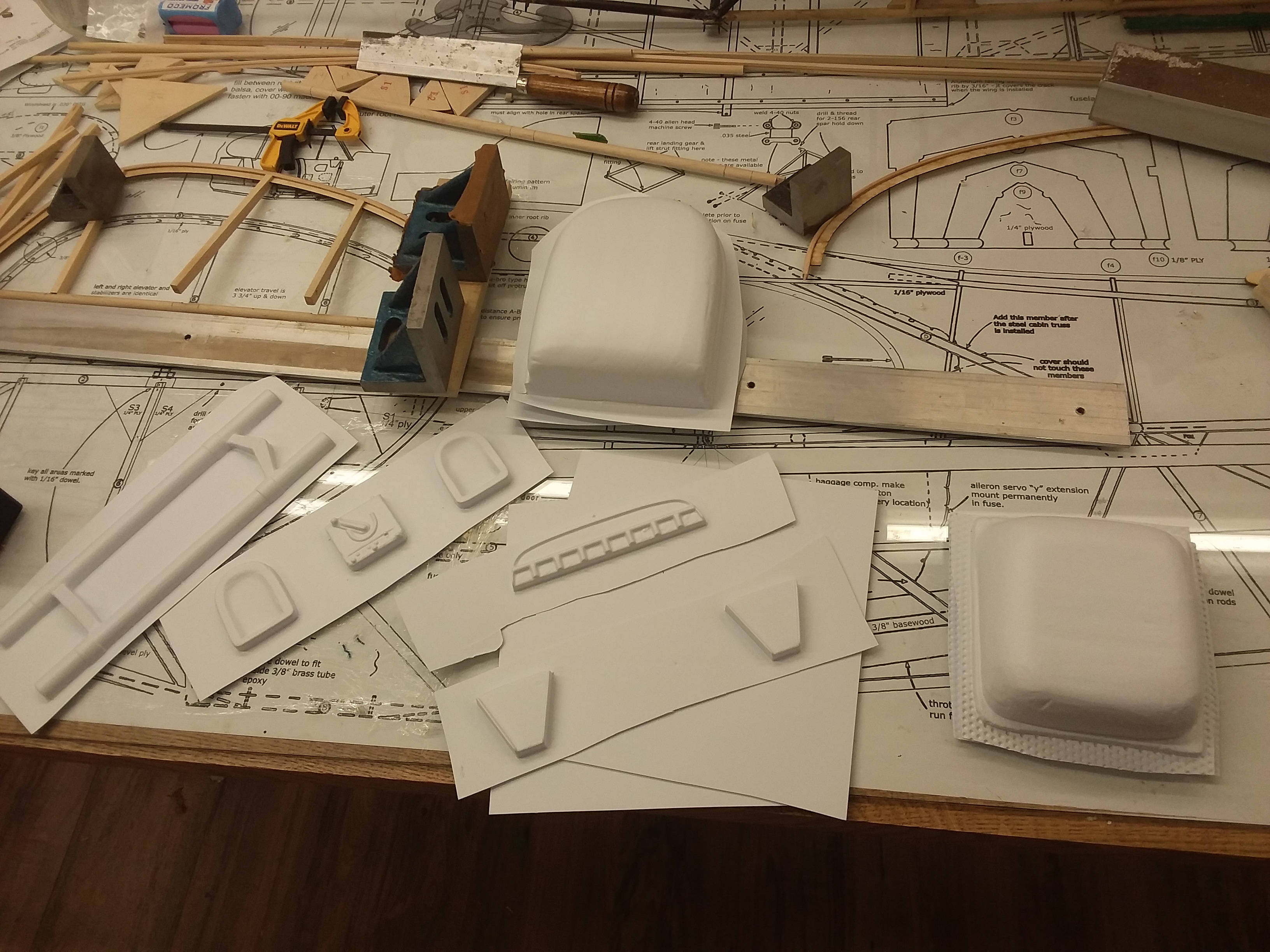

Going to post a variety of catch up photos. These were sent to me by a fellow modeler just in case I need them. I will use them as template sizing once I get to the cockpit work.



[dhal22]

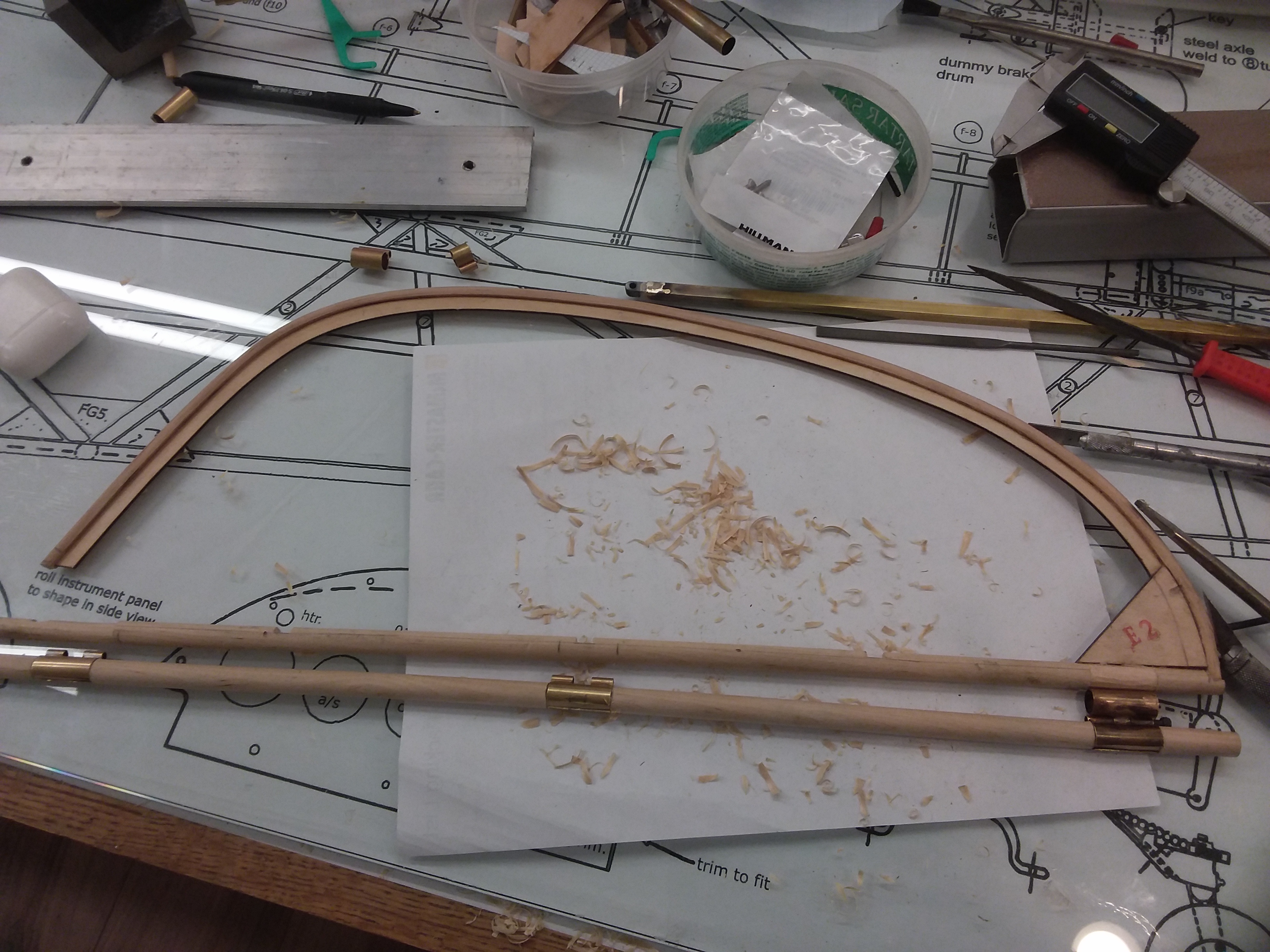

Working on tail feathers still.



[dhal22]

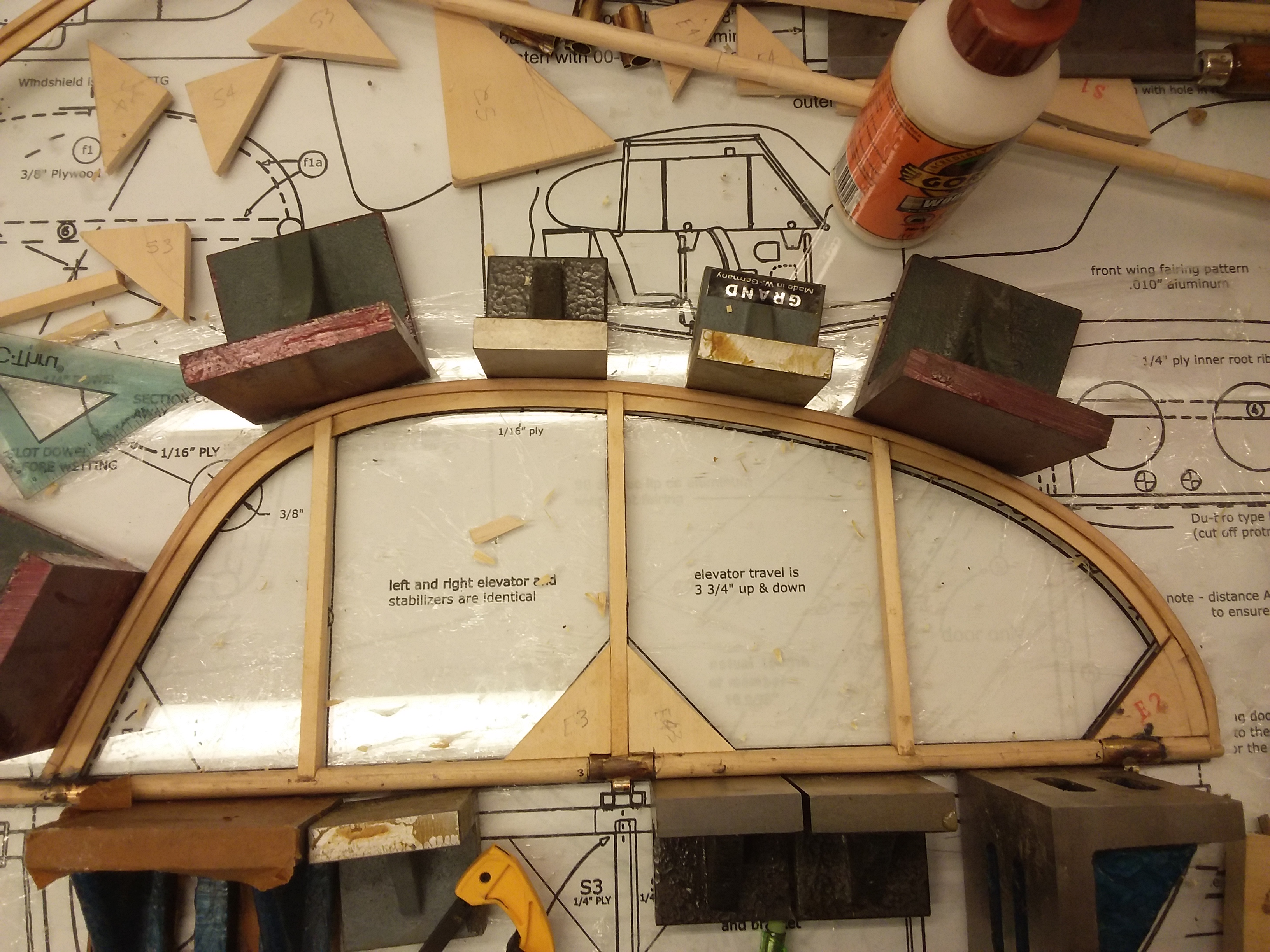

Couple of more pieces put together......



[TonyHallo]

What is the process for installing the hinges on the dowel?



[dhal22]

I have photos on my phone. Let me upload them.



[dhal22]

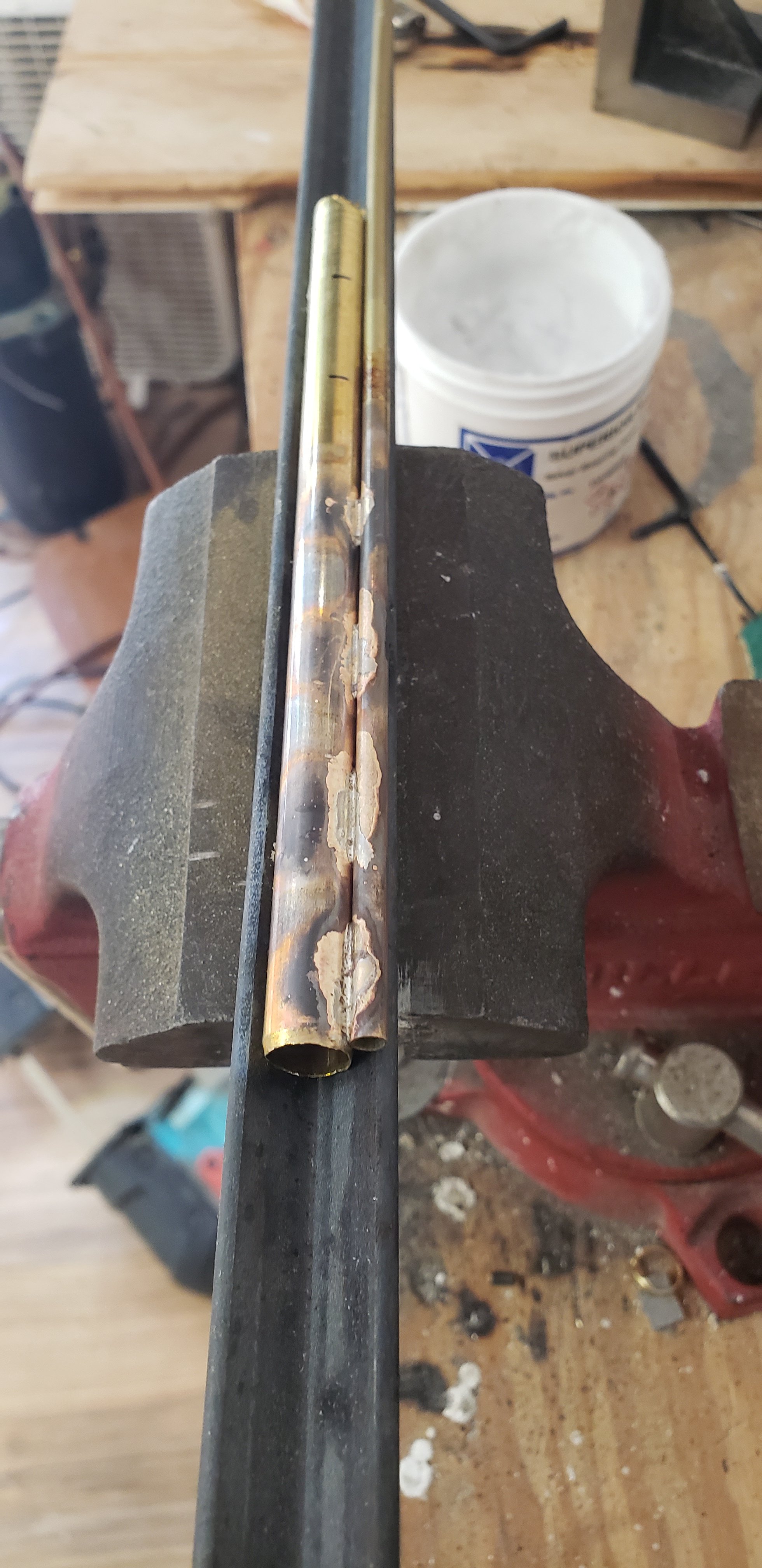

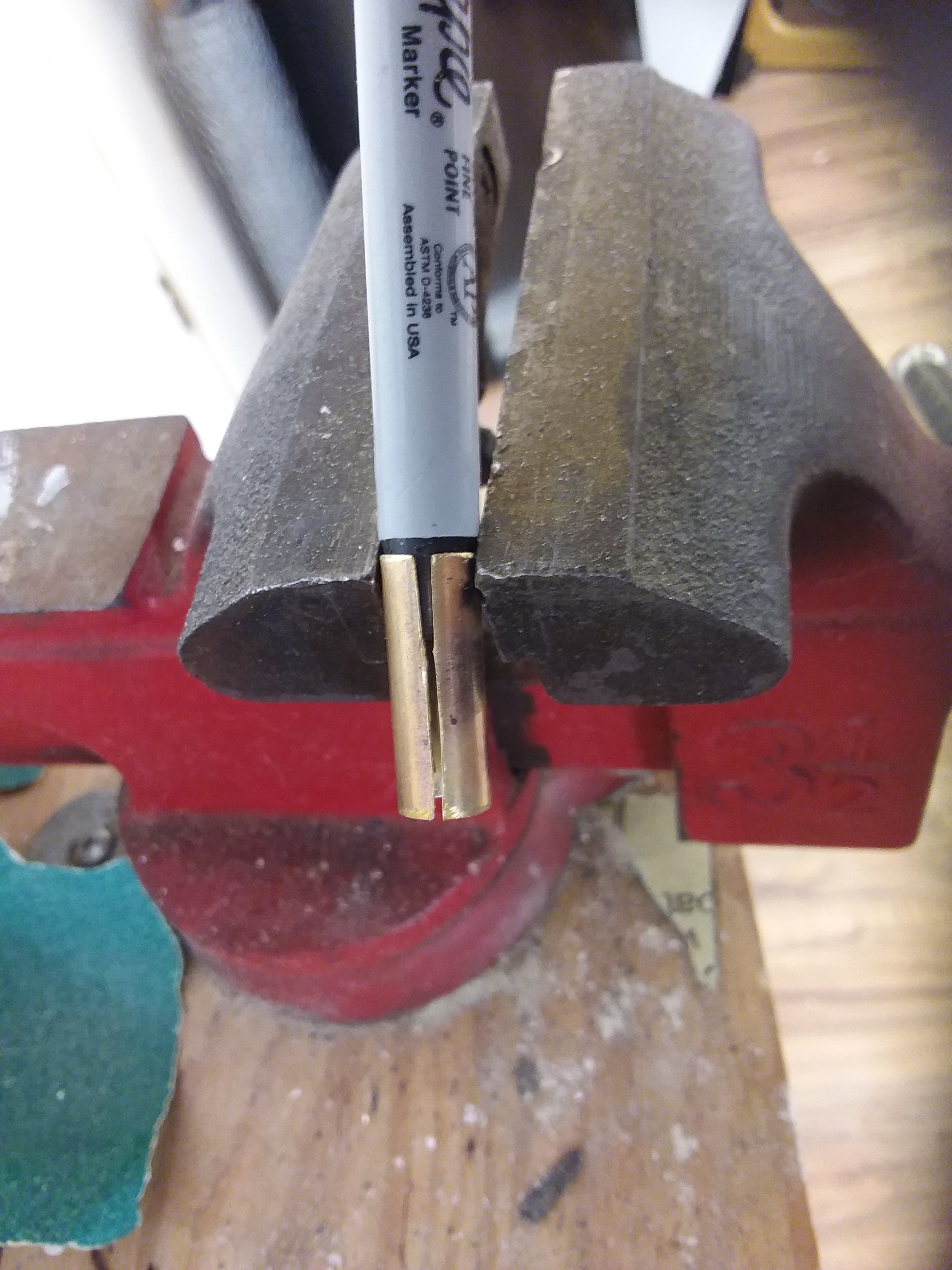

Soldering the hinges, I cut them to length afterwards.



[dhal22]

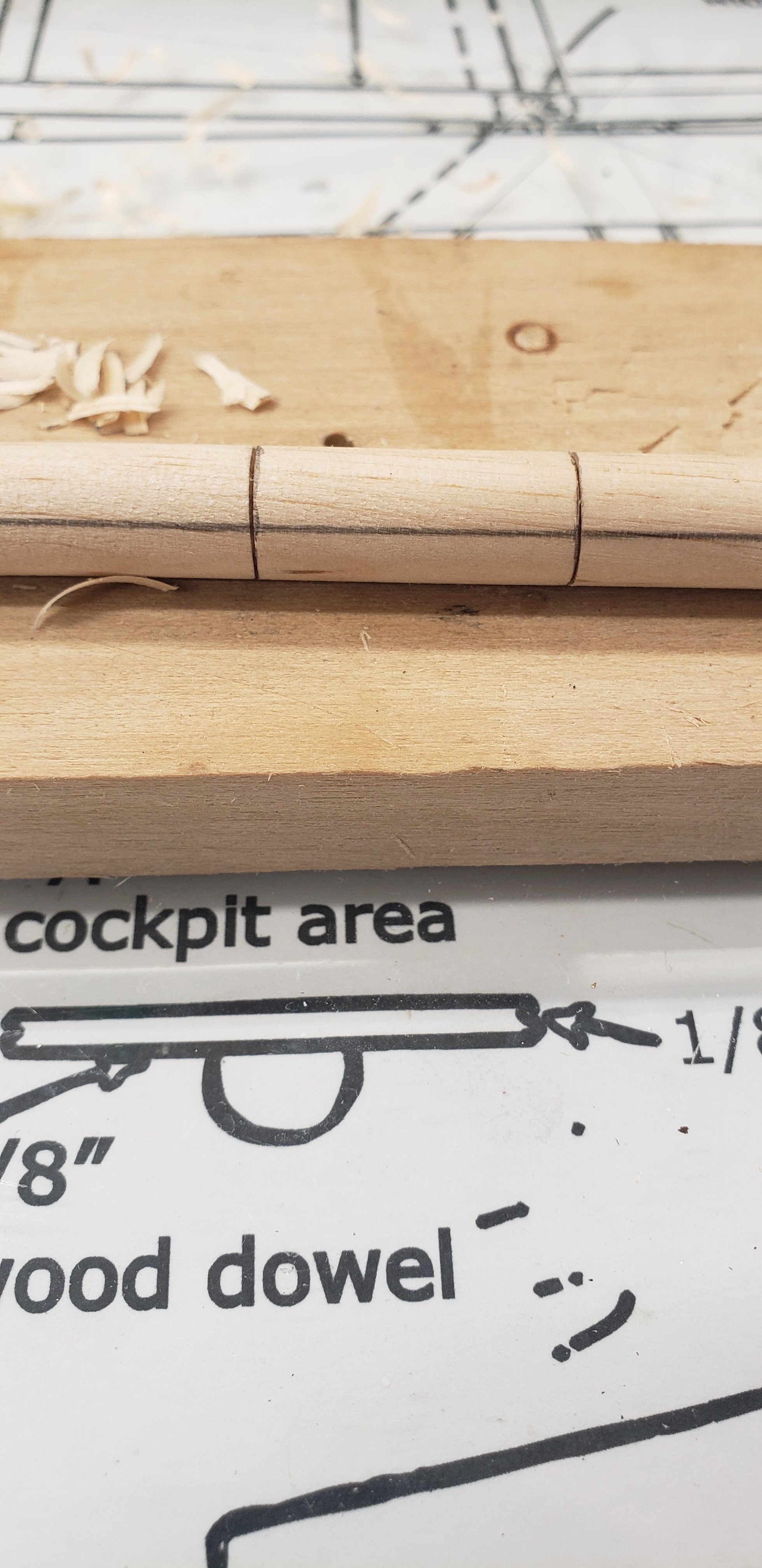

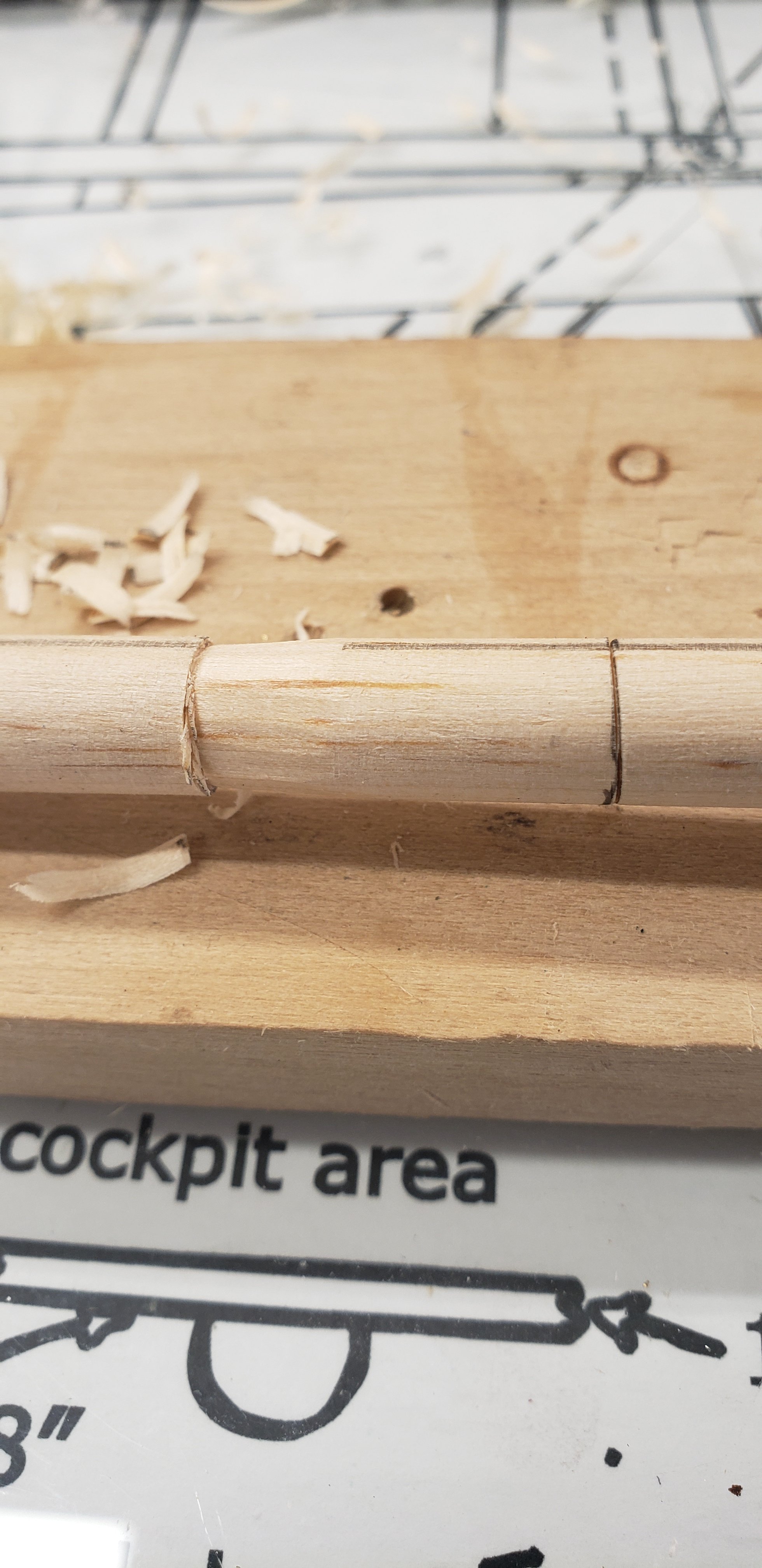

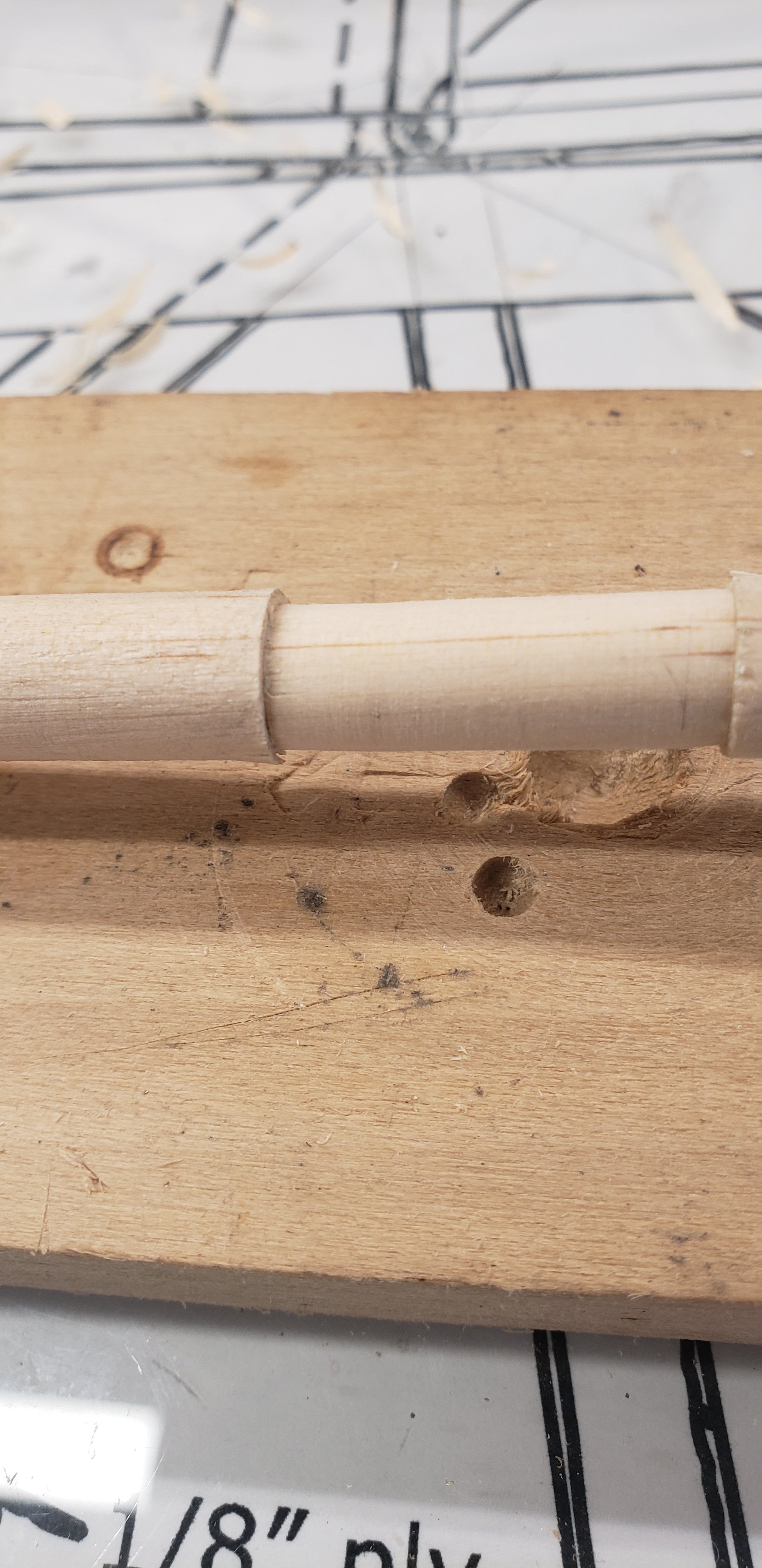

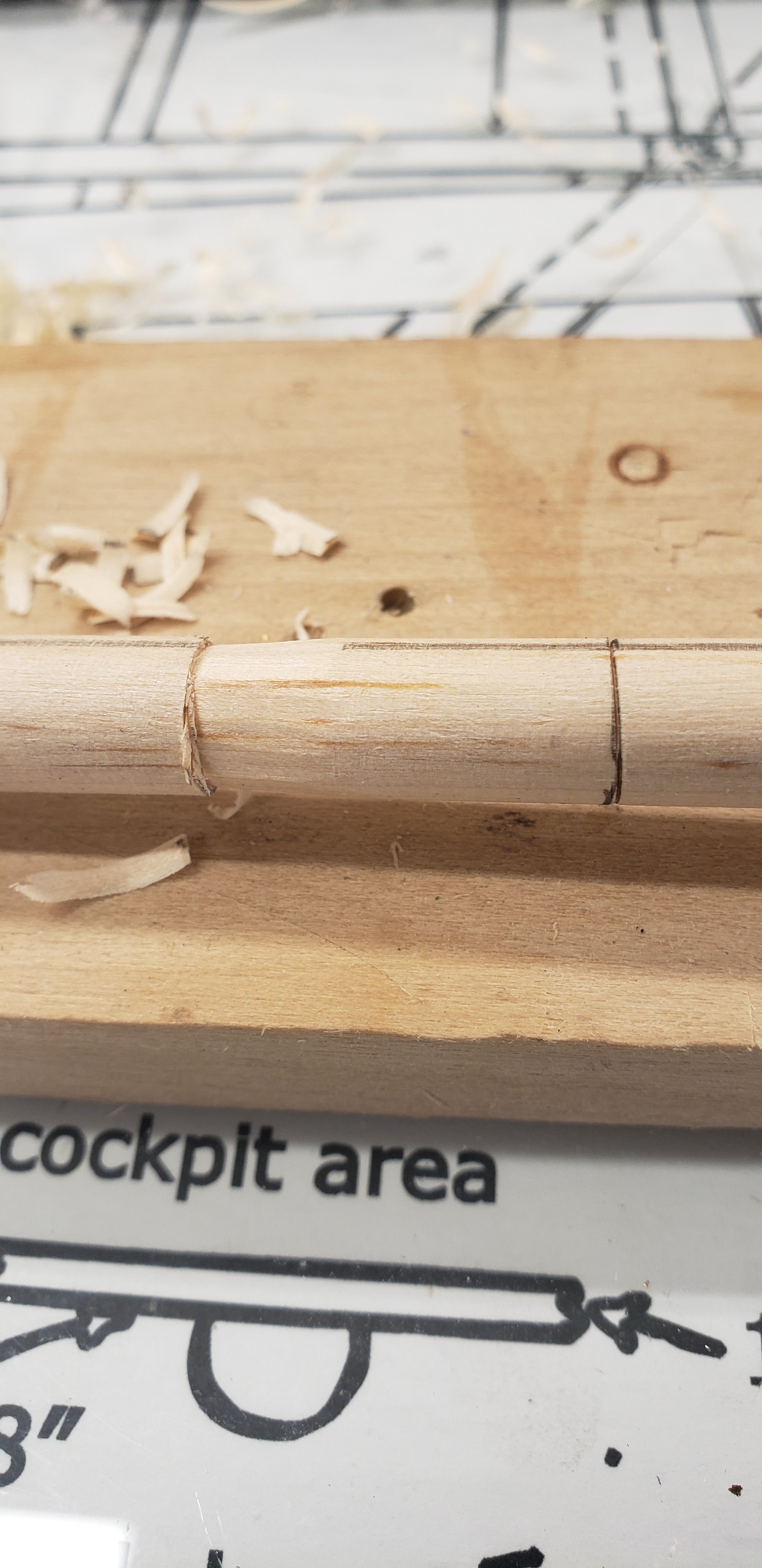

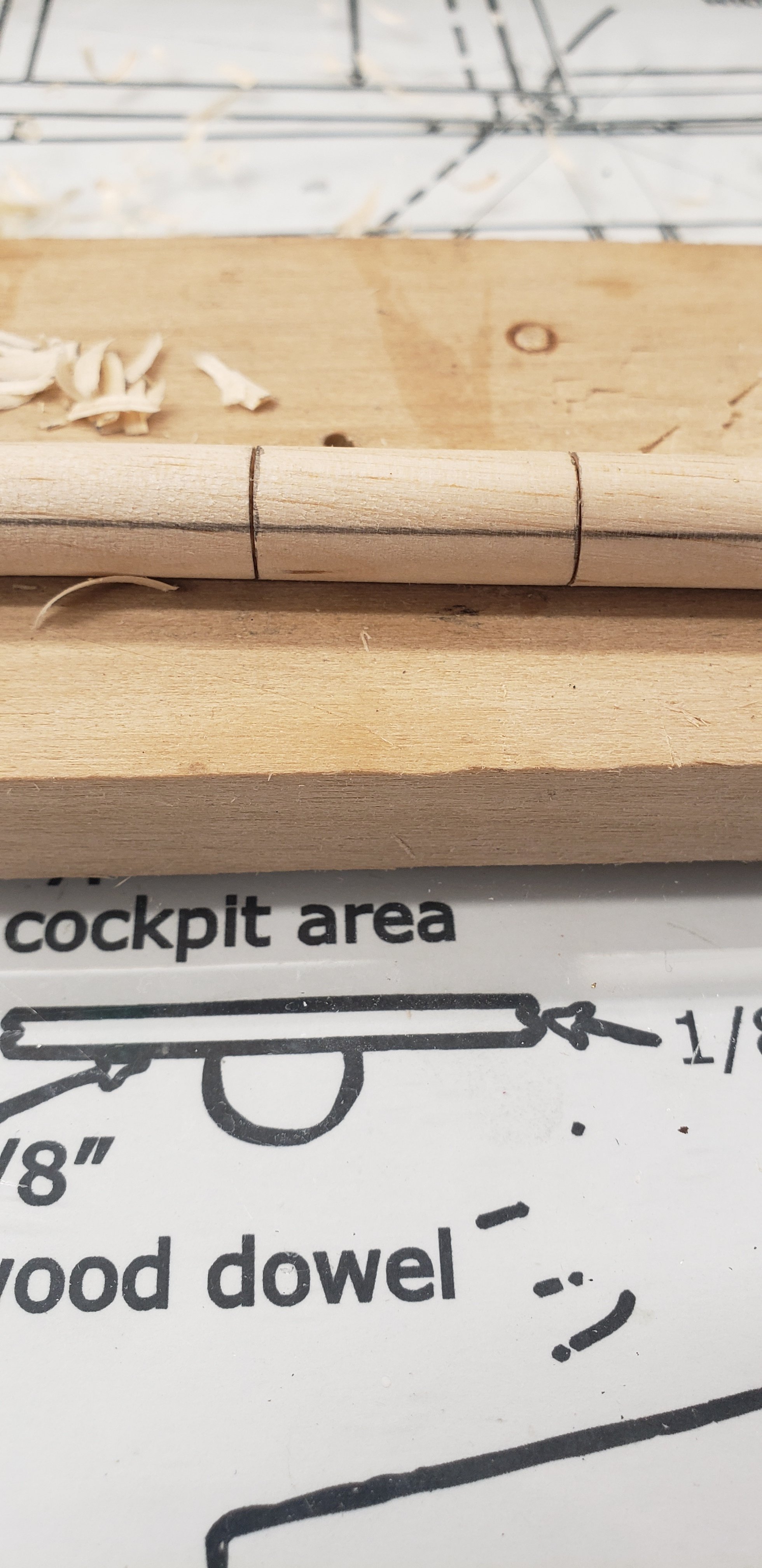

Marked the 3/8"dowel, shaved with a xacto and sanded for the 3/8" brass.



[TonyHallo]

So do you split the 3/8" tube and wrap it around the dowel? How is it glued or pinned in place?



[dhal22]

Yes, slice the tube, wrap around dowel and Hysol for glue. I clamp the tube to squish it flush with the dowel.
