Was waiting on a tailwheel for this. Sean Tucker's Challenger has a Haigh style tailwheel and his airplane is very low to the ground in the back as a result so I wanted to have that same posture for the PAU Challenger.
Ever wonder what a Haigh tail wheel is in the first place? Your standard tailwheel will turn along with the rudder through cables and springs like we're all pretty familiar with but a standard tail wheel will continue moving with the rudder throughout your takeoff so if things get squirrelly (how the hell do you spell squirrelly?) the tailwheel won't do much to help straighten things out. The Haigh tail wheel on the other hand is what is referred to as a locking tailwheel. See that little thing sticking up from the top of where the tail wheel is? That's a lever that is pulled from the cockpit via a cable to unlock the tailwheel. Some planes make it unlock when the control stick is back like when you're taxiing, some planes have a separate lever to unlock it. But when it's time for takeoff (and landing) the wheel is locked straight and it helps (some say) to keep the plane nice and straight on the runway. You'll still have rudder for directional control but that tailwheel being locked will help things from getting squirrelly (squirrely?). The Haigh tailwheel is lighter too using a tapered steel rod for the spring and a smaller/lighter wheel.

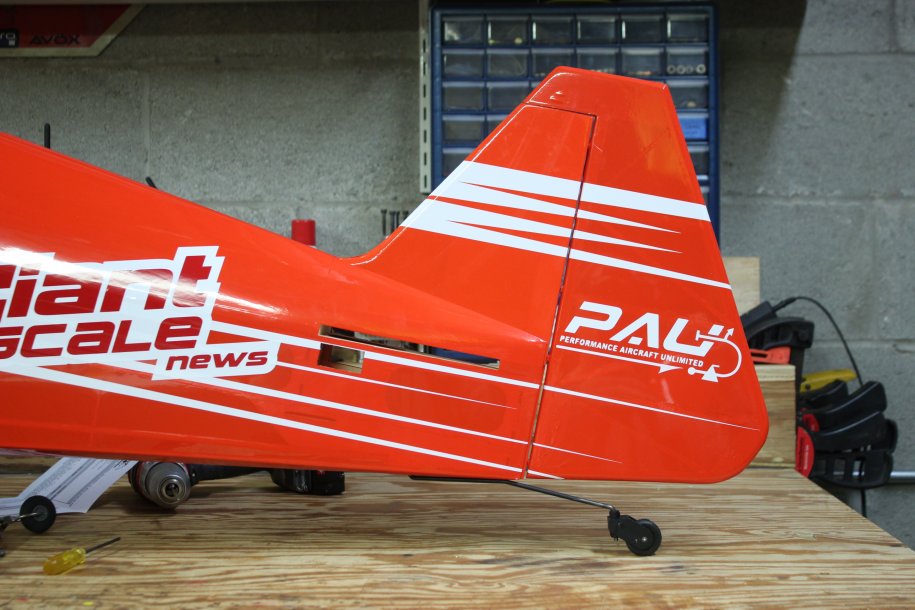

So to simulate the look of Sean Tucker's plane (the image above is probably a Challenger III or IV which is less a modified Pitts S2S and more of a fully custom airplane similar to a Pitts S2S) I bought an Ohio Superstars Haigh style tail wheel, size large. The steel rod extended back a little farther than I wanted it to so I cut the wire off at the bend, measured up an inch, rebent it using heat from a welding torch and then quenched it in water to put some spring back into it. It mounts to the plywood mounting plate that is there for the stock tailwheel spring so no further changes were required.
Mounting the main gear is easy as pie. The instructions say to use a soldering iron to burn open the holes where the bolts go for the main landing gear. I like to cut an x across the hole and let the bolt push the flaps of the covering into the holes. Four bolts later you've got the main gear mounted.
The wheel pants should be placed so that they are level when the airplane is level. The area in front of the cockpit is parallel to the roll axis or longitudinal axis of the plane so if you get the top of the fuselage (ahead of the cockpit) level then the wheel pants should be mounted to be level at that attitude as well. So up went the tail of the plane onto a cardboard box and a level was used to get the fuselage level.

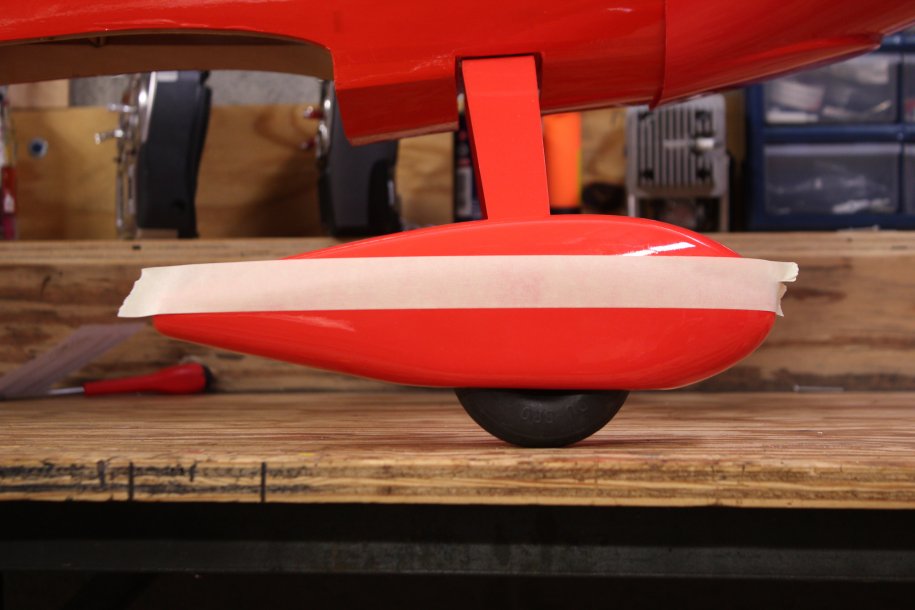

Masking tape was used on the wheel pants to estimate a reference line front/back that could be compared to a level to get them just right. Two 4x40 bolts go through the gear legs, into a plywood reinforcing block in the wheel pants and are held there by blind nuts. It's never a bad idea with non-locking hardware to use some loctite on the threads to keep things secure just be careful there's no plastic around as Loctite will soften plastics and some composites.

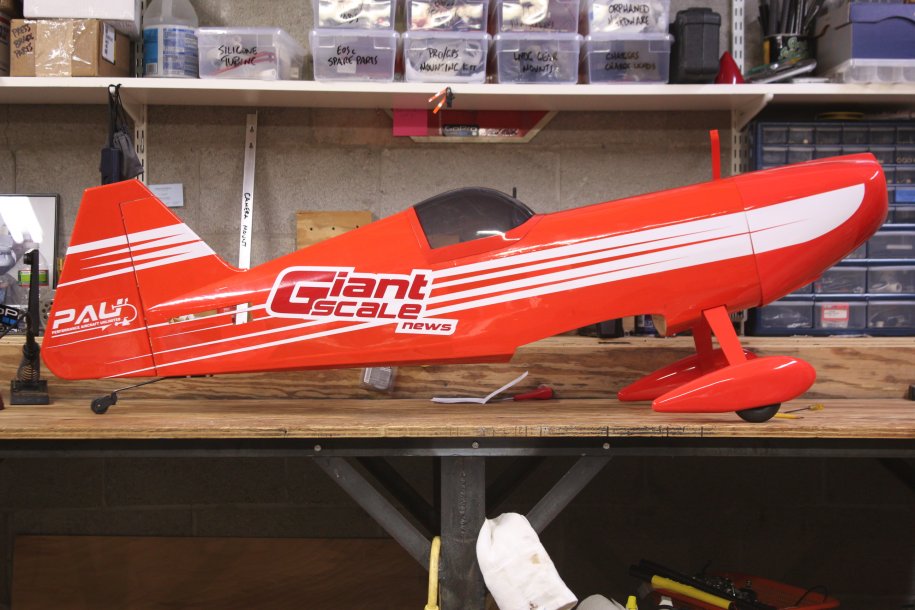

With the main gear and tail wheel in place and the wheel pants mounted, the plane could be put on the bench for a nice glamour shot.
