PM Research Mini Engine Lathe Build

[Stevendavis]

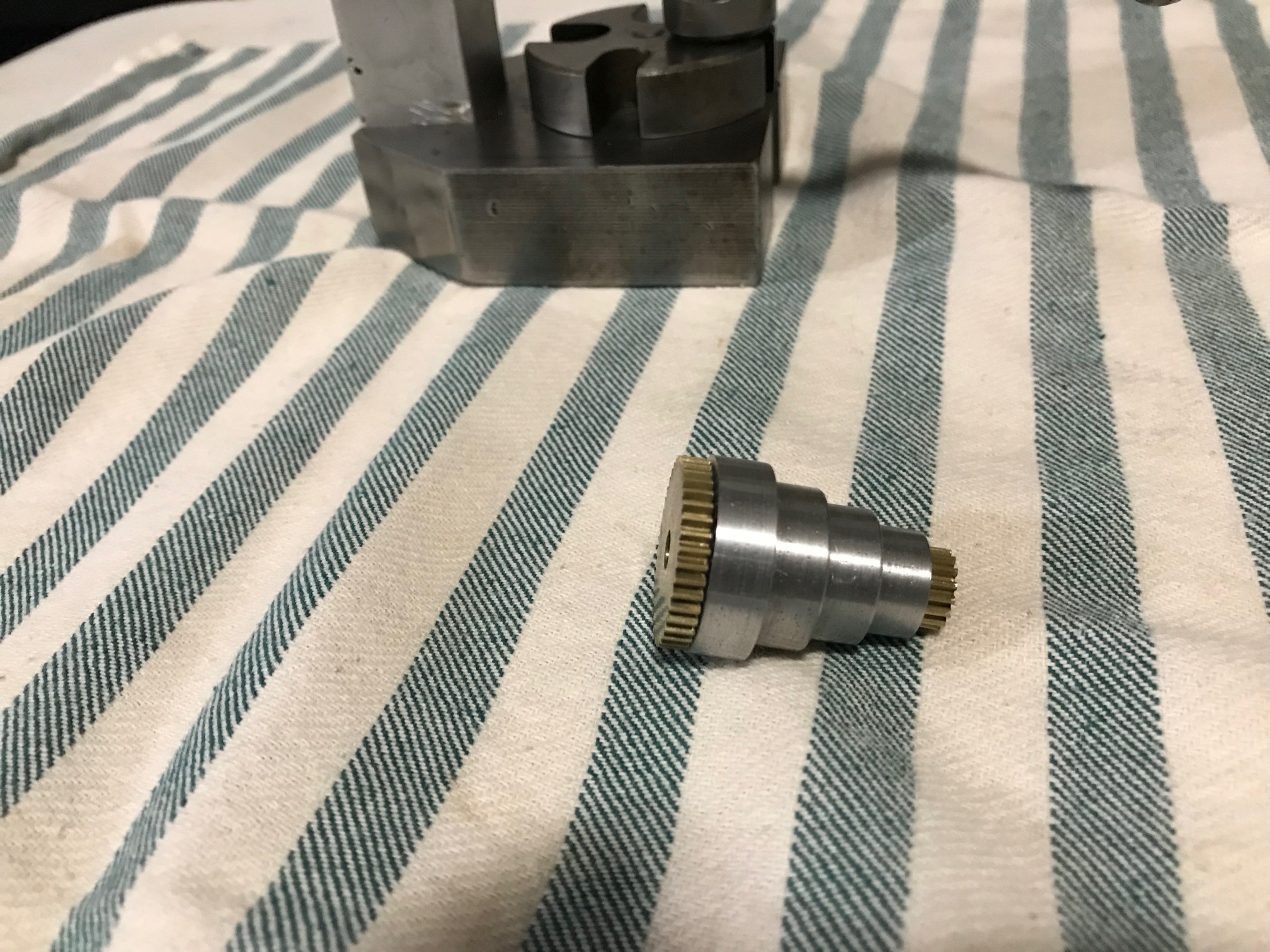

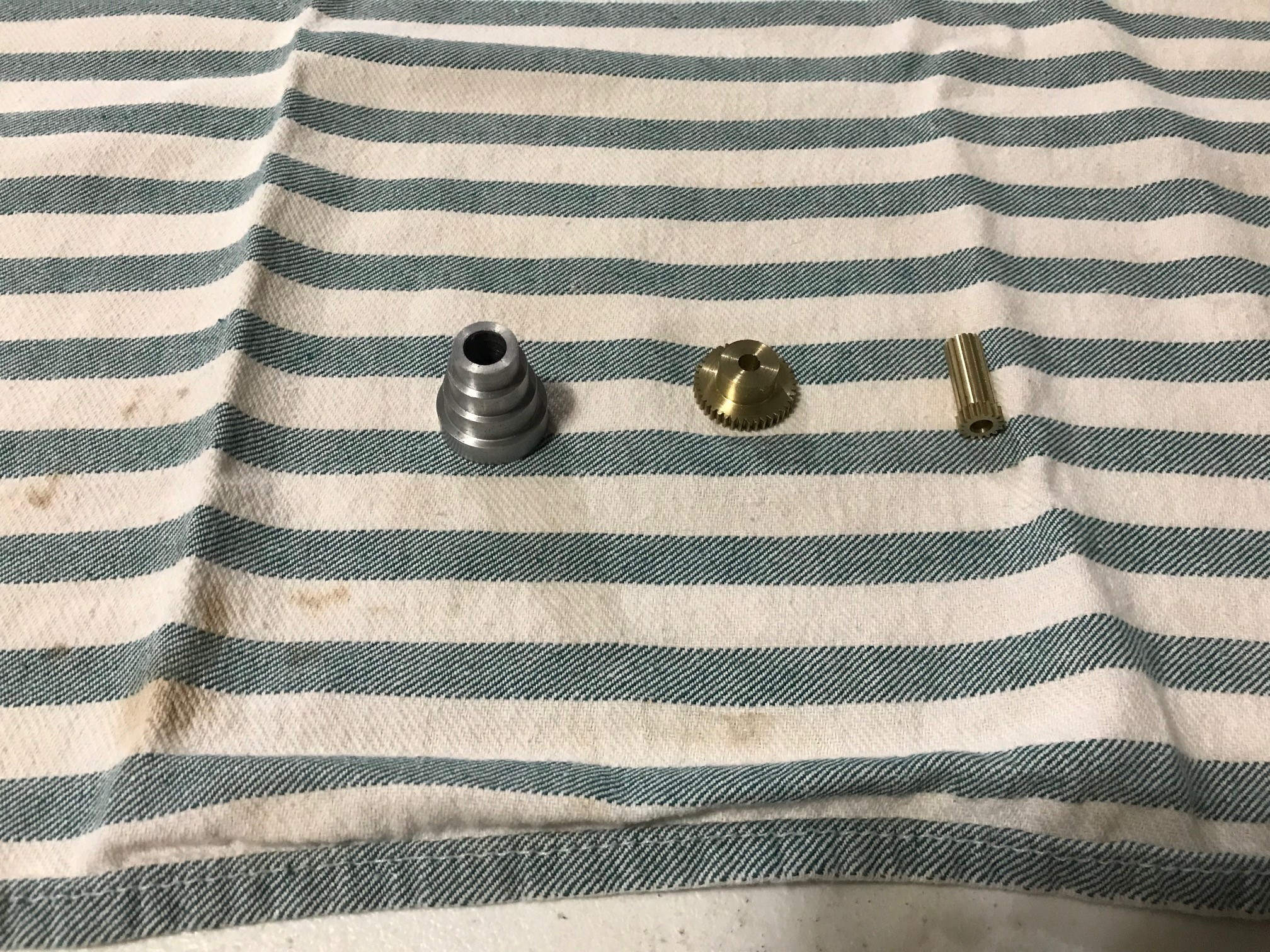

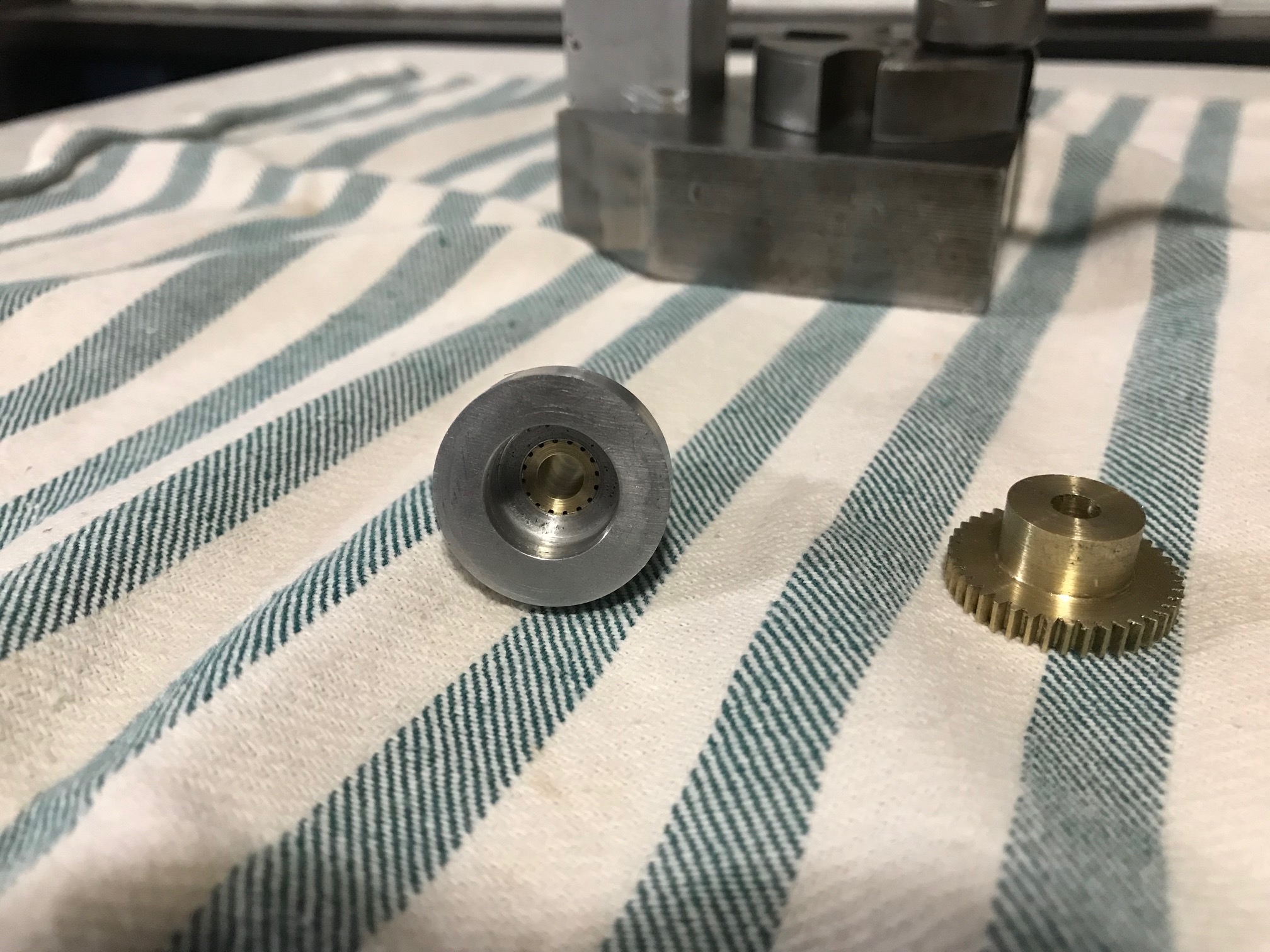

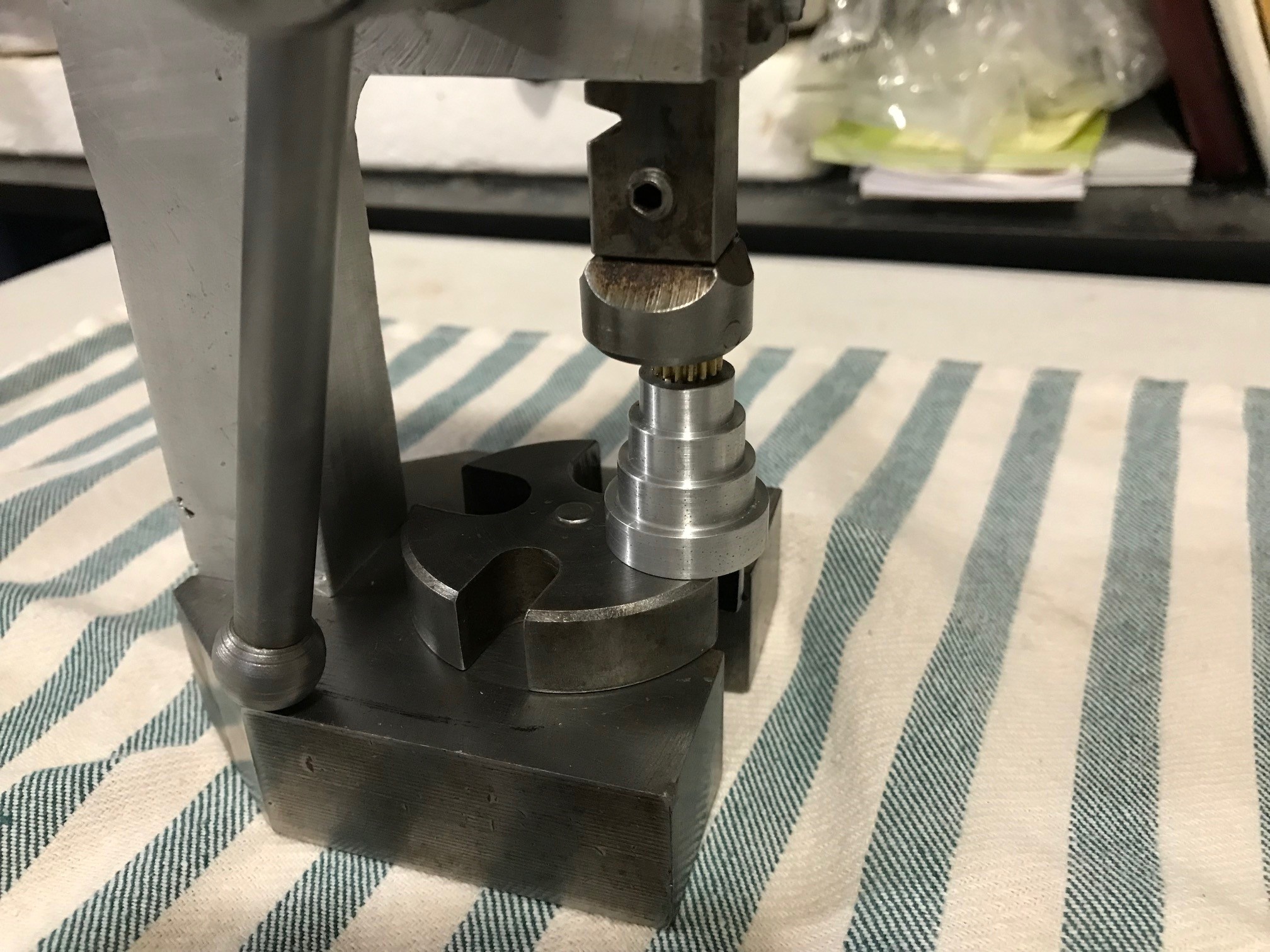

press fit went nicely. The assembly came out great so far.



[Stevendavis]

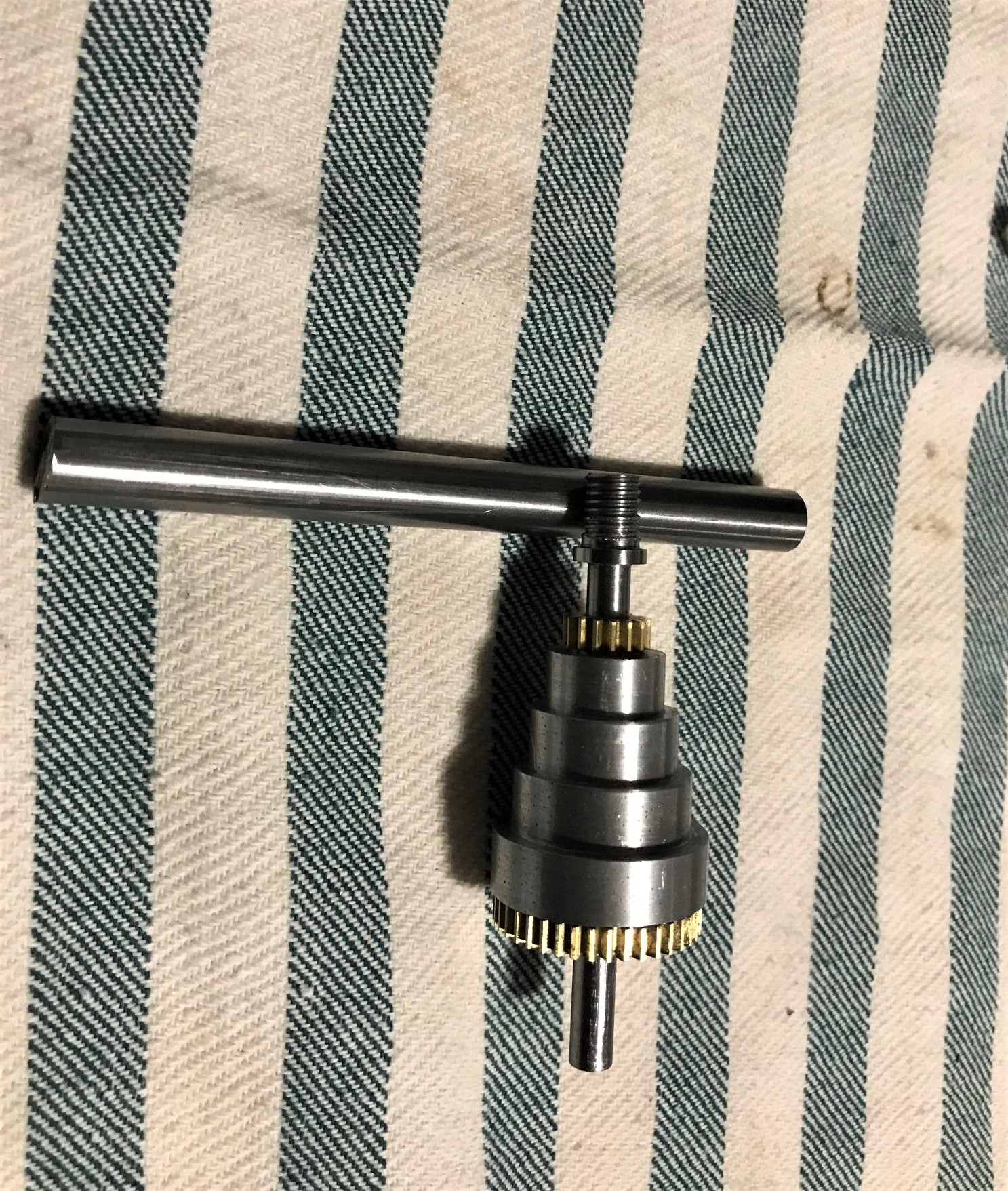

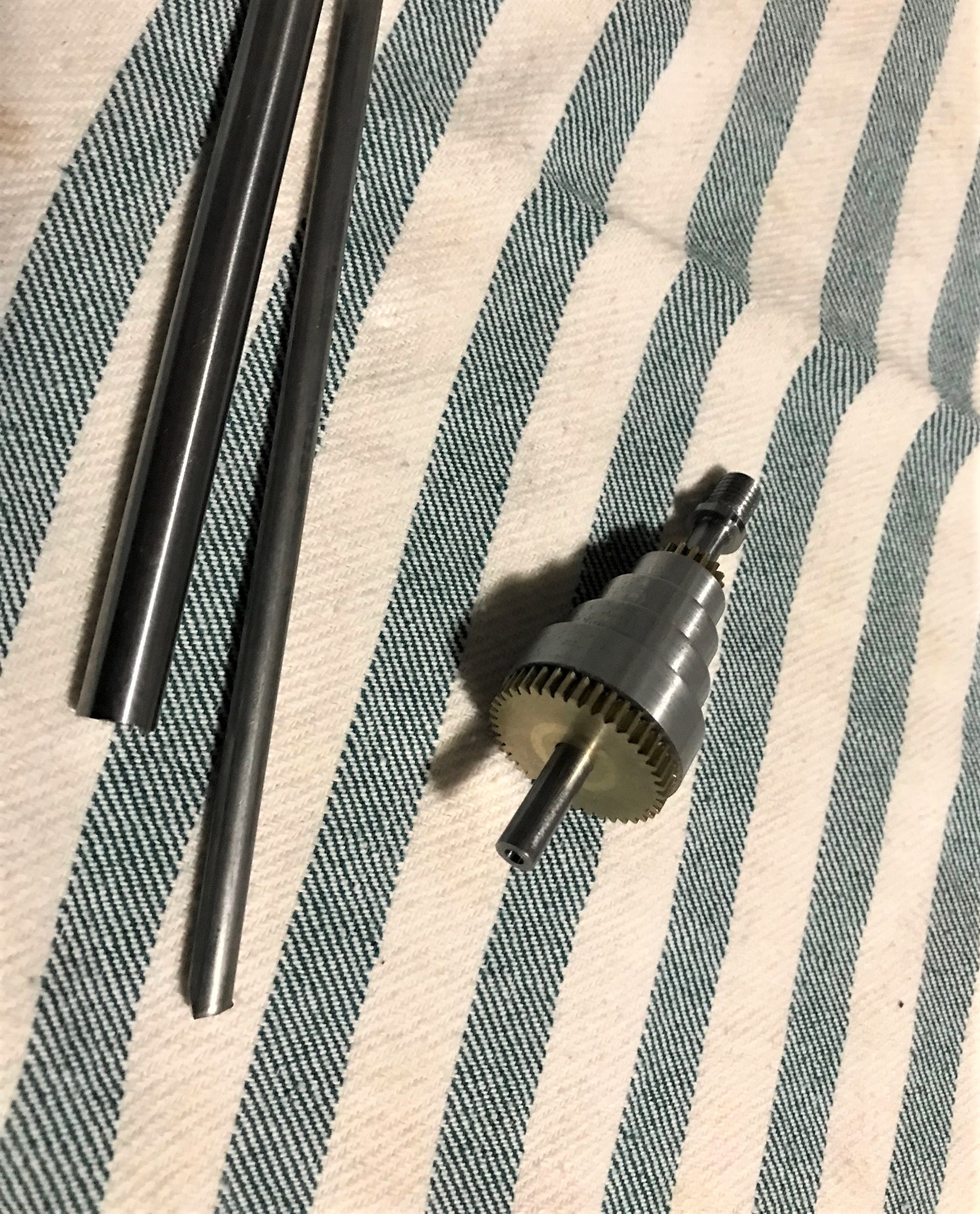

The last thing I got done was the spindle itself. A little challenging as it's 2.5" long, with a through hole of 3/32". The spindle is made out of 5/16 CRS. It turned out great so far. Every thing fits very nicely and turns smoothly and the through hole is on the money. I still need to put the radius on the pulley belt positions, and put a taper in the end of the spindle for the dead center.



[Stevendavis]

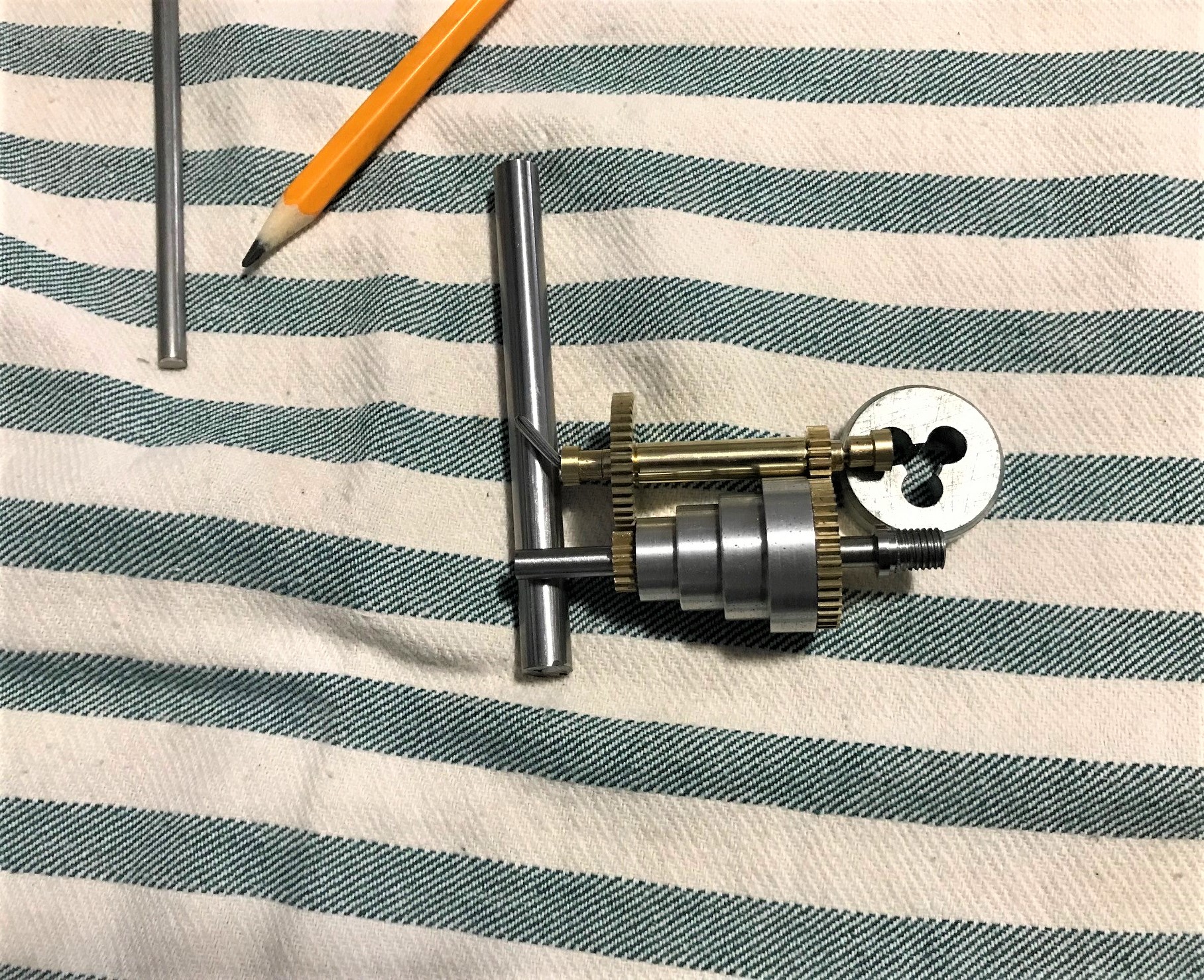

This will be the orientation once it's mounted in the headstock.



[TonyHallo]

Coming along nicely Steven.



[Stevendavis]

Coming along nicely Steven.

Thanks Tony!



[Stevendavis]

Hey Tony,

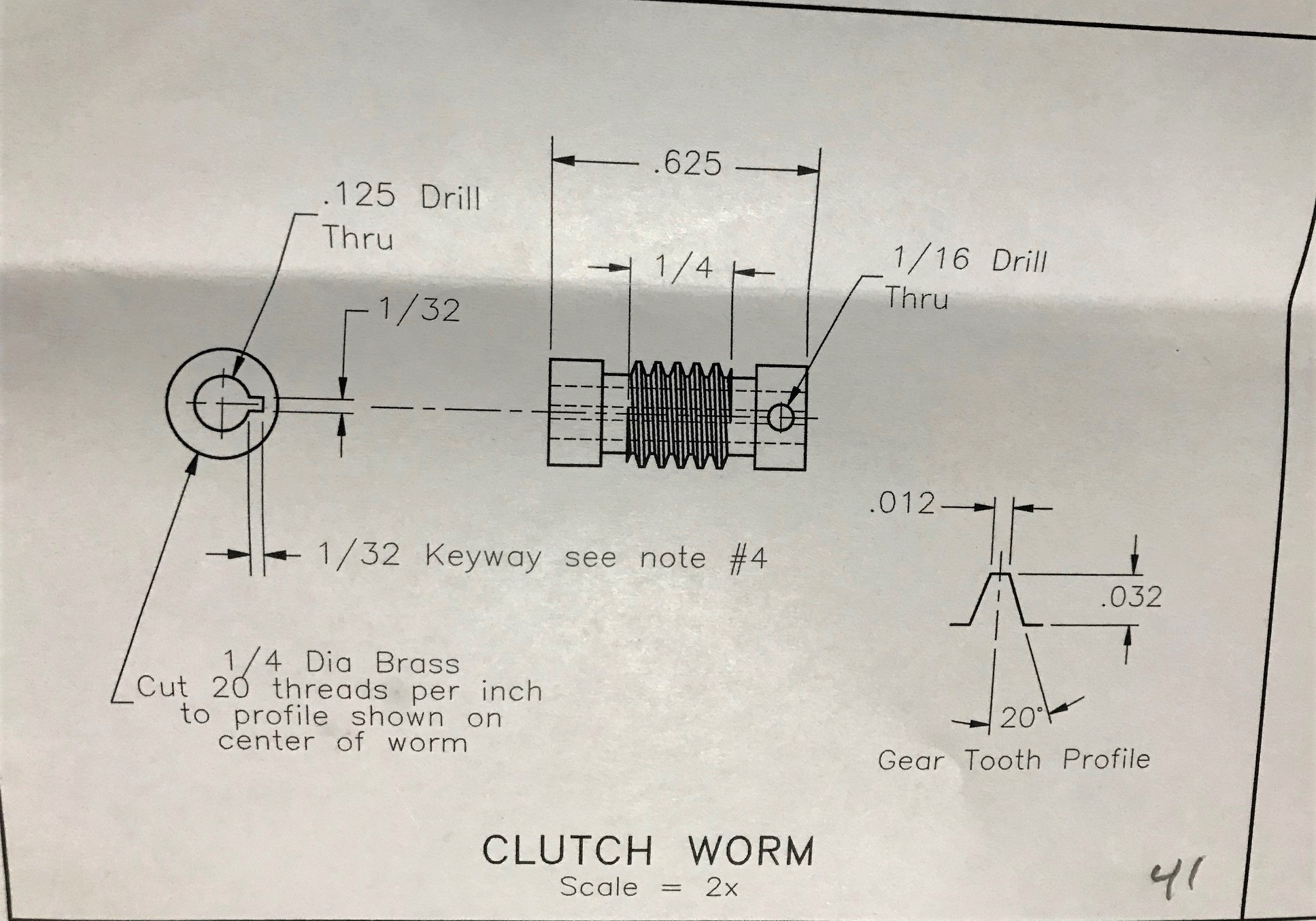

Do you feel like another project for me? I don't have any way to make this worm gear at the moment. I can't single point standard threads right now. My lathe has a metric lead screw and the only way I know of to make this is by single point threading.



[TonyHallo]

I need to change some gearing around and give it a go.



[Stevendavis]

Thank you!!



[Stevendavis]

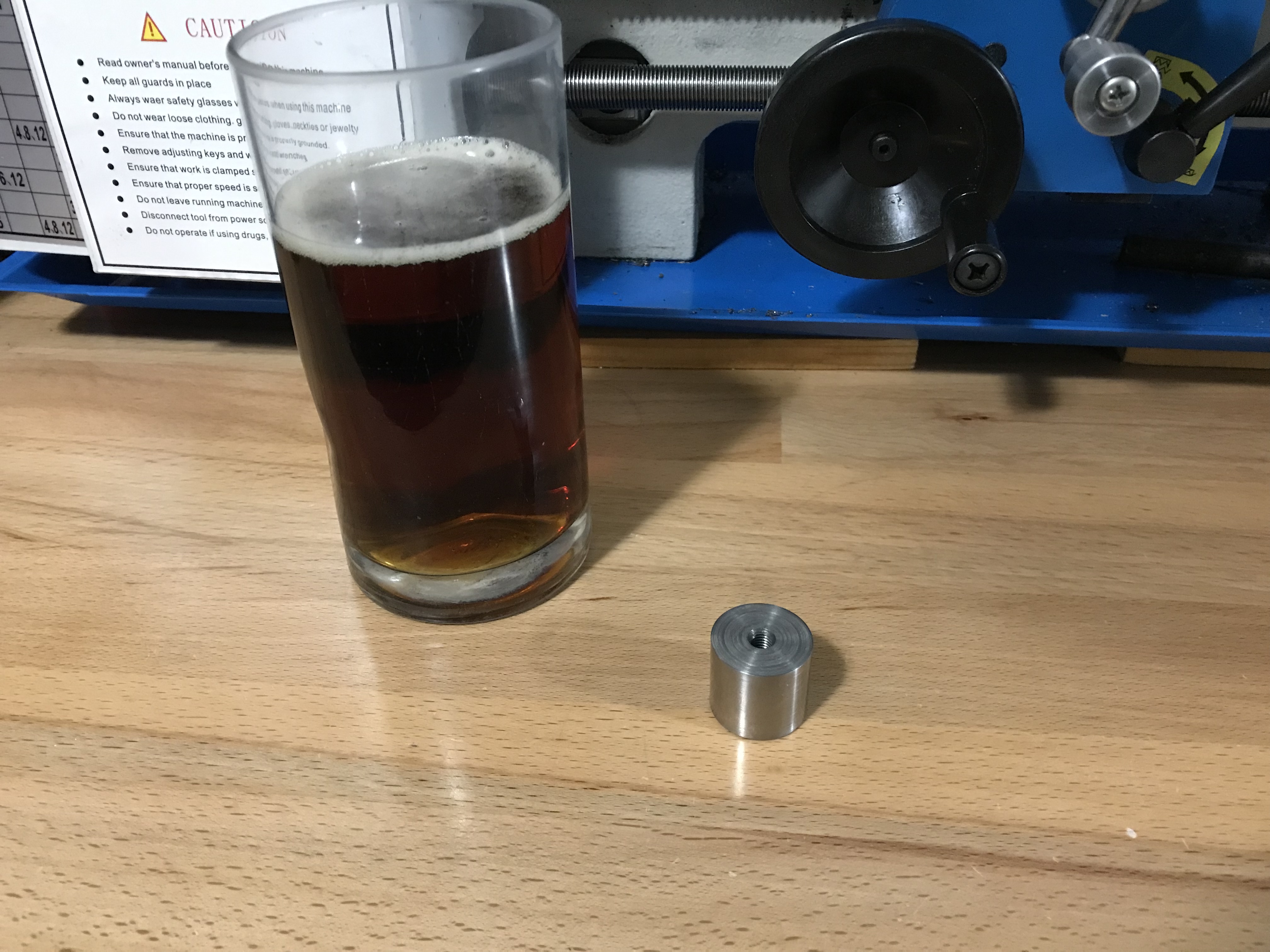

All I did today is the first stage of making the 4 jaw chuck.



[TonyHallo]

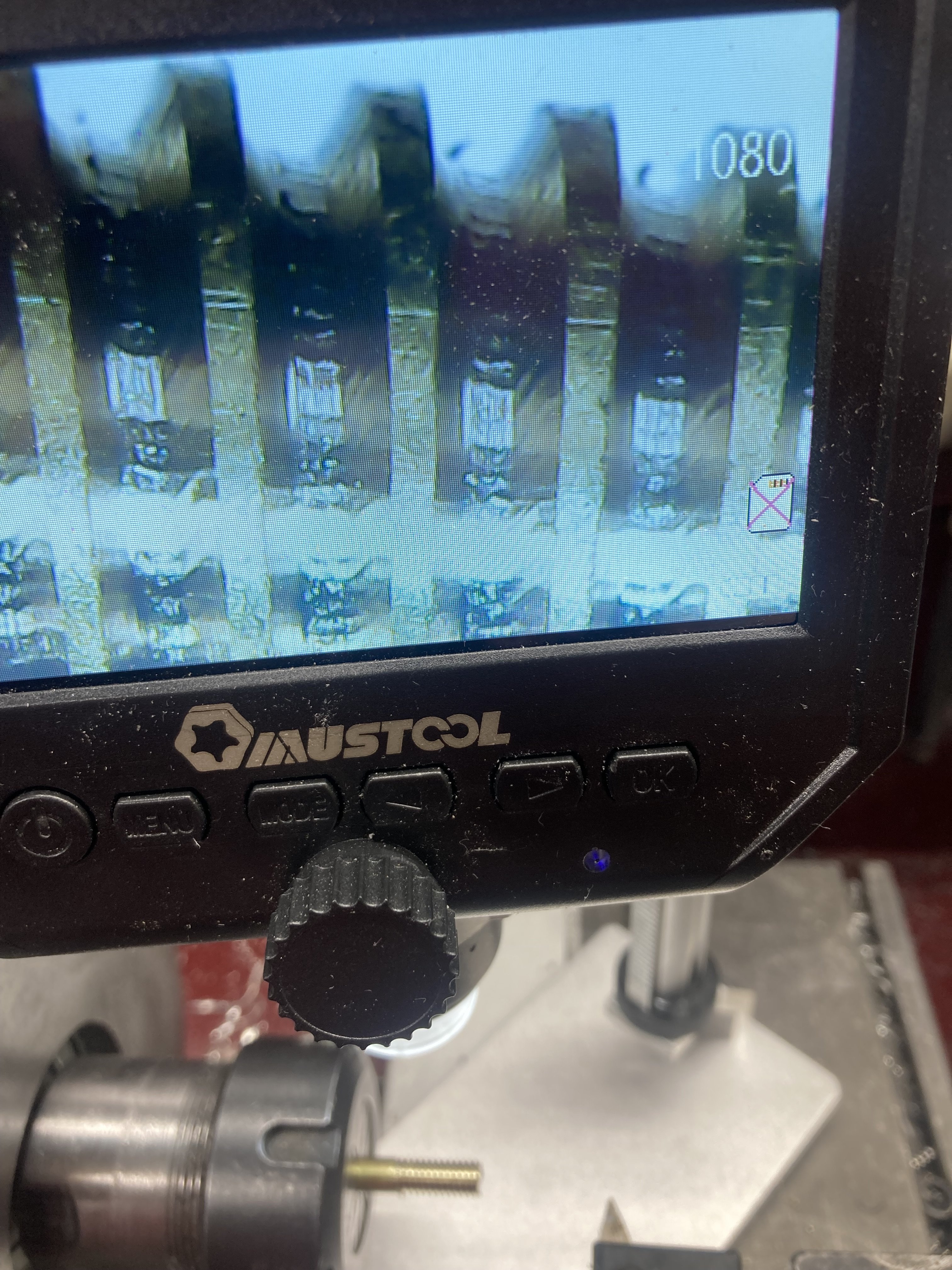

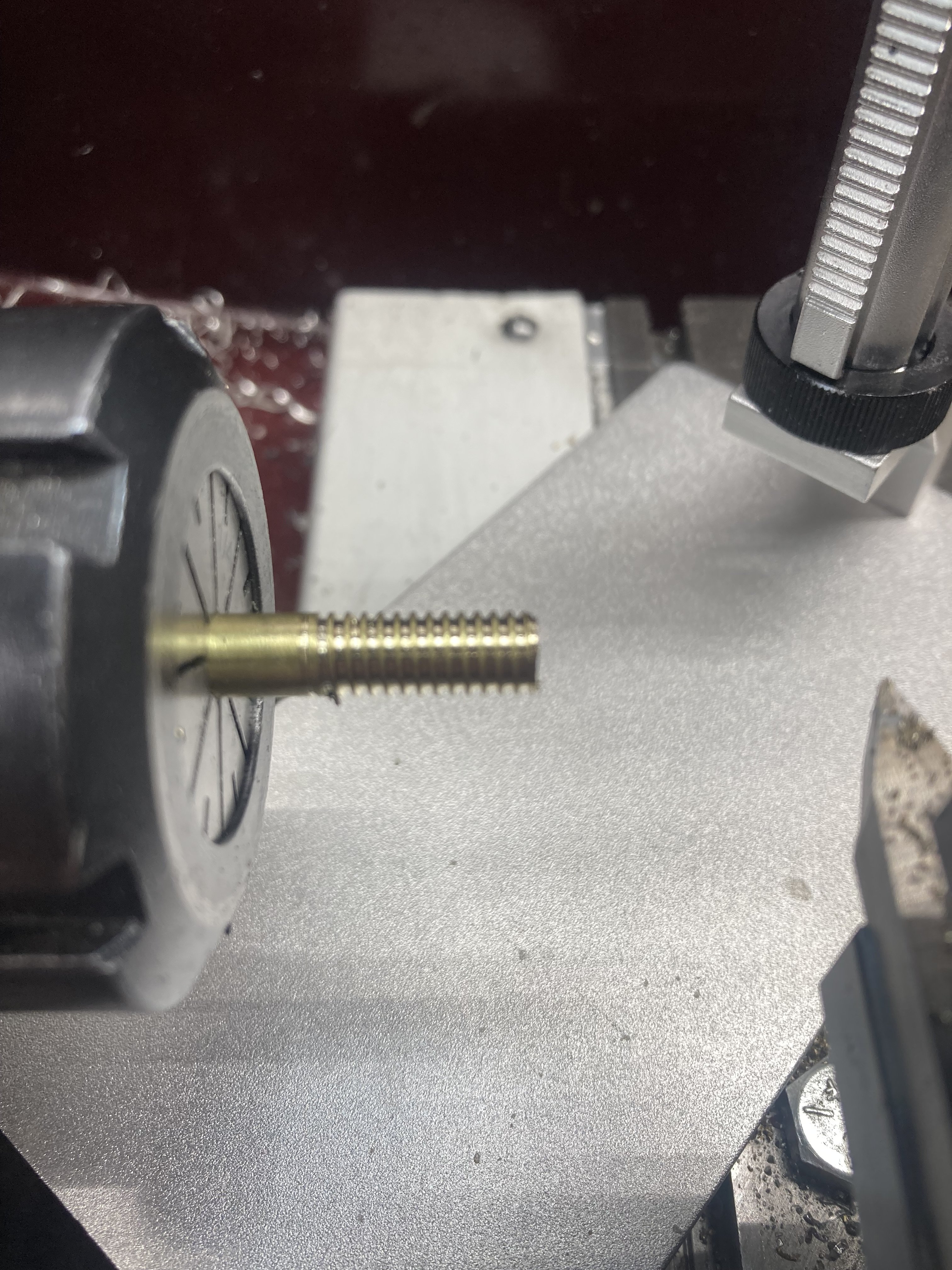

Steven, here is the test cut. I didn't put a center in the part so the final cut should have less chatter. I can drill and ream the 1/8" hole but have no way currently to put the key slot in. I may have a 1/32" cutoff blade that could be fashioned into a tool.
