The 'What did you do in your workshop tonight?' thread

AKNick

640cc Uber Pimp

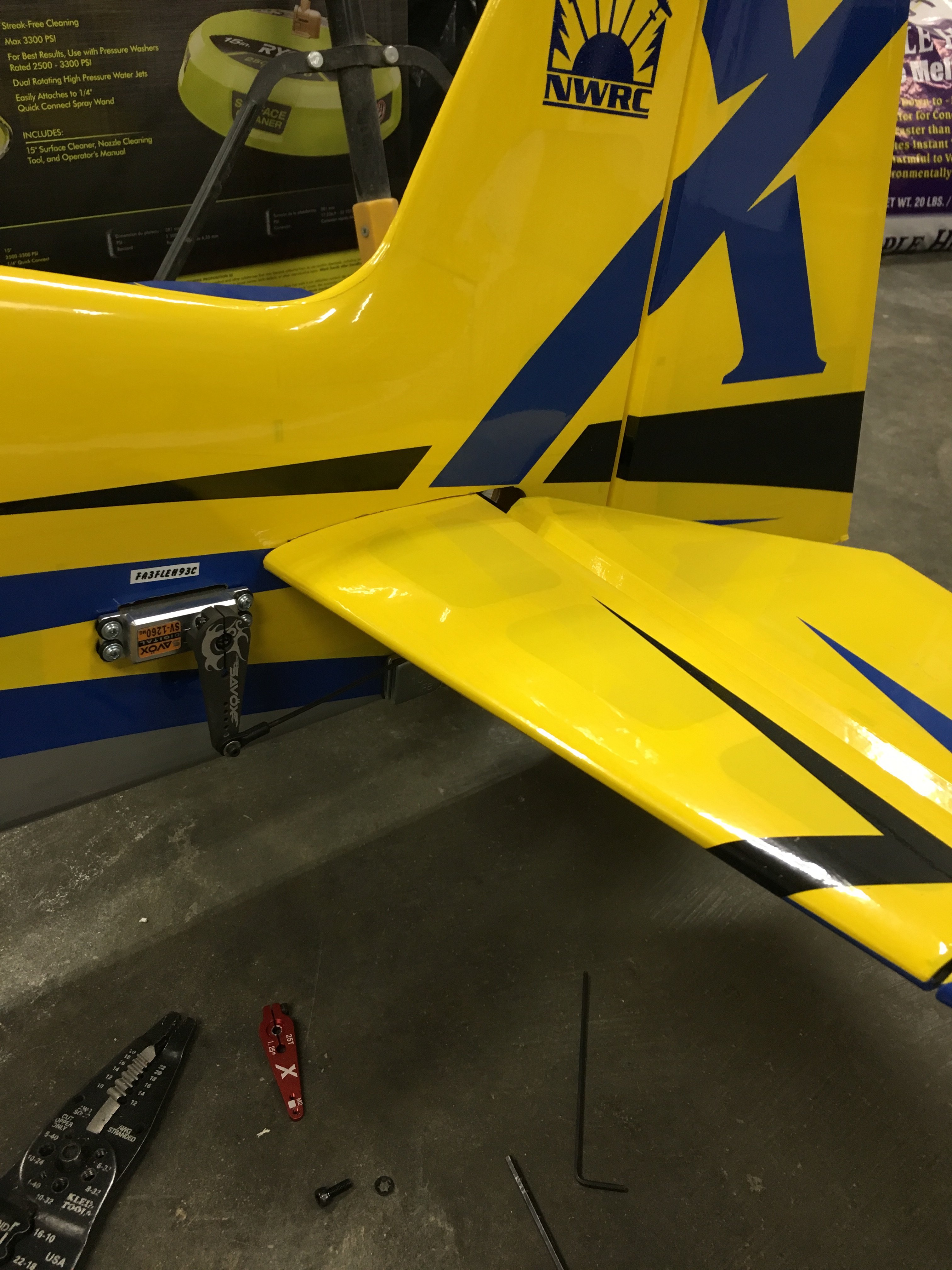

Put a larger servo arm on my 60” slick 580. Need more tail authority! I put a bunch of weight in the tail and verified it had better authority but was tail heavy.... so more throws it is!


Bartman

Defender of the Noob!

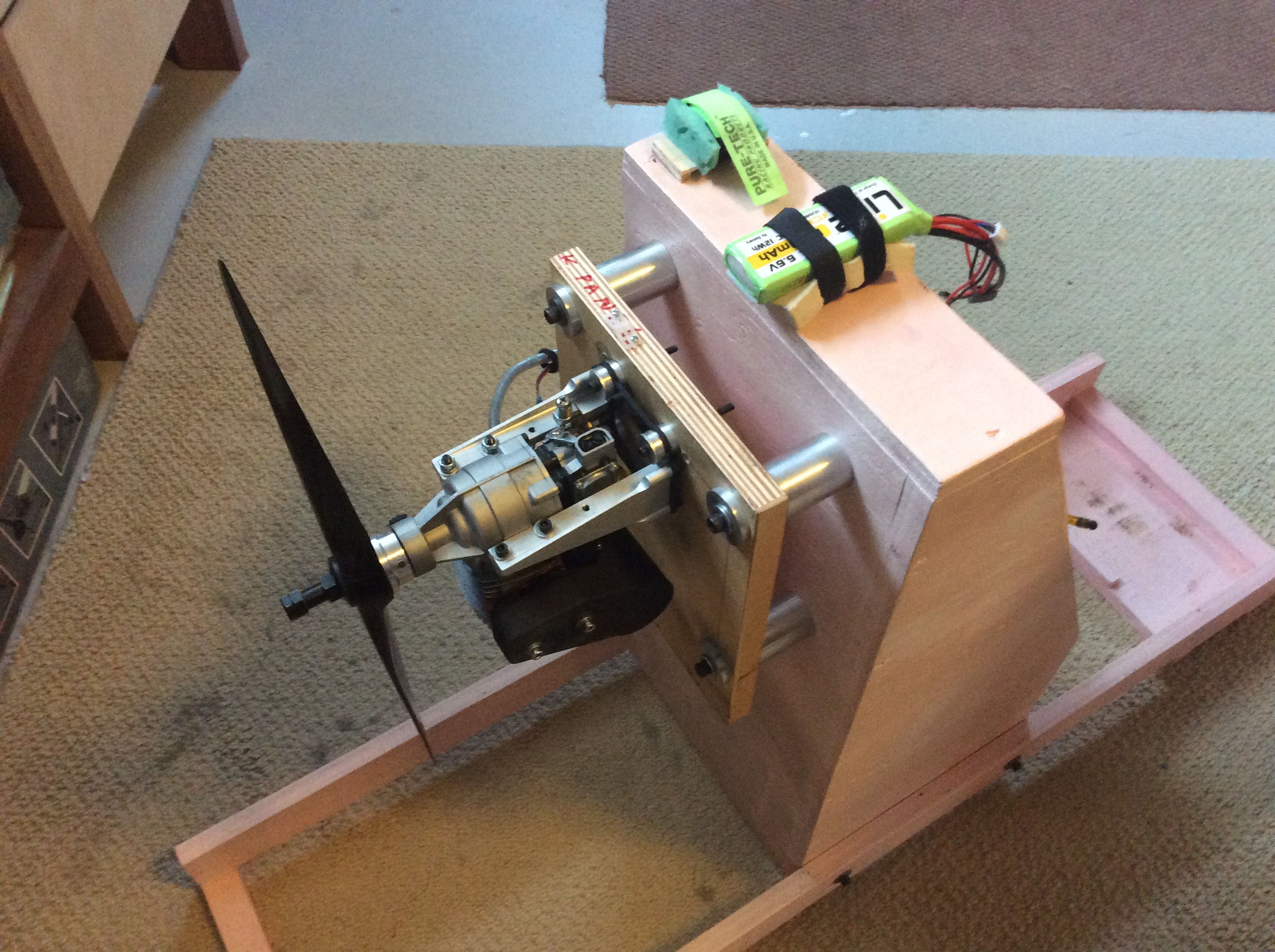

Ok the engine has been cleaned out checked and rebuilt and run on the test stand. Running as good as always. Put all the servos on the test rig and everything checked out no gears stripped and no wires damaged so that is also good and read to go again. Now all that needs to be checked out is the receiver.
Also put the battery on a computer cycle and it is still good and has 5 % more capacity than stated on the pack voltage good and IR still the same.
Ok @BalsaDust ready for the 20cc special designed 3D profile. ( just kidding I know you are busy.)
View attachment 110253

glad to see the engine survived. saw your post that it was an ARF, CG problem sounds plausible, good luck with the next one!


Bartman

Defender of the Noob!
I just enjoy drawing things and I thought you had said you wanted something along the lines of an Extra. MAybe I'm thinking of someone else. LOL I will send them over in a bit. It's based around the other edge profiles I have done so it should fly very similar.

What are you using for CAD Chris? I've got Autocad R14 on a disc but it isn't compatible with Windows 10 so I'm SOL.


BalsaDust

Moderator
I use the student version of AutoCAD. I can download any version back to 2012 I think but I was running 2015 since that what the class I took was taught on.


AKNick

640cc Uber Pimp

BalsaDust

Moderator

AKNick

640cc Uber Pimp
If looking for stuff to do 3D printing I have heard great things about using fusion 360 and it’s free if you list yourself as a hobbyist.

Just curious what format you need to design model planes? I have no idea how you would go about formatting plane planes!!! tell me more please!


BalsaDust

Moderator
Just curious what format you need to design model planes? I have no idea how you would go about formatting plane planes!!! tell me more please!

For me I have been doing everything in regular 2D. You can draw in 3D with regular AutoCAD and I have tried but it’s not very intuitive for me at least. When I’m ready that’s when I will move to fusion 360 and it’s run by autodesk. I guess for me every plane I have designed so far has been a profile so 2D is all I needed. I have slowly been working on a full fuse plane for a buddy that is loosely based off the flitetest simple scout but there are no crazy curves to need to do in 3D I have just drawn it all as 3 views. Hope that helps. Happy to answer any other question I can.


AKNick

640cc Uber Pimp
For me I have been doing everything in regular 2D. You can draw in 3D with regular AutoCAD and I have tried but it’s not very intuitive for me at least. When I’m ready that’s when I will move to fusion 360 and it’s run by autodesk. I guess for me every plane I have designed so far has been a profile so 2D is all I needed. I have slowly been working on a full fuse plane for a buddy that is loosely based off the flitetest simple scout but there are no crazy curves to need to do in 3D I have just drawn it all as 3 views. Hope that helps. Happy to answer any other question I can.

makes sense, would love to build me a 20cc profile one day. how many have you designed/made anyways?? You've talked about making a kit before ya?
