Ok, so here's the pics, this isn't Robart gear, I found the manual and scanned it for you. The instructions are detailed in how to build the gear.

The pdf should be 4 pages, it doesn't look like it uploaded right.. Let me know if it's only one page, I can send it to you.
And thank you for the pics and PDF!


Bartman

Defender of the Noob!
When you're in a hurry, why use something simple when you can overcomplicate it and burn up two weeks in the process???

I was modifying the main gear and was mostly done when I thought some functional bungees might be cool even if they're pretty much unnecessary because the steel wire landing gear contribute most of the strength. So I removed a piece I had welded in and started figuring out how I could make a couple of bungee struts. In the process I also decided to go with 8.75" bush wheels (they're made for a smaller plane but I didn't want to go with the full blown giant tundra tires) so I also had to weld in some 1/4" axle material.

Everything looks very soviet bloc at this point (remember back when the Century Series fighters were all elegant and bad ass but the soviet stuff was strong as hell but looked like it was made in the local high school metal shop?), it was all made and drilled by hand so not everything lines up perfectly but Super Cubs aren't exactly beauty queens most of the time so I'm going with it being a working class gal with lots of hours behind her and lots more ahead.

So here are the pics, it'll all look better after it's been cleaned up, primed and painted. The bungees actually work, that was the whole point after all. :)

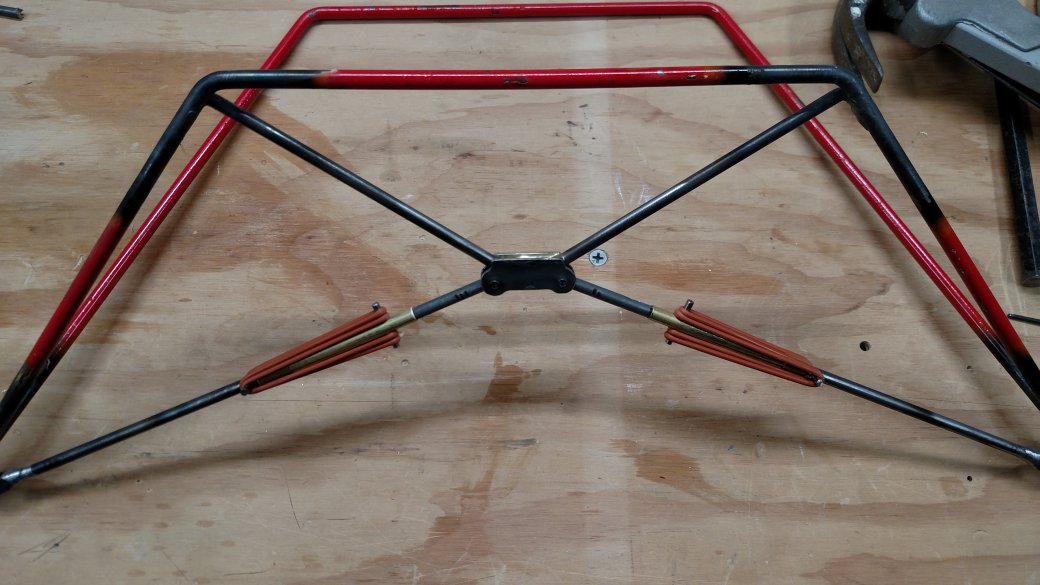

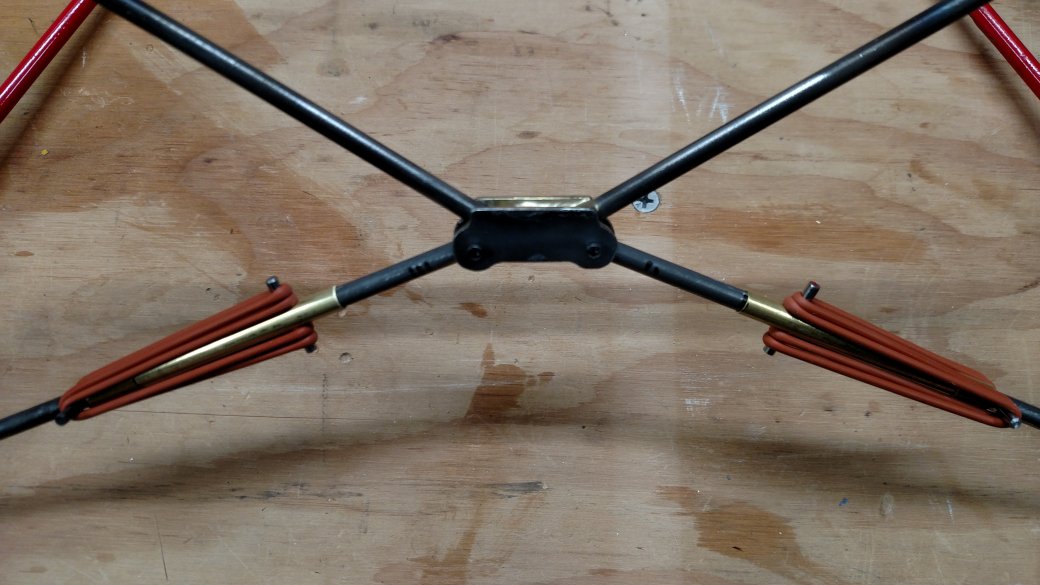

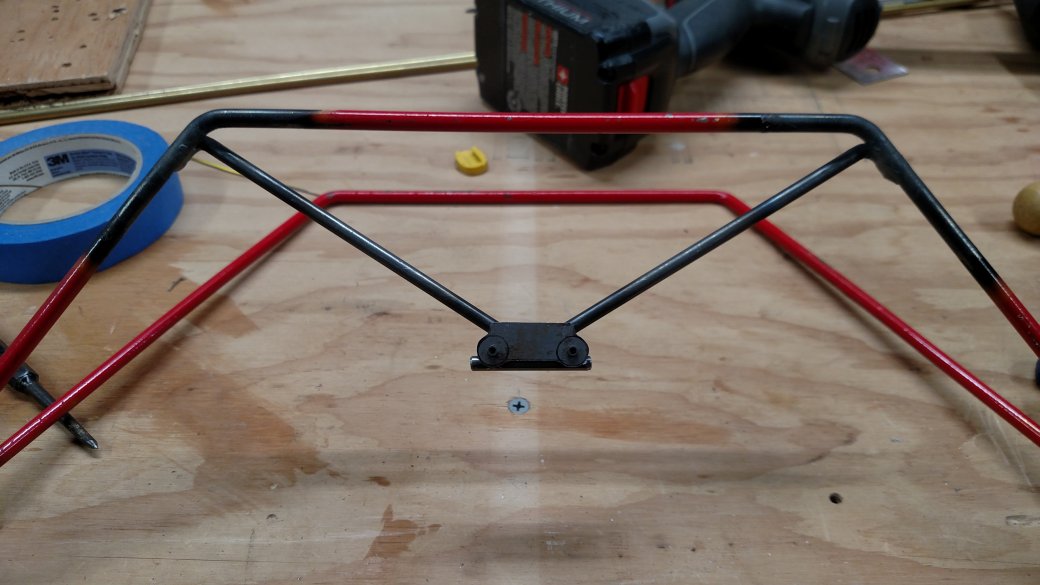

The almost finished main landing gear

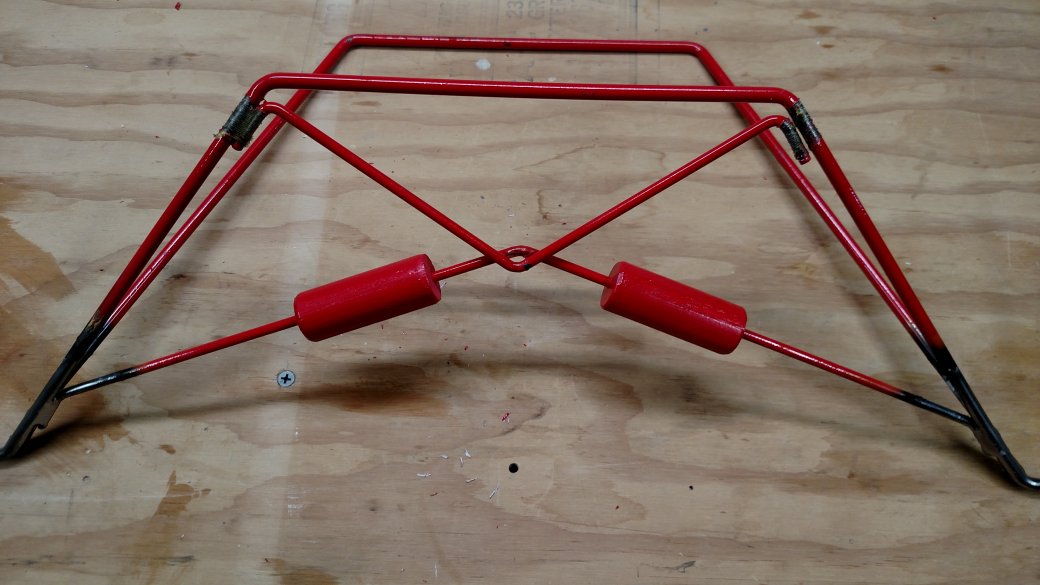

The slightly modified original landing gear

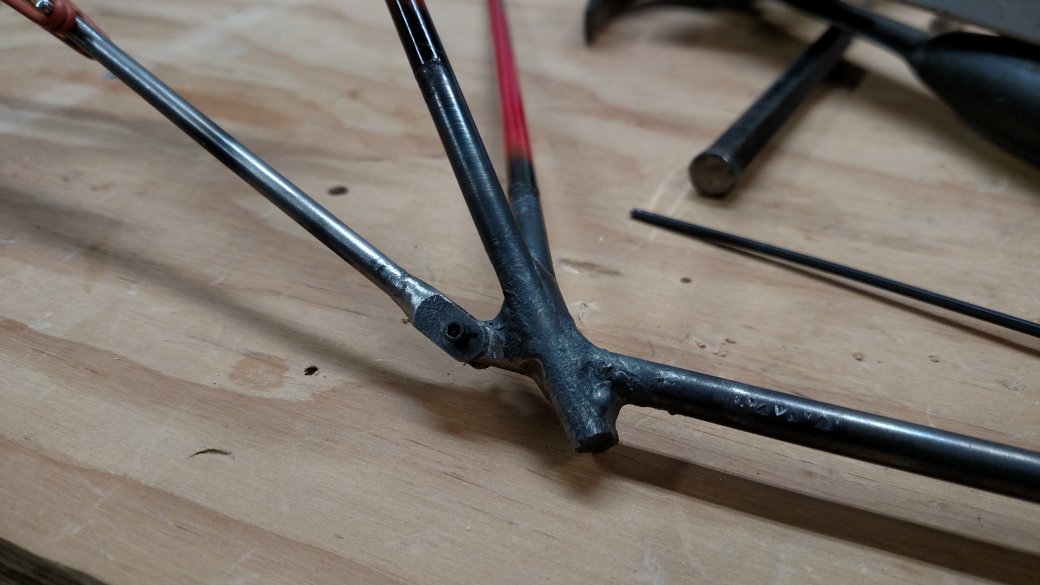

Adding the 1/4" axles (the old axle sections were cut off afterwards)

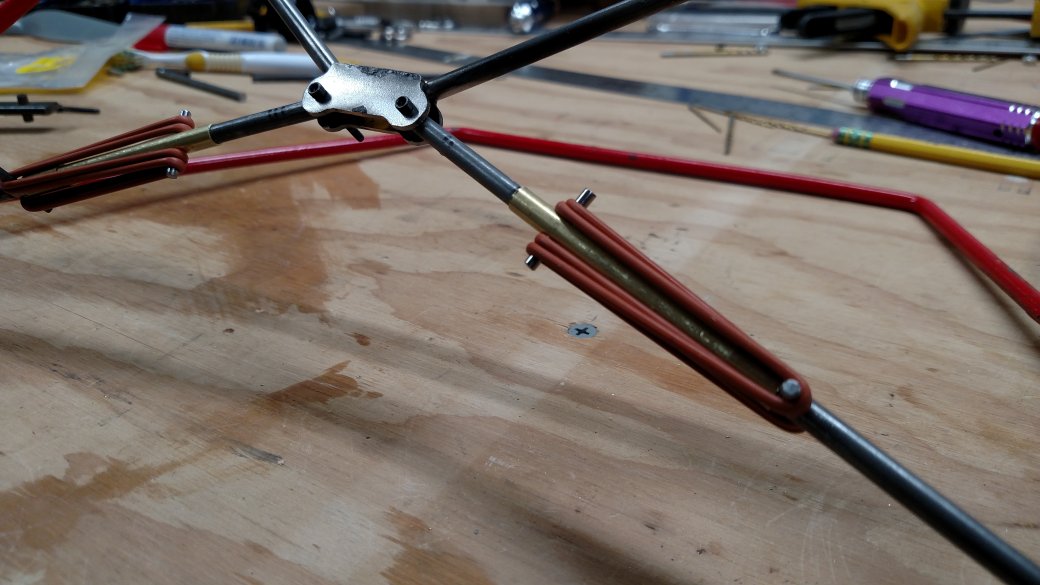

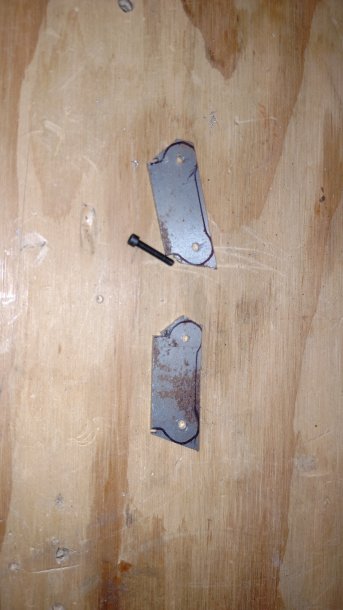

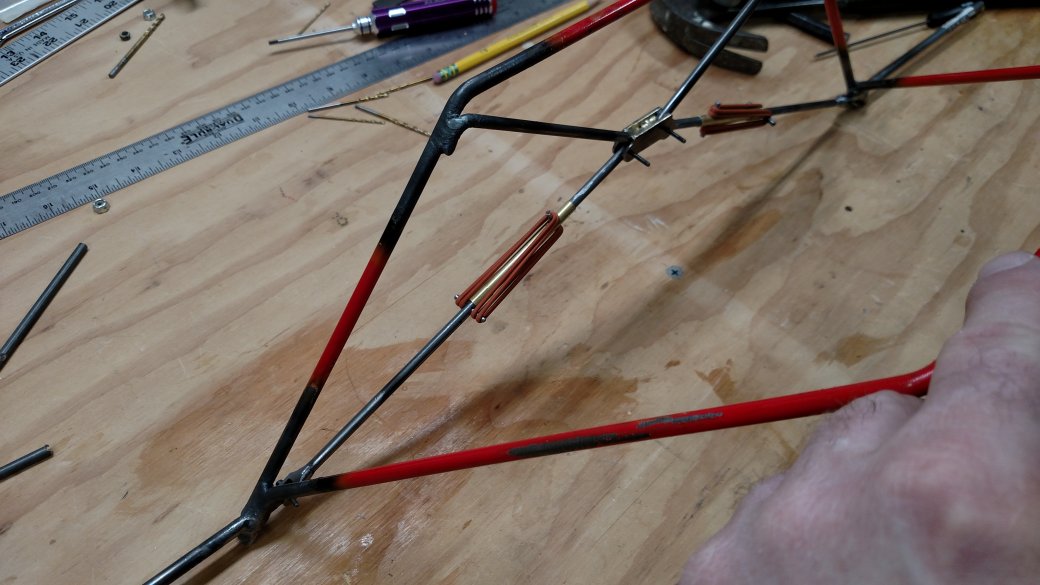

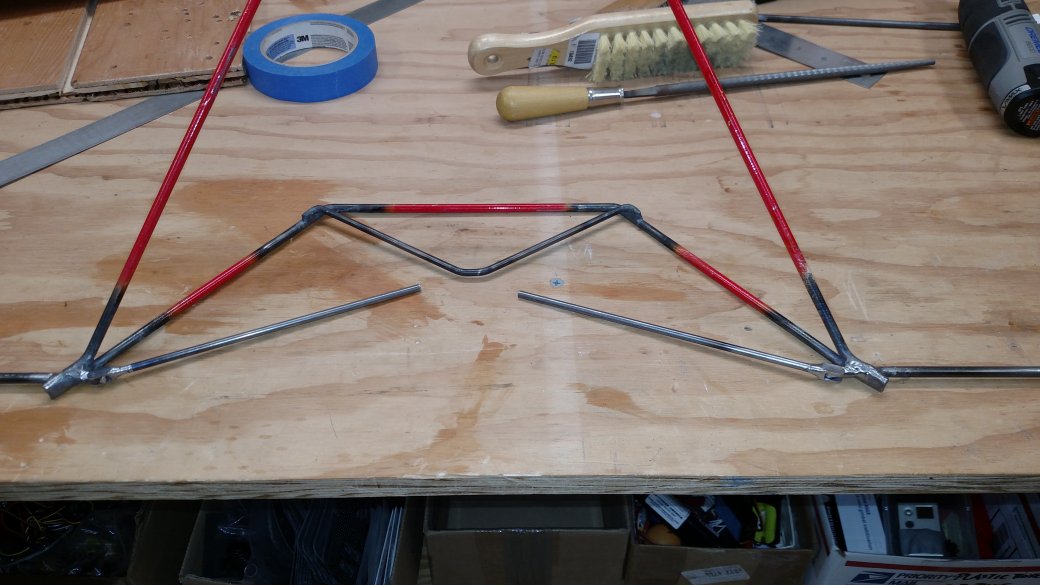

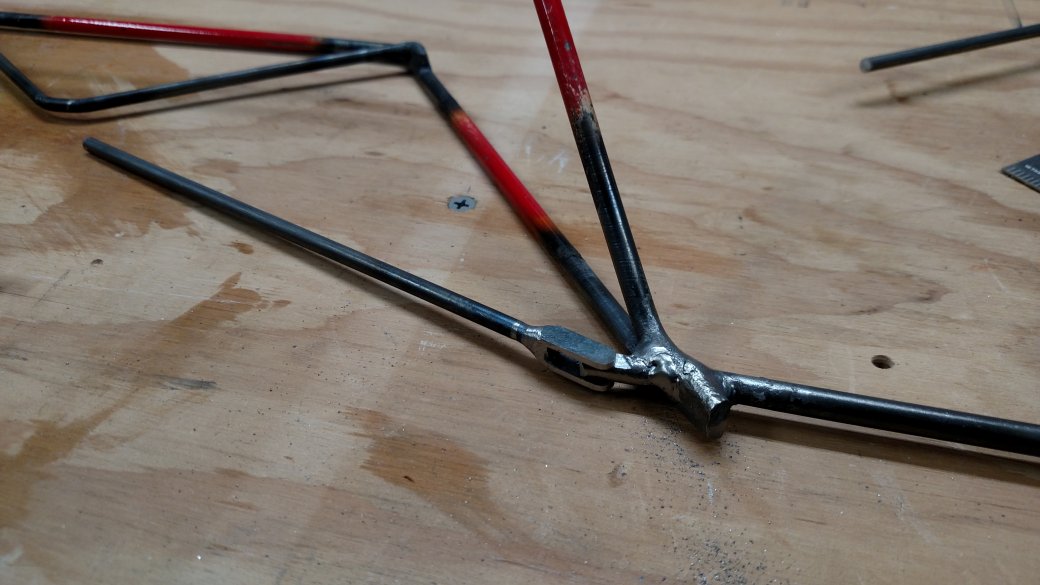

The rest of the mods as they were being made
IMG_20160118_190800229.jpg IMG_20160118_185743803.jpg IMG_20160125_195117749.jpg

IMG_20160118_201620922.jpg IMG_20160118_205957252.jpg

IMG_20160125_195125484.jpg IMG_20160125_195135350.jpg IMG_20160125_195153895.jpg


Attachments

  • IMG_20160125_194924176.jpg
    106.6 KB · Views: 540
Last edited:

Bartman

Defender of the Noob!
thanks guys. some of those welds are fugly (I might go back and grind some spots out and re-weld them, i was rushing out in the 20 degree garage!) but ought to hold ok. been moving snow all day so not going to get anything else done tonight but should be able to cover a lot of ground next week when I get back from my trip.


49dimes

Damn I'm hungry
Your landing gear really turned out nice! I so imagine the rest of the plane will too! Any thought about adding electric start to add to the excitement!? And scale lights! Got to have those lights too! And what about a fold out BBQ grill??? Name your baby the "Flying Grill Master" Wow....What a treat! I want one:happy:.
