Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by Forgues-Research, Aug 16, 2014.


  1. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93

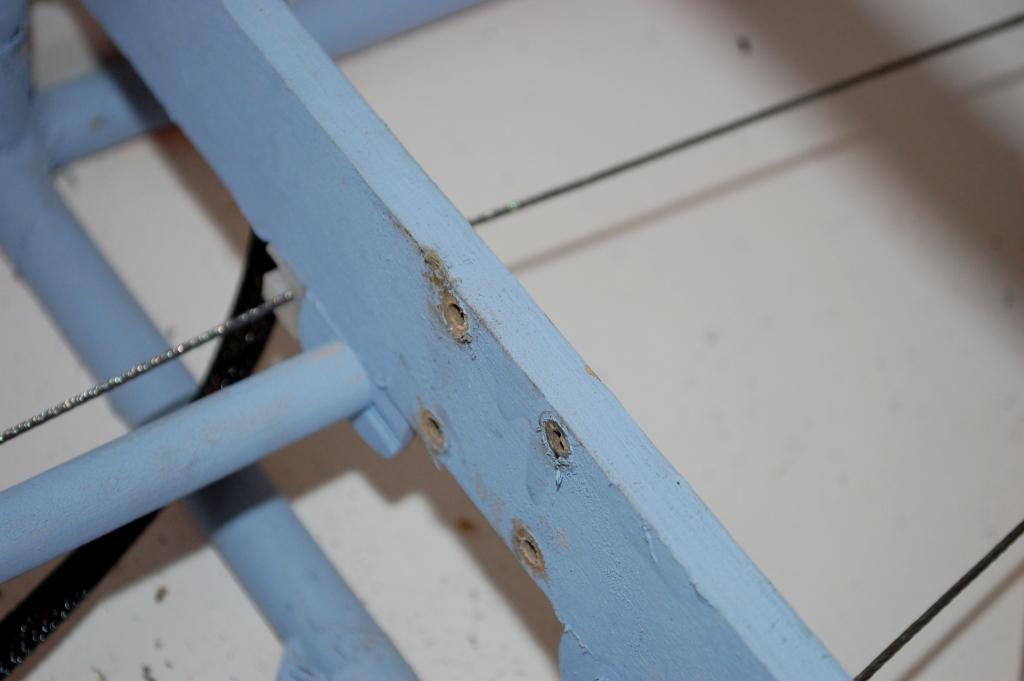

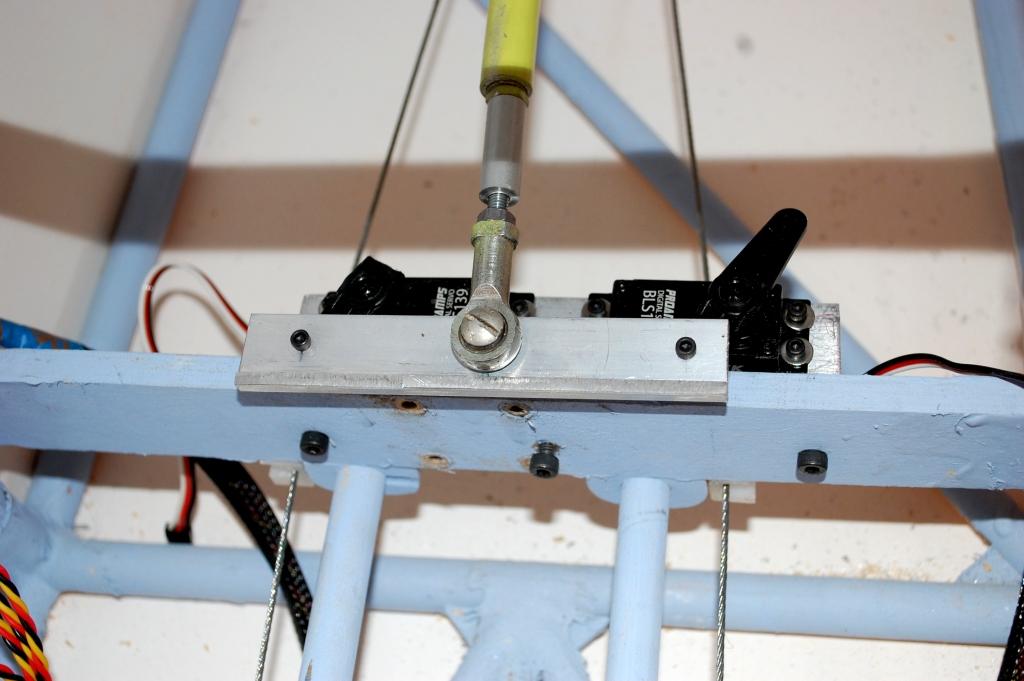

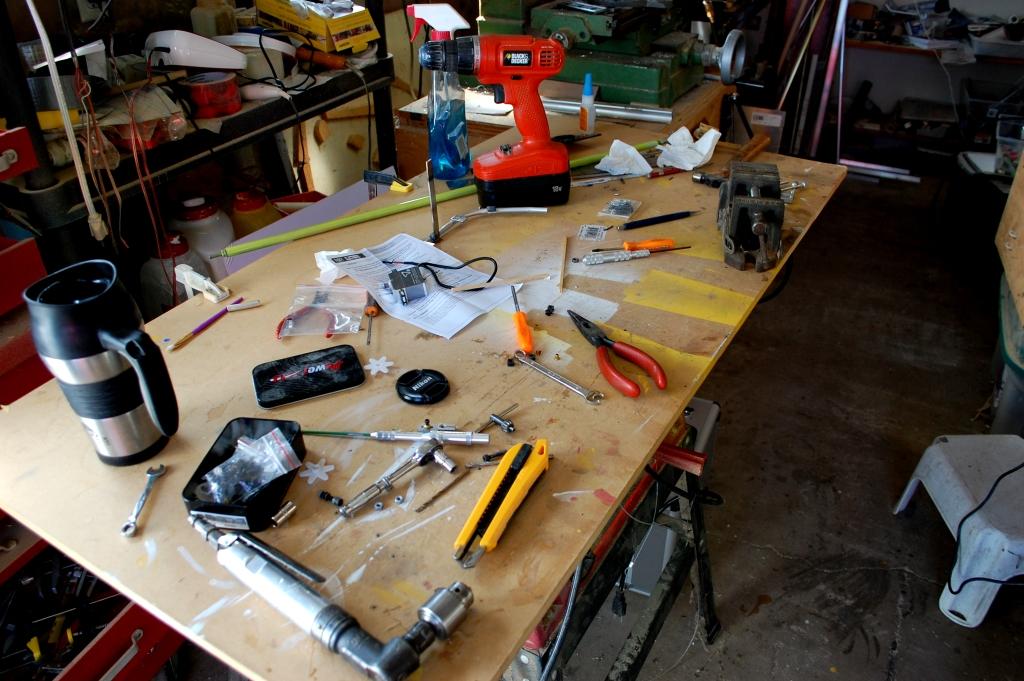

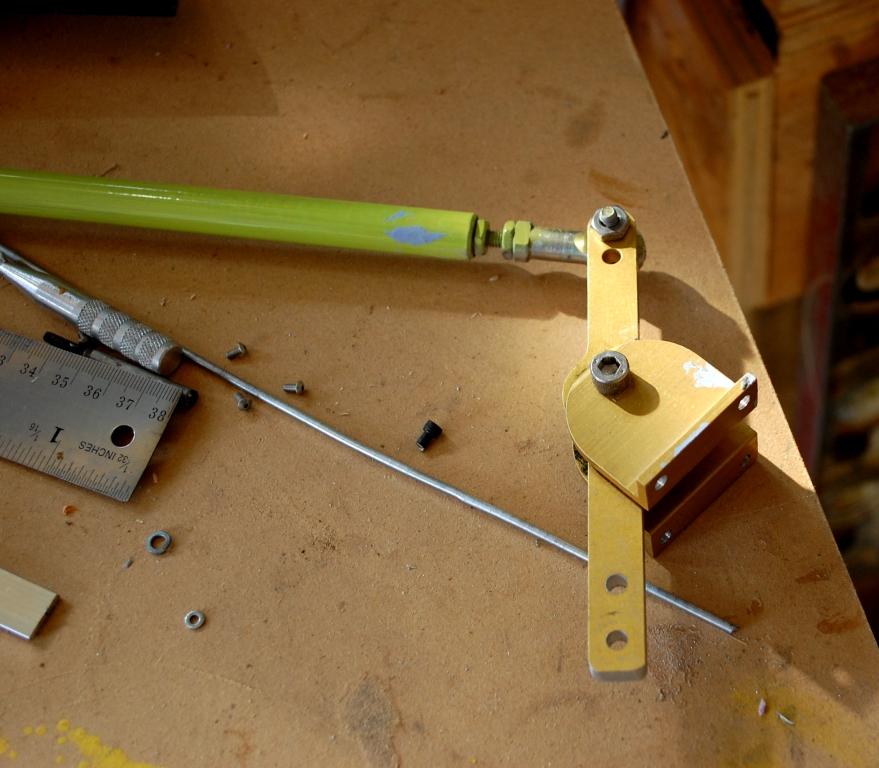

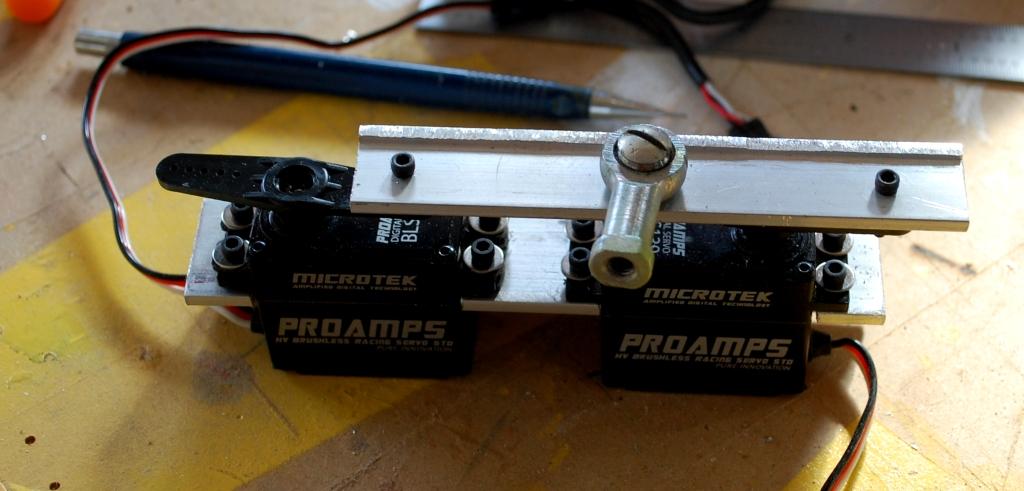

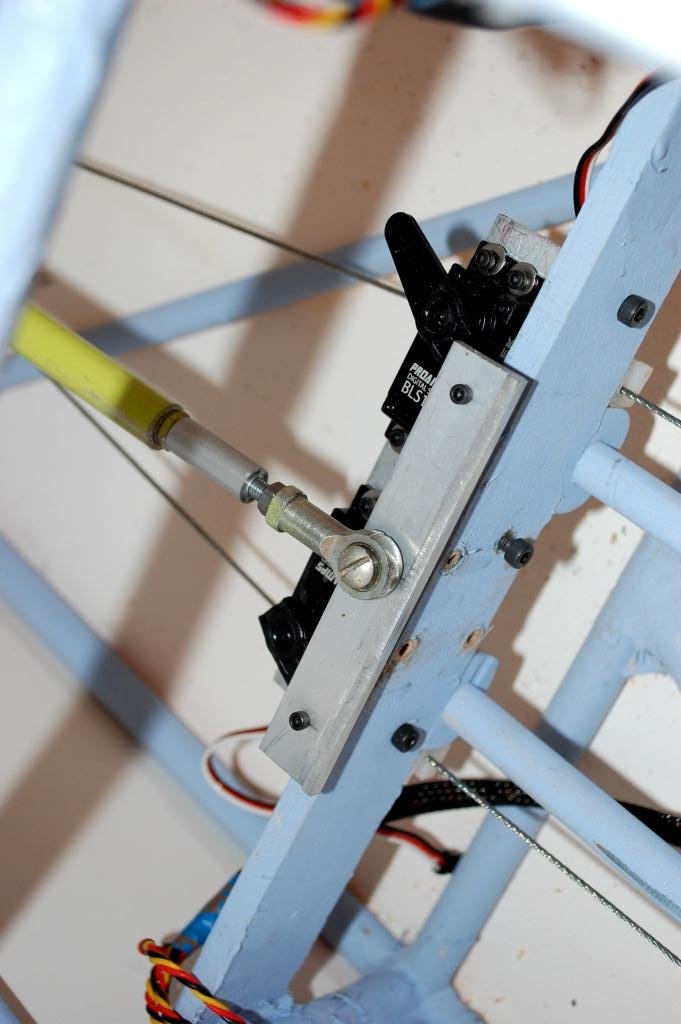

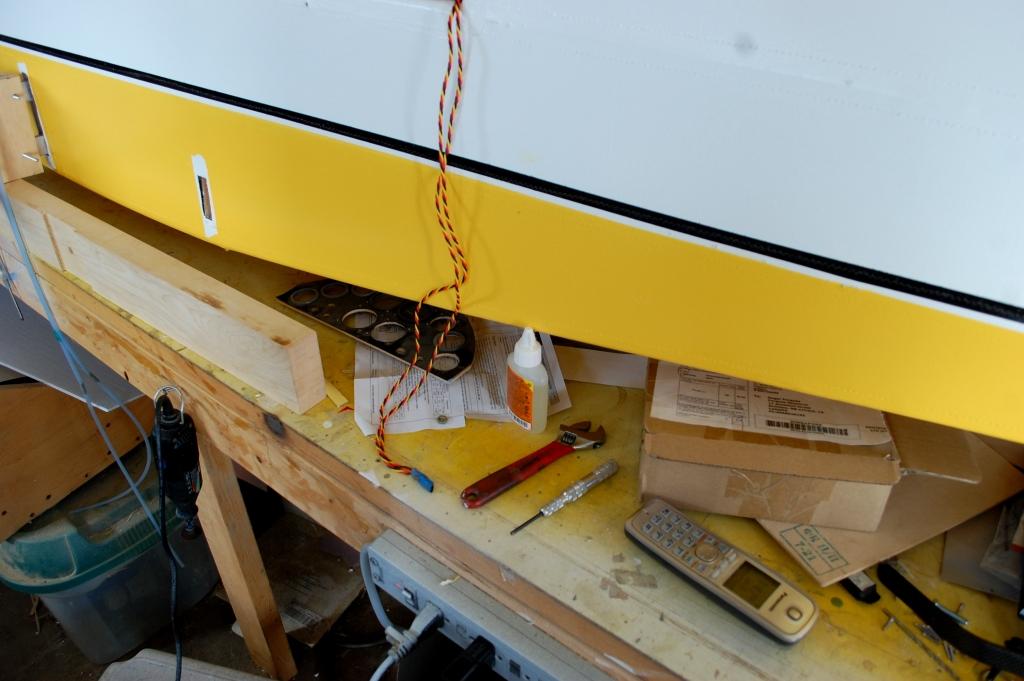

    I decided to change the elevator setup, with the two servos up front going to a pushrod, then a belcrank then to the elevator, I found there was too much slop in it, so now one push rod, no belcrank and the servos are now behind the rear seat out of view. and a picture of the operating table, scalpel please LOL


    Attached Files:

    • ahe.JPG
      File size:
      108.6 KB
      Views:
      41
    • ahf.JPG
      File size:
      93.9 KB
      Views:
      40
    • ahg.JPG
      File size:
      73.2 KB
      Views:
      39
    • ahh.JPG
      File size:
      77.3 KB
      Views:
      39
    • ahi.JPG
      File size:
      96.5 KB
      Views:
      40
    • ahj.JPG
      File size:
      146.7 KB
      Views:
      38
    • ahk.JPG
      File size:
      107.5 KB
      Views:
      41
  2. Alky6

    Alky6 150cc

    What are you using for a bushing/bearing in the connection point between the servo arms and the (for lack of a better term) aluminum collector that connects to the elevator pushrod?

    stangflyer likes this.
  3. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93
    Good question, its a work in progress, the first thing was to make sure all the geometry was correct, which it is now I will make the servo arm out of aluminim and will be using oilite brass for bushings in all moving parts.

    stangflyer and Alky6 like this.
  4. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93

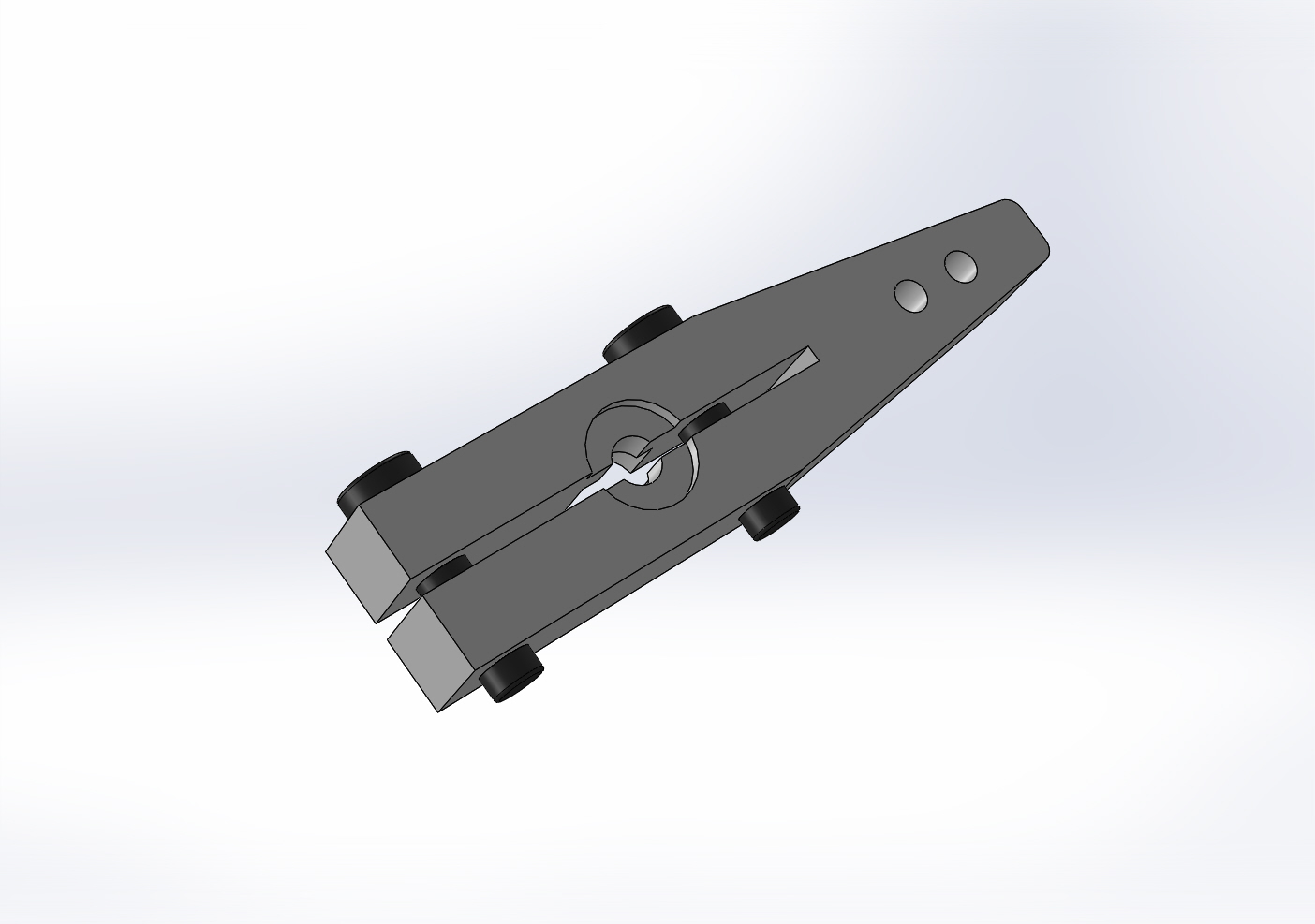

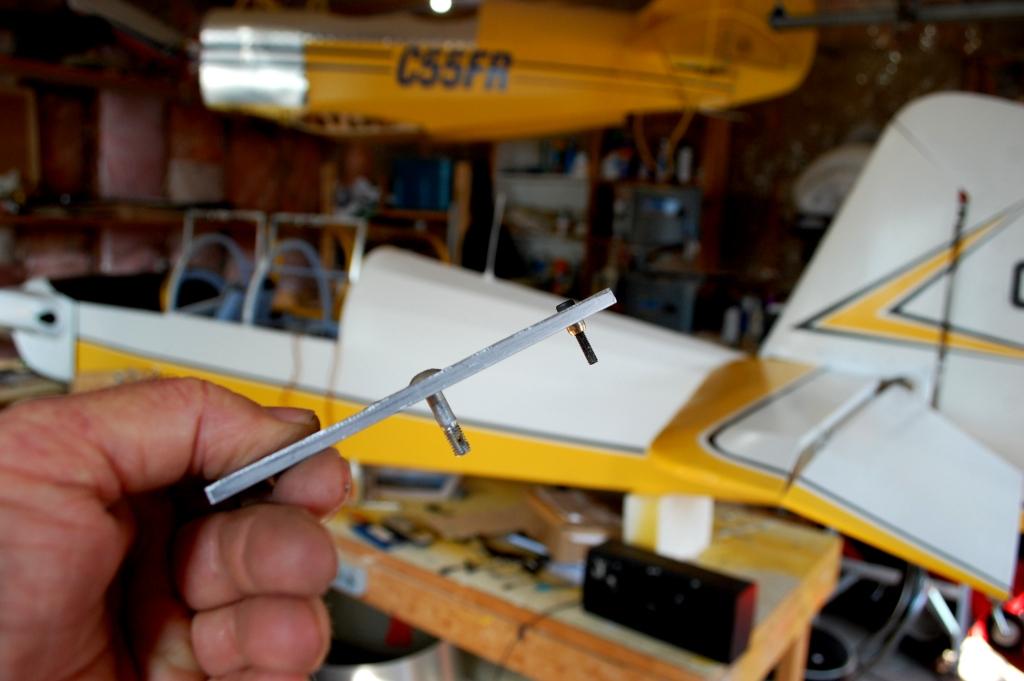

    this is the servo arm I am making , one for each servo of course


    Attached Files:

    stangflyer and pawnshopmike like this.
  5. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93

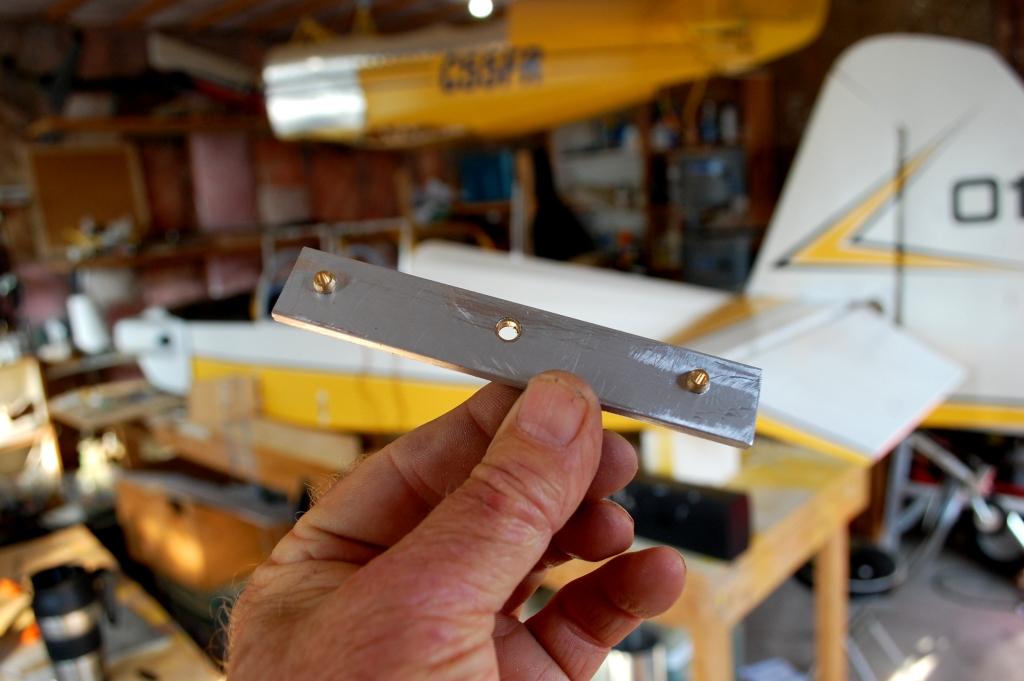

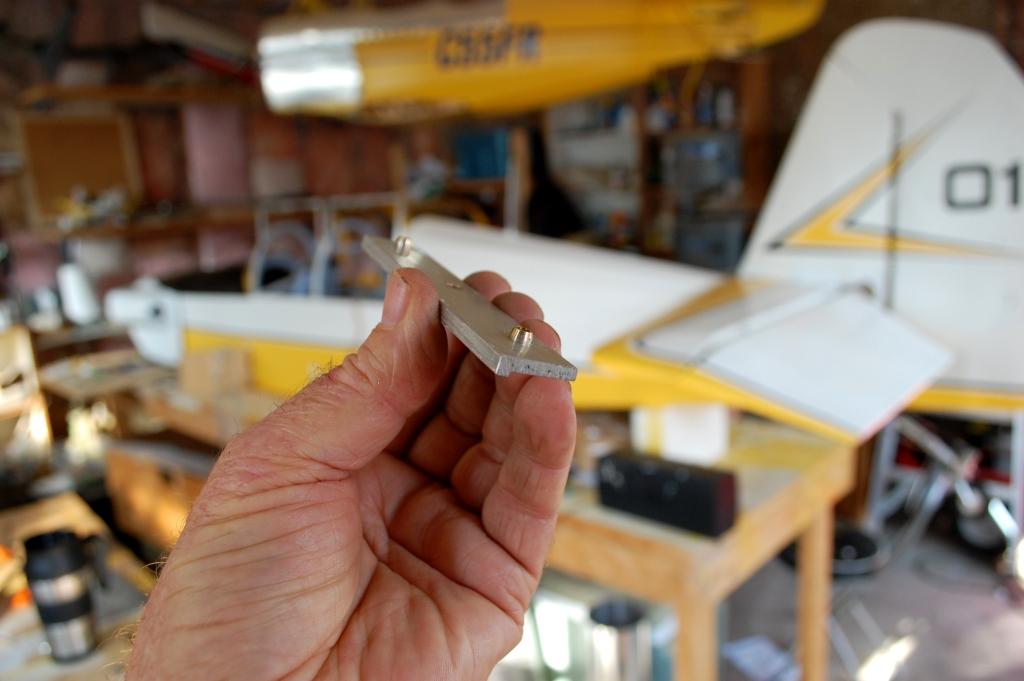

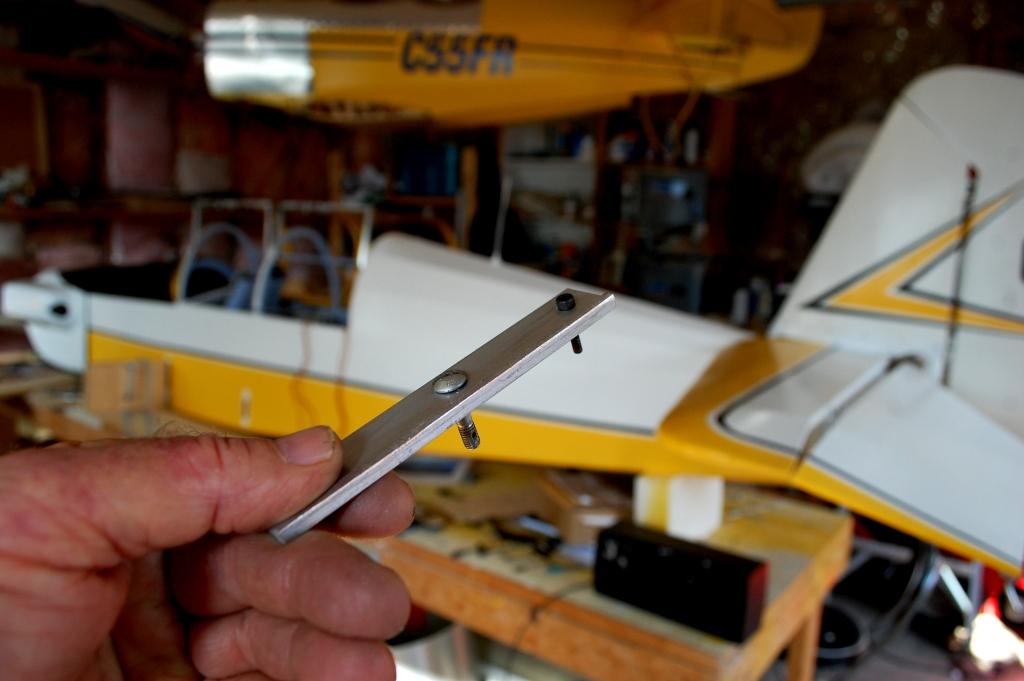

    installing the bushings , working with small stuff but not to hard to do


    Attached Files:

    • ahl.JPG
      File size:
      101.8 KB
      Views:
      30
    • ahm.JPG
      File size:
      96.8 KB
      Views:
      31
    • ahn.JPG
      File size:
      93.6 KB
      Views:
      32
    • aho.JPG
      File size:
      96.8 KB
      Views:
      32
    stangflyer, Alky6 and pawnshopmike like this.
  6. Alky6

    Alky6 150cc

    Sorry for the detailed questions. Are you planning to tap the servo arm and then double nut the screw to set the clearance between the bushing and the servo arm?

    stangflyer likes this.
  7. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93
    No worries, the more questions you guys ask, the more it keeps me on my toes. So yes to your question, escept that it will not be double nut for clearance since I made this as part of the screw bushing in brass. Nearly finished two servo arms all tapped to 3 mm
    The only thing left to do is to cut a slit across to the other two 3 mm screws can tighten on the servo output once I have made the spline. will post pictures probably tomorow


    Attached Files:

    • aho.JPG
      File size:
      96.8 KB
      Views:
      25
    pawnshopmike, Alky6 and stangflyer like this.
  8. Alky6

    Alky6 150cc

    Do you have a broach to make your own splines in the servo arm? If so, where did you get it (if you don't mind sharing)? If not, how are you making the splines?
    Thanks!

    Last edited: Sep 26, 2017
  9. stangflyer

    stangflyer I like 'em "BIG"!

    Well all I gotz ta say is, keeping you on your toes or dancing 'round the work bench... your craftsmanship is out of this world amazing. You're gonna do it arentchya? Yer gonna make me book hotel accomadations for Top Gun just so I can wipe my drooling mouth off permanently.

    HRRC Flyer, pawnshopmike and Alky6 like this.
  10. Forgues-Research

    Forgues-Research 100cc

    951
    977
    93
    Its quite simple actually, I drill a hole the proper dept, but slightly smaller then the spline, then I press fit the proper spline from a donor servo. which being hard steel, into aluminum it goes in then I pull it off, and with the slit along , it goes on the servo , then tighten both screws on either side of the spline to tighten it solid, I will post pictures tomorow

    HRRC Flyer, AKNick and Alky6 like this.
