Discussion in 'Giant / Scale Scratch and Kit Build Threads' started by Forgues-Research, Aug 16, 2014.


  1. Pistolera

    Pistolera HEY!..GET OUTTA MY TREE!

    Joined:
    Aug 26, 2014
    Messages:
    1,696
    Likes Received:
    2,136
    Location:
    Lumberville, PA
    Great! Man, that cowling has a ton of room inside!

    Forgues-Research likes this.
  2. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656

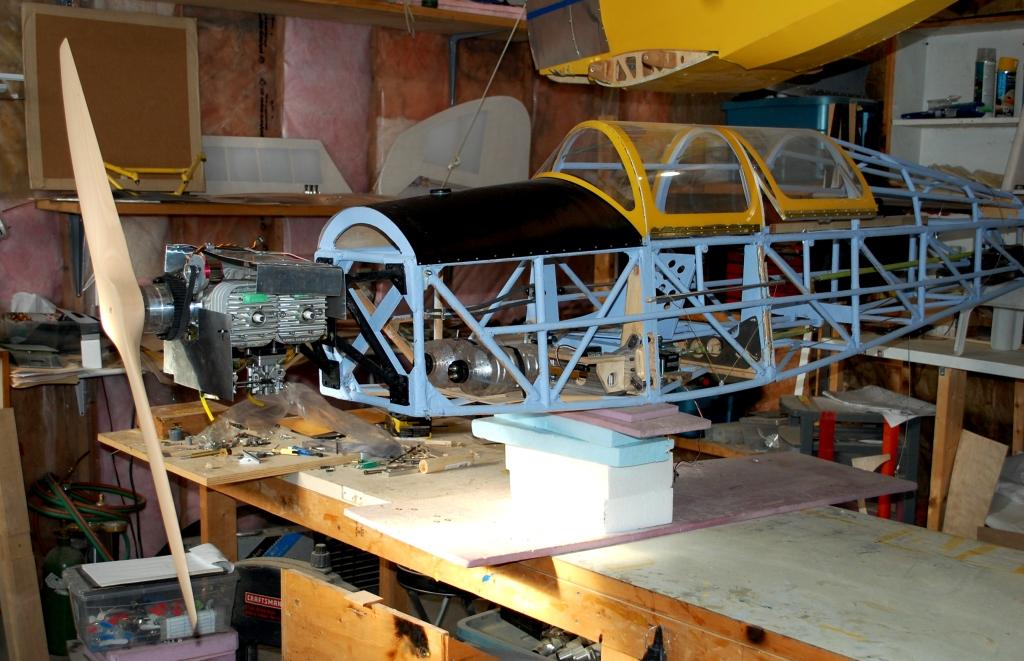

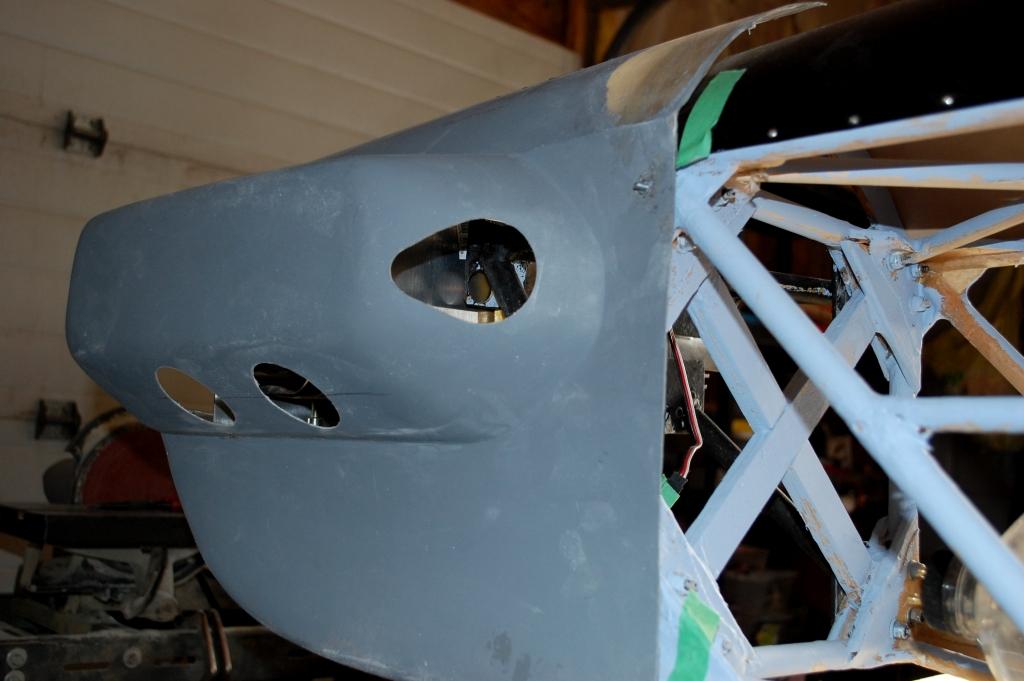

    I think I'm a slacker with photos , sorry about that. but here are a few, first the cowling holes done exhaust pipes would pass directly into them but in the end the original Dalotel used collectors for a single outlet center and under the fuse.

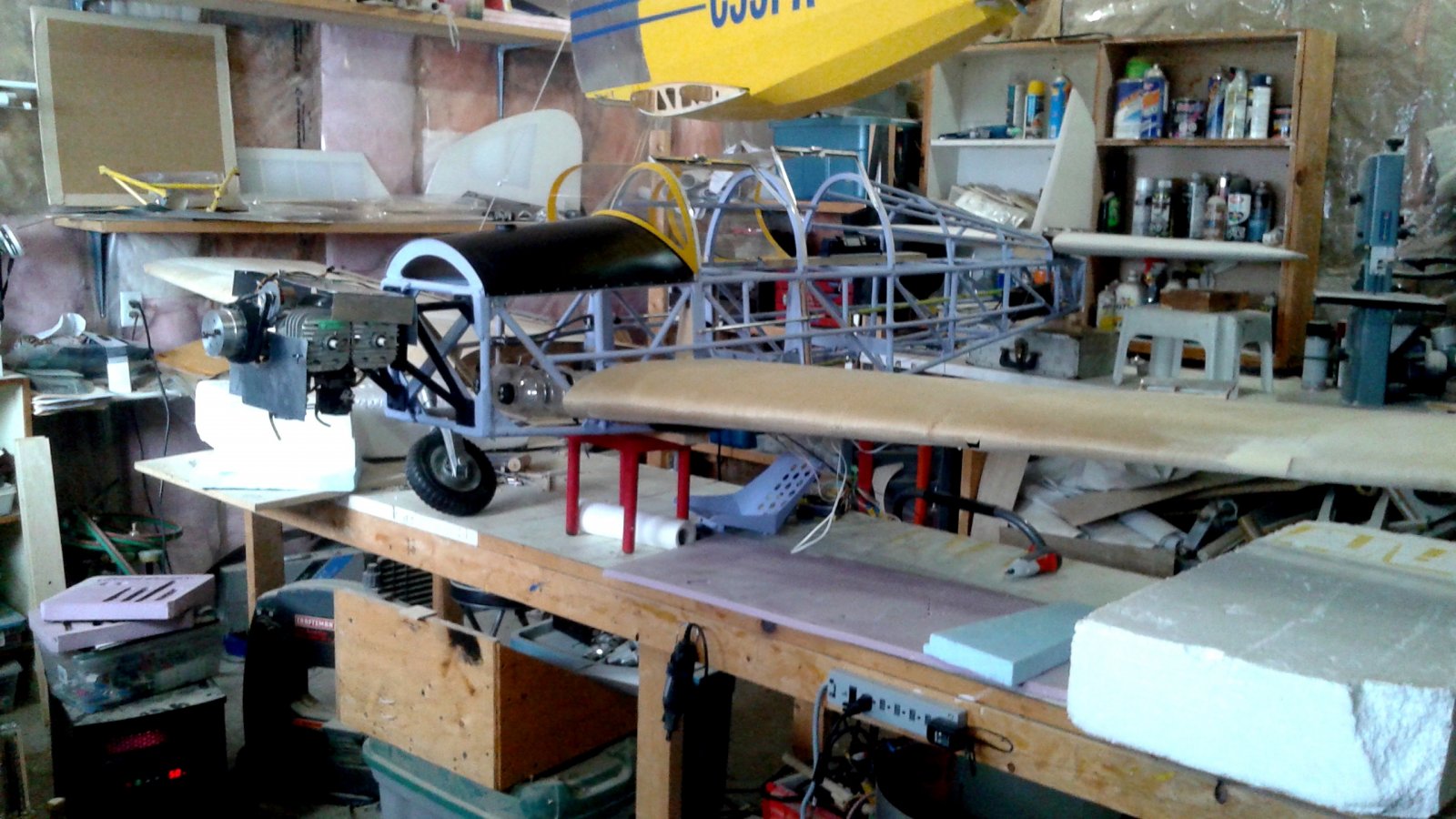

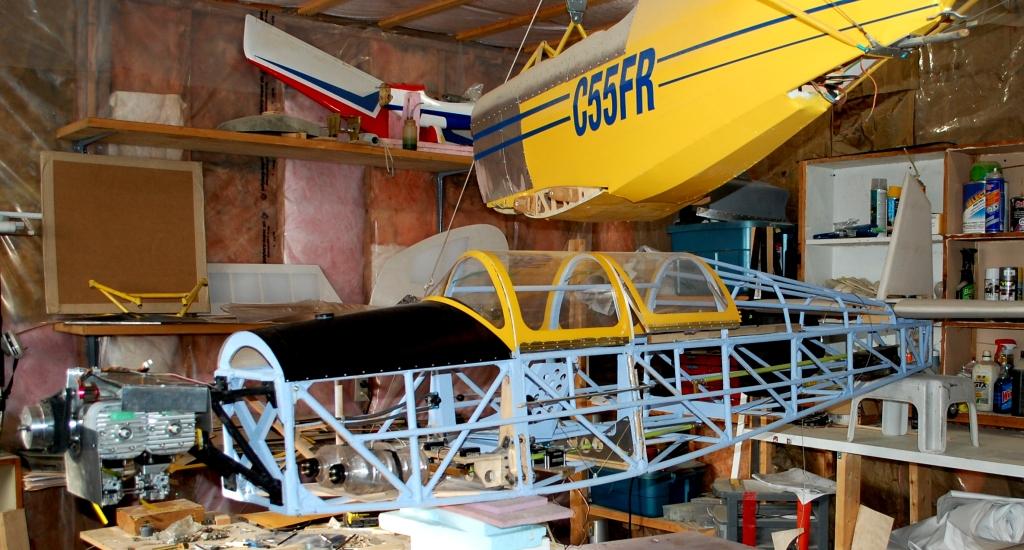

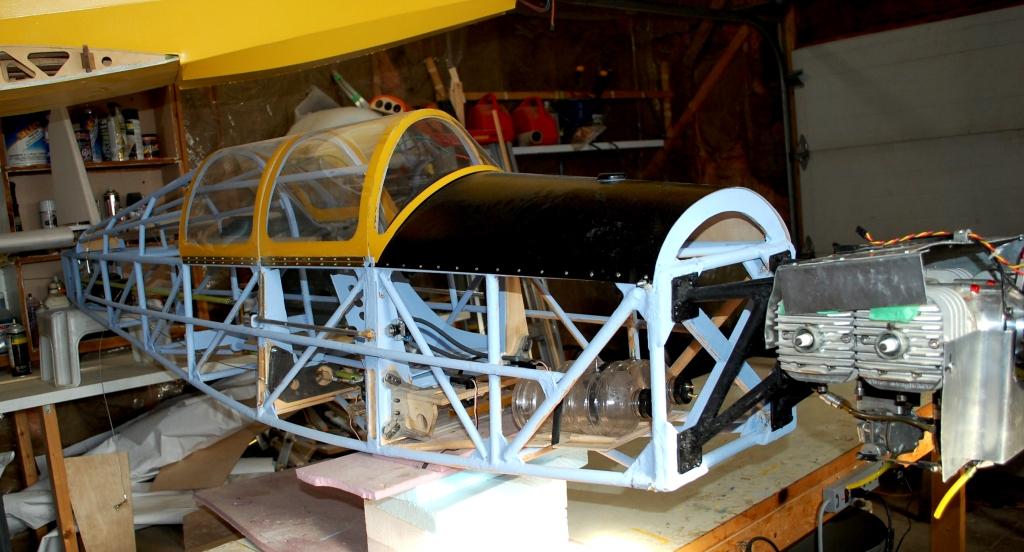

    The other photos are the setting up of the airplane in my little shop to mount the wings on both sides and do the incidence, not a one man job I assure you Oh and the propeller is from my friend in China Nanning Berno Technology Co., Ltd.


    Attached Files:

    • yw.JPG
      File size:
      97.2 KB
      Views:
      83
    • yx.JPG
      File size:
      149.9 KB
      Views:
      84
    • yy.JPG
      File size:
      128.9 KB
      Views:
      83
    • yz.JPG
      File size:
      149.7 KB
      Views:
      87
  3. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656
    Its cold again so not much done on the airframe except level it for the wings so on the computer working on a 4 cylinder engine design, just having fun


    Attached Files:

    Pistolera likes this.
  4. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656

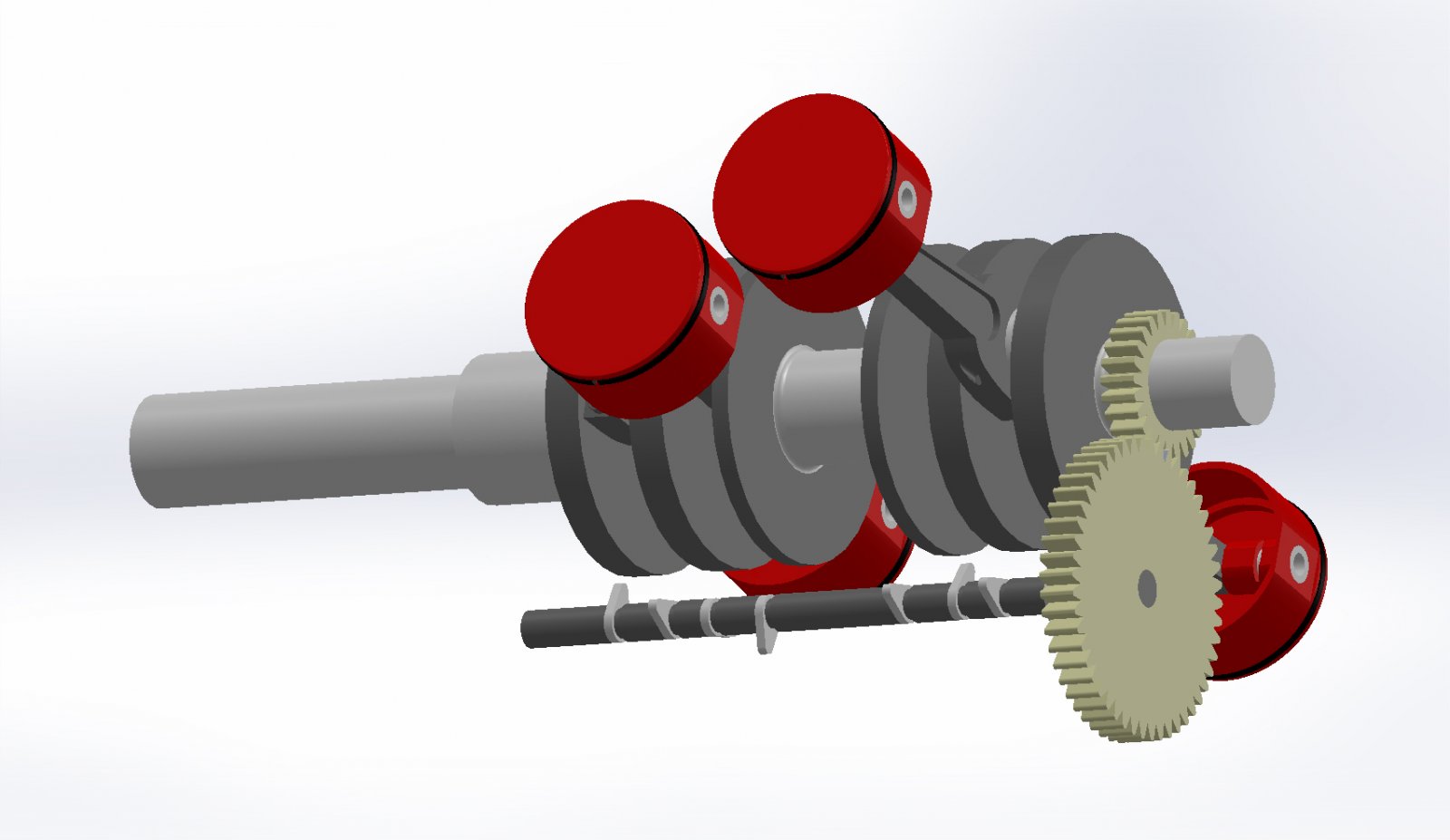

    still at solidworks, waiting for my friend to come over to fit the wings, crank assemblycam.JPG

    Alky6 likes this.
  5. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656
    I am looking for drawings for the famous Dehaviland Chipmunk, would anyone know where I can find this
    Thanks for any help

  6. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656

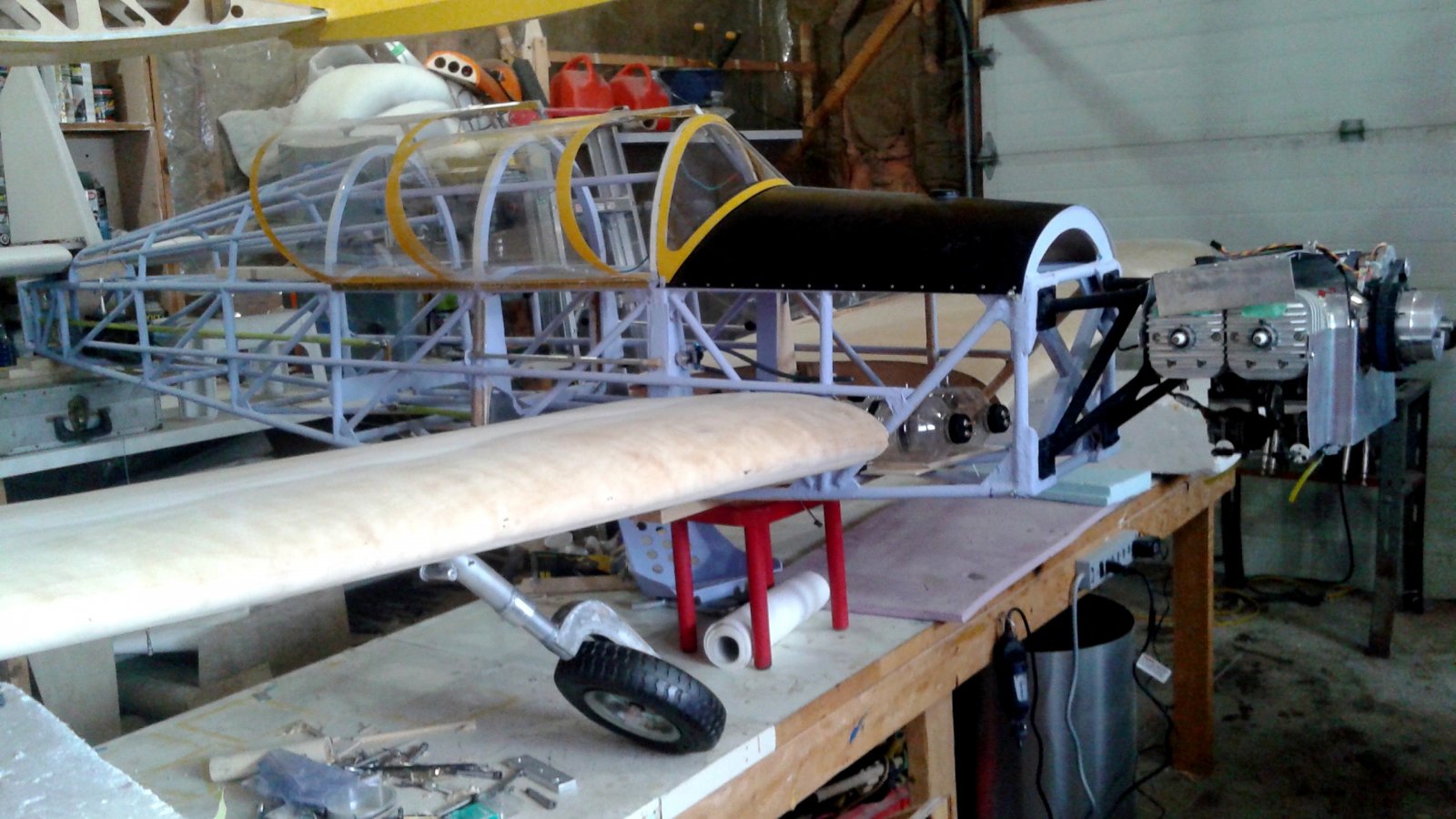

    got the wings inside and mounted on the airframe, now to do the inicidence


    Attached Files:

    • za.jpg
      File size:
      253.2 KB
      Views:
      57
    • zb.jpg
      File size:
      231.5 KB
      Views:
      55
  7. Pistolera

    Pistolera HEY!..GET OUTTA MY TREE!

    Joined:
    Aug 26, 2014
    Messages:
    1,696
    Likes Received:
    2,136
    Location:
    Lumberville, PA
    Very nice....moving right along!

    stangflyer and Forgues-Research like this.
  8. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656

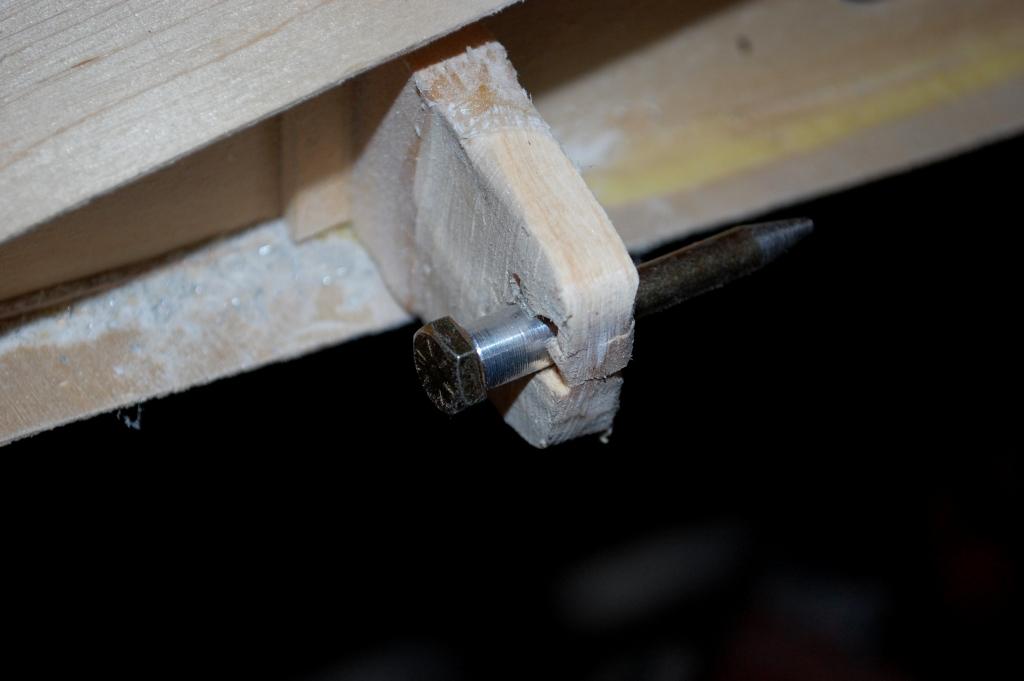

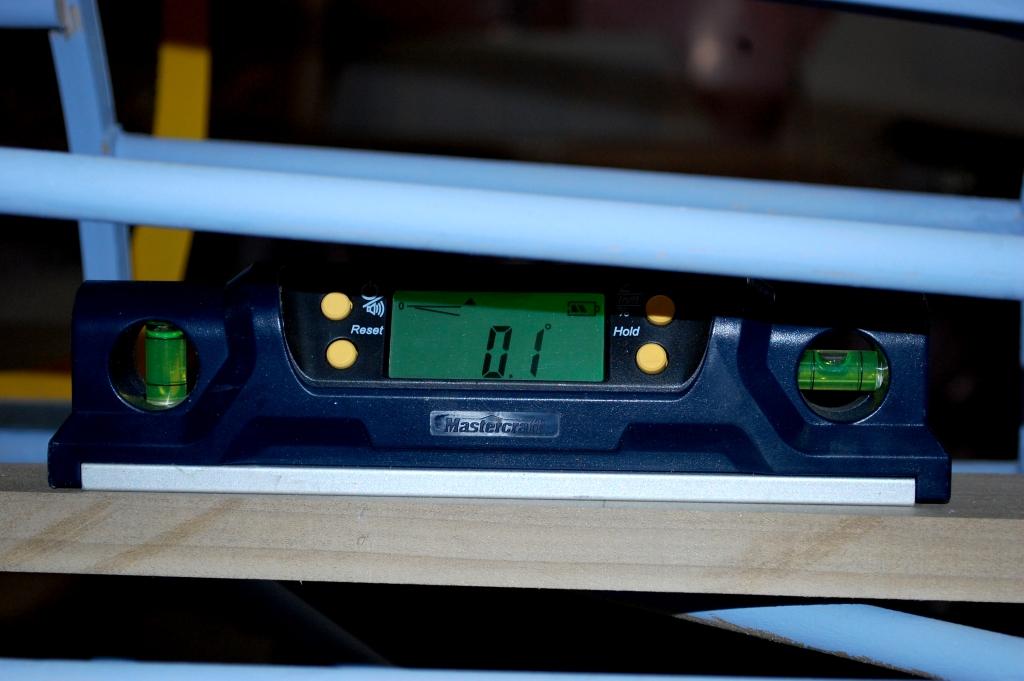

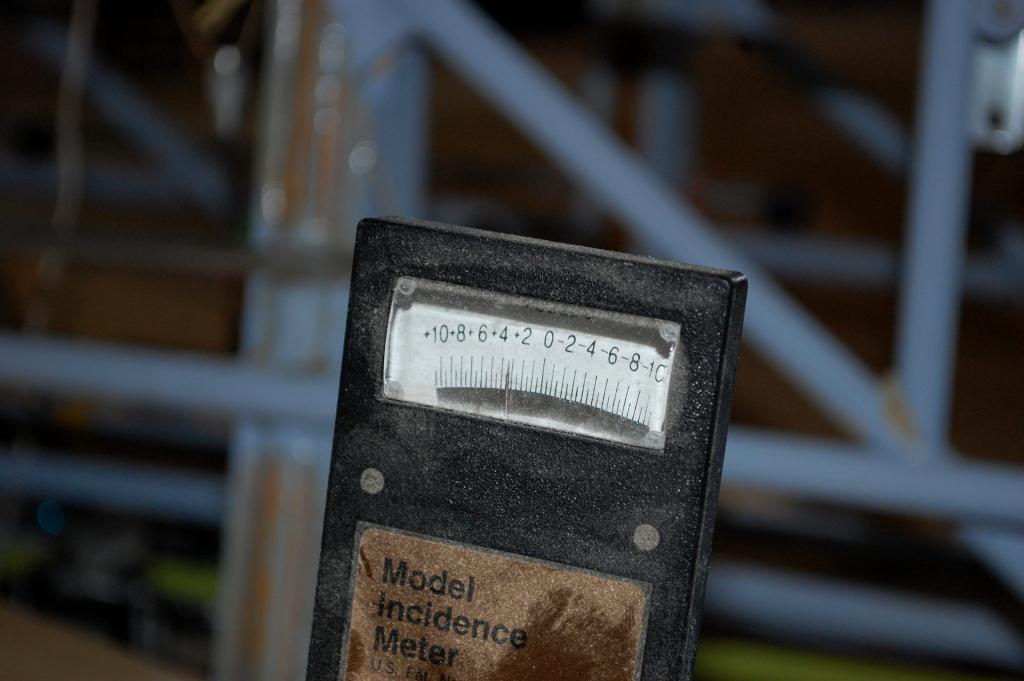

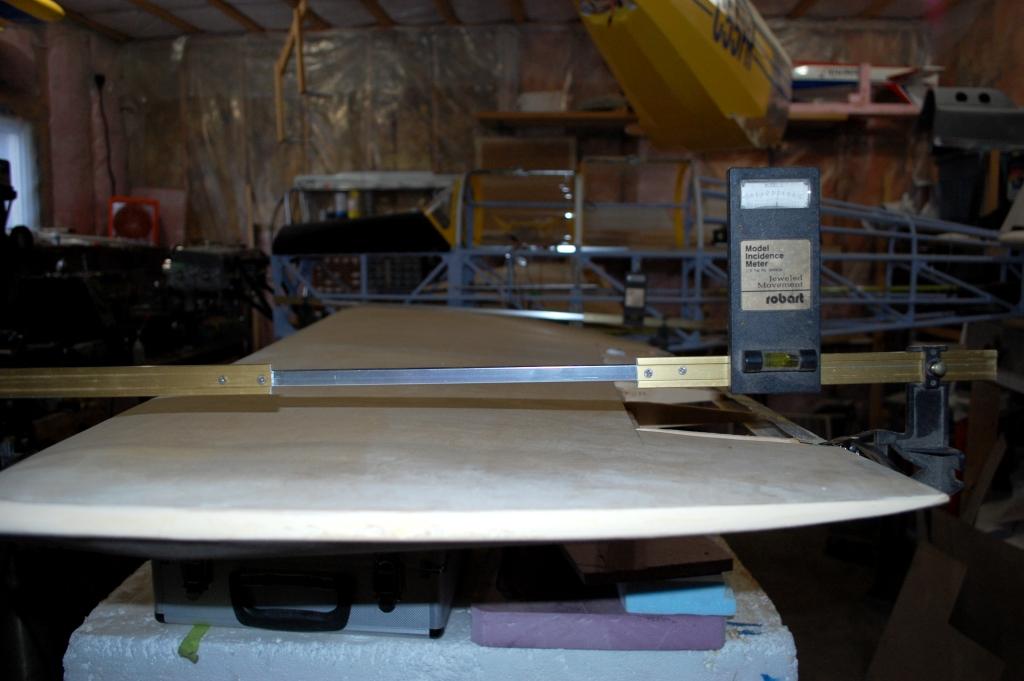

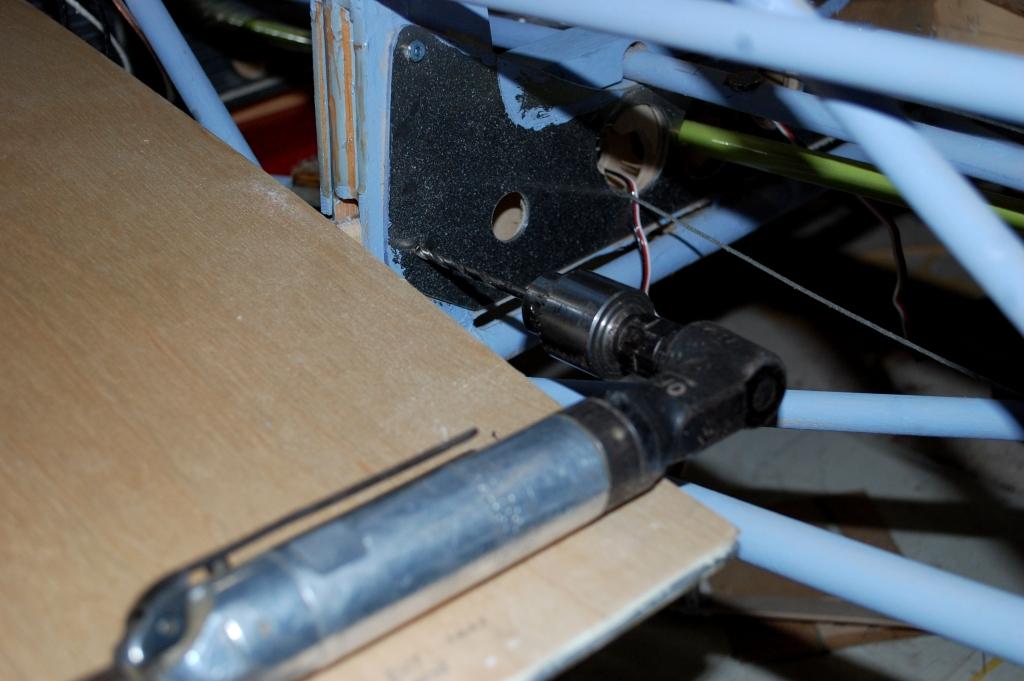

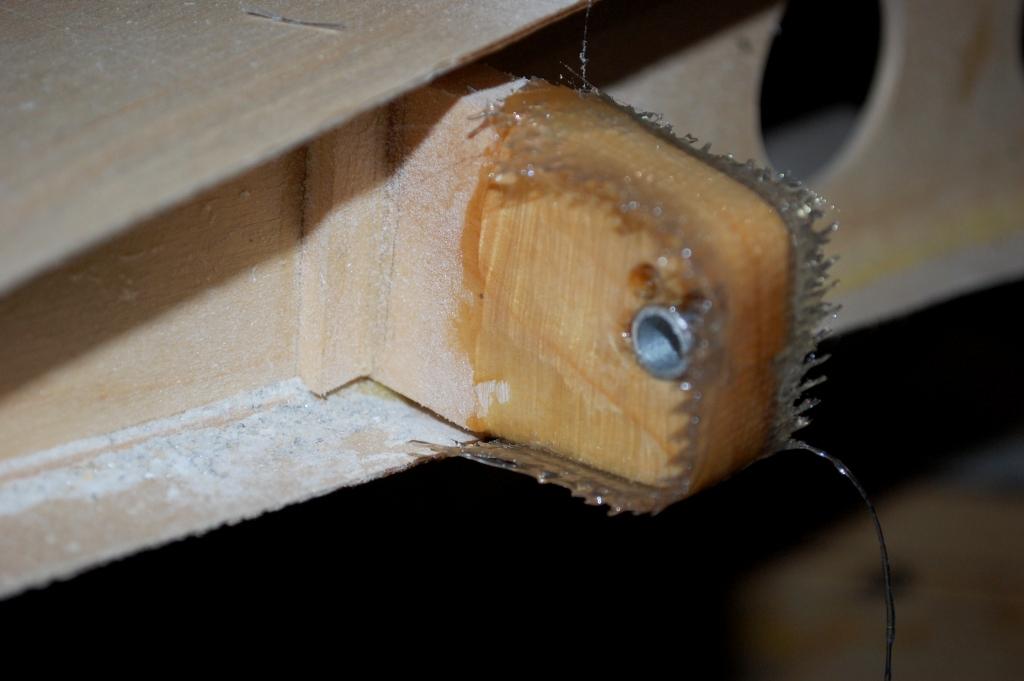

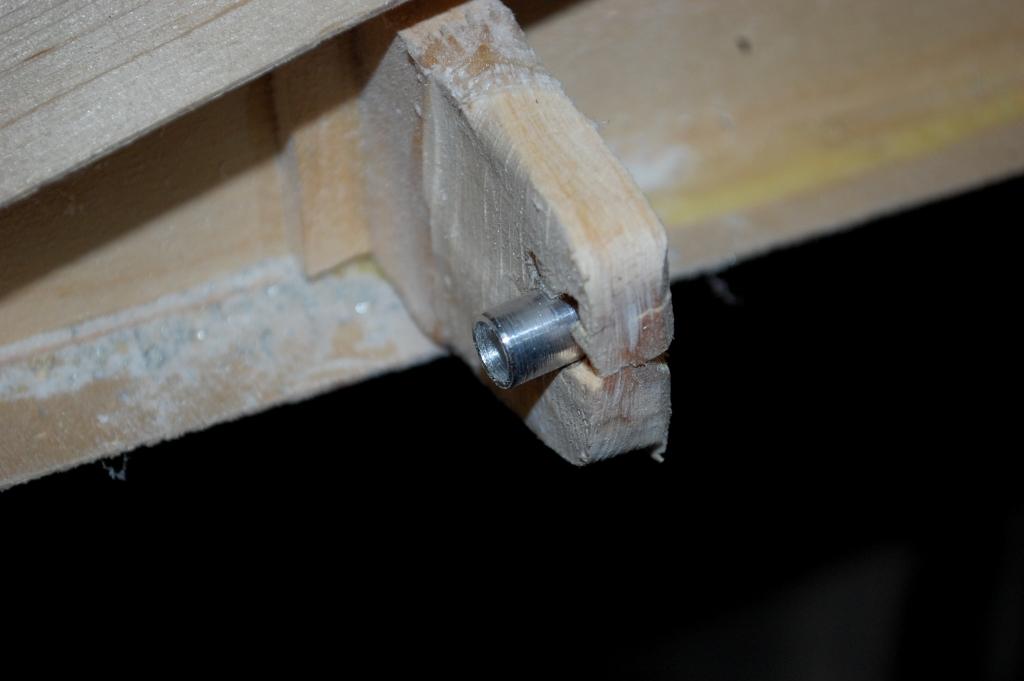

    left wing with proper incidence and with washout at the tip, not much wood to work with on the rear spar, so reverted to a bushing and fiberglass to give it some strength


    Attached Files:

    • zc.JPG
      File size:
      99.6 KB
      Views:
      39
    • zd.JPG
      File size:
      98.5 KB
      Views:
      42
    • ze.JPG
      File size:
      97.7 KB
      Views:
      39
    • zf.JPG
      File size:
      108.2 KB
      Views:
      40
    • zg.JPG
      File size:
      72 KB
      Views:
      38
    • zh.JPG
      File size:
      70.6 KB
      Views:
      39
    • zi.JPG
      File size:
      84.4 KB
      Views:
      39
    stangflyer and pawnshopmike like this.
  9. BalsaDust

    BalsaDust Moderator

    Joined:
    Jul 29, 2014
    Messages:
    2,734
    Likes Received:
    2,924
    Location:
    Somewhere

    I love the chipmunk.

    Pistolera and Forgues-Research like this.
  10. Forgues-Research

    Forgues-Research 100cc

    Joined:
    Aug 26, 2014
    Messages:
    835
    Likes Received:
    656
    OK both wings are now with the proper incidence, not a small feat considering the size of my shop lol

    Pistolera and pawnshopmike like this.
