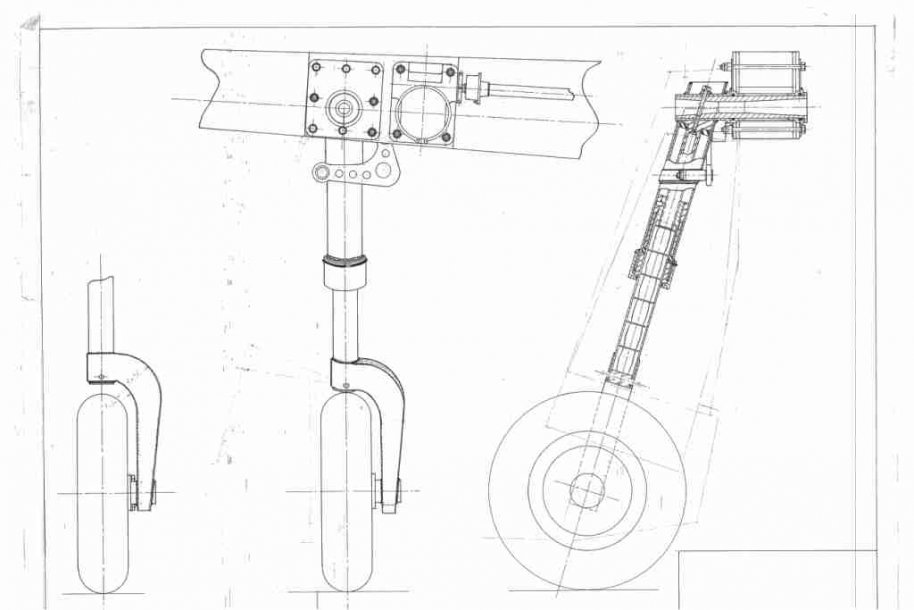

Here is the drawing of the landing gear

Hey Roger, I guess I should have asked for a pictures of the landing gear details.

I'll CAD something up on an internal anti-rotation idea I've had. What is the over all outside diameter of the strut you will be using? Or you could e-mail me more dimensional specification on the size your landing gear will be.

Matthew

P.S. there are two t's in my name lol

Hey Matthew with two T's, I will post a picture, I tried already but the file was too big



[Forgues-Research]

Here is a drawing, not sure on the quality, I'm using the same program as I am use to



[RCFlyingKnight]

Here is a drawing, not sure on the quality, I'm using the same program as I am use to

Hey Roger,

At first look, it appears that the strut used a piston that pushed against a series of small diaphragms for damping. If you look on the side view just below the actuating arm pin towards the front, it shows a pin (anti-rotation?) going through the outer tube part way into the inner tube, where there was prabably a groove on the inner tube to allow the movement.

I'll probably figure it out better as I draw it up. You don't happen to have an estimate on the total weight that your model will be?

Matthew



[Forgues-Research]

I was hoping for 75 lbs but now it seems maybe closer to 85 lbs



[Forgues-Research]

while waiting for the material needed for the landing gear, I am working on the Junior Dalotel, I will be posting more in a short while
