Scale Building a Bulldog II

[Jetpainter]

Looking forward to another build thread.



[acerc]

Seems like quite a few have started up here recently.



[Snoopy1]

Here is the Pitts Eagle with a 96"ws sitting on it's dolly, I really hate assem/disassem....

Must admit that is one way of transporting a bi-plane. But it works and set time is zero really like the method.



[Blazing Wings]

That's an excellent way to transport the plane.



[Blazing Wings]

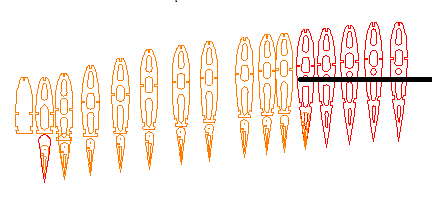

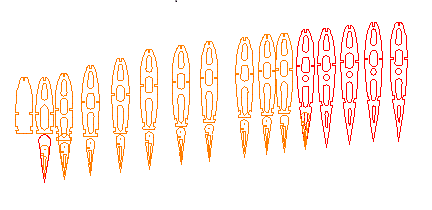

Top wing ribs and ailerons.



[acerc]

Look's good to me. I assume the wing tube hole's are going to be straight once CAD is complete.



[Blazing Wings]

Look's good to me. I assume the wing tube hole's are going to be straight once CAD is complete.

Yes, I am working on layout first and then modify everything at the end the way you need it.



[acerc]

Fantastic. While your at it, if it's not to much trouble, could you draw up a piece of ply for the ailerons that cap over at the slot for a stringer. This would give a solid backing for my hinging style as well as preset where the aileron ribs sit.



[Blazing Wings]

Fantastic. While your at it, if it's not to much trouble, could you draw up a piece of ply for the ailerons than cap over at the slot for a stringer. This would give a solid backing for my hinging style as well as preset where the aileron ribs sit.

Yes I have done that before on my previous designs. No problem.



[acerc]

Excellent!!!!
