Scale Building a Bulldog II

[Blazing Wings]

Horizontal Elevator and Stab



[acerc]

Fantastic.



[Blazing Wings]

Rudder and vertical Stab



[acerc]

Oh yeaaaa!!!!! It's getting close now, I can smell the balsa.



[Snoopy1]

If I may suggest run a small diagonal brace from the bottom lower corner in the the rudder to the opposite corner of the cutout . That will give a lot of strength when the bottom of the rudder is bump the odd time.



[Blazing Wings]

If I may suggest run a small diagonal brace from the bottom lower corner in the the rudder to the opposite corner of the cutout . That will give a lot of strength when the bottom of the rudder is bump the odd time.

Good Idea. I will consult with the builder. I am drawing this according to his needs.



[Blazing Wings]

Modified



[acerc]

That's fine with me, it won't be visible anyway.



[Blazing Wings]

Bottom wing with ailerons



[Blazing Wings]

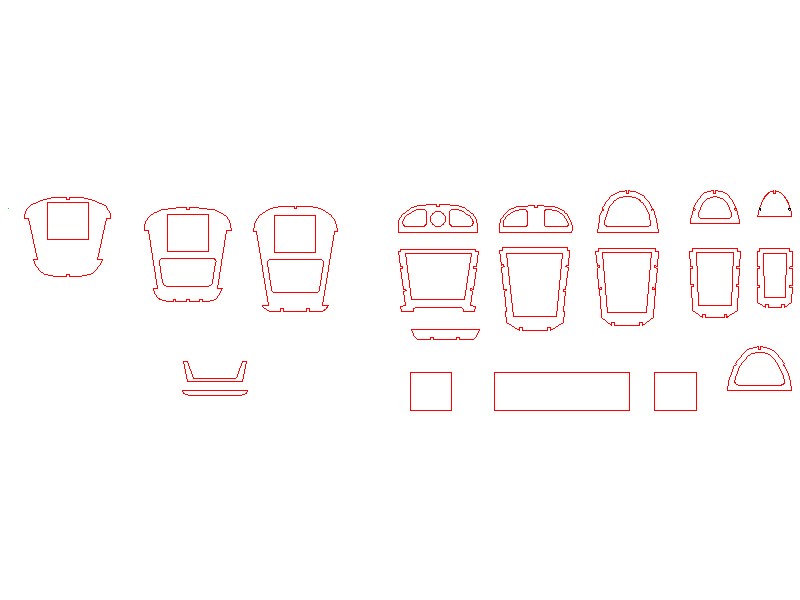

Fuselage formers.
