Scale Nelitz 1/3 scale Cub build

[dhal22]

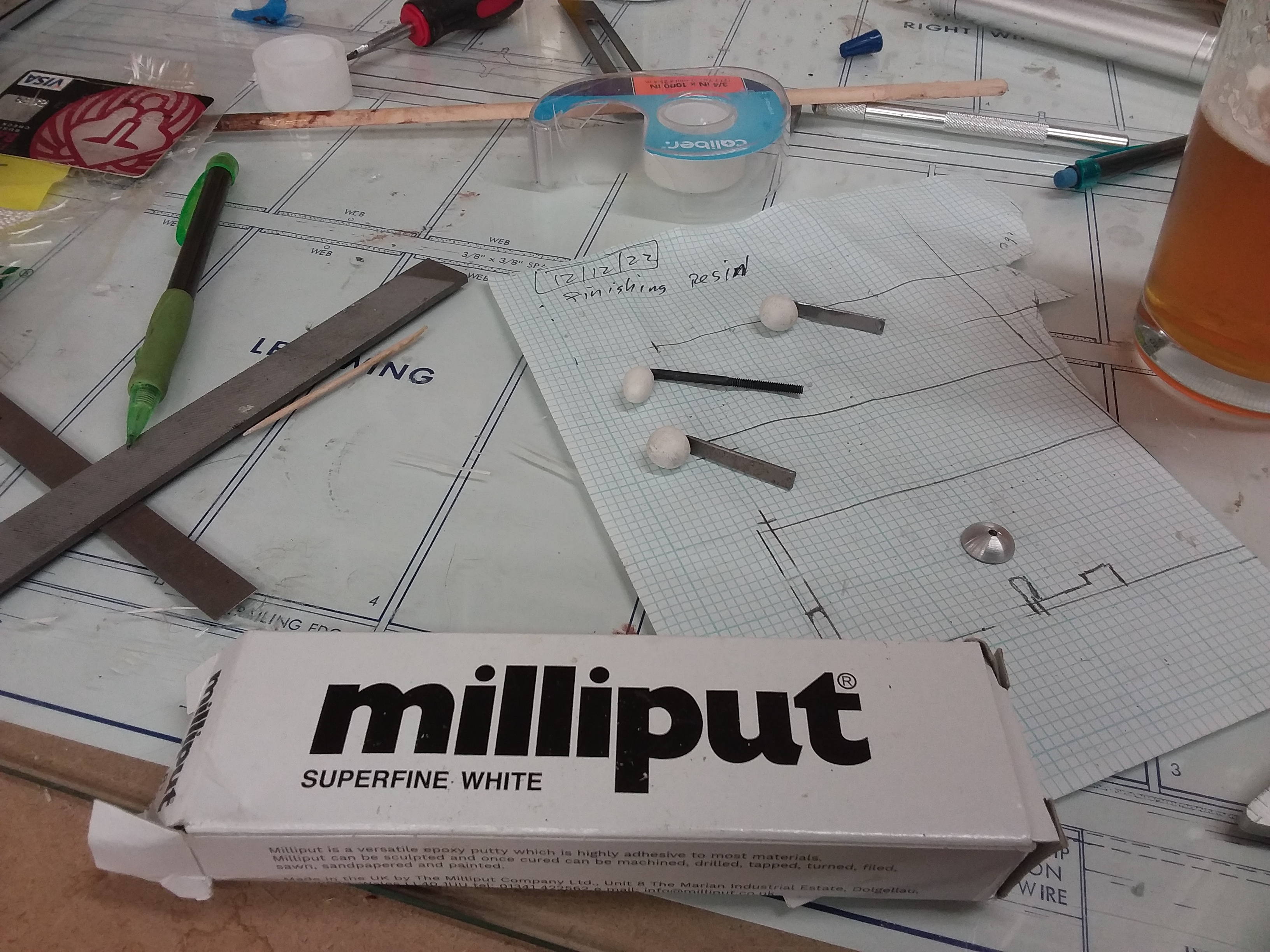

Using an epoxy putty by the name of milliput for the control knobs.



[dhal22]

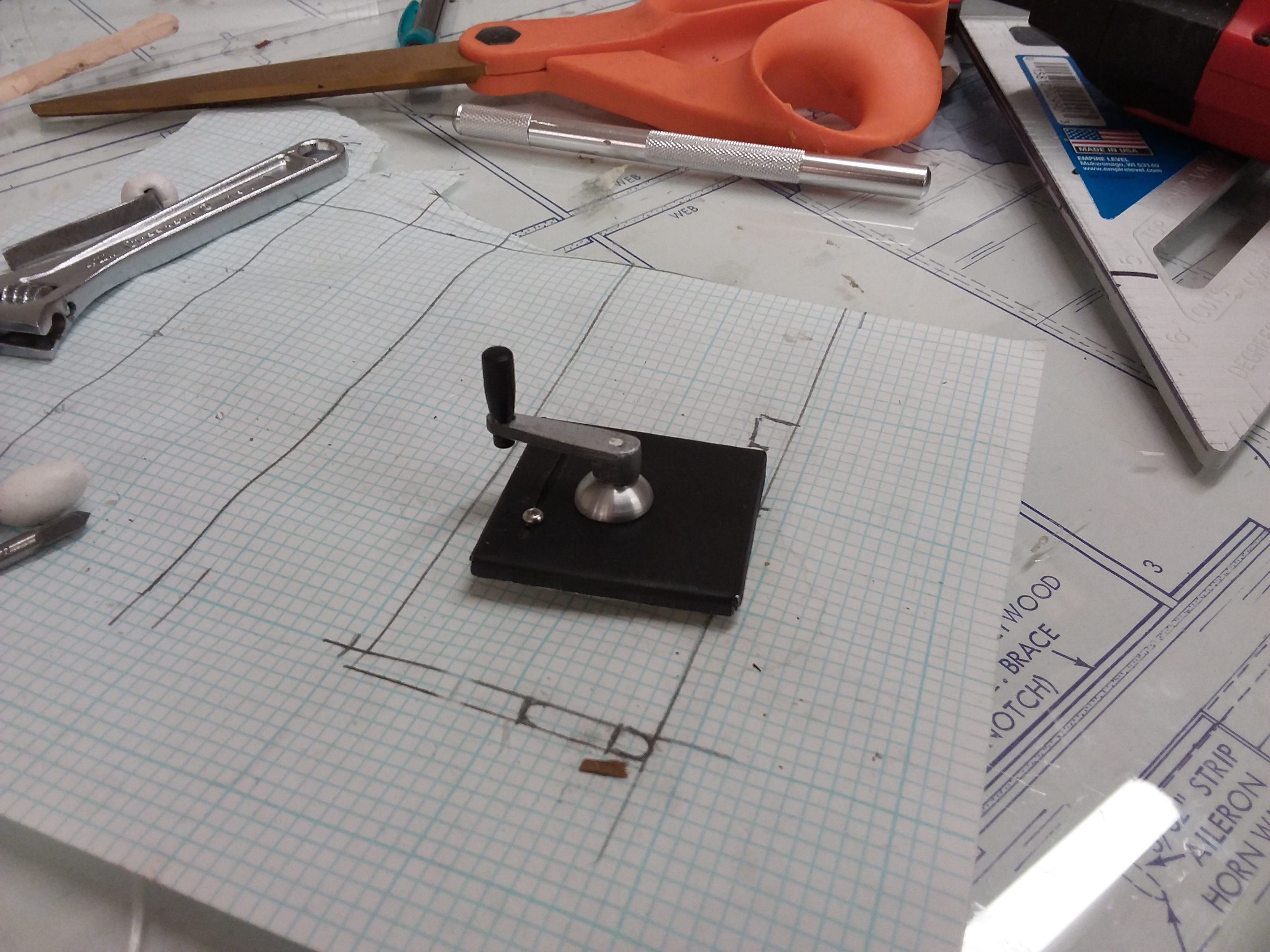

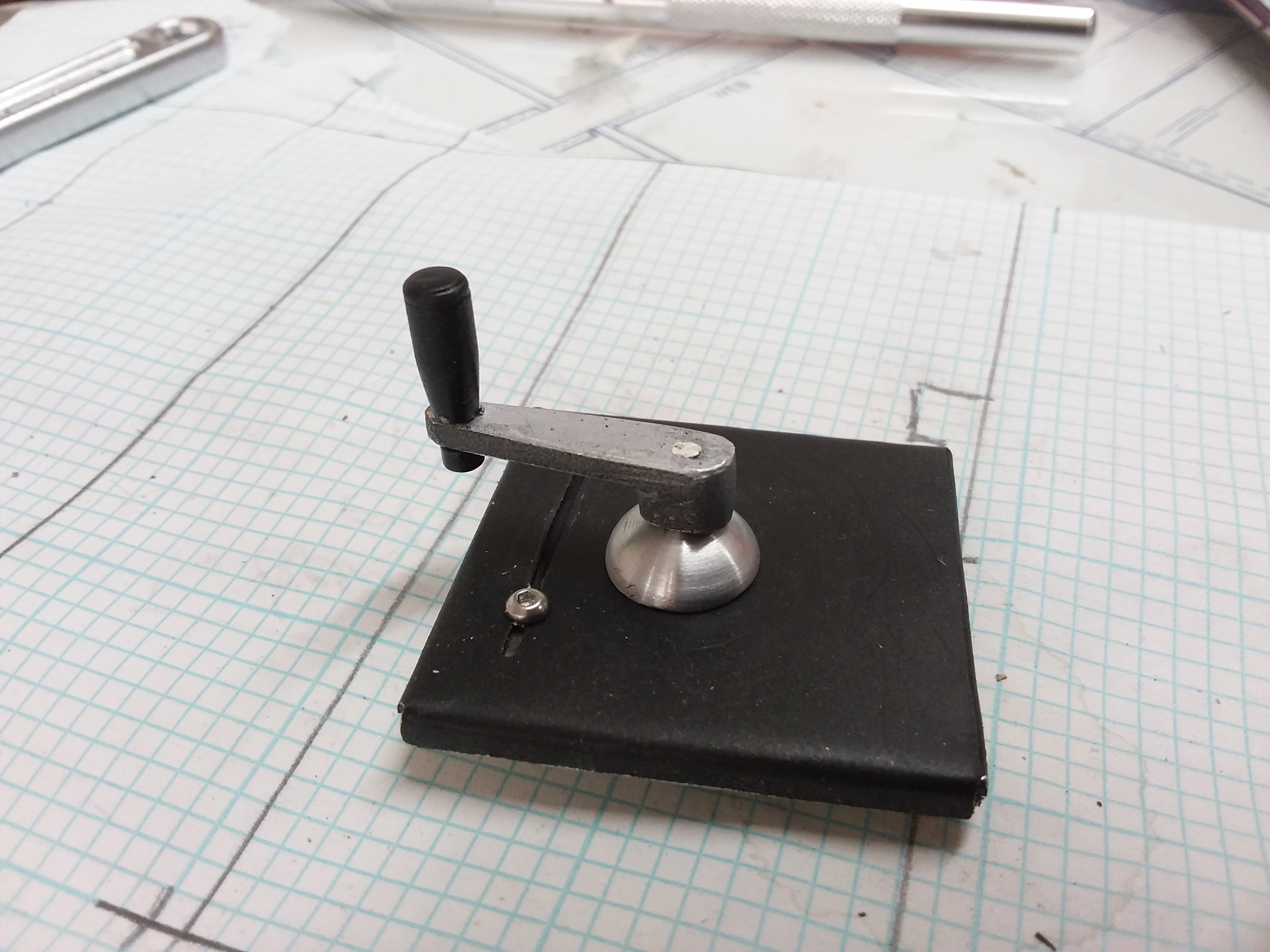

Trim control handle done. Where would I get tiny graphics?



[AKNick]

Maybe Calle Graphics? You can get various nomenclature sheets... although mostly for warbirds. They do custom work too.

Nomenclature

Below are our current nomenclature offerings.

callie-graphics.com

Cub:

Traditional Yellow Piper Cub Graphics Set

You can't go wrong with a yellow Cub! We can personalize the N#'s on this set, at no extra charge! Just leave a note when you check out with your preferred N# sequence. Photo by Adric Sommer

callie-graphics.com

Panel:

Piper Cub Instrument Panel

This vinyl is 18 mil thick, which gives the instrument bezels and gauges a nice realistic raised appearance! The set includes the bezels, gauges, warnings labels and backing. This way you can either use it as I have it shown assembled or make up your own with the individual items.

callie-graphics.com



[dhal22]

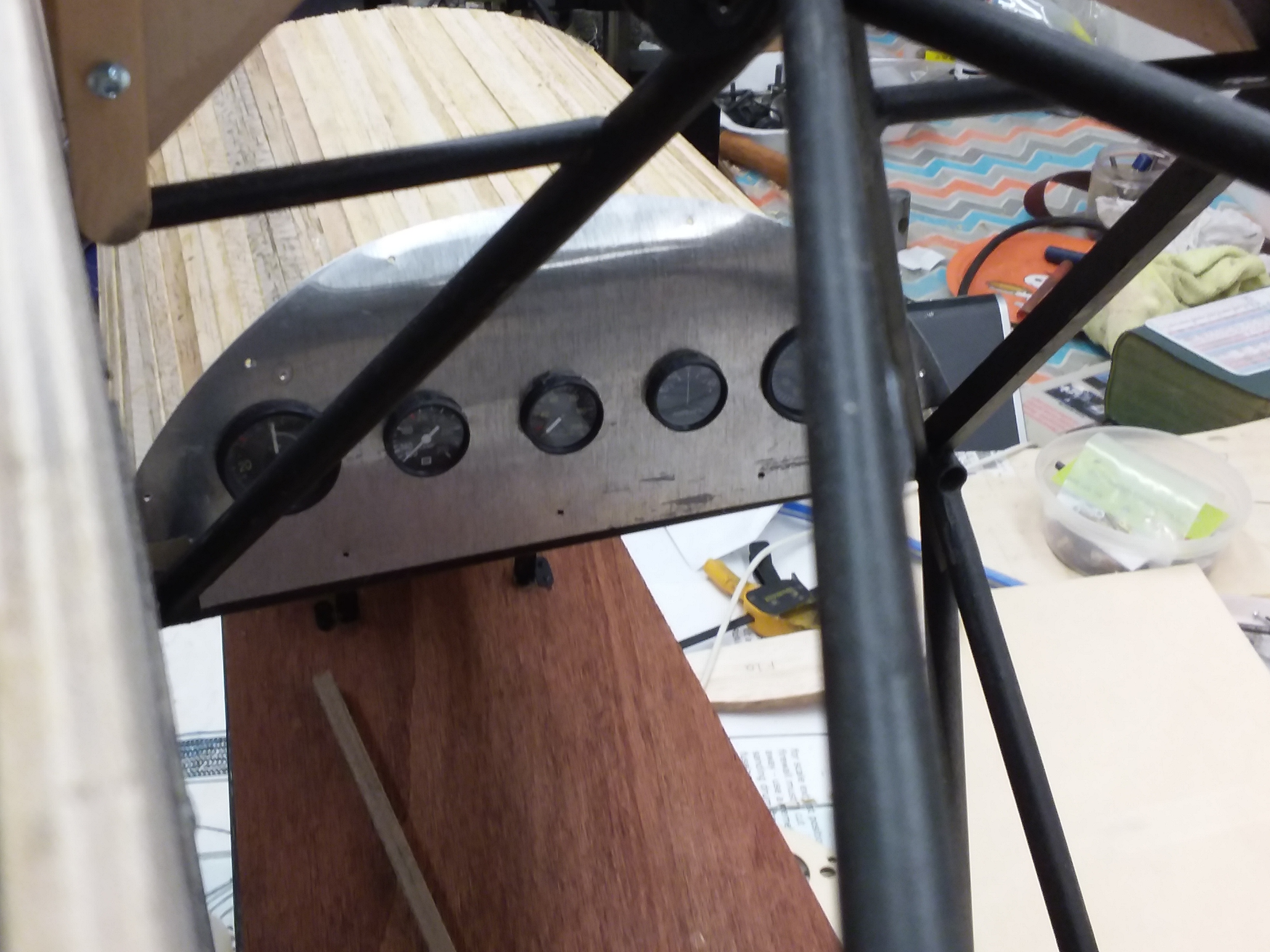

Instrument panel I have.

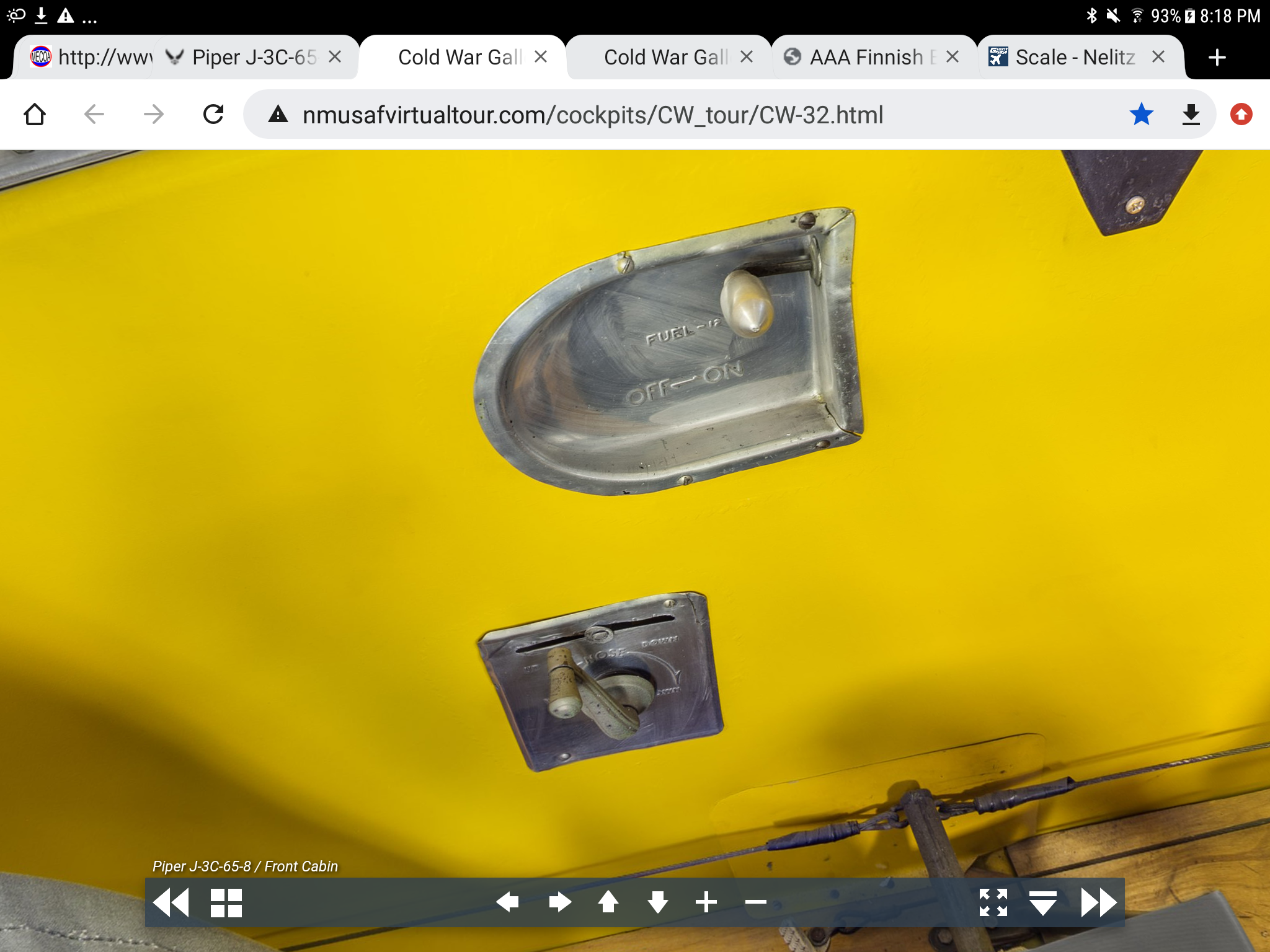

I'm thinking graphics on these control arms.



[dhal22]

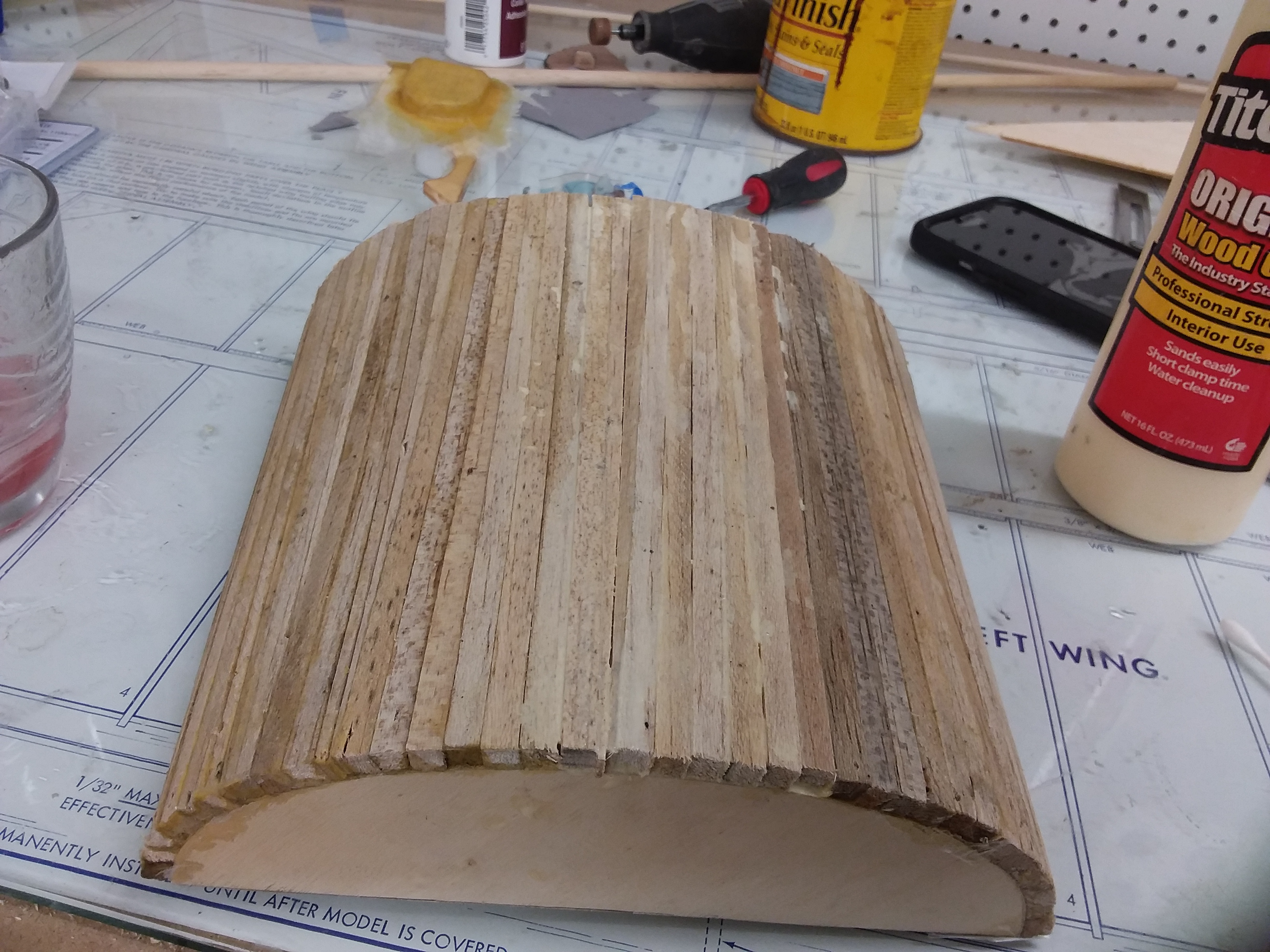

The poor job of strip planking is done. When I'm finished filling in this mess it will be ready for paint.



[dhal22]

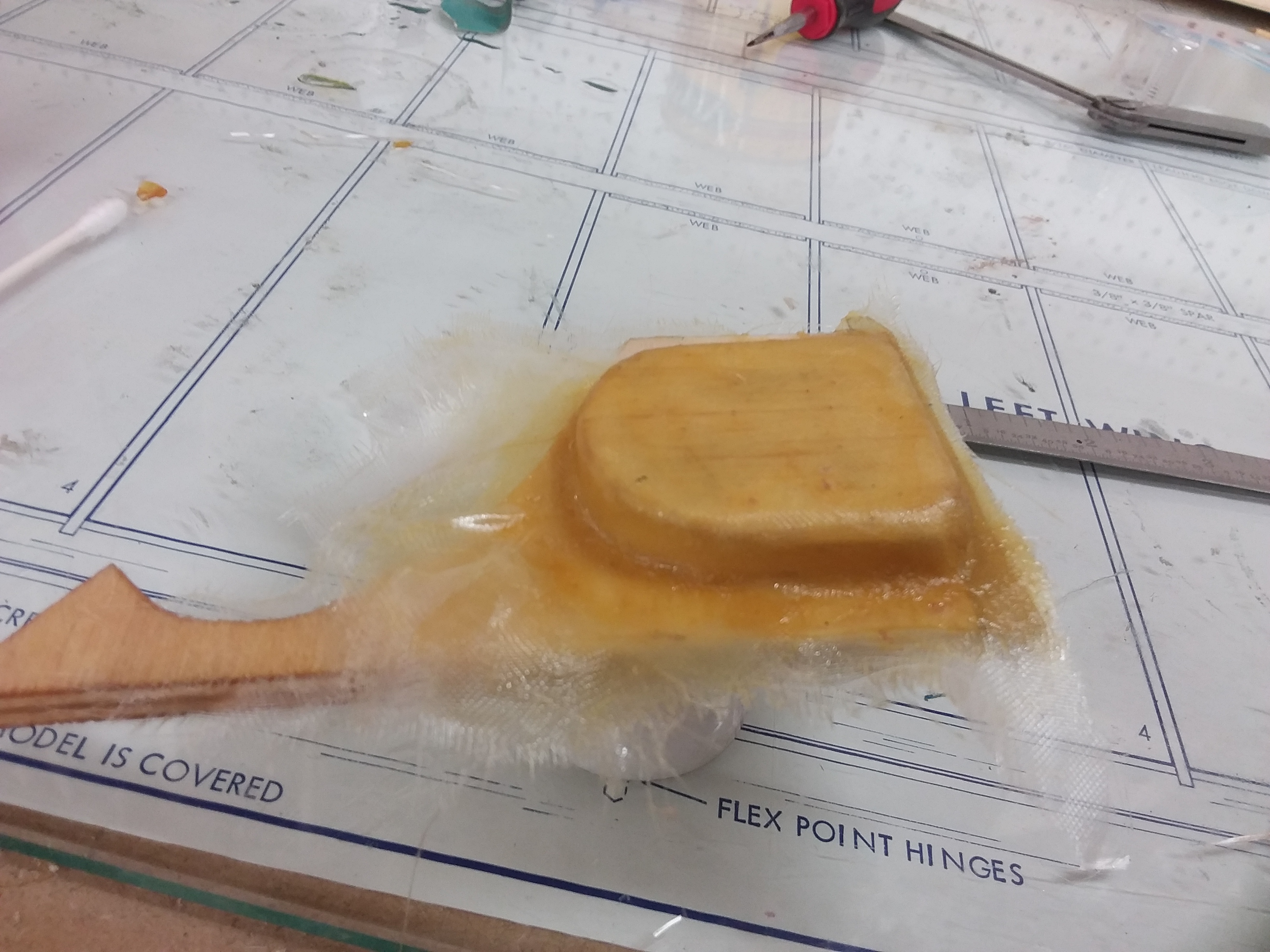

Another layup, hopefully better this time.



[TonyHallo]

I have had these folks make scale logos for my Cherokees. Maybe they can make what you need in 33%.
http://www.aerographics.com/images/..._Super_Cub_Interior_AeroGraphics_Placards.pdf



[dhal22]

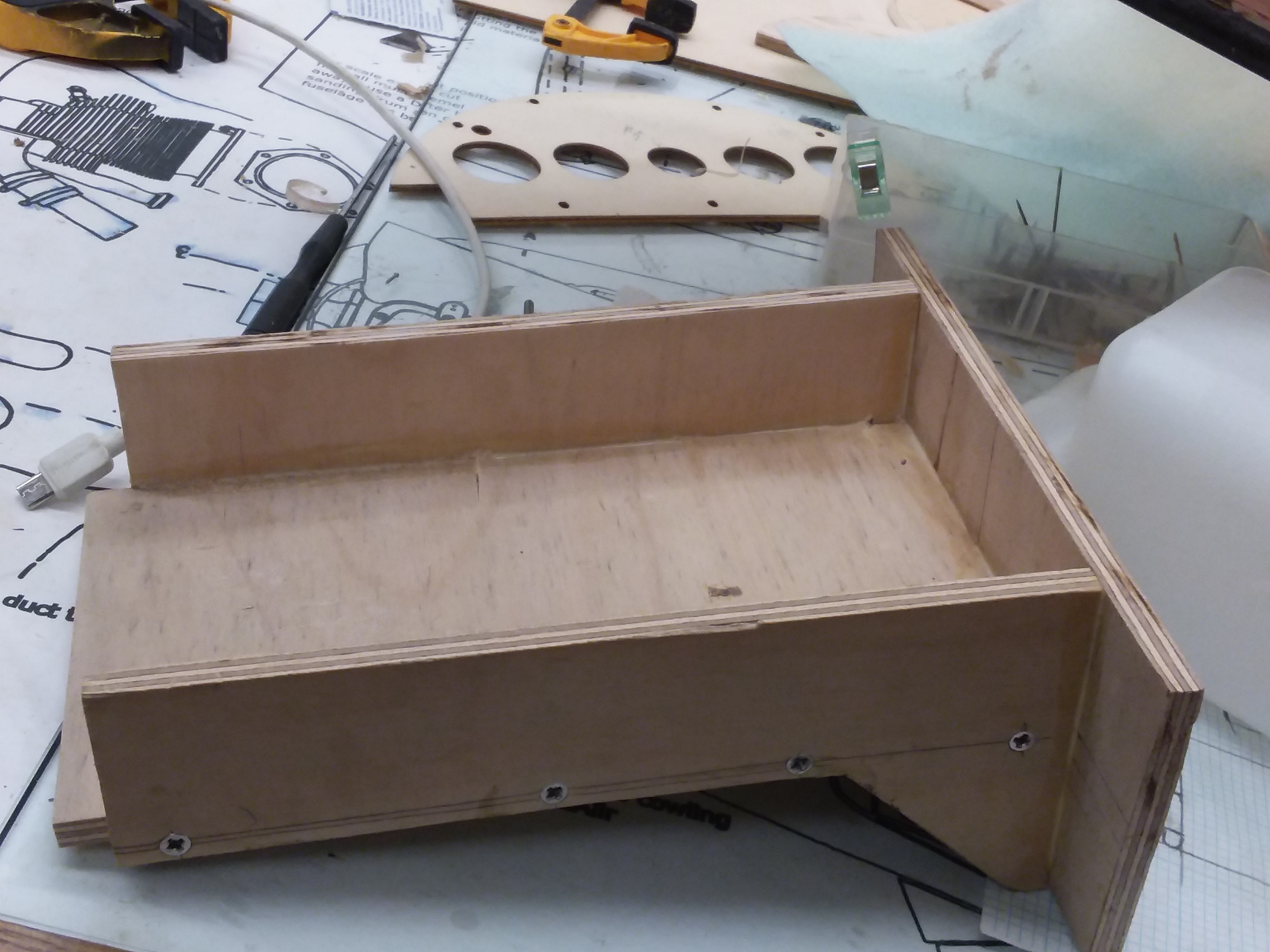

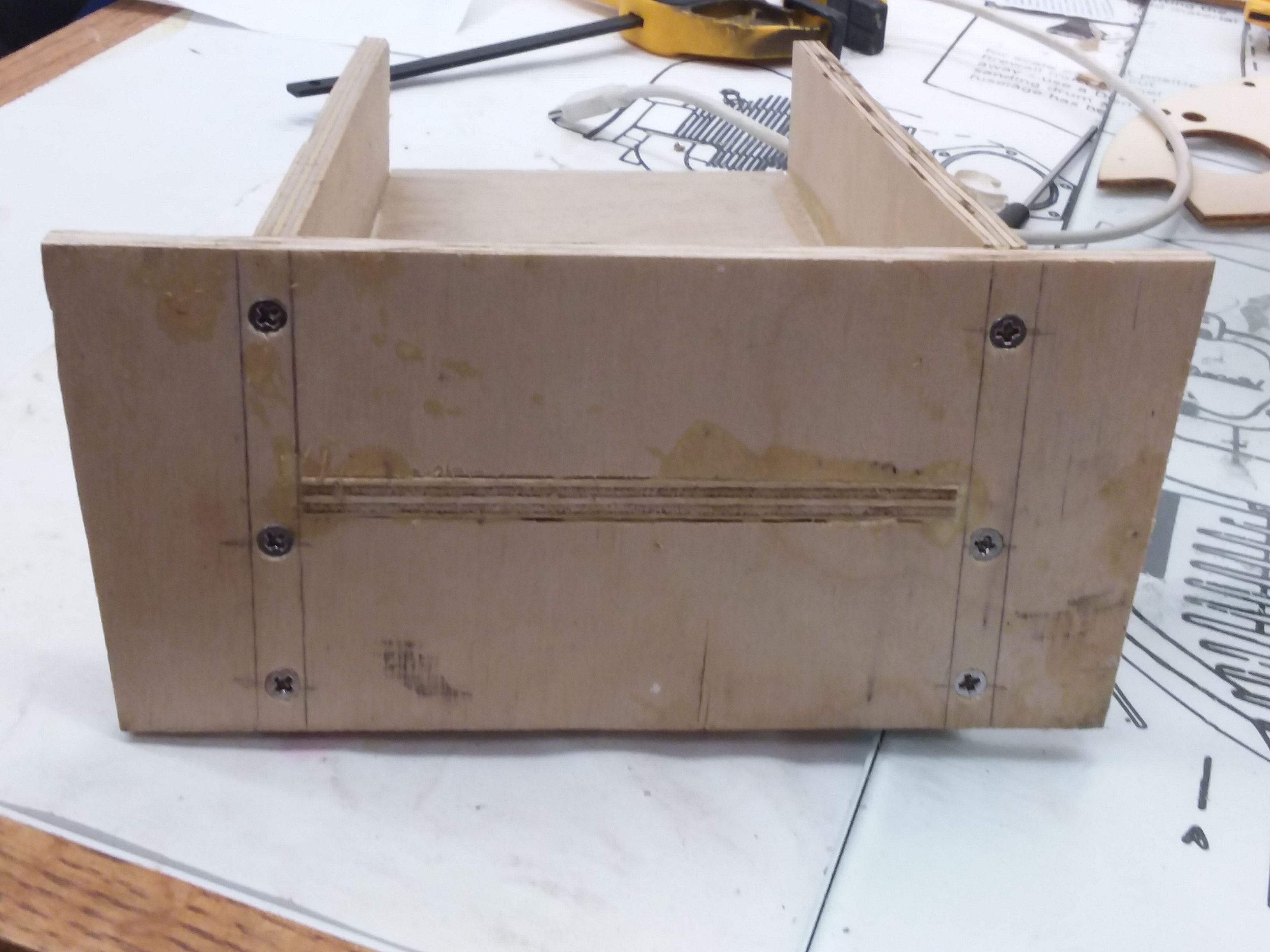

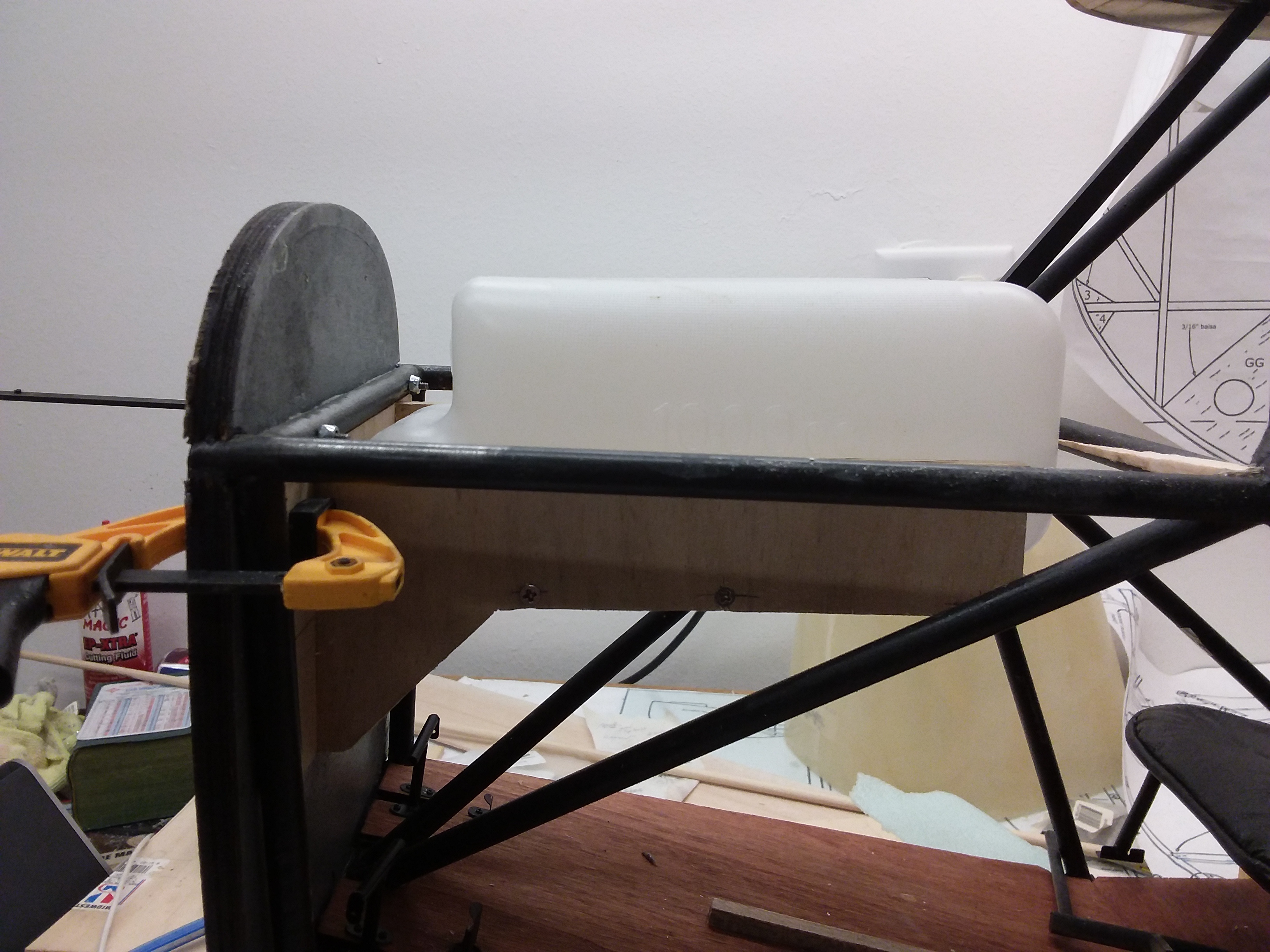

I made a fuel tank holder tonight.



[dhal22]

More:

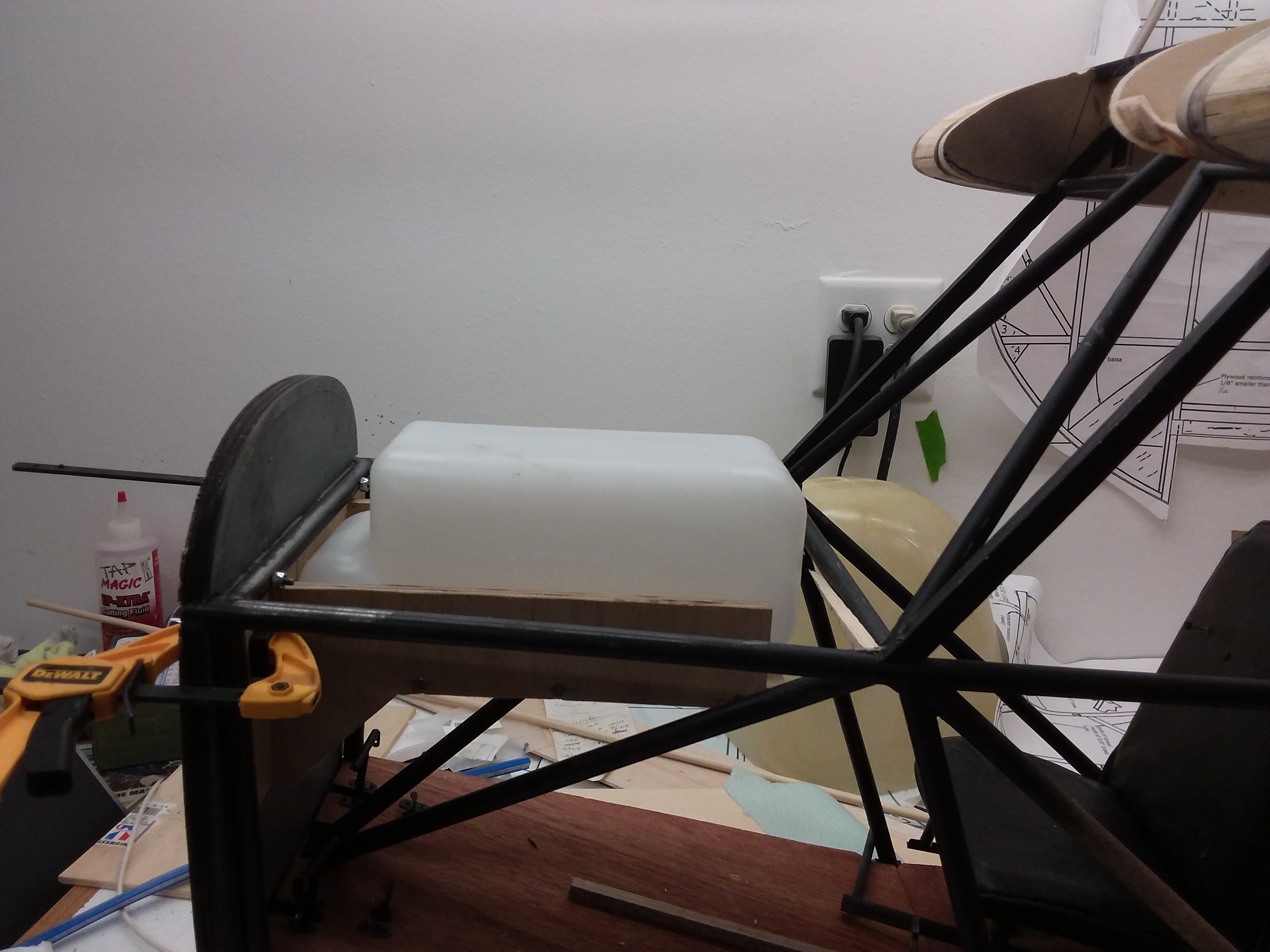

There should be room for a scale fuel tank fitting.



[dhal22]

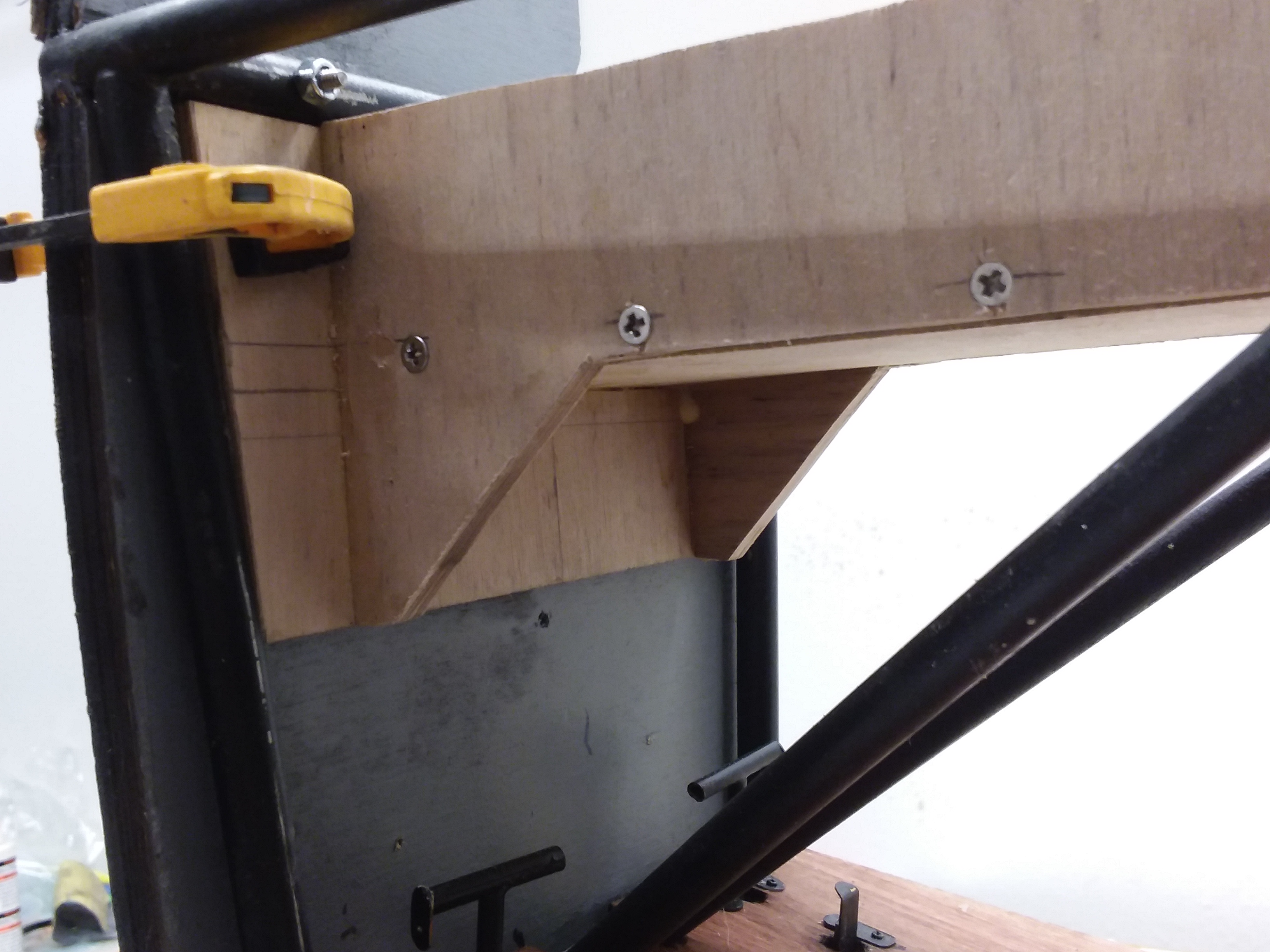

The support is a little bit low. I might trim that later.
