Scale Nelitz 1/3 scale Cub build

[TonyHallo]

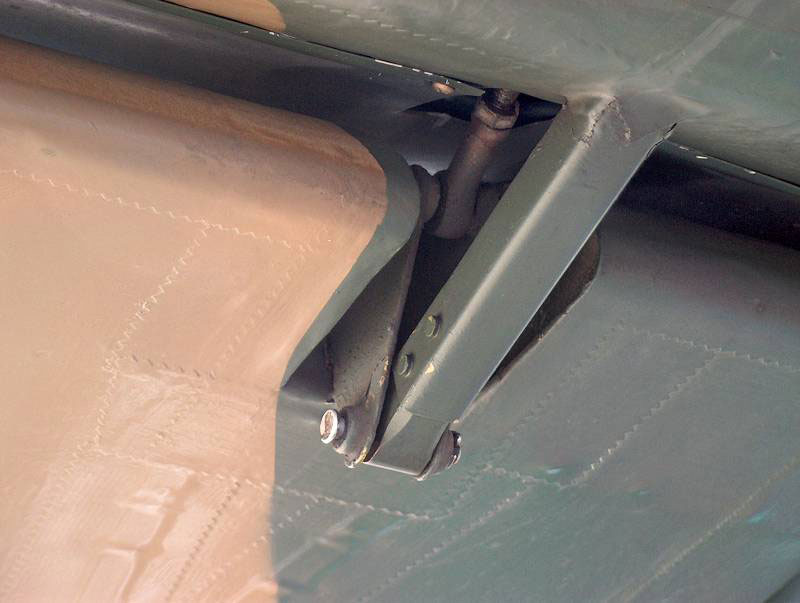

Plan to use the mill and lathe to make nice scale hinges? Hope you get well soon although I do like the progress!!!



[dhal22]

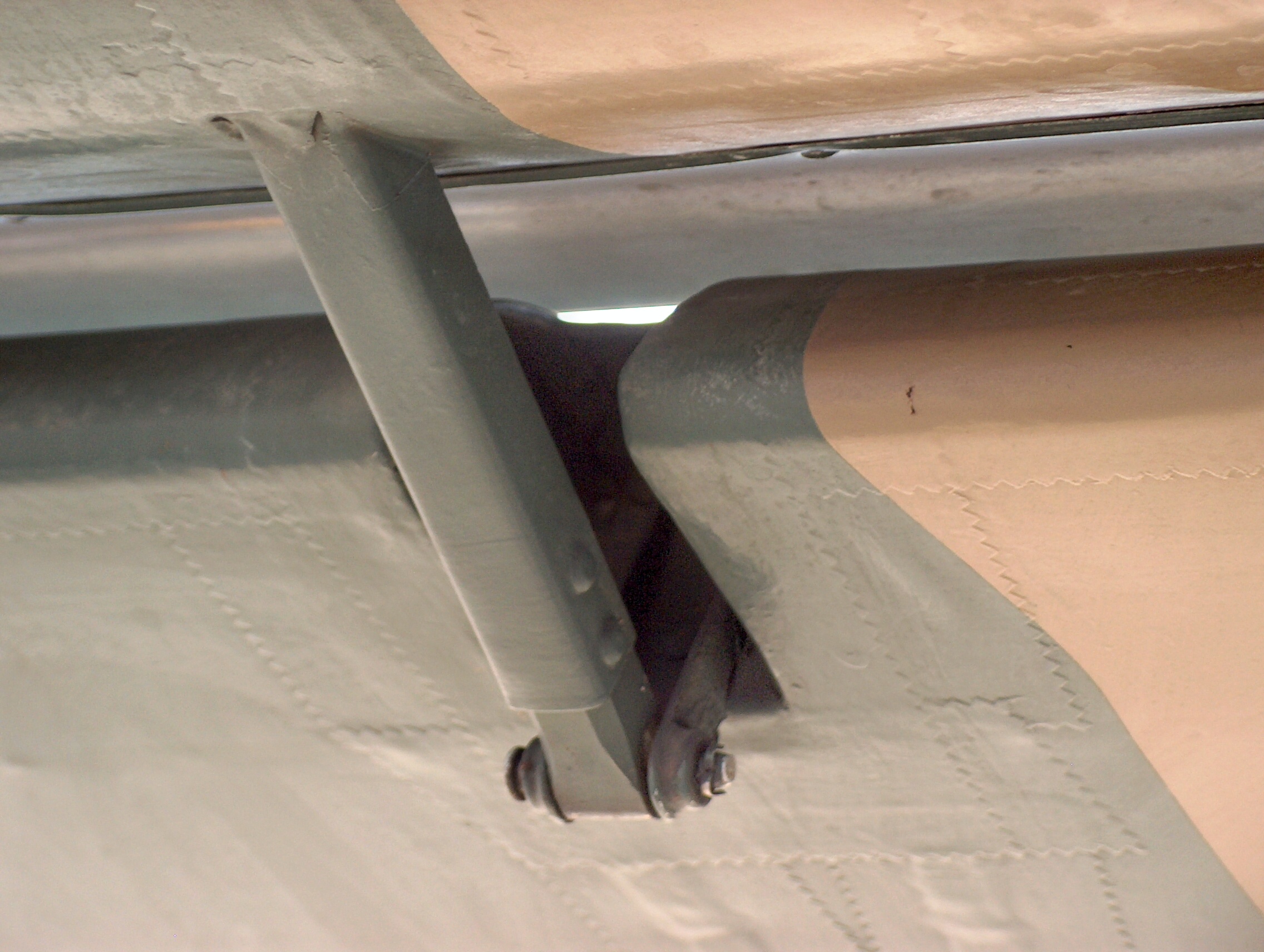

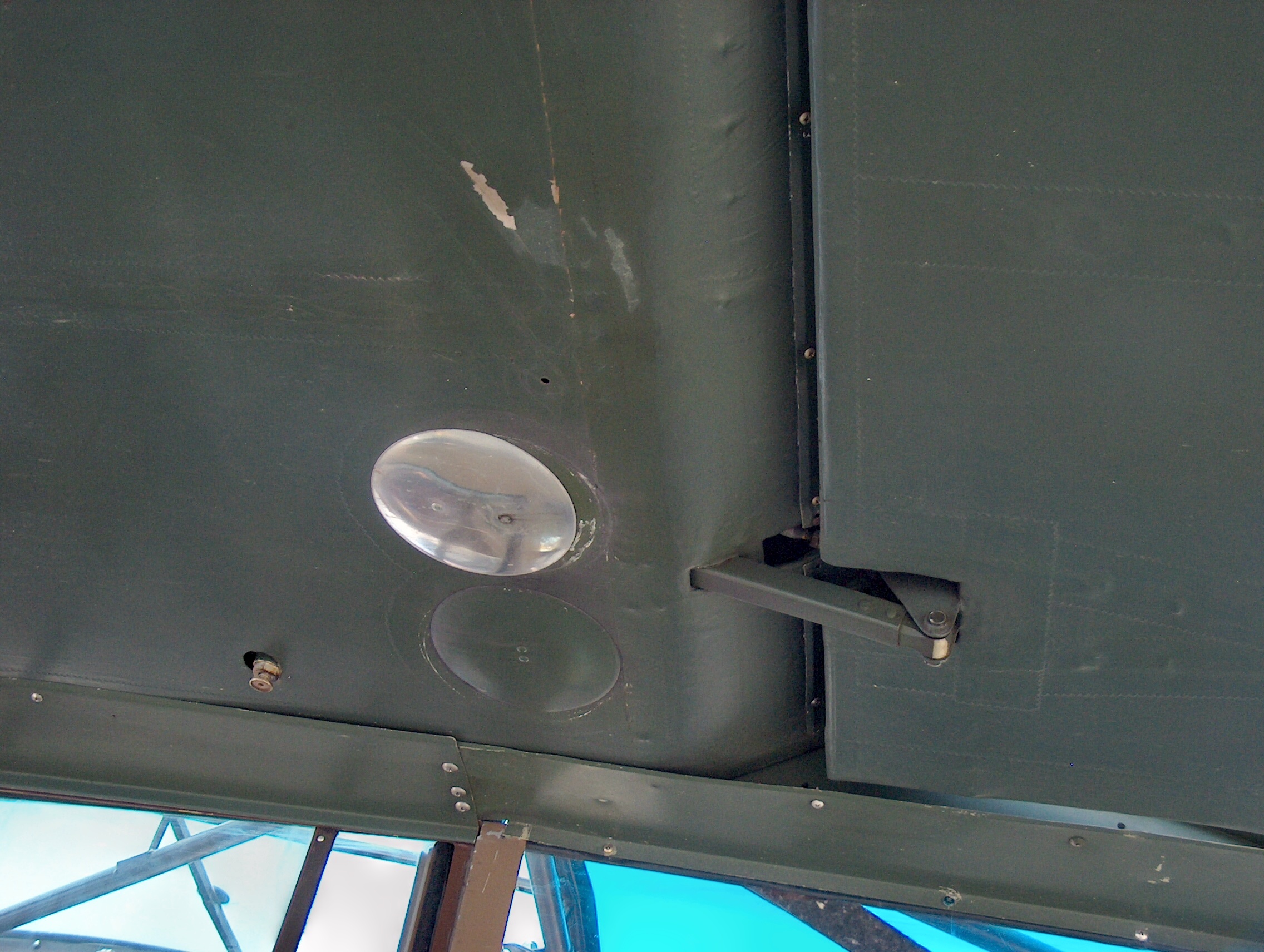

View attachment 118515 View attachment 118516
Plan to use the mill and lathe to make nice scale hinges? Hope you get well soon although I do like the progress!!!

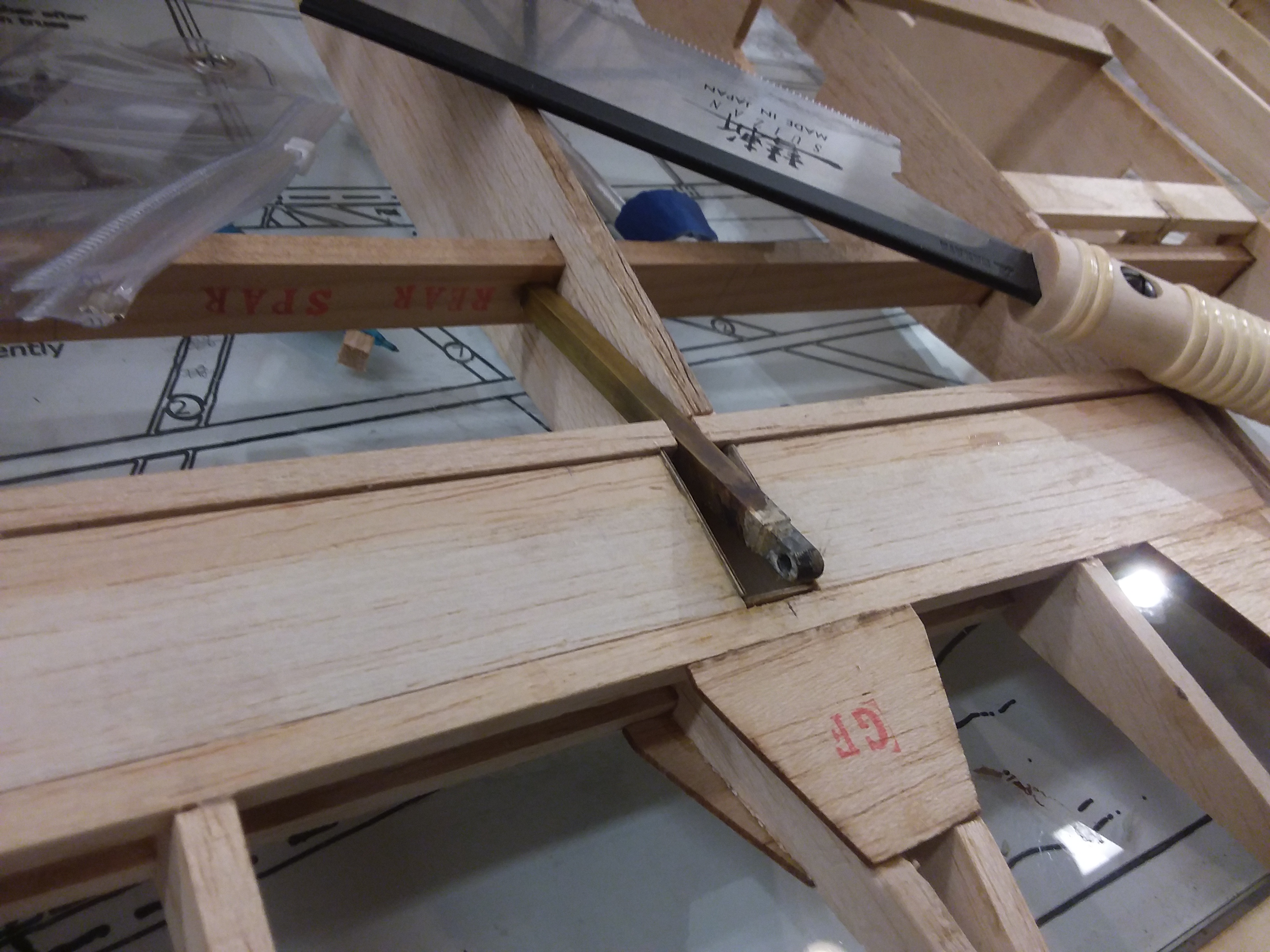

Yes sir. 1/4" square tubing and a solid metal insert looks scale with no mill needed.



[dhal22]

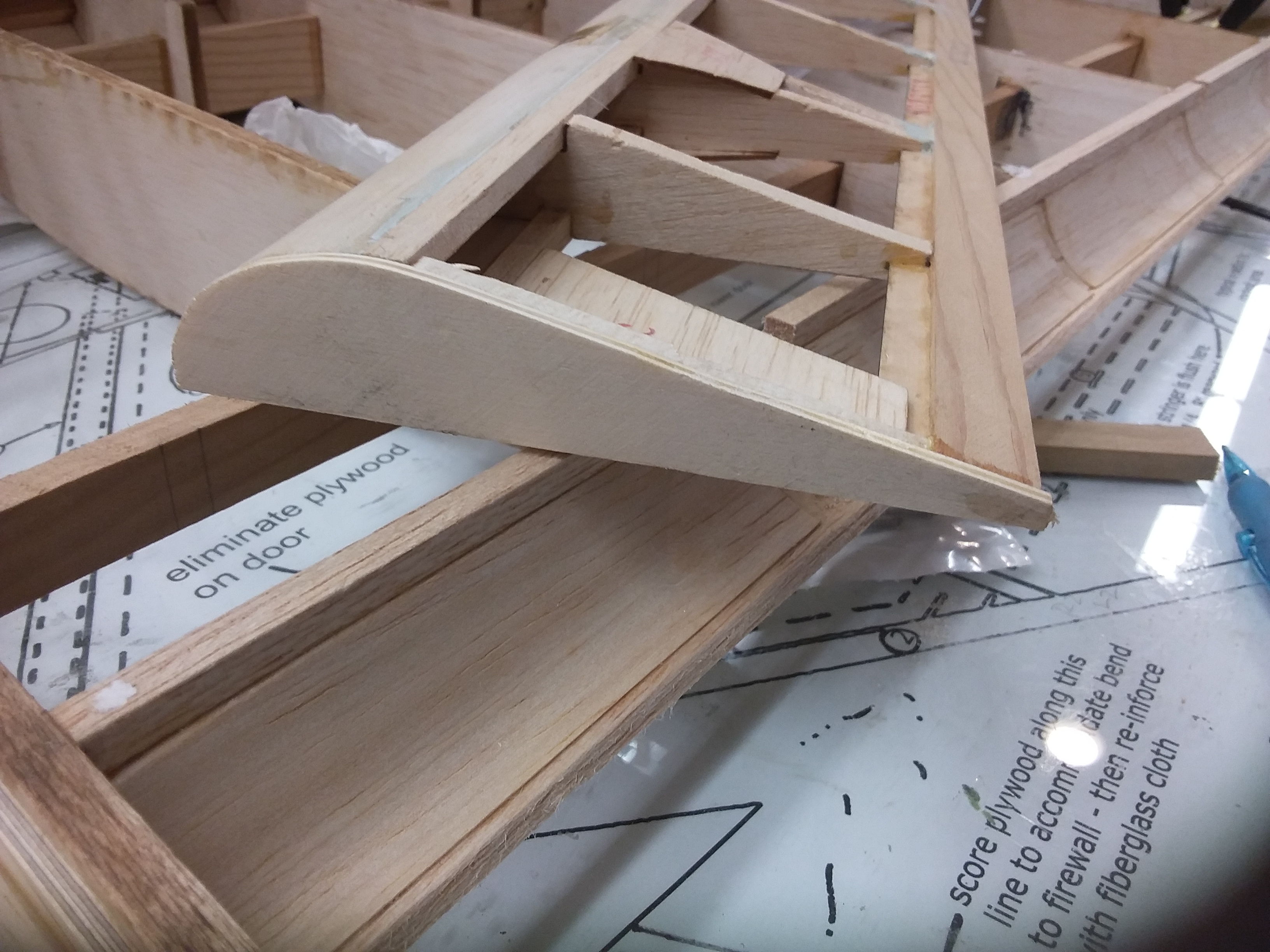

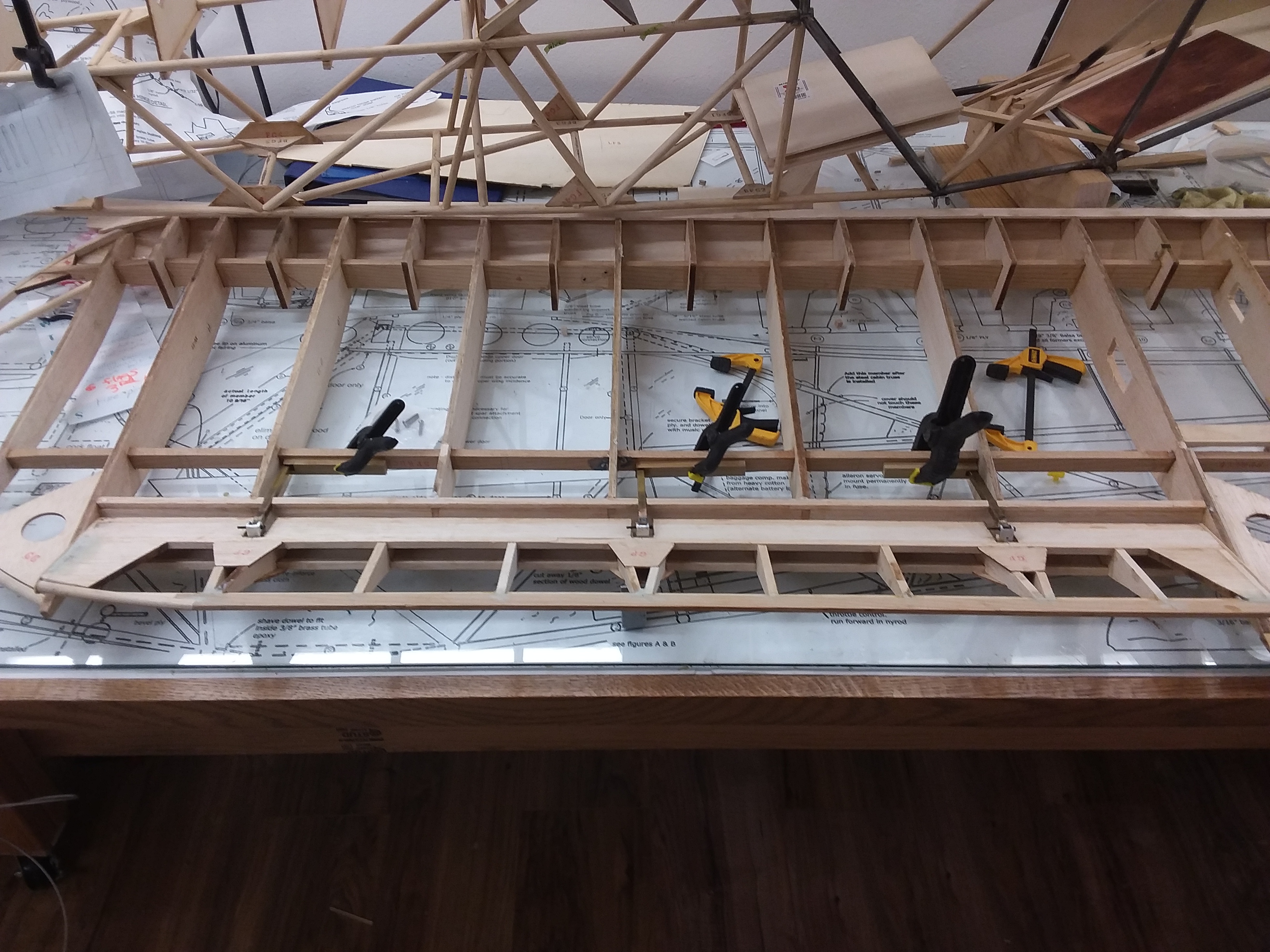

Capped the end of the ailerons.



[dhal22]

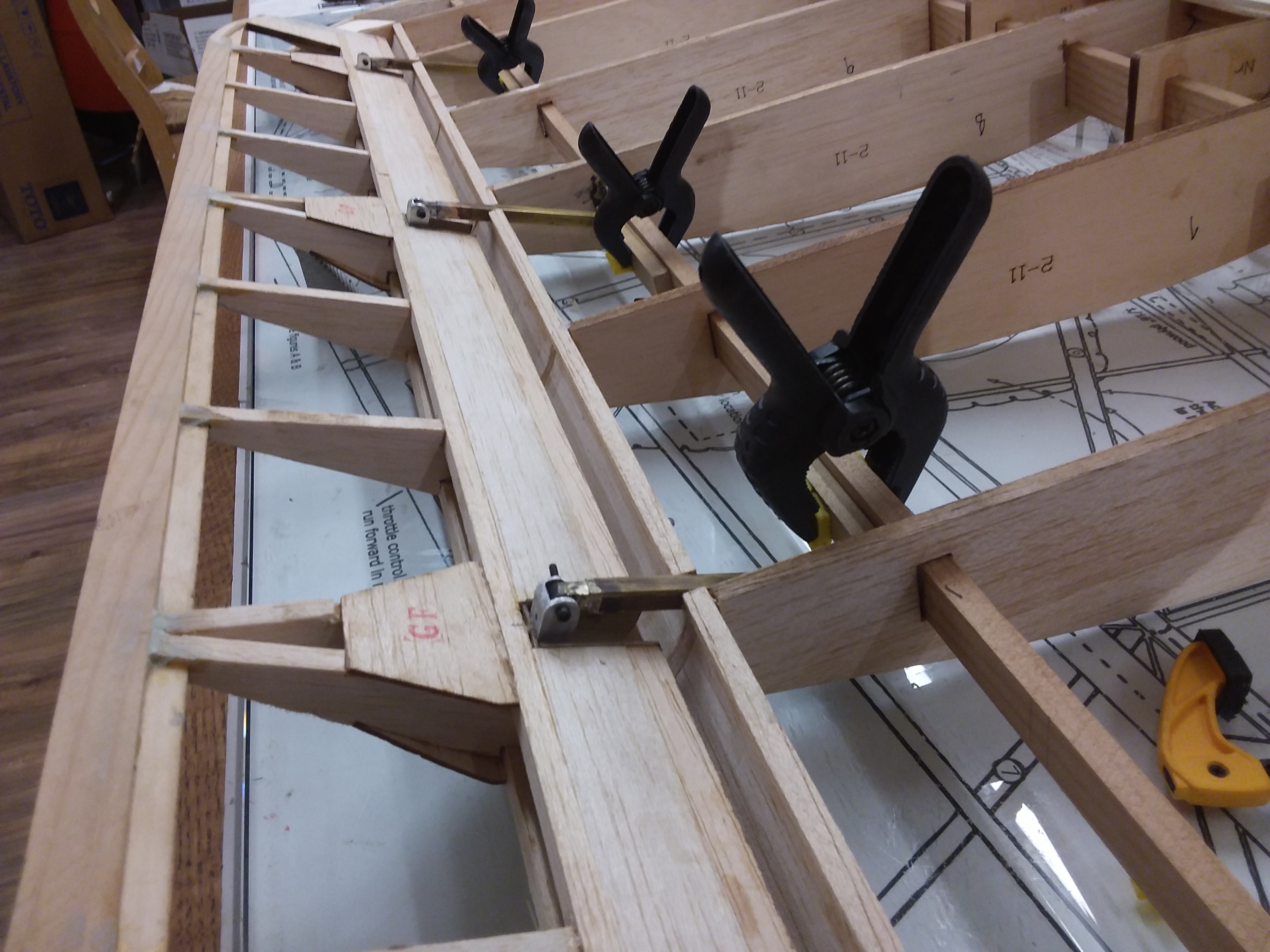

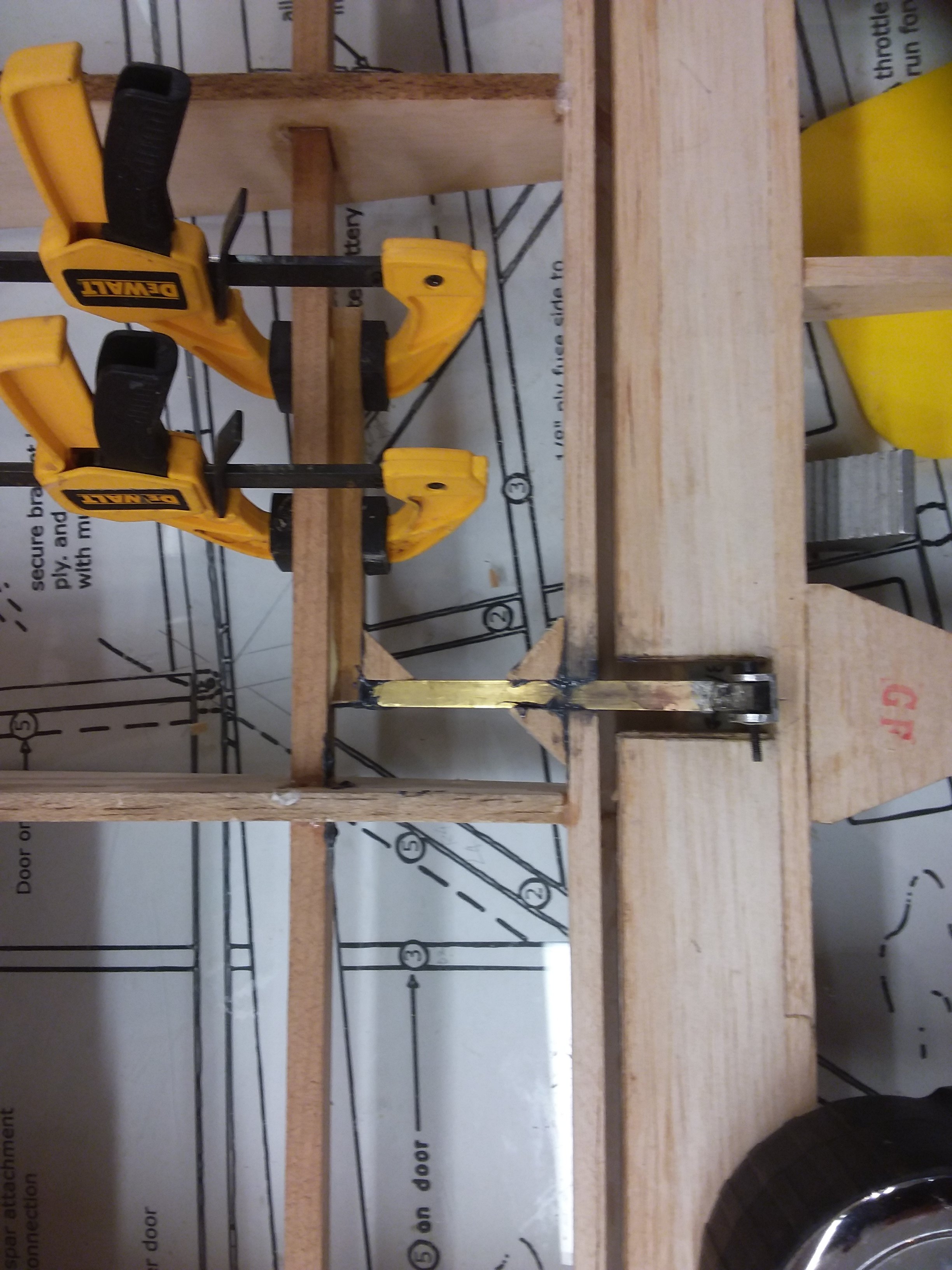

Testing hinge makeup.



[dhal22]

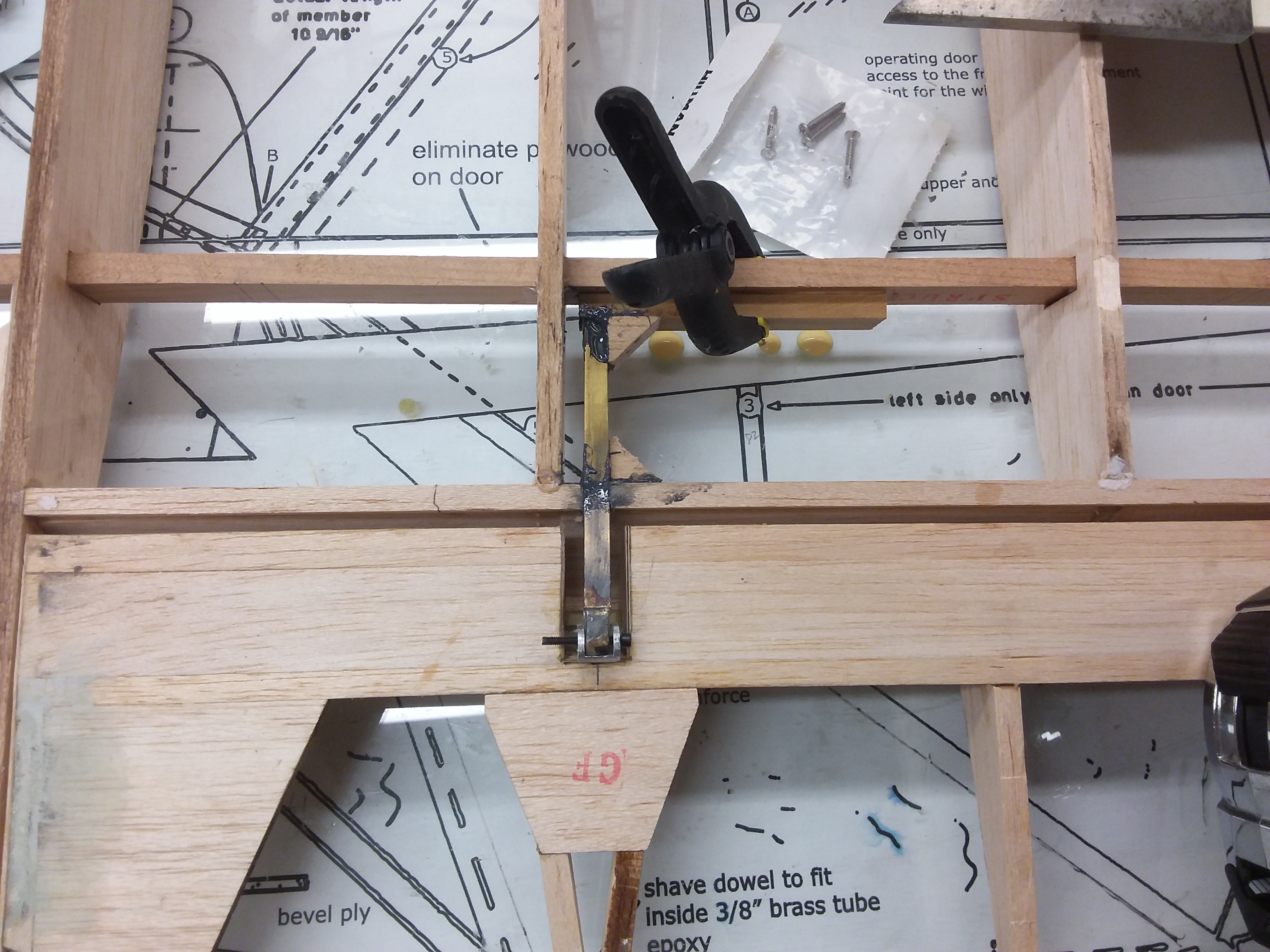

Working well. Hysoled the crap out of everything and let it all dry.......



[Stevendavis]

Very nice!



[dhal22]

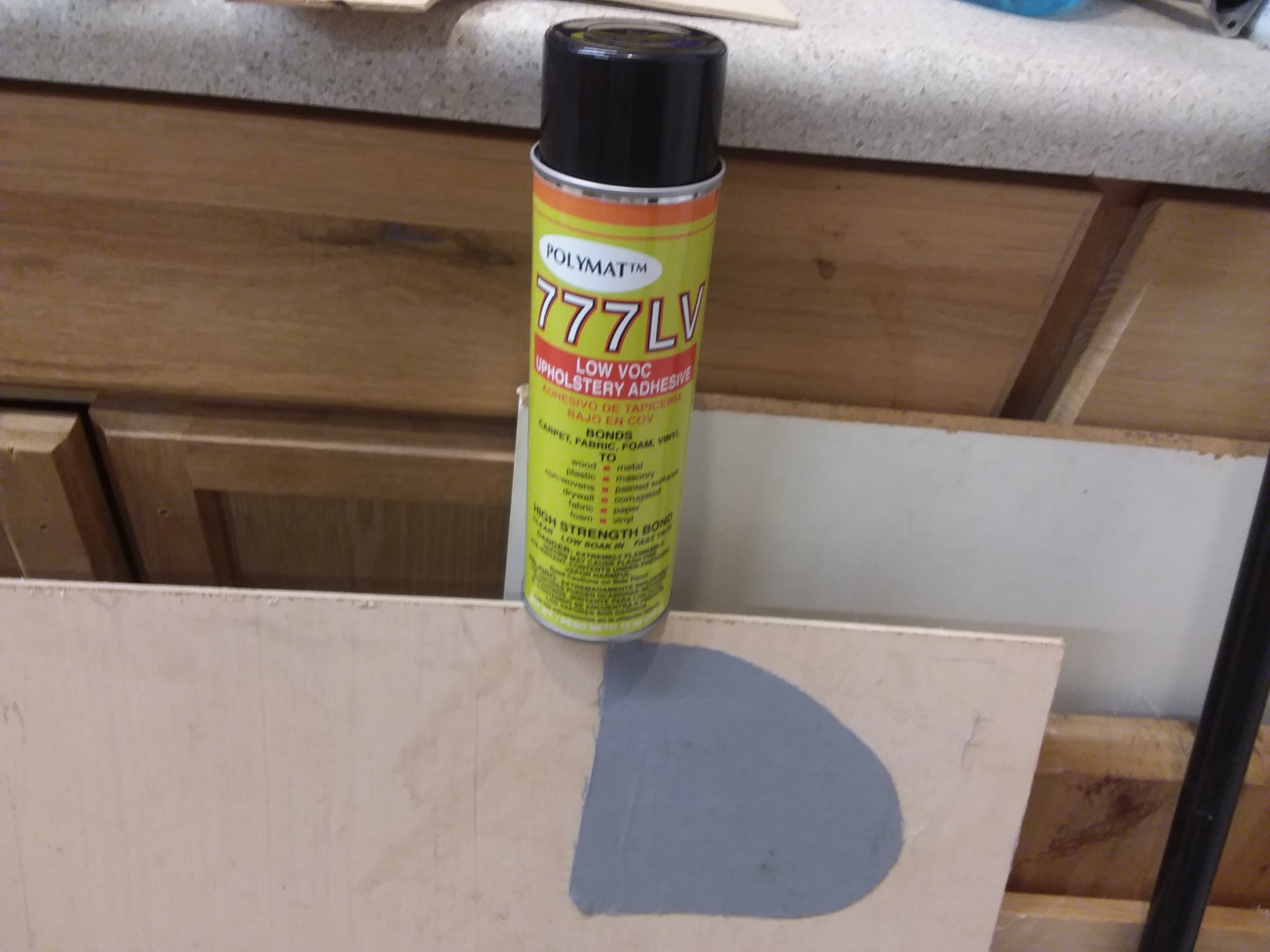

Trying some different cloth adhesive. At this point everything will get a heavy duty test.



[dhal22]

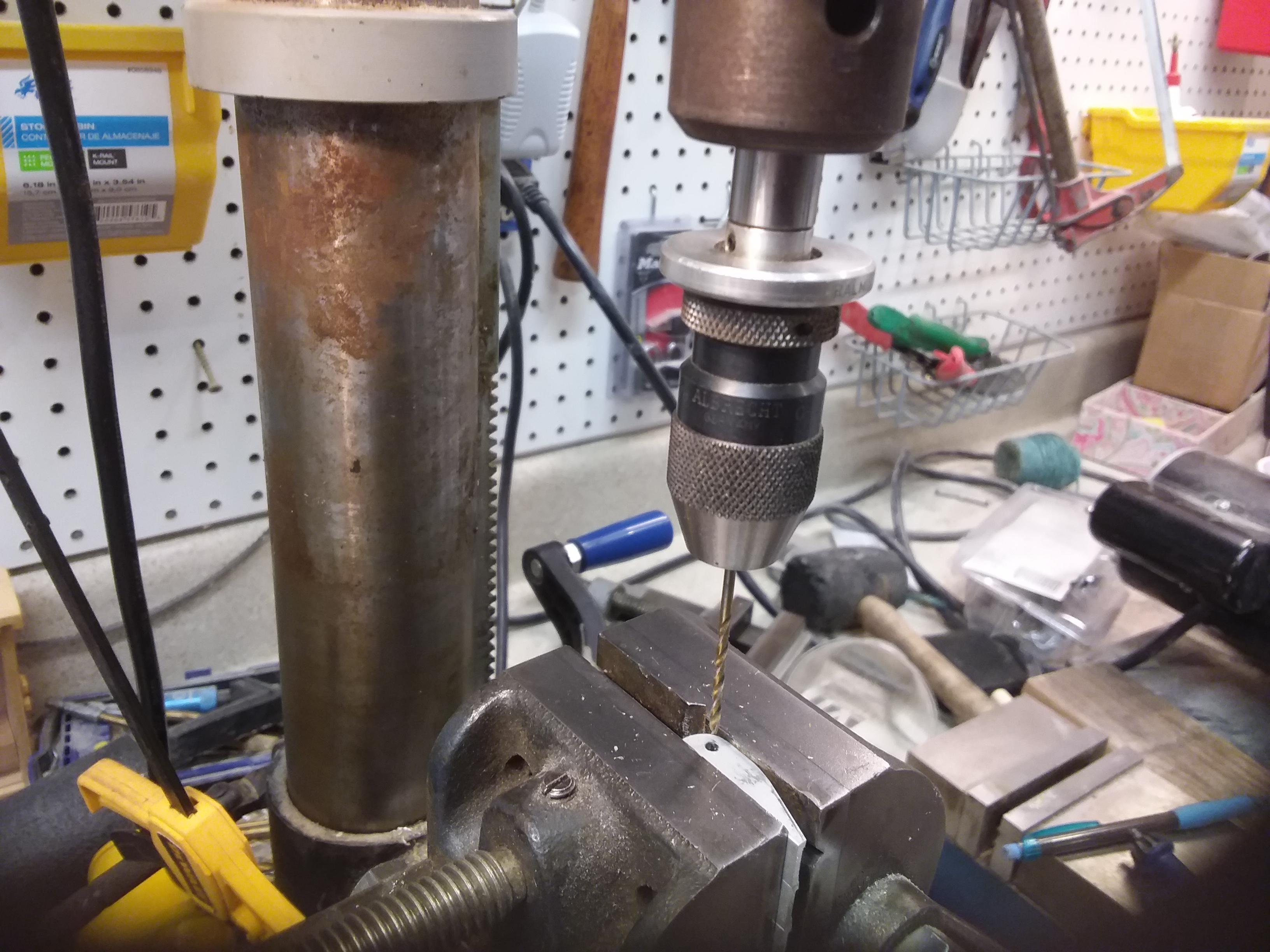

A few things going on Cub project going slow. Did something tonight, drilled out more aileron hinge pieces.

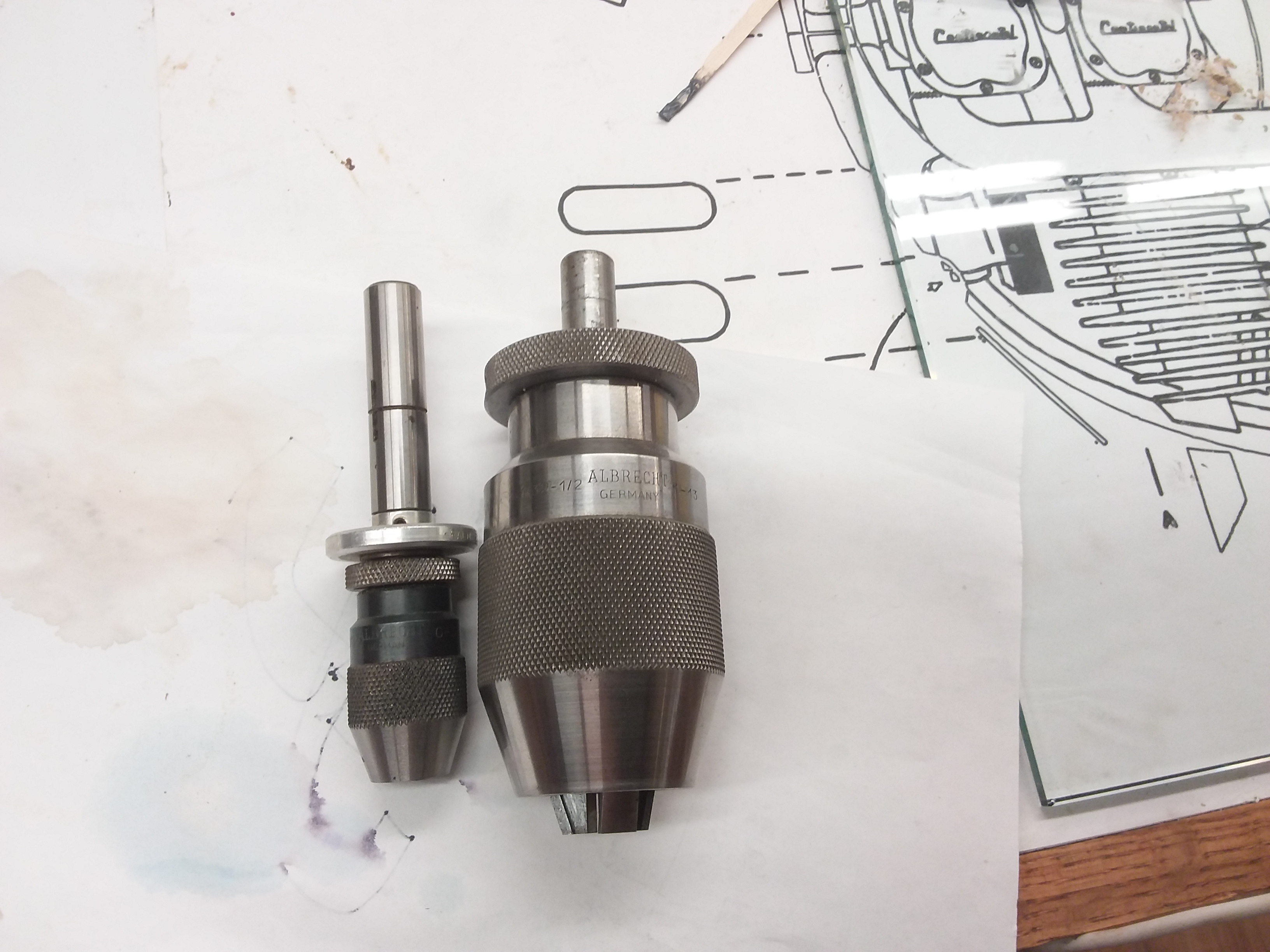

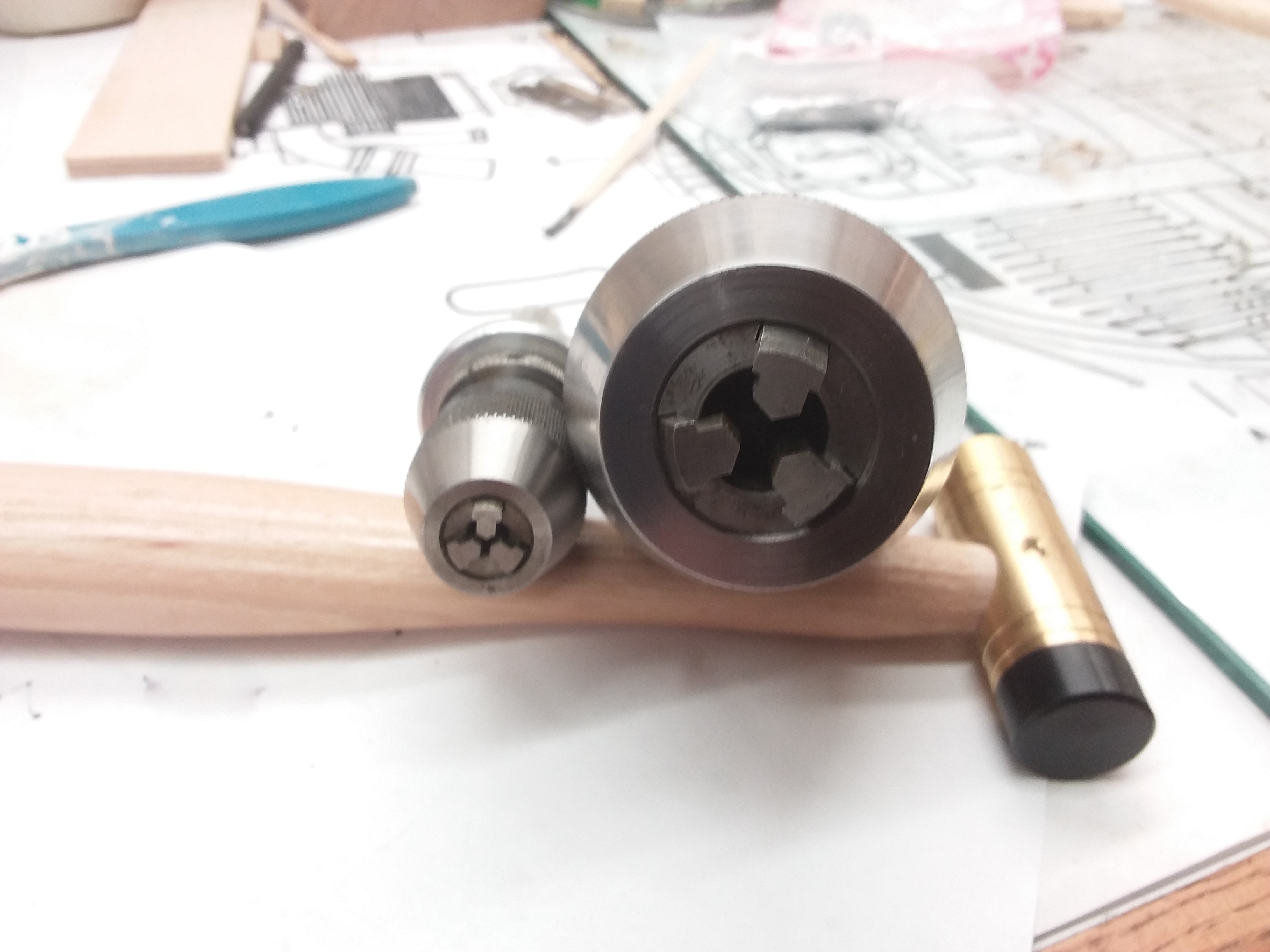

That Albrecht drill chuck is nice, 0 - 1/8" and has a spring loaded hand control. Turn the drill press on and actuate the chuck by pushing down on the aluminum hand control.



[TonyHallo]

Looks like a very nice chuck. So the chuck has a clutch?



[dhal22]

Not a clutch but a spring loaded extendable option. Either drill straight away or keep the chuck high and push down with your hand. Allows for pinpoint control.

I have 2 Albrecht chucks. Wonderful devices.
