PM Research Mini Engine Lathe Build

Stevendavis

Stevendavis

100cc

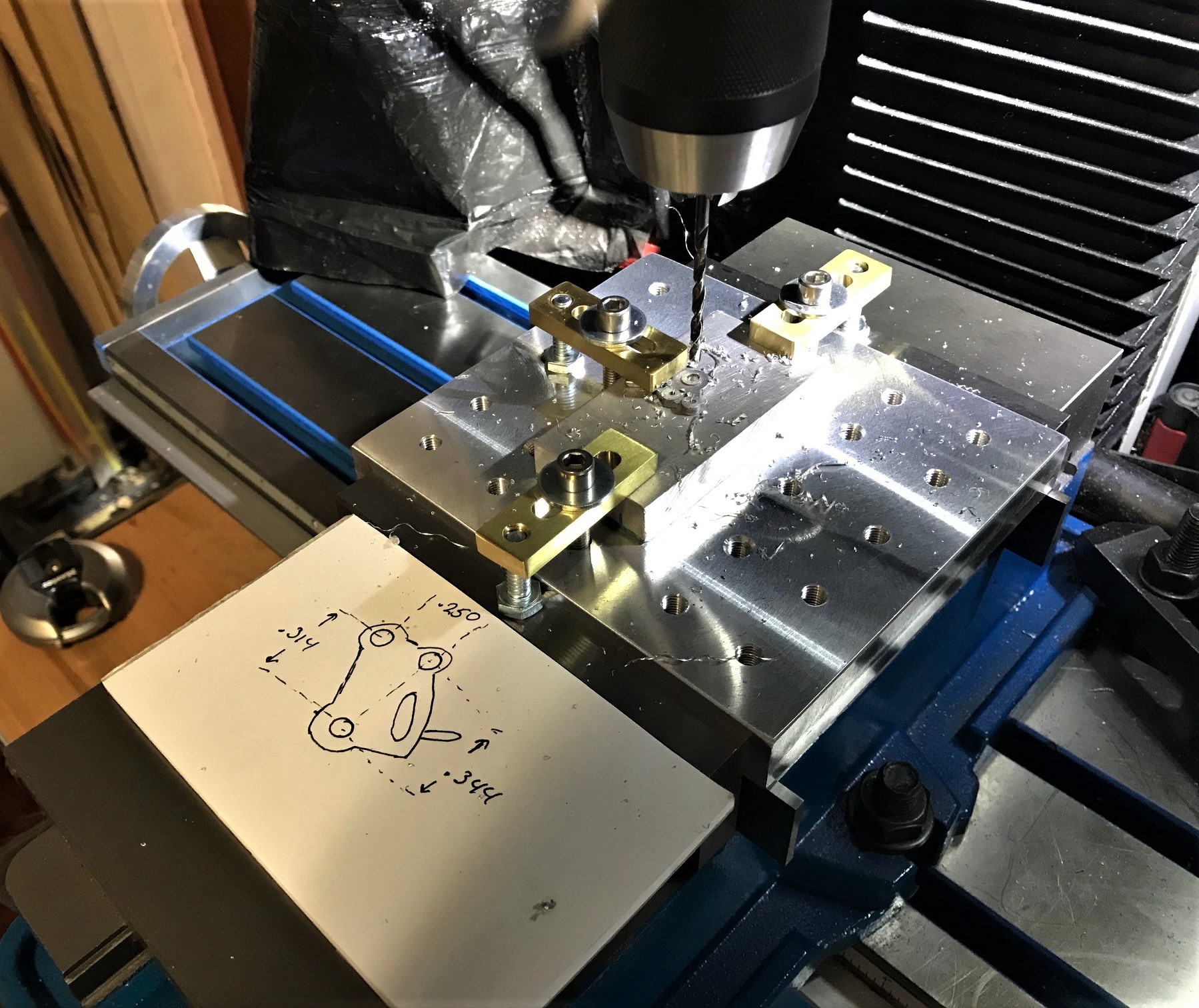

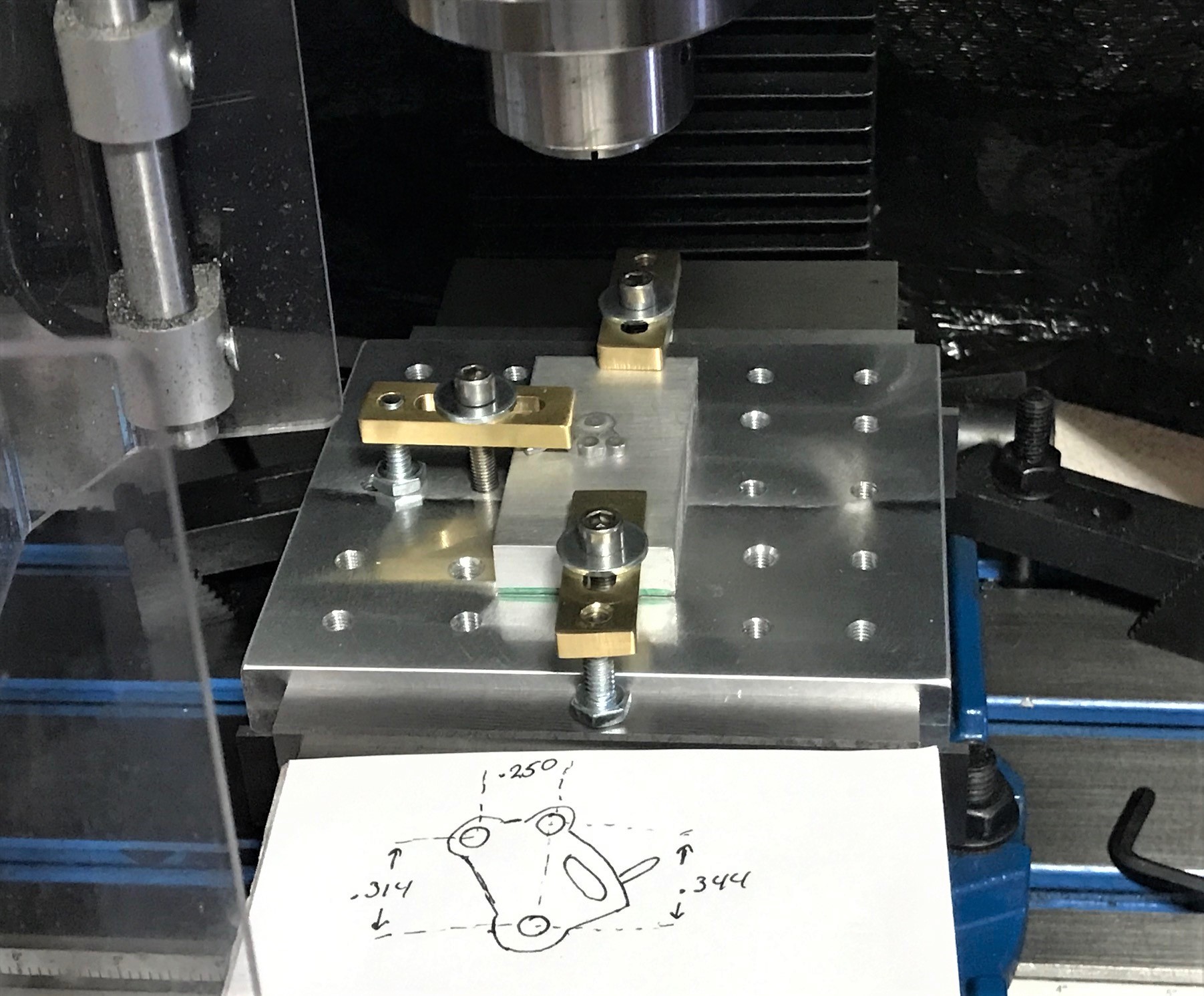

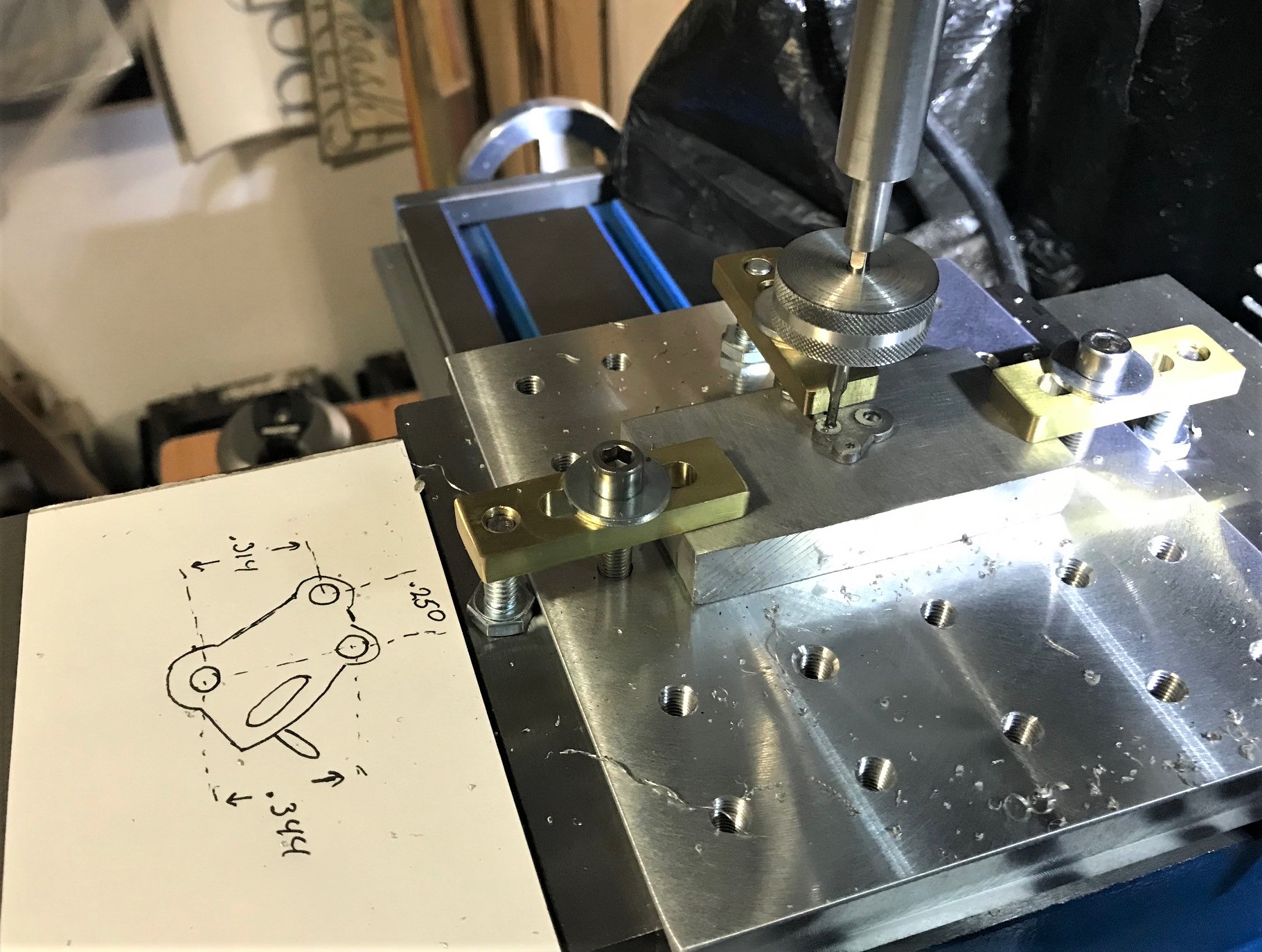

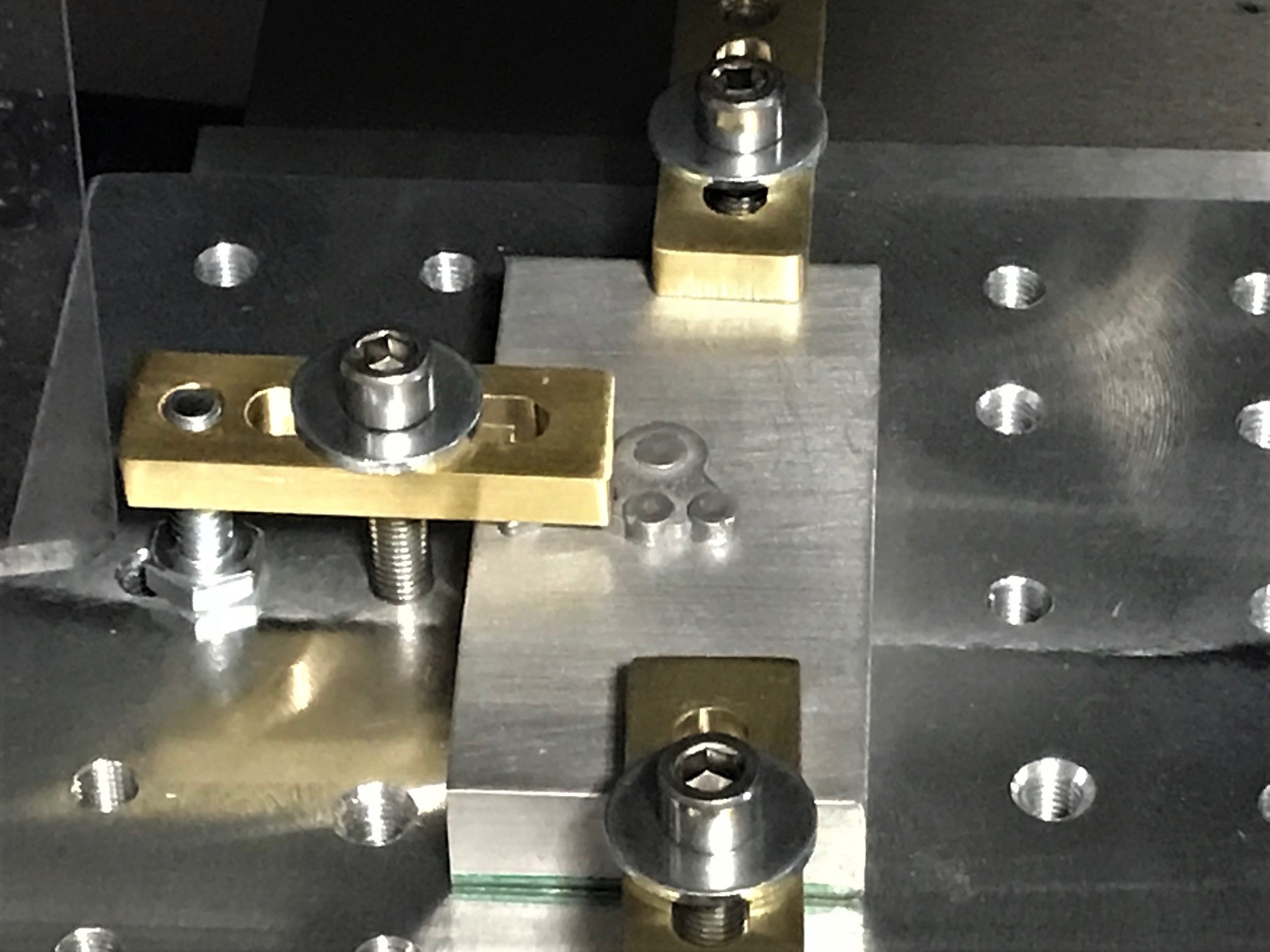

The fixture plate showed up so I could get some more done. Worked on the reverse lever assembly.


Attachments

  • fix5 (2).jpg
    fix5 (2).jpg
    448.1 KB · Views: 172
  • fix4 (2).jpg
    fix4 (2).jpg
    367 KB · Views: 161
  • fix1 (2).jpg
    fix1 (2).jpg
    673.5 KB · Views: 153
  • fix3 (2).jpg
    fix3 (2).jpg
    538.8 KB · Views: 176
Stevendavis

Stevendavis

100cc

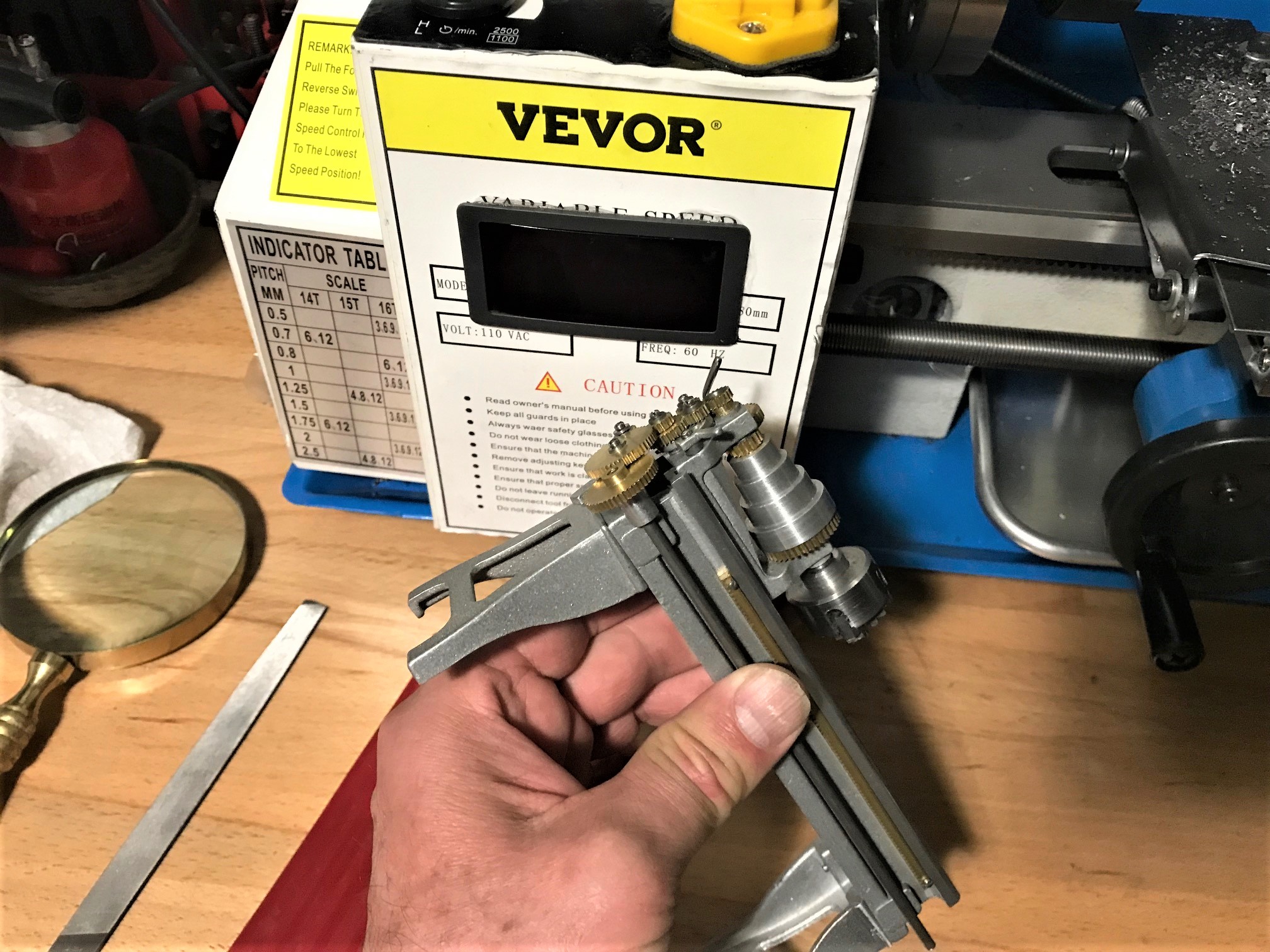

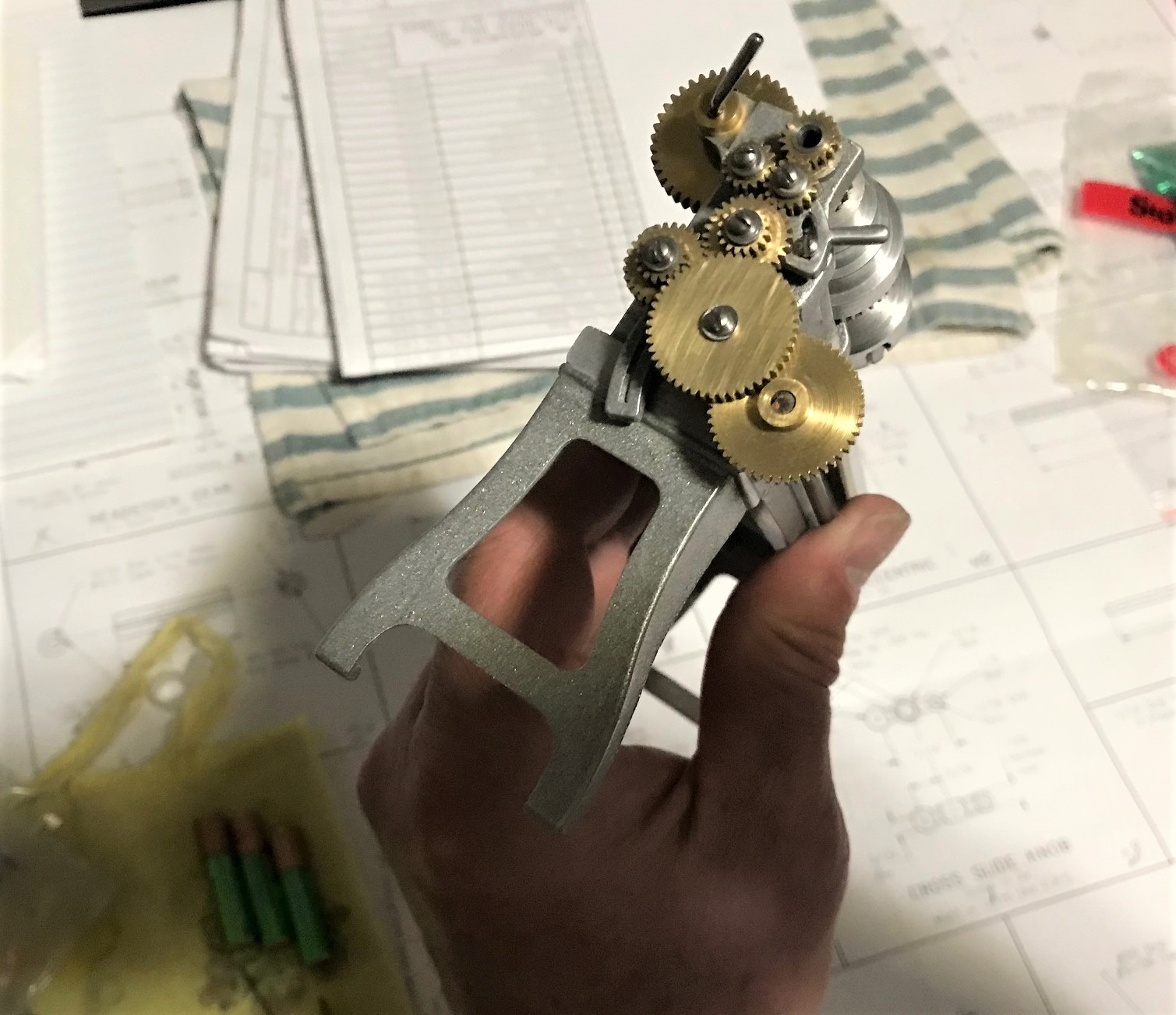

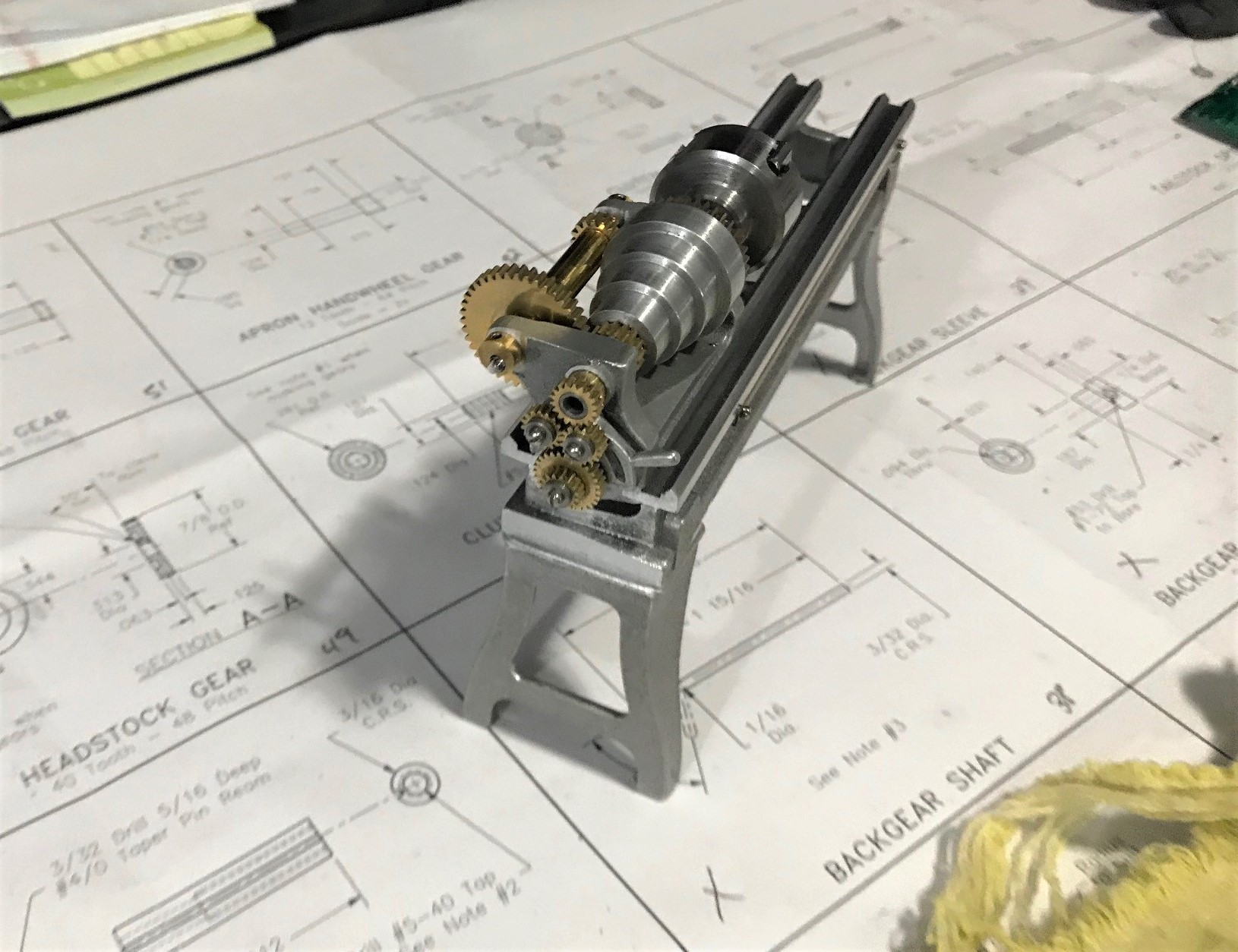

Got some work done on the lead screw gear assembly.


Attachments

  • IMG_6504 (2).jpg
    IMG_6504 (2).jpg
    327.6 KB · Views: 153
  • IMG_6502 (2).jpg
    IMG_6502 (2).jpg
    668.4 KB · Views: 158
Stevendavis

Stevendavis

100cc
Hey Tony,
It's not threaded, but it will have a 1/32 slot cut down the length of carrage travel. The gear you made will be turned by the shaft, or carrage handle, moving the carrage. I still have to cut the key slot in that gear that will mate with the lead screw slot.
