3D 30cc hazzbro extra

[daman691003]

Also my glass tubes don't go the full length is that correct



[daman691003]

Actually I just found 2 shorter glass tubes. Do I cut and splice. If so where and how



[daman691003]

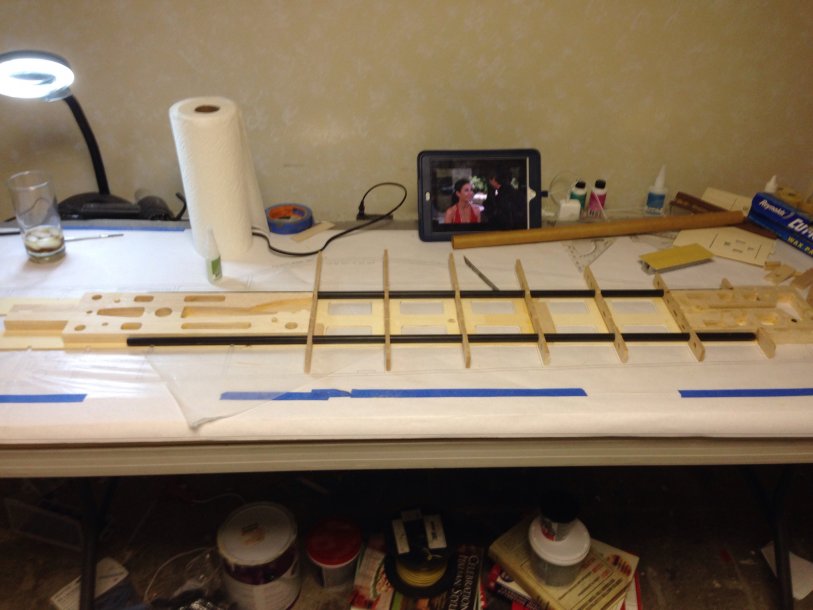

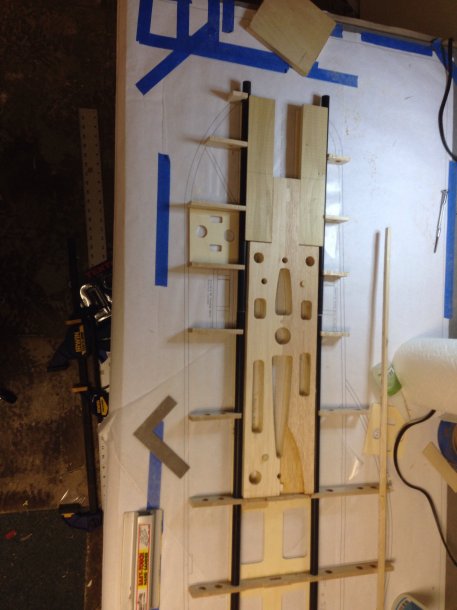

Ok here is how I think it goes. No glue yet. Just moked up. I really need some pictures to look at.



[daman691003]

**** I build it upside down



[kwj48]

I would put any splices up in the motor mount/wing saddle area.

Also did you get any smaller pieces of glass tube to put inside the main tube to make a splice? If so use epoxy to make the splice. Lightly sand inside and out to give the epoxy something to grip to.

When cutting glass tube wrap a piece of masking tape around at the point you want to cut then use a fine tooth saw or dremel disk to cut.



[daman691003]

So I tried debonder on the formers. No joy. I called to try to order the parts but they are a month out. And didn't sound to interested in breaking up a kit. I don't blame him. I guess the cnc cutter is busy for awhile.



[daman691003]

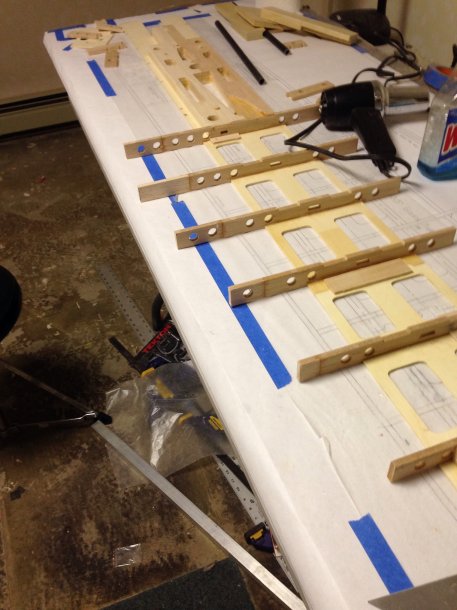

Ok I sucked it up and remembered it's only wood. My fix was to use scrap and splicing on new pieces. You guys think this is ok



[daman691003]

So I've been scouting the internet looking for pics of the fuse. And firewall mounting. Can't find any. Anyone have any ideas.



[kwj48]

If you're talking about engine mounting, I'm not sure on the EEv2. You might want to PM HazzBro on the probro site as he is the designer or WrongWay. The 50cc has a 1/2'' thick mount and I used 1/4'' thick aluminum angle.



[daman691003]

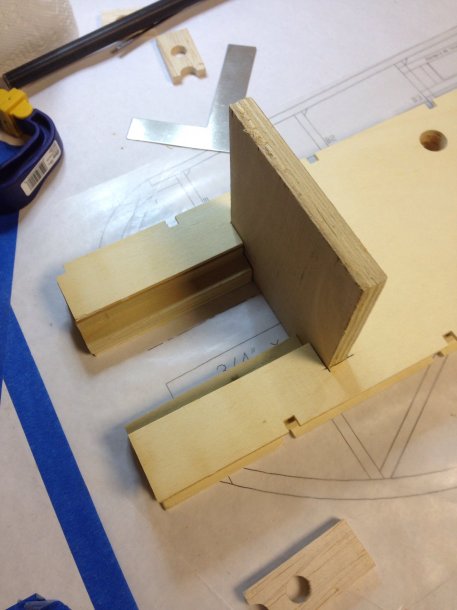

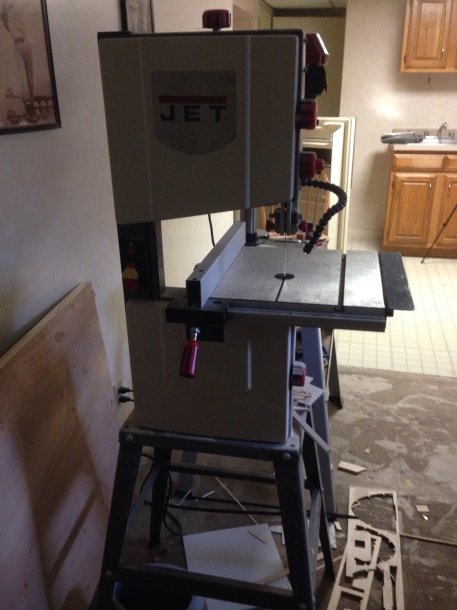

Made some progress today. I'm using dle 30cc so before I glue fg spars I wanted to cut in firewall. Went great with nice tight fit. It's nice having band saw.those arnt over cuts they are pen marks
