Scale Bud Nosen 1/4 Scale Cub?

Stevendavis

70cc twin V2

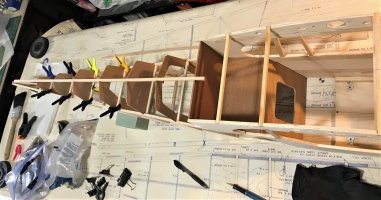

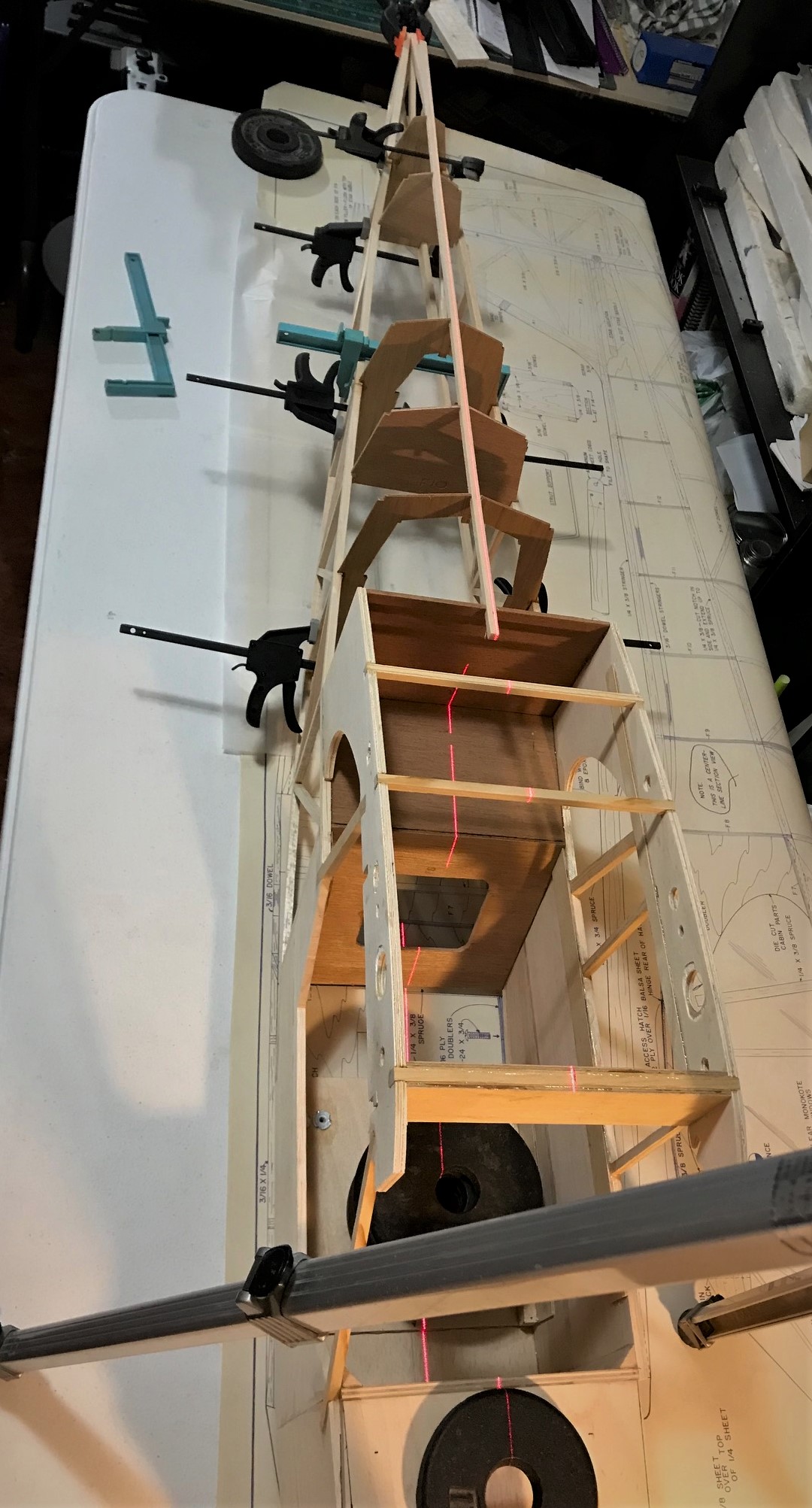

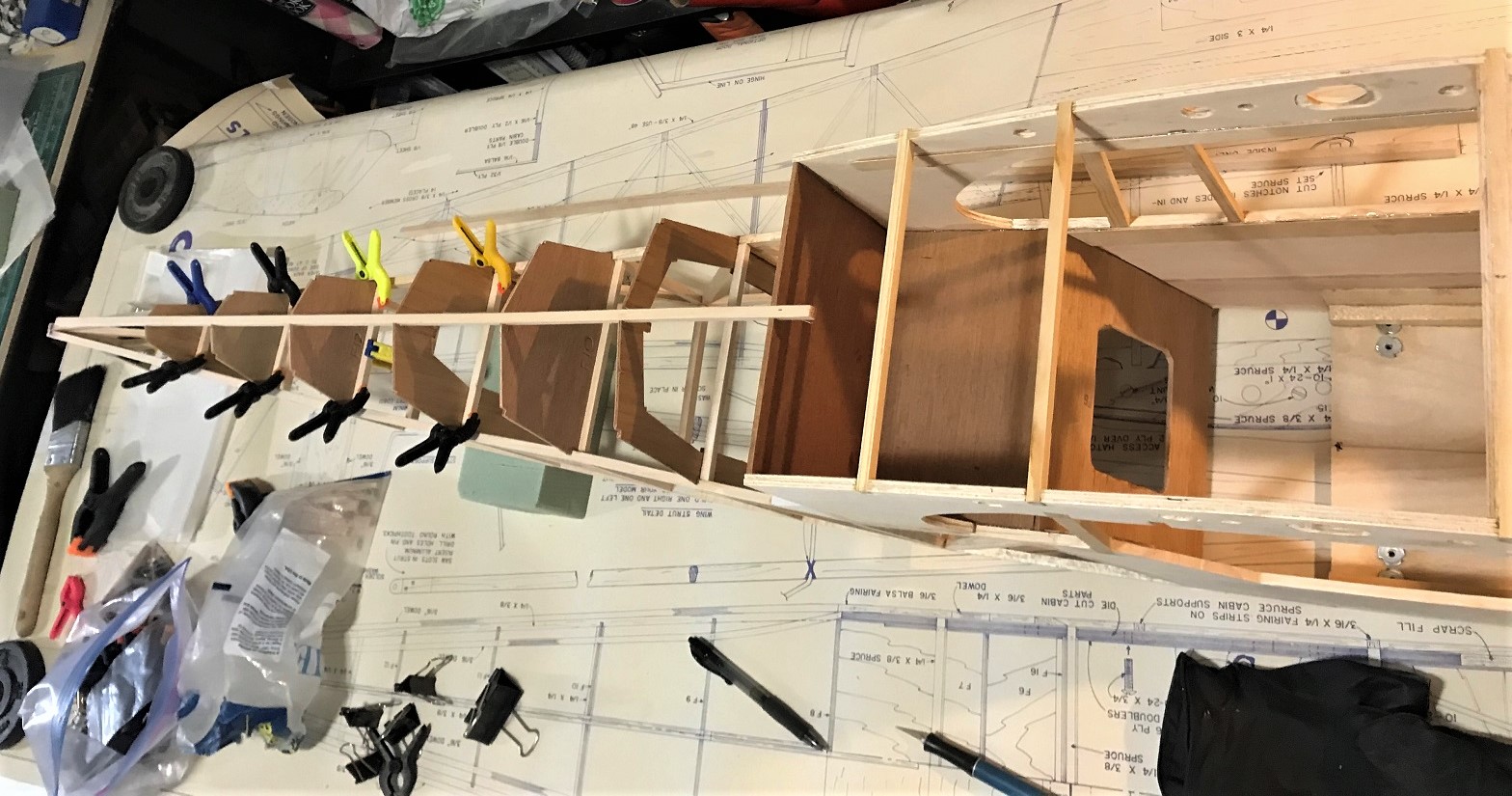

I used my lazer light to make sure the formers were aligned on the backside.


Attachments

  • IMG_4344 (2).jpg
    IMG_4344 (2).jpg
    407.6 KB · Views: 95

Stevendavis

70cc twin V2

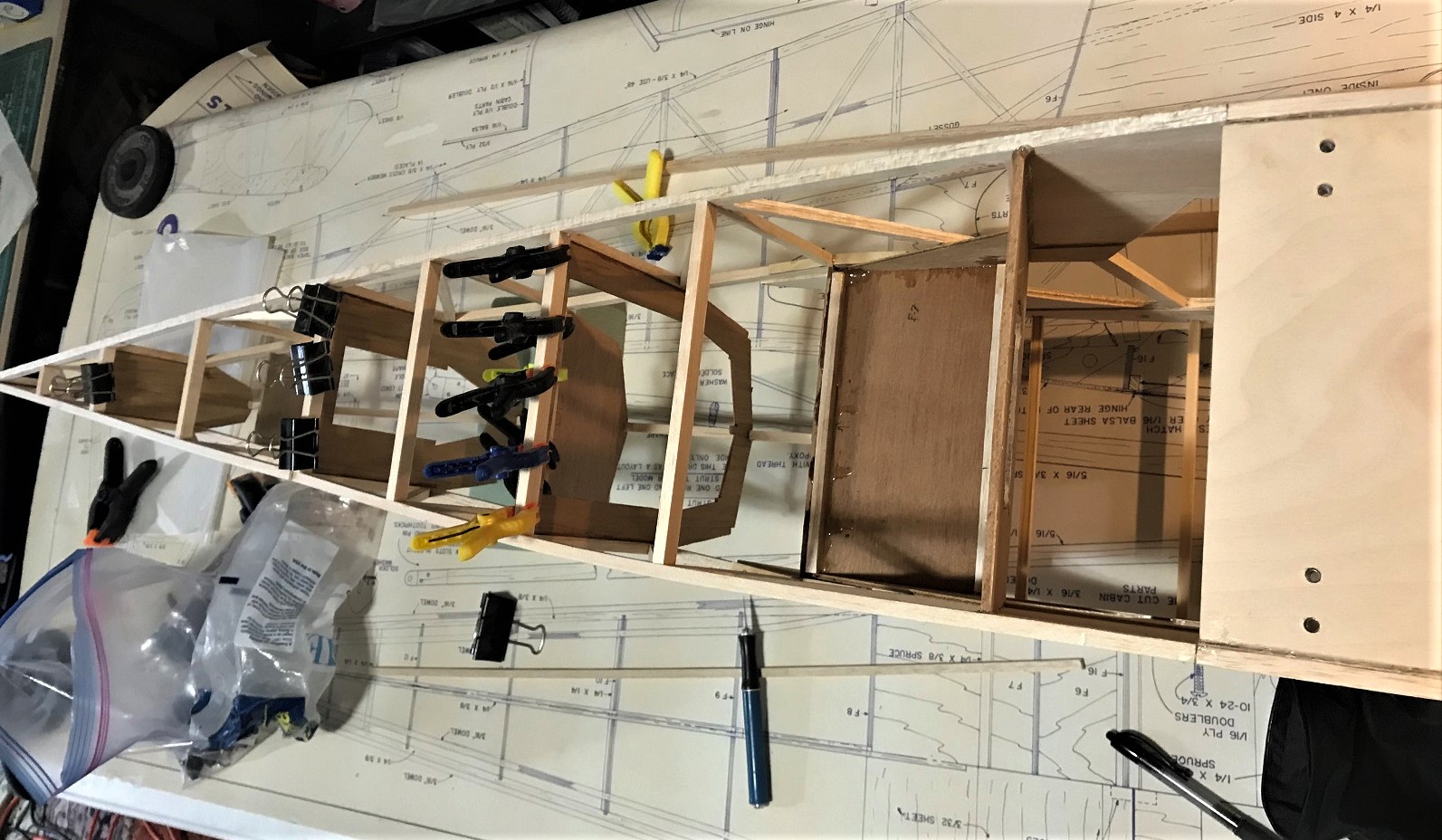

Got some catch up to do,

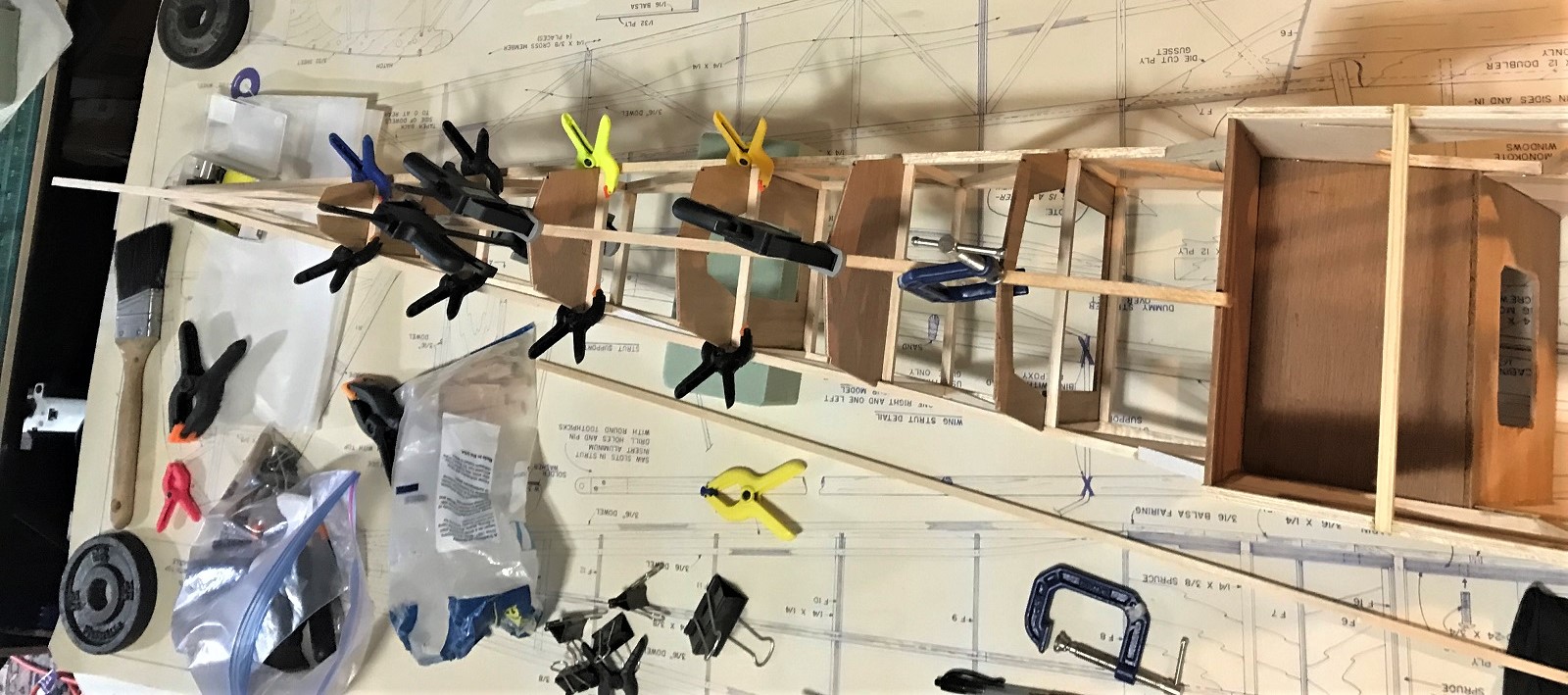

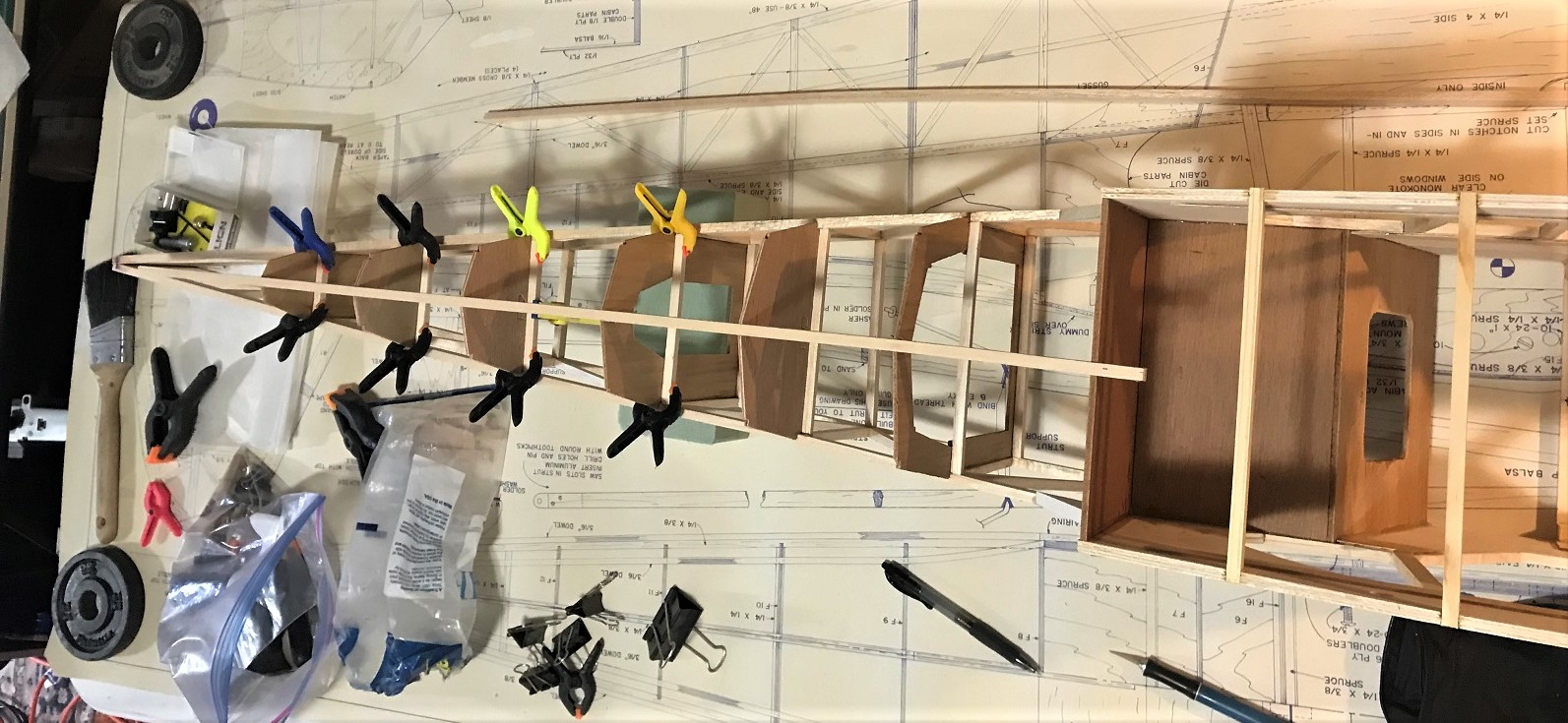

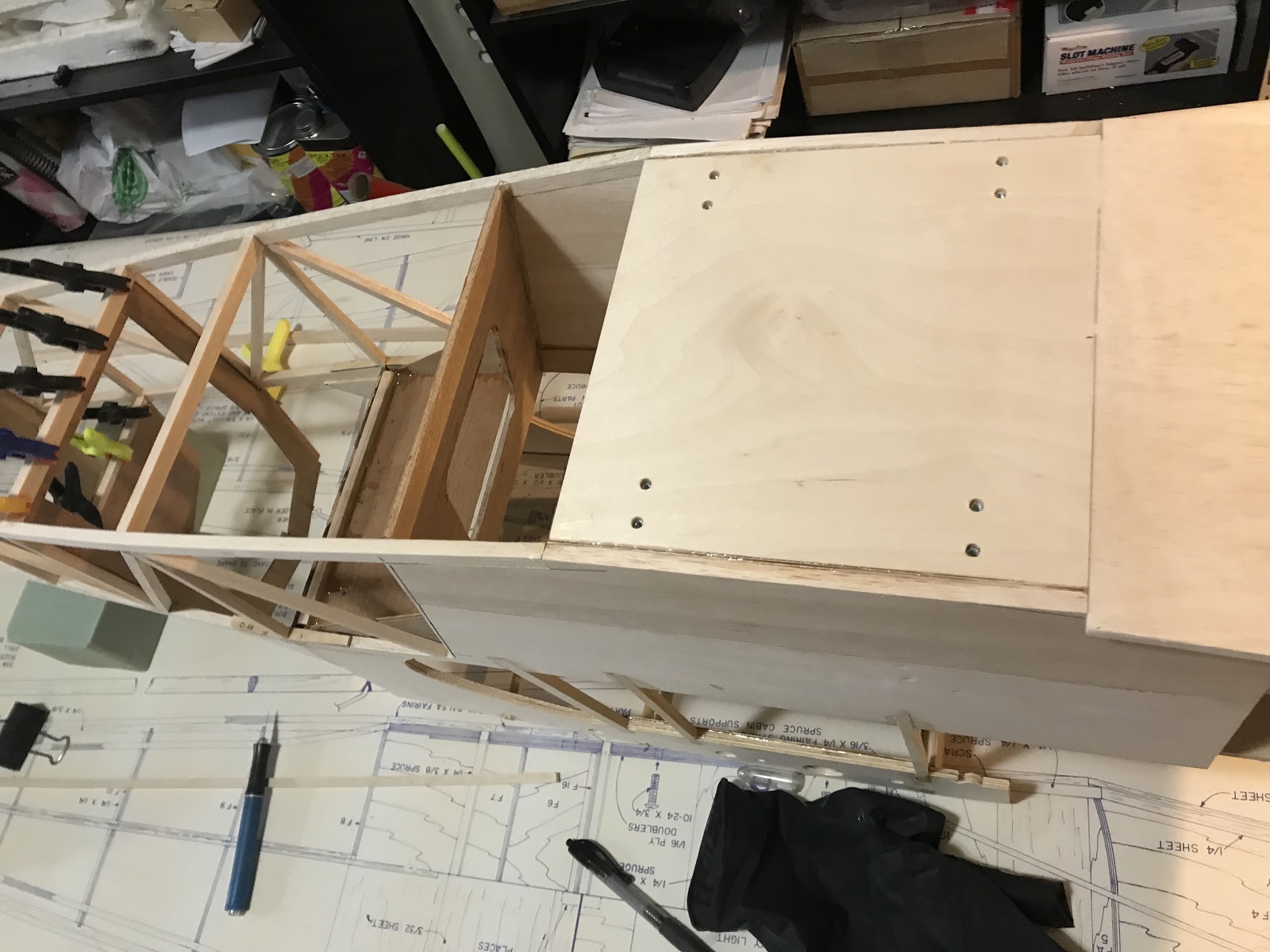

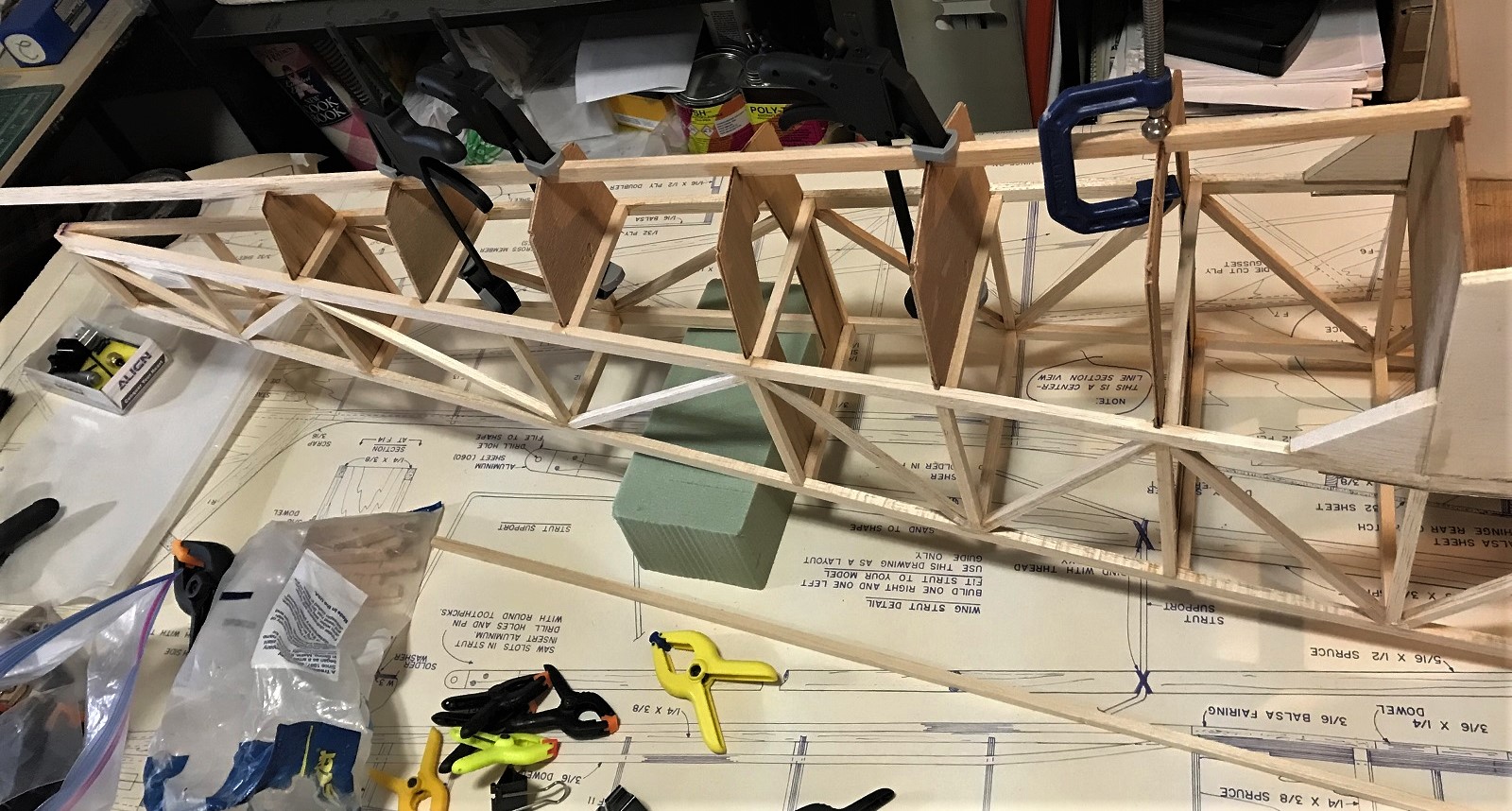

I added some extra cross bracing to the aft of the fuse, since this plane will spend some time in knife edge flight.


Attachments

  • IMG_4349.JPG
    440.4 KB · Views: 74
  • IMG_4351 (2).JPG
    IMG_4351 (2).JPG
    369.8 KB · Views: 69
  • IMG_4352 (2).JPG
    IMG_4352 (2).JPG
    338.2 KB · Views: 57
  • IMG_4353 (2).JPG
    IMG_4353 (2).JPG
    331.8 KB · Views: 49

Stevendavis

70cc twin V2

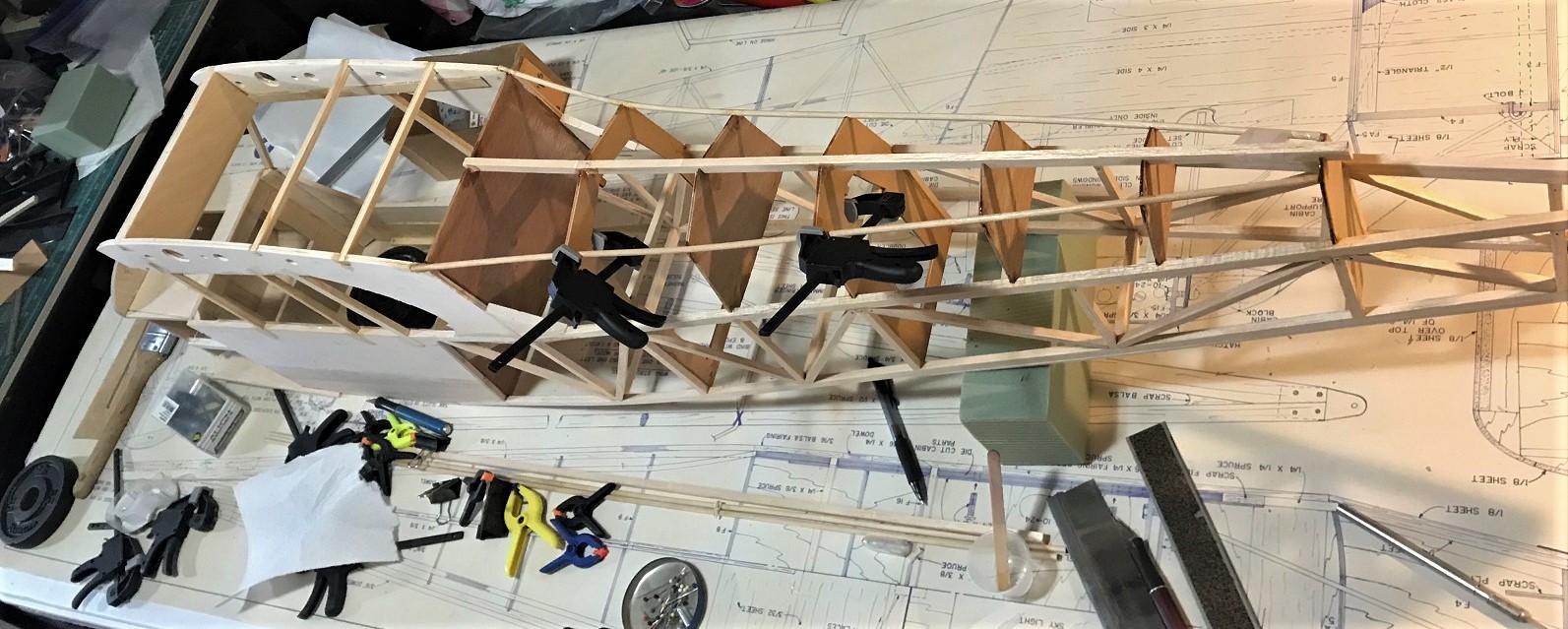

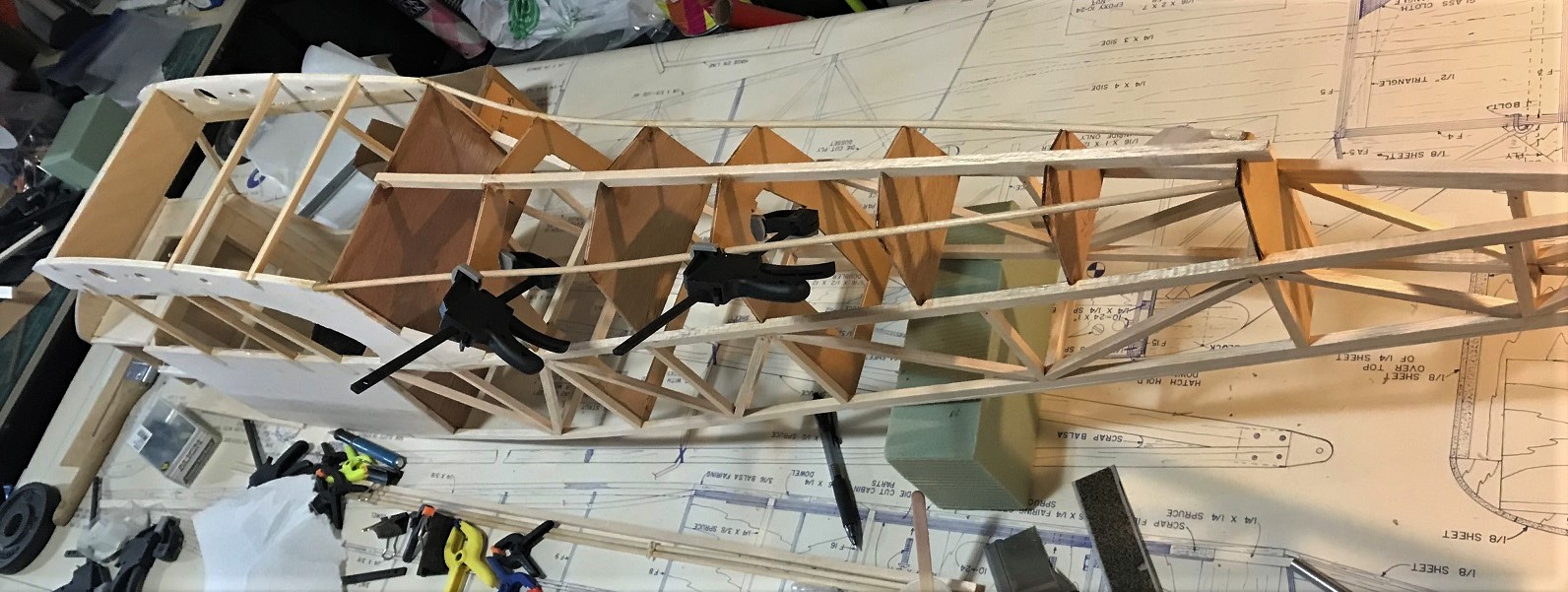

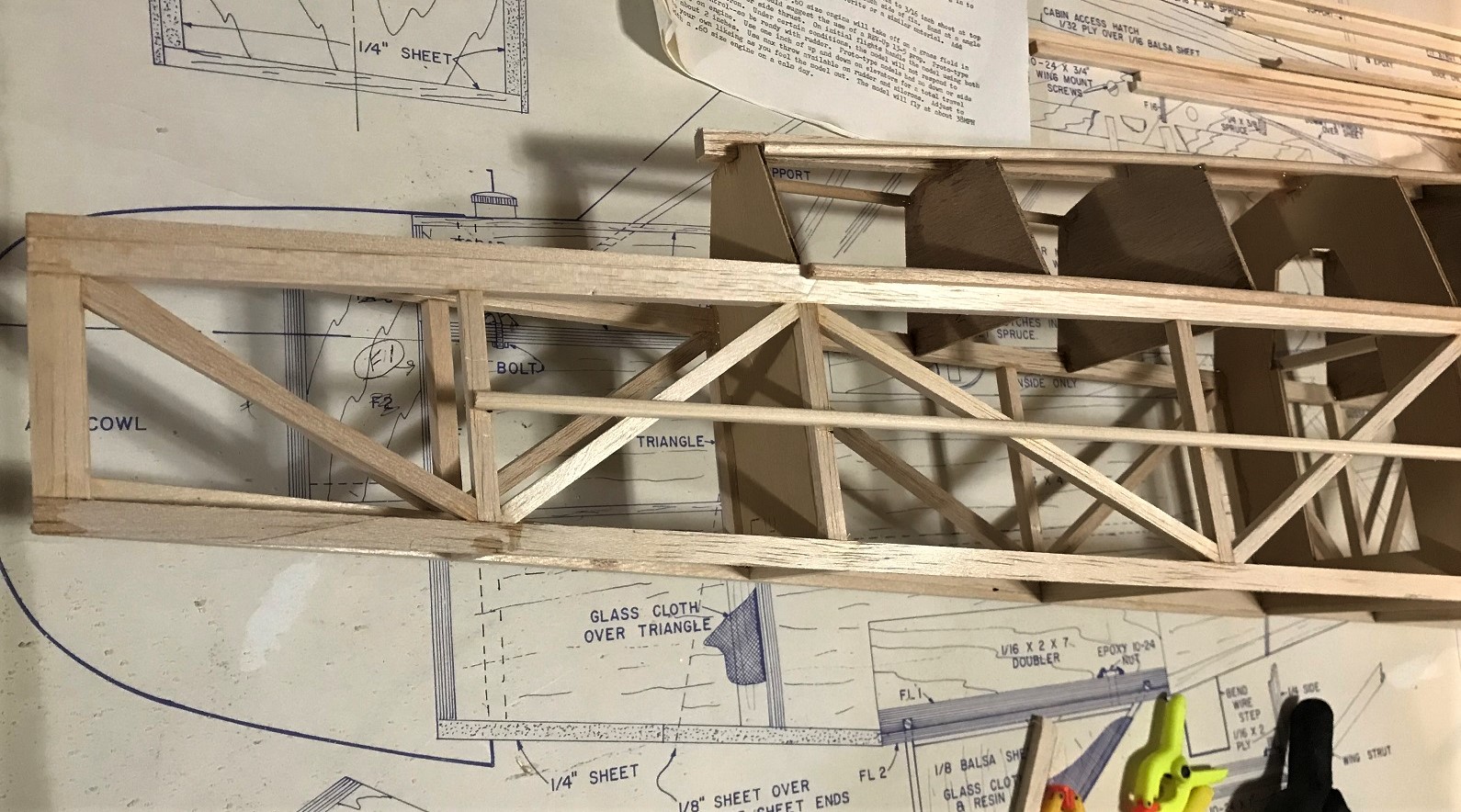

These next steps are not all that clear. But I looked through several build threads, mostly the BUSA Cub, and went with some of those instead of stock. I used the 3/16 round stock included with the kit for the top sides, but ripped some 1/4 x 1/2 spruce down to 3/16 x 3/16 for the side stringers, as they will glue better. Then rounded the tops. I'm loving that new saw!!


Attachments

  • IMG_4357 (2).JPG
    IMG_4357 (2).JPG
    299.8 KB · Views: 53
  • IMG_4358 (2).JPG
    IMG_4358 (2).JPG
    324.4 KB · Views: 65

Stevendavis

70cc twin V2

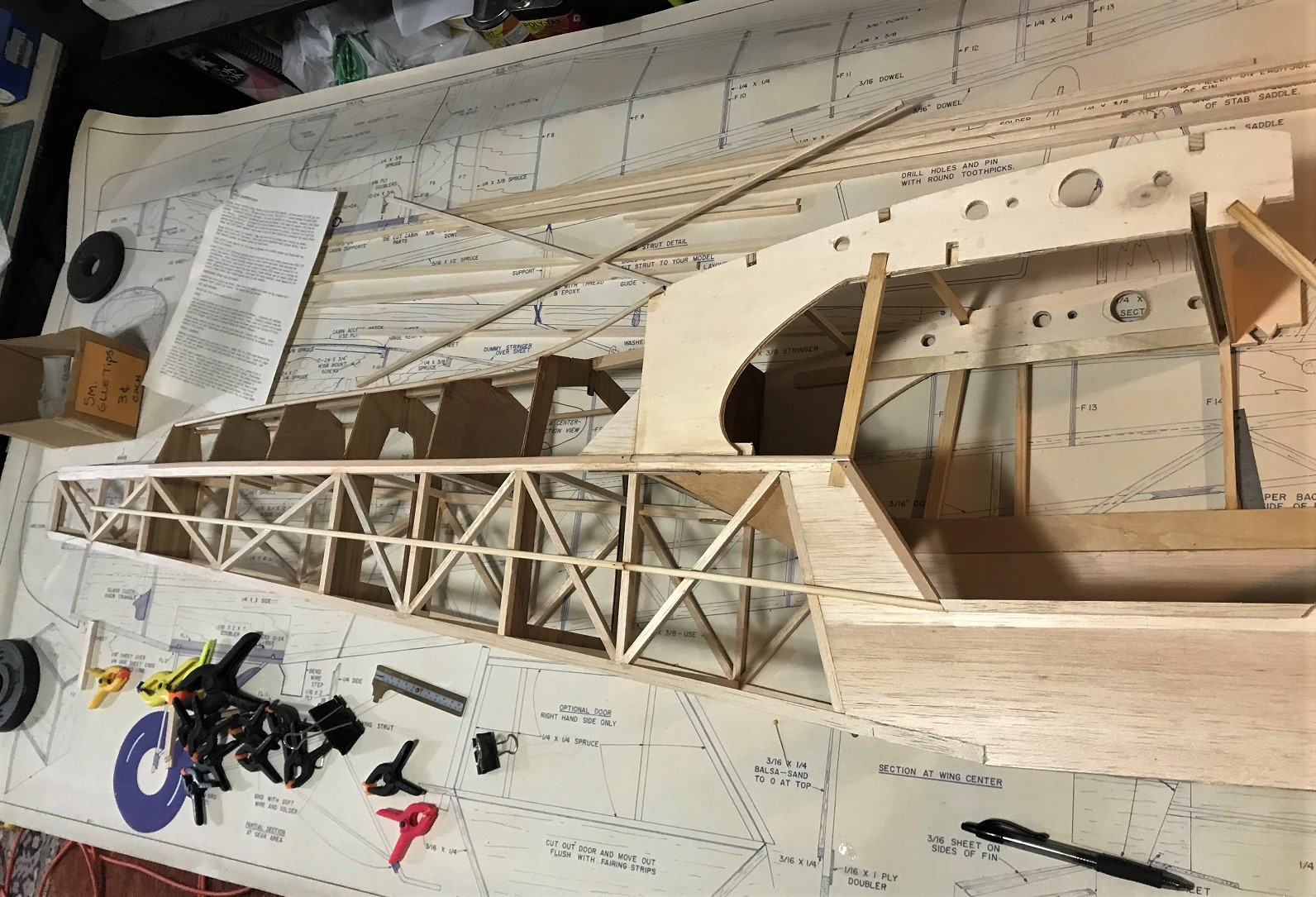

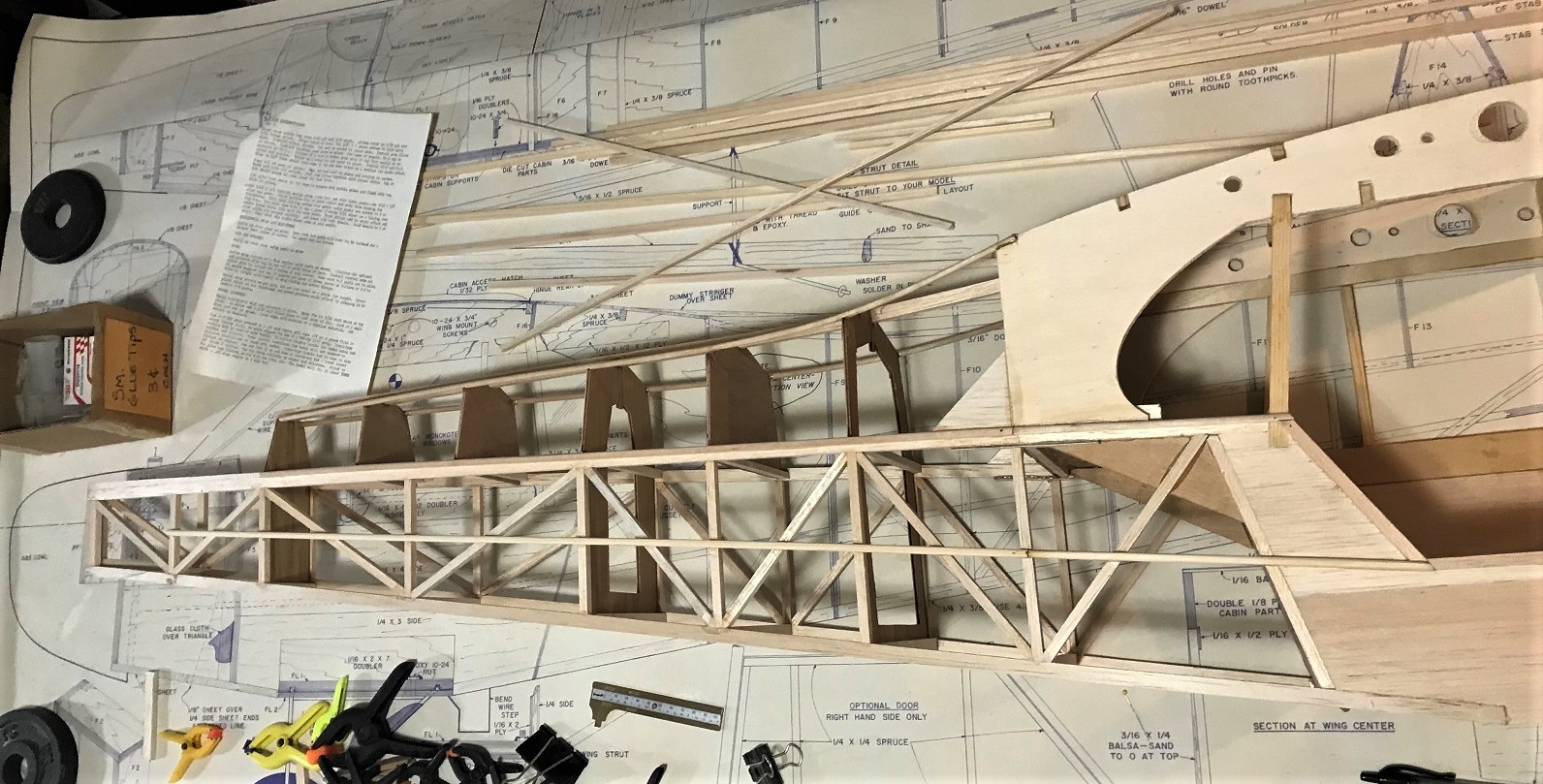

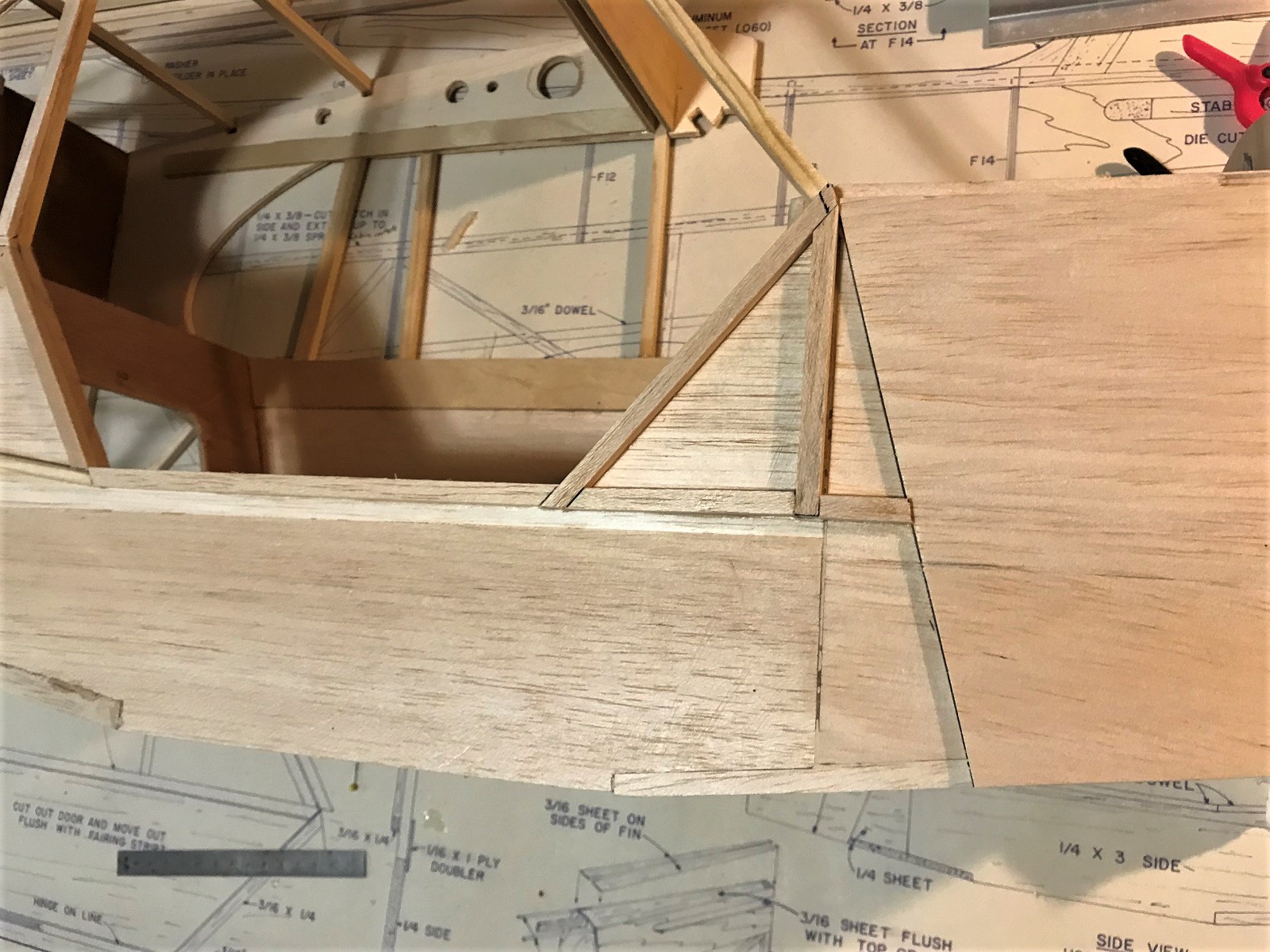

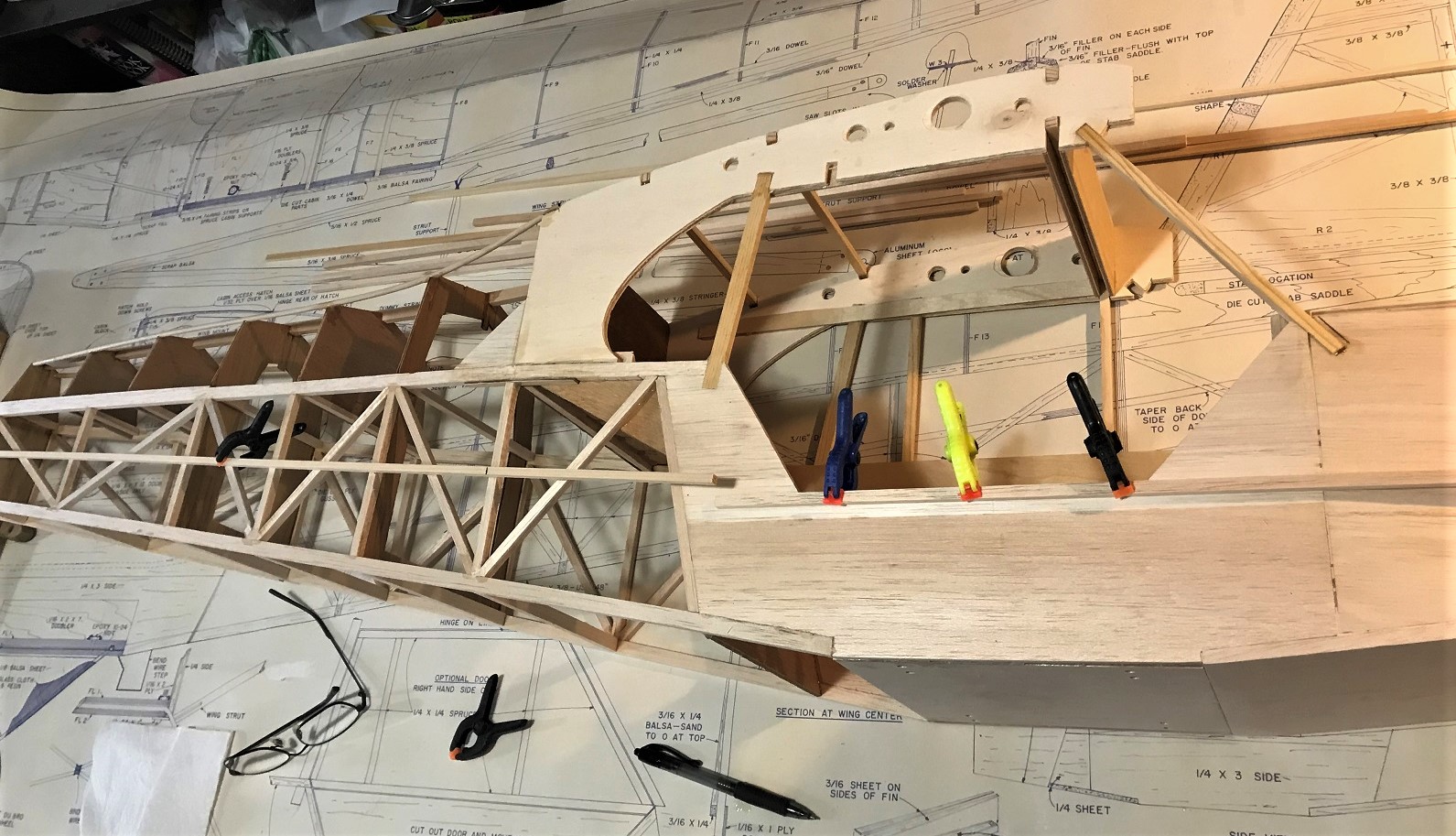

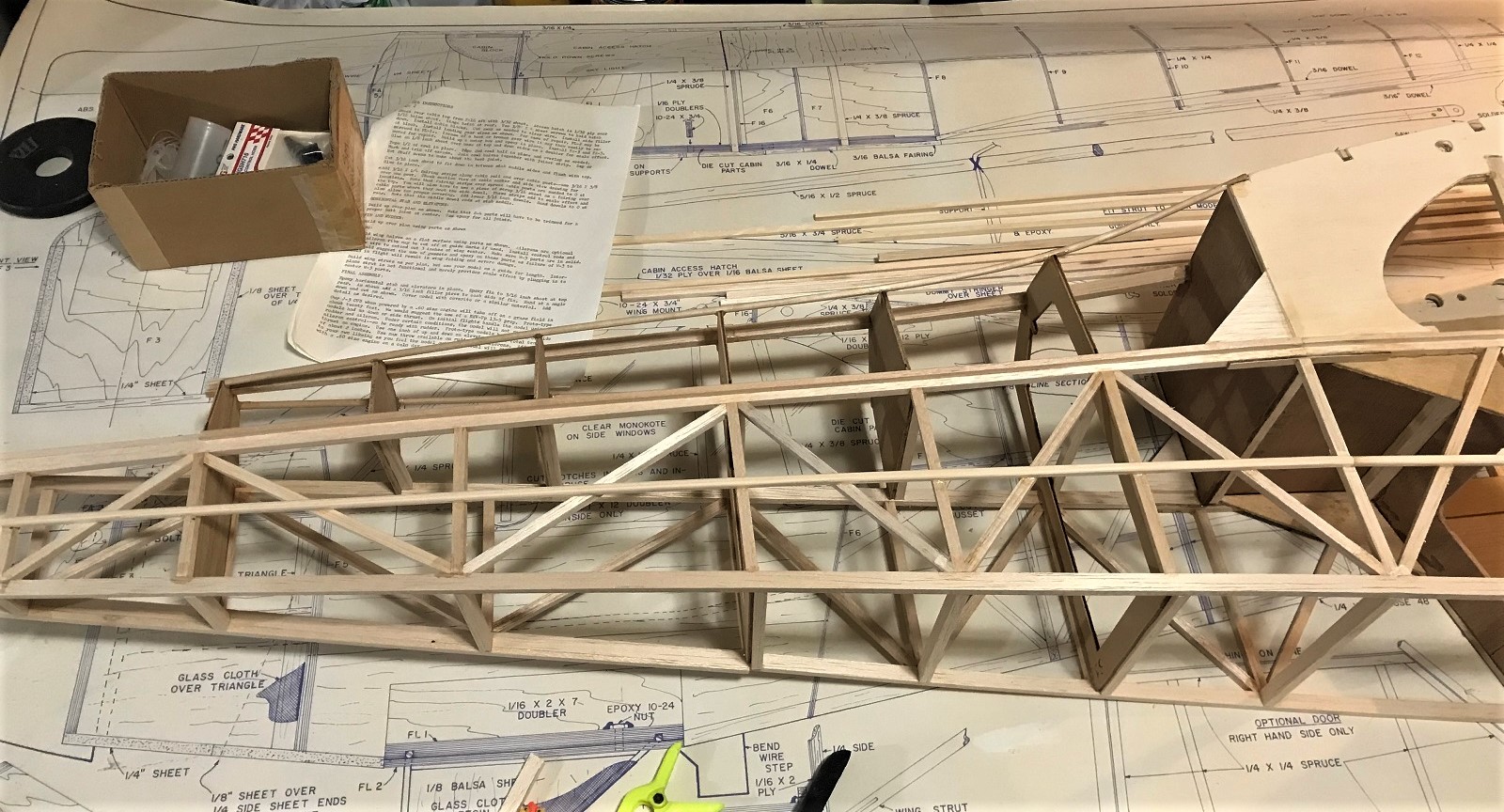

These next steps are very confusing on the Nosen plans. Took a lot of looking at other builds to get an idea of how this is supposed to go, but I think its close, though I probably did it wrong. The Nosen plans don't show a lower vertical stringer at the front of the cabin, but I may put one in anyway, following the BUSA builds. The area around the upper cabin is also a bit confusing and not sure how covering will go.


Attachments

  • IMG_4359 (2).JPG
    IMG_4359 (2).JPG
    414.2 KB · Views: 58
  • IMG_4360 (2).JPG
    IMG_4360 (2).JPG
    516.5 KB · Views: 62
  • IMG_4362 (2).JPG
    IMG_4362 (2).JPG
    398.9 KB · Views: 63
  • IMG_4363 (2).JPG
    IMG_4363 (2).JPG
    464.3 KB · Views: 67

Stevendavis

70cc twin V2
Couple more.

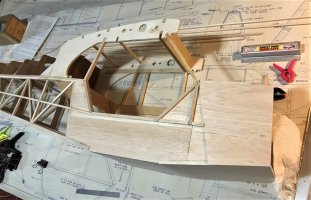

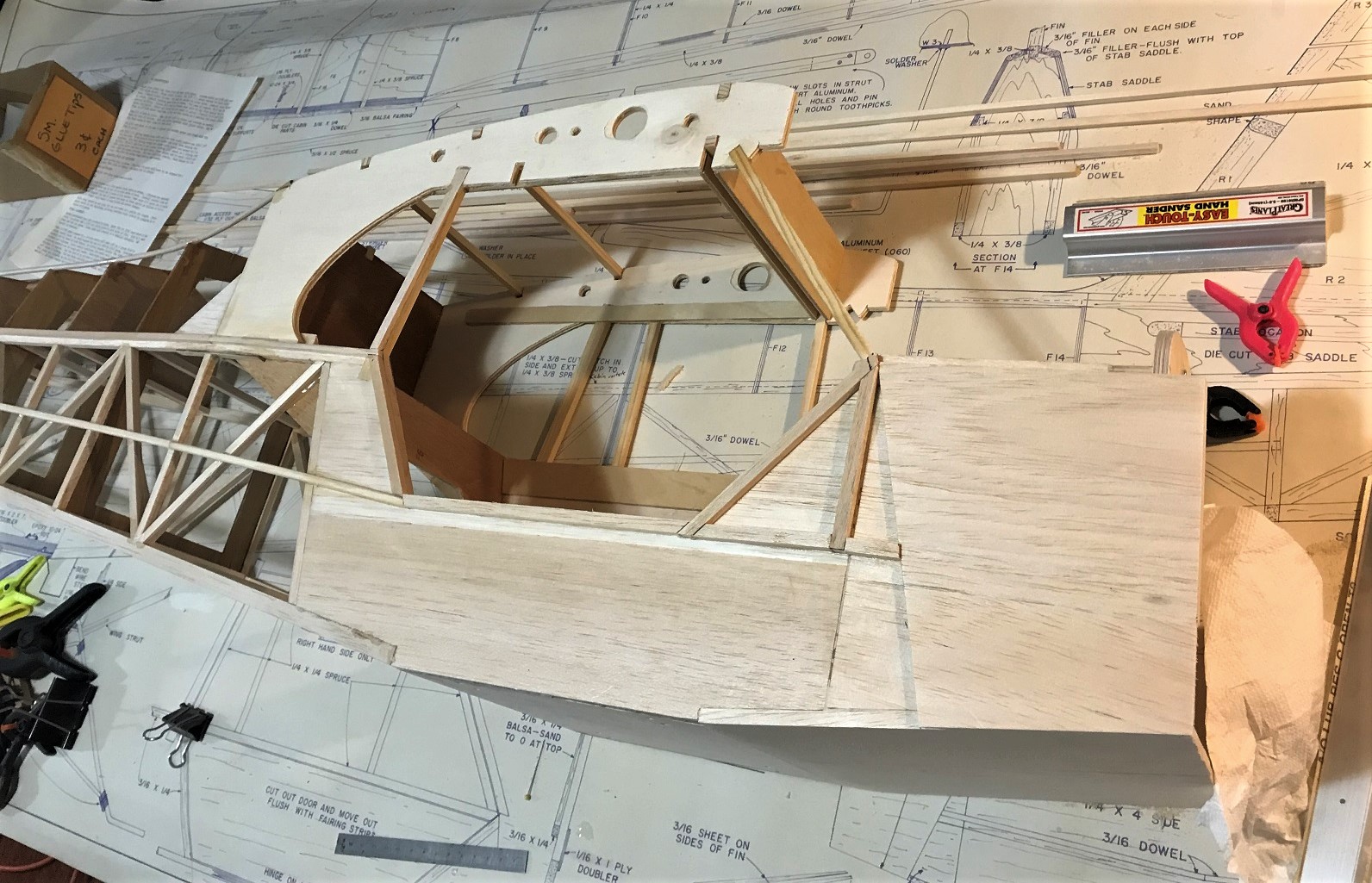

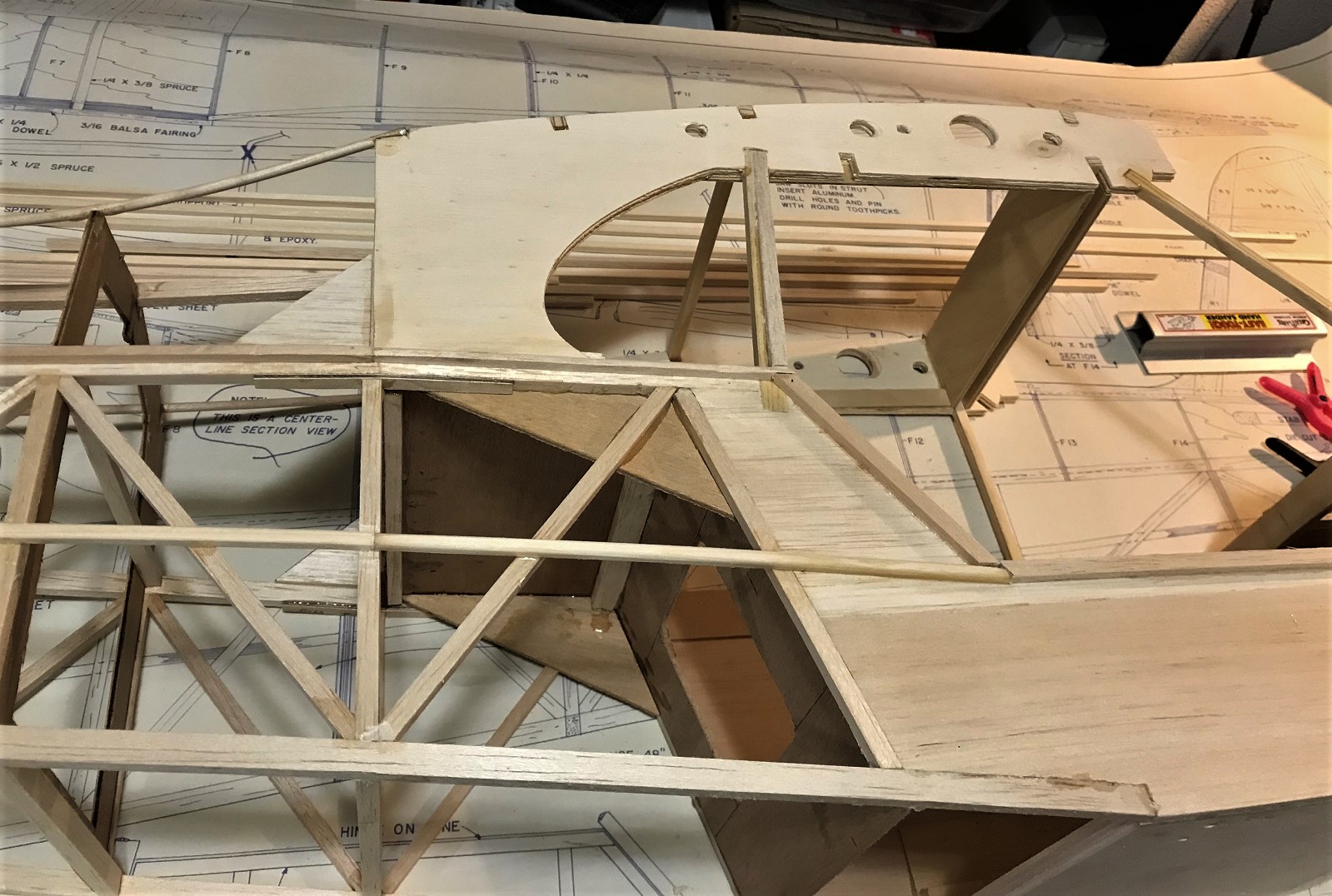

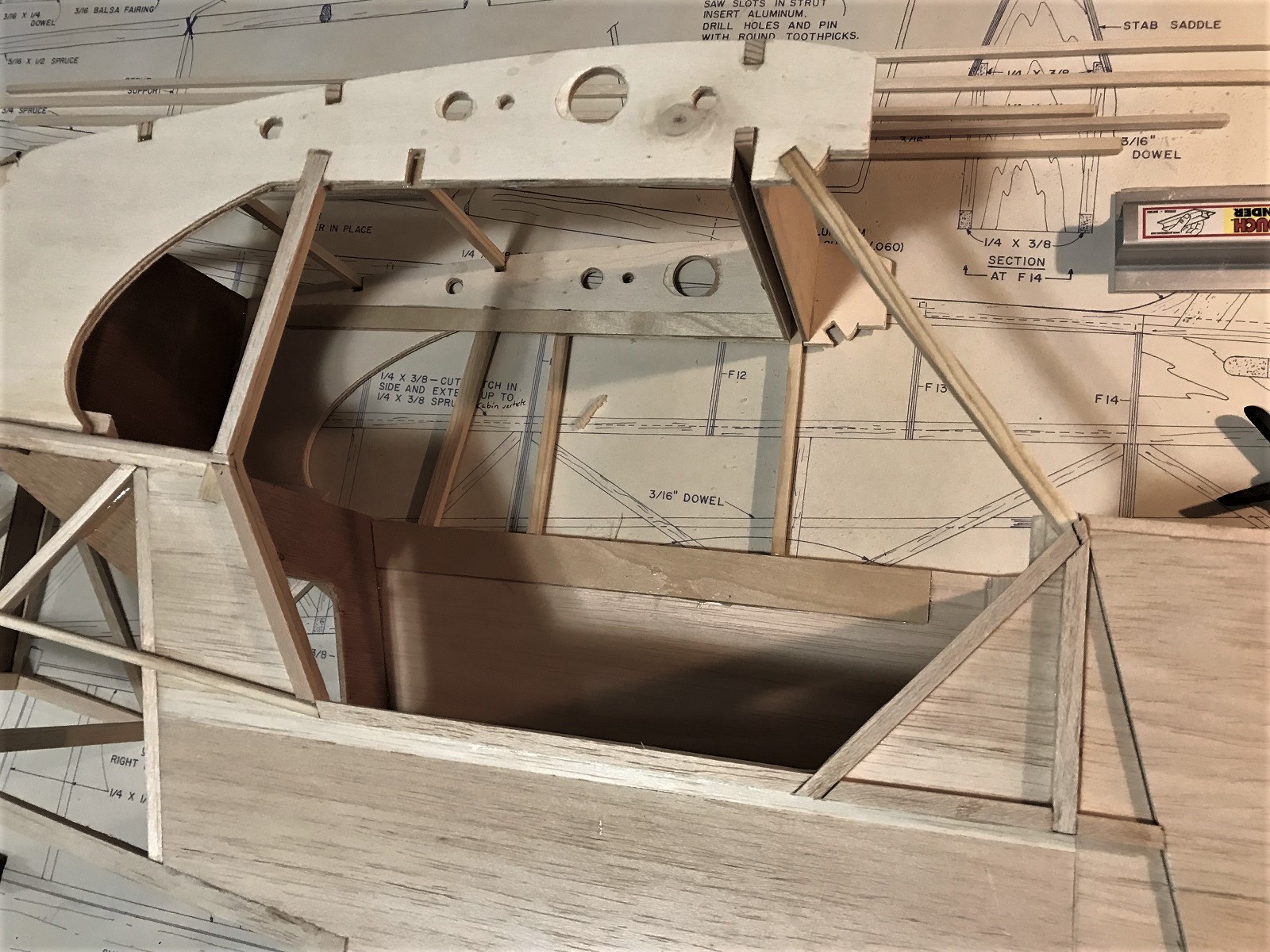

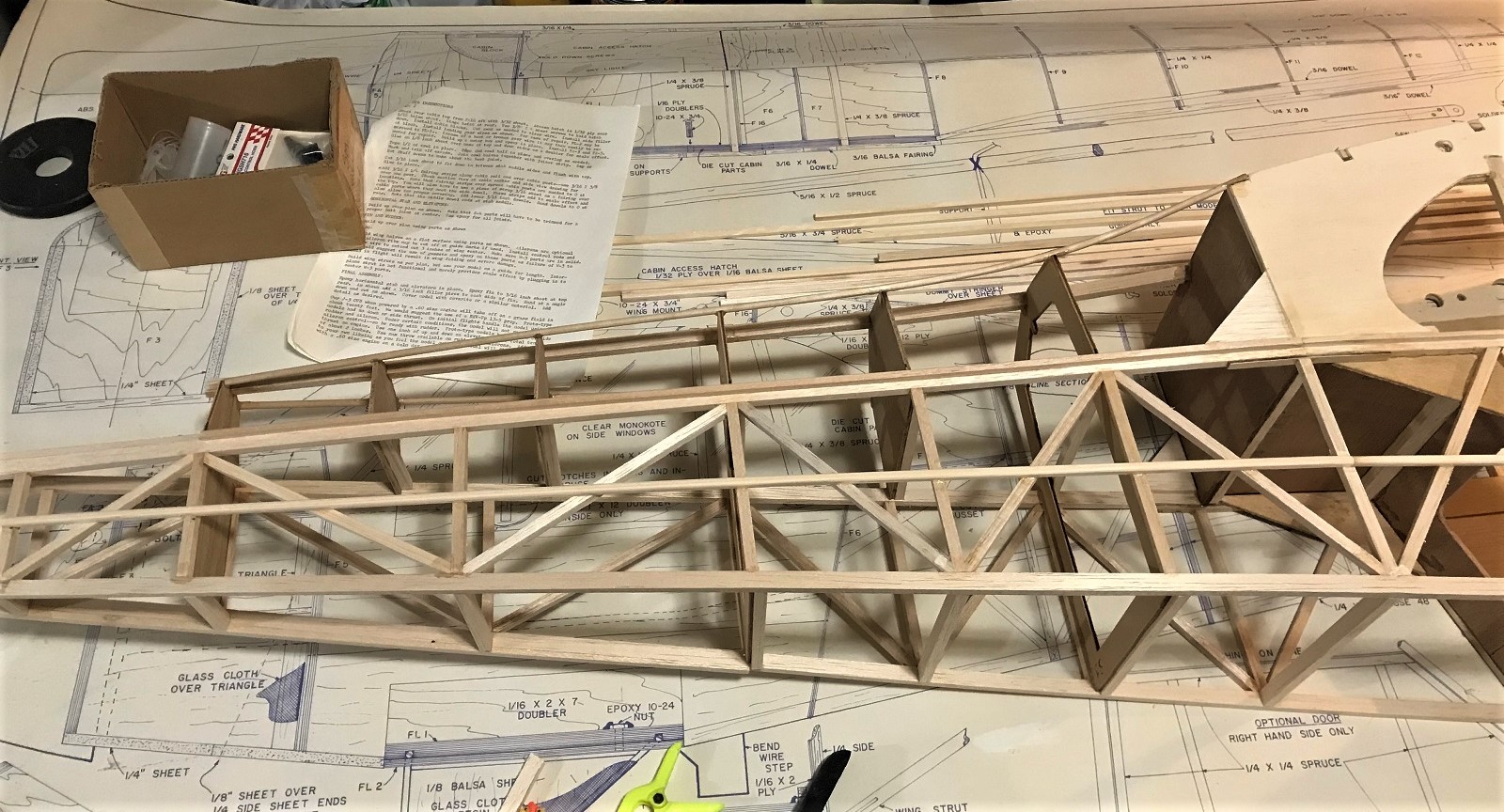

I also found that with the added 1/8" forward sheeting, the firewall is the right shape for the upper sheeting.


Attachments

  • IMG_4364 (2).JPG
    IMG_4364 (2).JPG
    507.5 KB · Views: 62
  • IMG_4366 (2).JPG
    IMG_4366 (2).JPG
    418.3 KB · Views: 60
  • IMG_4368 (2).JPG
    IMG_4368 (2).JPG
    405.8 KB · Views: 53
  • IMG_4369 (2).JPG
    IMG_4369 (2).JPG
    441.3 KB · Views: 60
  • IMG_4370 (2).JPG
    IMG_4370 (2).JPG
    451.1 KB · Views: 65

Stevendavis

70cc twin V2

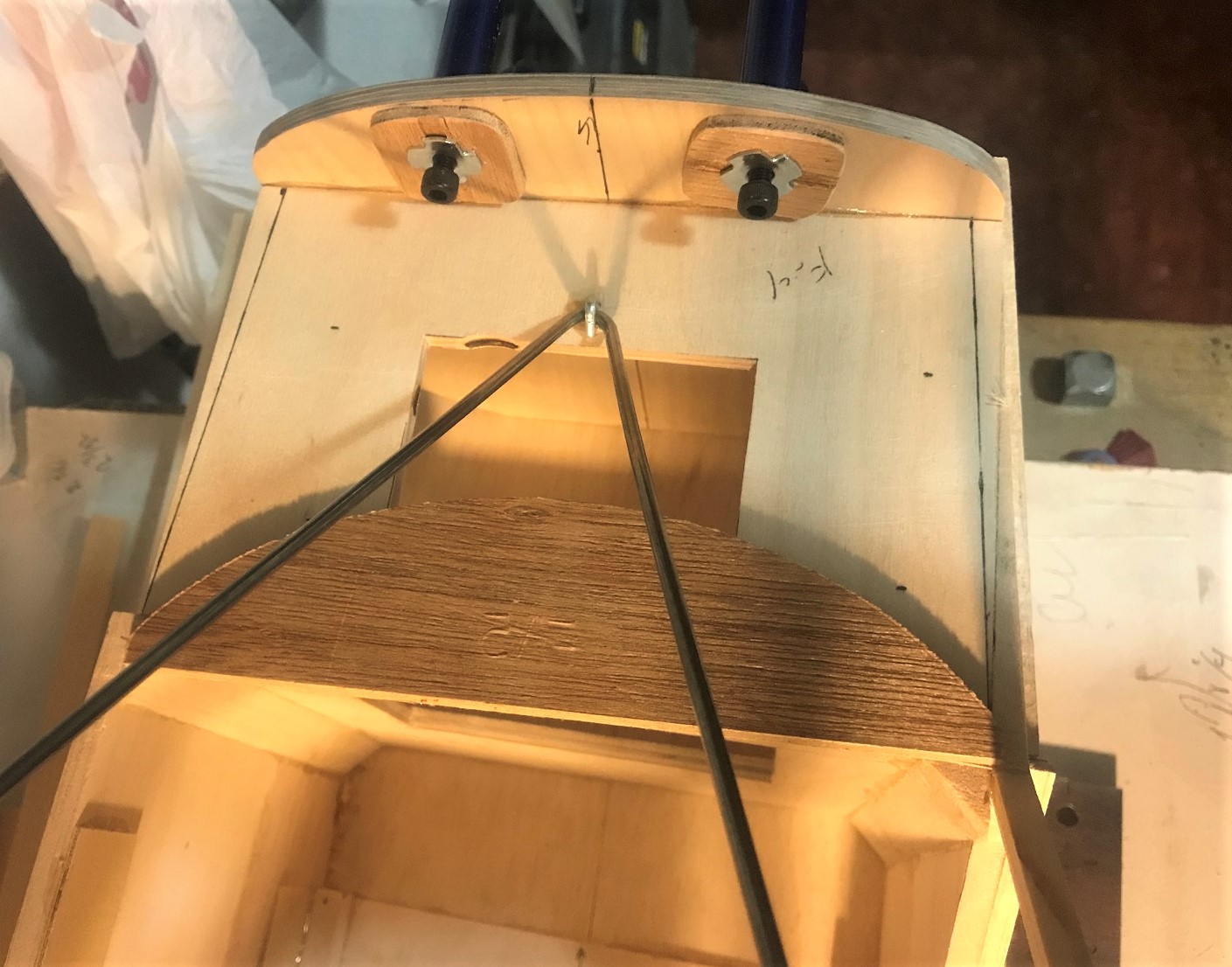

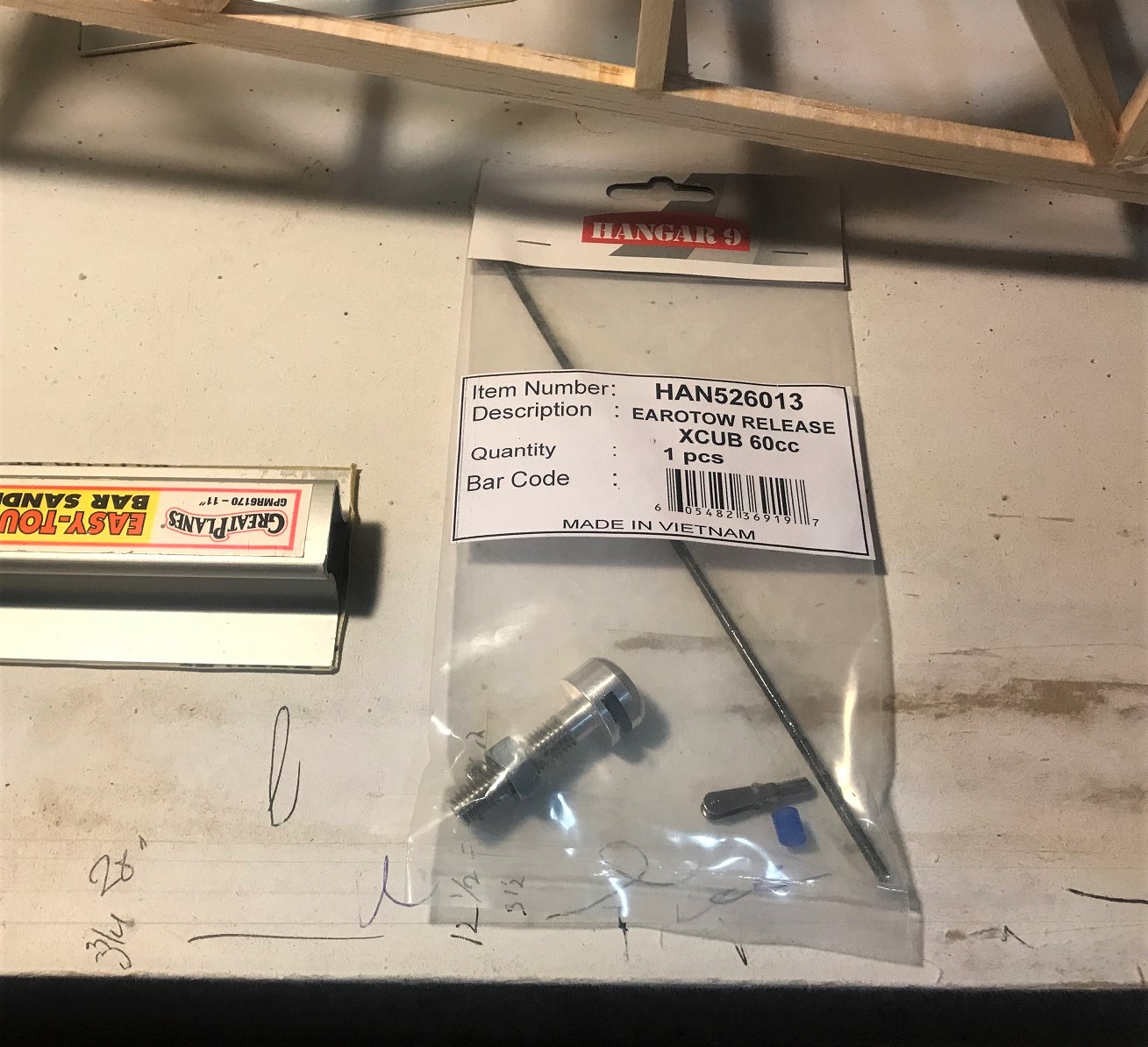

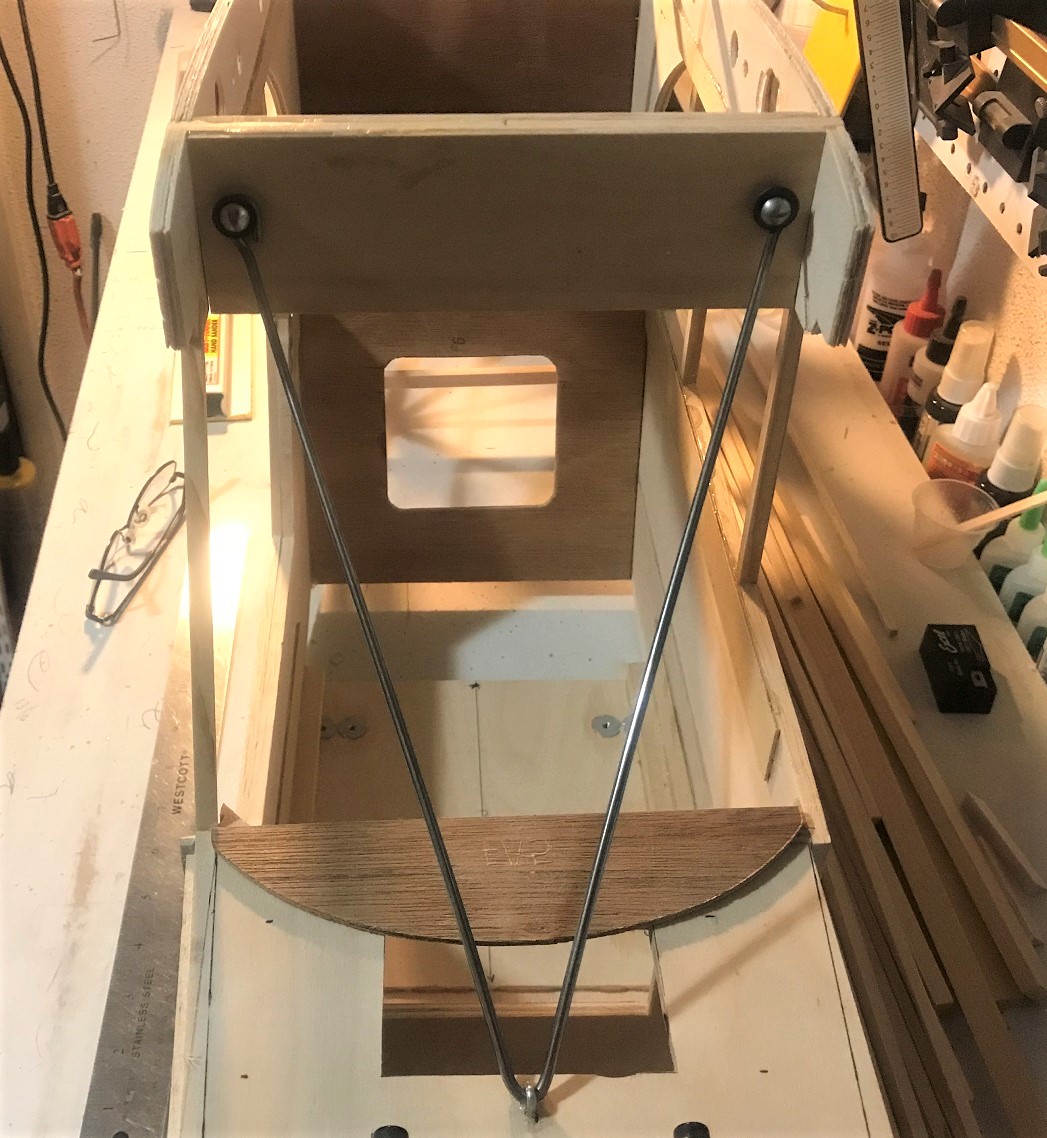

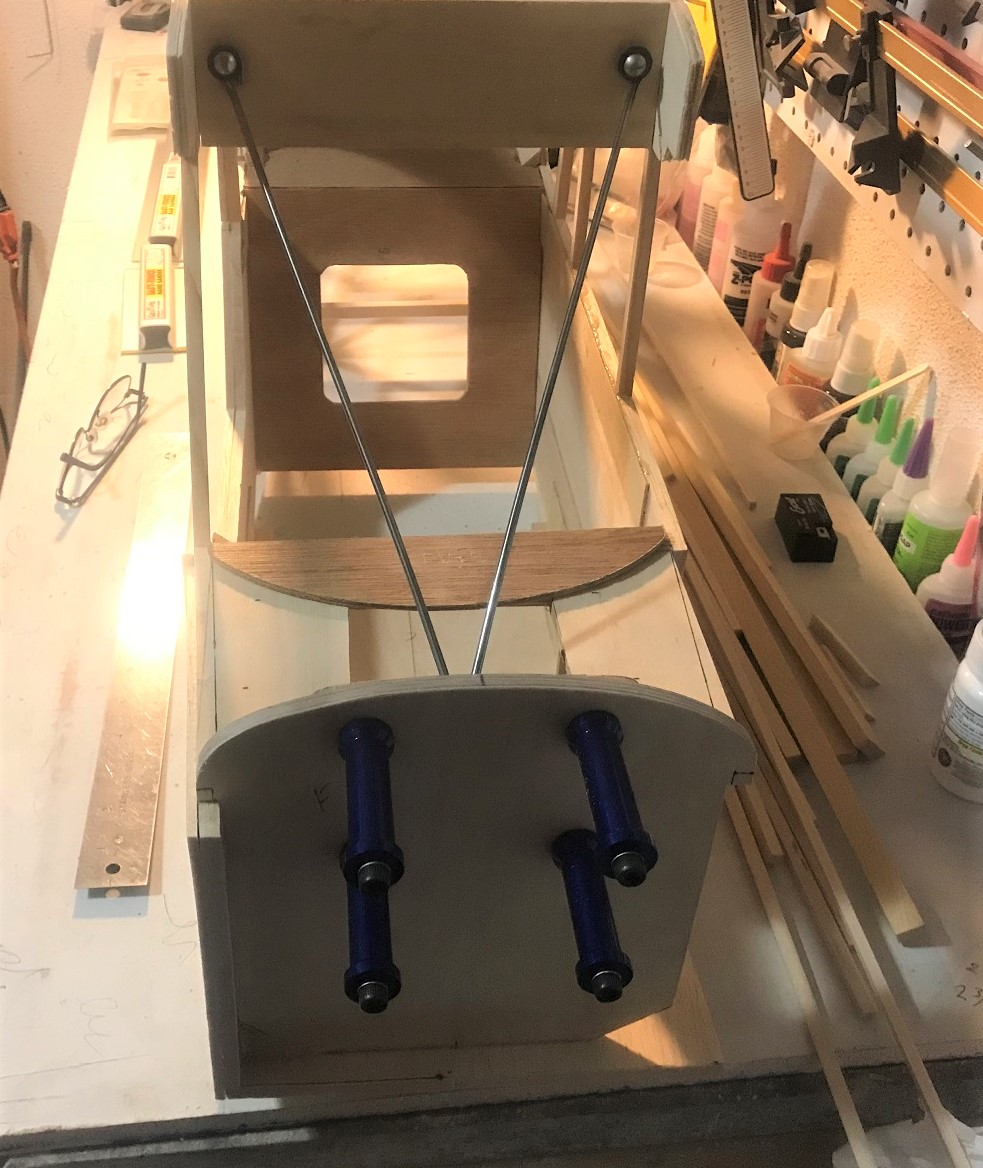

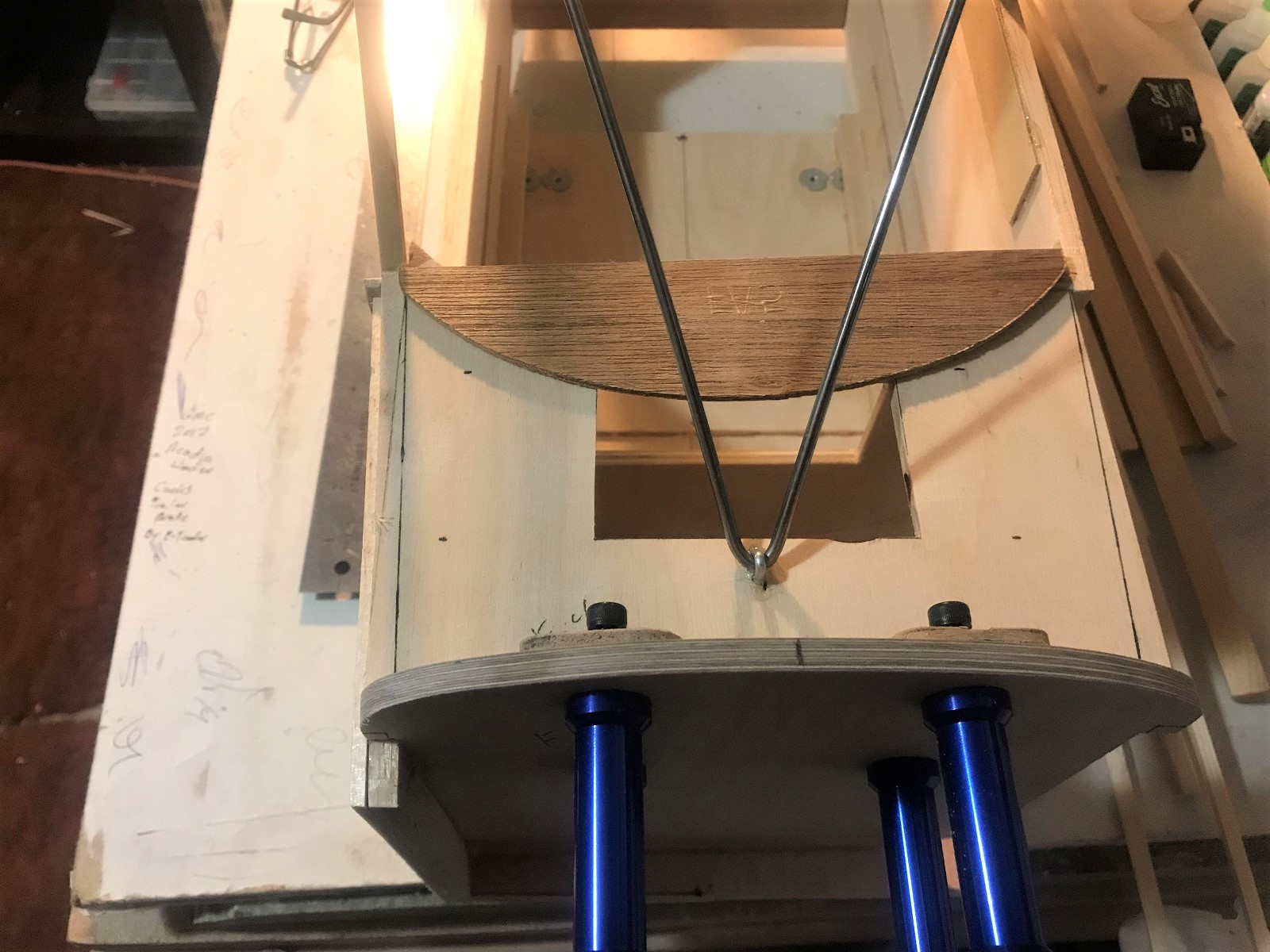

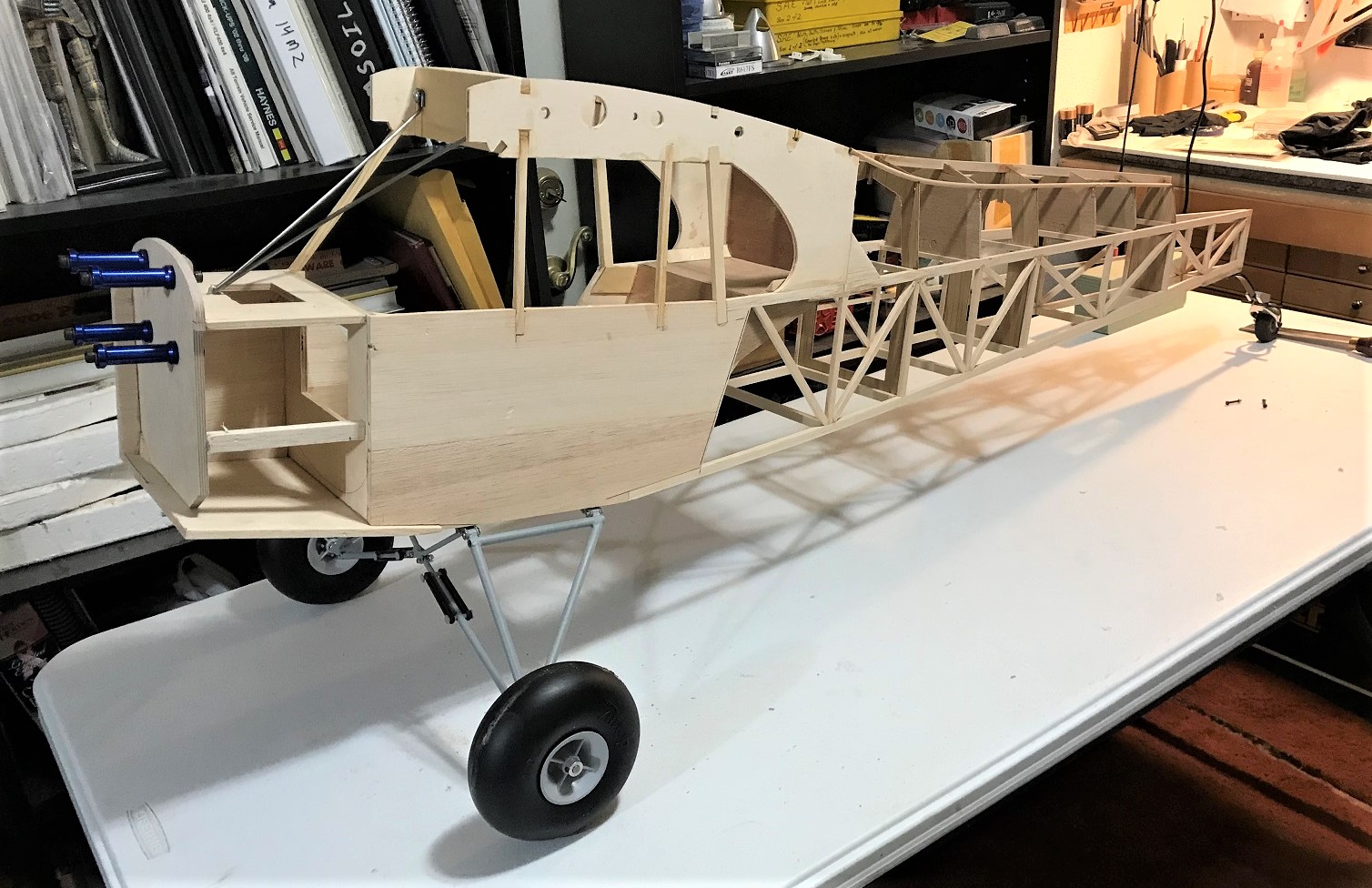

Got the front wire brace in place. Hope it will hold up, as it is the structural integrity of the front cabin top. Has anyone got any advice? I plan on using a lock nut on it and glue! I also have a tow hook I'd like to use on this Cub, but I would have to leave the top fin off. I had to heat up the V-brace wire to make it fit right, as one side was a tad longer than the other. I've got the engine standoff bolts running through the back of the blind nuts for now. I may cut the heads off, or just keep it like it is.


Attachments

  • IMG_4373 (2).JPG
    IMG_4373 (2).JPG
    306.5 KB · Views: 52
  • IMG_4374 (2).JPG
    IMG_4374 (2).JPG
    269.8 KB · Views: 53
  • IMG_4375 (2).JPG
    IMG_4375 (2).JPG
    430.3 KB · Views: 53
  • IMG_4376 (2).JPG
    IMG_4376 (2).JPG
    350.9 KB · Views: 51
  • IMG_4377 (2).JPG
    IMG_4377 (2).JPG
    308.8 KB · Views: 62

Stevendavis

70cc twin V2

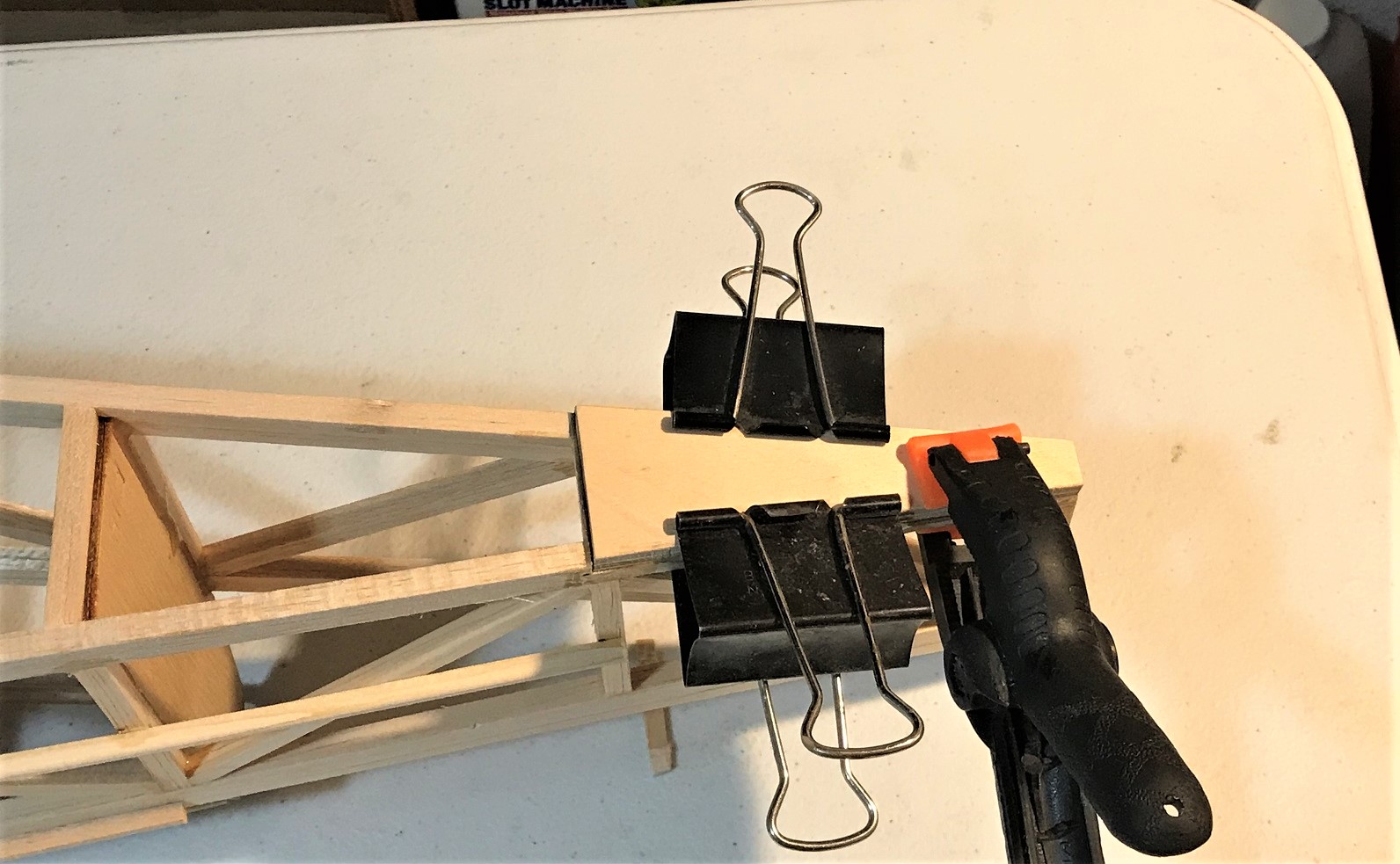

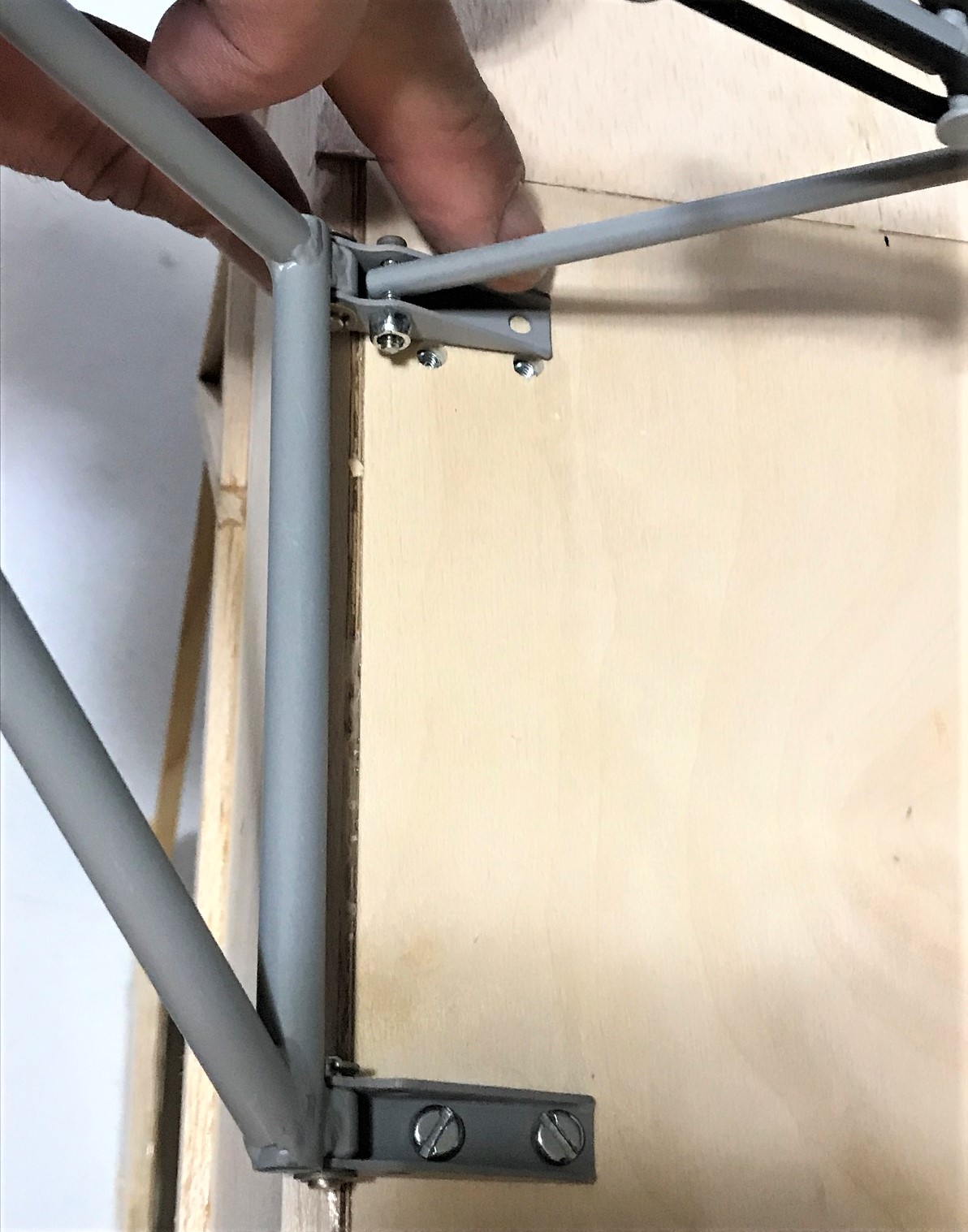

Did a little work today and found another issue. The template that came with my Robart gear doesn't match up with the gear, so double check it if you use it. I used it before I glued the gear plate in, so I'll have to fix it. Got the tail gear plate installed. I recessed it a bit. The Hanger 9 tailwheel is a little big, but I think it will work out.


Attachments

  • IMG_4379 (2).JPG
    IMG_4379 (2).JPG
    294.1 KB · Views: 47
  • IMG_4380 (2).JPG
    IMG_4380 (2).JPG
    296.1 KB · Views: 55
  • IMG_4383 (2).JPG
    IMG_4383 (2).JPG
    375.4 KB · Views: 50
